The Beast...she lives!!! MUAHAHAA!!! /ubbthreads/images//graemlins/grin.gif

So, the new motor is finally done, installed, and running. Idles perfectly at 850, man is this thing smooth running. So far I've put about 700 miles on it already, has seen no more then 50% throttle, and 5k a few times here and there, running only 10 psi, on a B16G through the break in.

Here's a few pics of it all.

Rebuild at 271k

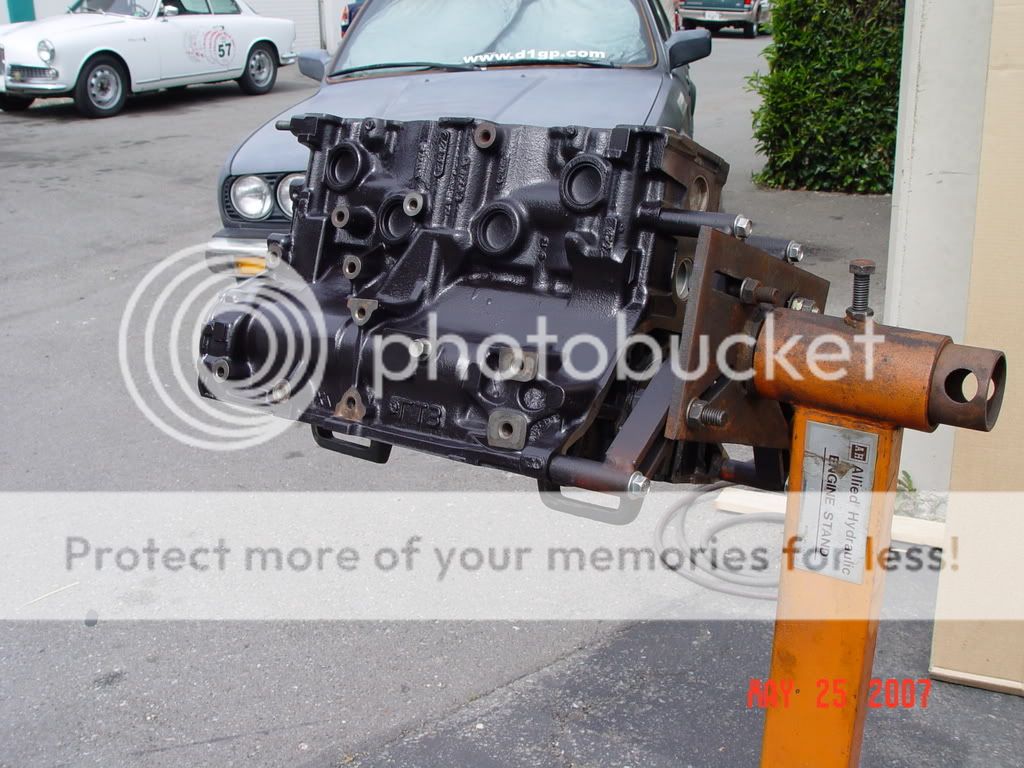

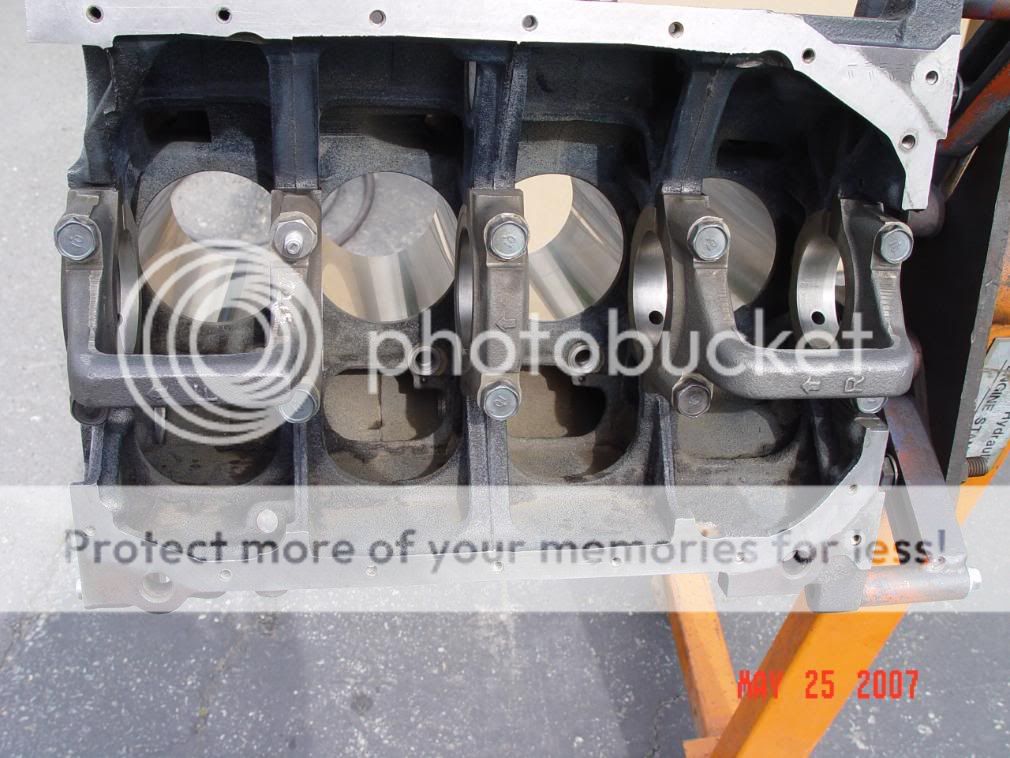

Parts pile fresh from cryotreatment, and the machinist, for balancing, bore, etc...

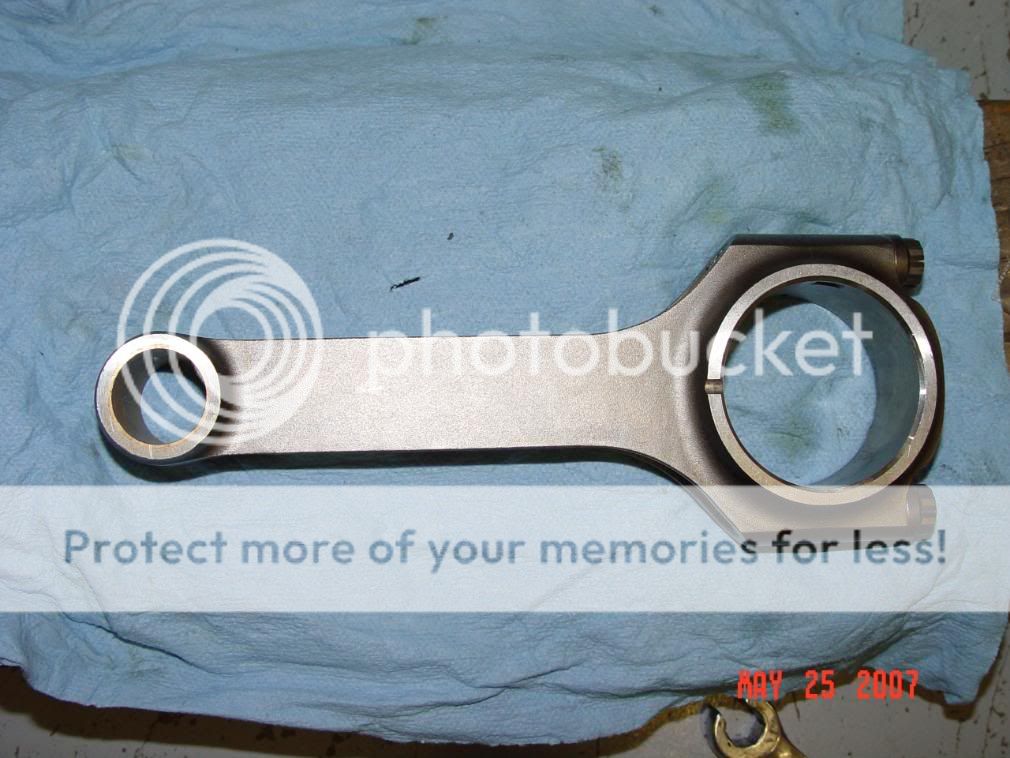

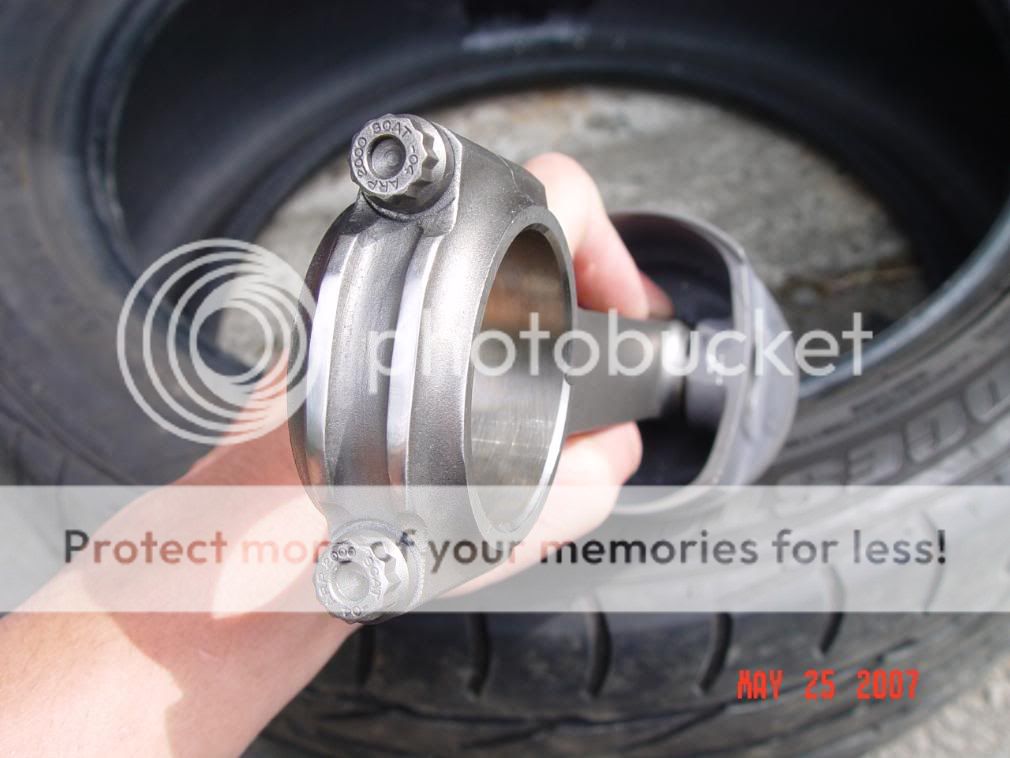

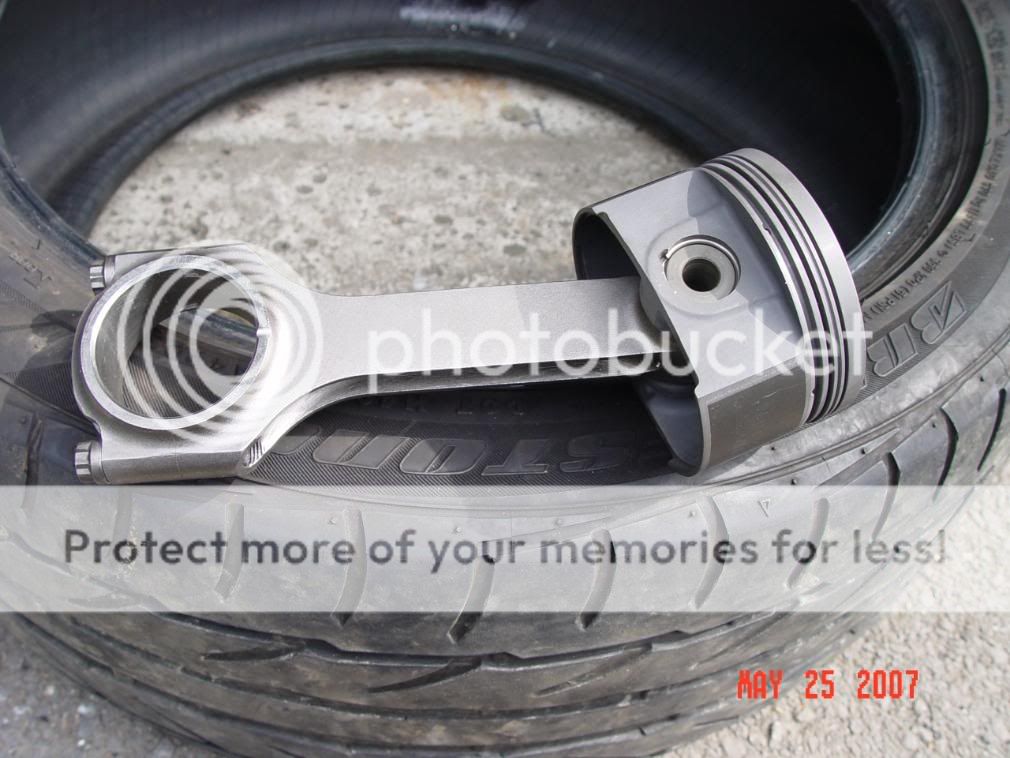

Mahle Pistons/Scat Rods

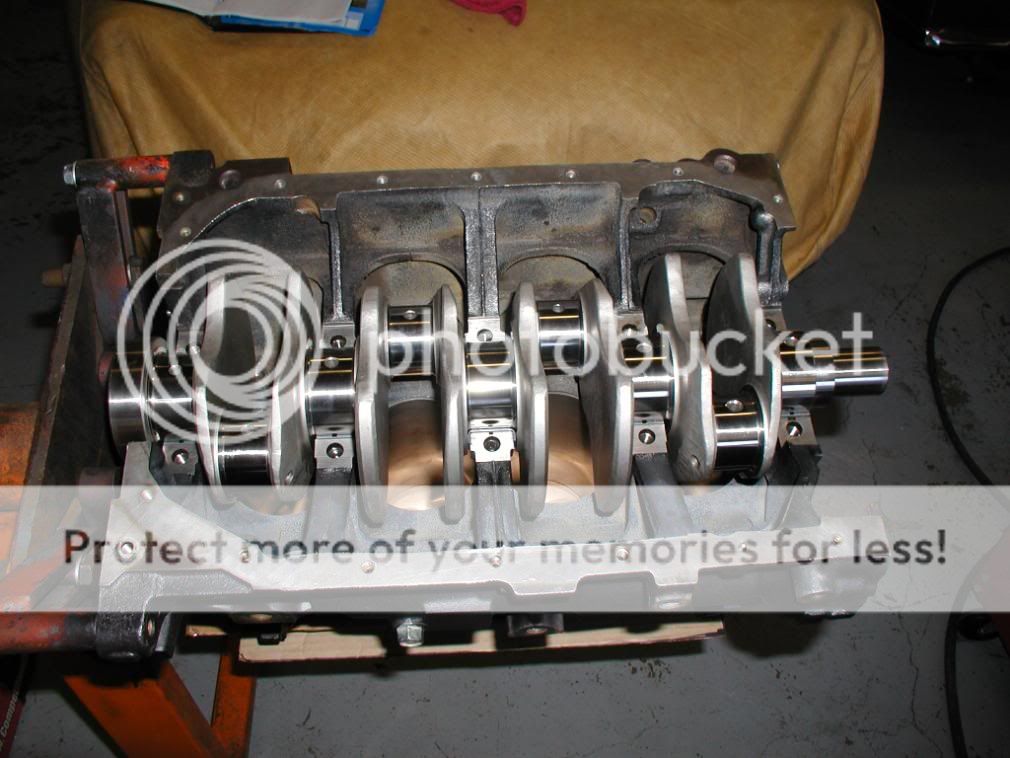

New Eagle Crank

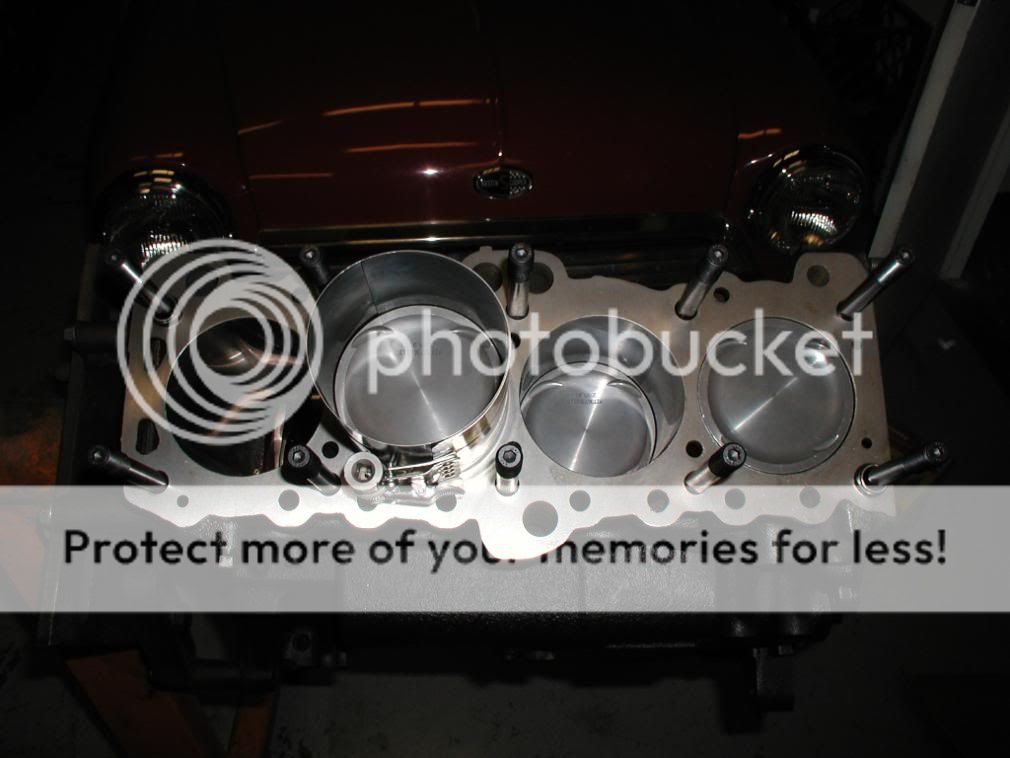

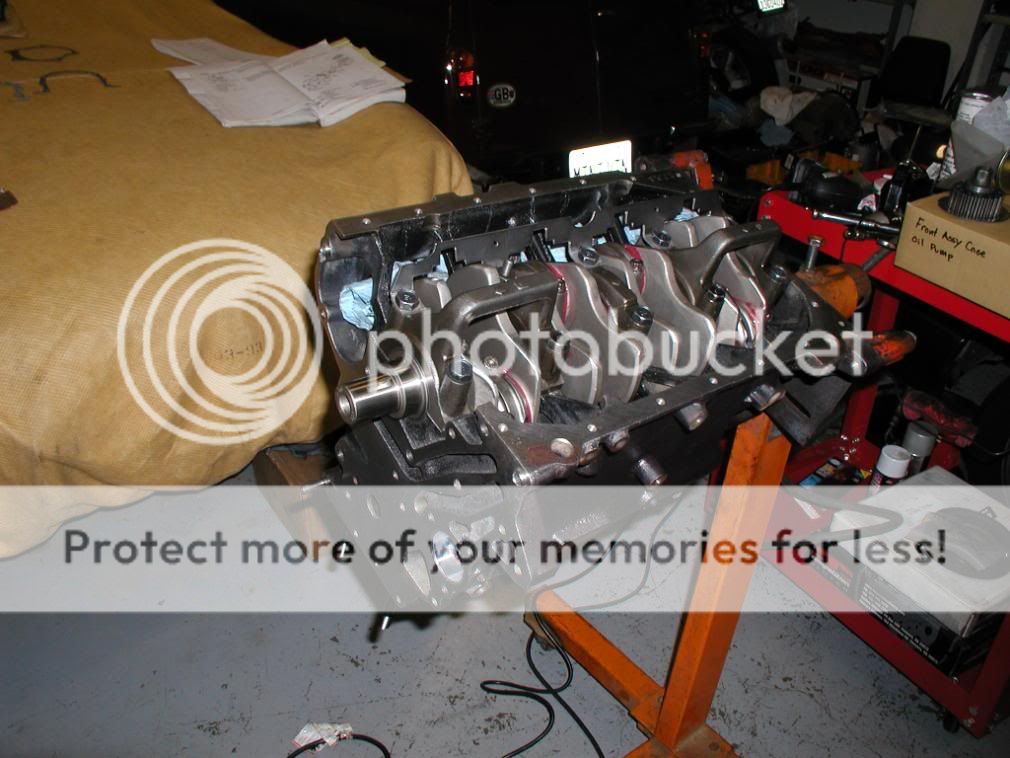

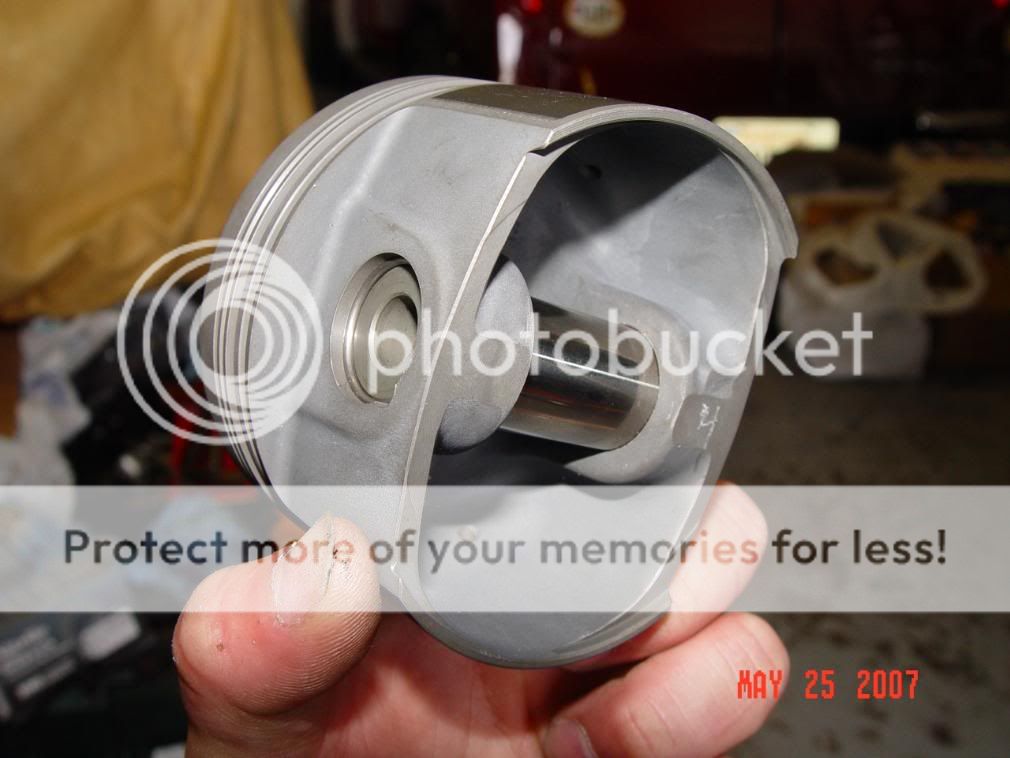

Installing the pistons

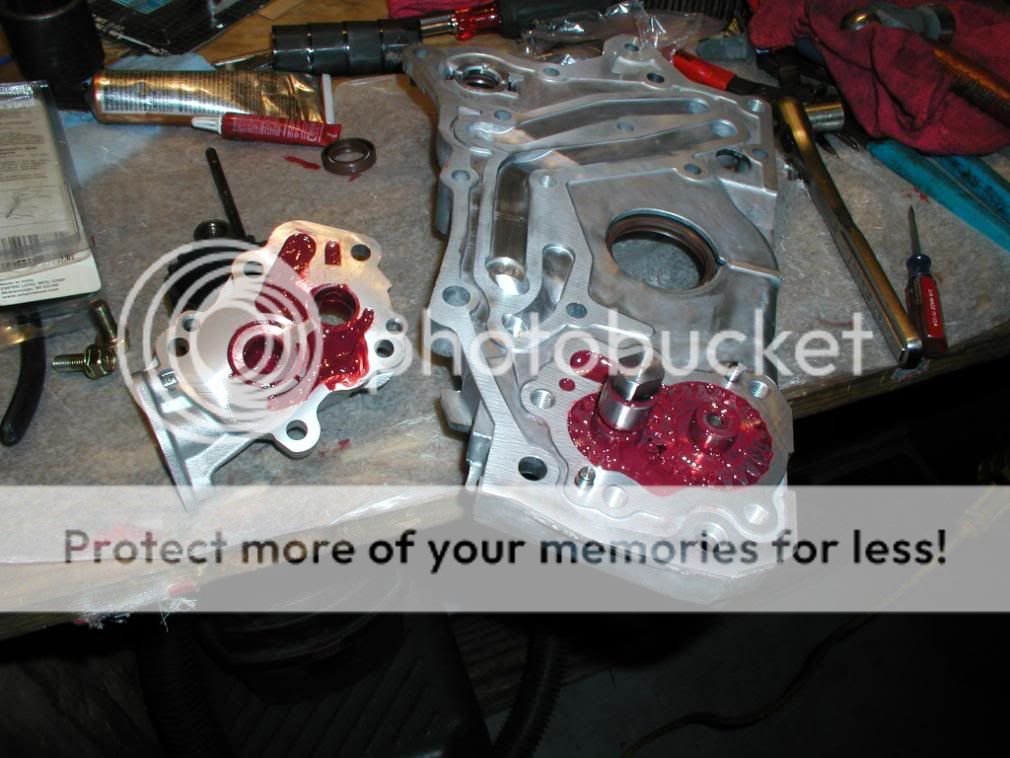

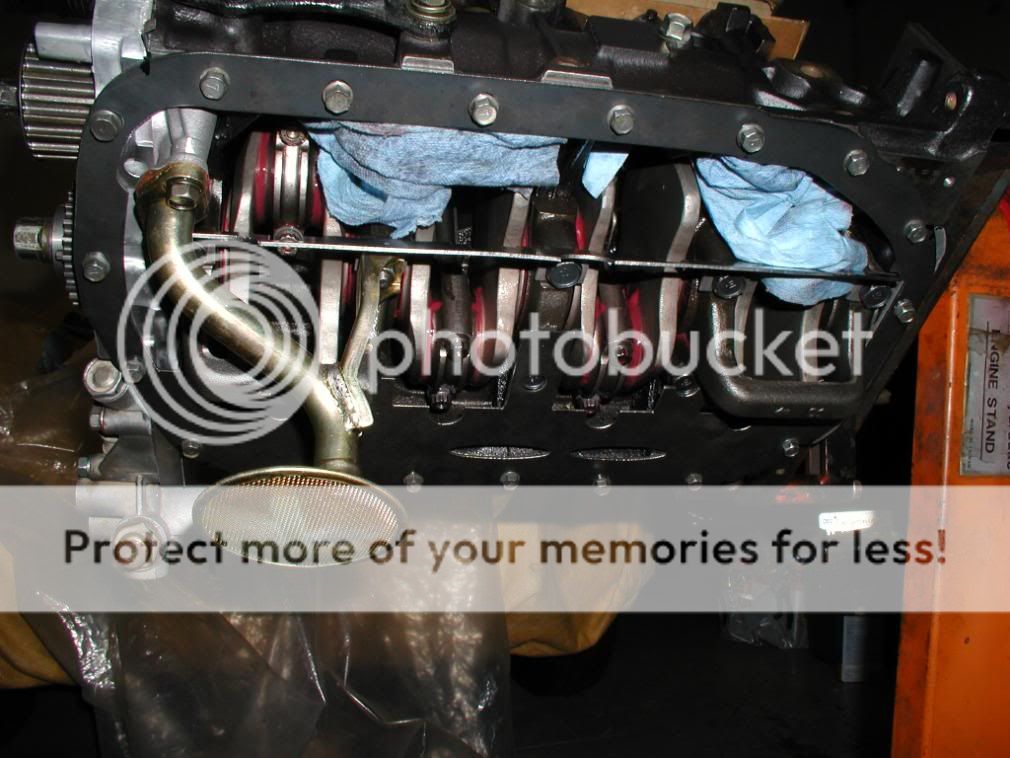

Packing the front cover/Oil Pump

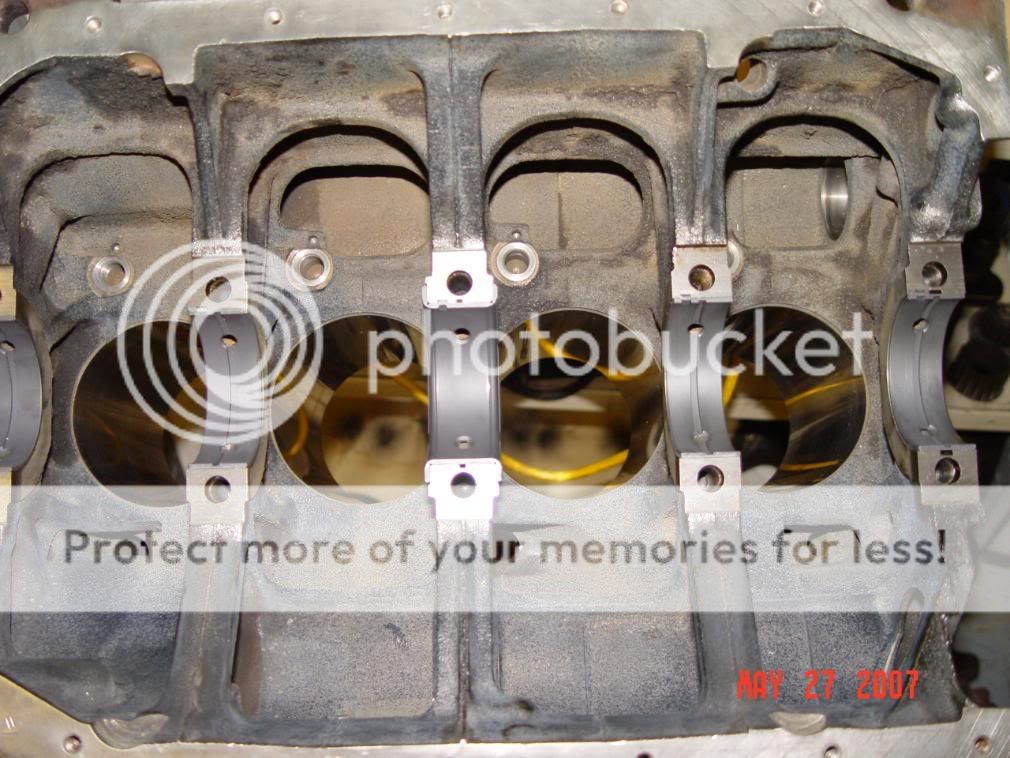

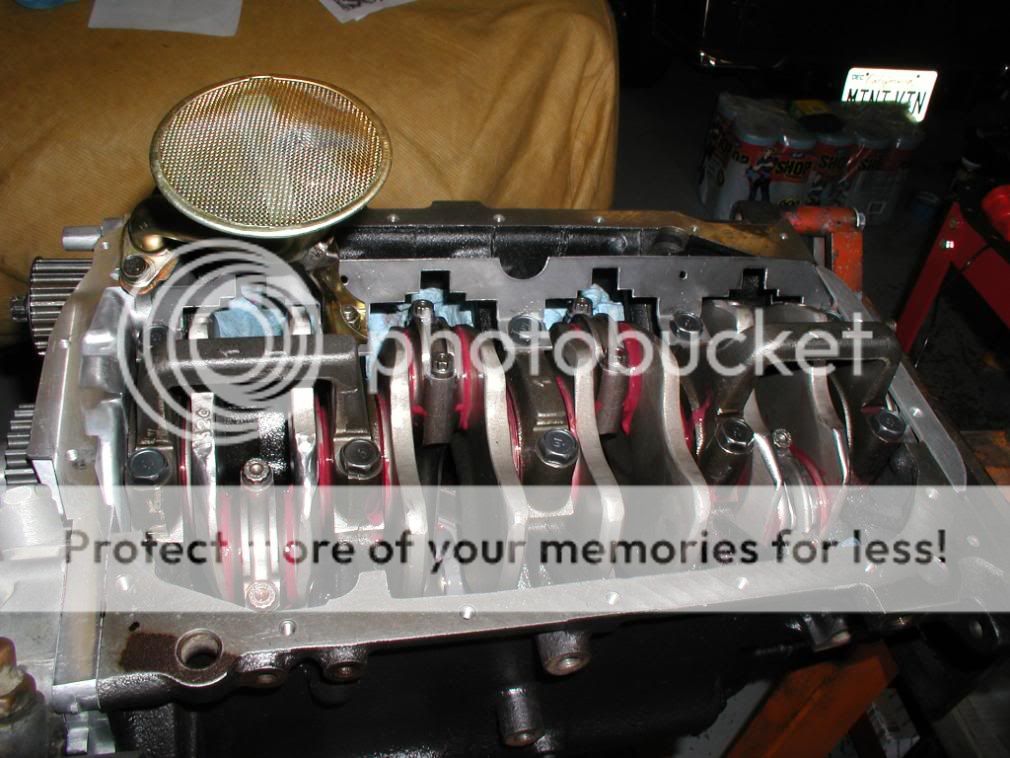

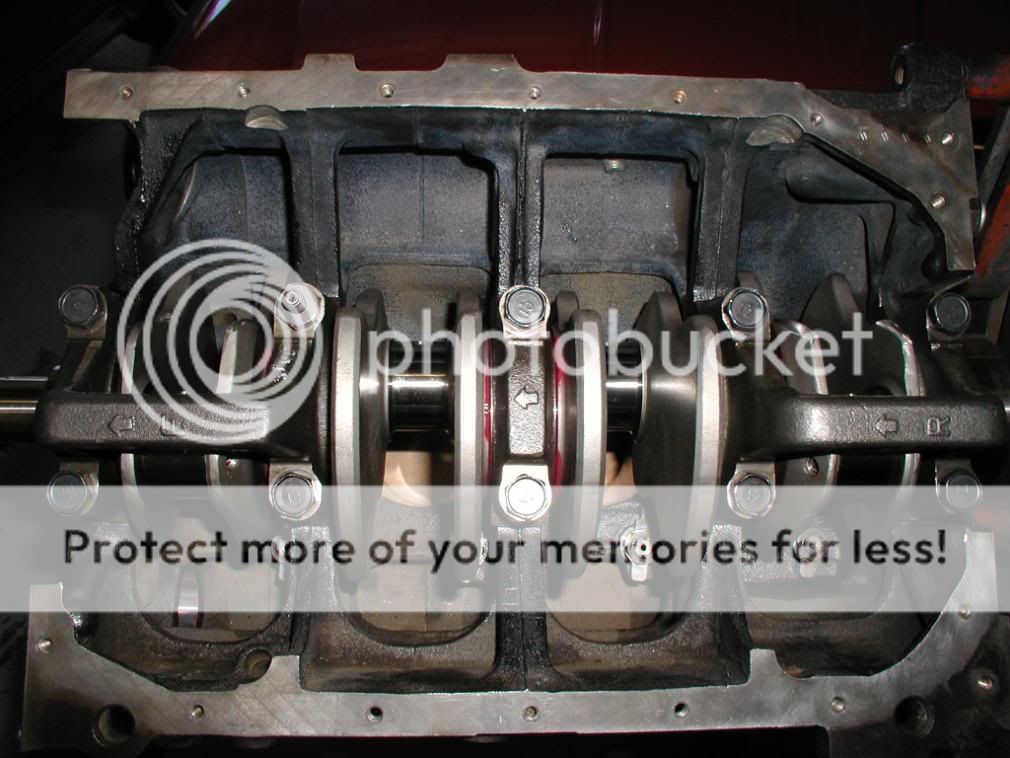

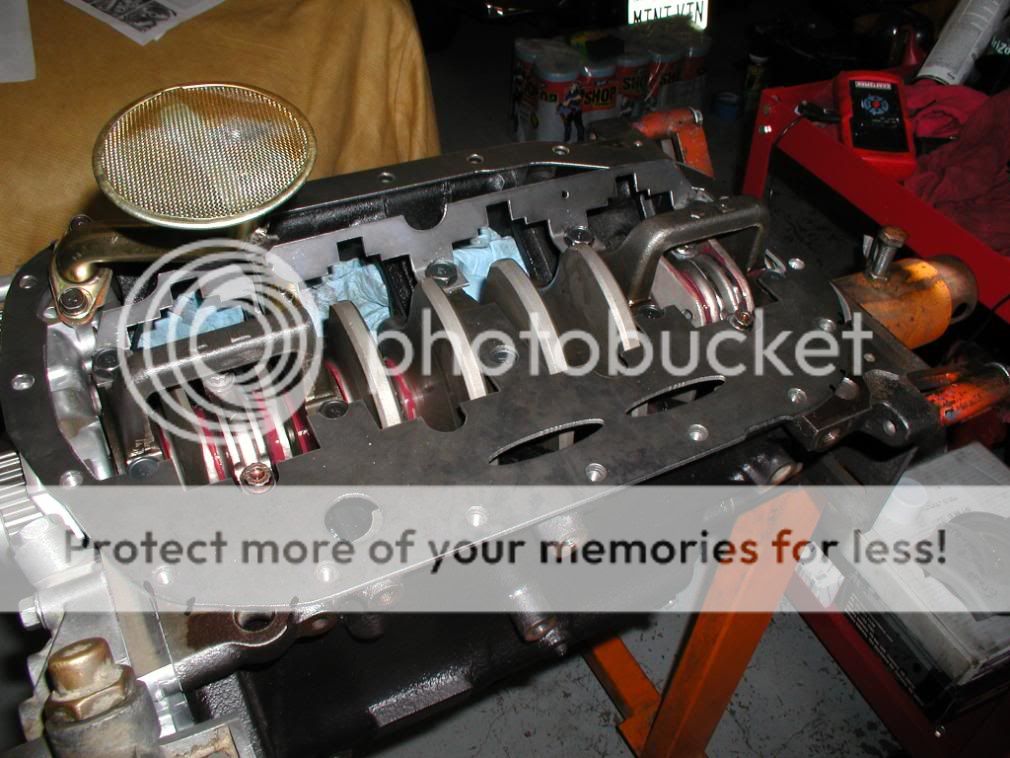

Bottom end assembled

Scraper

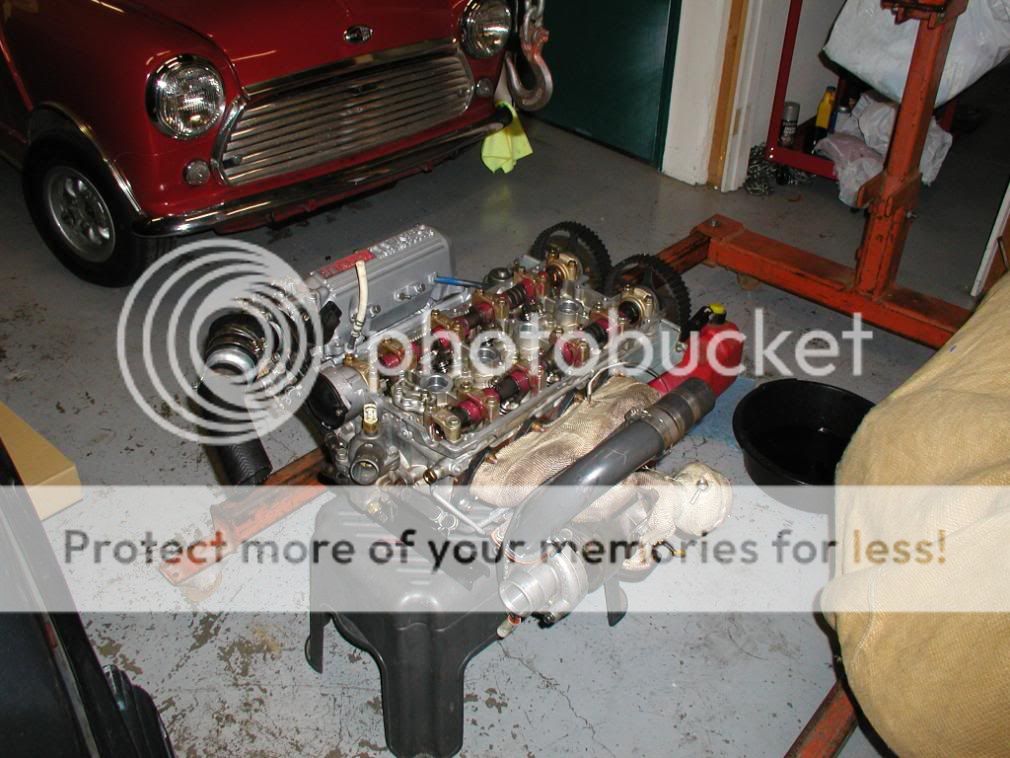

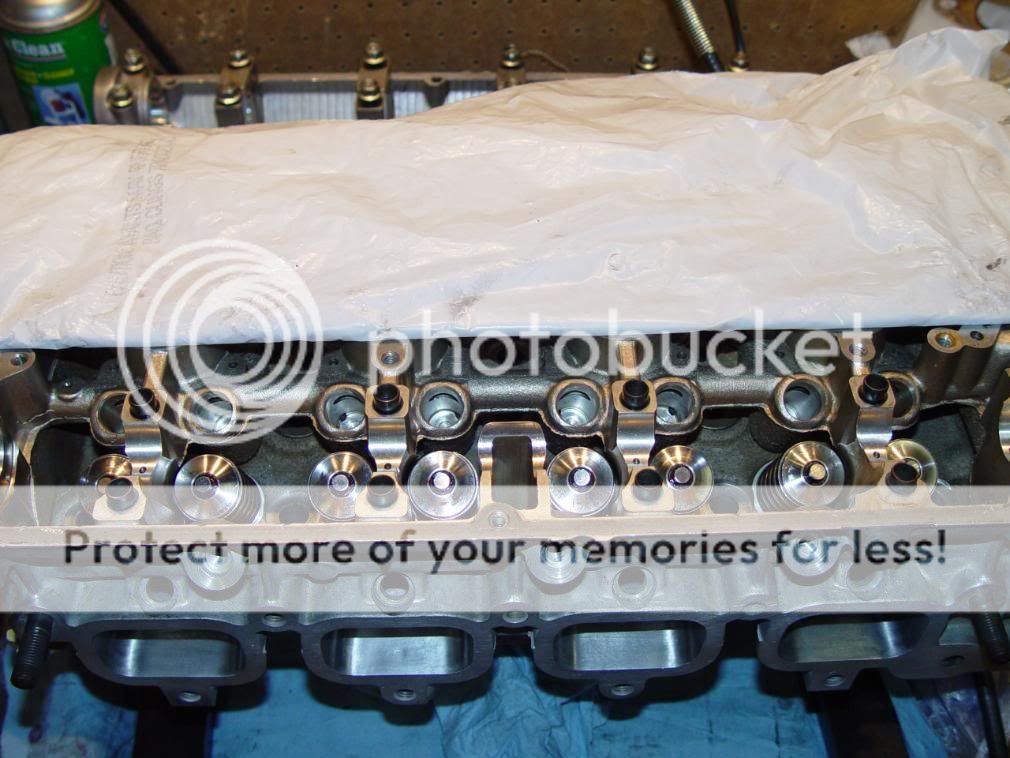

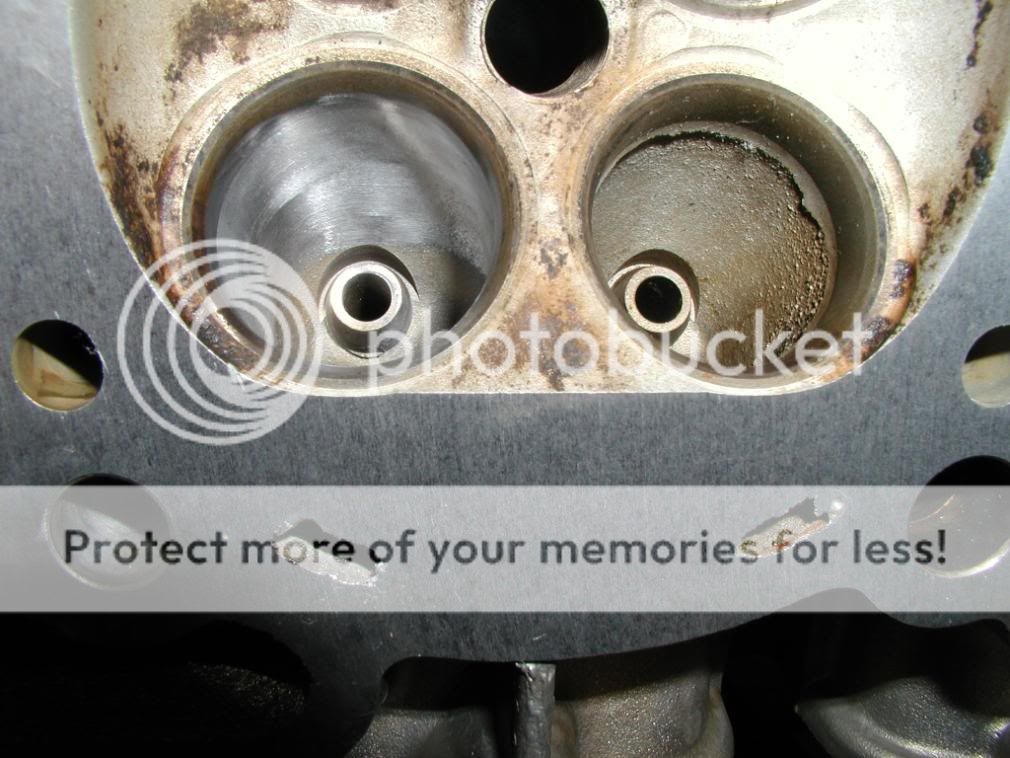

Cleaning up the head

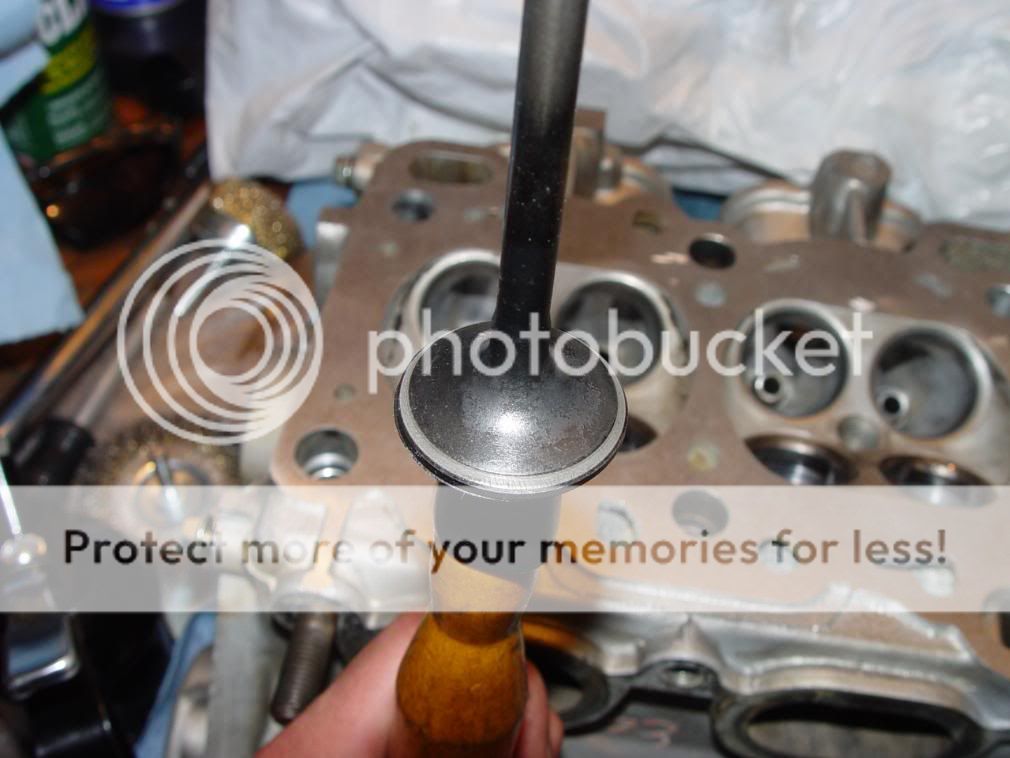

Evo IX Valves

Supertech Dual Springs, Ti retainers, Manley Locks

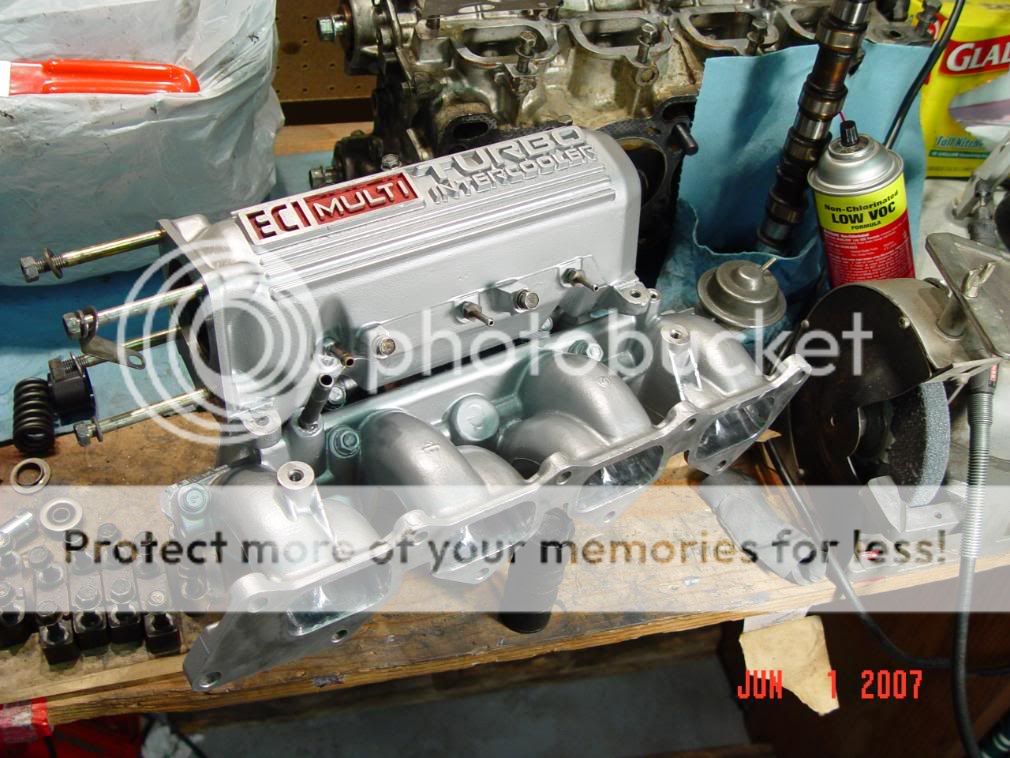

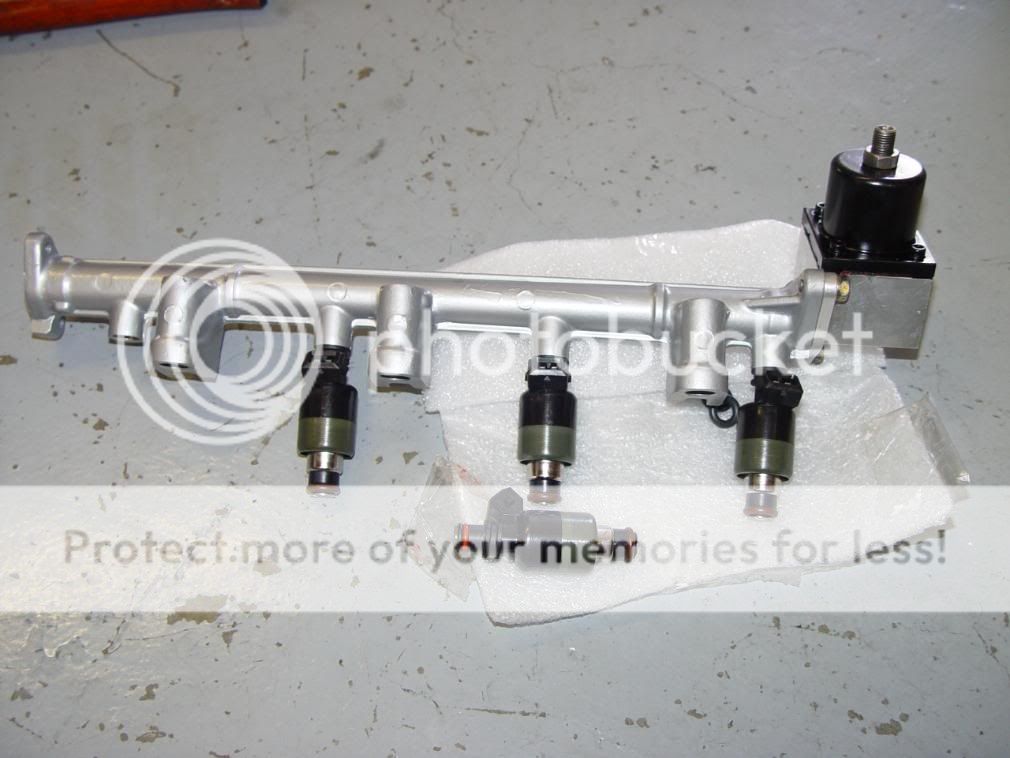

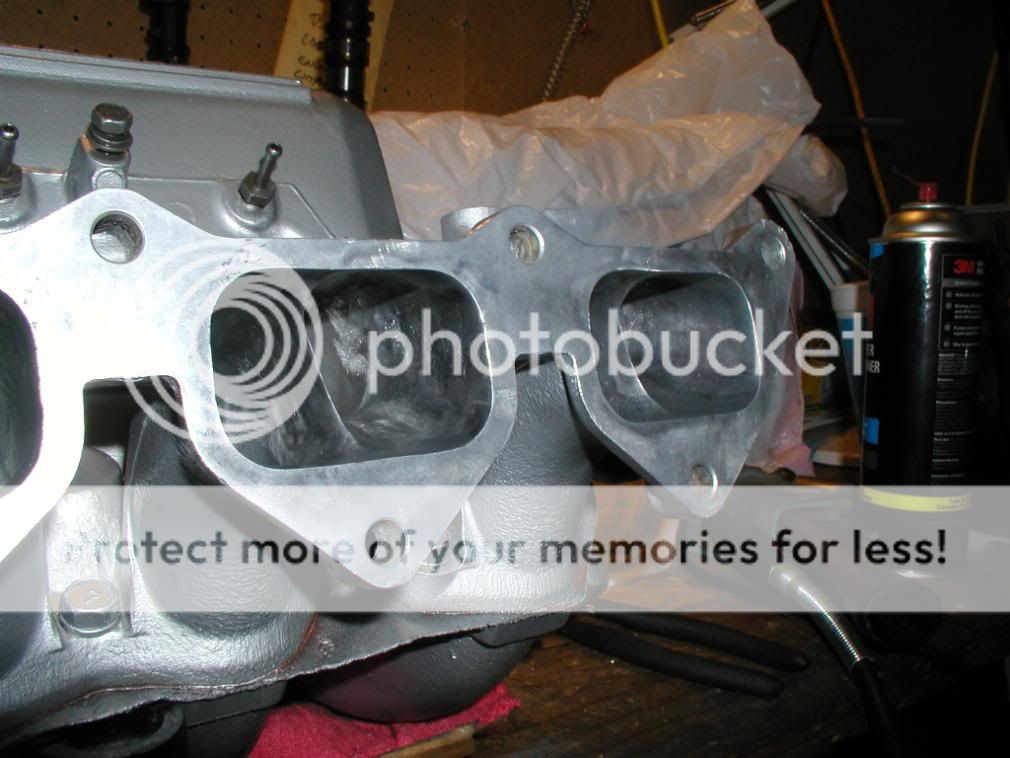

Cleaning up the Intake

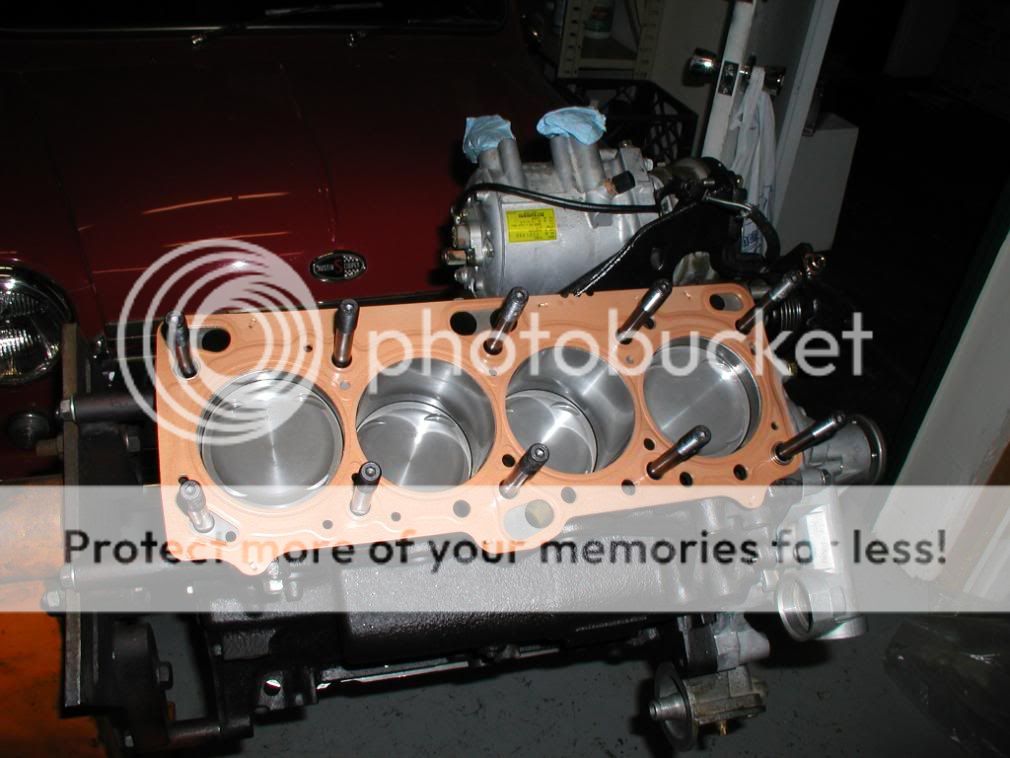

Head Assembled

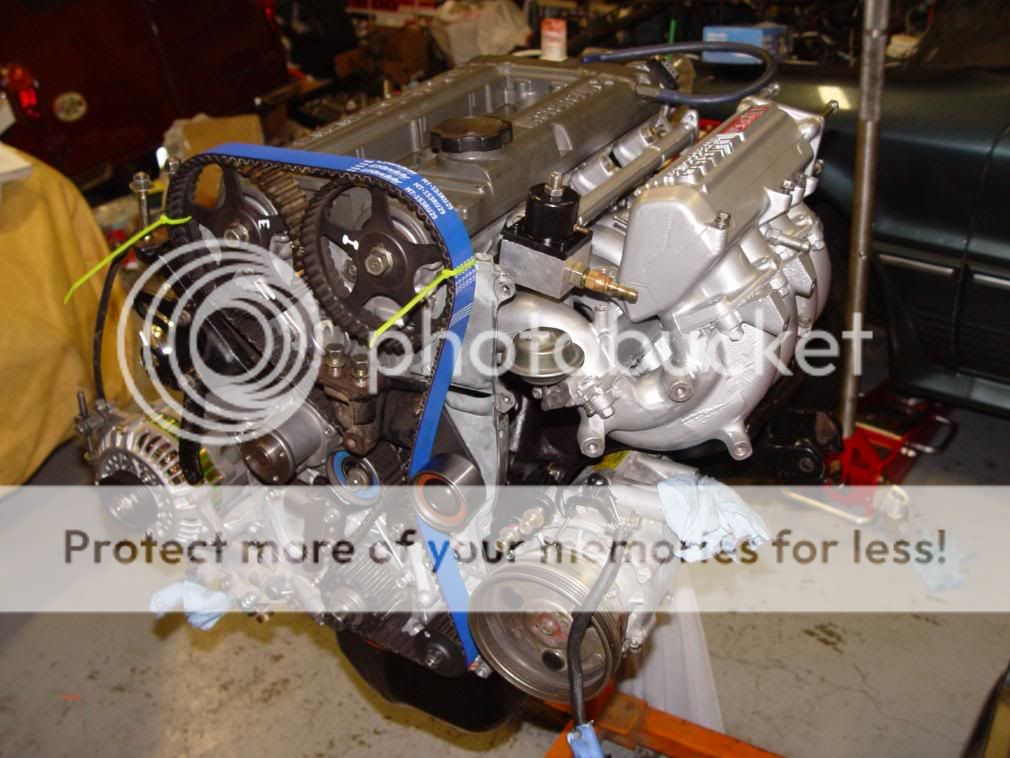

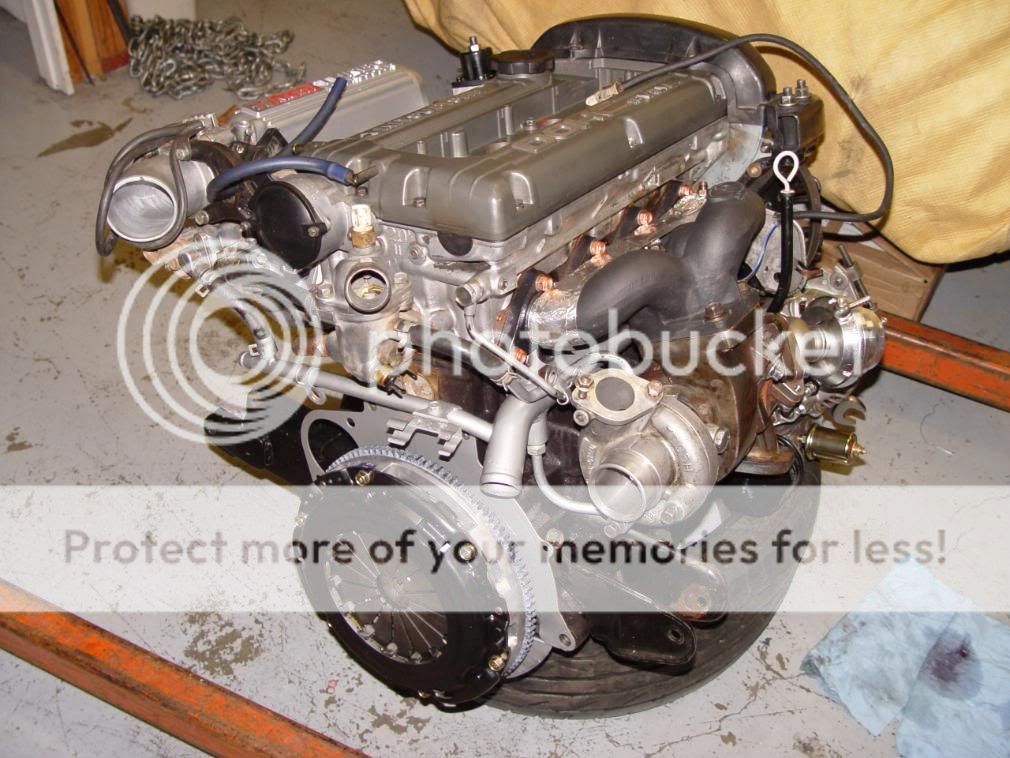

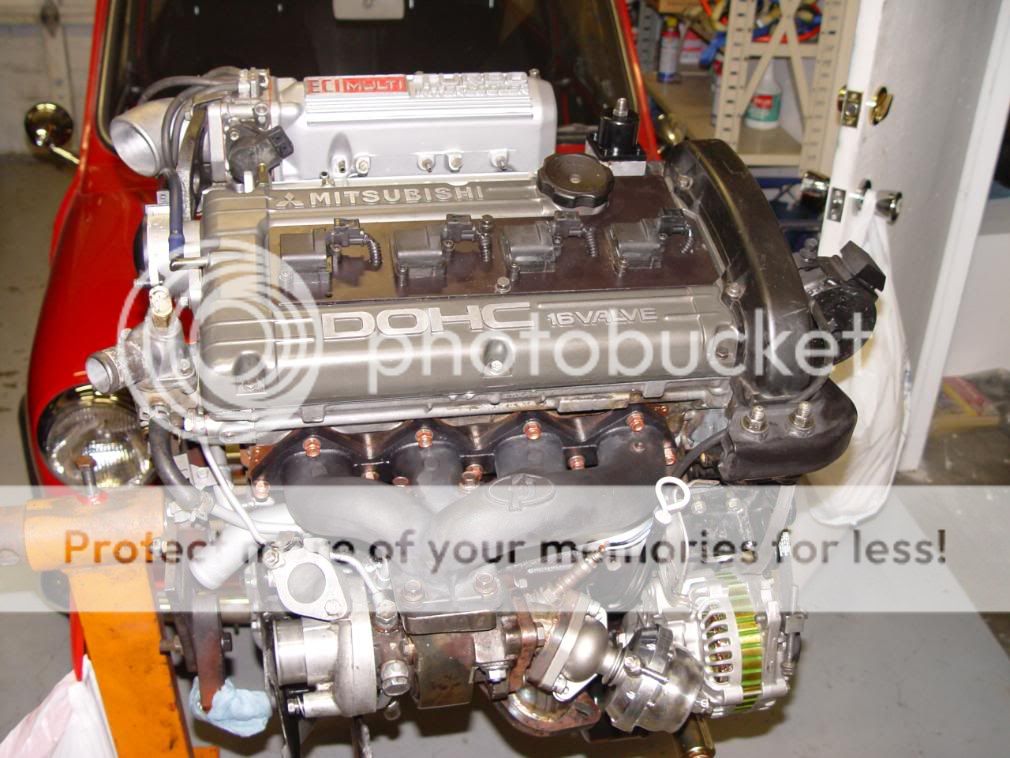

Assembled

In she goes

While she was down, I also did a number of repairs/maintenance, wheel bearings, brakes,
rebuilt the driveshaft (yoke, UV's, carriers), Fixed and replaced
various/missing subframe pieces, cleaning, Wiring, etc..etc..etc... (Too much
time and money to list)

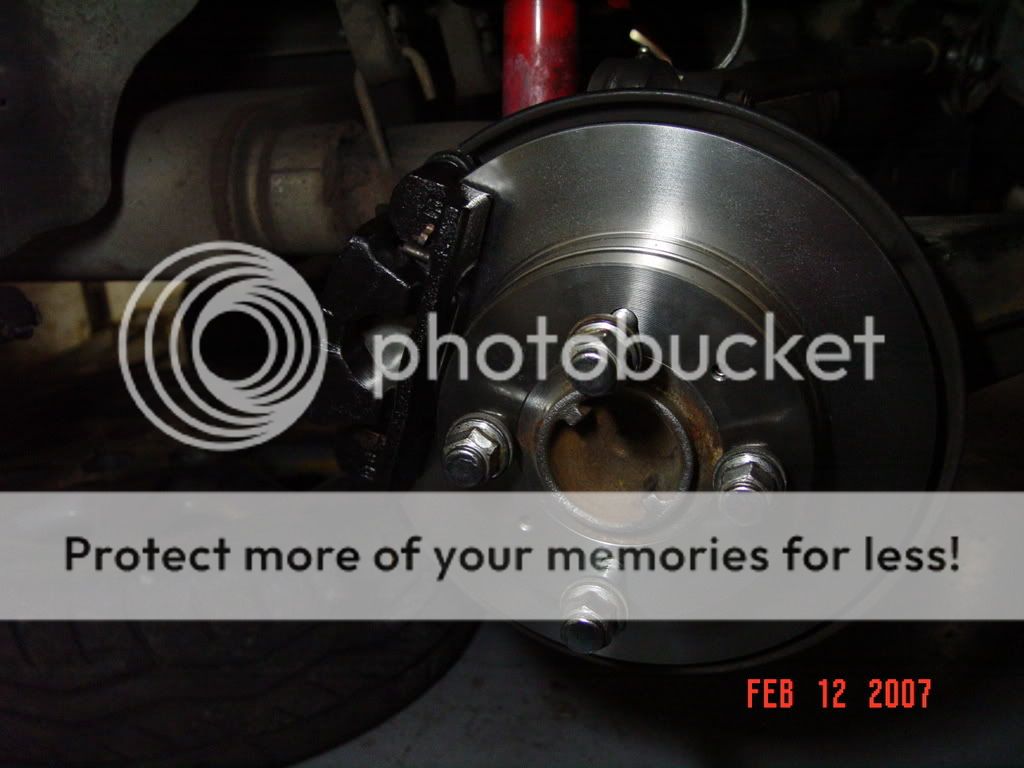

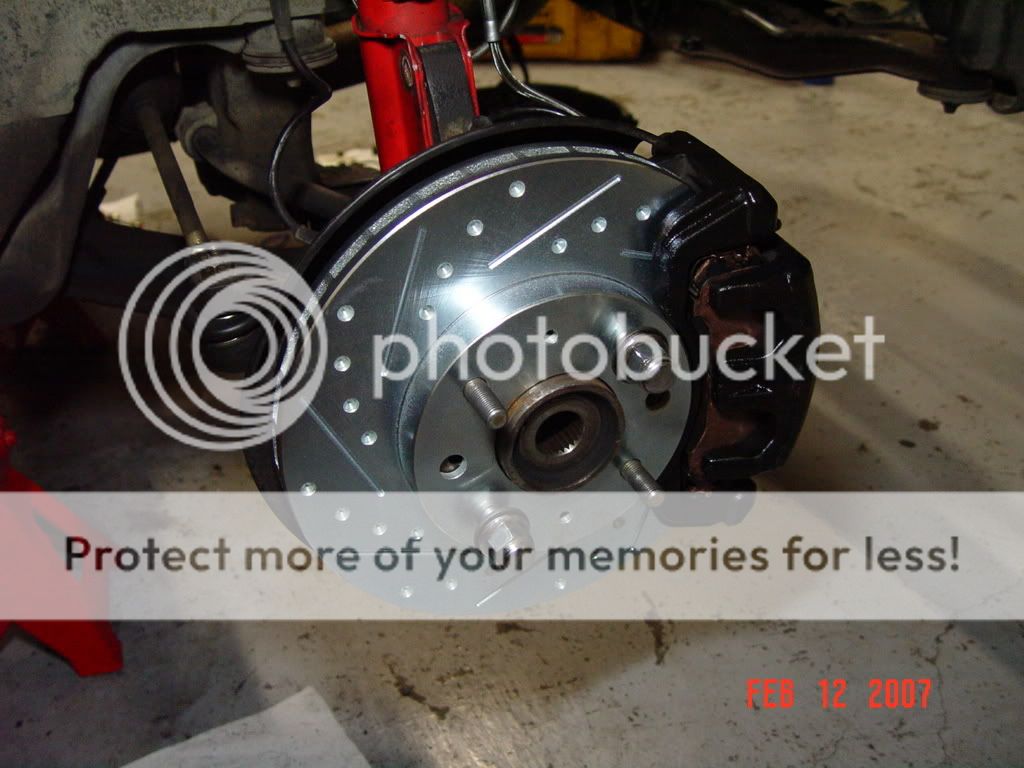

Brakes

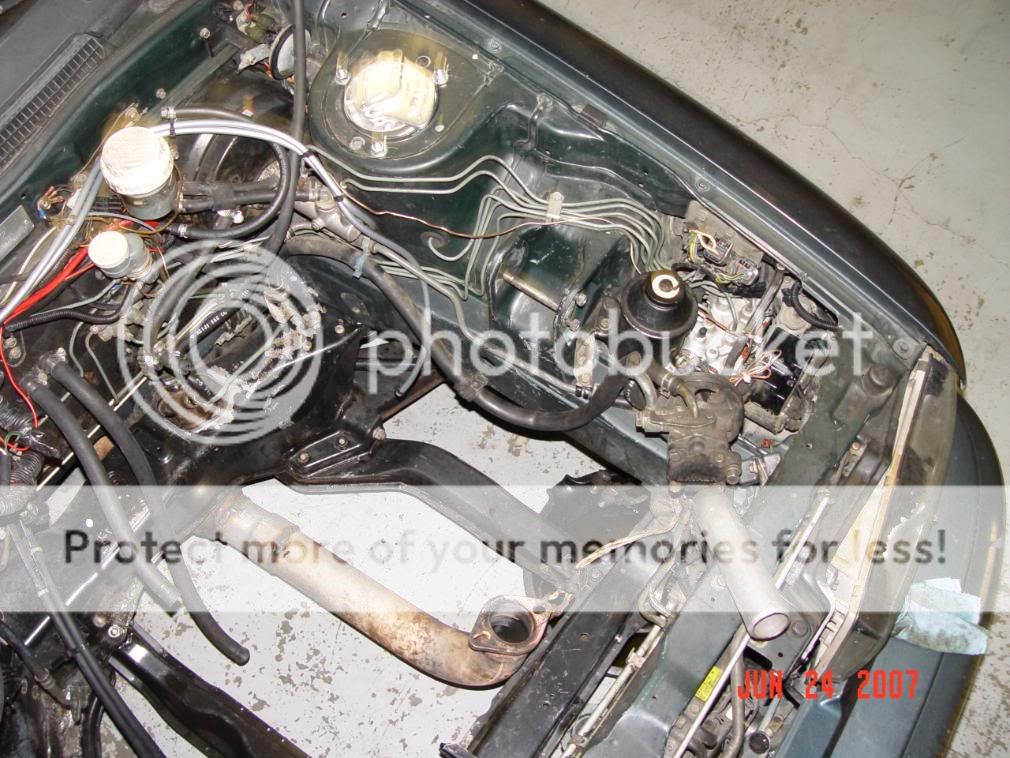

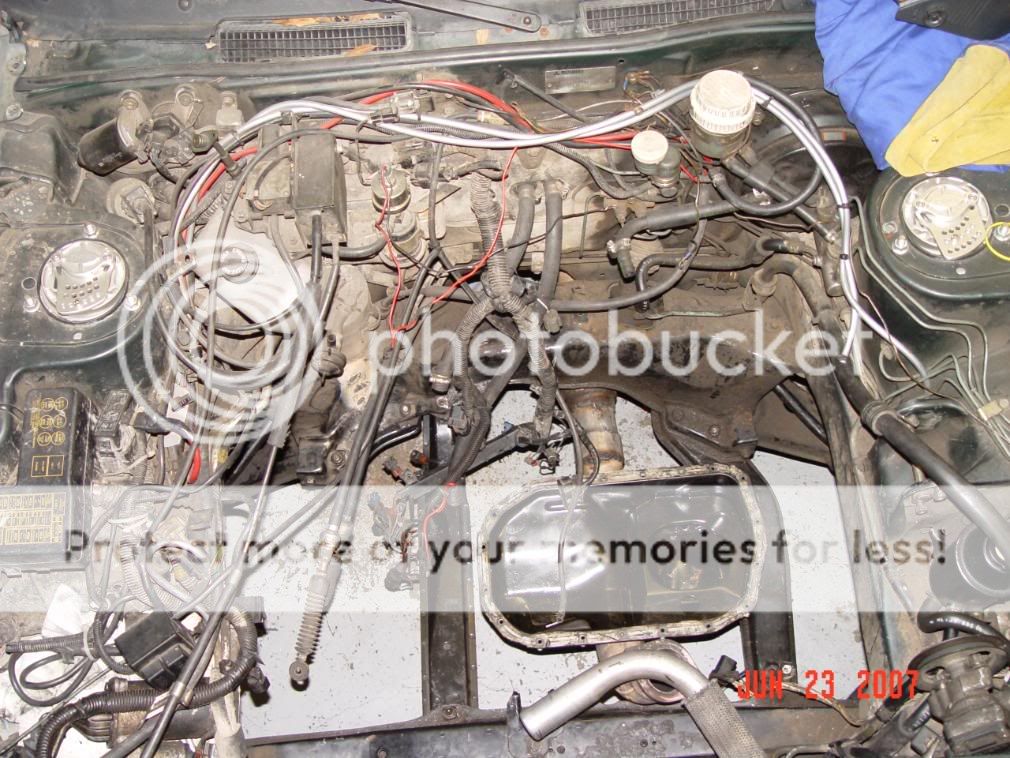

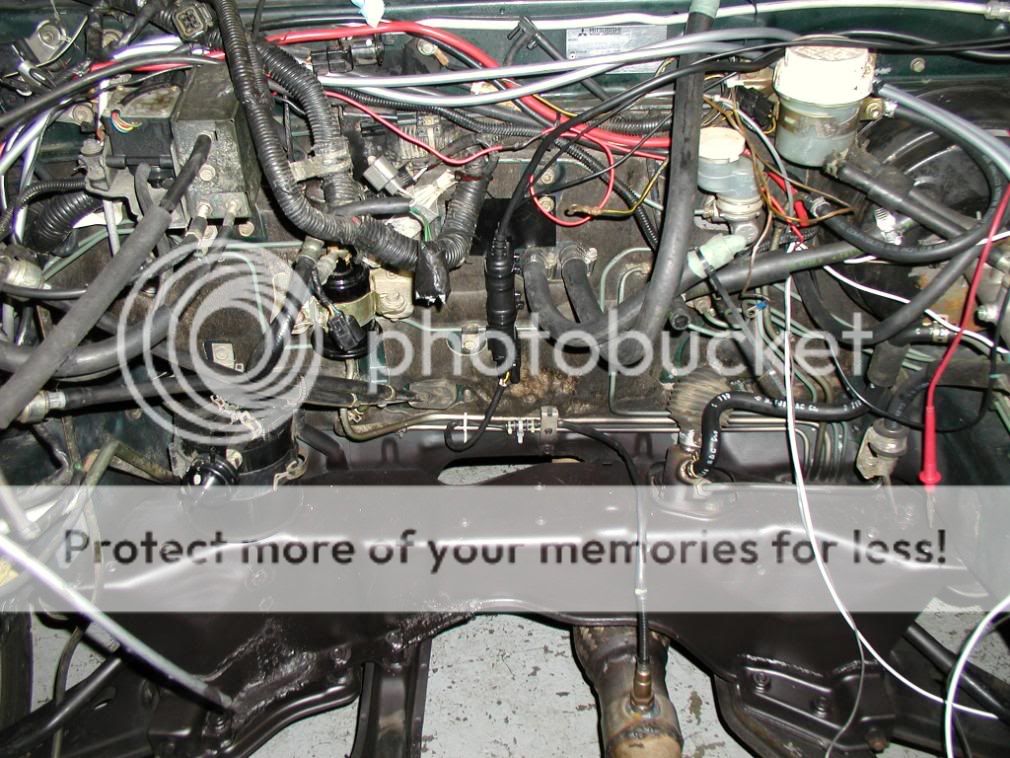

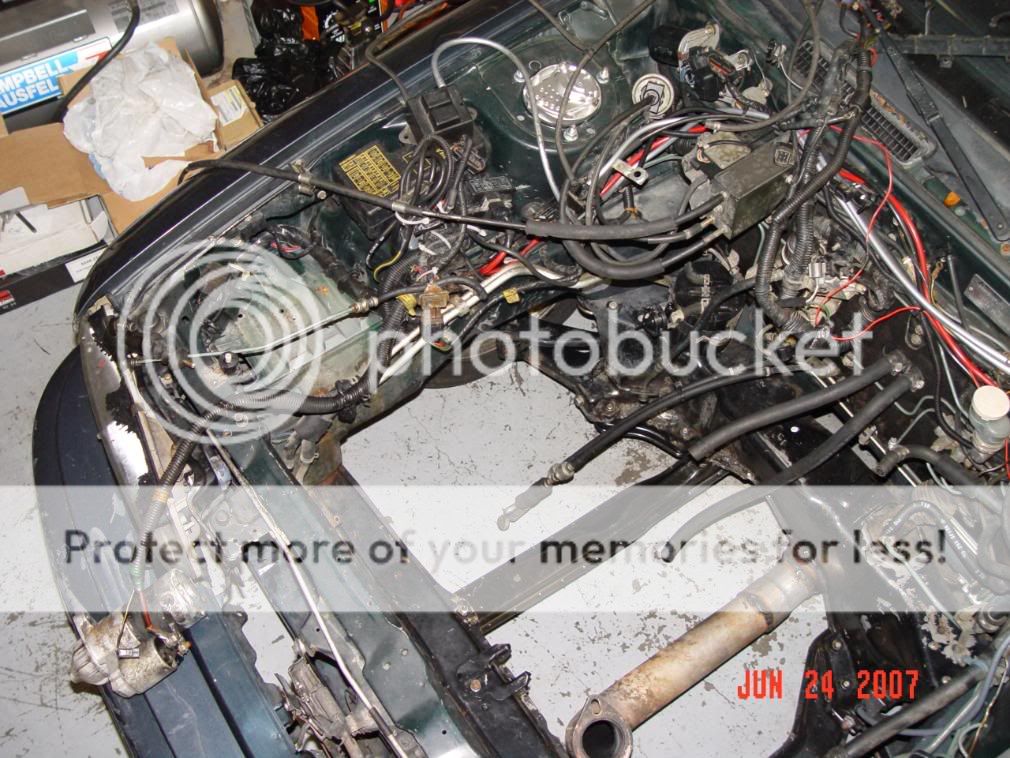

Engine Bay Before

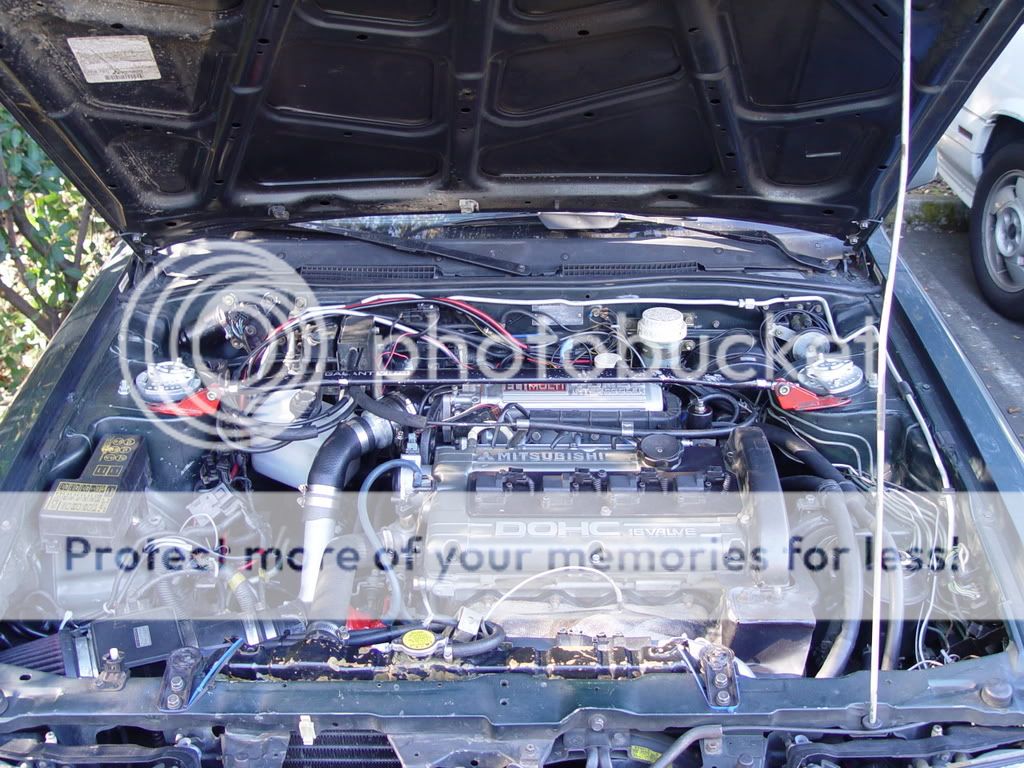

Engine Bay After

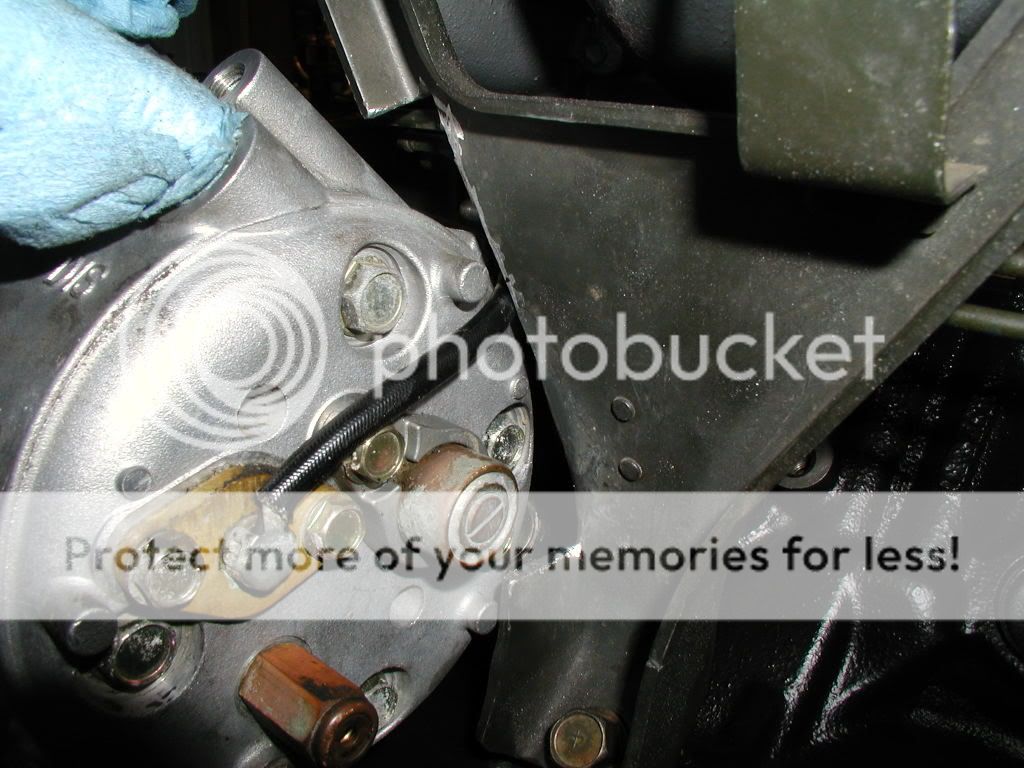

For anyone who wants to keep their AC while having the Cyclone manifold, cut the
Intake Bracket like so

Couple of shots as she sits, too bad it was too dark already.



[464/2K]

she is looking real good!



[Terry Posten]

All that red lube made it look like she was bleeding.

Good job.



[strokin4dr]

Good job man, looks great!



[Flip4G63]

Very nice!

i always like pictures and build ups.



[curtis]

Attention to detail for the win.



[charmcity]

Nice job car looks great.



[NYC86ZC]

Nice work. Looking good.



[BadVr4]

talk about a lube job



[CutlassJim]

What cams? And what turbo is that with the "Super" hotside. I'm really considering going to a TD06 or larger hotside but I'm worried about boost threshold on my street car. I like 20 lbs by 3k RPM./ubbthreads/images//graemlins/grin.gif



Before/after pic.... You removed the oil pan? /ubbthreads/images//graemlins/dunno.gif



[rhtx4321]

/ubbthreads/images//graemlins/applause.gif



[Brianawd]

Nice. Now I just need to get 439/2000s litter sister 439/1000 back up and running with a new motor. My Ross/Gordon combo is just sitting in my living room, but seeing this may just make me work on getting it running



[GHETTOSwing]

Thanks for all the compliments guys /ubbthreads/images//graemlins/cool.gif

Quote:
What cams? And what turbo is that with the "Super" hotside. I'm really considering going to a TD06 or larger hotside but I'm worried about boost threshold on my street car. I like 20 lbs by 3k RPM.



For the time being the cams are stock, FP1x's are on the shopping list. That turbine housing is a Bullseye steel DSM housing. The original cast housing was cracked, and I didn't want to replace it again anytime soon, so I went with the steel. Definitely Beefy, and so far the thing has lasted about 2-3 years. Which at the time was daily driven at about 16-18psi, and turned up to ~22 for sh*ts and giggles.


Quote:
Before/after pic.... You removed the oil pan?



Yep! That was a real back breaker getting that sucker out of there /ubbthreads/images//graemlins/tongue.gif. Nah, just how dirty the engine bay was, I wish I would've taken some shots of the undercarriage, and motor/tranny before I cleaned them all. The thing was LAYERED in mud and oil. Powerwasher FTW!

For me it's actually kind of wierd to look at it being that clean, Everything was either black grime/oil or dirt. For instance the water pump pipe that runs along the side of the block, I literally thought it was black, cleaned it up, "Oh crap, it's silver?" /ubbthreads/images//graemlins/rofl.gif
