Ground off spots for ECU to set BISS in galant GSX
- Thread starterJames
- Start date
James
Well-known member
No help here?
kooter
Well-known member
James
Well-known member
Thank to for that great page of information.
Sadly I asked for a galant GSX locations. I don't have a 1g eclipse 2g eclipse or a vr4. The plug is not in the normal turbo DSM location. Else I wouldn't be asking.
I think I've been in the DSM world longer than most. And I think I've read over Vfaq well over 500,000 times since its existence.
Sadly I asked for a galant GSX locations. I don't have a 1g eclipse 2g eclipse or a vr4. The plug is not in the normal turbo DSM location. Else I wouldn't be asking.
I think I've been in the DSM world longer than most. And I think I've read over Vfaq well over 500,000 times since its existence.
Last edited:
2000GTX
Well-known member
I'm looking for this information as well. Someone has got to know.
fuel
Well-known member
then why come to a VR-4 specific forum and complain about not finding non VR-4 info?
I would have thought all that was required is grounding the plug on the firewall and then adjust timing.
I would have thought all that was required is grounding the plug on the firewall and then adjust timing.
James
Well-known member
The same reason all the other galant GSX members come here. The same reason you have Evo and DSM members. Because we all share a common interest and would hope to help one another.
There are two parts to ground off when correctly setting the BISS in the turbo models. I would assume there is also 2 in the non turbo models since the motor is the same. One is on the passenger side near te fender, one in under the sash usually just right of the fuse box. Mine is not there. I'm to assume the location is different on a galant GSX. Thus me asking, as I'm sure in 23 years someone with a galant GSX has set their BISS correctly.
There are two parts to ground off when correctly setting the BISS in the turbo models. I would assume there is also 2 in the non turbo models since the motor is the same. One is on the passenger side near te fender, one in under the sash usually just right of the fuse box. Mine is not there. I'm to assume the location is different on a galant GSX. Thus me asking, as I'm sure in 23 years someone with a galant GSX has set their BISS correctly.
fuel
Well-known member
Are you positive there are two locations you need to ground on a turbo 1G or GVR-4? Of all the times I've set the timing it's been fine grounding the terminal on the firewall only. VFAQ lists for both the 1G turbo and 2.0 engines and only makes mention of the terminal on the firewall - where are you getting your info that two locations need to be grounded? The connector under the dash is the diagnostics port, though the N/A should still have it there present.
VFAQ articles - click and click
VFAQ articles - click and click
holeshotmoe
Well-known member

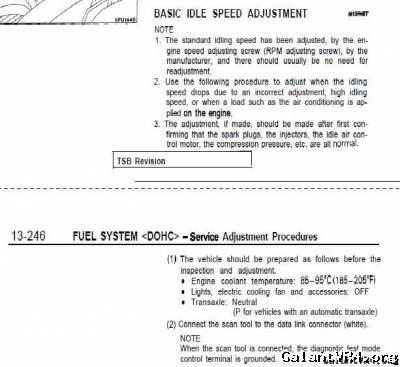

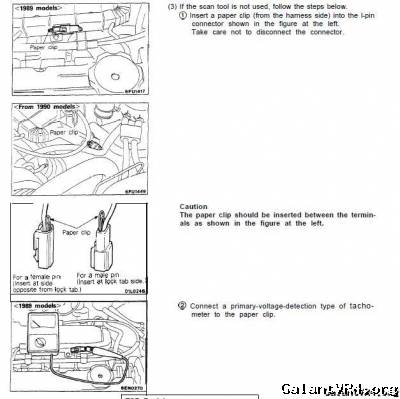

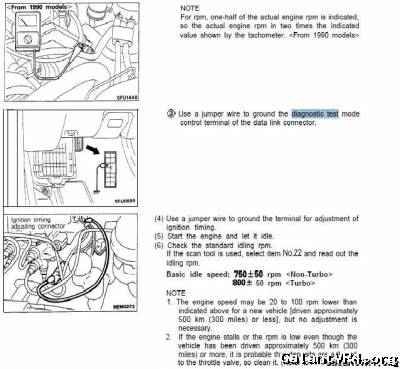

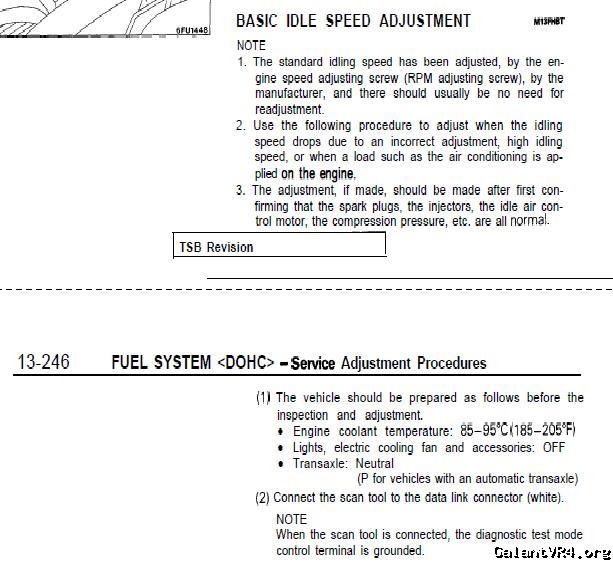

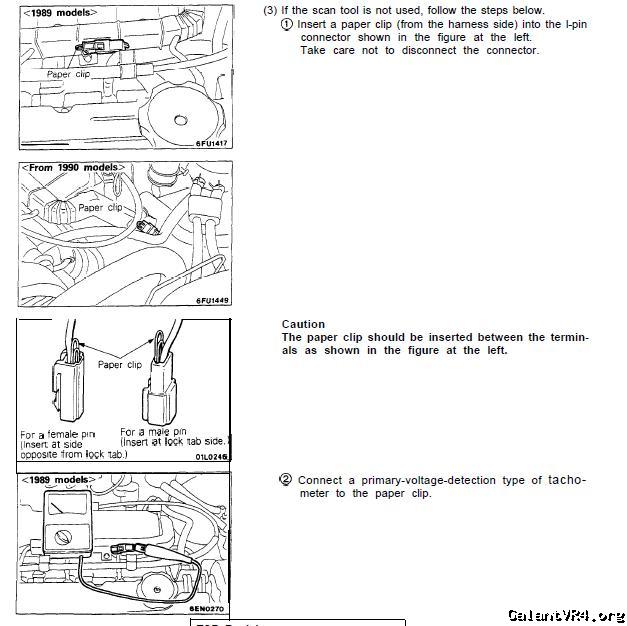

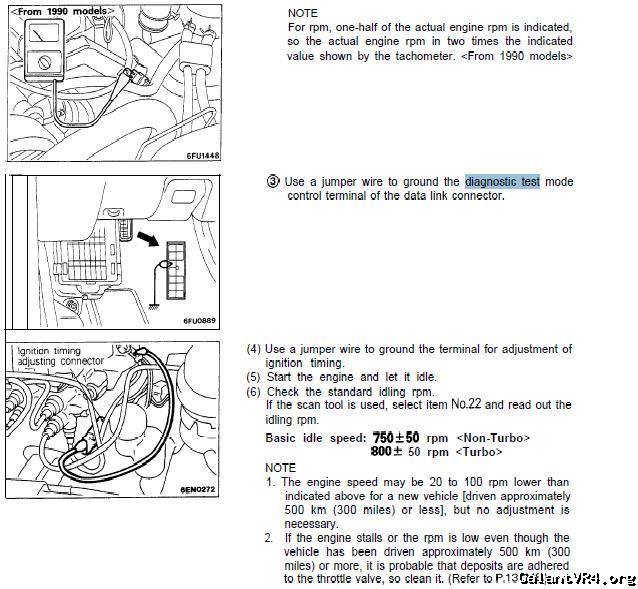

If you're refering to "Basic Idle Speed Adjustment" and not using a scan tool (which would establish the required ground), you need to connect a meter to the one under the hood and ground the "diagnostic test mode control" terminal in the data link connector (which on my ggsx was right next to the fuse box)...
Last edited:
turbowop
Well-known member
Quoting fuel:
Are you positive there are two locations you need to ground on a turbo 1G or GVR-4? Of all the times I've set the timing it's been fine grounding the terminal on the firewall only. VFAQ lists for both the 1G turbo and 2.0 engines and only makes mention of the terminal on the firewall - where are you getting your info that two locations need to be grounded? The connector under the dash is the diagnostics port, though the N/A should still have it there present.
VFAQ articles - click and click
When adjusting base timing, only the firewall connector is to be grounded. When adjusting the BISS, both the firewall connector and a pin on the diagnostic port under the dash require grounding.
Are you positive there are two locations you need to ground on a turbo 1G or GVR-4? Of all the times I've set the timing it's been fine grounding the terminal on the firewall only. VFAQ lists for both the 1G turbo and 2.0 engines and only makes mention of the terminal on the firewall - where are you getting your info that two locations need to be grounded? The connector under the dash is the diagnostics port, though the N/A should still have it there present.
VFAQ articles - click and click
When adjusting base timing, only the firewall connector is to be grounded. When adjusting the BISS, both the firewall connector and a pin on the diagnostic port under the dash require grounding.
fuel
Well-known member
Gotcha. Sounds like his diagnostic port has gone AWOL?
James
Well-known member
I'll look for a third time after work today. But im 99% sure it's not near the fuse box as it should be! Thanks for the real answers
Mine stock,was covered with a black plug cap. Making it hard to see. But it was there.
