Fuel pump rewire help

[James]

I have been reading the vfaq on it for a couple of days but honestly some of the things on VFAQ are written out the best. I'm sure it much more understandable after you do it... But I'm also a hands on learner not a read and learn guy. Couple that with the fact that I dislike wiring and it means I need a better explanation lol.

Of the two... The one linked to Plymouthlaser.com made the most sense.

I understand the galant wiring also runs a different way than pictures in the writeups, atleast mine apprears to.

I know what I need to buy
I know the plug and wire I need to cut
I know how to put the new wires into the relay
I know what wire gets run to the battery

After that is where I get confused and could use some help!



[MellowVR4]

If you buy the kit from ebay or any other place, it should come with some instructions, better then the vfaq info. I was also confused on how to do this, but once i read the instructions that came with the kit, it was all good after that. i belive i got my kit from ebay to tell you the truth.



[James]

Well the vfaq says I can get everything at RadioShack so plan on driving down there shortly.



[MellowVR4]

yea you can, i wish i could find the info i had about this. im pretty sure i still have it.



[James]

Well there's 4 wires. The ground and power are obvious. I assume the other two get spliced between the original? I just don't know what sides is which



[MellowVR4]

i think its the black with the white stripe is the power on the pump side and the harness side



[MellowVR4]

so your basically removing that from the harness and splicing in the hot from the battery.



[MellowVR4]



[MellowVR4]

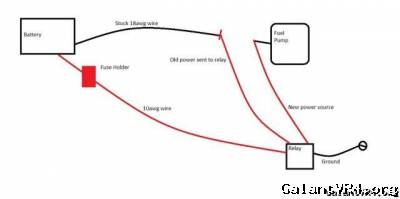

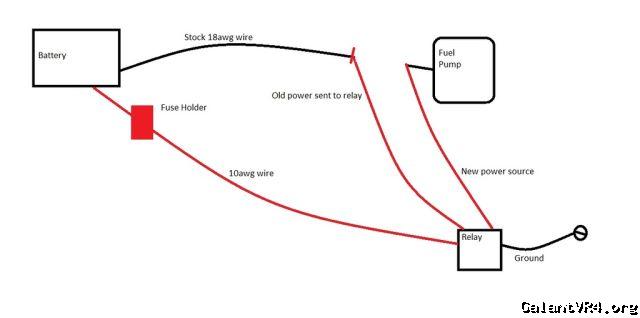

found this aswell
click



[James]

Thanks man that diagram is exactly how things should be drawn out. Because real electrical diagrams are so confusing.
