I am going to install my Evo camber plates on to my evo suspension and need to know what tools i need to drill through the frame, like easiest bit and drill type. Thanks
-Shane
-Shane
The Top Mitsubishi Galant VR-4 Resource
Join the best E39A 1991-1992 Mitsubishi Galant VR-4 community and document your GVR4 journey.
- Software Upgraded - Reset Your Password to Login
In order to log in after the forum software change, you need to reset your password. If you don't have access to the email address you used to register your GVR4.org account, you won't be able to reset your password. In that case, follow the instructions here to regain access to the forum.
the ones who drilled for Evo Top Hats
- Thread starterBrunoboy
- Start date

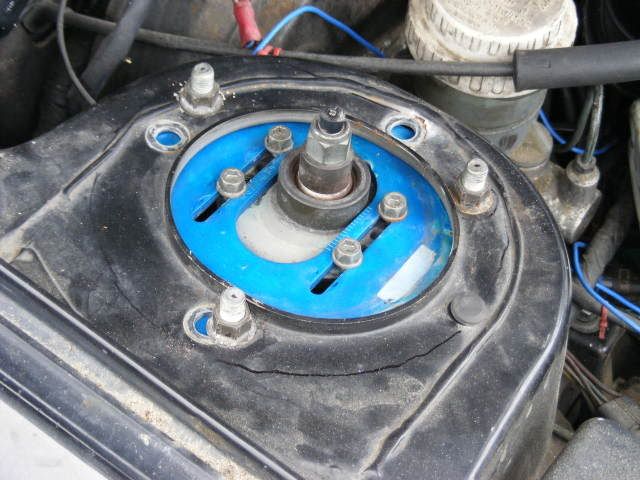

I used a corded drill and ordinary high speed steel bits. The metal is about 3mm thick, so it's pretty easy to drill through, I started with a small bit (4 or 5mm I think) and then re-drilled with a larger bit to finish.
