New New Yorker taking on a gvr4

ade

Well-known member
Joined
Aug 16, 2011
Messages
303
Location
Paumanok NY

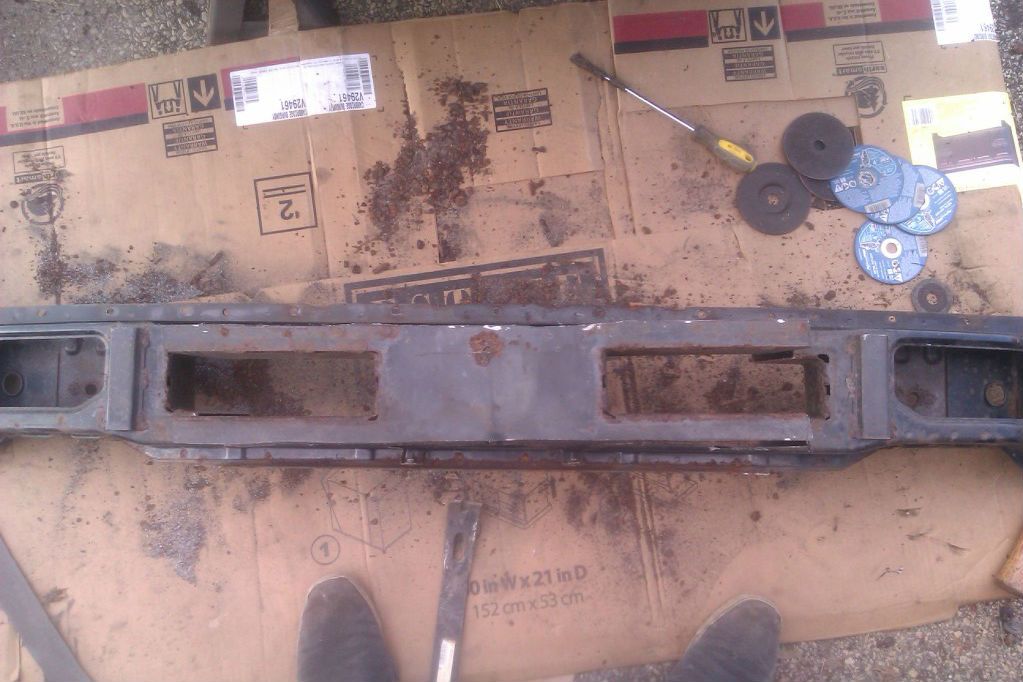

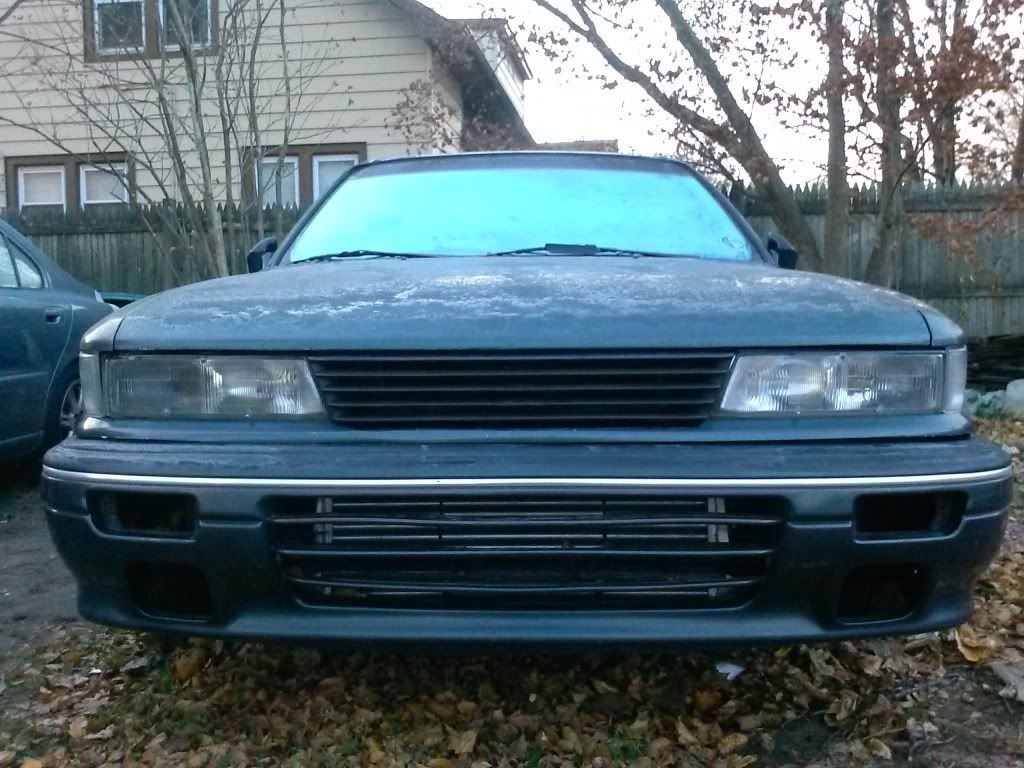

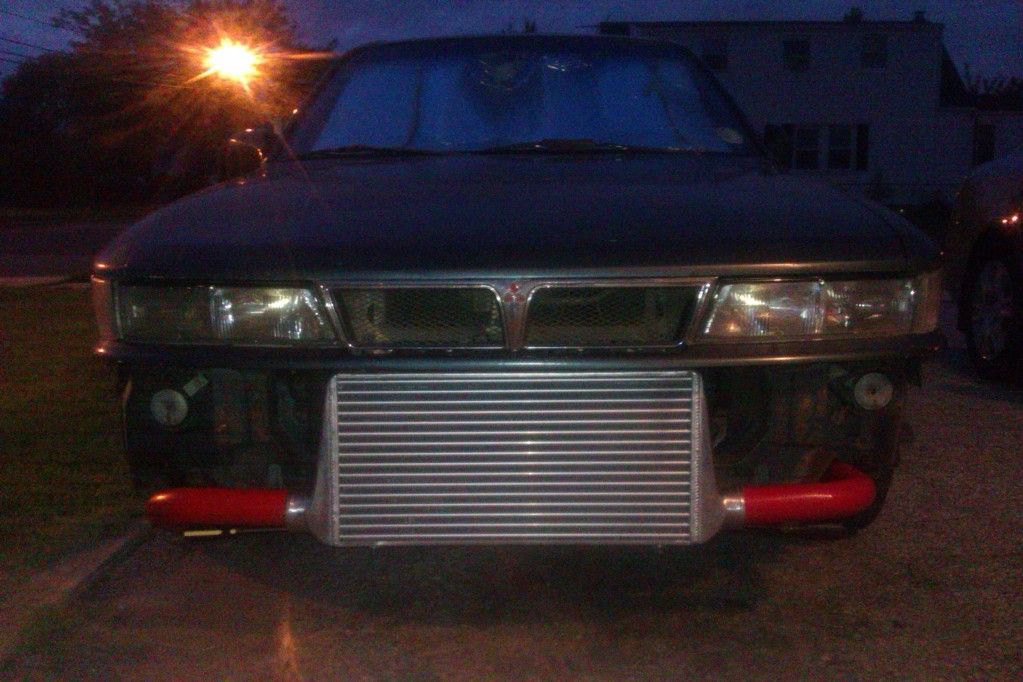

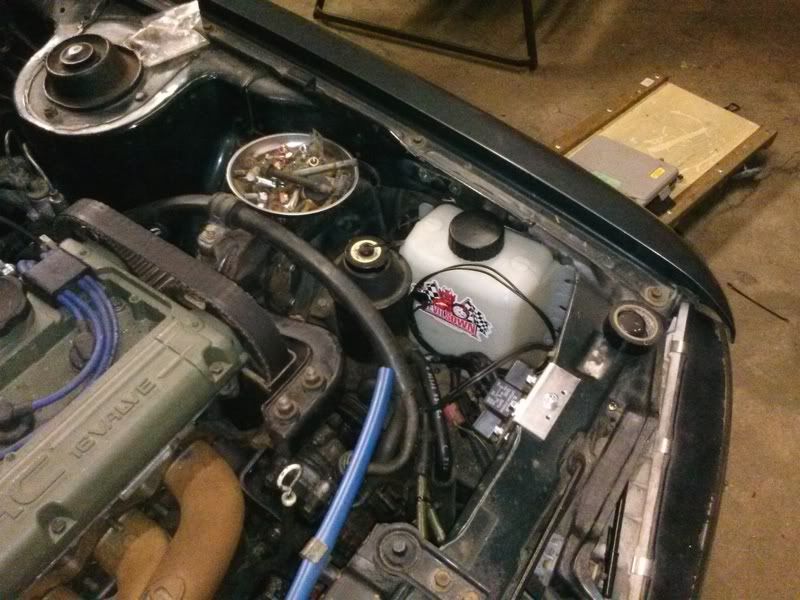

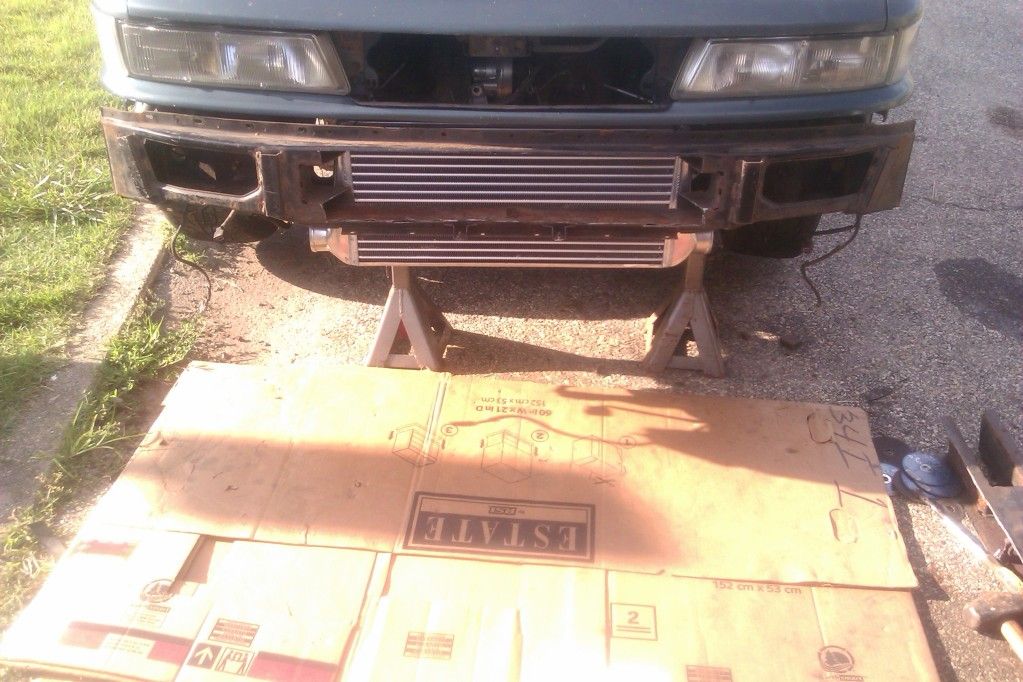

found room for the ic with a bit of remodeling for a better view





me thinks we have room for a set of minty oem fogs, any sellers?

my ic to do list
ic mounting brackets

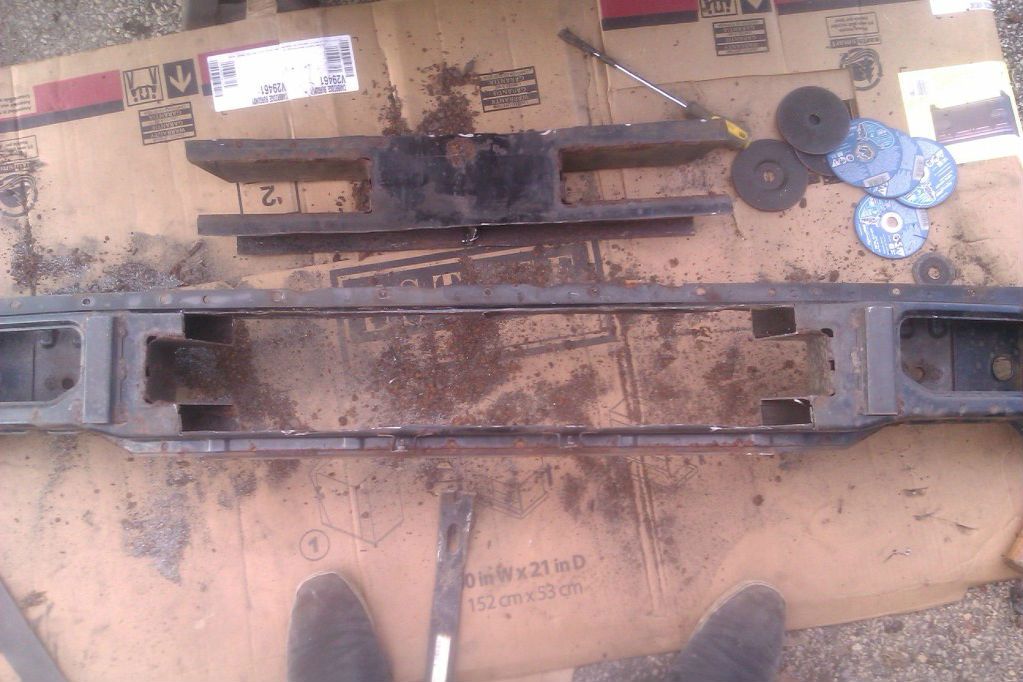

box up the openings on the rebar or leave and spray bomb /ubbthreads/images/graemlins/dunno.gif
pipe routing
bonnet latch brace
fan relocation
ps cooler rerouting
and then some.


ade

Well-known member
Joined
Aug 16, 2011
Messages
303
Location
Paumanok NY
cheers mate

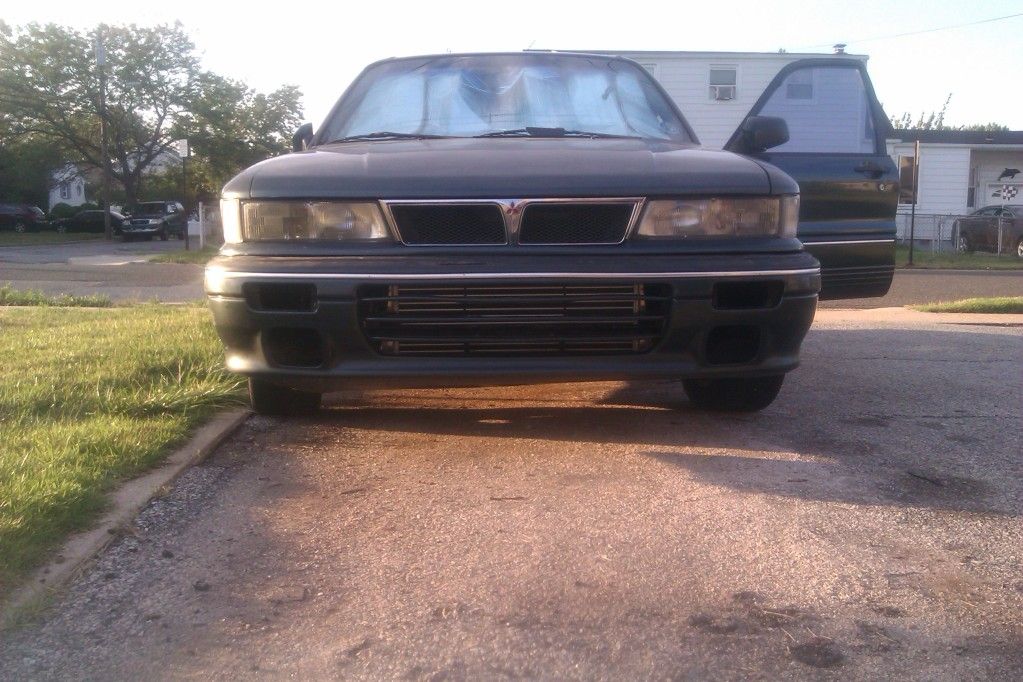

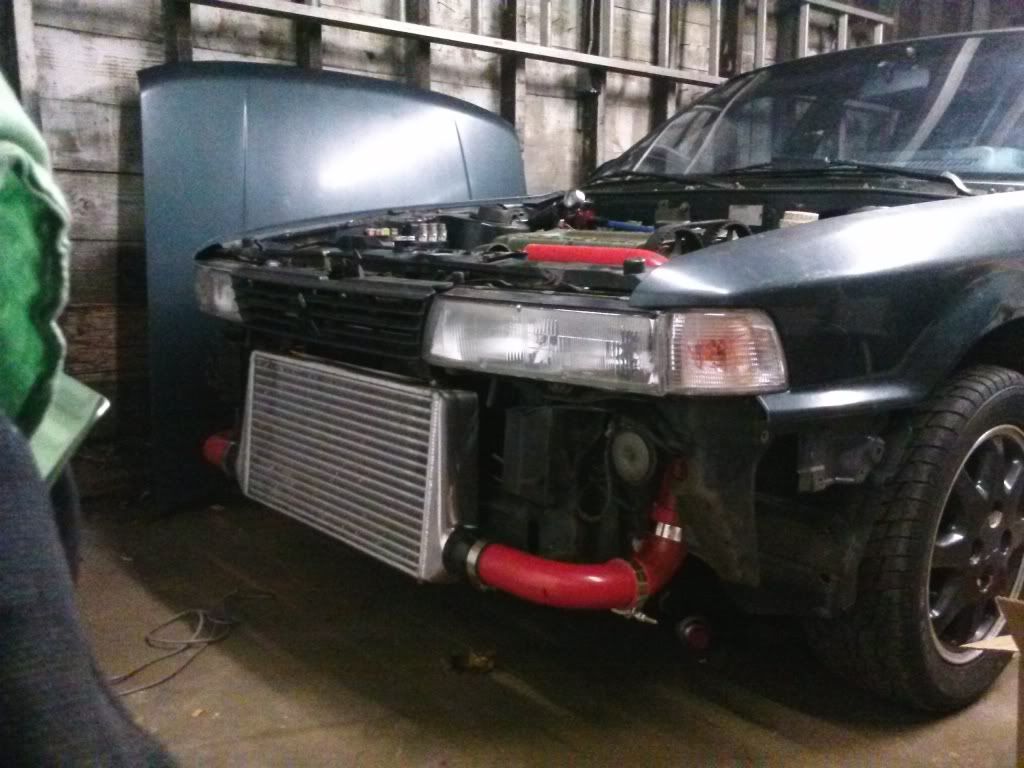

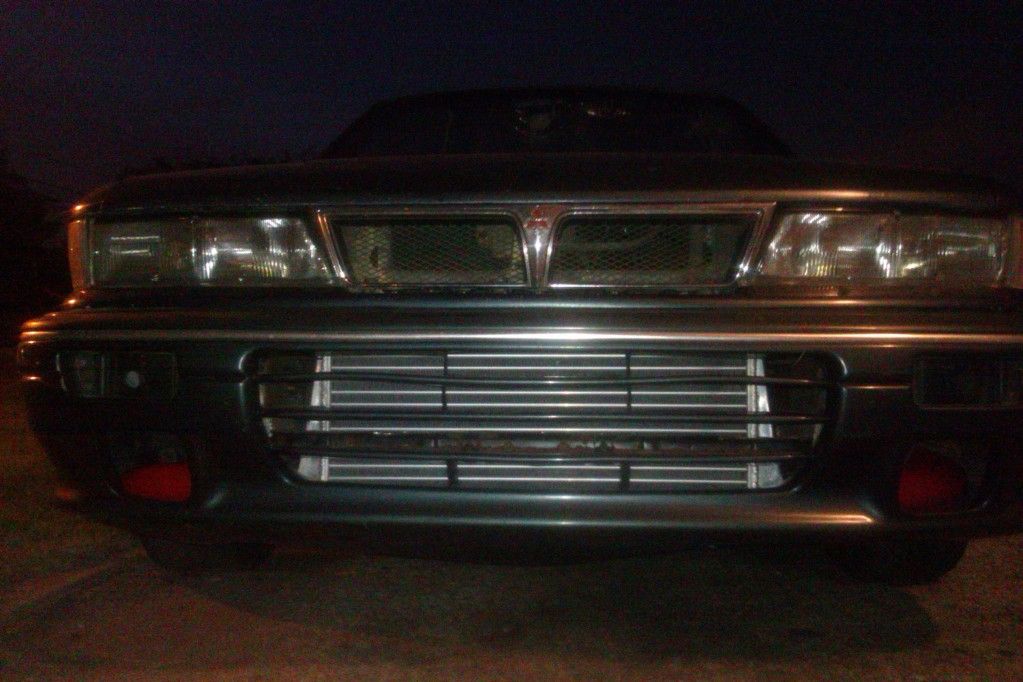

ic is mounted

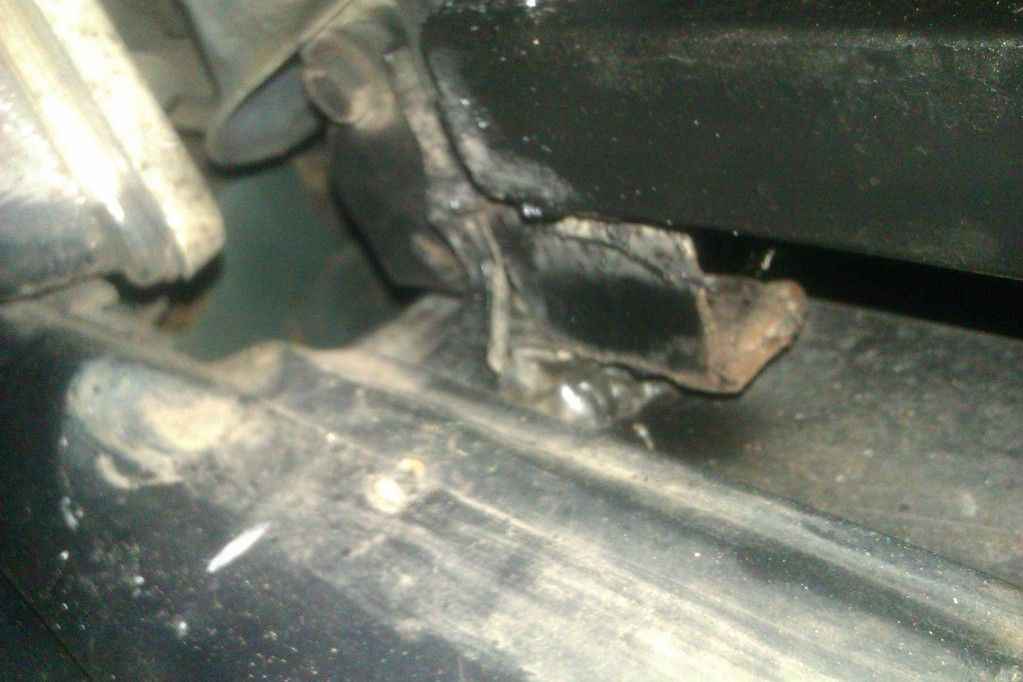

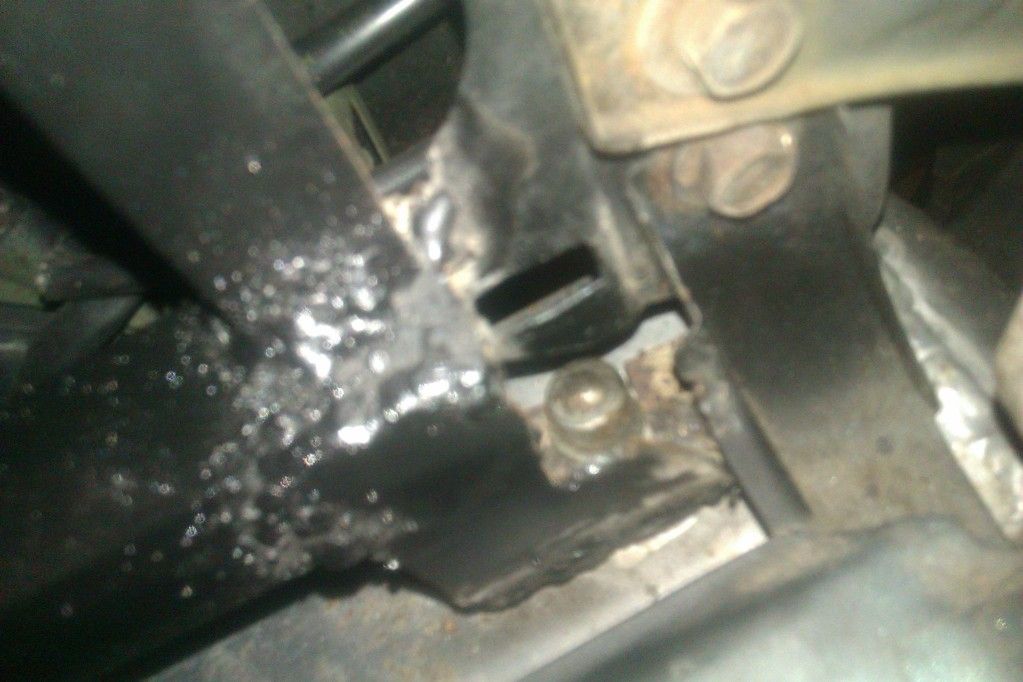

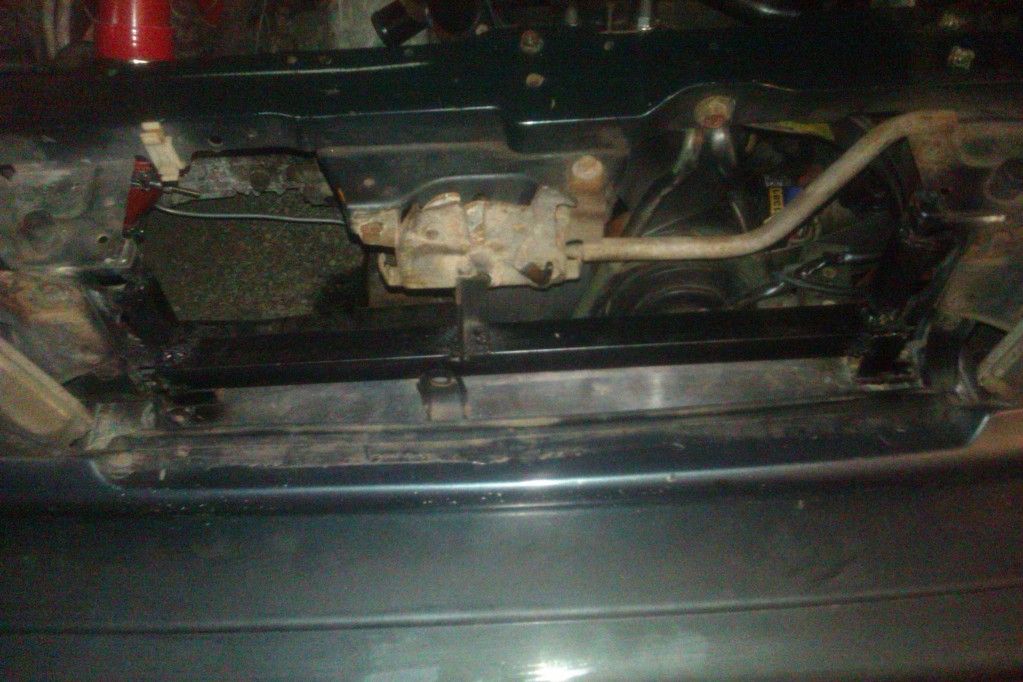

bonnet latch brace made
fan relocation done
ps cooler rerouting done



all thats lefts pipe routing


Vr4junkie

Well-known member
Joined
Jun 25, 2011
Messages
596
Location
Some wack town in CA
Liking the intercooler setup what are the dimensions and brand.


ade

Well-known member
Joined
Aug 16, 2011
Messages
303
Location
Paumanok NY
Thanks guys.

32 X 13 X 3.25 full
23.25 X 11" core
3" inlet

as for who made it? it was an off a buddy's dusty shelf, 100 dollar and its yours brand. But i know ebay when i see it.


4G63_GSR

Well-known member
Joined
Jan 22, 2003
Messages
853
Location
wis
Looks good! Quick question, how/where did you mount your IC? Did you make custom brackets?


ade

Well-known member
Joined
Aug 16, 2011
Messages
303
Location
Paumanok NY
iv been swamped with work, barely any sun when i get done with my nap, ill post up pics manana


the progress your making is awesome. Do you care to post up some pics of your i/c setup in regards to the piping? Im having a hell of a time trying to figure out a good way to route mine.


ade

Well-known member
Joined
Aug 16, 2011
Messages
303
Location
Paumanok NY
Quoting ade:
iv been swamped with work, barely any sun when i get done with my nap, ill post up pics manana


apparently i cant concentrate while dead tired.

i'll take and post pics of ic mounting and pipe routing later today.


ade

Well-known member
Joined
Aug 16, 2011
Messages
303
Location
Paumanok NY

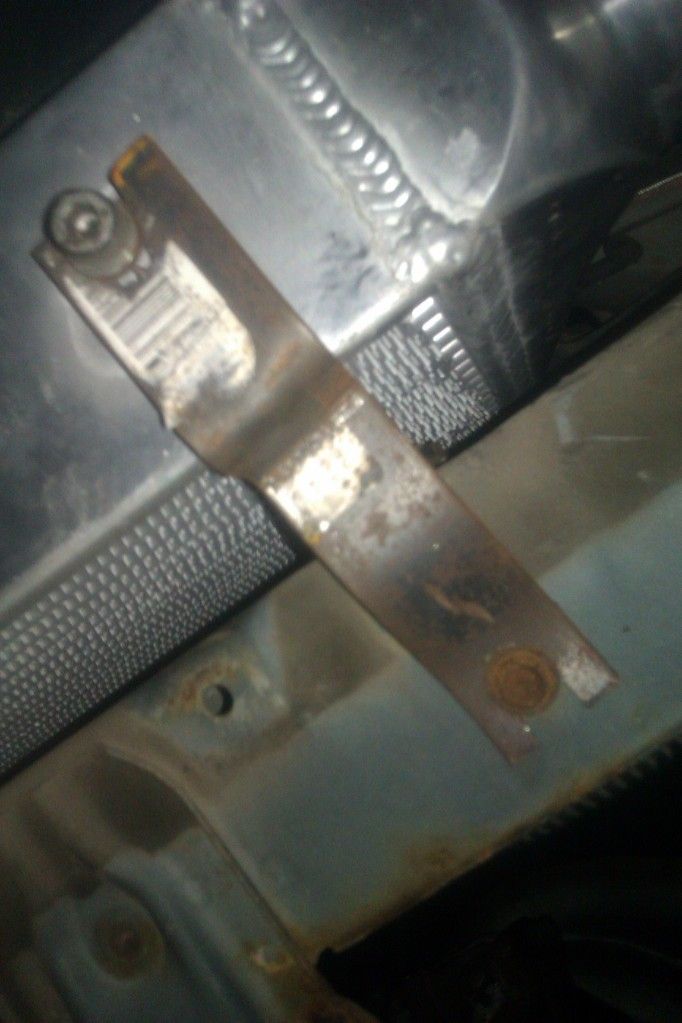

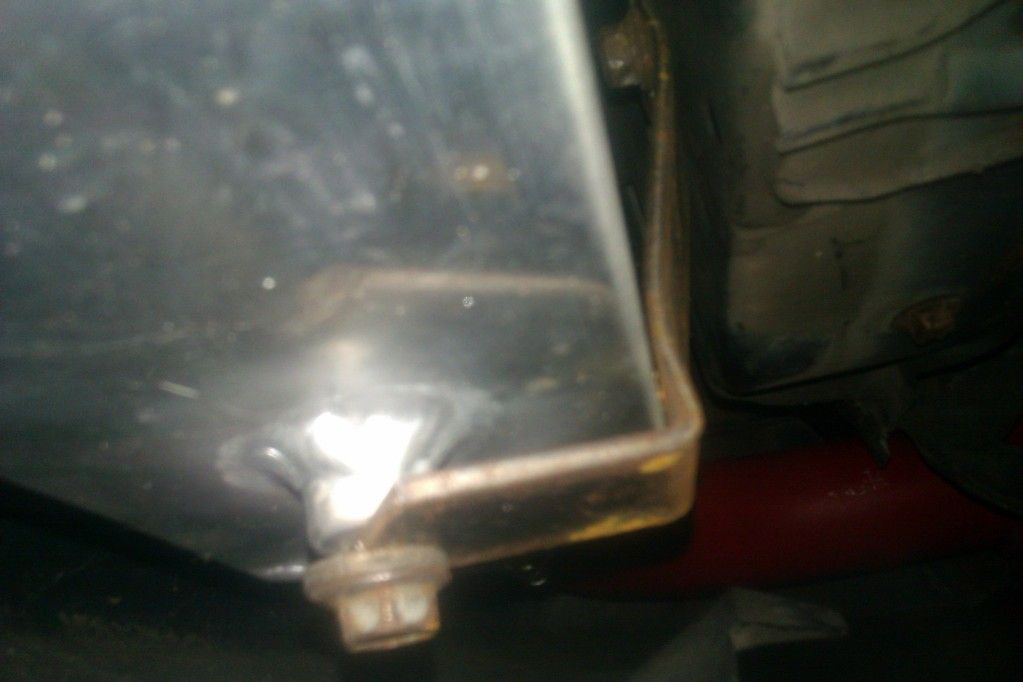

top mounting points are bolted to a frame thats welded to the body. for the bottoms, i bent some steel to work with bolt holes already available. ive got to re adjust for a better bolt hold, use bigger washers then rattle can.







scooped up the goodies on the left ta replace those on the right

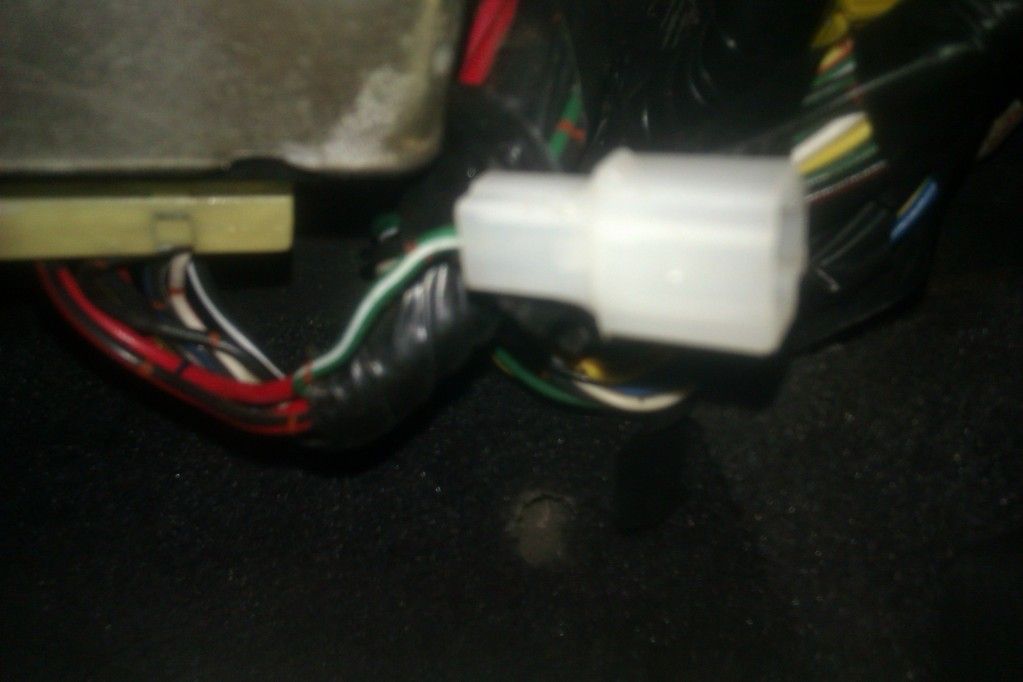

also i found this by the ecu. any1 have an idea what this plug is?


ade

Well-known member
Joined
Aug 16, 2011
Messages
303
Location
Paumanok NY

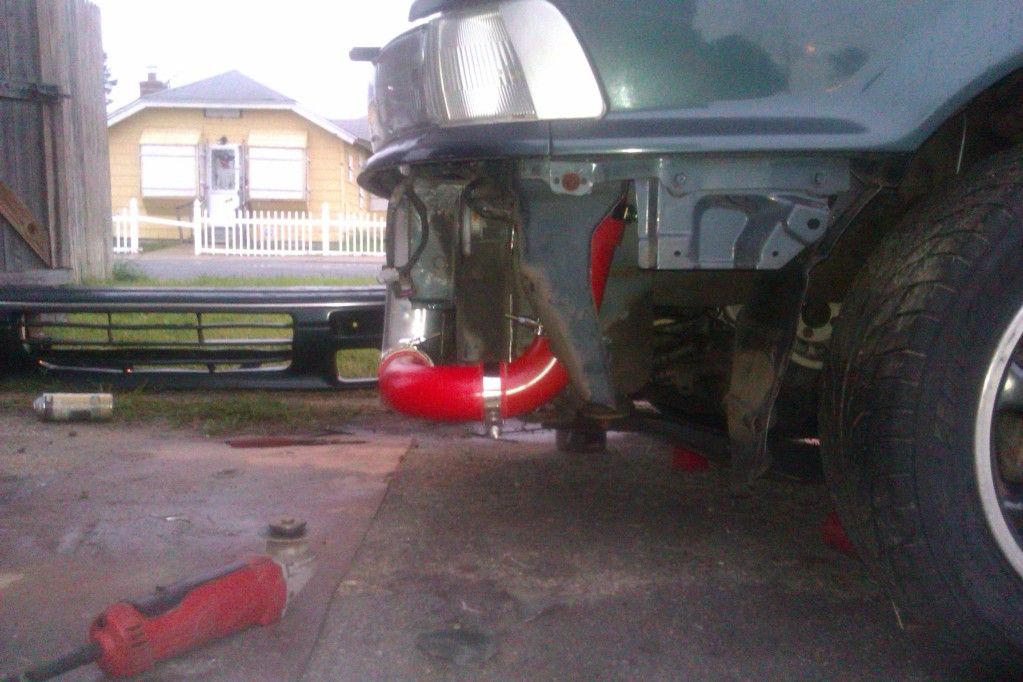

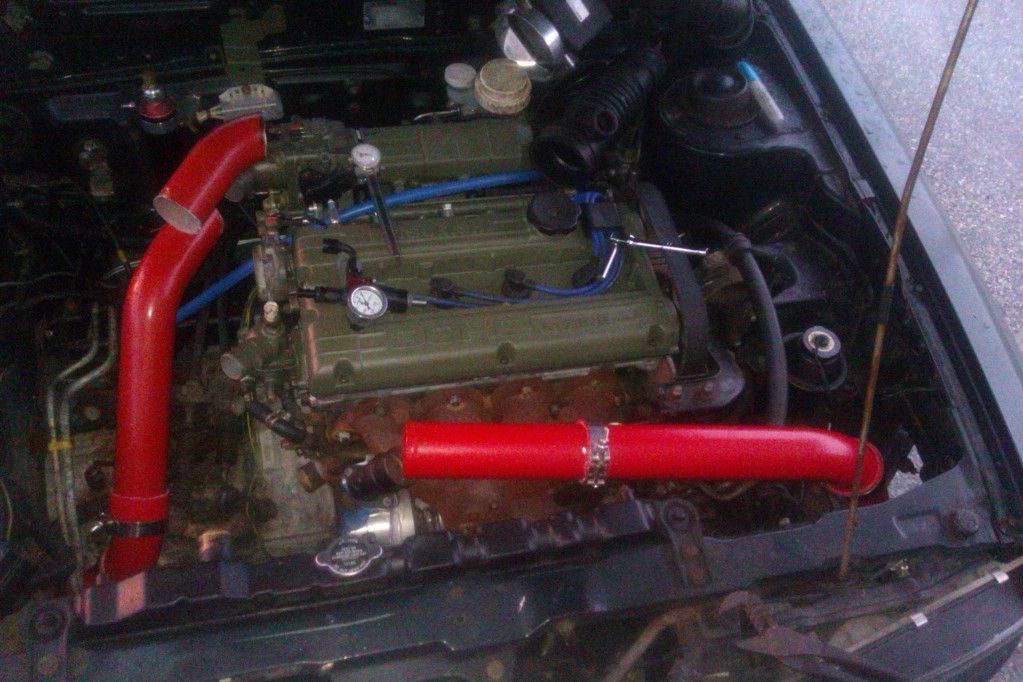

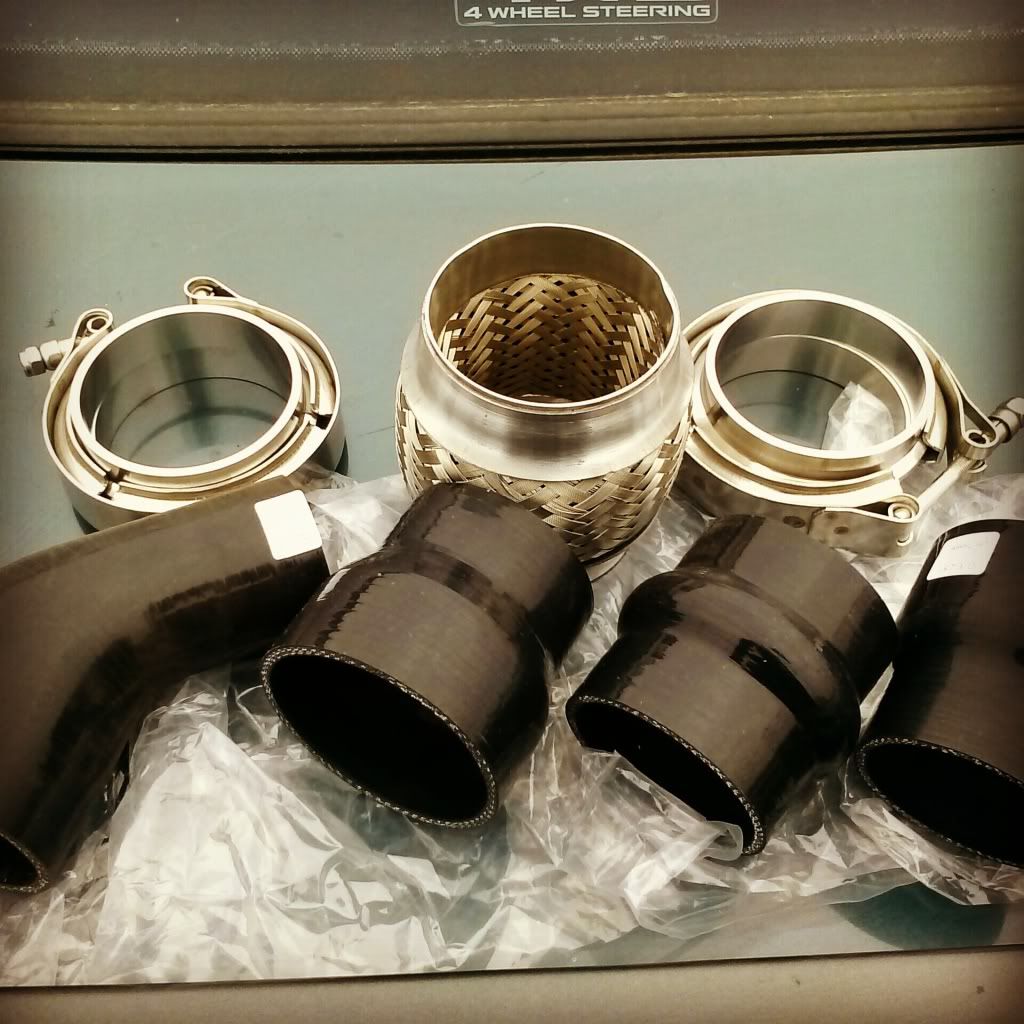

forgot about the pipes

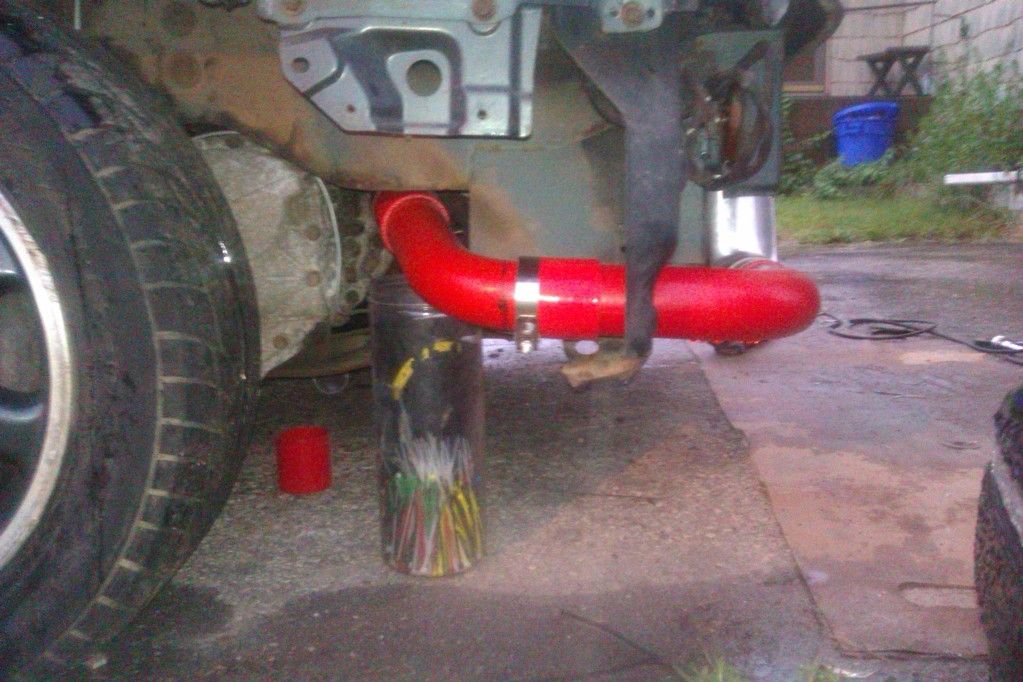

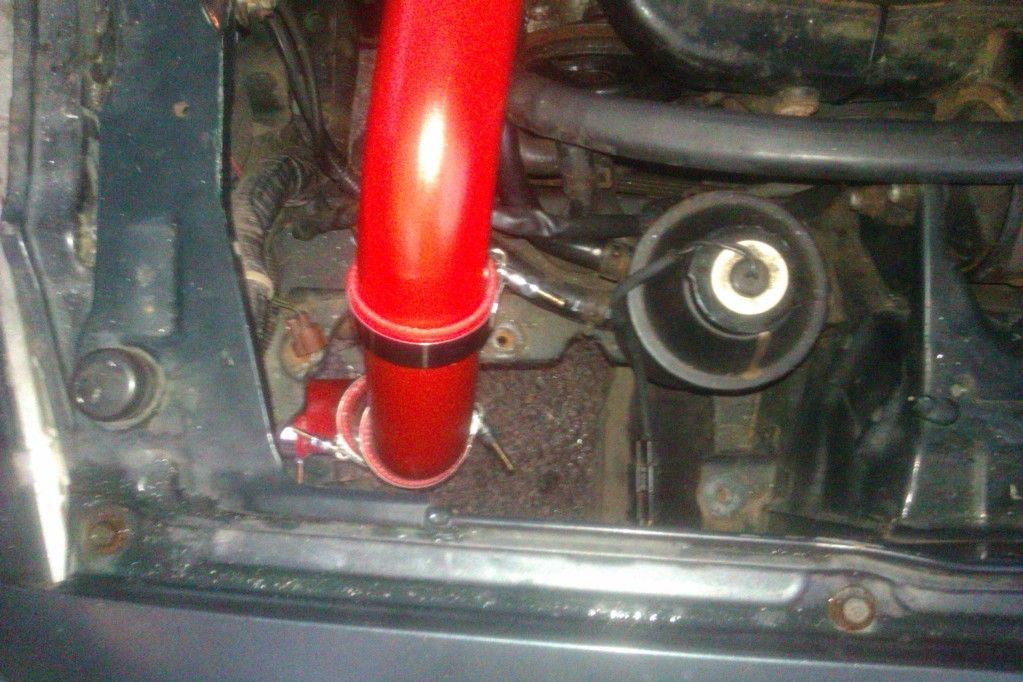

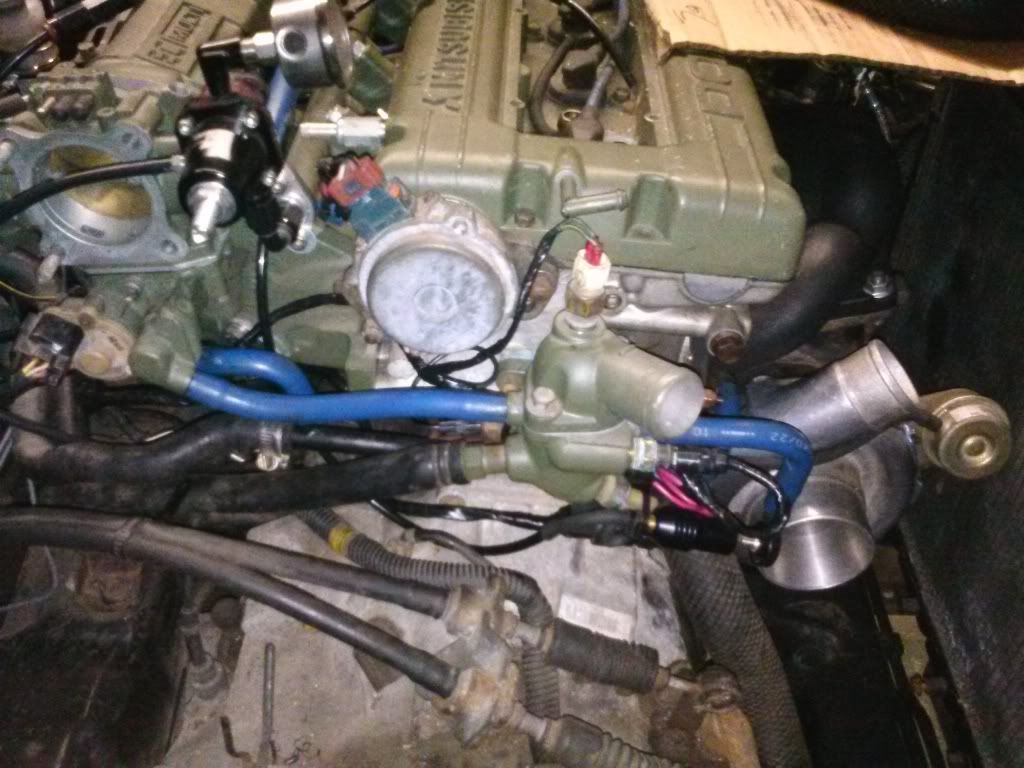

throttle body, cold and hot side pipes are cut fit and ready for weld.
one 1g bpv flange
one 2.5" hump hose
one bending reducer
2 straight reducers 2.5" to 3"


transparentdsm

Well-known member
Joined
Jul 27, 2011
Messages
3,690
Location
Cherry Hill, NJ


also i found this by the ecu. any1 have an idea what this plug is?




not 100% sure but that should be the o2 voltage output.. you can run a narrowband gauge to it for a reading.


ade

Well-known member
Joined
Aug 16, 2011
Messages
303
Location
Paumanok NY
thanks brother, its hard not to rush through this semi build. I've been carless for almost 4 years, 3 of it was in the city where my fixie and Honda hawk got me to and from work and play. i now live in suburbia where u need a car to get anywhere. sux

When i picked it up last November, i thought i would strip the car down and take my sweet ass time putting it back together, yeah ok. All i look forward to now, is the day i push the pedal down and it goes. last thing i want is to go boom on that first drive, so im keeping a pace i know gives me time to attend to possible weak links as i kinda clean up the mess i paid for.

so far so good, i have about 2700(price of car included) into it. i've built road bikes twice that amount so yeah so far so good. i know i don't yap much on this thread, but i'ii make up for it in person, for im sure i'll meet a few of u and kill you slowly with endless questions.

A buddy stopped by today saw the car an said "when u gonna git that thang runnin" so i finished up the hood latch, front bumper & worked on the ic pipe routing a bit. we talked about going halvesies on a aluminum welder, we'll see(getting fed up ov waiting on people)

again so far so good, here is the remainder ov my list for those who care.

install ss brake lines
weld up ic piping
get alu 1g bpv flange
weld in flex pipe and wide band o2 bung
remove fix & reinstall rear steering hose
power steering pump rebuild
wiring to thermostat housing & fuel pump
find fuel gauge sender
install rear sub-frame bushings
build datalogger cable, pick up a palm
aaaaand... i forget.. there's always more:)

as usual i'll share as i go along.

Ade.


transparentdsm

Well-known member
Joined
Jul 27, 2011
Messages
3,690
Location
Cherry Hill, NJ
if you want PM me i my have a palm laying around, at worst in about 2 or 3 weeks when im done playing with and finishing up 1365 i will have a palm and cable hook up i can sell ya for 55$ shipped... let me know.


ade

Well-known member
Joined
Aug 16, 2011
Messages
303
Location
Paumanok NY
well, its been a while, i know. sandy passed through leaving me alota work in er wake.

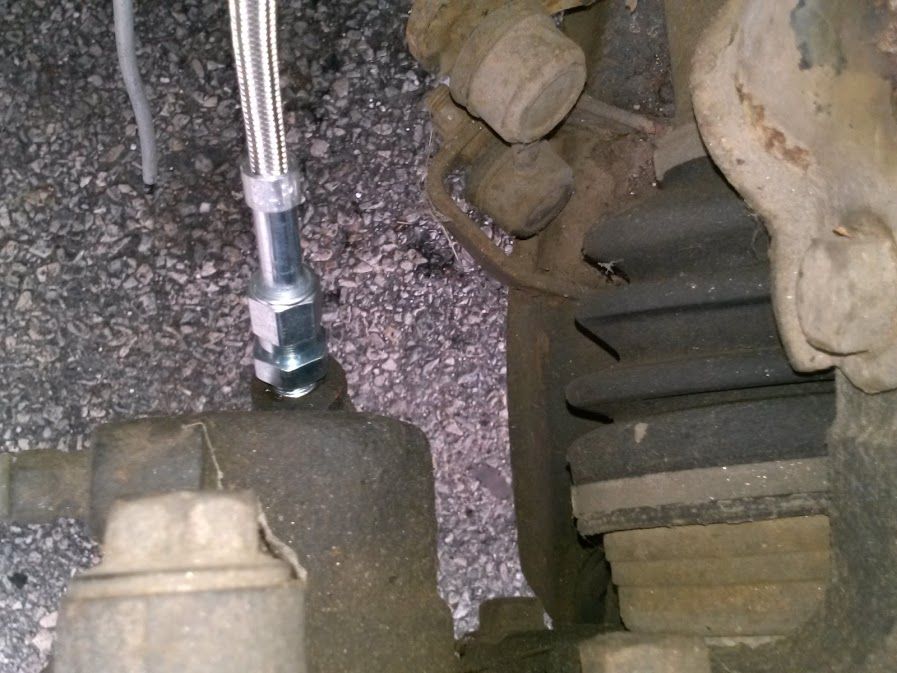

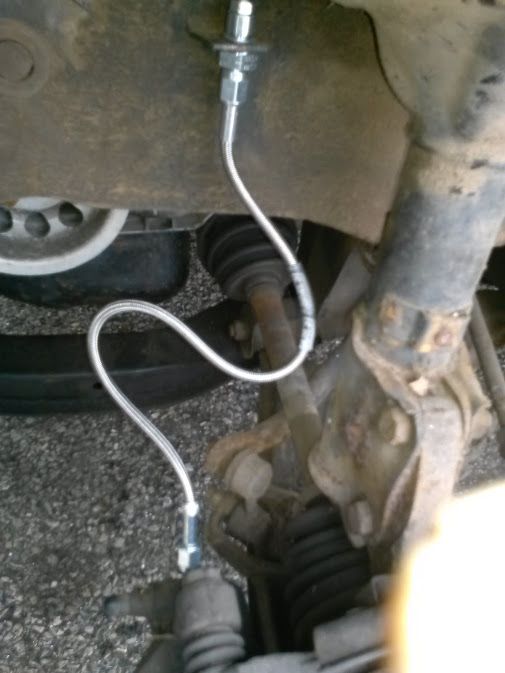

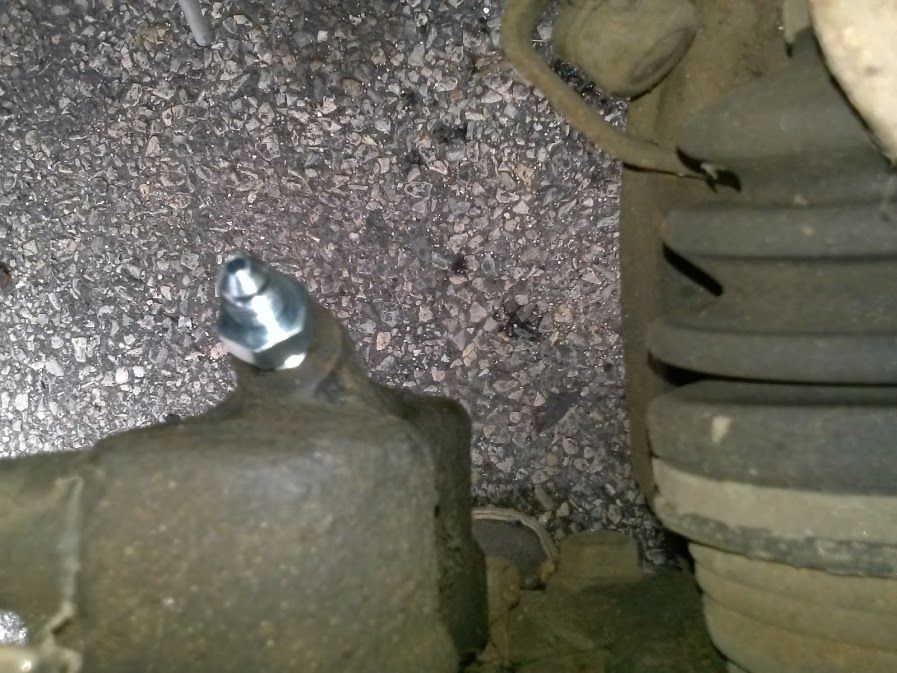

but before the storm, i installed the ss brake lines. i have to order shorter length fronts but the rears are mint.

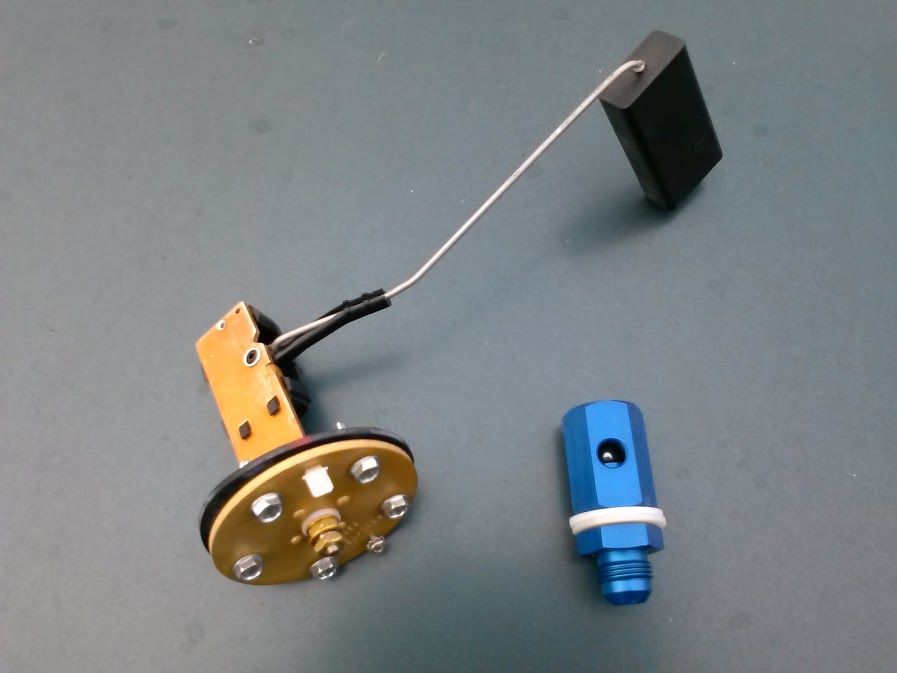

found and installed a fuel gauge sender & tank breather

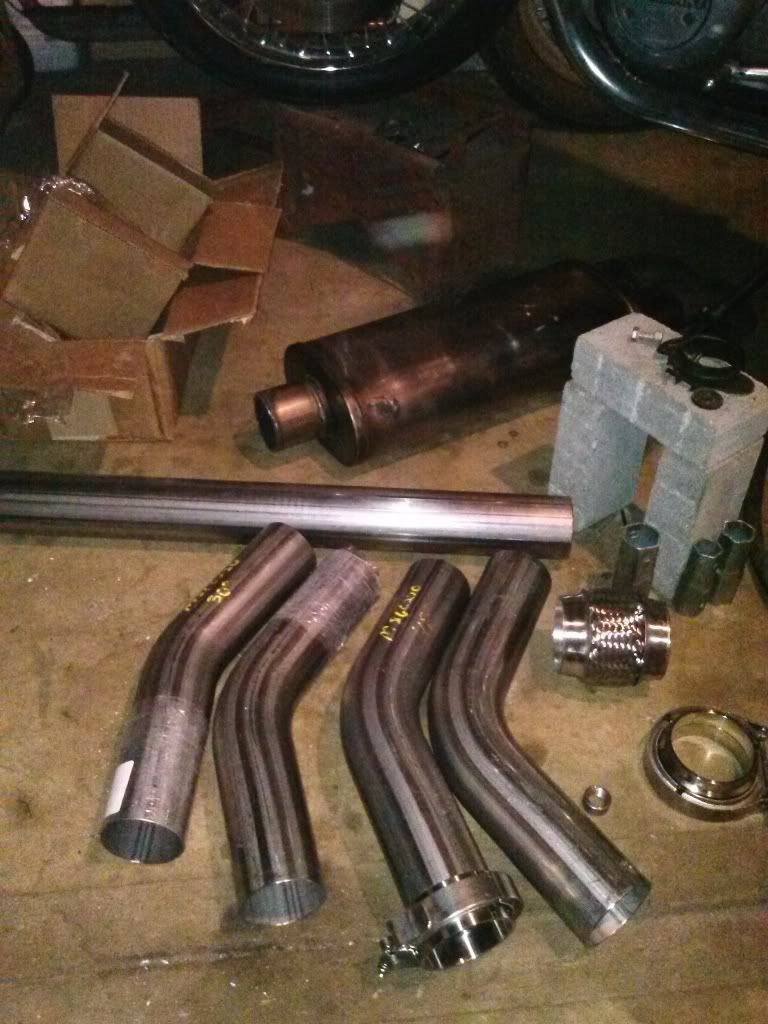

got in the last few exhaust and ic setup

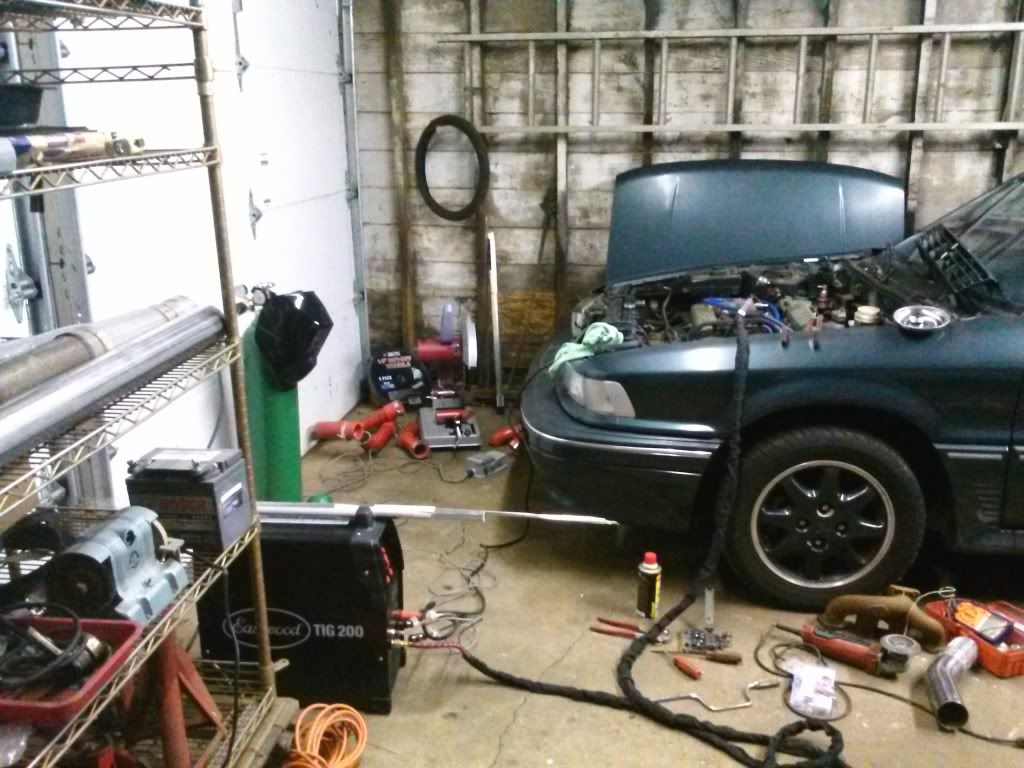

got fed up with vein promises and outrageous prices so i ordered a tig welder, tank and supplies. also moving to my new stay with a nice garage. tune in, there's more coming soon.


citymunky

Well-known member
Joined
Sep 22, 2010
Messages
1,761
Location
Chesapeake, VA
Info on the tig welder. I'm looking into buying DC/AC tig welder with my income tax check.

Last edited:

ade

Well-known member
Joined
Aug 16, 2011
Messages
303
Location
Paumanok NY
Last edited:

ade

Well-known member
Joined
Aug 16, 2011
Messages
303
Location
Paumanok NY

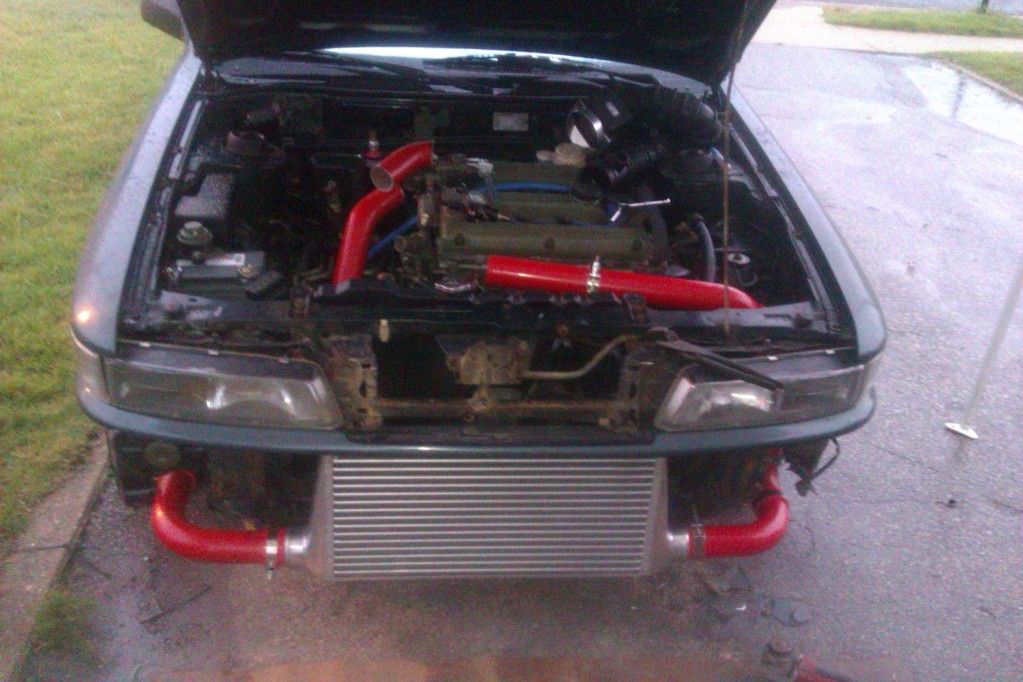

been a while but got alot done.

made a few lists this was the most recent


minor port matching


cleaned up wiring & swapped old for new hoses


fabricated a box for the miata bosch

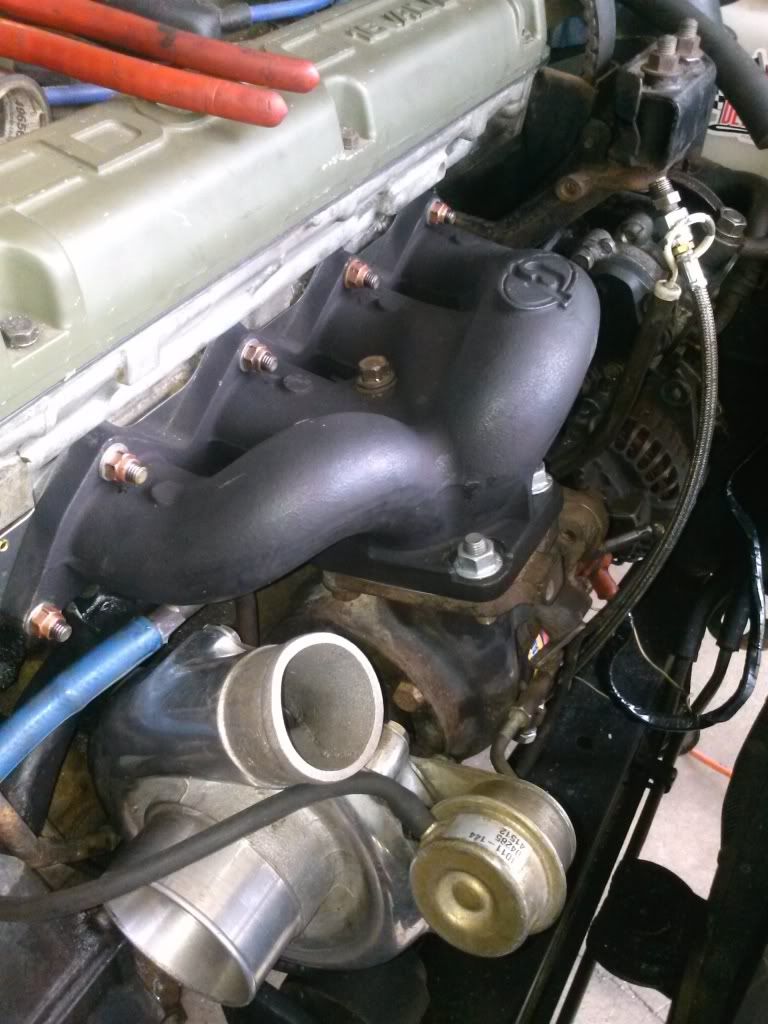

took a little massaging but made an sc34 at home



swapped out my steering wheel for a 380mm momo


89 grill


non usdm single bulb clear corners


ecmlink v3full

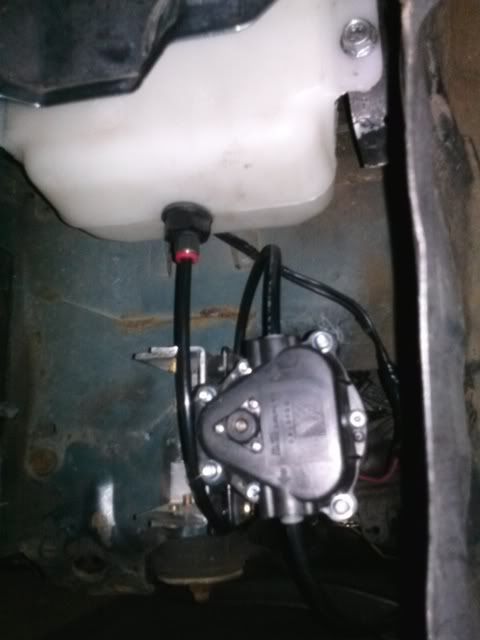

installed devils own meth kit



with more to come:)
