My second welding job: 03 Evolution VIII cat converter

bustedsm

Well-known member
Joined
Nov 30, 2006
Messages
844
Location
Ripley, Tennessee

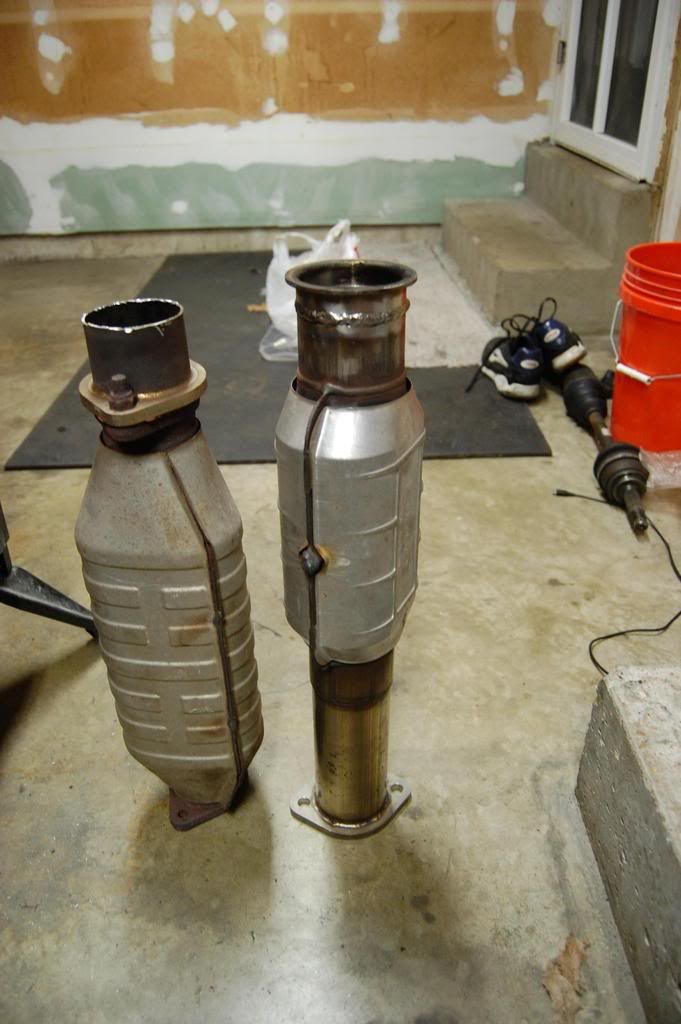

Much better if you ask me, although I think I needed SS wire, unsure. How does it look?







Barnes

Well-known member
Joined
Feb 9, 2003
Messages
6,249
Location
Richland, WA
If that was a factory piece, it was probably 4xx series stainless steel. Is the part you welded on SS or steel?

Overall ooks pretty good to me. /ubbthreads/images/graemlins/smile.gif


bustedsm

Well-known member
Joined
Nov 30, 2006
Messages
844
Location
Ripley, Tennessee

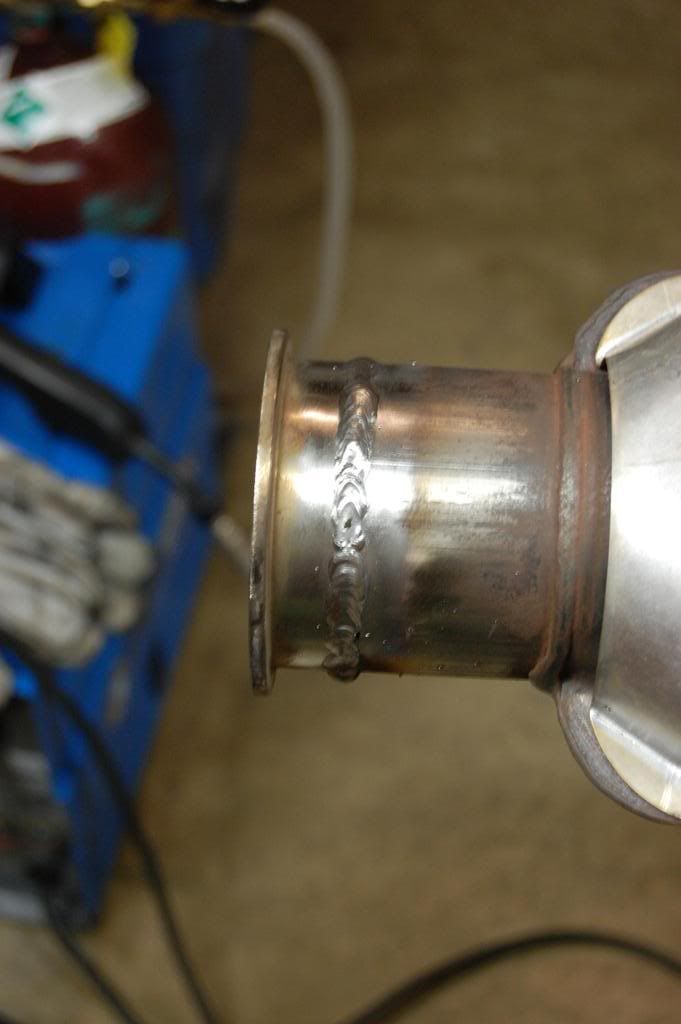

To be honest I'm not 100% sure but I believe both pieces were SS. I can't show you guys the penetration because of how I actually did it. I cut the vband flange setup a little long and it actually slid into the new cat for straightness and easier to weld. It penetrated though and will work as if someone much better than me did it /ubbthreads/images/graemlins/smile.gif


ScreaminE

Well-known member
Joined
Sep 4, 2008
Messages
646
Location
Pittsburgh South Hills
Whats your set up? Looks like the Harbor Freight Special?

Let us know!

Oh, and the welds look pretty good to me /ubbthreads/images/graemlins/applause.gif


bustedsm

Well-known member
Joined
Nov 30, 2006
Messages
844
Location
Ripley, Tennessee

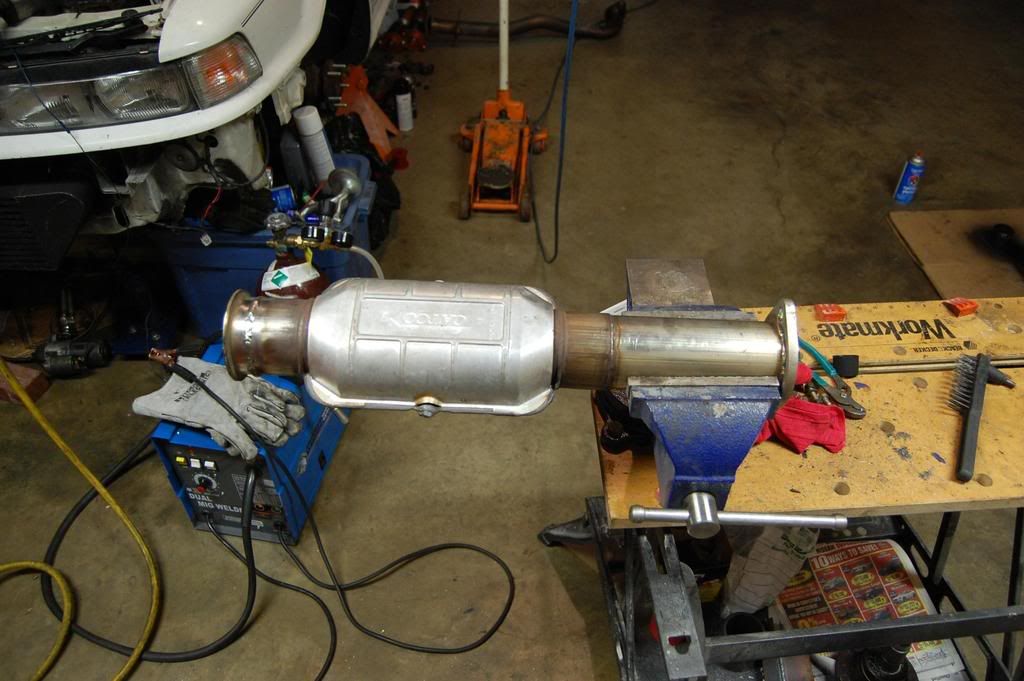

Chicago Electric 220v 110amp mig - C-25 mixture /ubbthreads/images/graemlins/smile.gif


Stainless 304 wire will pretty it up a bit, but out of a MIG, that's some pretty good penetration.

110v is good for tacking stuff, but for good MIG welds like this, the 220v really makes it happen!

Oh and V-band flanges FTW!

Last edited by a moderator:

JNR

Well-known member
Joined
Apr 23, 2004
Messages
9,802
Location
ca
Looks good, me thinks.

If you're ever in doubt, use a magnet...3xx series will not be attracted. There is another way you can tell by the sparks, but don't recall the details (check google).


Looks nice. Only thing I'd suggest is that you weld your v-band flanges while they're fully clamped together and don't take it apart till it cools off (if you aren't already doing it this way). I've seen the flanges warp when they're just welded on without being clamped together.
