Fan wire harness, pics included

codeofdastreets

Well-known member
Joined
Aug 30, 2008
Messages
65
Location
Palm Harbor FL

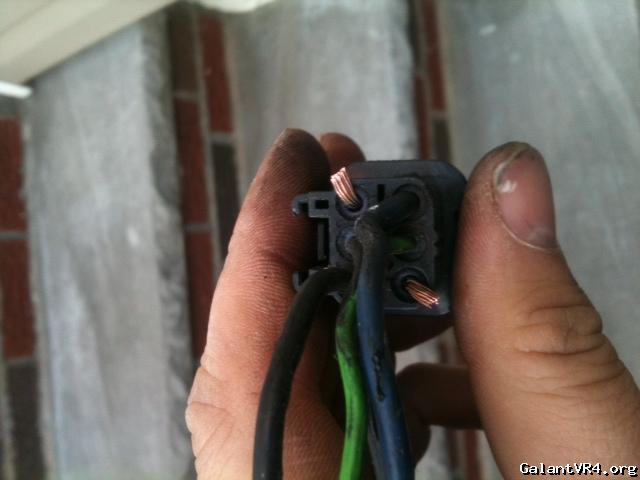

I have a fan harness and 2 out of the 6 wire were cut.. 2 go to the rad sensor(green/black) and 2 go for the fan(blue/black).. what were the other 2 for?? were they needed?




Last edited:

grocery_getter

Well-known member
Joined
Jun 20, 2004
Messages
1,225
Location
Kent - industrial suburbs of Seattle, WA




codeofdastreets

Well-known member
Joined
Aug 30, 2008
Messages
65
Location
Palm Harbor FL
these 2 wires that were cut were twisted together, the temp sensor on rad was not connected nd connector was jumped with a paper clip.. fan took a crap nd caused the fan harness to melt all the was to the fuse box.. still doing the wiring.. should I twist them back together?


MegaSuiter

Well-known member
Joined
Dec 6, 2011
Messages
122
Location
Oscoda, MI
Dealing with the same thing I think. If there is only power going to one of the four prong inlets does that mean the wires are fried to the fuse box?


dammitjim

Well-known member
Joined
Oct 11, 2011
Messages
312
Location
WI
I believe there are a pair to the resistor, a pair to the fan motor and a pair to the temp switch.

Mine looked similar when the fan was wired to constant power. There were two wires in the harness cut that should go to the fan motor and the motor was wired constant. On mine they didn't have the temp switch under the fan connected which was preventing the fan from working which is why they messed with the wiring.

This might help


Last edited:
