89.10 AMG Engine Wiring Diagrams

misterfixit

Well-known member
Joined
Aug 4, 2004
Messages
1,575
Location
Midlands, UK
Hi Allan:

Here they are. I finished scanning the wiring books, so now everything is electronic.

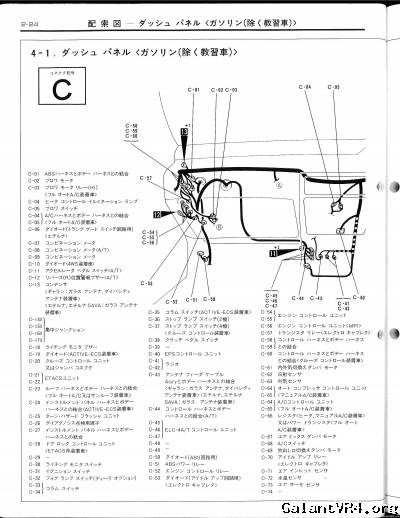

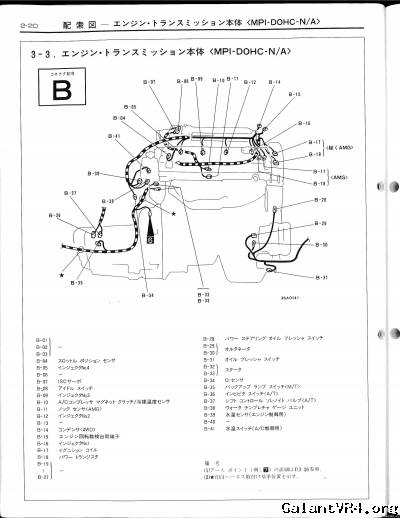

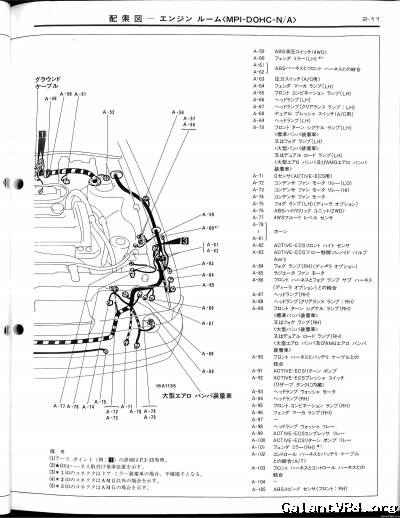

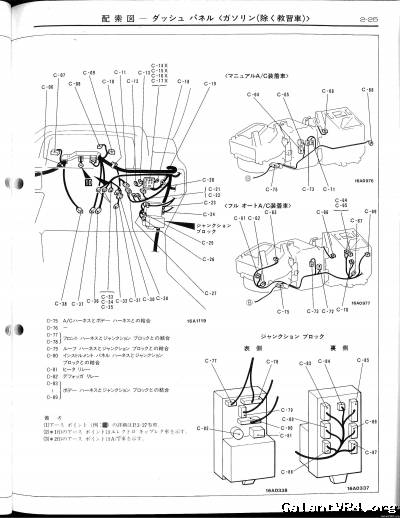

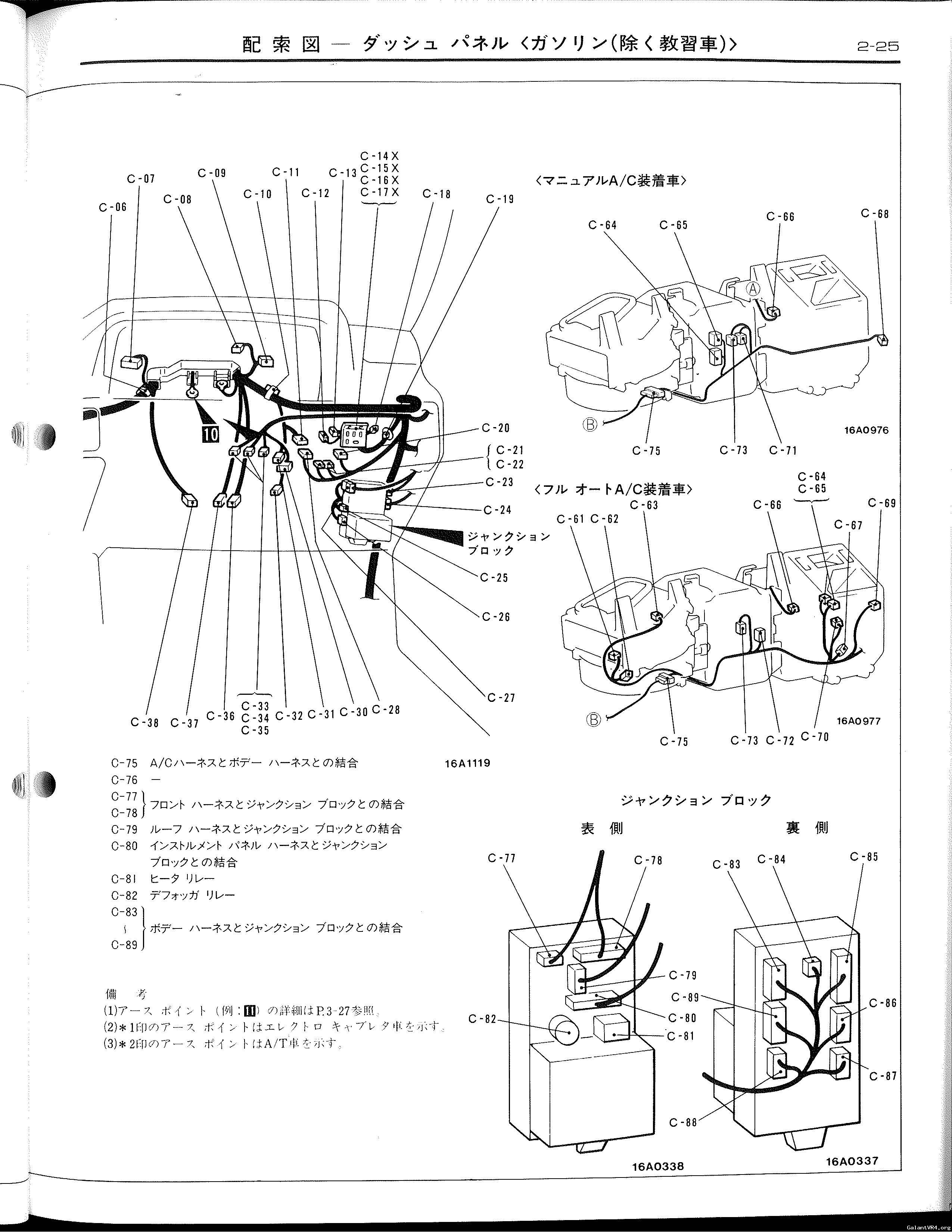

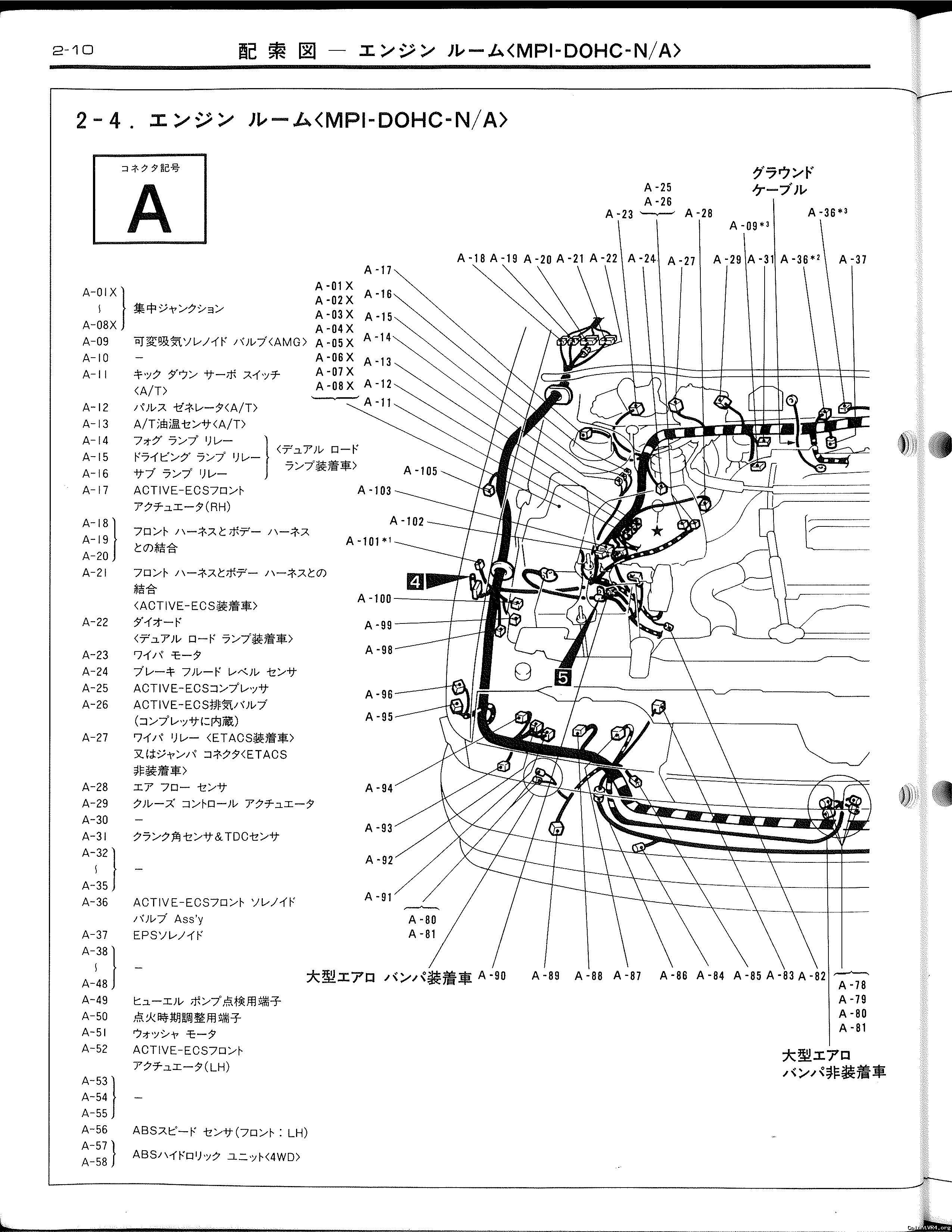

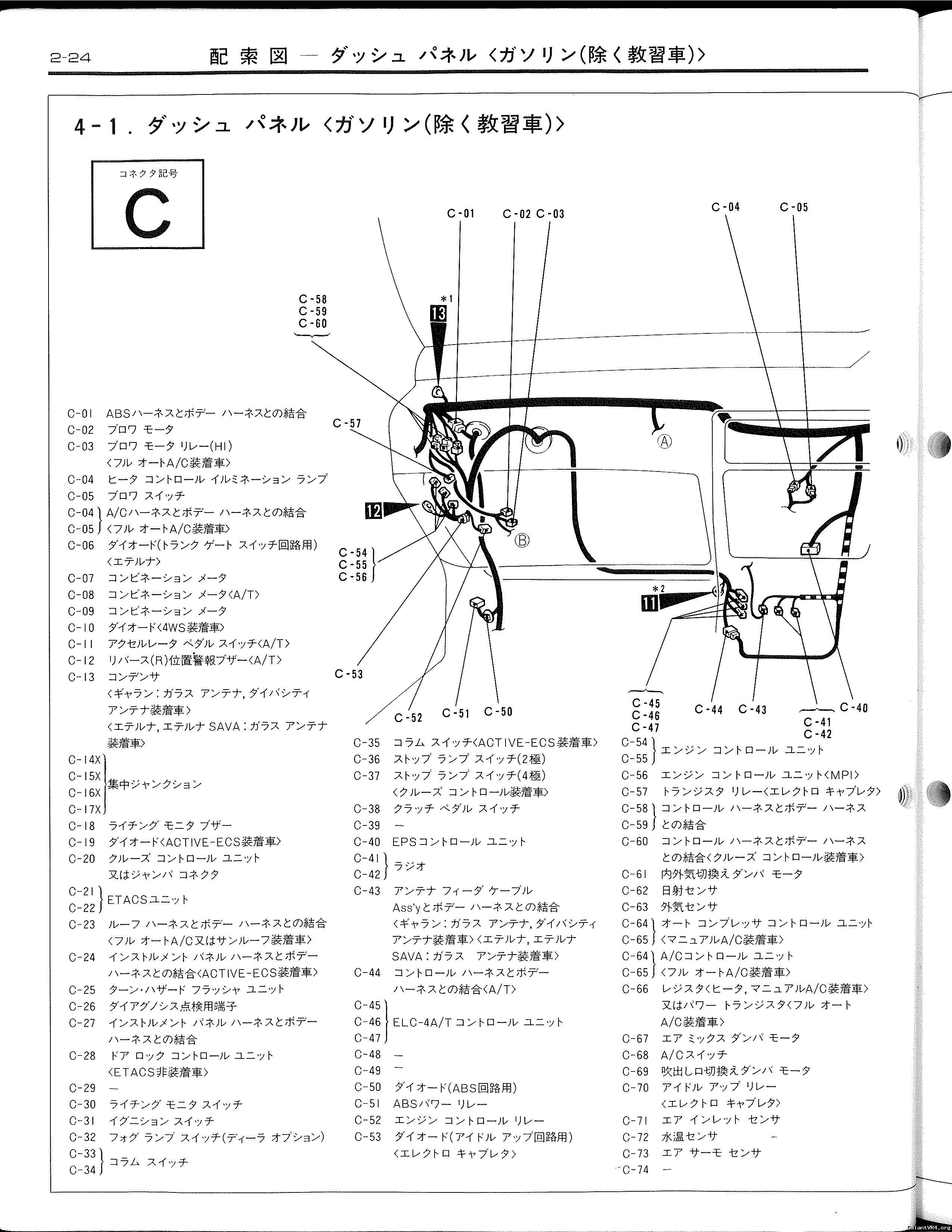

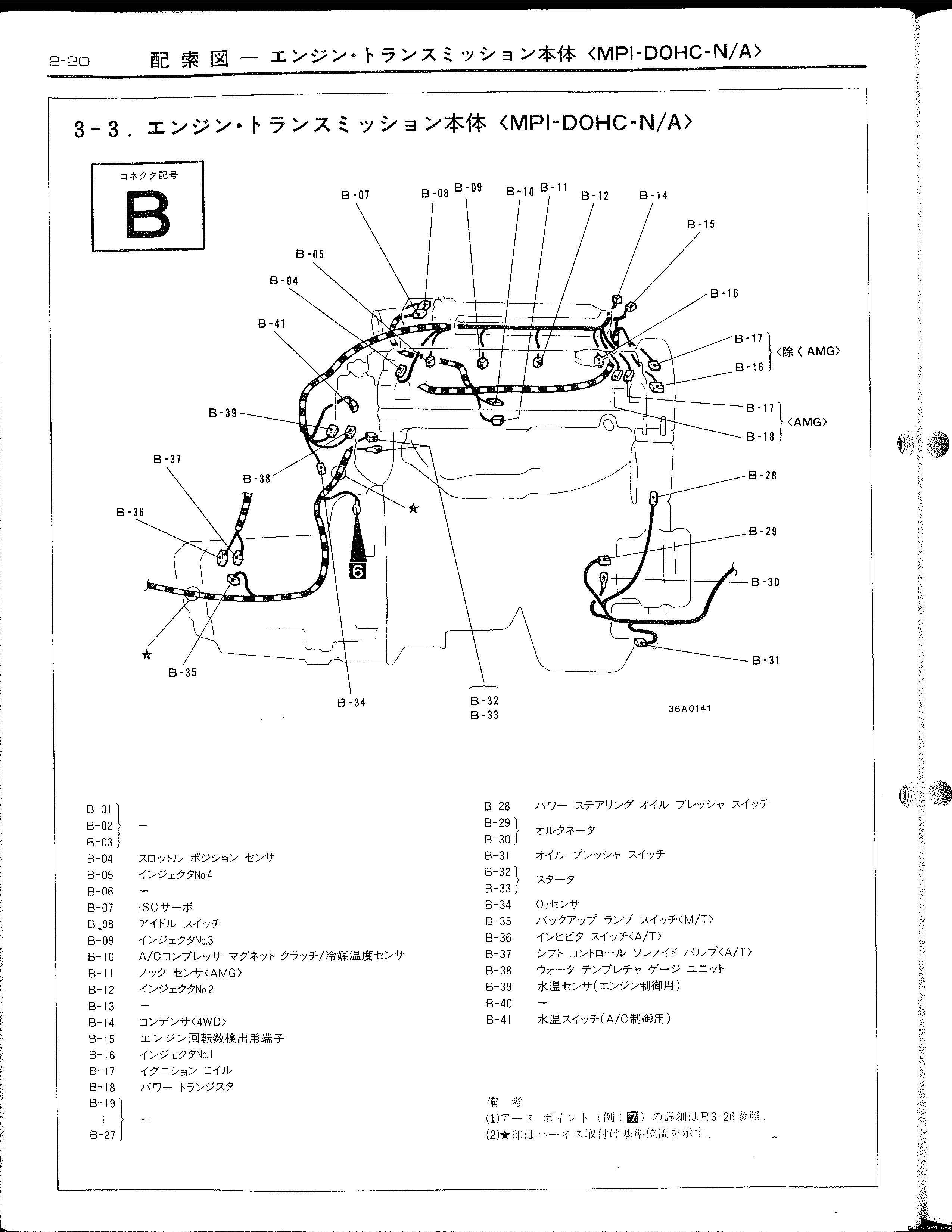

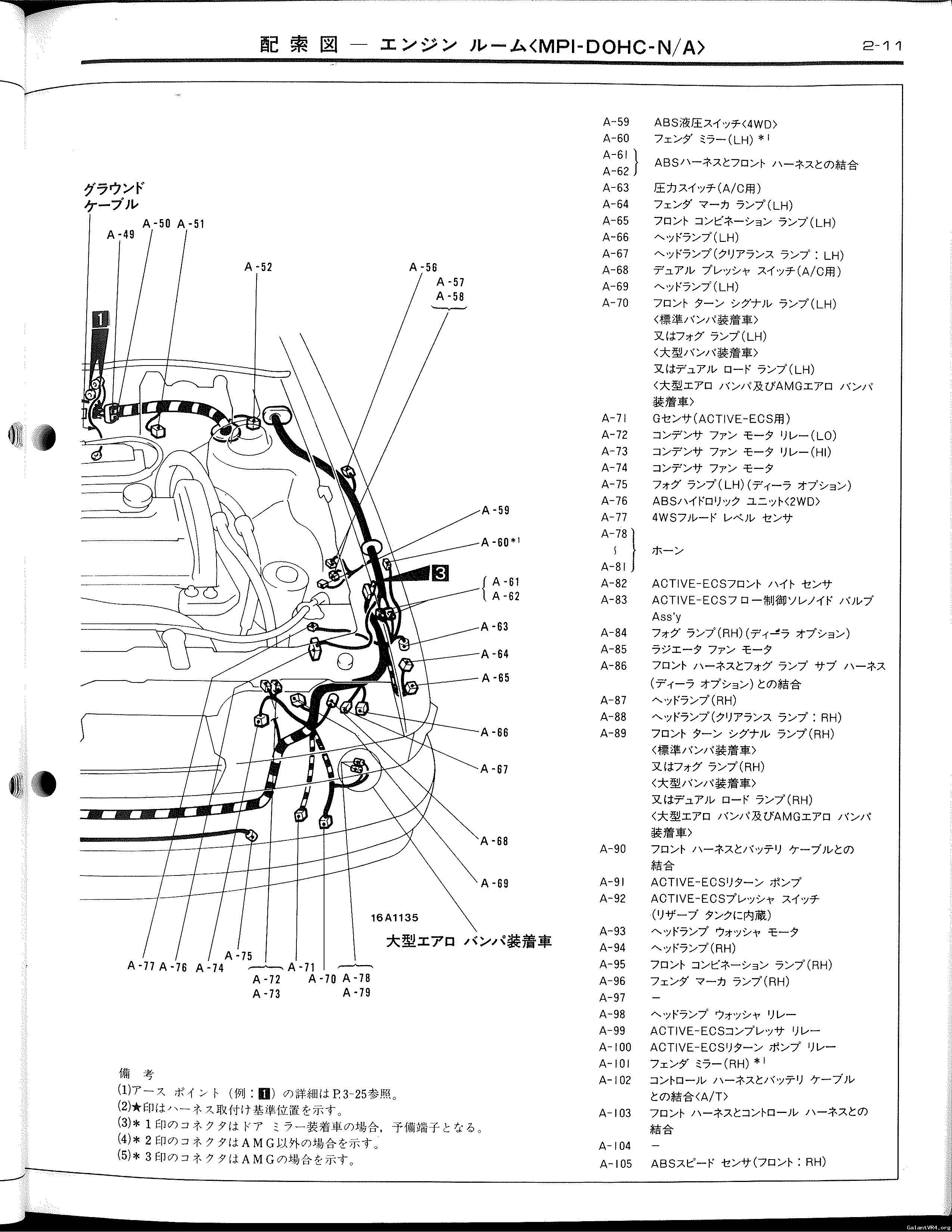

Anyhoo, Connector Config:

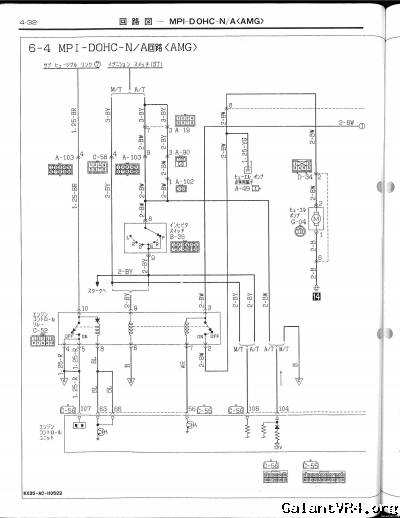

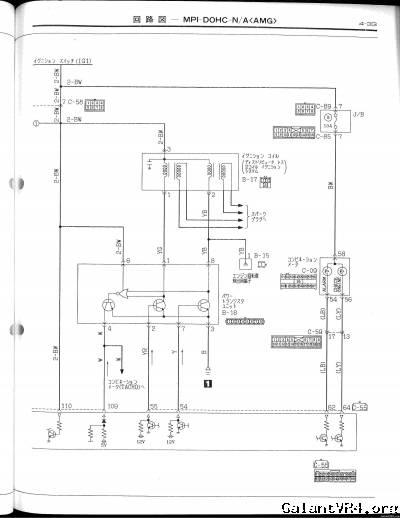

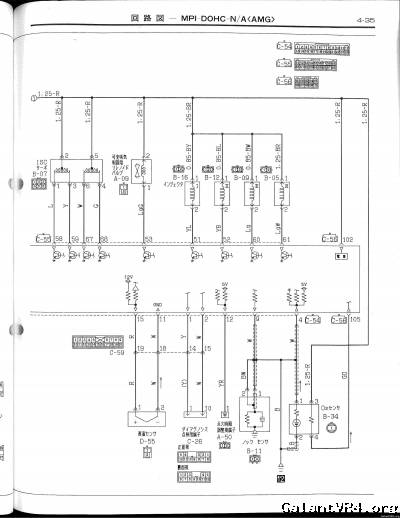

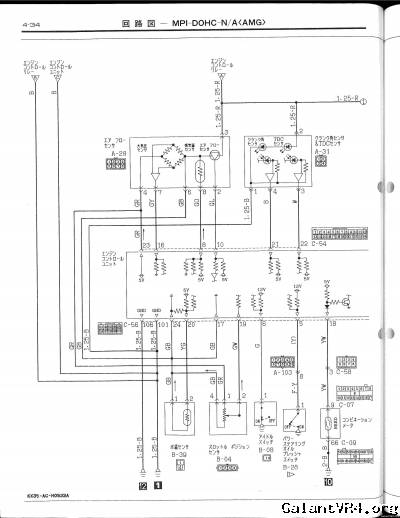

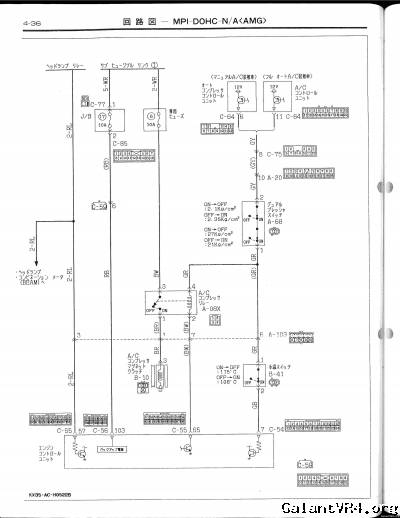

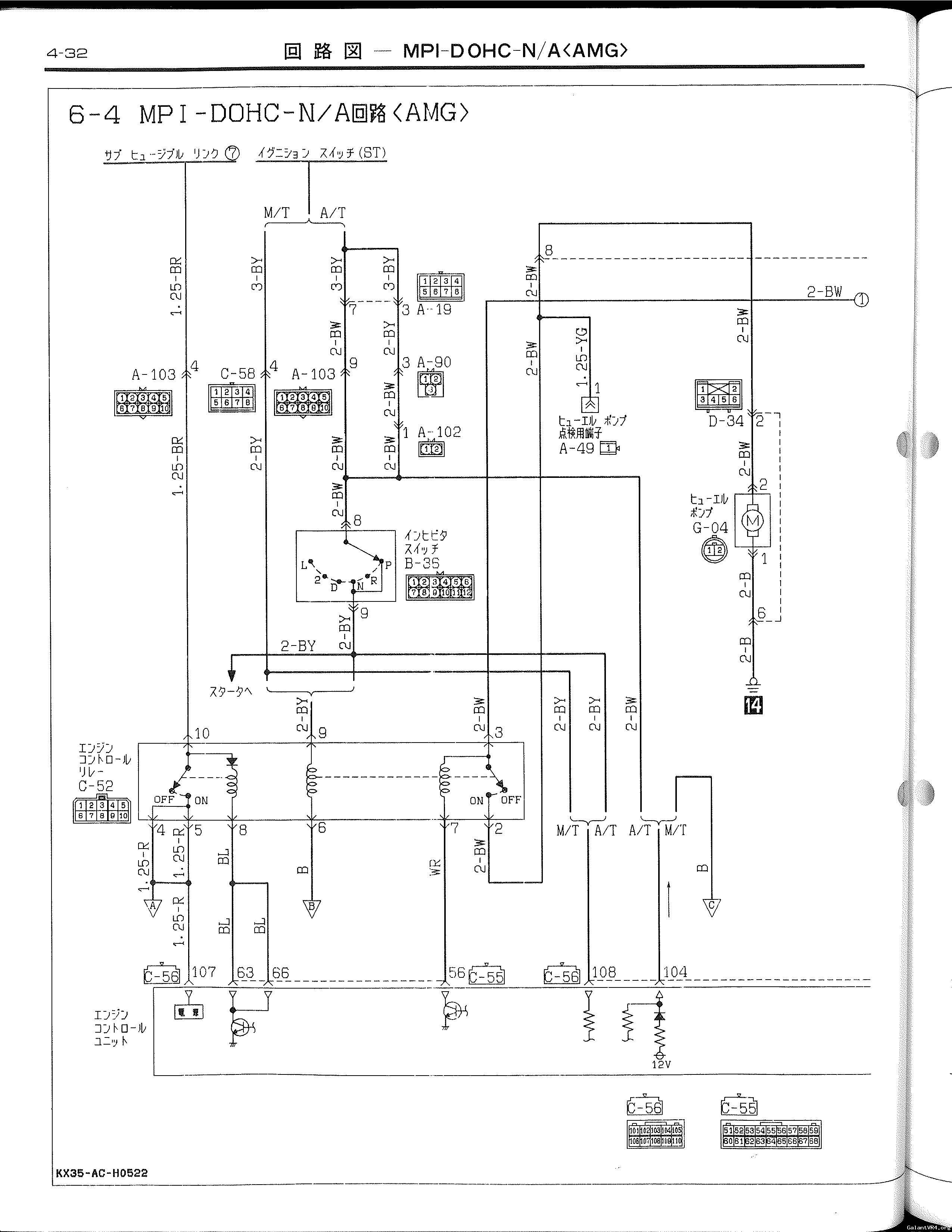

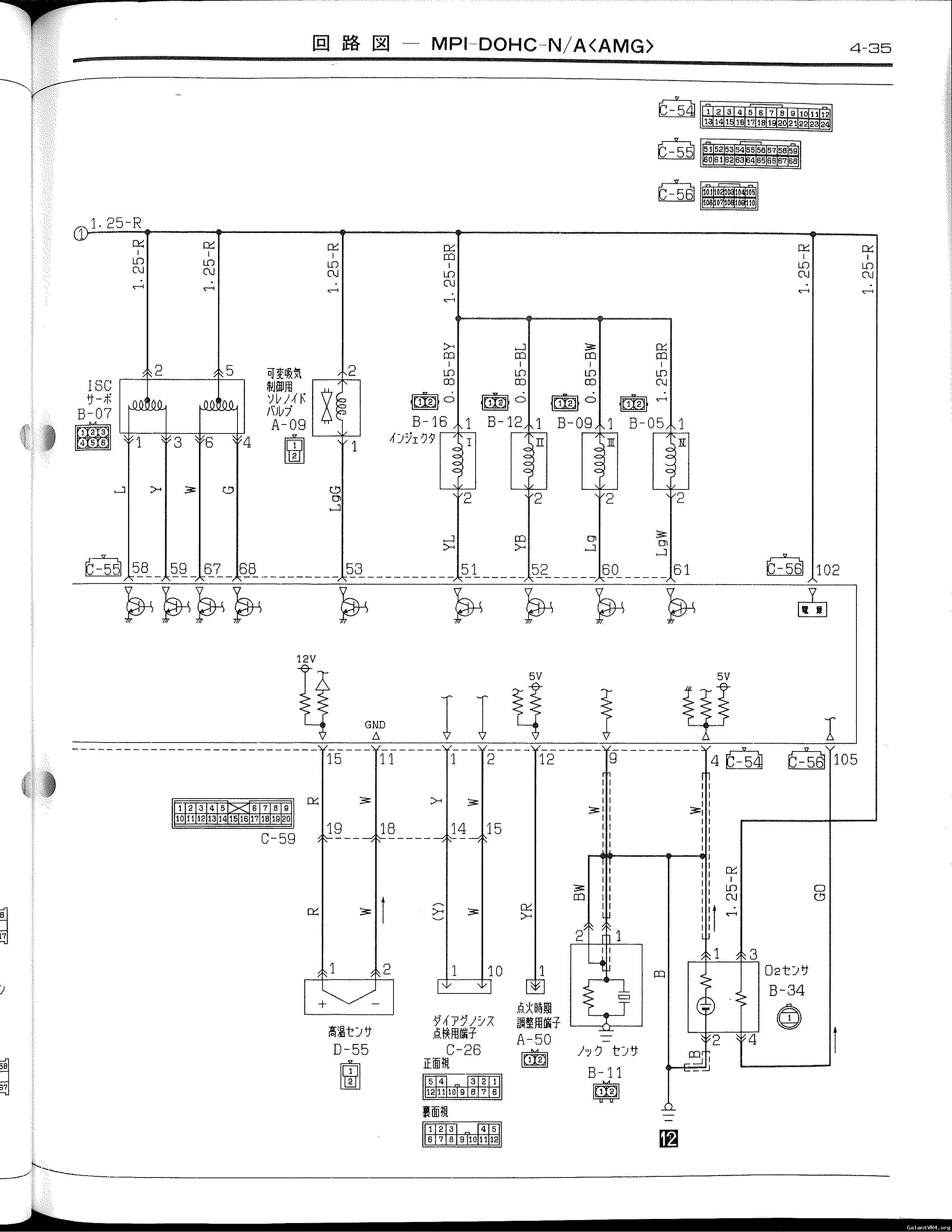

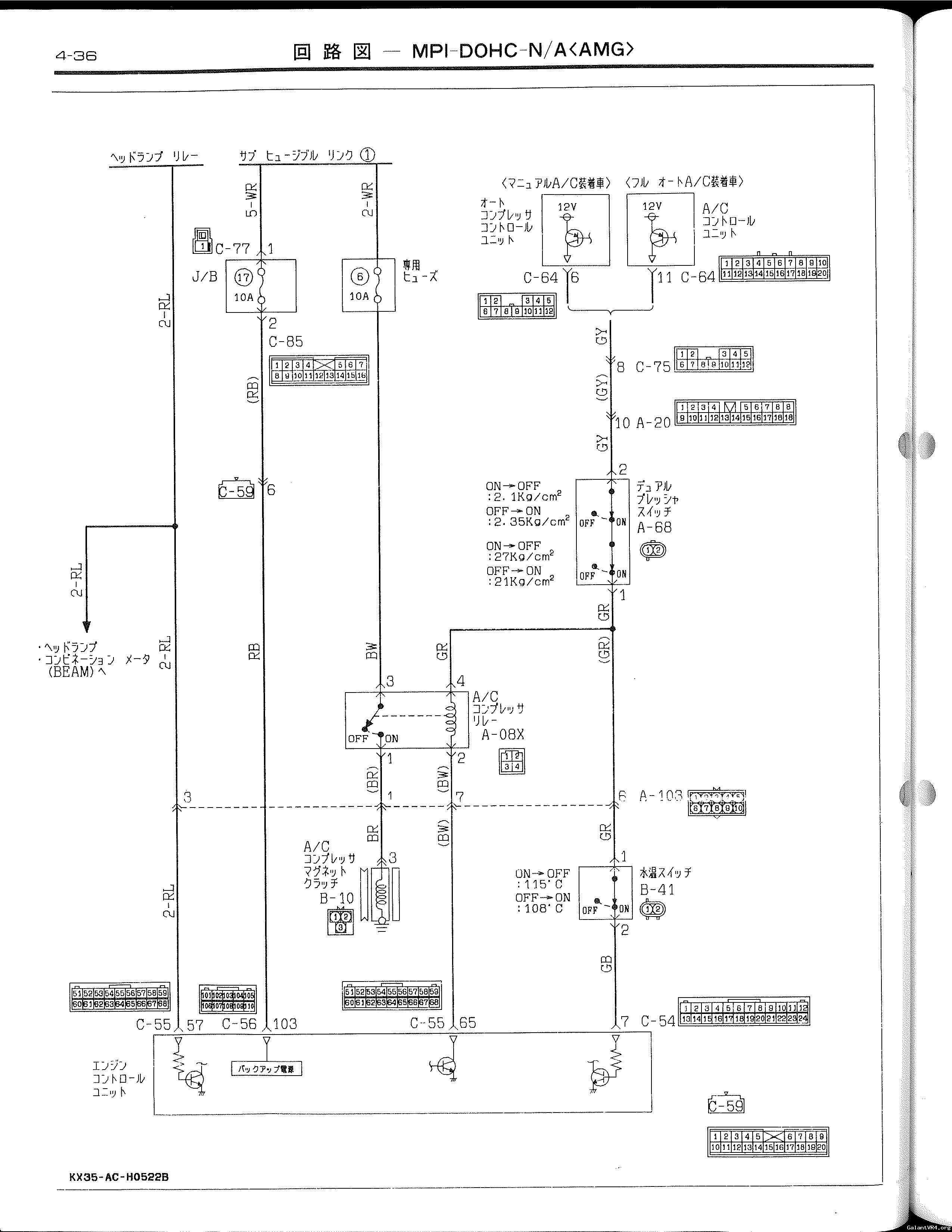

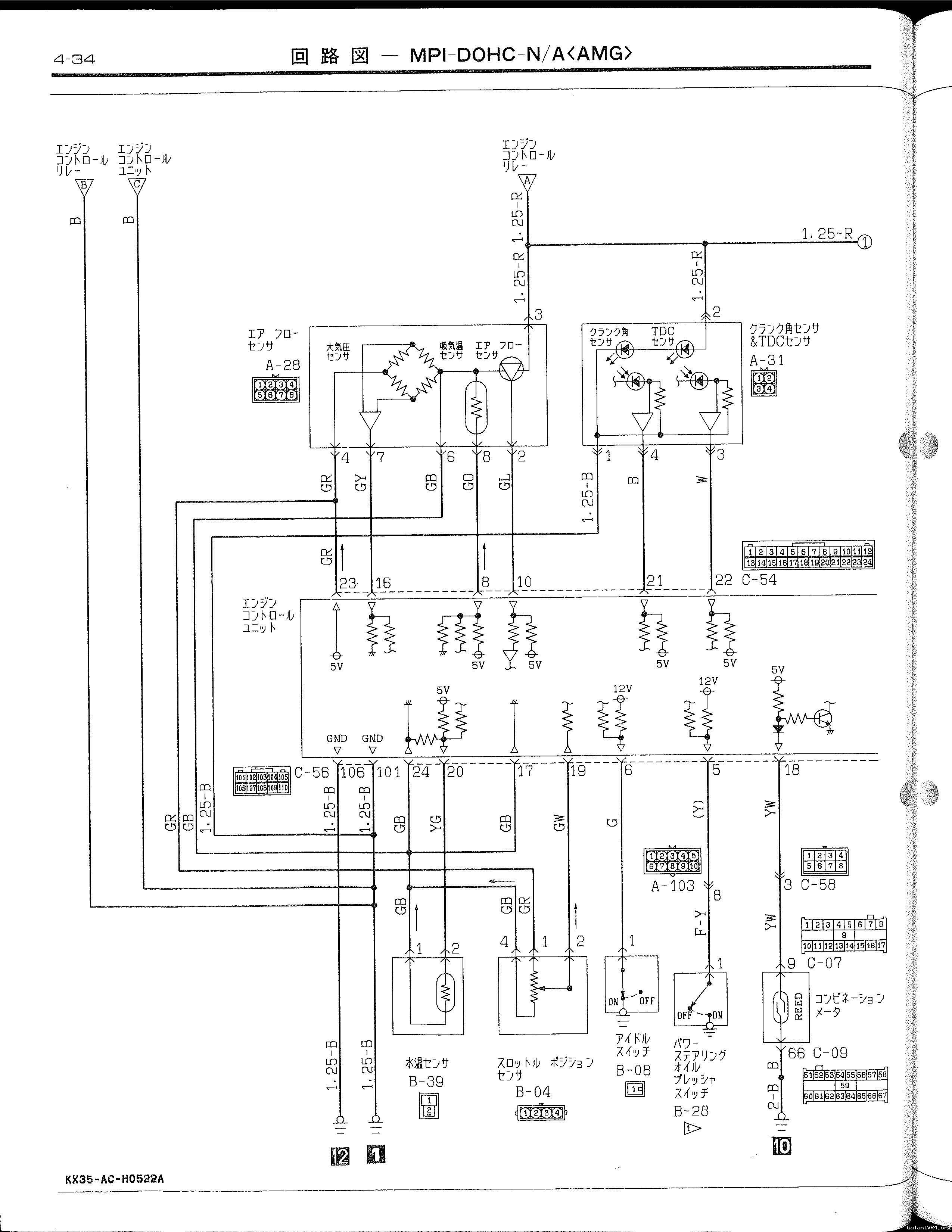

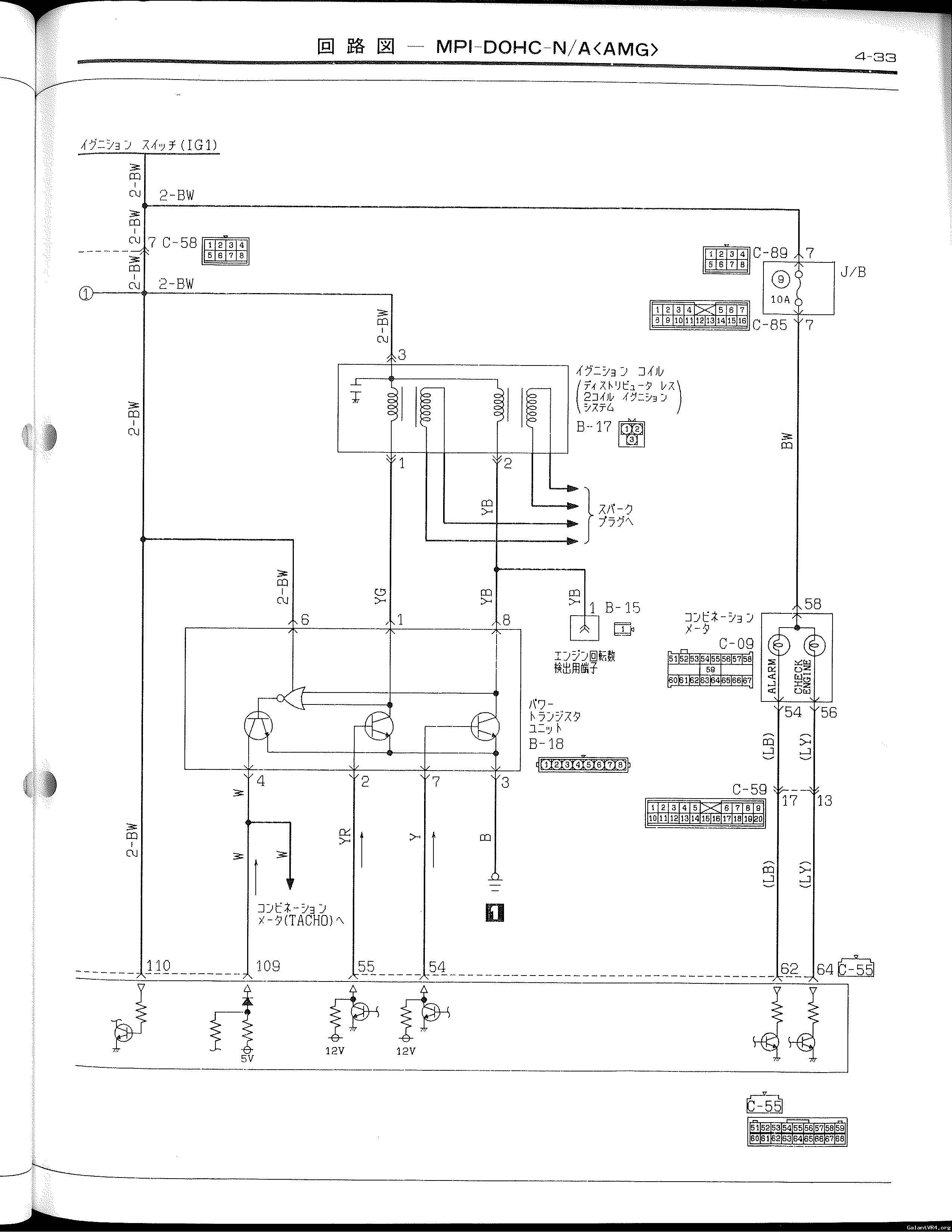

Diagrams:






There you go sir!

Cheers,

Rich
