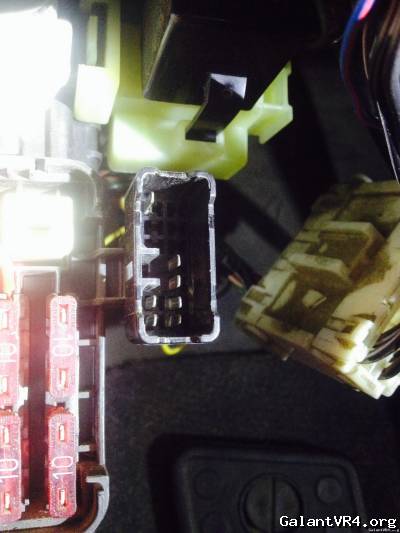

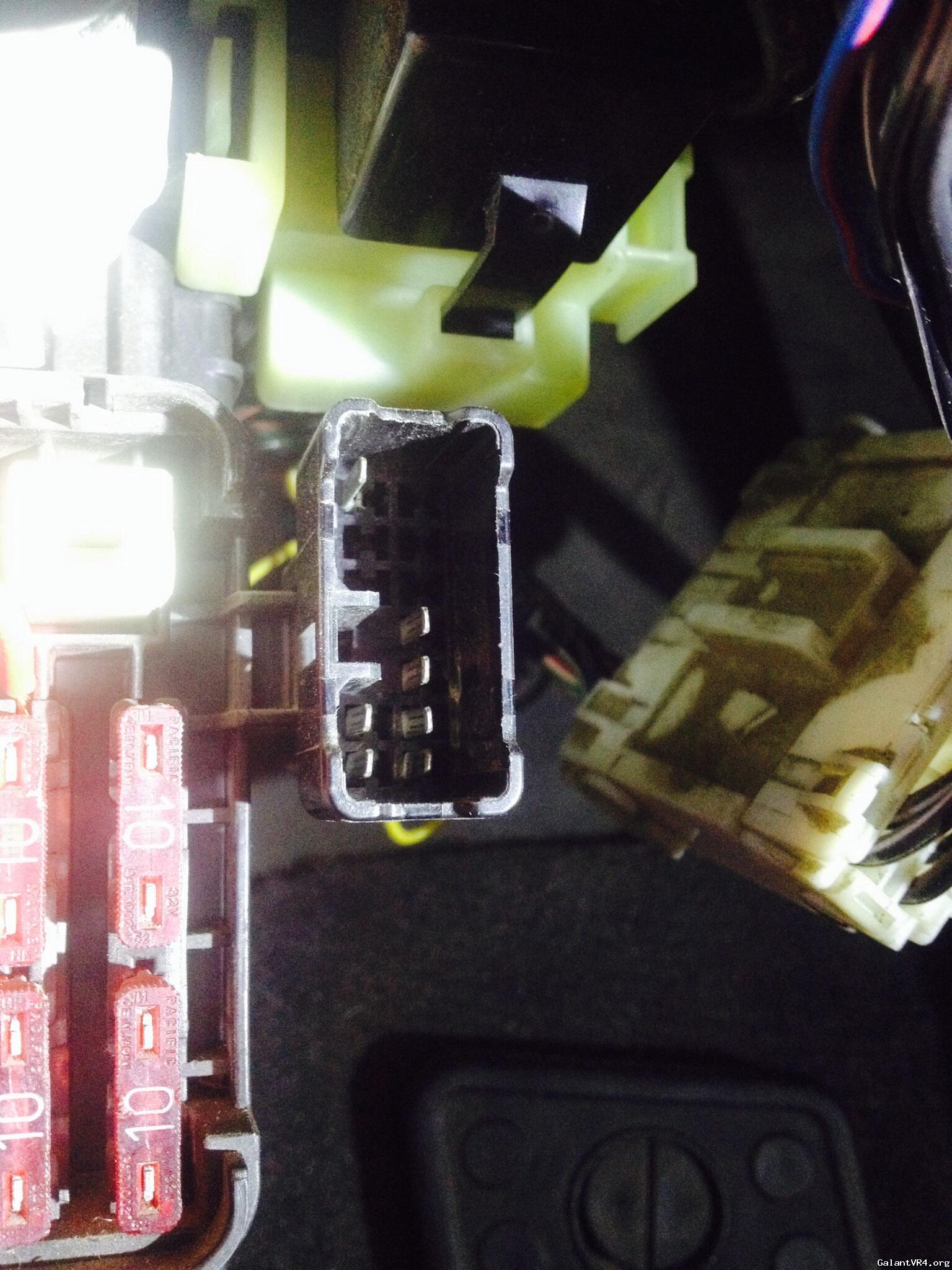

My port next to fuse box doesn't match what is in the manual..check it out
The Top Mitsubishi Galant VR-4 Resource
Join the best E39A 1991-1992 Mitsubishi Galant VR-4 community and document your GVR4 journey.
- Software Upgraded - Reset Your Password to Login
In order to log in after the forum software change, you need to reset your password. If you don't have access to the email address you used to register your GVR4.org account, you won't be able to reset your password. In that case, follow the instructions here to regain access to the forum.
Trying to ground idle
- Thread starterSteve885
- Start date
pot
Staff member
From a quick glance it appears to be mounted upside down. The port connector will unclip from its mount pretty easily.
r4pt0x
Well-known member
Its mounted normally
Pin1 (upper left) = data out
Pin 12 (lower right) = GND
Pin 10 has to be shortened to GND for the engine ECU to enter diagnostics mode.
The other pins are for other systems/ECUs like ABS (IIRC Pin 9), ECS, A/C, A/T transmission...
Pin1 (upper left) = data out
Pin 12 (lower right) = GND
Pin 10 has to be shortened to GND for the engine ECU to enter diagnostics mode.
The other pins are for other systems/ECUs like ABS (IIRC Pin 9), ECS, A/C, A/T transmission...
transparentdsm
Well-known member
the ground for the idle is the 3rd pin up on the right hand side. it is pin 10. the plug is normal.
Steve885
Well-known member
Hey thanks guys!!!
pot
Staff member
Whoops -Guess I'm the one opside down /ubbthreads/images/graemlins/uhh.gif
