Emissions Diagram - Vacuum Line Removal

[steve]

http://www.taboospeedshop.com/emissions.htm



[powerplay]

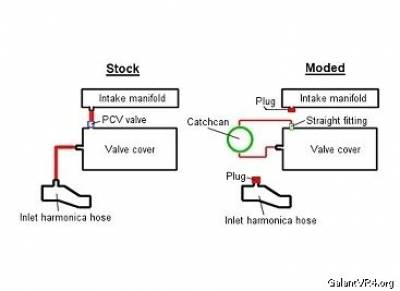

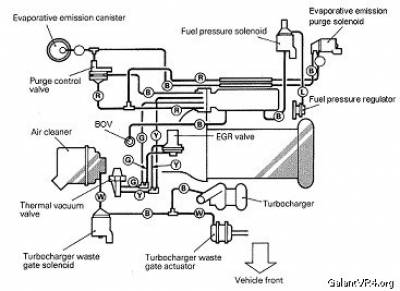

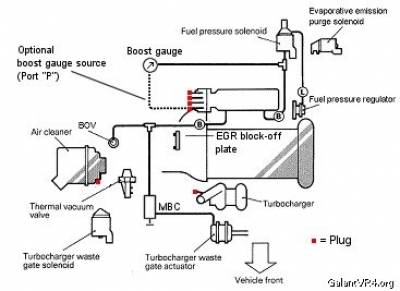

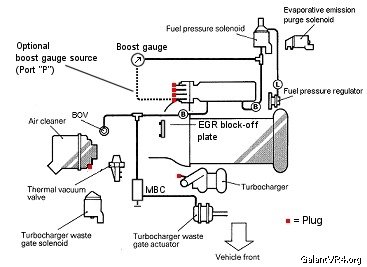

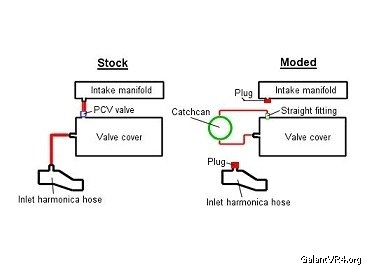

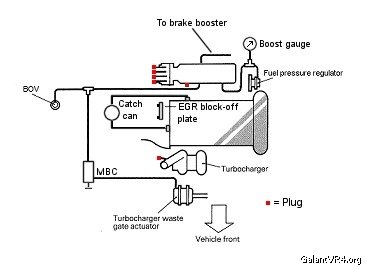

Here are a few of the diagrams:



[steve]

The Taboo site is down, and I was hoping it just expired accidentally. I tried getting the page from the Wayback Machine but could only get one image. Thanks.



I wouldn't be teeing the wastegate line off the BOV line, if you are using a "bleed-type" MBC. When the MBC is bleeding off pressure before it opens, it also bleeds off pressure to the top of the BOV, allowing it to leak slightly. If you are going to use the manifold as your wastegate pressure source with a bleedtype MBC, then use a seperate line directly from the manifold. The spring pressure type MBC should be okay, though.



[cheekychimp]

Will electronic boost controllers be affected in any way?



[mistaVR4]

Nope!
