Part numbers we all need to know... with pictures.

Engine -->


Balance Shaft:
Belt - MR984778 - $22.11 - $22.64
Tensioner - MD115976 - $21.84 - $22.36

Balance Shaft Elimination:

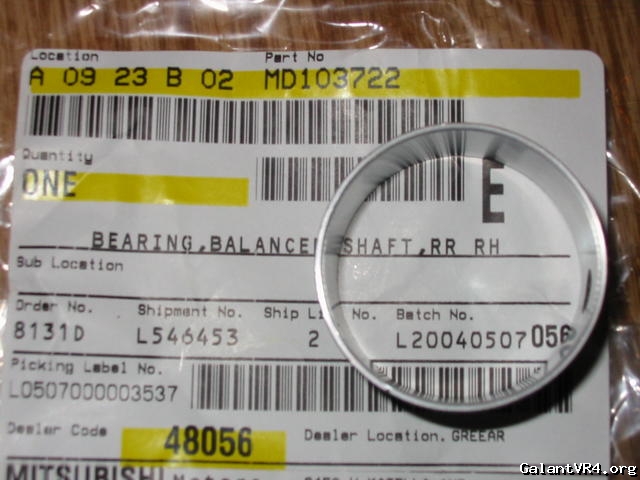

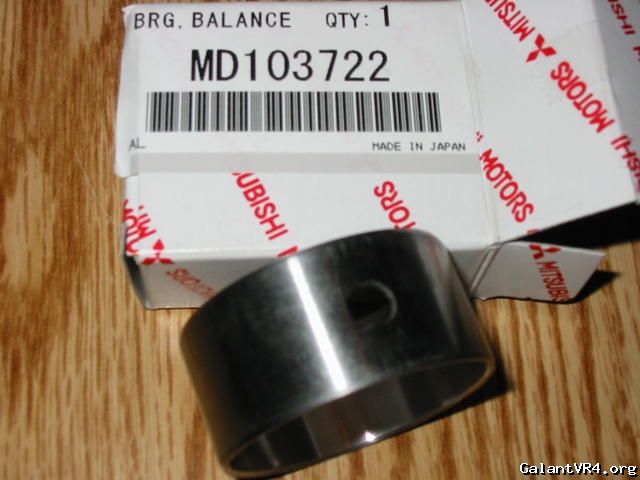

Rear Bearing - MD103722 - $8.70 - $$$ - img - img

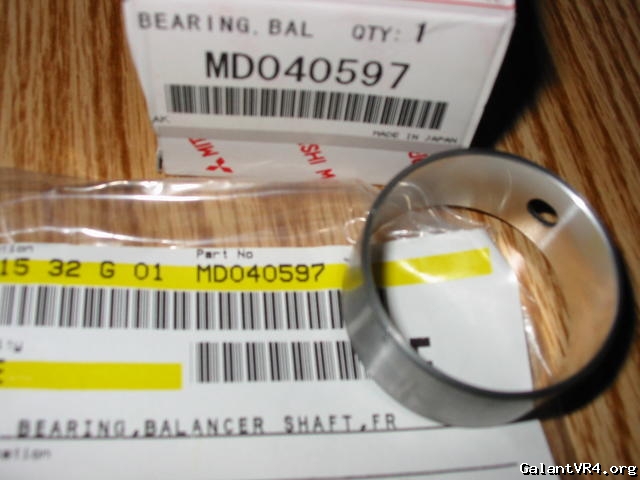

Front Bearing - MD040597 - $10.03 - $$$ - img

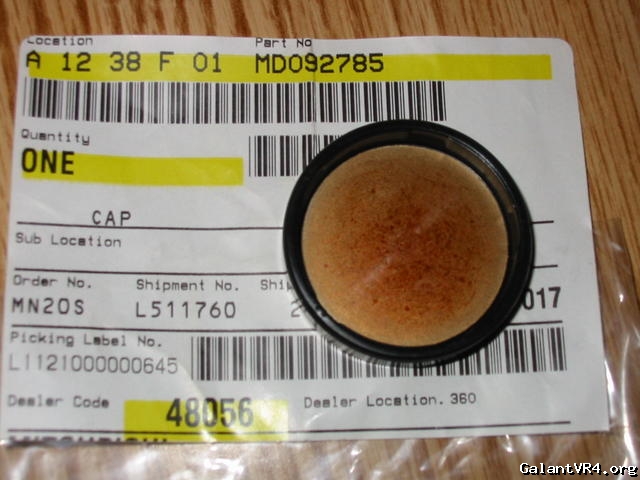

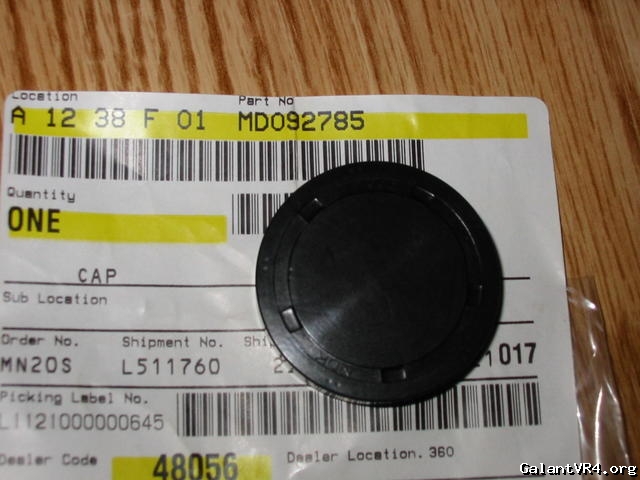

Cap - MD092785 - $6.50 - $$$ - img - img

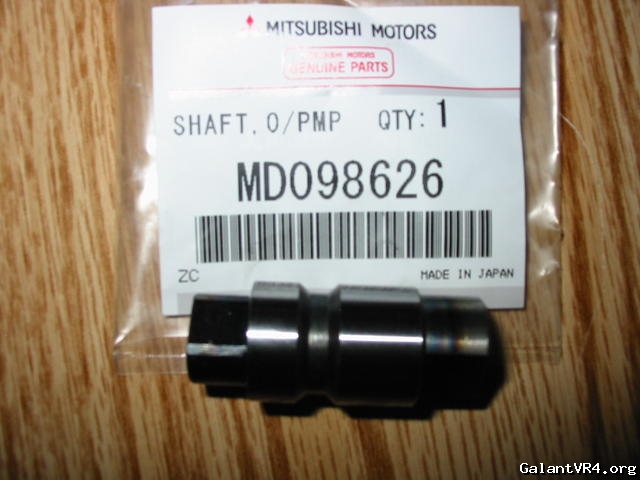

Stub Shaft - MD098626 - $8.24 - $8.44 - img

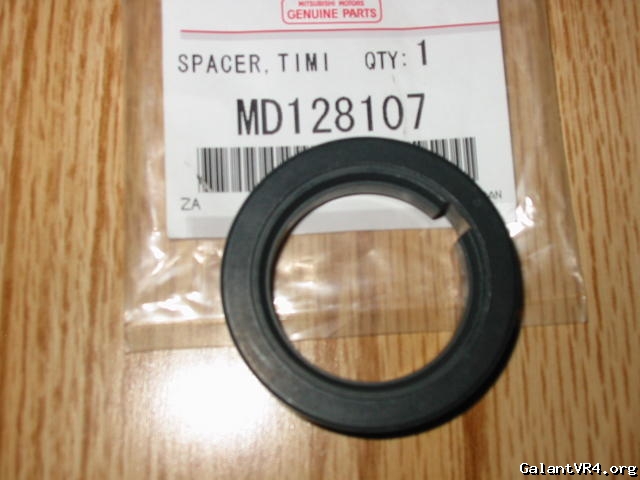

Spacer - MD128107 - $3.37 - $3.45 - img

Timing:

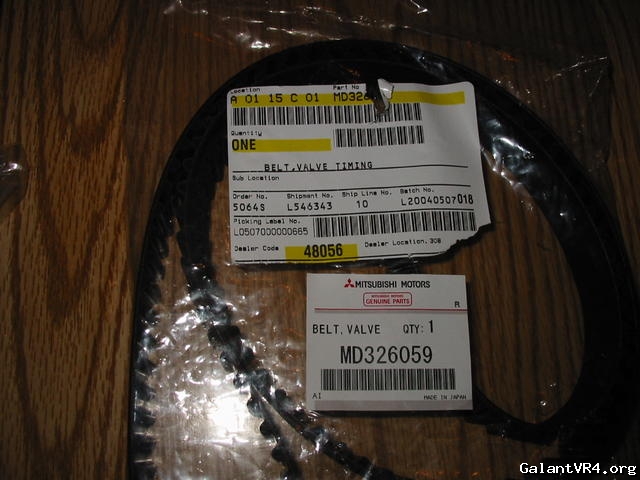

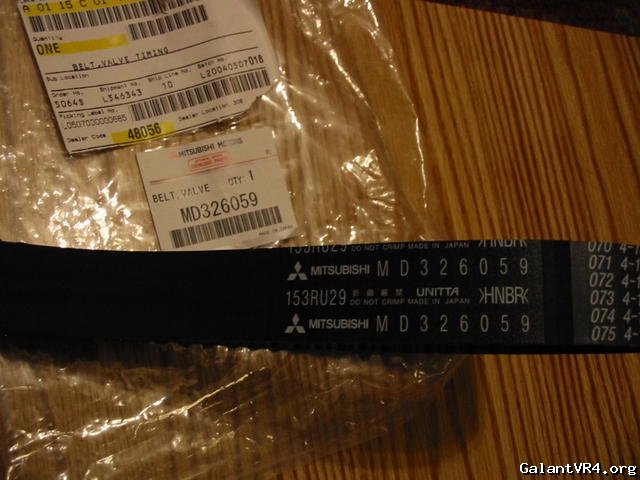

Belt - MD326059 - $57.89 - $67.35 - img - img

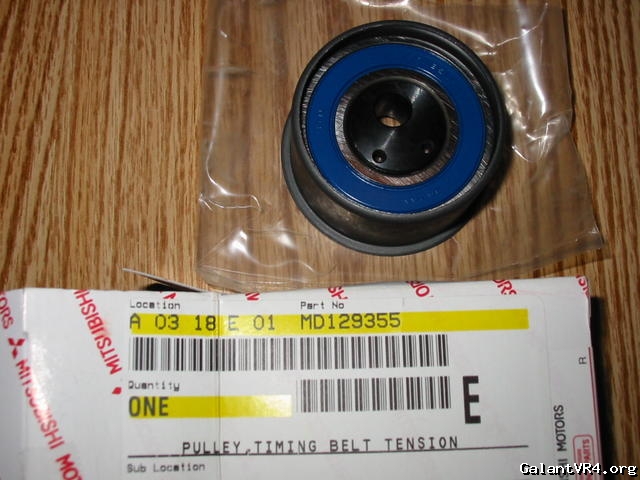

Idler Pulley - MD129355 - $21.09 - $21.59 - img

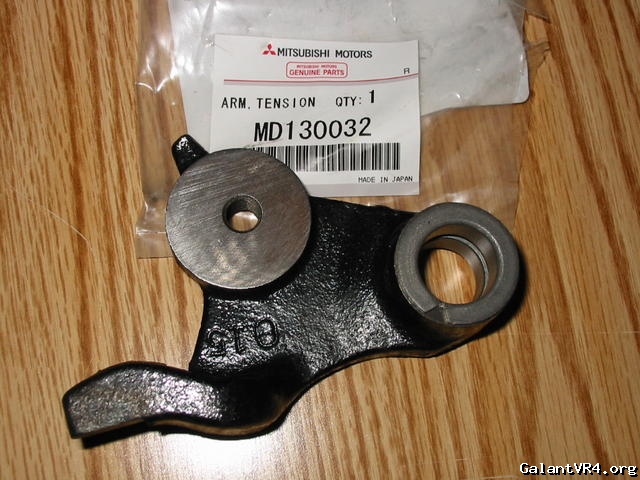

Tensioner Arm - MD130032 - $$$ - $$$ - img

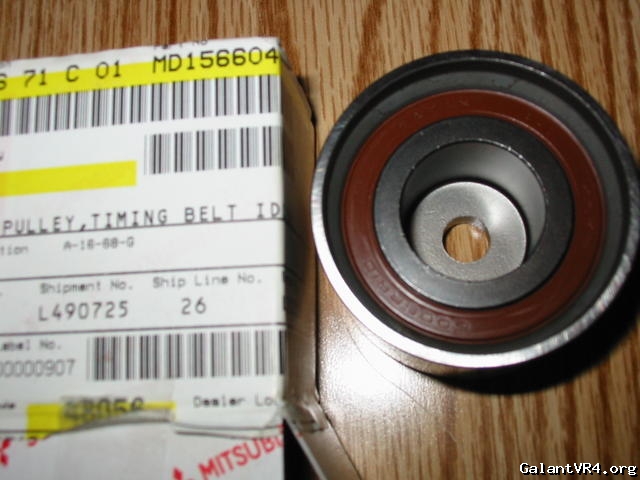

Tensioner Pulley - MD156604 - $25.78 - $26.39 - img

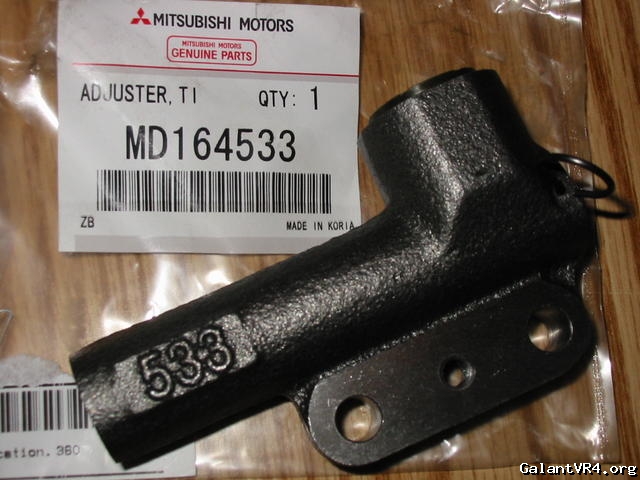

Adjuster - MD164533 - $64.07 - $65.58 - img

Lower Timing Cover Gaskets:
One - MD121986 - $3.92 - $4.02
Two - MD156770 - $0.93 - $0.95
Three - MD006665 - $1.92 - $2.30


Oil Seals:

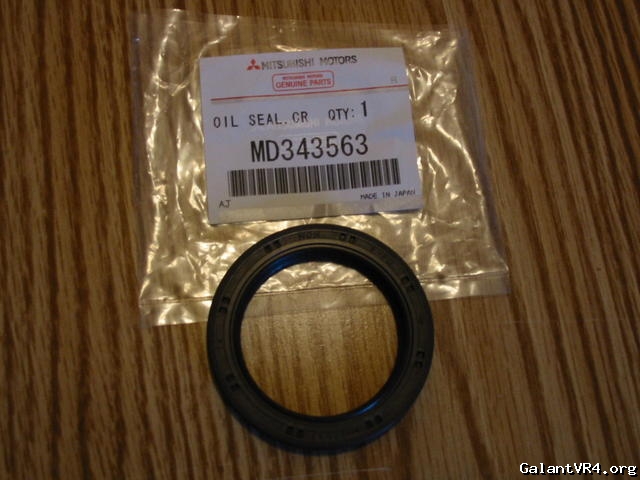

Crankshaft - MD343563 - $$$ - $$$ - img - (NOK AH2554J)

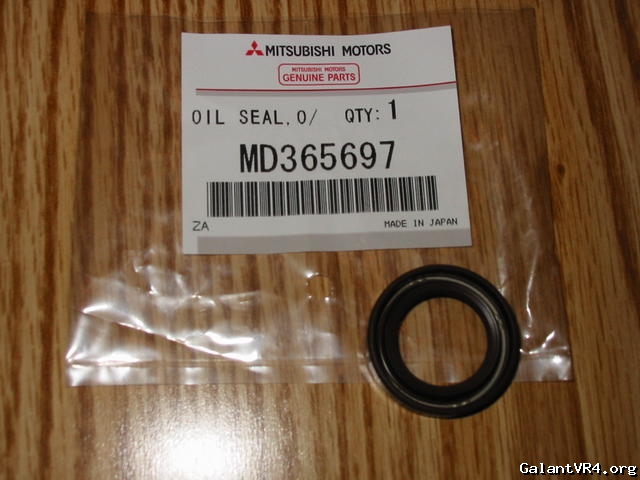

Oil Pump - MD365697 - $$$ - $$$ - img - (NOK AH0984H)

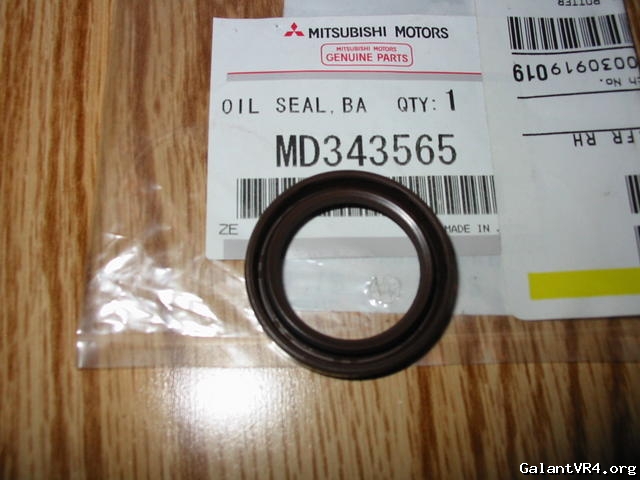

Balance Shaft - MD343565 - $$$ - $$$ - img
Balance Shaft Elimination Plug - (NOK EZ2937B)
Camshaft - MD372536 - $$$ - $$$

EGR:

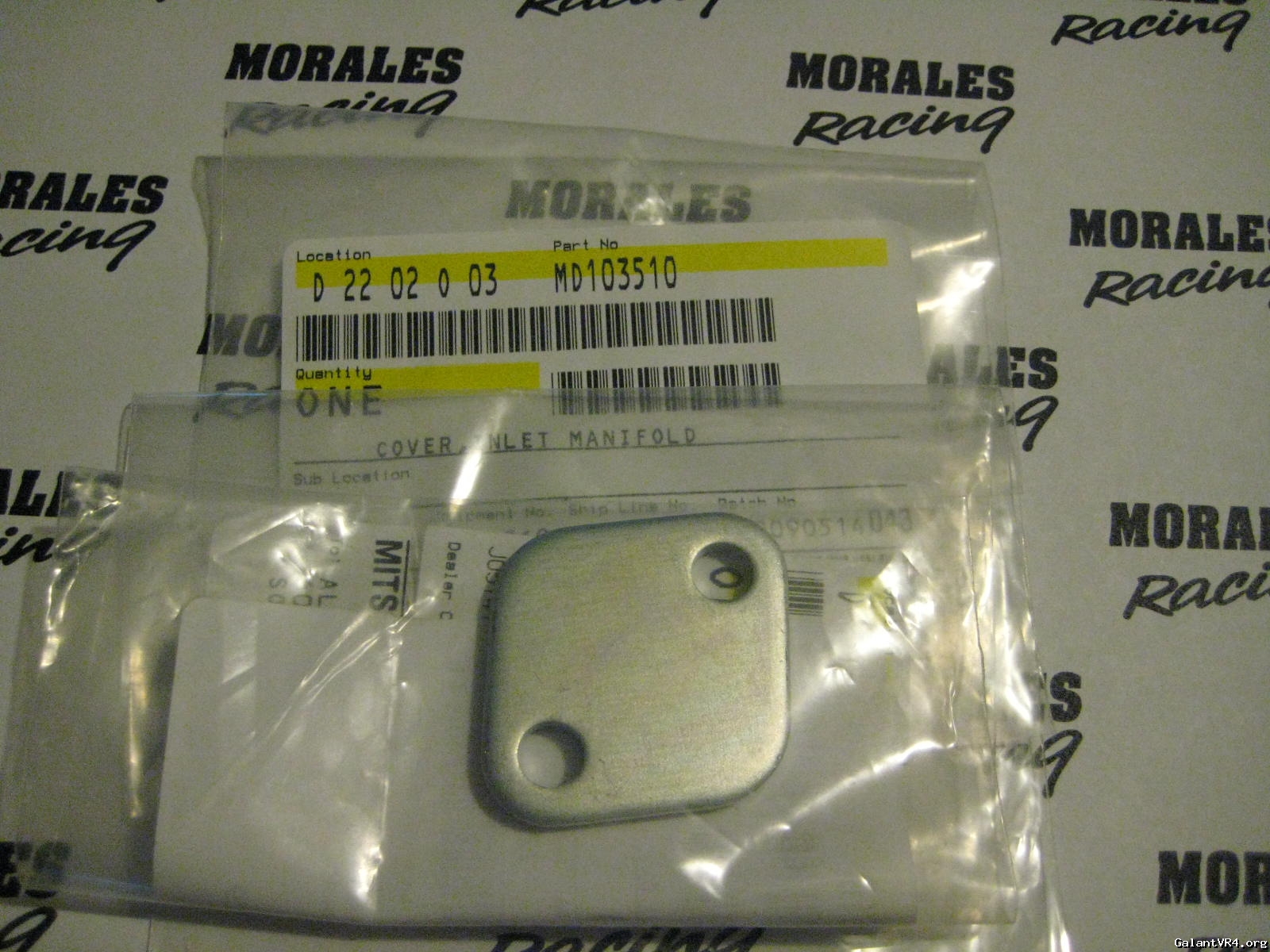

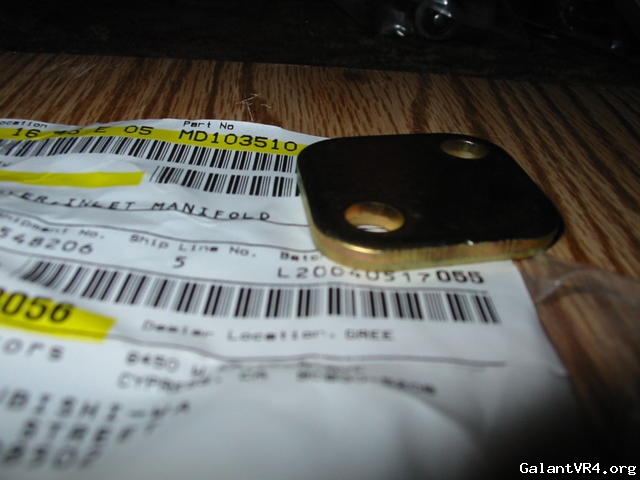

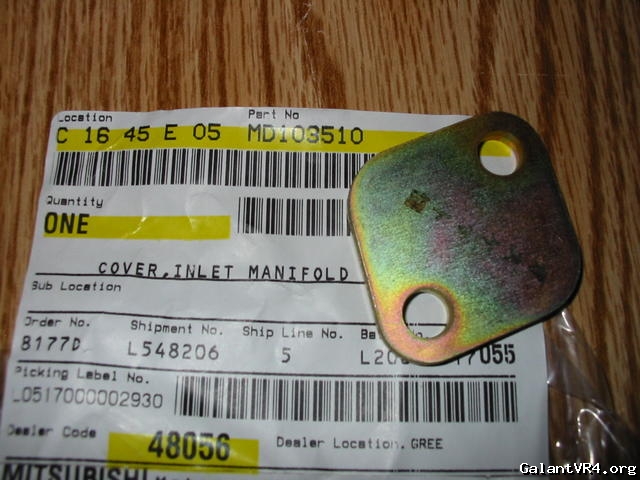

Blockoff plate - MD103510 - $8.86 - $$$ - img - img
Blockoff plate (newer) - MD103510 - img

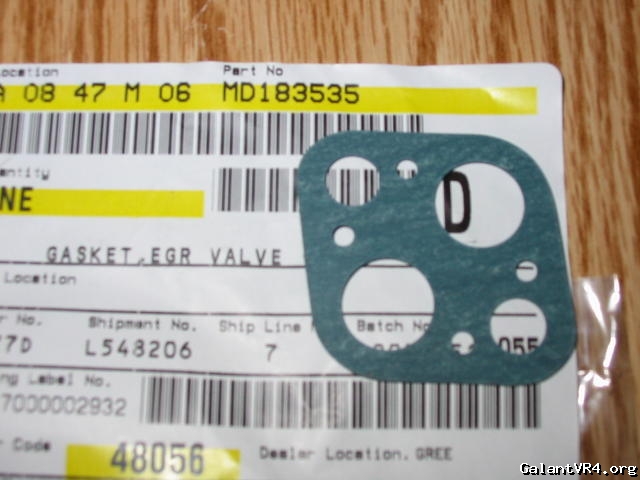

Gasket - MD183535 - $0.79 - $$$ - img

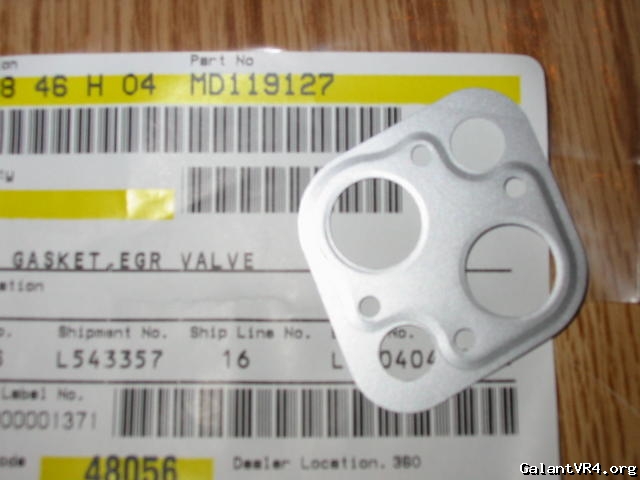

Gasket - MD119127 - $1.87 - $1.87 - img

Intake Gaskets:
J-Pipe (Turbo OutletJ-Pipe) - MD189460 - $1.79 - $$$
Compressor Bypass Valve (BOV) - MR312761 - $1.28 - $$$
Throttle Body Elbow (TBElbow) - MD340327 - $1.83 - $$$
Throttle Body (TBIntake) - MD146399 - $2.69 - $2.75
Manifold (ManifoldHead) - MD176459 - $7.28 - $$$

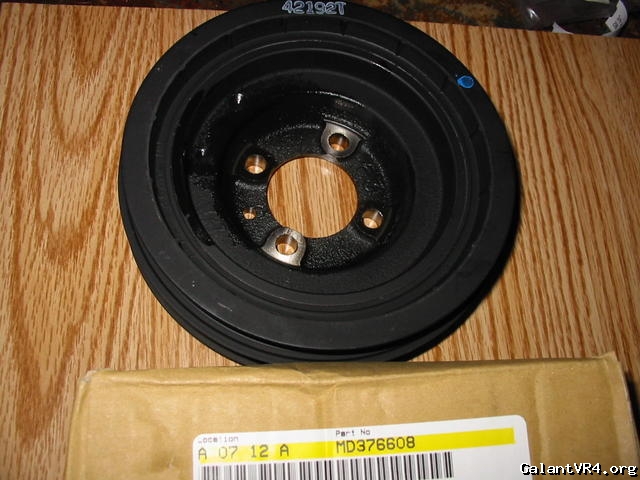

Crank Pulley - MD376608 - $95.16 - $106.86 - img

Belts:

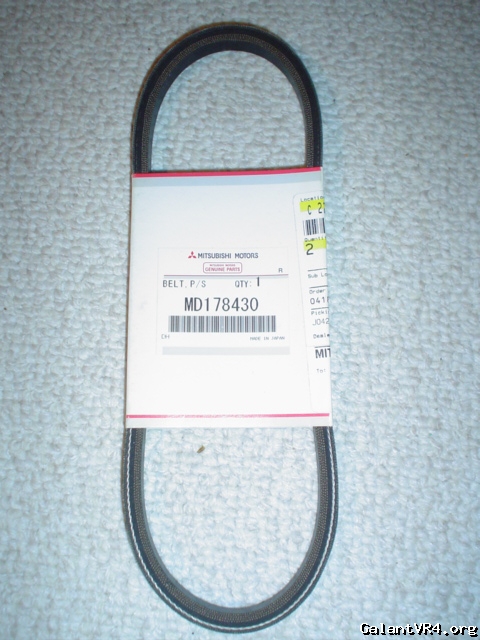

Power Steering - MD178430 - $ 7.53 - $7.71 - img

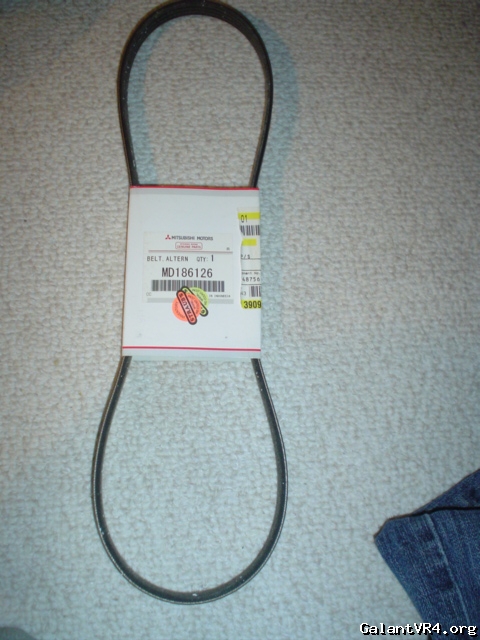

Alternator/Water Pump - MD186126 - $15.25 - $19.50 - img
Air Conditioning - MB568898 - $17.65 - $18.07

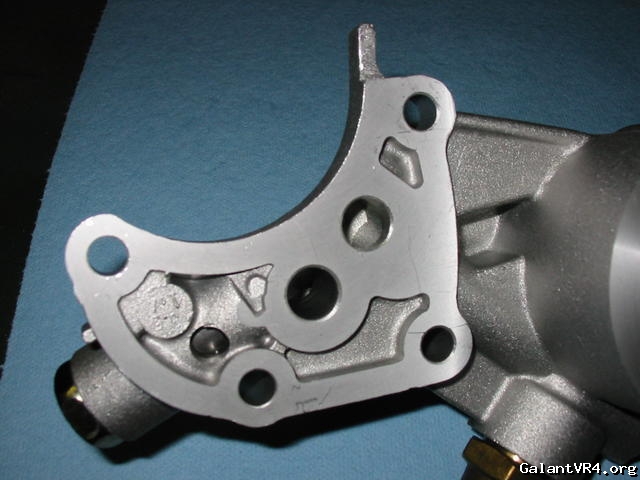

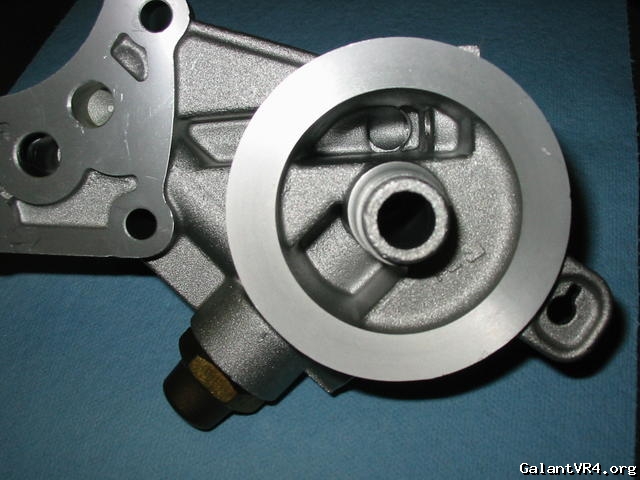

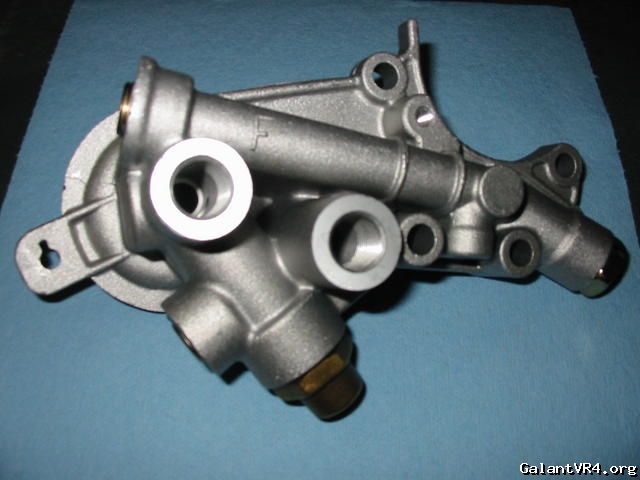

'90 Oil Filter Adapter - MD132912 - $55.46 $$$ - img - img - img
Oil Filter Adapter Gasket - MD149370 - $$$ - $$$
Knock Sensor - MD141510 - $61.34 - $62.79 - See below for post from gvr4737
Oil Filler Cap Gasket - MD311638 - $0.77 - $0.80
PCV Valve - MD024719 - $4.24 - $4.34
Half-Moon Seal - MD050536 - $1.92 - $1.97

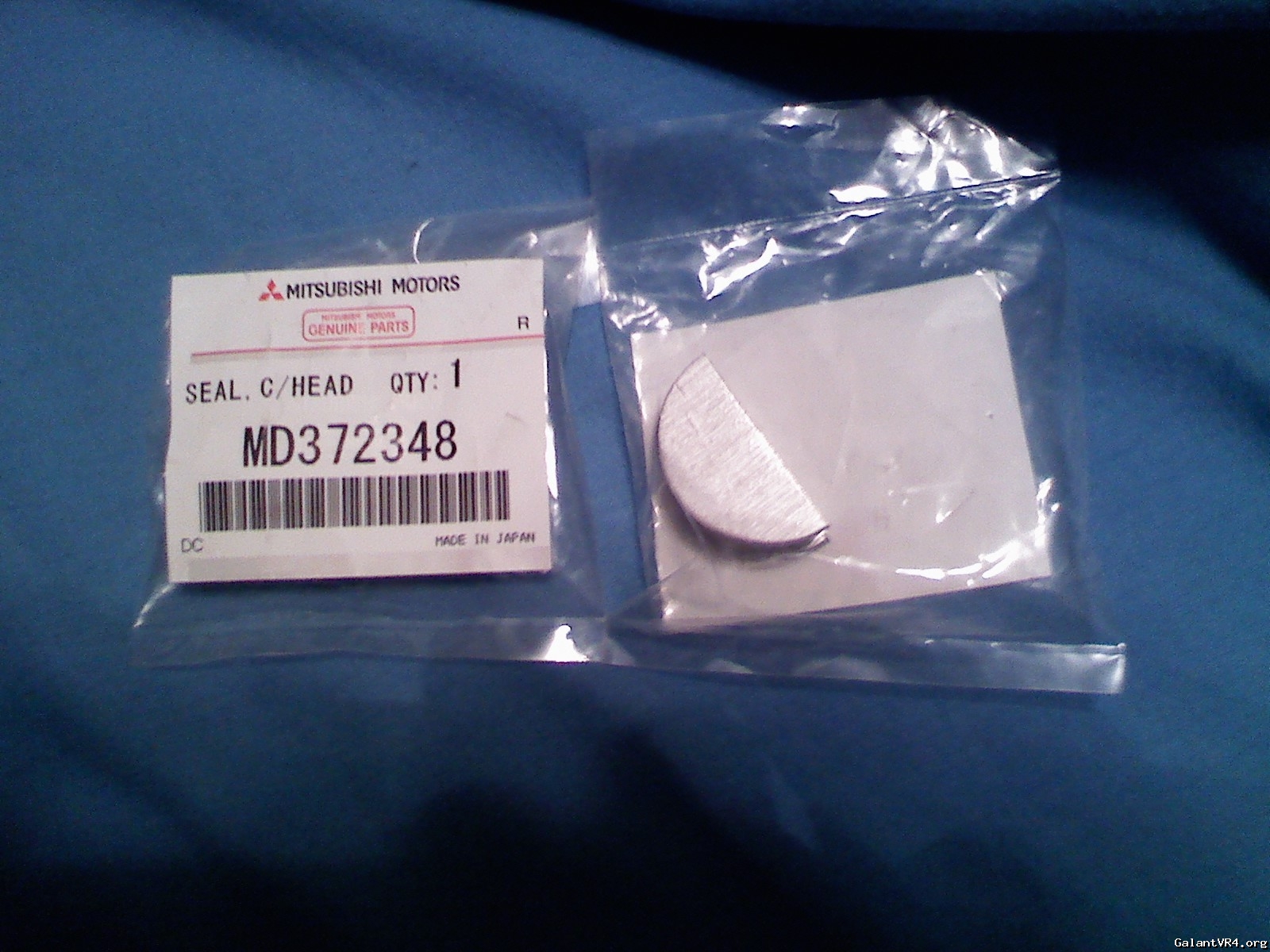

03-06 EVO VIII Metal half moon seal - MD372348 - $2.04 - img

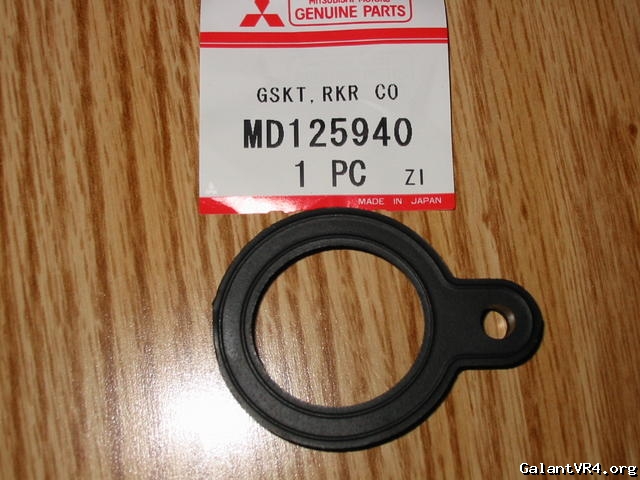

Spark Plug Hole Gasket - MD125940 - $3.59 - $$$ - img
Valve Cover Gasket - MD125939 - $19.55 - $20.01

OEM 4 layer metal headgasket - MD349347 - 8$2.96- $103.70
Engine dipstick - MD127058
Engine Dipstick tube - MD124782
Dipstick tube o-ring - MD075834

Front Cover Gasket - MD149393 ~$7.24
Rear Main Housing Gasket - MD183243 ~$1.85
Rear Main Seal - MD343564 ~$23.52
Reverse Switch - MD730979 ~$11.89

2.4L:
Crankshaft - MD080691 - $512.60 - $524.71
Crank Bearings (std) - MD091399 - $66.29 - $67.86
Rod Bearings (std) - MD071298 - $56.34 - $57.67
Cam Gear - MD189399 - $$$ - $$$
Cam Gear - MD300439 - $$$ - $$$
Timing Belt - MD182292 - $$$ - $$$

----------

Turbo

Oiling:

Feed Line - MD140394 - $$$ - $$$
Return Line - MD150523 - $$$ - $$$
Head To Feed Crush Washer (2x) - MF660063 - $$$ - $$$
Turbo To Feed Crush Washer (2x) - MF660064 - $$$ - $$$
Return Line Gasket (2x) - MR258477 - $0.88 - $$$
Return Line To Pan Crush Washer (2x) - MF660031 - $0.06 - $$$

----------

Cooling:

180 Degree Thermostat - MD997607 - $13.17 - $$$ - img

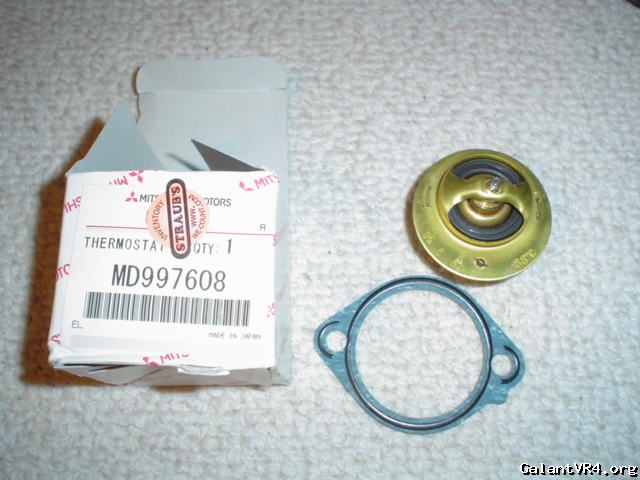

190 Degree (stock) Thermostat - MD997608 - $16.16 - $$$ -

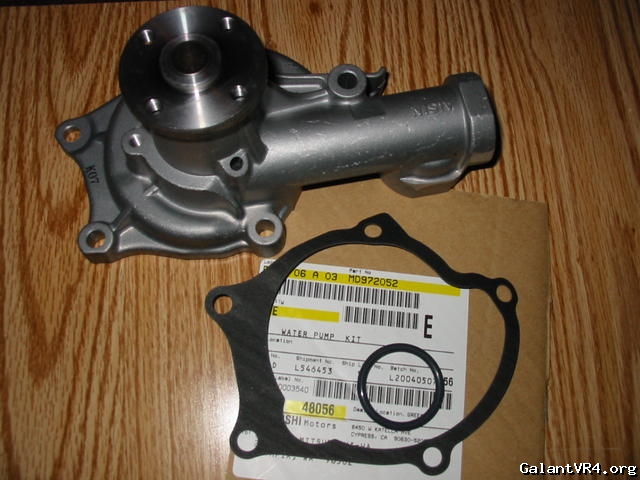

Water Pump Kit - MD972052 - $95.25 - $97.50 - img
Upper Radiator Hose - MB356964 - $6.35 - $6.50
Lower Radiator Hose - MB356967 - $8.18 - $8.38
Heater Hose Kit - MB527995 - $19.08 - $19.52

----------

Exterior:

Mitsu aftermarket roof rail kit w/ removable plates for roof rack towers - MZ540008
1993 headlight(clear) left side - MB912847
1993 headlight(clear) right side - MB912848
----------

Interior:

Clutch/Brake Pedal Pads - MB193884 - $2.11 - $$$
Clutch Pedal Assembly - ??? - $$$ - $$$

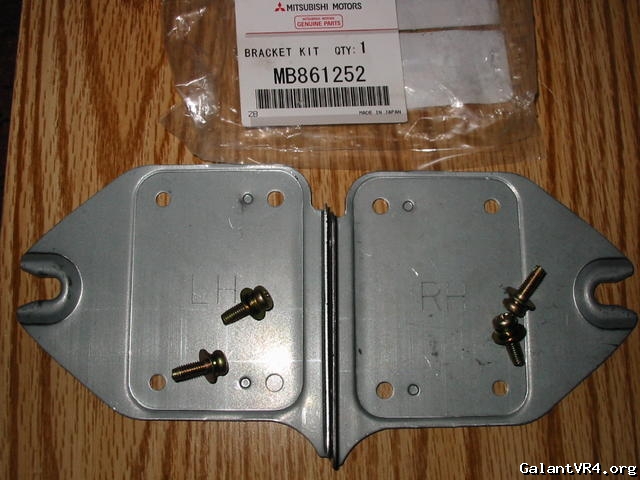

Radio Bracket - MB861252 - $9.09 - $9.31 - img

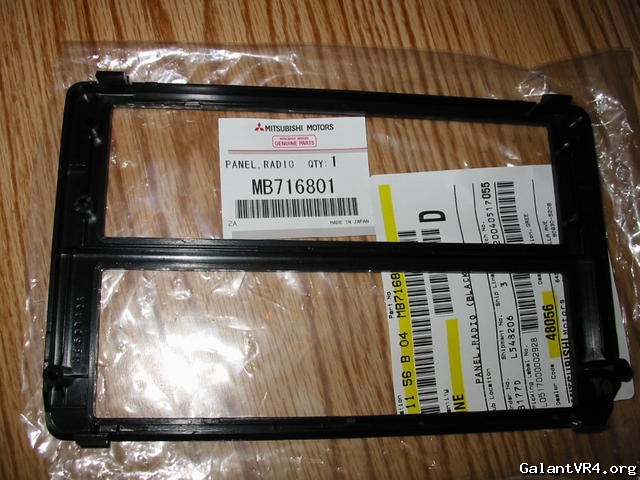

Dual-DIN Face Plate - MB716801 - $7.67 - $$$ - img

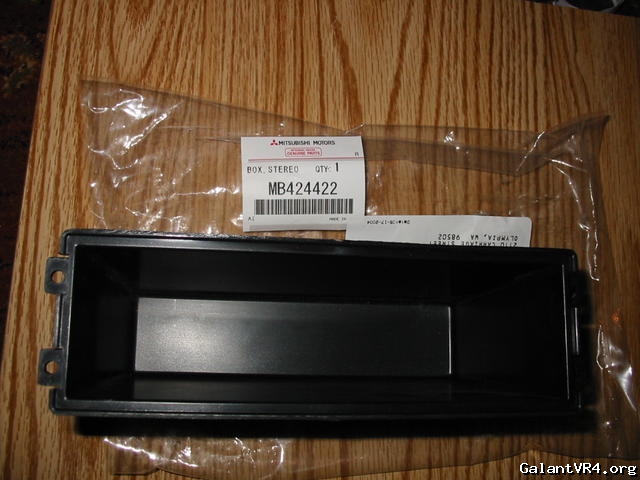

Lower Pocket - MB424422 - $13.58 - $13.90 - img
ECS Pod (dash) - MB716913 - $$$ - $$$
----------

Drivetrain:

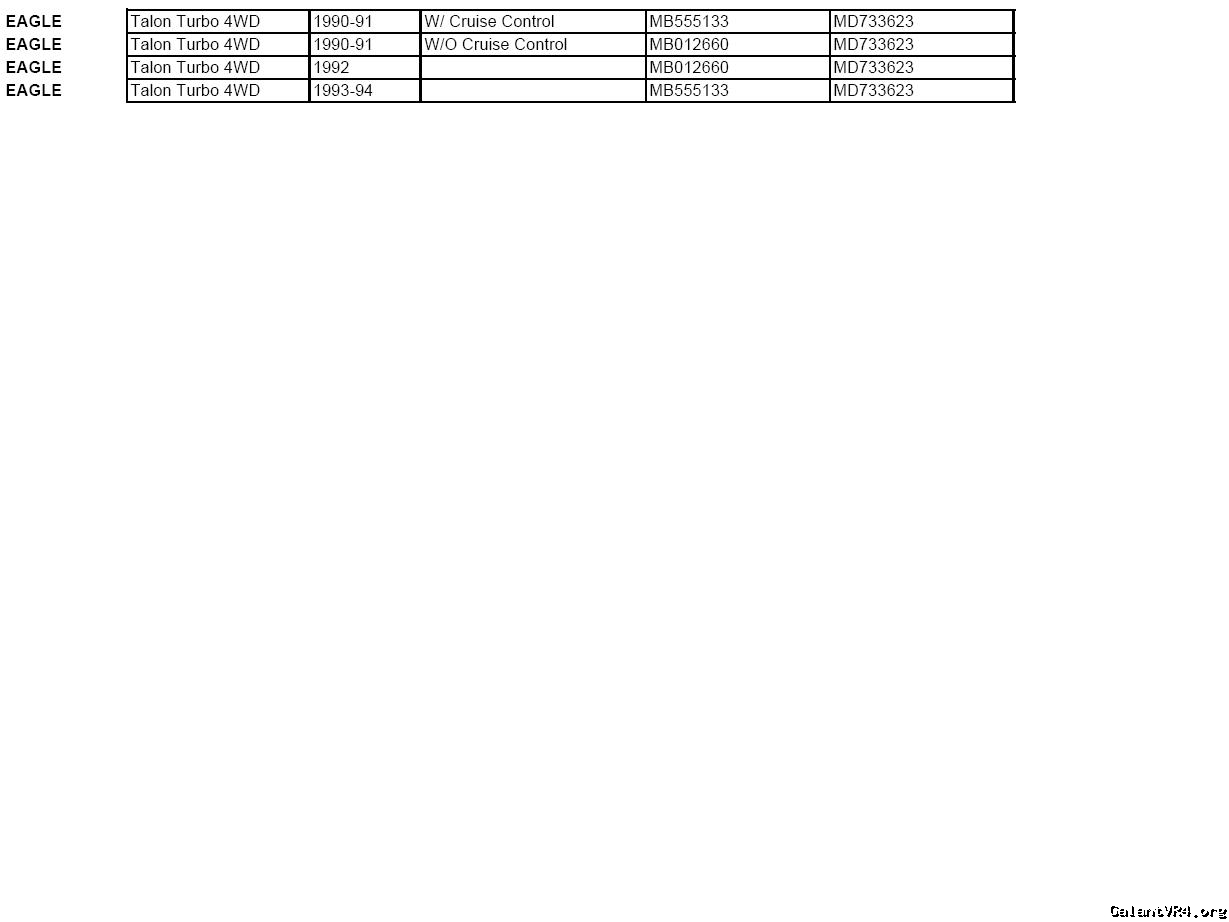

Master Cylinder (Eclipse) - MB555133 - $88.60 - $90.69

Slave Cylinder (Green, 20.64mm)- MD733227 - $$$ - $$$
Slave Cylinder Rebuild Kit (Green) - MD997838 - $$$ - $$$
Slave Cylinder (Pink, 19mm) - MD733623 - $49.21 - $50.37
Slave Cylinder Rebuild Kit (Pink) - MD997786 - $$$ - $$$

Shift Cables - MB659306 - $119.76 - $$$

Clutch Release Fork - MD770506 - $47.31 - $48.42
Clutch Pivot Ball - MD719602 - $$$ - $$$
Clutch Lever - MB599203 - $$$ - $22.39
Clutch Fluid Lever - MB844603 - $$$ - $14.20
Clutch Release Bearing (throwout bearing) - MD749998 ~$20.12
Clutch Release Clip - MD706185 ~$0.96
Clutch Fork Rubber Boot - MD718077 ~$9

Transfer Case Recall Kit (contains new yoke, spider, caps and clips) - MR470072

Front wheel bearing Outer Seal - MB303875
Front wheel bearing Inner Seal - MB573309
Front wheel bearing - MB303865


----------

Exhaust:

Turbo->Manifold Bolts - MD132656 - $5.50 - $5.63

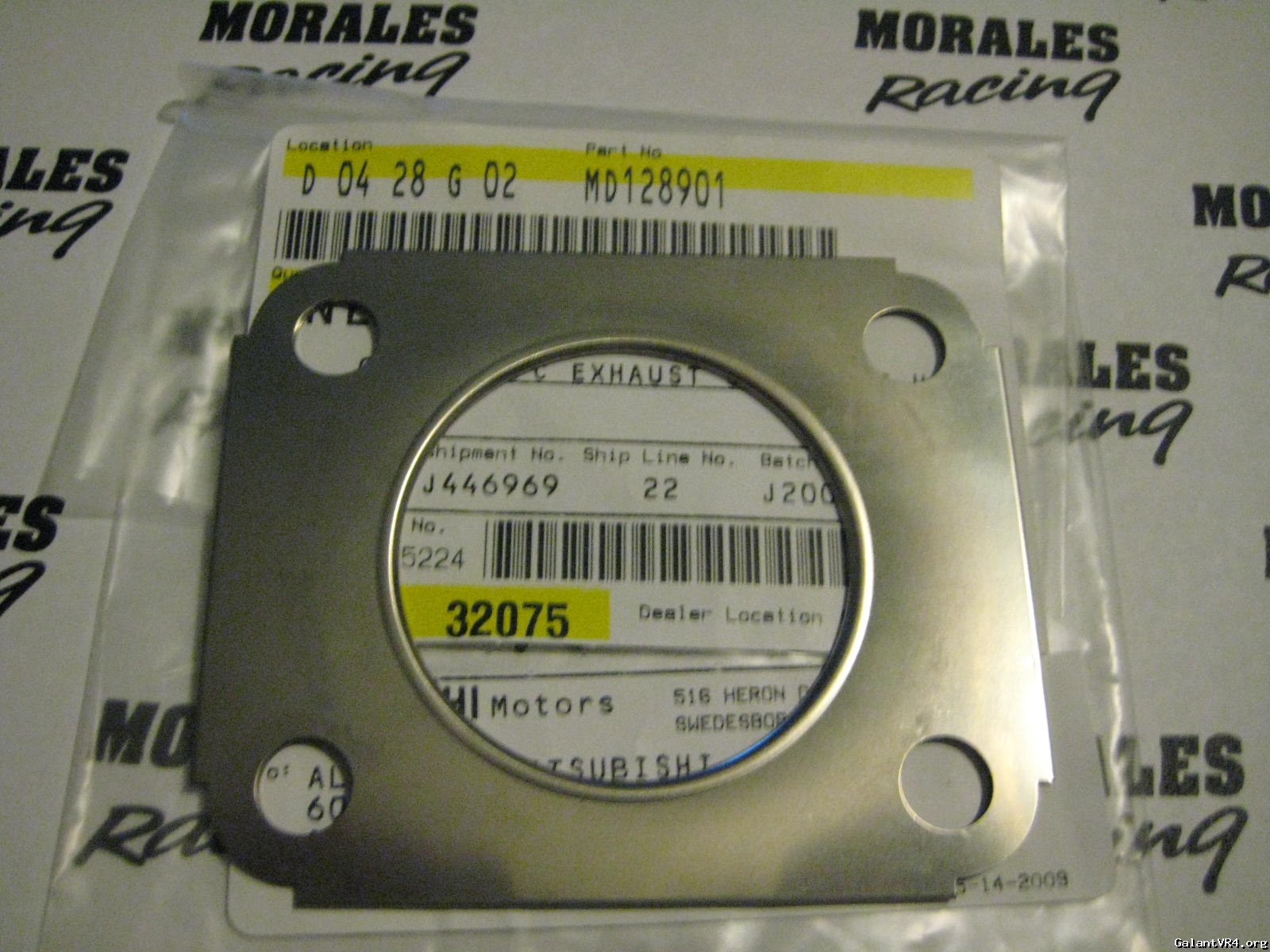

6CM Turbo->Manifold Gasket - MD128901 - $2.02 - $2.07 - img

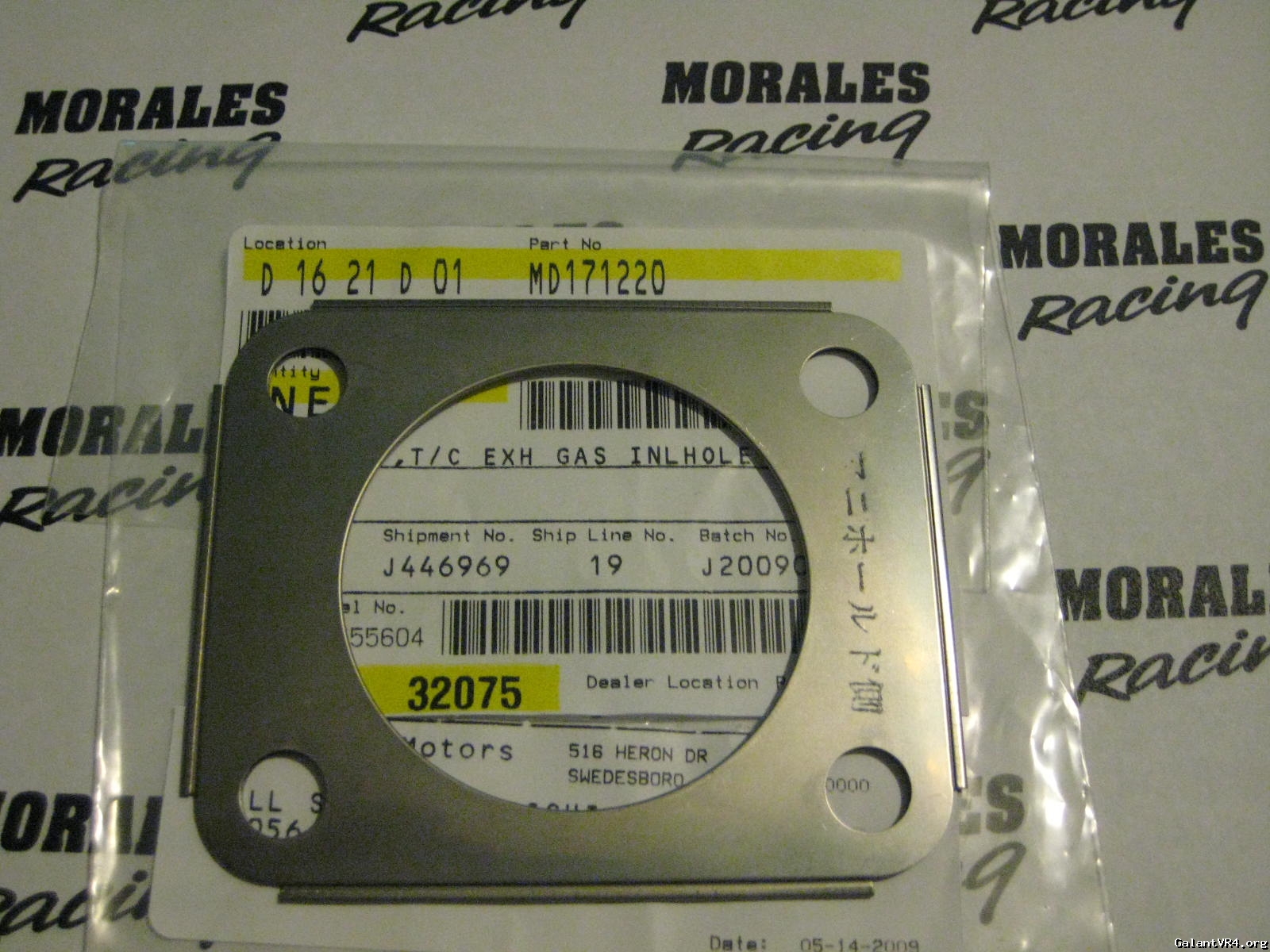

7CM Turbo->Manifold Gasket - MD171220 - img
Exhaust Manifold Gasket - MD181032 - $13.08 - $17.04
EVO VIII Exhaust Manifold Gasket(3 or 4 layer gasket compared to the stock 2 layer) - MR323654 - $17.77
Turbine->O2 Housing Gasket - MD124675 - $3.66 - $$$
Exhaust Manifold Nuts - MD092806 - $0.41 - $$$

O2 Sensor - MD188208 - $98.76 - $101.09

Evolution II/III Exhaust manifold - MR224509
Evolution II/III Exhaust Manifold heat shield - MD130345
Evolution II/III Downpipe/O2 housing Gasket - MB687004

----------

Misc:

Non-Cruise Throttle Cable - MB539465 - $31.42 - $32.16
Left Parking Brake Cable - MB520774
Right Parking Brake Cable - MB520775
Ball Joint - MB241883 - $35.70 - $$$

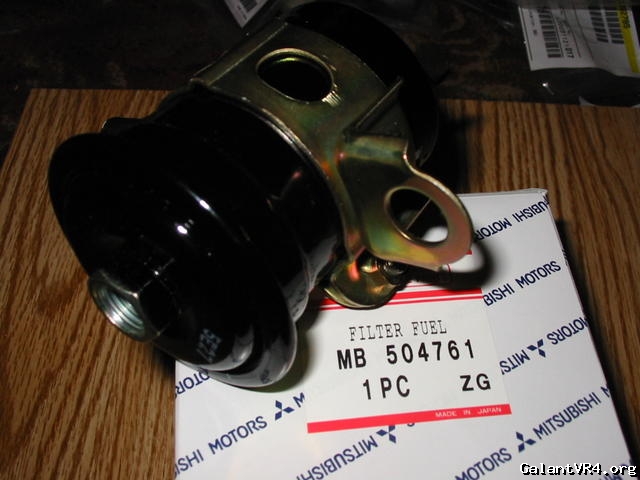

Fuel Filter - MB504761 - $$$ - $$$ - img
Engine Coolant Temperature Sensor - MD069879

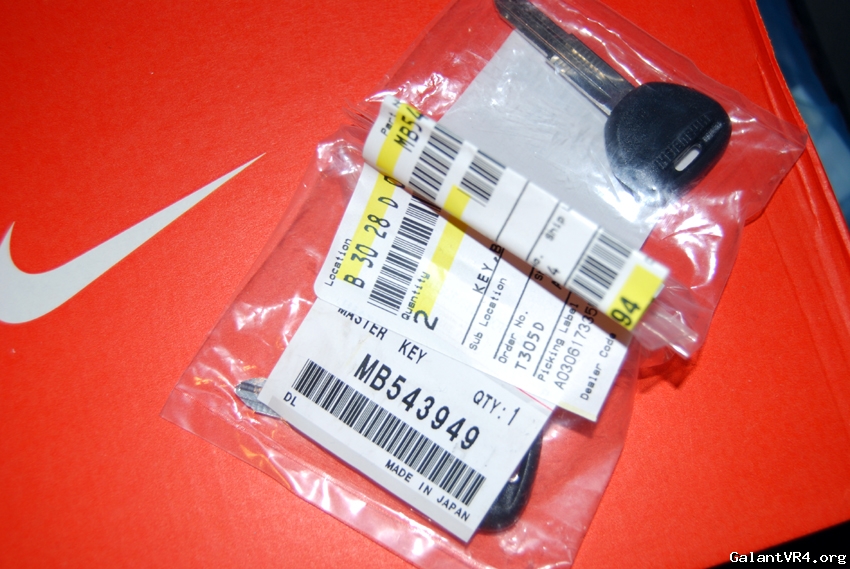

Mitsubishi key blank - MB543949 - img

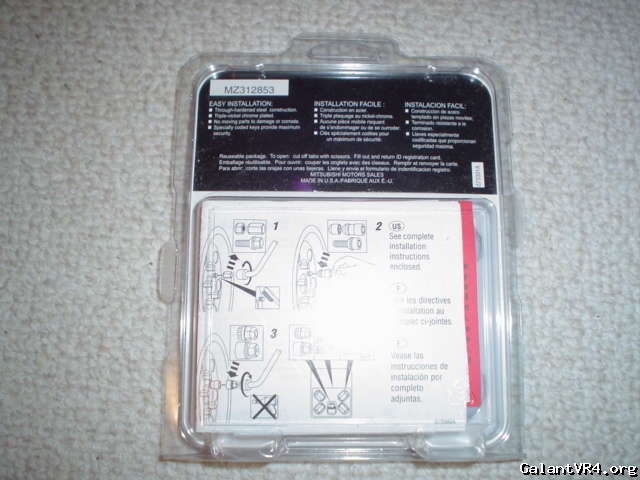

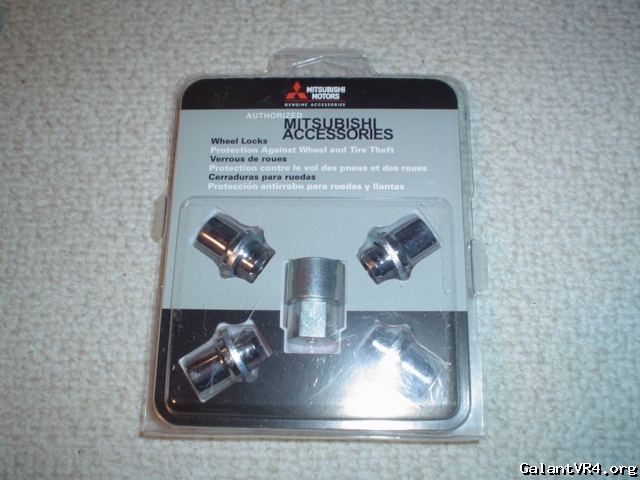

Locking lug nut set - MZ312853 - $29.95 - $$$ - img - img

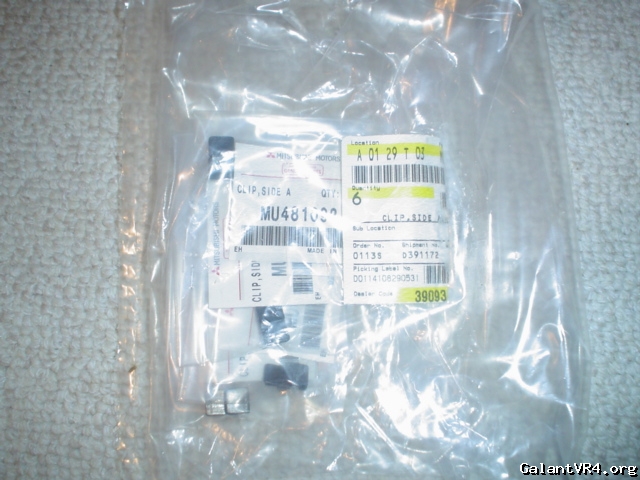

Dog-leg clips - MU481092 - $1.10 - $$$ - img

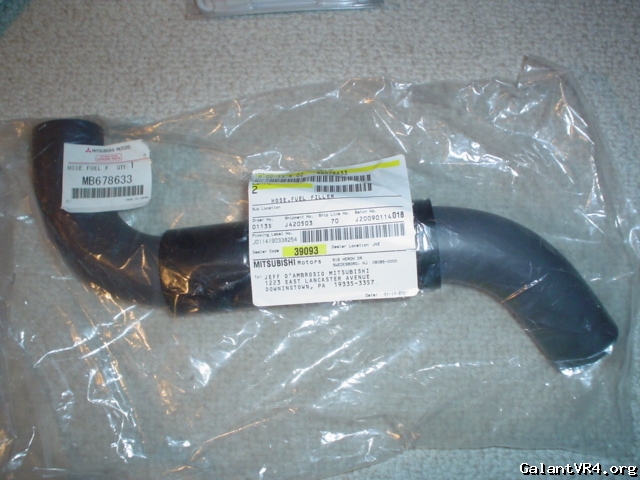

Fuel filler hose - MB678633 - $32.33 - $$$ - img

Of course there's a TON missing, I thought that we could collectively get a good list together for a sticky. Prices are Mitsubishiparts.net and Partznet.com respectively.

Last edited by a moderator:

Oil Filter Adapter Gasket -
Knock Sensor - MD141510 - $61.34 - $62.79
Oil Filler Cap Gasket - MD311638 - $0.77 - $0.80
PCV Valve - MD024719 - $4.24 - $4.34
Half-Moon Seal - MD050536 - $1.92 - $1.97
Spark Plug Hole Gasket - MD125940 - $3.59
Valve Cover Gasket - MD125939 - $19.55 - $20.01


----------

Cooling -->

180 Degree Thermostat - MD997607 - $13.17
Water Pump Kit - MD972052 - $95.25 - $97.50
Upper Radiator Hose - MB356964 - $6.35 - $6.50
Lower Radiator Hose - MB356967 - $8.18 - $8.38
Heater Hose Kit - MB527995 - $19.08 - $19.52

----------

Interior -->

Clutch/Brake Pedal Pads - MB193884 - $2.11
Clutch Pedal Assembly -
Radio Bracket - MB861252 - $9.09 - $9.31
Dual-DIN Face Plate - MB716801 - $7.67
Lower Pocket - MB424422 - $13.58 - $13.90
ECS Pod (dash) - MB716913 - $22.56

----------

Drivetrain -->

Master Cylinder (Eclipse) - MB555133 - $88.60 - $90.69
Slave Cylinder (Eclipse) - MD733623 - $49.21 - $50.37

Shift Cables - MB659306 - $119.76

Clutch Release Fork - MD770506 - $47.31 - $48.42
Clutch Pivot Ball -
Clutch Lever: MB599203- $???? - $22.39
Clutch Fluid Lever: MB844603 $????/$14.20
----------

Exhaust -->

Turbo->Manifold Bolts - MD132656 - $5.50 - $5.63
Turbo->Manifold Gasket - MD128901 - $2.02 - $2.07
Exhaust Manifold Gasket - MD181032 - $13.08 - $17.04
Turbine->O2 Housing Gasket - MD124675 - $3.66
Exhaust Manifold Nuts - MD092806 - $0.41

O2 Sensor - MD188208 - $98.76 - $101.09

----------

Misc -->

Non-Cruise Throttle Cable - MB539465 - $31.42 - $32.16
Ball Joint- MB241883 (BIG thanks to RussianE39)

Turbo Oiling
MD140394 Feed line,
MD150523 Return Line
MF660063 x2 Head to feed line crush washer
MF660064 x2 Turbo to feed line crush washer
MR258477 x2 Return line to turbo/oil pan
MF660031 x2 Oil Return to oil pan bolt crush washer (it will NOT seal with out these)


g64b:
Crankshaft - MD080691 - $512.60 - $524.71
Crank Bearings (std) - MD091399 - $66.29 - $67.86
Rod Bearings (std) - MD071298 - $56.34 - $57.67

Last edited by a moderator:

maroonmetallic

Well-known member
Joined
Jun 10, 2004
Messages
2,099
Location
central WI
Just a helpful hint for that radio pocket, but the pocket in the colt's summit's and mirage's of 1989-1992 are the same (US spec)


steve

Well-known member
Joined
Sep 11, 2003
Messages
18,895
Location
NJ
Knock Sensor info Posted by gvr4737

Quote:
so here is some good news for everyone.

I purchased a GP Sorenson Knock sensor for a 1991 Mitsubishi Eclipse Gsx from Advanced Auto parts.

$58 it cost me and they got it the next day.

soo i pull my old knock sensor( which i baught from Mitsubishi directly $115 ) . i open the Gpsorenson box and find out that they are excactly the SAME knock sensor. The gpsorenson one says mitsubishi on it and same number, same wire colors .. same everything .. they are the identical knock sensor

soo anyone that ever needs to replace theyre knock sensor .. dont waste ur $$$ at satan . Go to advanced and order the $58 Gp Sorensen knock sensor .




Rausch

Well-known member
Joined
Dec 21, 2004
Messages
12,049
Location
Cleveland, OH



Still looking into the differences.


BoostedAWD91

Well-known member
Joined
Mar 1, 2007
Messages
2,937
Location
Danville,Pa
brake master cylinder bracket: MB534537

Bolts for bracket
holds bracket to firewall: MF240051 x2
bolt that tightens bracket around reservoir: MF243623

MD614948 part # for the BISS
MD608806 part # for the O-ring

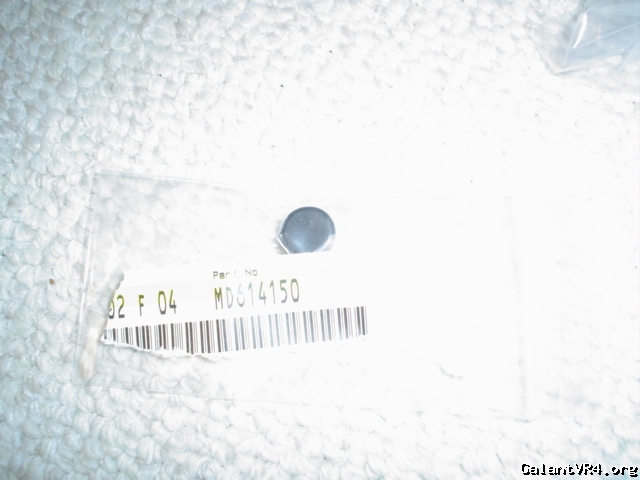

MD614150 part # for rubber cap - img

Last edited by a moderator:

KGVR4

Well-known member
Joined
Sep 19, 2004
Messages
1,318
Location
Bellevue WA
Exhaust Manifold studs - MD005317 - $.53 each - for 6 bolt dsm


prove_it

Well-known member
Joined
Jul 3, 2008
Messages
4,201
Location
Sioux Falls, SD
Here's some info for anyone that needs to replace the center driveshaft U-joints. I had an emergency with my car and after some searching I found an AC Delco U-joint that is perfect. All dememsions are exact. No part stores list a U-Joint for our cars, or even a T/E/L.

ACDELCO PN# 45U0016
GM PN# 89029281

What's great is you can cross reference these and most likly find a U-joint in your town the same day. Most GM dealers will have one or two on stock also. Best part is I paid $18.00 for one. Cheaper than the recall kit from mitsu, and they are still a great quality joint.


brisvr4

Well-known member
Joined
Feb 13, 2004
Messages
955
Location
brisbane australia
Gearbox bearing part numbers...
These are the generic numbers for the W5m33 gearbox bearings.
Where the listing says inner I mean the flywheel side of the box and outer means the other end!

Input Shaft:
Outer bearing: Koyo 26118YR1-N
Outer Race: Koyo 26283-N
Inner bearing: NSK HR32205
Inner Race: NSK HR32205

Intermediate shaft:
Outer bearing: NSK R28-9
Outer Race: NSK R28-9A
inner bearing: Koyo 303/28R-N
inner race: Koyo 303/28-N

Center Diff case:
Outer bearing: Koyo LM300849
Outer race: Koyo LM300811
Inner bearing: NSK R41-1g
Inner race: NSK R41-1g

Center diff drive shaft:
Outer bearing: NSK R31Z-11g
Outer Race: NSK R31Z-11g
inner bearing: Koyo 32009JR
inner race: Koyo 32009J

Frt Diff bearings:
Koyo 6207R (Qty 2)

Mitsubishi part numbers for these ...

Input - MD732314
Input - MD726235

Intermediate - MD726236
Intermediate - MD724117

Center Diff case - MD727860
Center Diff case - MD720623

Center diff drive shaft - MD718322
Center diff drive shaft - MD727861


strokin4dr

Well-known member
Joined
Aug 30, 2005
Messages
2,767
Location
Savannah, GA
Fuel door spring - MR970563
