Cad file for camber plates?

tektic

Well-known member
Anyone have a file for cad to make camber caster plates? I found a company takes files and laser cuts part for a reasonable price.
click

Last edited:

pagosadsm

Well-known member

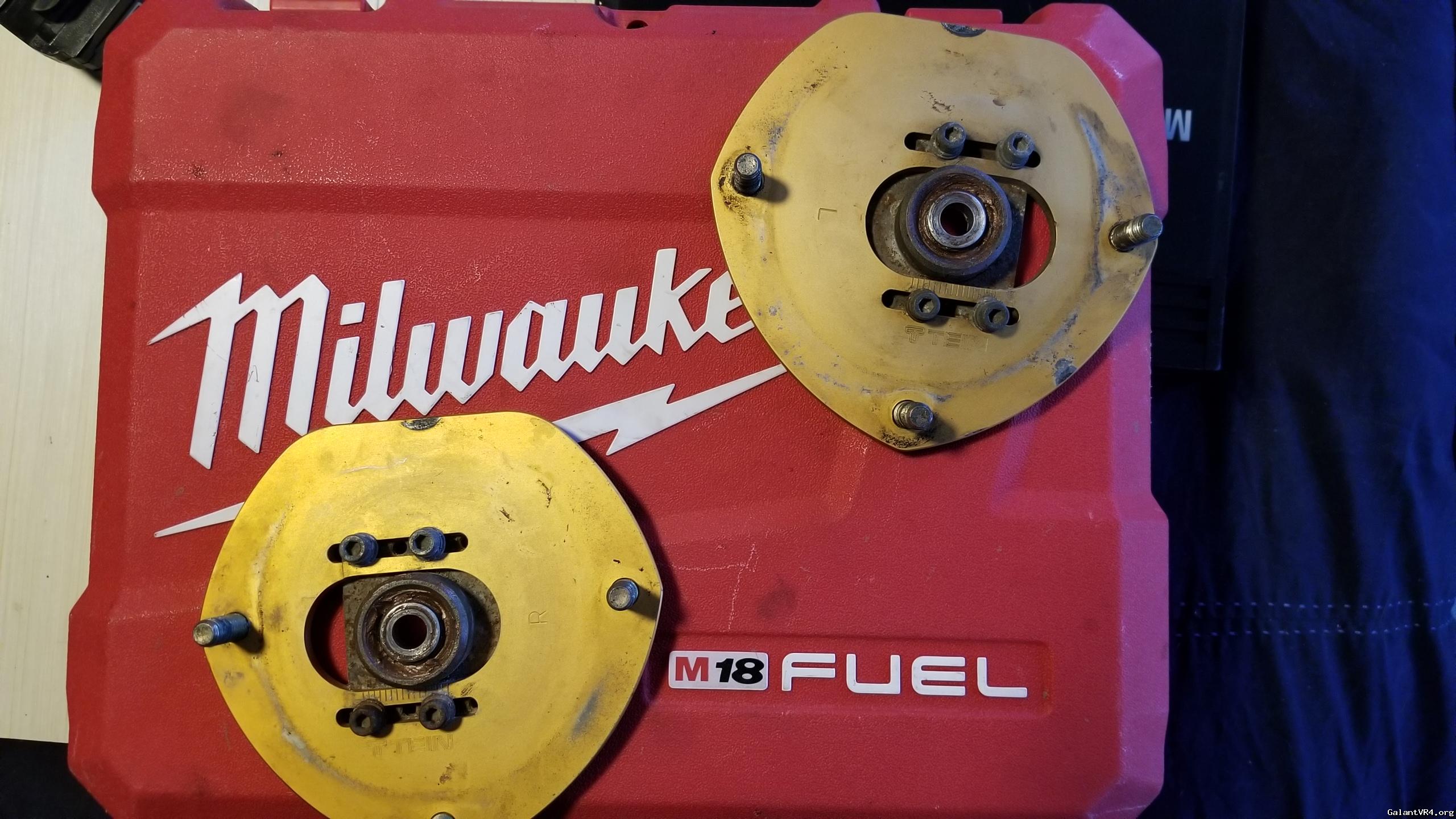

I have ground control camber/caster plates on my 92 talon. They fit fine, might have to drill 1 hole to fit them. I get 5* of caster out of them


thomcasey

Well-known member

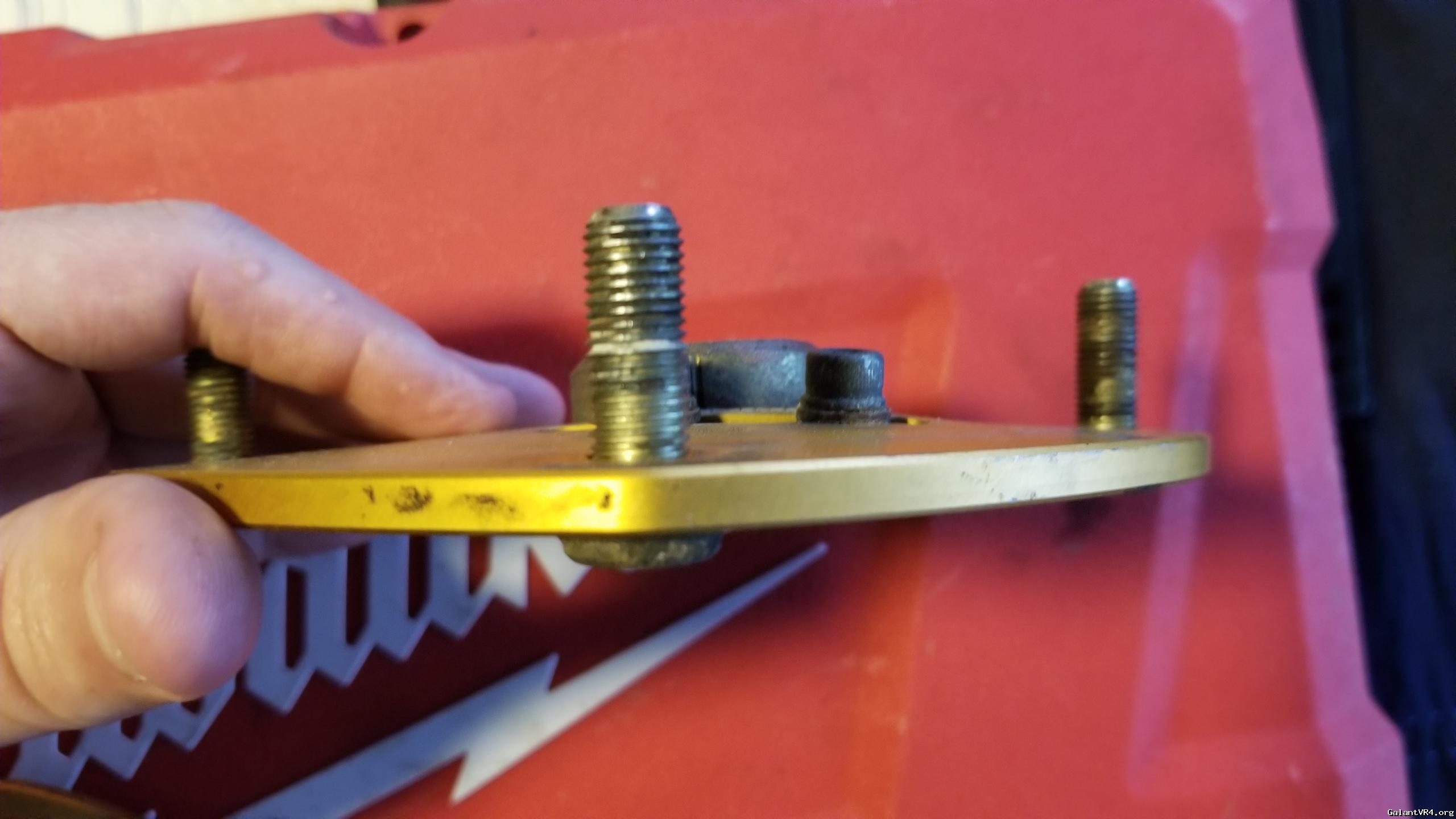

I have some "domed" Tien plates I would donate for someone to use as a template, I only ask that I get a set in return. These could be flattened out and templated, I just don't trust using them as they are starting to crack.






turbowop

Well-known member
Yeesh. I take it you bottomed out the front a few times with those plates?


thomcasey

Well-known member
I didn't, the PO of 148/1000 did. The AGXs these were used on were set to the lowest setting for the GC coil-overs. Needless to say, the struts were blown also.


mooserage

Staff member
Ouch.

I am guessing that Tektic will take this on, but if not, I'd be interested in using them as a template to have some made.


thomcasey

Well-known member
Either way works for me.


Whoodoo

Well-known member
How quick do you want it? I've been thinking about putting together a set of custom coilovers using the K-sport camber plates I bought years ago. The problem is, they are currently installed and I'm not super motivated to get the project done right now. If nothing turns up, I'll model them up when I get them off.


thomcasey

Well-known member
How ever fast you can do it. I am not using them currently, since they have a crack and are domed. They could be flattened, but I dont want to send my struts through the hood.


AllanL

Well-known member
Lost the drawing so getting it redrawn...

Needs some time though...



Last edited:

idreamidrive

Well-known member

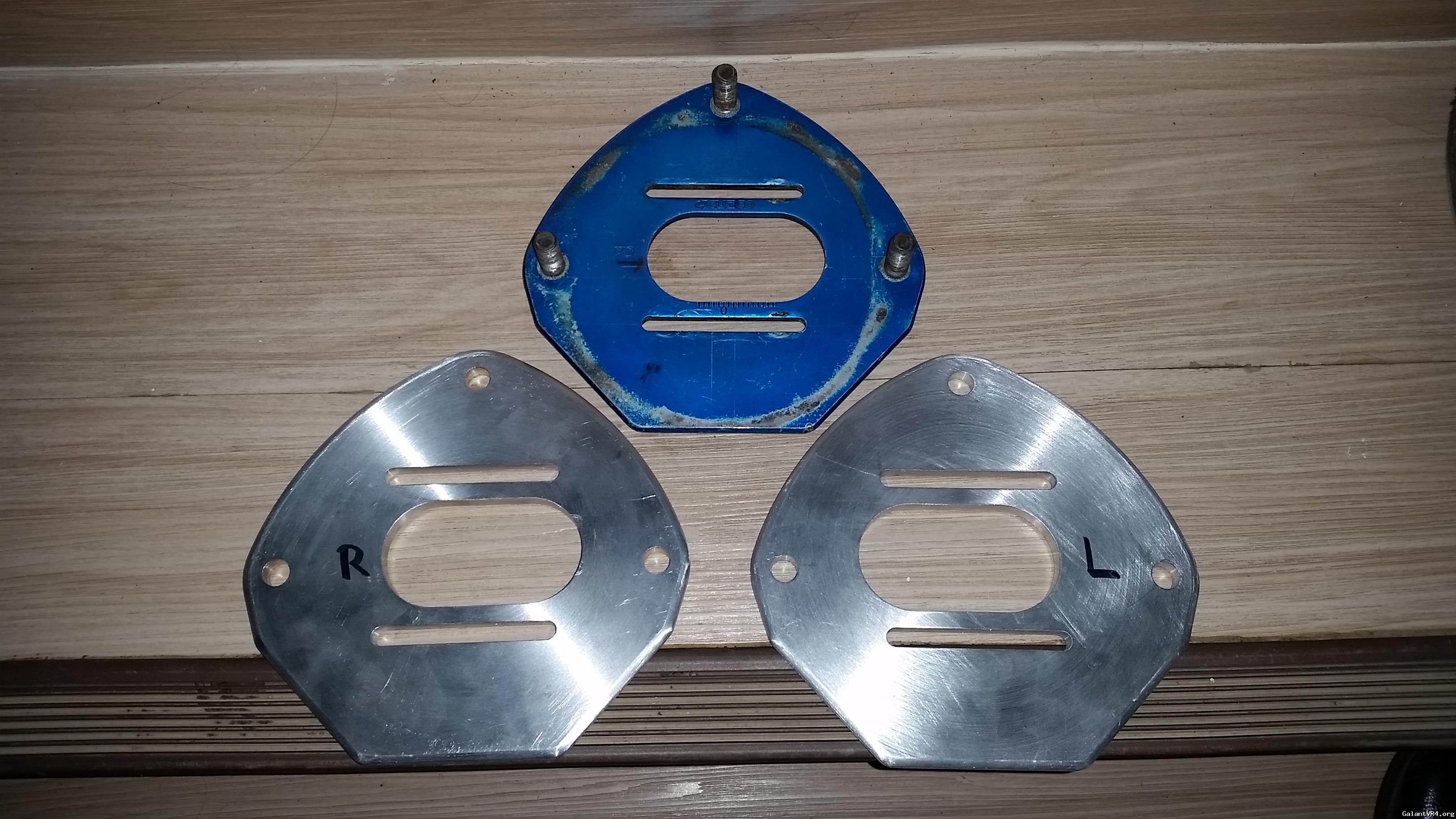

I have dsm camber plates (the camber slots would need to be rotated 90 degrees for galants unless you want them to be caster plates) that I could donate to the cause.


AllanL

Well-known member
Quoting tektic:
So... CAD file anyone?



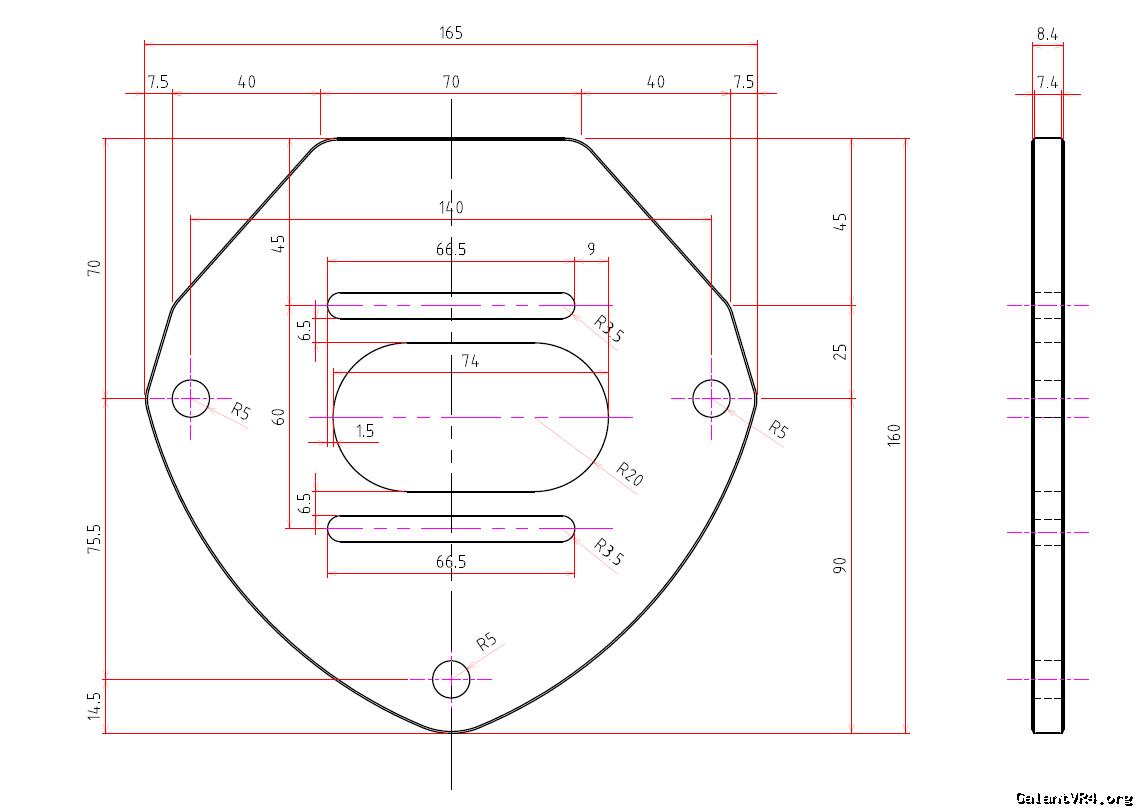

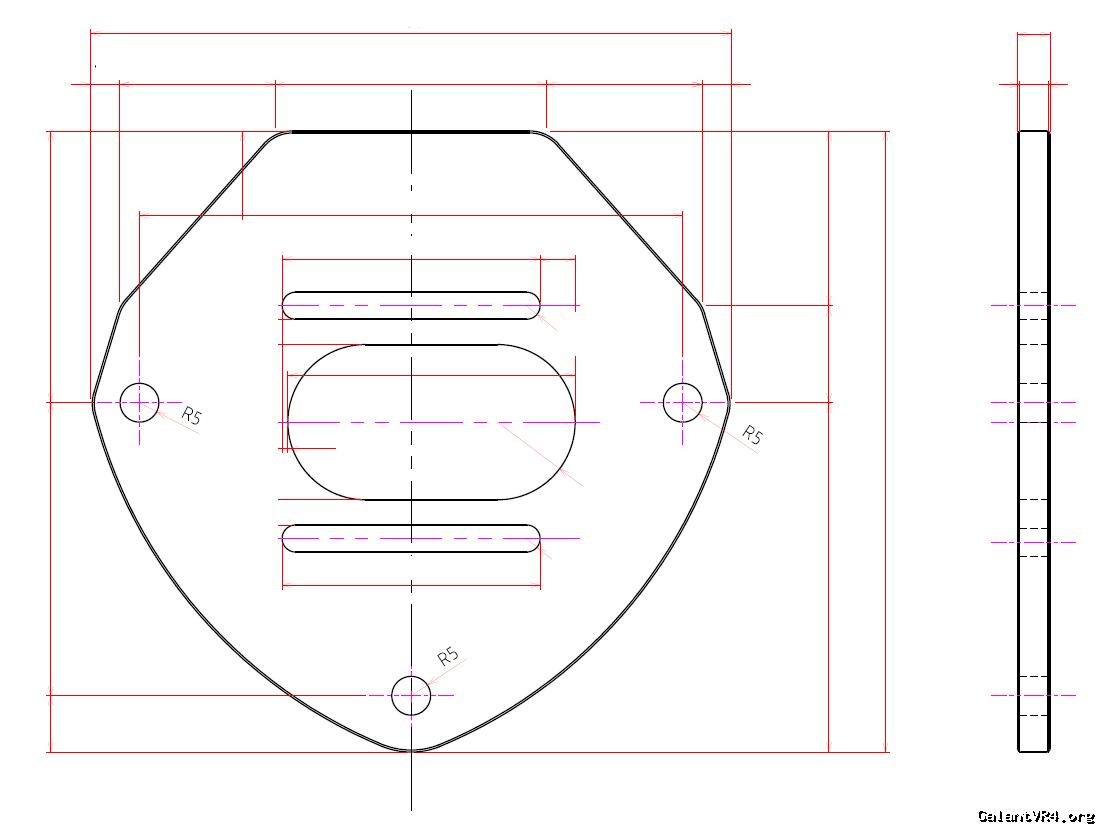

here's a draft...i'll send .pdf if you still need...




tektic

Well-known member
Quoting mooserage:
Ouch.

I am guessing that Tektic will take this on, but if not, I'd be interested in using them as a template to have some made.



I have so many things going on right now... I'm out of service last 3 weeks with a concussion.


tektic

Well-known member
Thank you Allan. There's a link in the first post if you could could you send them the file and ask for a quote?

Last edited:

tektic

Well-known member
Working in solid works now, anyone have measurements for the hole spacing? I have a few designs I'm thinking up.


CutlassJim

Well-known member
Quoting tektic:
Working in solid works now, anyone have measurements for the hole spacing? I have a few designs I'm thinking up.



Same. If someone gets me a drawing with dimensions I can model it and could 3D print you a prototype to test fit.
