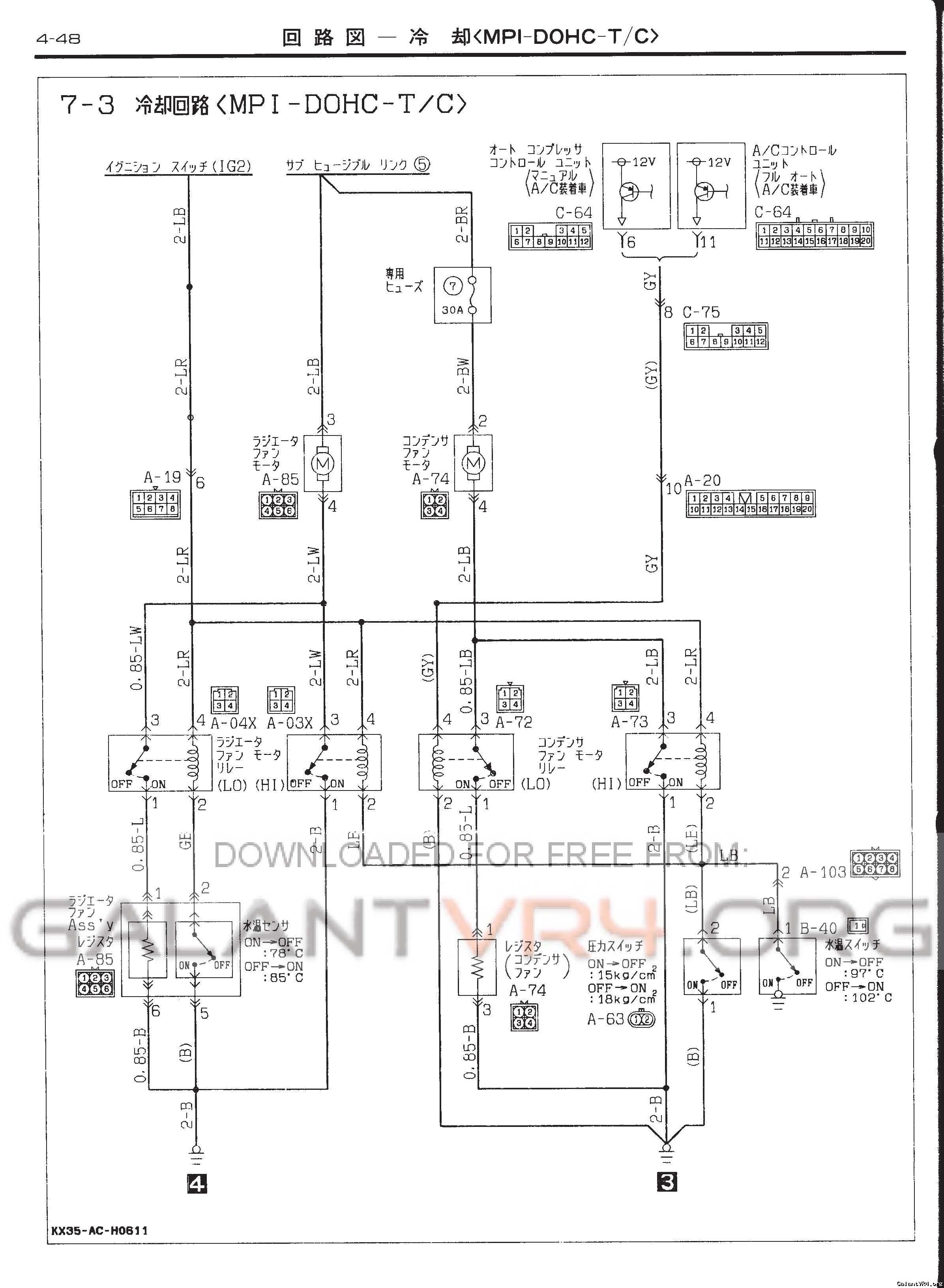

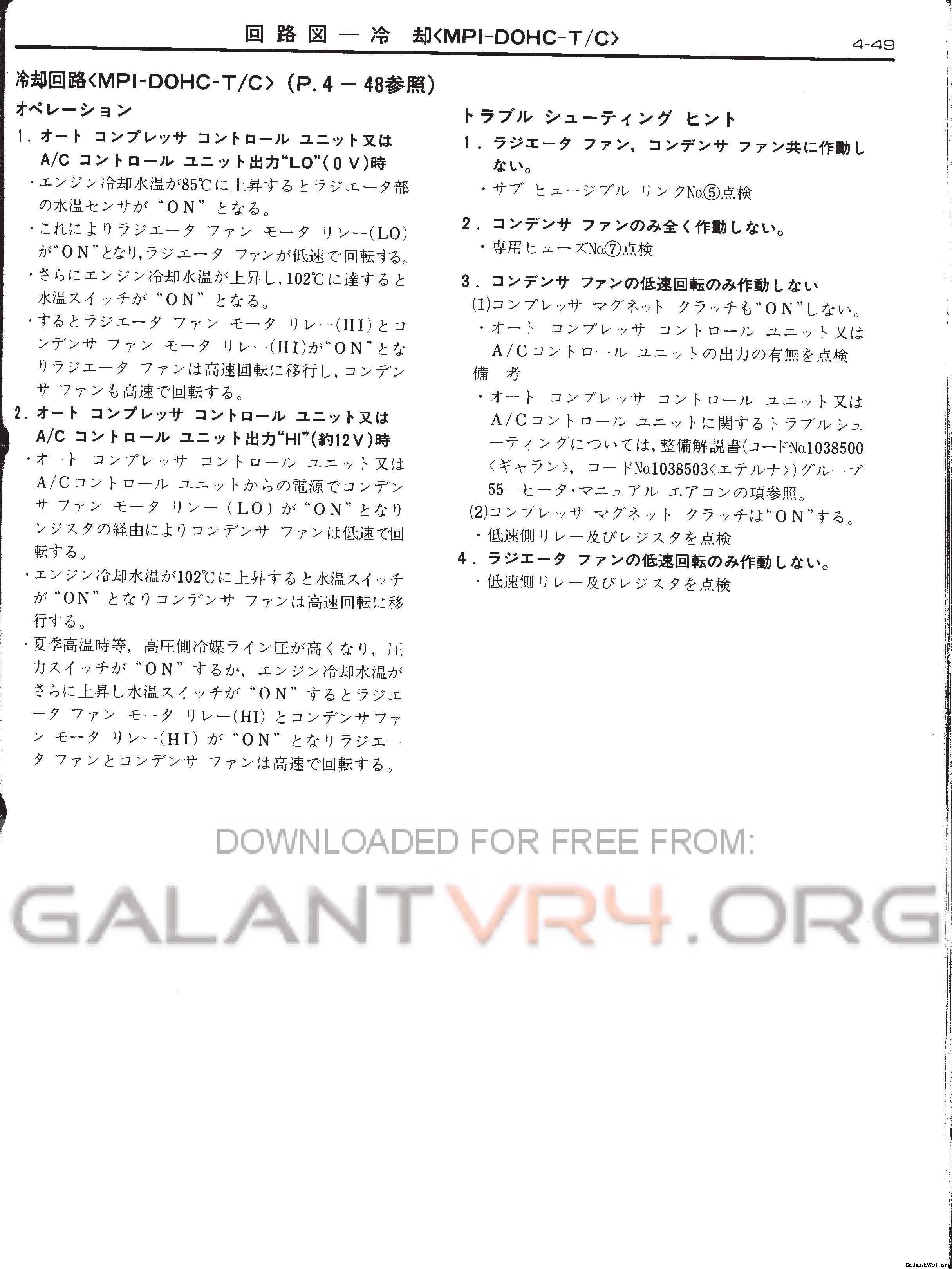

89.10 JDM rad fan wiring (for AllanL)

[misterfixit]

Here in response to your pm. sorry its late!





Hope this helps.

Rich



[AllanL]

Thanks very much Rich!
Btw, got the items sorted out already?
Cheers!
