so a few weekends ago i bought sayer's shell. 881/1000, 102k, came with a bunch of goodies.
my daily driver, until the GVR4 came along, was a nicely put together 1gb Talon.
the shell was put up for sale mid week. i had already planned on parting out my Talon, to either put everything in my other shell, or a down payment on a truck, just something else. having two 1g's wasn't practical. plus, you get yourself in trouble quick when you keep taking go-fast parts off of the other one /ubbthreads/images/graemlins/devil.gif
i managed to sell some parts, and with some money i had saved up from before then, i decided that we were going to check out 881/1000. loaded up the truck and trailer with a few friends and hauled on down there. the thread with pictures is here: trip down to NY

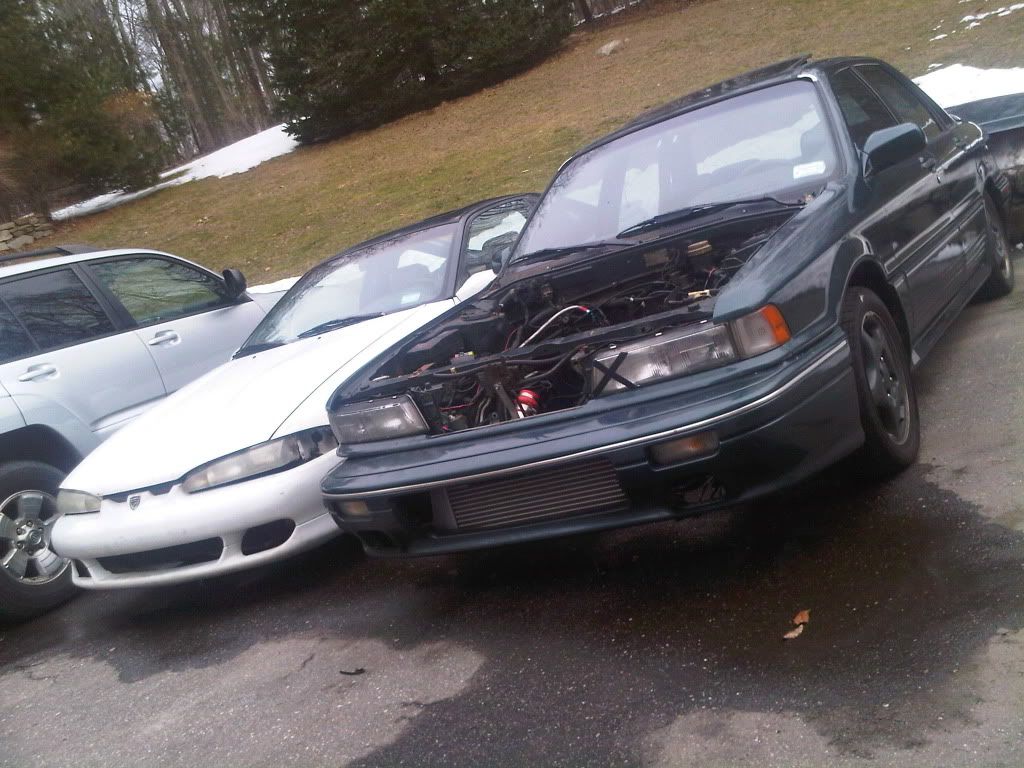

we got the car sunday, fought with NY traffic, had a redneck reality check as we jokingly refer to it. city just isn't a place for me that's for damn sure! sunday night, unloaded the car, pushed it against the wall, had dinner and went to bed. monday morning i got up, worked til about noon, got out early and got some supplies for the car. started working on the cars around 12:45, started with this:

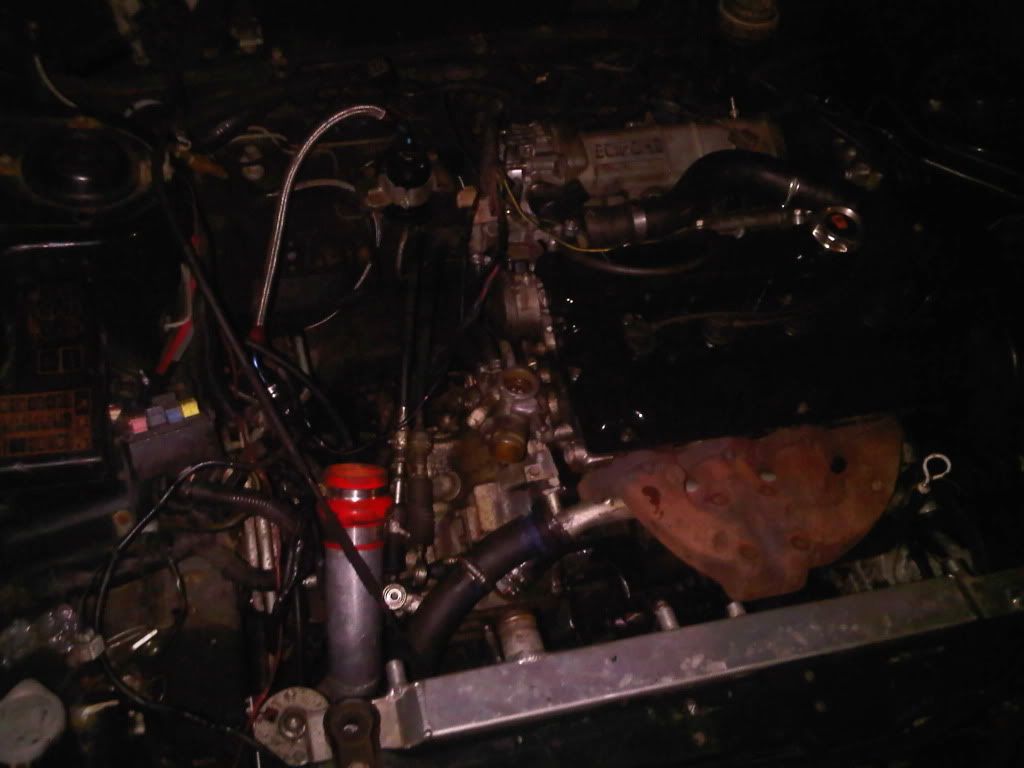

my white 1gb was a running/driving car, the GVR4 was a shell with a driveshaft and FMIC. so i got to work, pulled the engine, transmission, t-case out of the 1g. with the engine out, i swapped over the 344 mount, and prepped the GVR4. bolted in all the mount brackets to the car, and lowered the engine in. then came the transmission, and t-case. i also swapped over the suspension from my 1gb, as the GVR4 came with some ebay coils and blown struts. swapped the front strut tops, and the rear assemblies entirely. in went the axles, cut out the ABS sensors for future elimination, and we were on our way to a good car. by about 4 that afternoon, i had the main parts of it intact. later that night, my friend who had trailered the car up for me, came by. he was amazed that i had it all into the GVR4 already. when he came up, i plugged in the wiring harness. i also snapped a picture (very crappy one but you get the idea) of where i was at by this point:
i lost tuesday due to rain. wednesday i ended up running around all day, and selling parts from my donor 1gb. so that's two days of no working on the car. thursday, i got underneath the car, added in the slave cylinder, clutch line, N/S bars, and i fixed one of the intercooler mounts. yes, i know, its crooked /ubbthreads/images/graemlins/frown.gif i need to make new brackets for the underside of it. one of the brackets wasn't even installed as the bolt was broken. so i drilled and tapped a new hole to at least get it a little better. the wiring mess inside the car was atrocious. i still need to fix a few things... its to the point where i'm tempted to find a parts car for interior and engine bay harnesses. i installed the boost and wideband gauges from my 1g, and also the AFPR. ended up having to do more running around on thursday so my day was cut a little short.
so friday comes along, didn't have to goto work, had a fair day so i got to work. worked up a tune in the morning for what i thought would be a good baseline, went to the gas station and got 5 gallons of fresh 93. today was the day indeed. so i filled it up, cranked for awhile to fill all the fuel lines, then it fired right up. sounds beautiful with no exhaust just an o2 housing /ubbthreads/images/graemlins/grin.gif with no coolant or gear oil in it, i only wanted to run it enough to get into the garage. adjusted the clutch enough to get me in, and i finished up the fine details out of the wind. added coolant, and gear oil. got the tune a little better and the car starts right up and idles wonderful! so here's where we were at on friday:

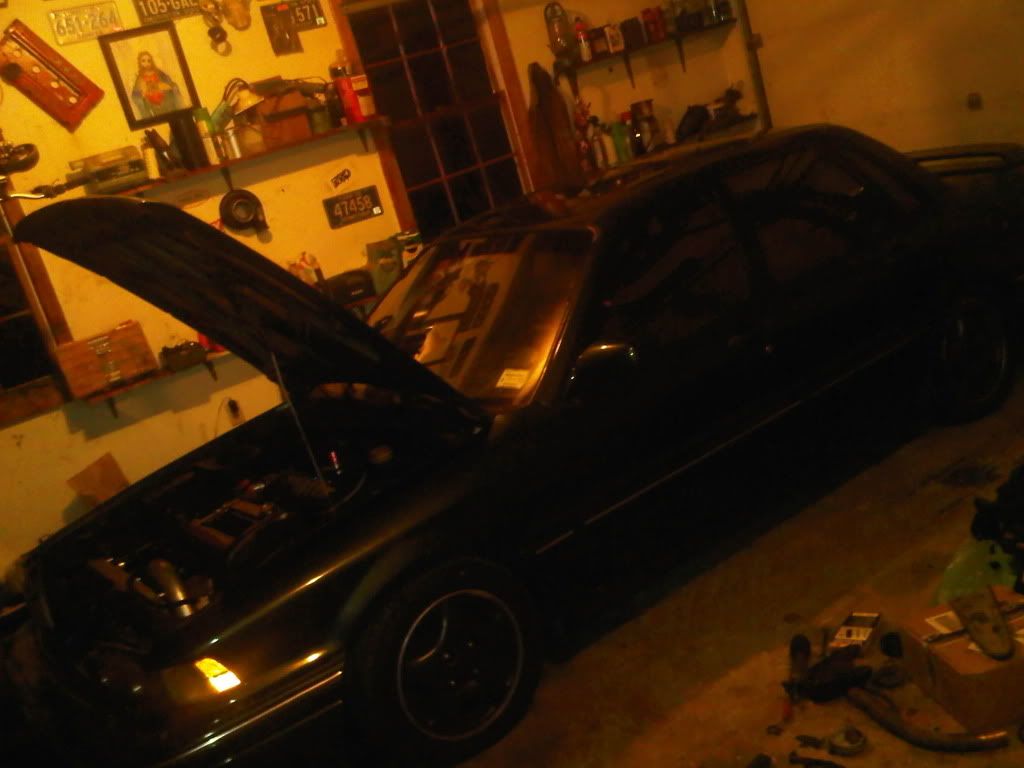

just got into the garage, ready for fluids! put some fresh gear oil in it, filled it with coolant, then pulled it outside to burp with the funnel on it. it was a little bit of a pain since i have a 1g radiator, but if i back it into my garage and leave the front tires on the pavement, keeps the radiator just low enough to be level with the t-stat housing. i had the netbook plugged in, monitoring the log. my girlfriend gets back from work, and i said "hop in" and she gets her first ride in the new GVR4. we logged quick, then i got home, saved the file, and we went out for dinner. later that night, i was reviewing the logs before i went to bed. i was falling asleep at the computer, so i shut it and went to bed. next morning, i got up and i started to review the logs again. it was funny because when i opened the log, i was here:

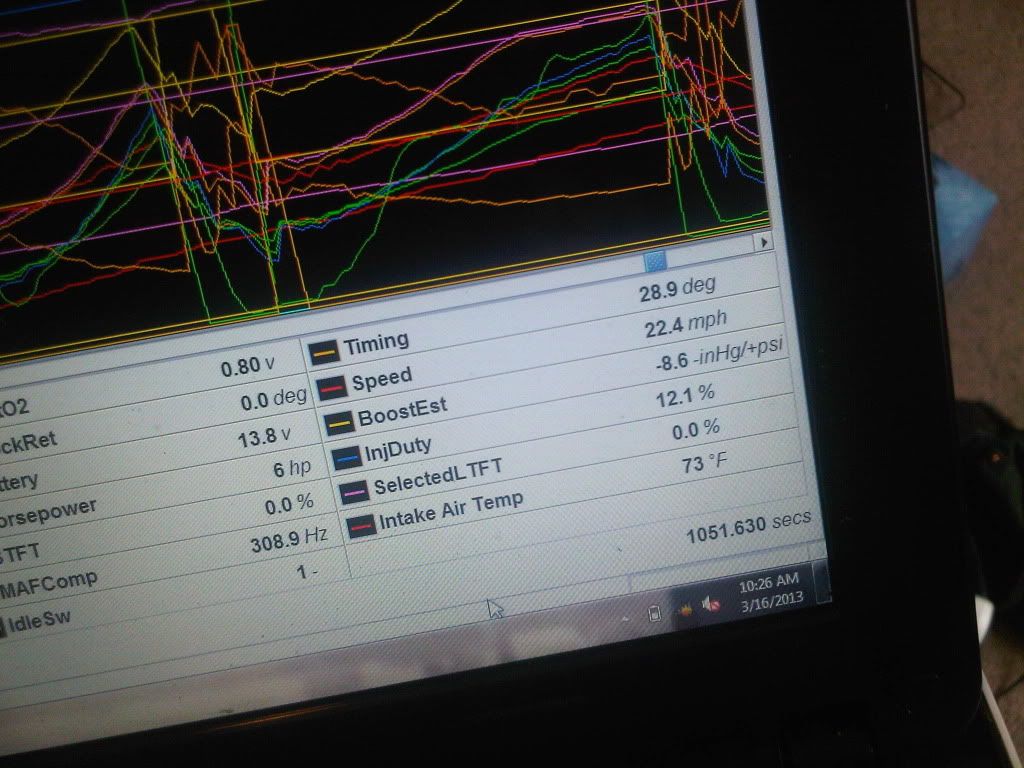

what's a GVR4 build thread without a 1051 instance anyways /ubbthreads/images/graemlins/rofl.gif

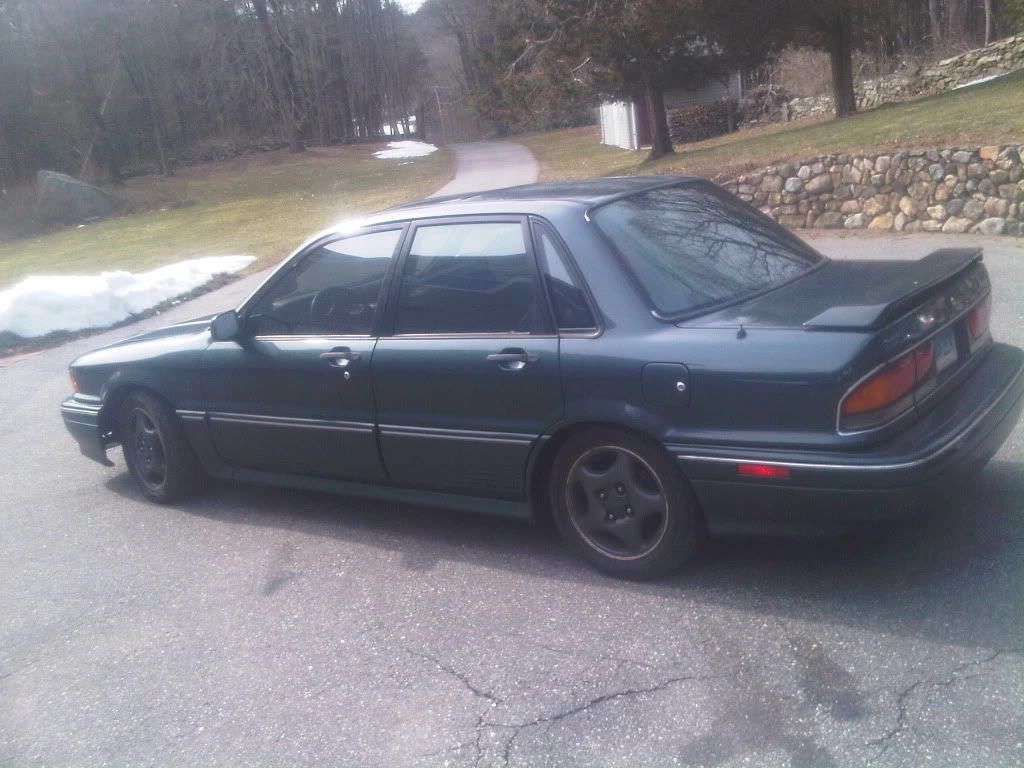

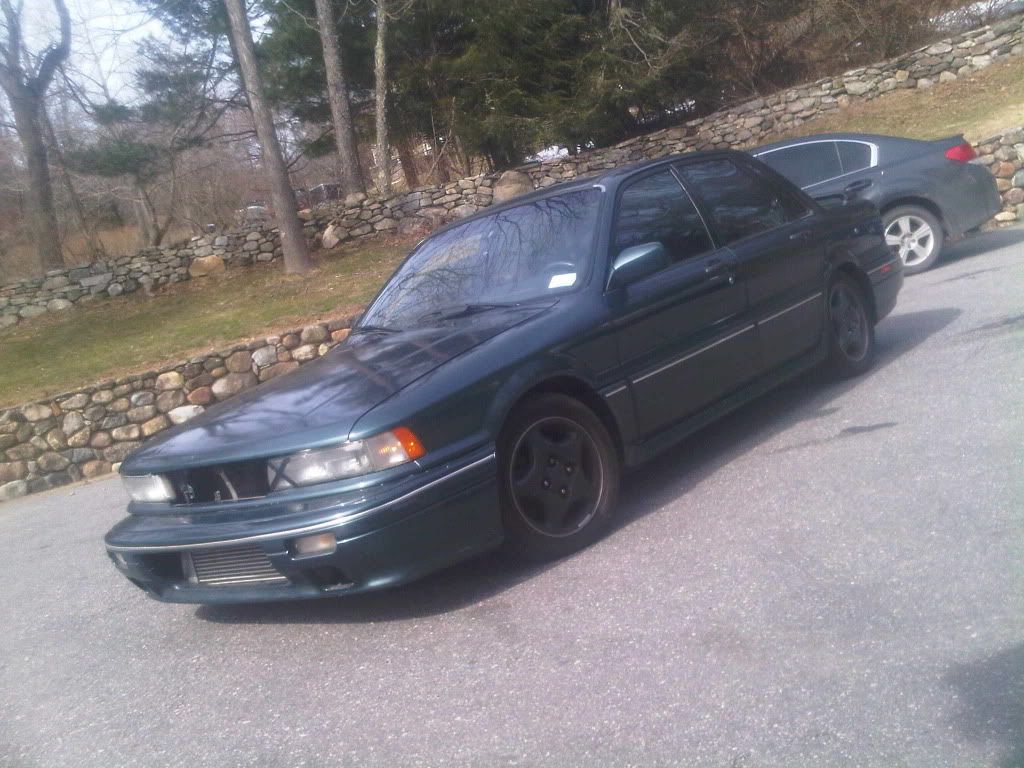

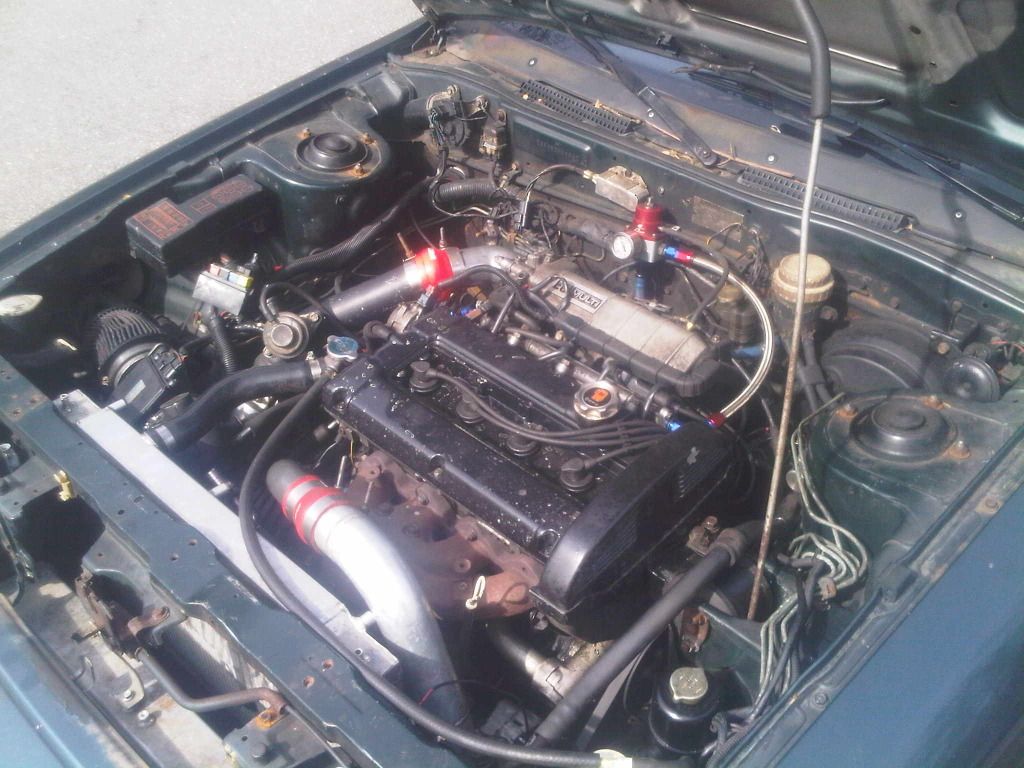

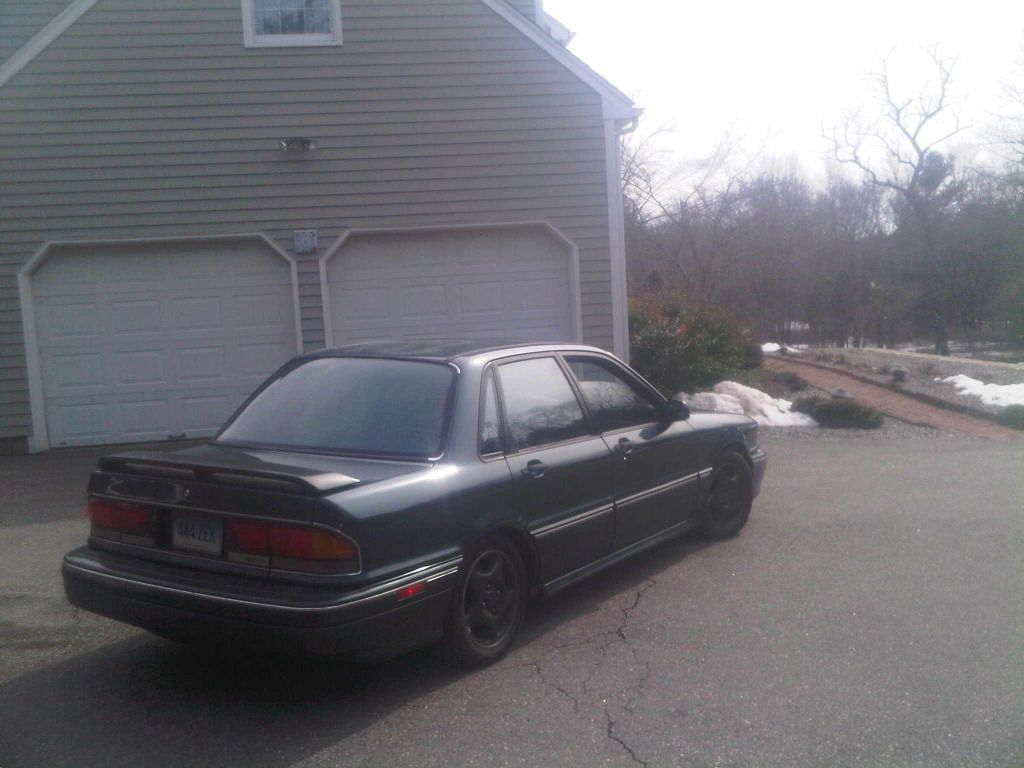

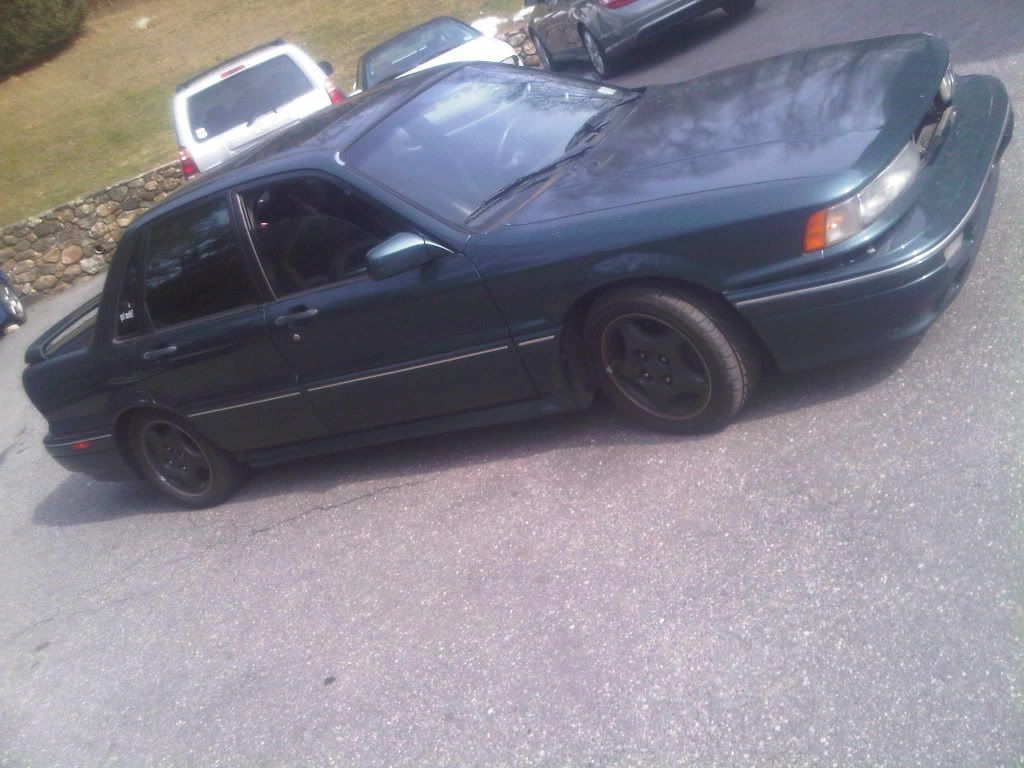

so today, i took a few pictures of the new hoopty. it needs a 4-bolt LSD rear, 5-lug hubs, ABS delete, and some Evo 8 wheels... but i'm happy for now. i've got some 2g rear strut tops, i'll be trying those out to see if they won't raise the back up a little bit.
the current modlist:
92 GVR4 - 881/1000
ENGINE
6-bolt 4G63
Arias 8.8:1 Forged Pistons, 22mm Pin, .040" Overbore
1g Rods, setup for 22mm free-floating pistons
ARP's & Cometic 1.3mm MLS
HKS 272's
Evo Lifters
Phenolic Intake Gasket
ACL Tri-Metal Race Bearings, Rod & Main
Balance Shaft Elimination
Poly Motor Mounts
DRIVETRAIN
91 DSM Transmission
Welded Center Differential
3-Bolt LSD Rear
ACT Flywheel
ACT 6-Puck Unsprung
Clutch Masters Pressure Plate
AIR/FUEL/EXHAUST
Stock Appearing TD05 20g
34mm Internal Flapper Evo 3 Hotside
GT Concepts Cast Manifold
2g O2 Housing
3" Turbo Back Exhaust with High Flow Cat
Extreme Motorsports FMIC Kit with GVR4 Specific J-pipe
Crushed 1g BOV
Evo 8 560cc Injectors
Walbro 255 Fuel Pump
Bulkheaded Sending Unit
Aeromotive AFPR Setup
Digital Alcohol Meth Injection Kit (not plumbed in yet)
SUSPENSION
Megan 1g AWD Springs
Stock Front Struts
Rear KYB AGX Struts
ELECTRONICS
ECMlink V3
AEM Wideband
Autometer Boost Gauge
FUTURE MODS
5-Lug
1g FWD Spindles
4-Bolt LSD
3g Brake Master Cylinder
ABS Delete
Evo 8 Wheels
GT30r Setup
1000cc + Injectors
my plan was accomplished - she's registered and insured! adds one more to the list of registered GVR4's!
thanks for reading!
