Vaccum Hose Routing

I want to put the hoses back on my Galant GSX. Does anyone have a hose diagram. I took them off, but the idle is very low now, and it wasn't before. I know I should have wrote it down or done something to remember, but I don't have a time machine. I only need the hoses comming off the trottle body and where they go to. Let me know if you have the diagrams or pics you could snap quick. Just remember I have a GSX so I think its different than a VR4.



There is usually a diagram on the hood of the car.



I'm going to go check on that. If there is I am going to feel really, really stoopit.



[JNR]

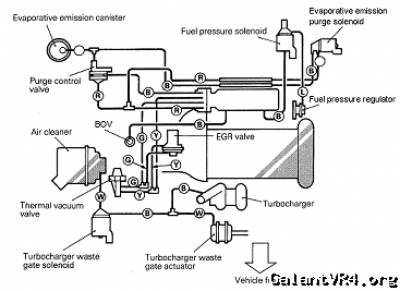

I don't have a sticker on mine (missing), but here's one from Taboo for a VR4; although not sure how much it'll help (sorry so small):



[Dialcaliper]

What year GSX is it?



[SleepinGVR4]

Actually JNR your diagram is for TEL.

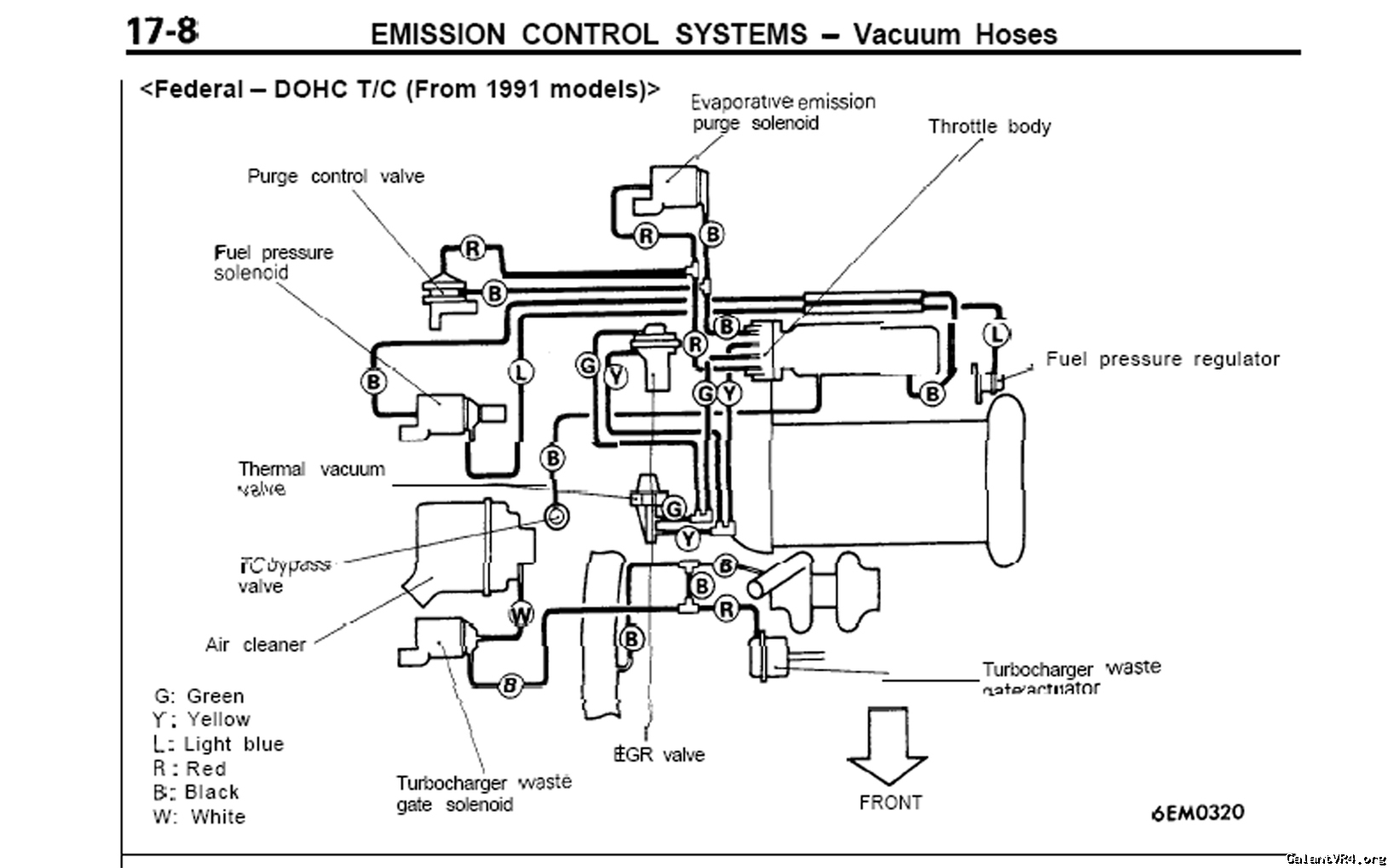

This one is for our cars.





Can you see the difference. /ubbthreads/images//graemlins/cool.gif



[SleepinGVR4]

It would help if i read your post. sorry. I'm looking through my manuals for a diagram.



Thanks guys. I don't have the car right here, but I'm going to look at it in alittle while. Its a 90 GGSX. Basicly I think any 4G63 NT will work for the hoses.



[Dialcaliper]

I'll paste in the 90 NT diagram from the service manual when I get home if I remember (unless someone else does) - It's much more simplified than the Turbo version. Do you happen to know if it's California or Federal? ('90 and earlier is different than '91 and later)

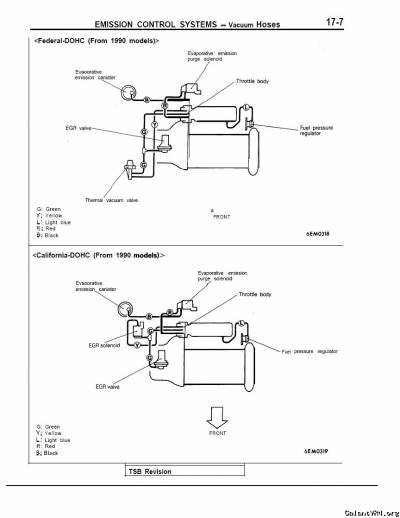

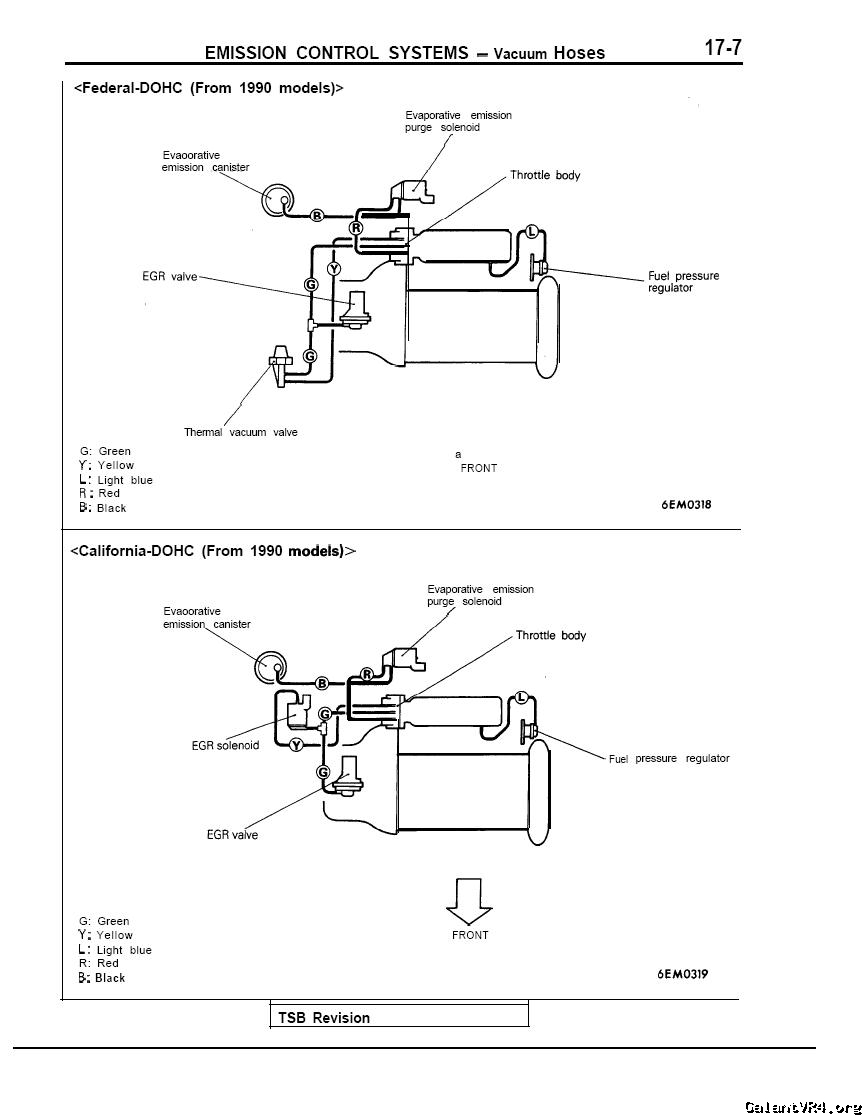

Edit: I forgot I had my Service manual CD in my bag at work - here you go:



^^^ That looks a lot like what is on my hood. Now I feel like a real idiot. If only I had opened my eyes..... Sorry to have you spend the time looking up the diagrams. Hopefully it will help someone else.
