Tranny Gear Oil Cooling Setup

I was seeing temps in excess of 250 degrees in my gear box so I fab'd up a cooler setup. Here are some pics and a parts list.









- Pegasus 1069-8AN
- Pegasus 3265-34
- Pegasus 3265-35
- Summit Cooler Fan - DER-15850
- Summit Pump - TIL-40-524
- Summit filter - MOR-23870
- Sum-220846 x 2
- Sum-220887 x 6
- Sum-220886 x 2
- Sum-220890 x 6
- Sum-220803 x 2
- Baker Precision - NEO RHD Gear Oil - 1 Gallon
- Racerparts - SPA - D105 NACA duct

You may not want or need all these parts, but its a start.

http://www.pegasusautoracing.com/

http://www.bakerprecision.com/neocirc.htm

http://www.racerpartswholesale.com/

http://www.summitracing.com/



[a_santos]

Give us a total cost for the parts, and also can you tell us what kind of temps you are seeing now?

Thanx



Think it came up to like 700 bux, but I try not to pay any attention /ubbthreads/images/graemlins/smile.gif ... I haven't had it back on the track since the cooler was installed. I'll let you know after the double race Labor Day Weekend. CJ



[14u2nV]

Where are you connecting it to the tranny? I can't quite see in the pix, and maybe I missed it in your post.



I used the Drain and Fill holes with fitings I got from Pegasus Racing:

Pegasus 3265-34
Pegasus 3265-35

Best thing is that there is no modification to the tranny itself so that you can easily remove and or swap it if required.

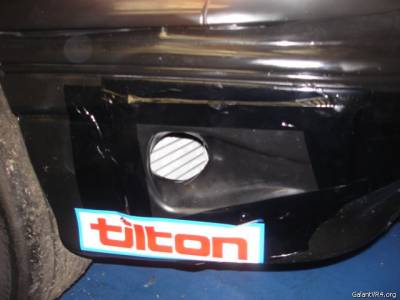

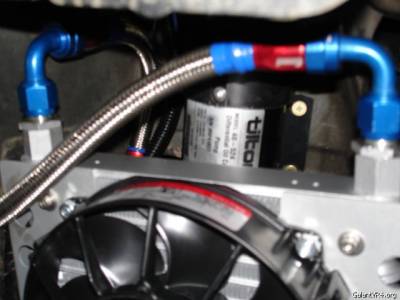

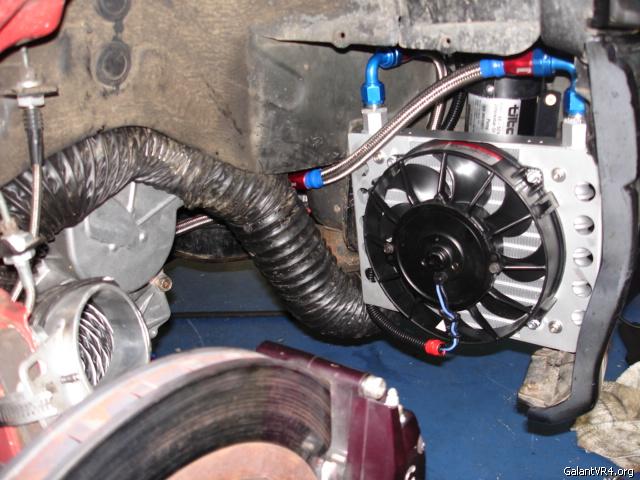

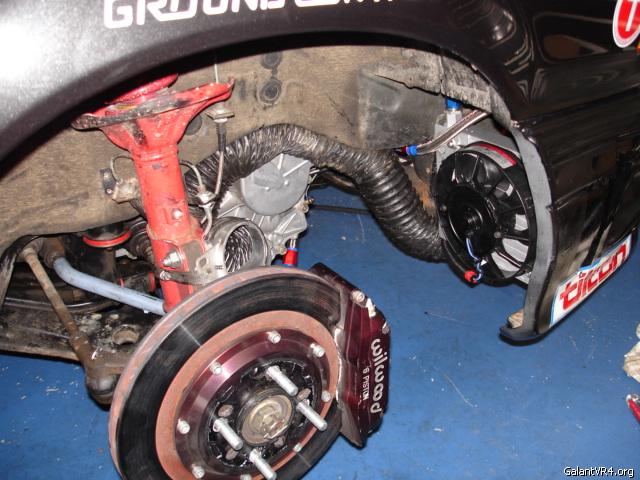

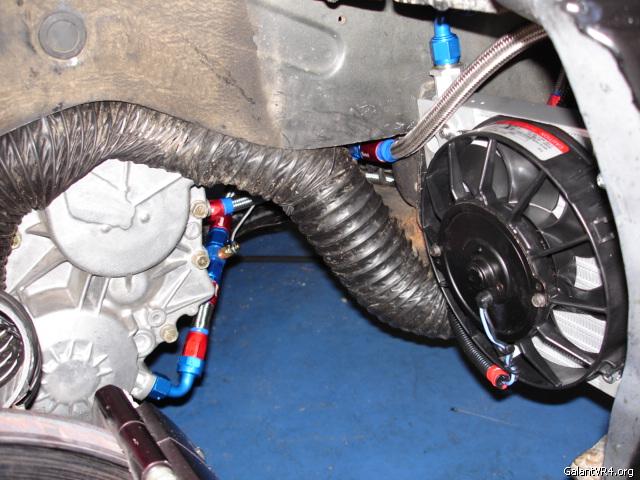

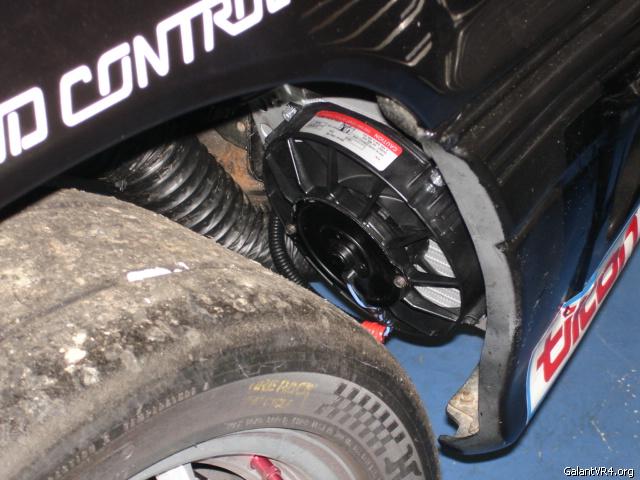

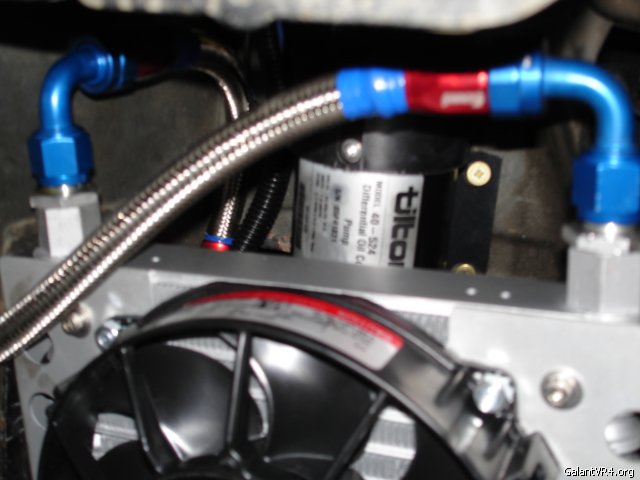

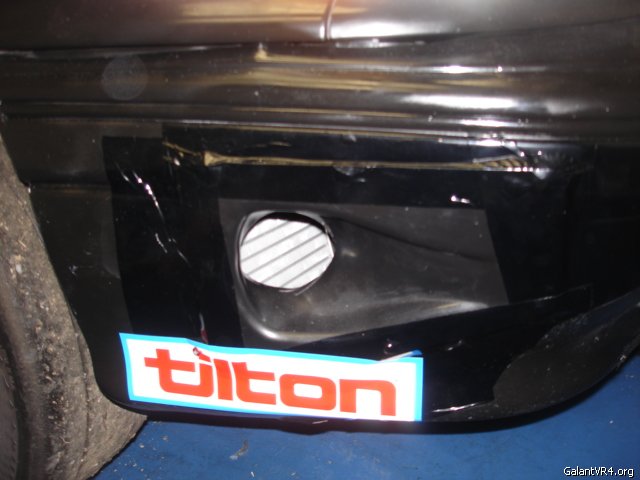

Additional Pics per a request:
