some other interesting galant info's

[misterfixit]

Was looking up some patents for work, and look what I found!

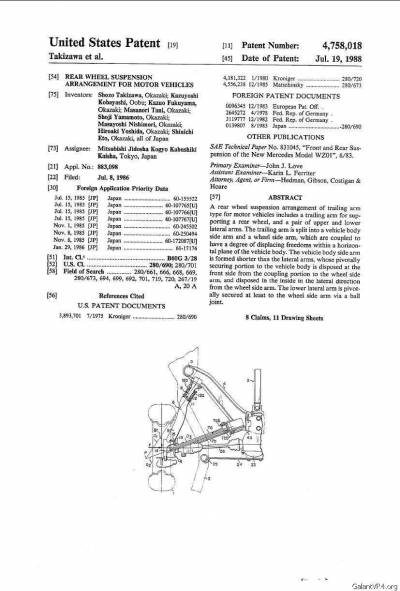

HSR maybe? look at the rack. like a nissan type HICAS cylinder.

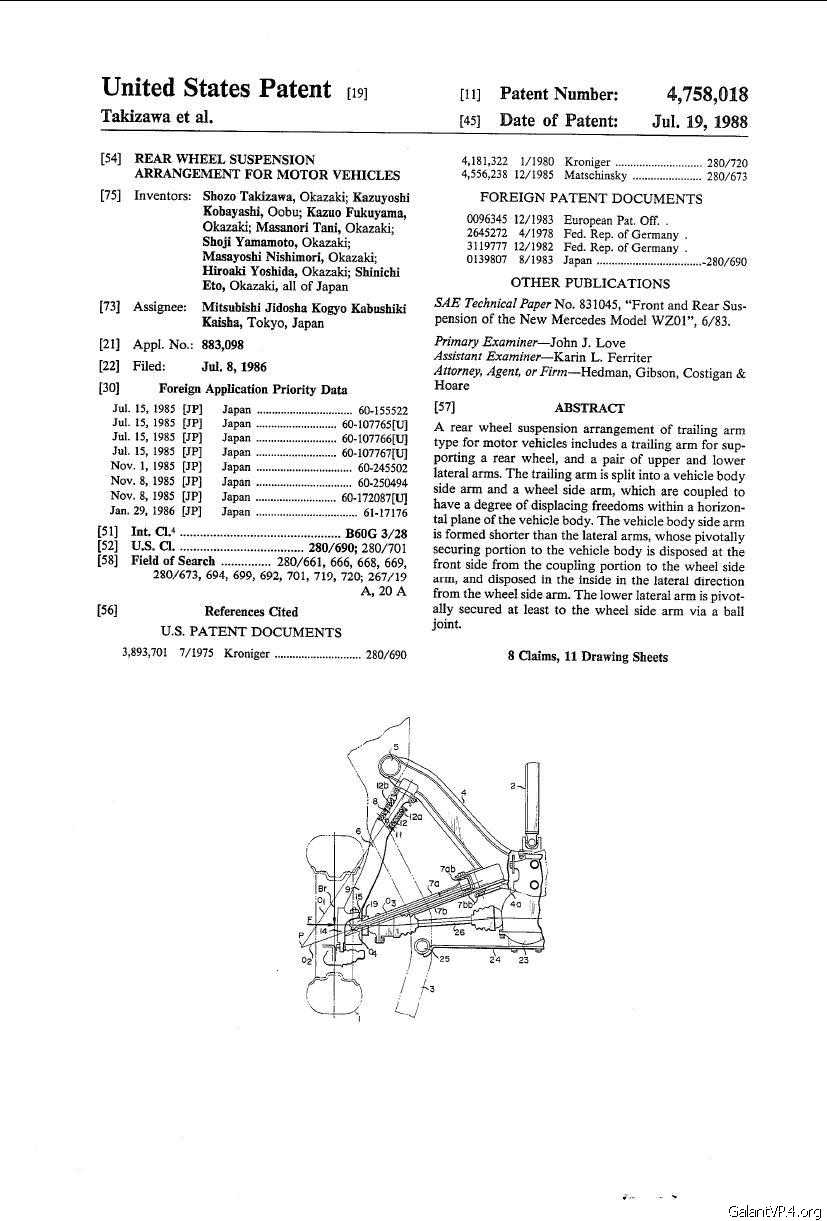

Definately a Galant rear end, but passively steered. From the app date more HSR research?

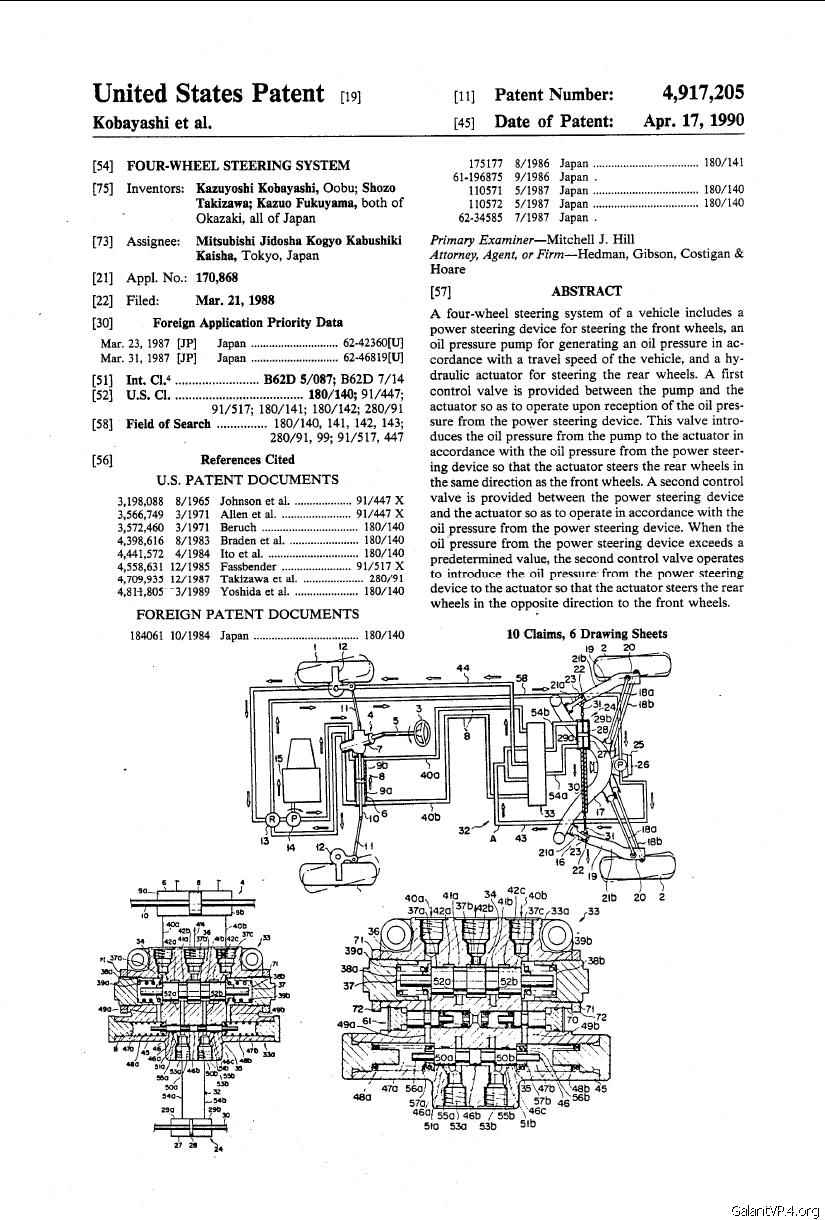

Now were getting there. Our 4WS we know and love! /ubbthreads/images/graemlins/smile.gif

Rich



[CP]

I hope you charged the time you spent tracking those down to your client!



Good find though. As an engineering student, I've looked at my fair share of patents, none from the ol' VR4 though. Thanks for sharing.

-Josh



[eviLntt]

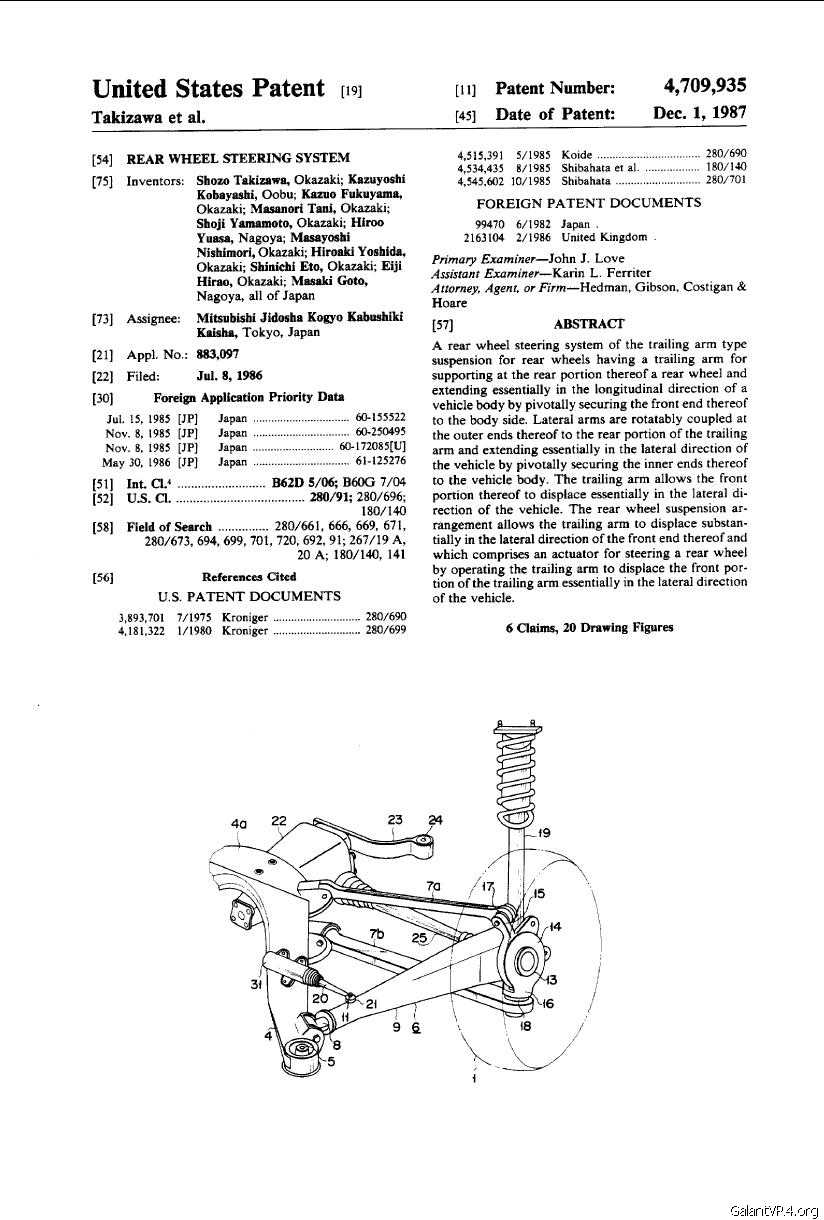

It is interesting that in the last pic they mention the rear wheels being able to turn the opposite of the front wheels.



[misterfixit]

Yeah, look in the valve block as there is an extra spool valve to the standard 4ws summing valve.

Was planning to draw some diagrams with coloured pens and see if I could sus out how easy it is to knock up.

Rich
