Plug ID help need

Muskrat

Well-known member
Joined
Jun 13, 2004
Messages
2,107
Location
Lexington, KY
So I'm finally starting to get the car back together after pulling the ECU harness for a refresh. I've got everything hooked up except for one plug that I just can remember or find where it goes.

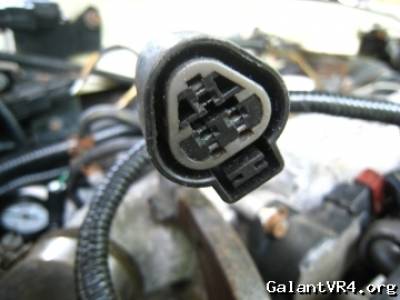

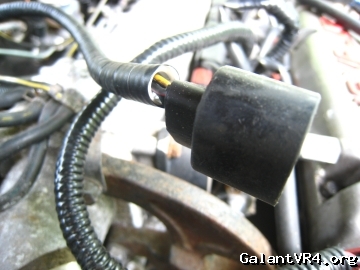

It's a triangular waterproof connector with three wires: black w/ red stripe, blue w/ white stripe, and yellow w/ black stripe. The wires don't connect to the ECU, they plug into the chassis harness under the dash. Pictures below:

Can someone help me identify this and when it needs to plug in?






cspetros

Well-known member
Joined
Jul 19, 2008
Messages
512
Location
Port Norfolk, VA

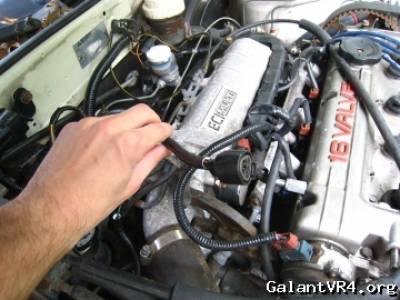

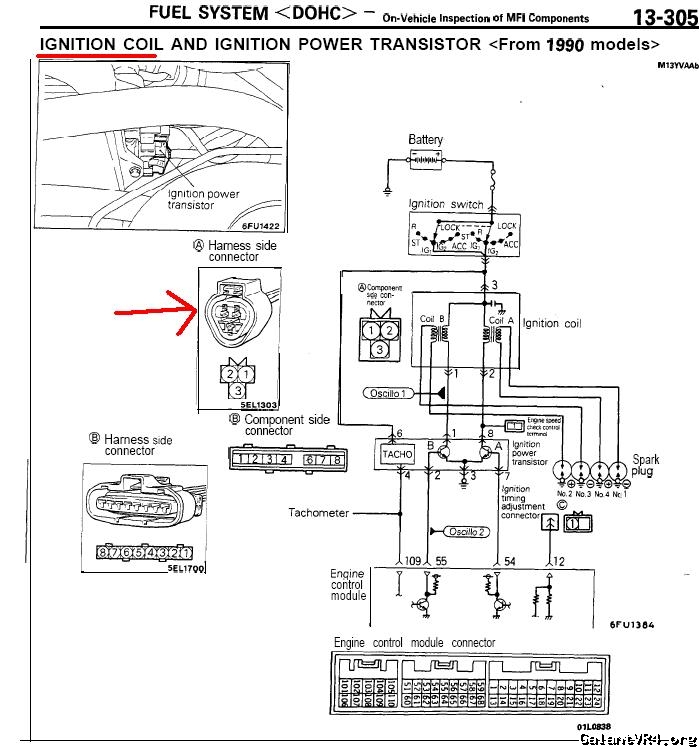

That's the plug for the Ignition Coil. It's on the driver's side of the engine bay; the unit where your spark plug wires connect:



cspetros

Well-known member
Joined
Jul 19, 2008
Messages
512
Location
Port Norfolk, VA

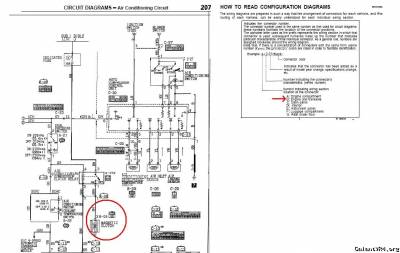

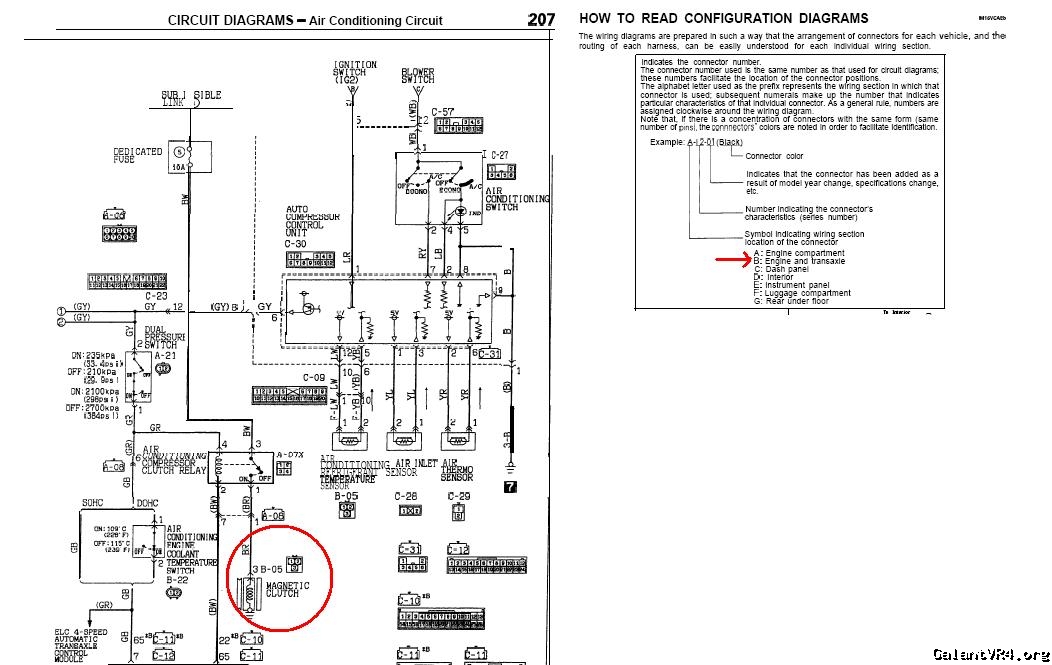

Check your Air Conditioner compressor connection. It has that connector with those wire colors. It controls the magnetic clutch mechanism:


Last edited:

Muskrat

Well-known member
Joined
Jun 13, 2004
Messages
2,107
Location
Lexington, KY
That's a possibility. And also explains why I can't find the plug. The car doesn't have an A/C compressor.

Thanks, I think that's it.


cspetros

Well-known member
Joined
Jul 19, 2008
Messages
512
Location
Port Norfolk, VA
Ding ding ding. Service rendered. I'll send you the bill tomorrow. /ubbthreads/images/graemlins/wink.gif
