Need help, wire colors??


I need your help right now, you know those sensors which are on the thermostat house?? I need to know which wires goes to which sensors, can someone help me with this?? I don't need the wires to the AC sensor... only those wires on those 3 sensors on the thermostat house!!

Also, what color has the wire that goes to that switch on the "thing" where the gas wire is?? That switch is pressed in when i don't touch the gas pedal, do you know what i mean??

Thanks allot // Wolfy
Last edited by a moderator:


Well-known member
Apr 7, 2005
The "thing" is probably your Closed Throttle Position Switch. Wire is green.

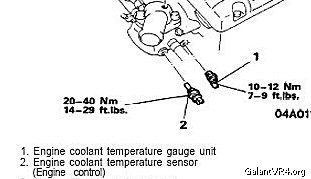

Other sensors...

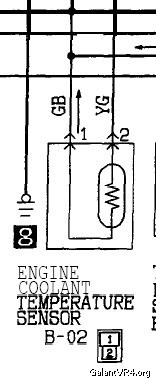

Below is the Engine Coolant Temperature Sensor. Wires are Green with black stripe and Yellow with green stripe

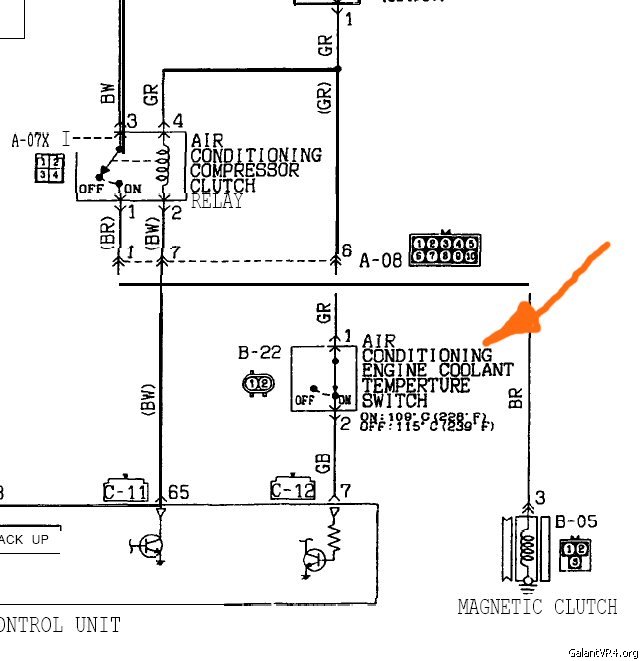

Next is the A/C Engine Coolant Temperature Switch. Wires are Green with red stripe and Green with black stripe

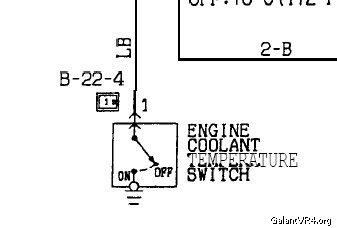

Here is the Engine Coolant Temperature Switch for the radiator fan. Wire is Blue with black stripe

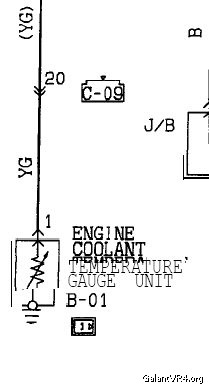

The last one is for the temp gauge. Wire is Yellow with green stripe.

Last edited:

OK!! /ubbthreads/images/graemlins/smile.gif Yes the "thing" as i called it was the Throttle Position Switch!! /ubbthreads/images/graemlins/smile.gif

Thank you wherry much for this!! /ubbthreads/images/graemlins/laugh.gif

Regards // Wolfy
Last edited by a moderator:

I was wondering about this sensor:

Do i need that one if i don't have my AC anymore??

There was somewhere here on the board where i was reading that it just turns on the fan that is on the "front" of the car (AC fan) it dosen't turn on the real radiator fan for the engine... is this true??

Thanks // Wolfy
