Master bushing list

jepherz

Staff member
Joined
Aug 8, 2004
Messages
7,878
Location
KC, Missouri
Energy suspension:
(R - Red, G - Graphite)
Stock front swaybar/endlink bushings (Kit, 20mm) - 5.5106R - $12 - Ref.
Front subframe bushings (Kit) - 5-4105G - $?? - Ref.
Front control arm bushings (Kit) - 5.3108 - $35
Rear control arm bushings (Kit) - 5.3113 - $35

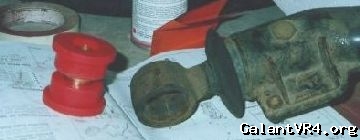

+ Rear trailing arm bushing - 2126 or 2176 - Img

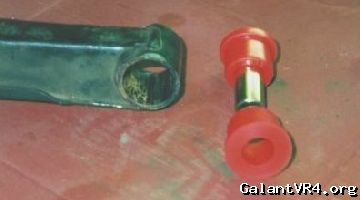

+ Upper control arm bushing - 3174 and 3175 - Img

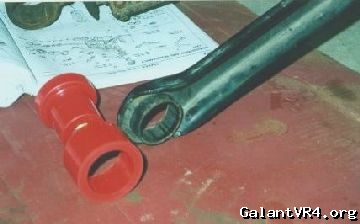

+ Lower control arm bushing - 2148 (2x) - Img
Stock rear sway bar/endlink bushings (Kit, 20mm) - 5.5108 - $18
Trailing arm bushing - 5.7106
Rear upper arm bushing - 5.3109


Noltec:
Rear mustache brace busings - N92170 - $95 - Ref.

Whiteline:
Front caster bushings - ??
Rear camber bushings - KCA365 - $66 - Ref.
Front adjustable endlinks - ??

Prothane:
Motor mount inserts (Kit) - 131902 - $68

Boostx:
Rear subframe bushings - Ref.

*All prices are approximate and cited from reference.

Last edited:

jepherz

Staff member
Joined
Aug 8, 2004
Messages
7,878
Location
KC, Missouri

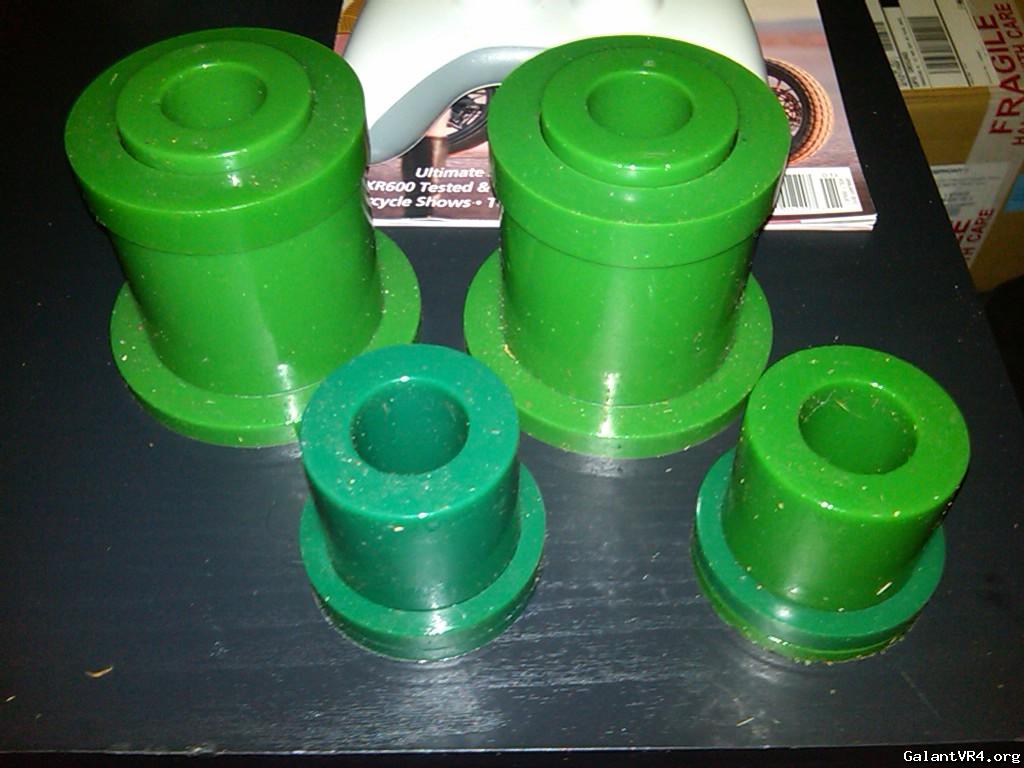

Additional info:
img.php


JSchleim18

Well-known member
Joined
Oct 16, 2006
Messages
4,801
Location
Long Island, NY

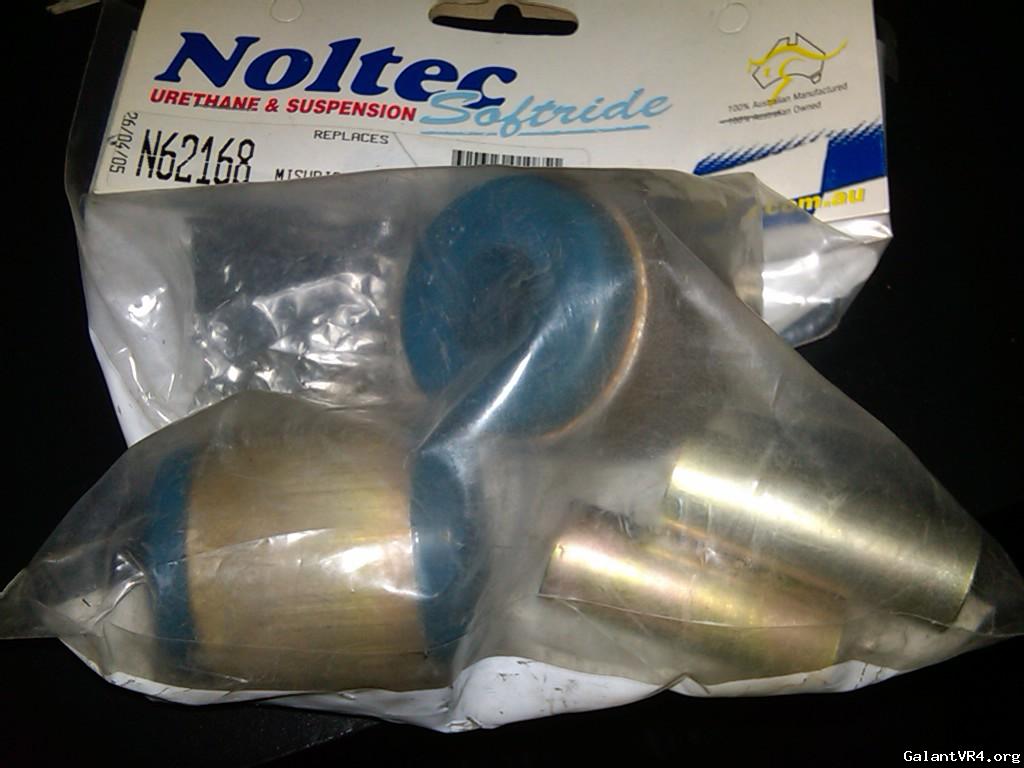

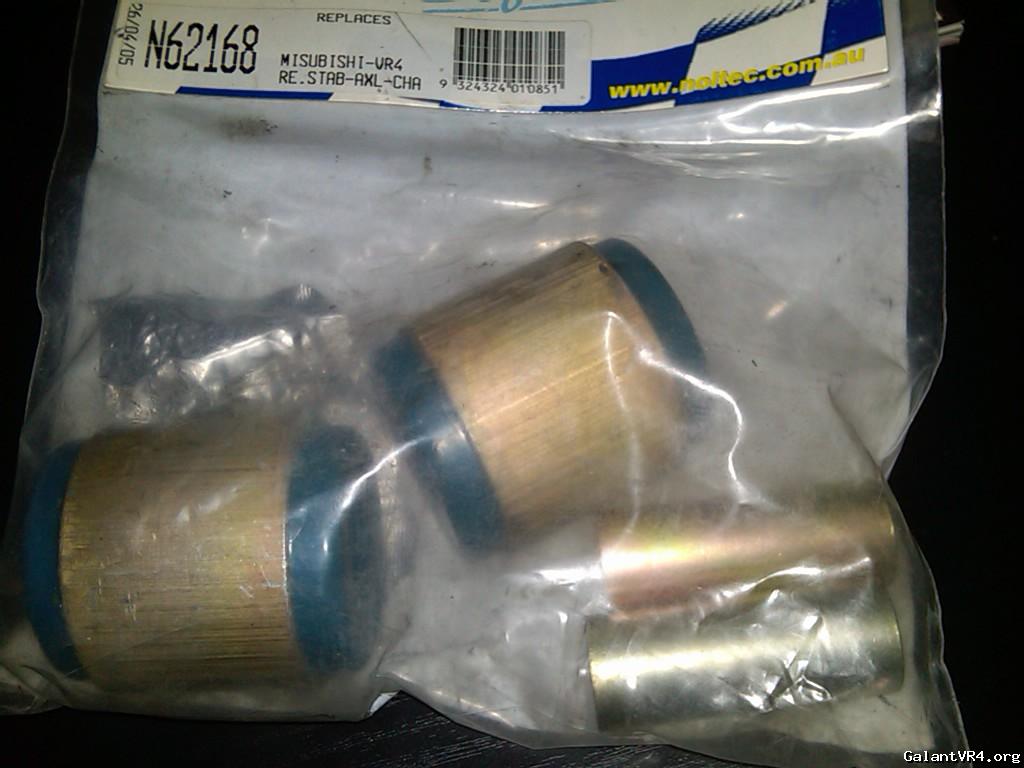

Noltec N62168 - Stub Axle to Chassis Bushings

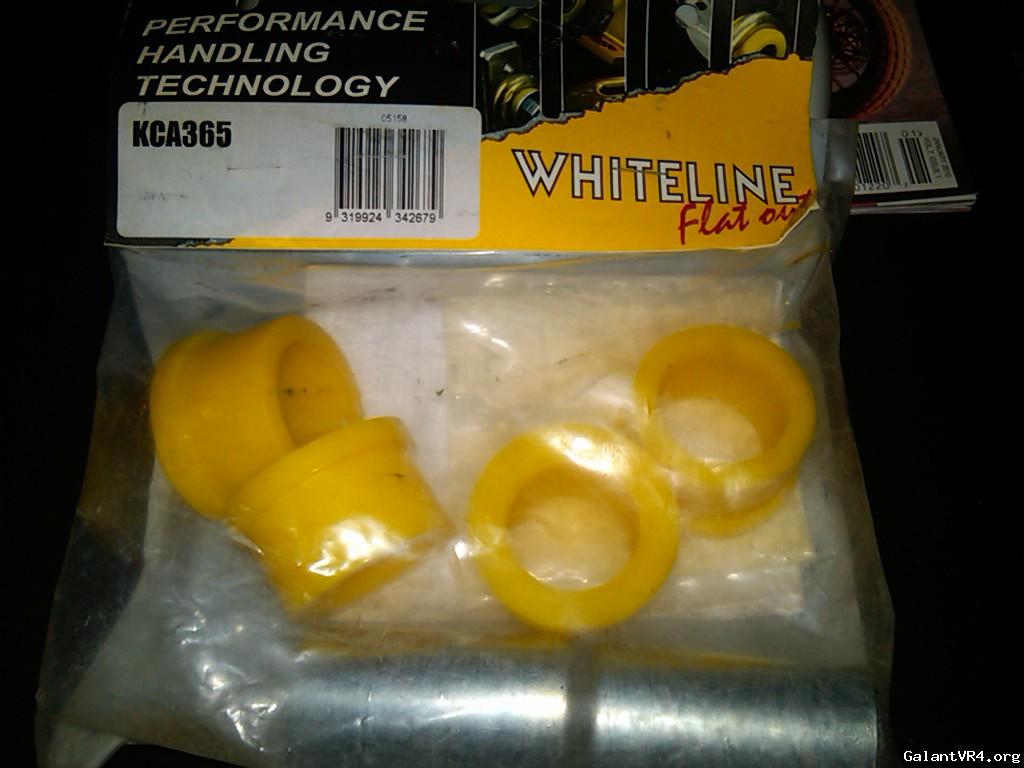

Whiteline KCA365 Rear Upper Control Arm Bushings (Camber adjustable)

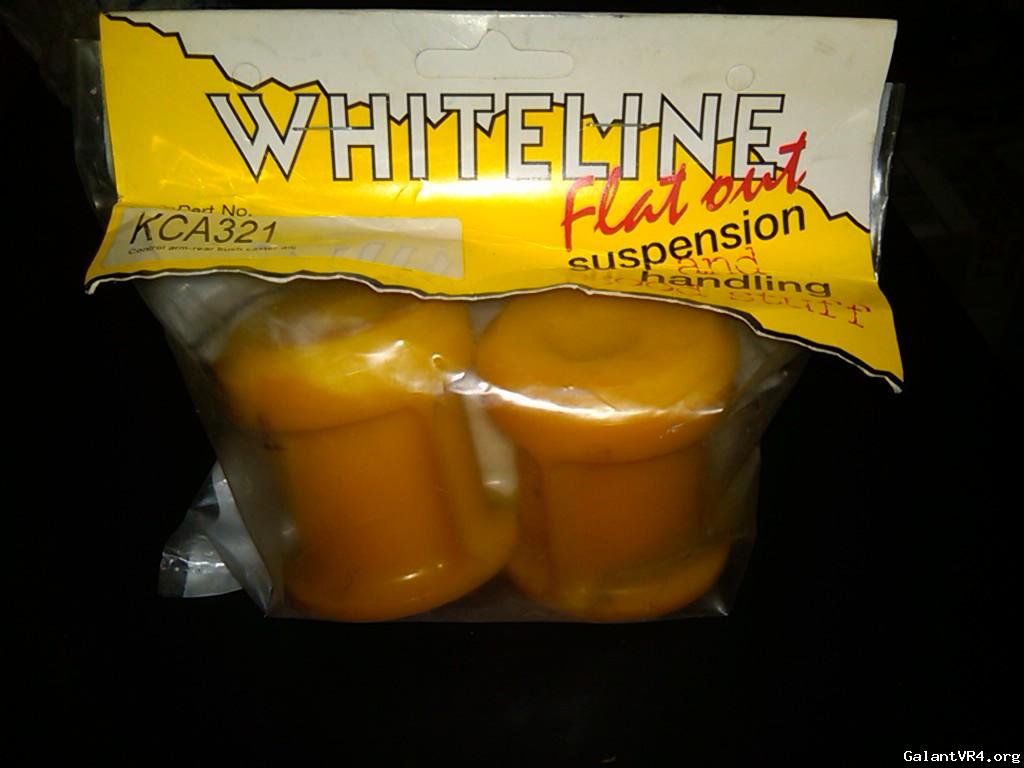

Whiteline KCA321 Front Lower Control Arm REAR Bushings (Caster adjustable)

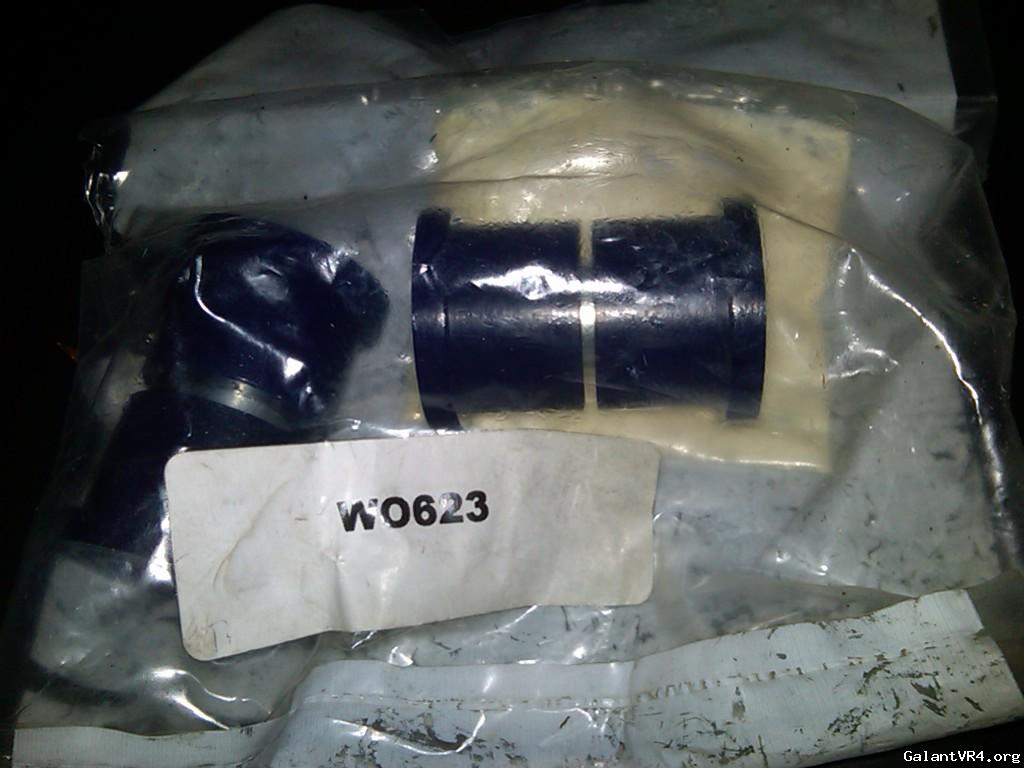

Whiteline W0623 Rear Lower Control Arm Inner Bushings (Same as Superpro SPF1438K)

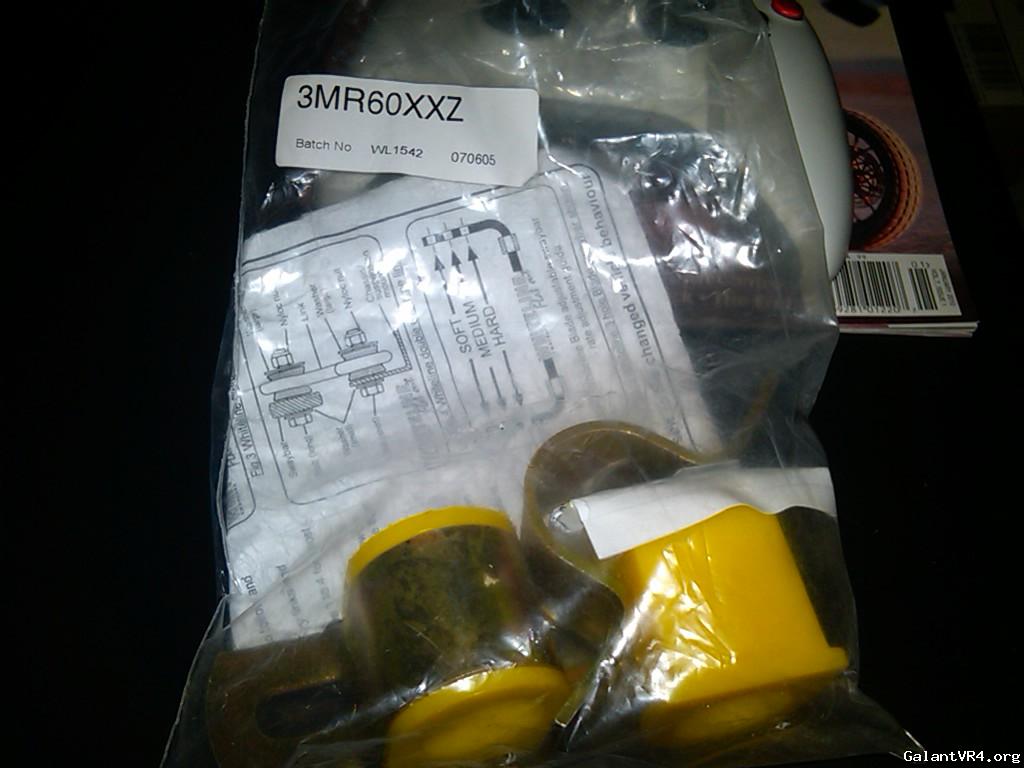

Whiteline 3MR60XXZ 26mm Rear Swaybar Bushings

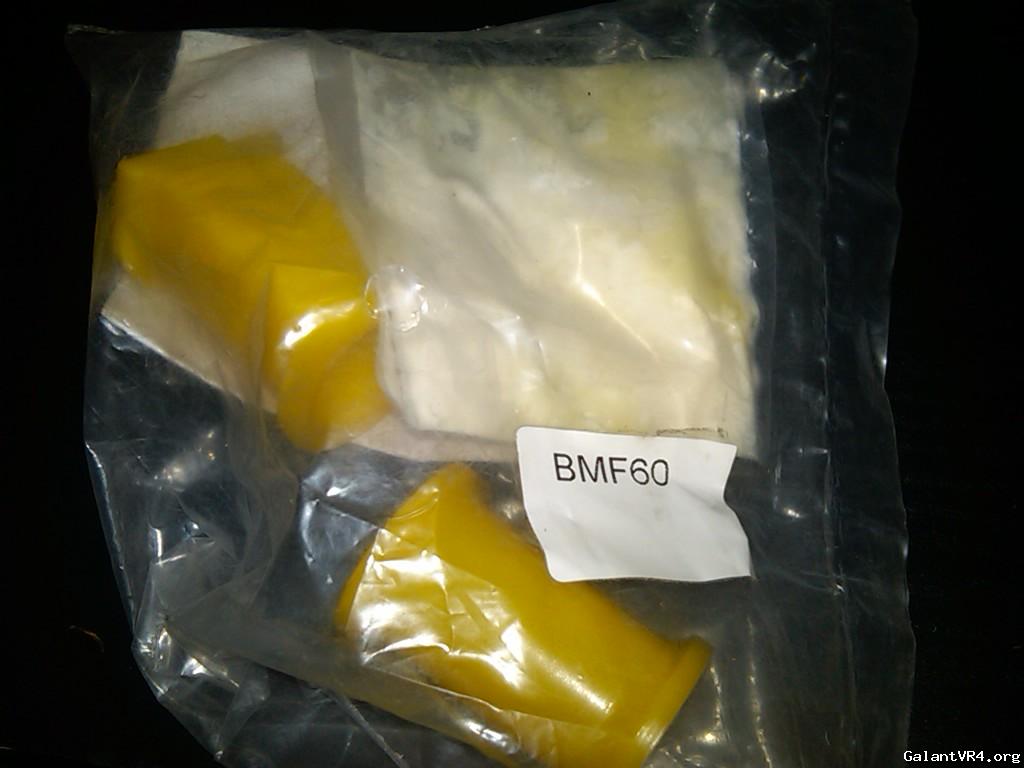

Whiteline BMF60 22mm Front Swaybar Bushings


Boostx Custom Mustache Brace and Rear Subframe Bushings (Larger bushings are rear subframes)
