I'm running a cyclone intake mani on my car and well i got to thinking its about time to change out the old plug wires.But my only problem is that the jdm coil pack and wires are longer then usdm so i cant just go out and buy some plug wires.

I guess the question is where can i get some or maybe make some anybody got some idea's or maybe you had this problem too.

thanks gmp

:Mods please move to right section if this isn't right:
Thanks


belize1334

Well-known member
Joined
Nov 18, 2003
Messages
3,316
Location
Bozeman, MT
Are you using the USDM or JDM coil-packs. On my setup I didn't want to deal w/ switching the plugs on the harness and all that so I just attached the UDSM coil-pack to the side of the Cyclone manifold. It sits roughly where the JDM one would. I was only able to get it secured with one bolt but it's never moved so I don't worry about it. Setup like this I was able to reuse the OEM plug wires and now have a set of OEM replacement R-8 NGK wires. To make them fit I swapped the ground wires on the two coils so that the coil that used to fire 1,4 now fires 2,3 and visa-versa. I was surprised initially by how perfectly the wires lined up having done this but the fitment is like it was designed to be this way.





gmp

Well-known member
Joined
Apr 1, 2007
Messages
549
Location
Denver,co
thanks i have a few laying around maybe ill do that for now


misterfixit

Well-known member
Joined
Aug 4, 2004
Messages
1,596
Location
Midlands, UK
I know what you mean.. I measured the lengths of the leads, but am staying at my parents at the moment. when i'm back home one evening next week will dig it out and post. Yes the jdm ones are considerably longer.

It's almost 1=new, 2=1, 3=2, 4=3 for the jdm from the us. I'll also post the wire routing throught the clips and the like.

Rich


iceman69510

Turn Right Racing
Staff member
Joined
Mar 5, 2001
Messages
10,964
Location
Michigan
Years ago Ken Inn got Kingsborne to make these for him. You may have to ask specifically for them. I didn't search the catalog, but you can. /ubbthreads/images/graemlins/wink.gif

http://www.kingsborne.com/


boosted_85

Well-known member
Joined
Apr 2, 2009
Messages
198
Location
milwaukee, wi
I'm not really sure but I do believe that accel makes a set for us without the coil side connectors crimp on, its like a cut to fit setup


Magnecor makes wires for the Cyclone intake manifold click

I think I have a set of them hanging up in my garage from when I had a JDM engine and Cyclone intake manifold in my car. Make me a reasonable offer on them and they can be yours.

Daryl


gmp

Well-known member
Joined
Apr 1, 2007
Messages
549
Location
Denver,co
thanks for the offer "vr4underboost" i think i will maybe go for the cut to fit idea seems like a fun thing to learn.Or well maybe not fun but something new to screw up ahahah /ubbthreads/images/graemlins/dunno.gif


misterfixit

Well-known member
Joined
Aug 4, 2004
Messages
1,596
Location
Midlands, UK
Here we go.. found the piece of paper tucked into one of the wiring manuals.. Wifey and son are sleeping downstairs so I had a clear run at the bookshelf!
Lengths are for exposed wire from the ends of the plugs

four runners DOHC manifold.
1, 305mm 5.8Kohm
2, 450mm 8.4Kohm
3, 595mm 10.6Kohm
4, 535mm 9.7Kohm

eight runners DOHC manifold.
1, 405mm 8Kohm
2, 515mm 9Kohm
3, 585mm 10Kohm
4, 685mm 12Kohm

I measured all of these as i had a massive problem with the car stuttering and hitting a ceiling on wot when i was sorting it from the P.O. I think i used a combination of leads from USDM a board member here, and off an *8valve 4g63 with the dizzy at the back. *changed the ends, real perverse as i wanted O.E. look with the correct red and correct writing/cylinder labels on the wires.

Once re-built/re-cored and the resistance was in spec then the car was sweet again!!

Hope this helps

Rich


misterfixit

Well-known member
Joined
Aug 4, 2004
Messages
1,596
Location
Midlands, UK

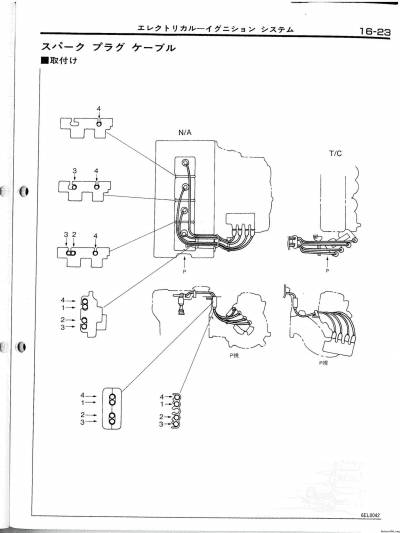

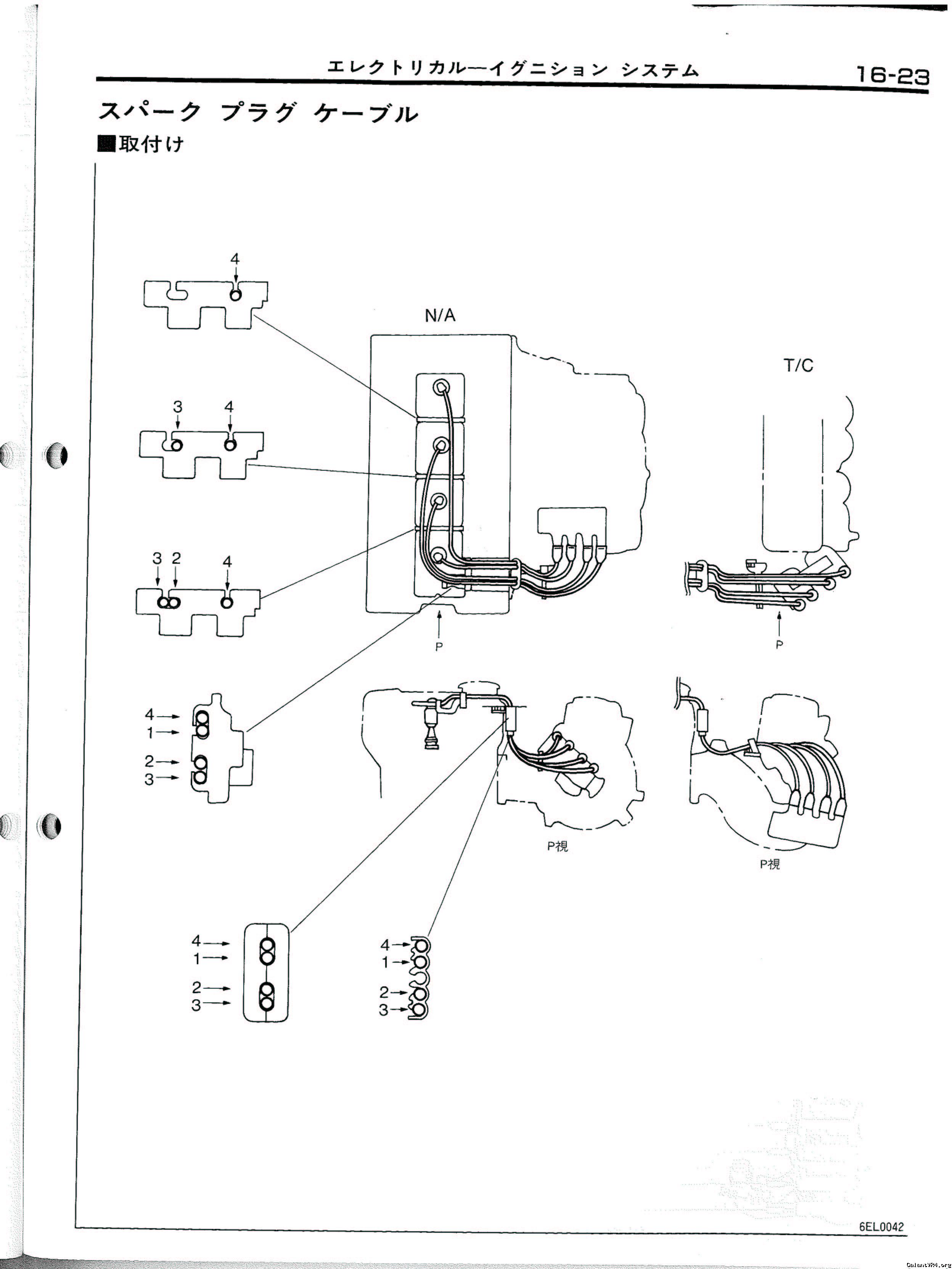

Here's the wire pic


Rich


gmp

Well-known member
Joined
Apr 1, 2007
Messages
549
Location
Denver,co
yeah thats great, ill be tackling this in the next few days im pretty excited to see what i can work out..ill get some pics up of the process and the finally product
