JDM A/C circuit diagram

AllanL

Well-known member
Joined
Aug 4, 2008
Messages
277
Location
NV
i'm looking for one.

Rich's (misterfixit) diagrams show just the wiring for the ECU, but doesn't show the actual wiring of the relays and sensors.

thanks in advance...

this is the last diagram in Rich's ECU wiring diagrams...


from this thread: click


kama1

Well-known member
Joined
May 13, 2007
Messages
278
Location
q.c. philippines

AllanL

Well-known member
Joined
Aug 4, 2008
Messages
277
Location
NV
thanks, I've searched and seen those, but those aren't from the JDM manuals...


misterfixit

Well-known member
Joined
Aug 4, 2004
Messages
1,575
Location
Midlands, UK
I'll have a look Allan,

Got the books here and a scnner too. Which year do you need? Climate or just std A/C?

Rich


AllanL

Well-known member
Joined
Aug 4, 2008
Messages
277
Location
NV
hey Rich,

thanks for checking...

got these diagrams scanned?

need one for a JDM VR4 RS (Cyclone intake/510cc/big 16G turbo).

config and circuit diagrams please?

the Japanese diagrams would be fine...

thanks.

Last edited:

misterfixit

Well-known member
Joined
Aug 4, 2004
Messages
1,575
Location
Midlands, UK
So Last facelift?

I'll get em scanned tomorrow and hopefully up that evening.

Rich


AllanL

Well-known member
Joined
Aug 4, 2008
Messages
277
Location
NV
Yes Sir.

Thanks Rich.

By the way, it's manual A/C, not full auto.

Last edited:

misterfixit

Well-known member
Joined
Aug 4, 2004
Messages
1,575
Location
Midlands, UK

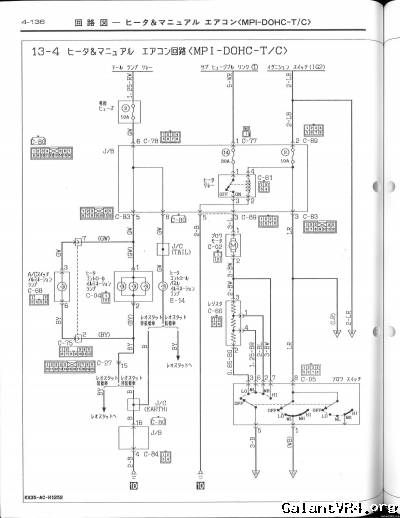

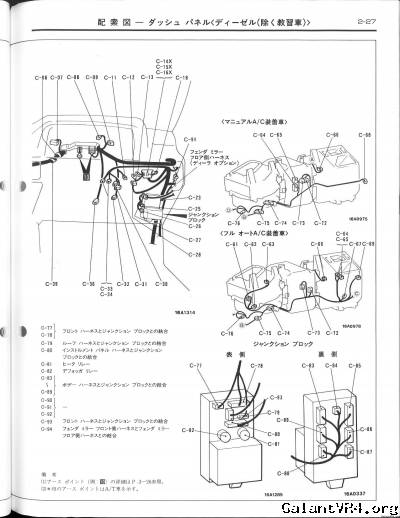

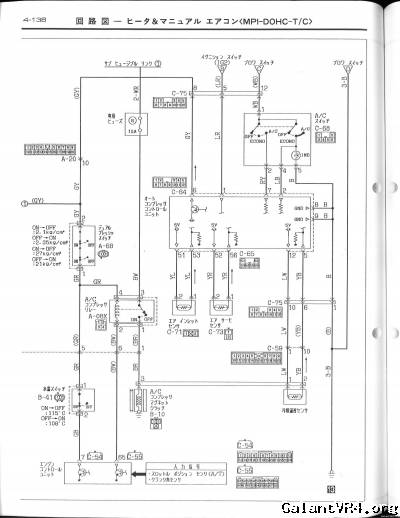

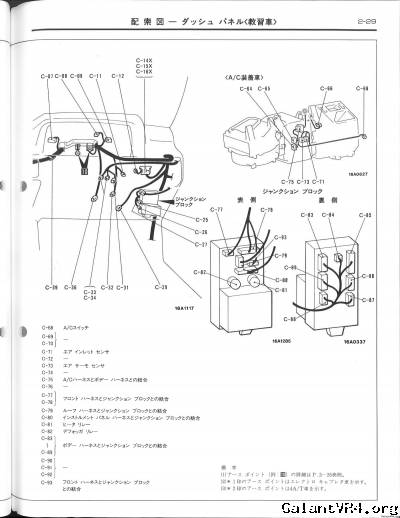

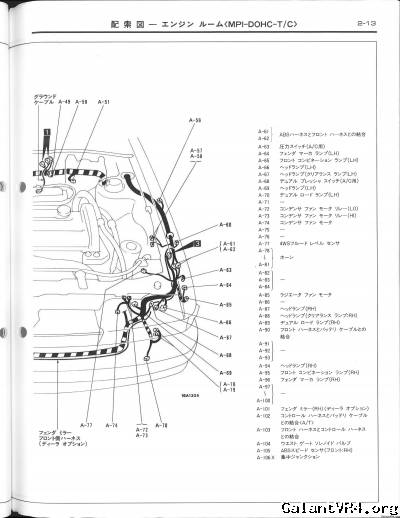

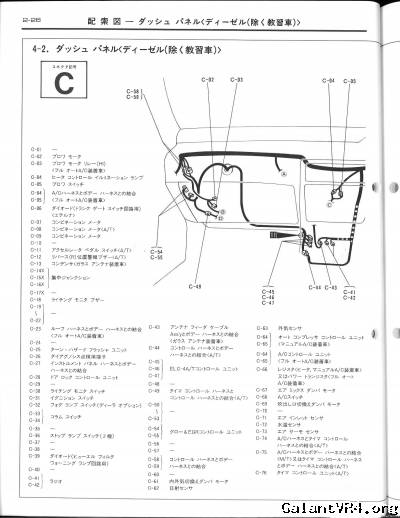

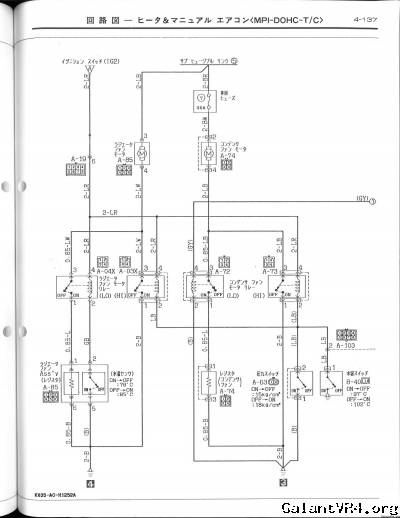

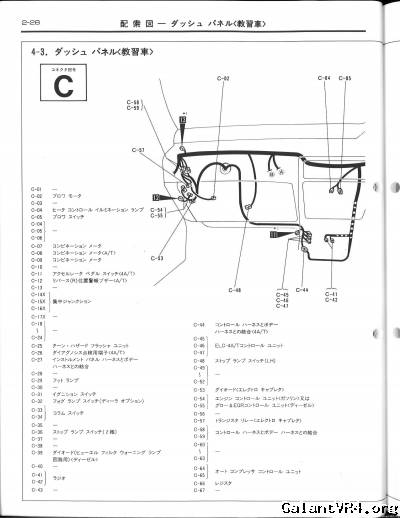

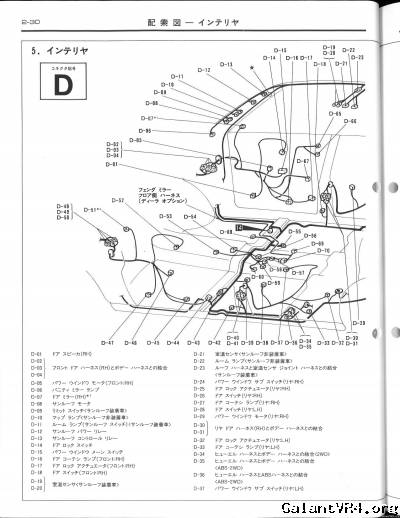

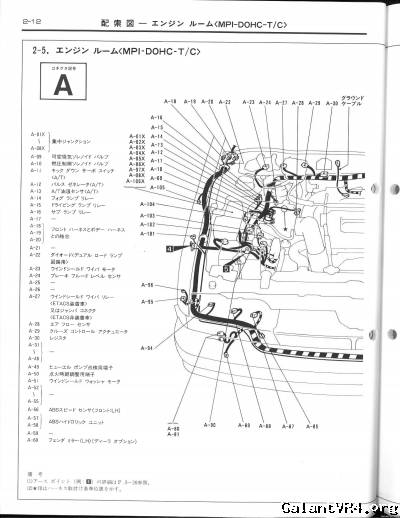

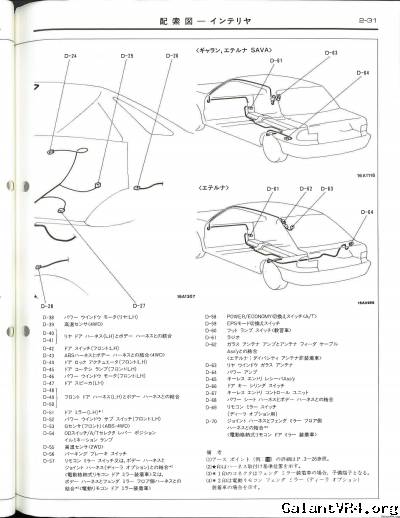

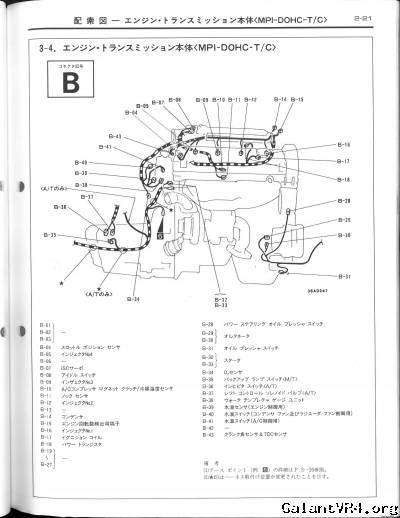

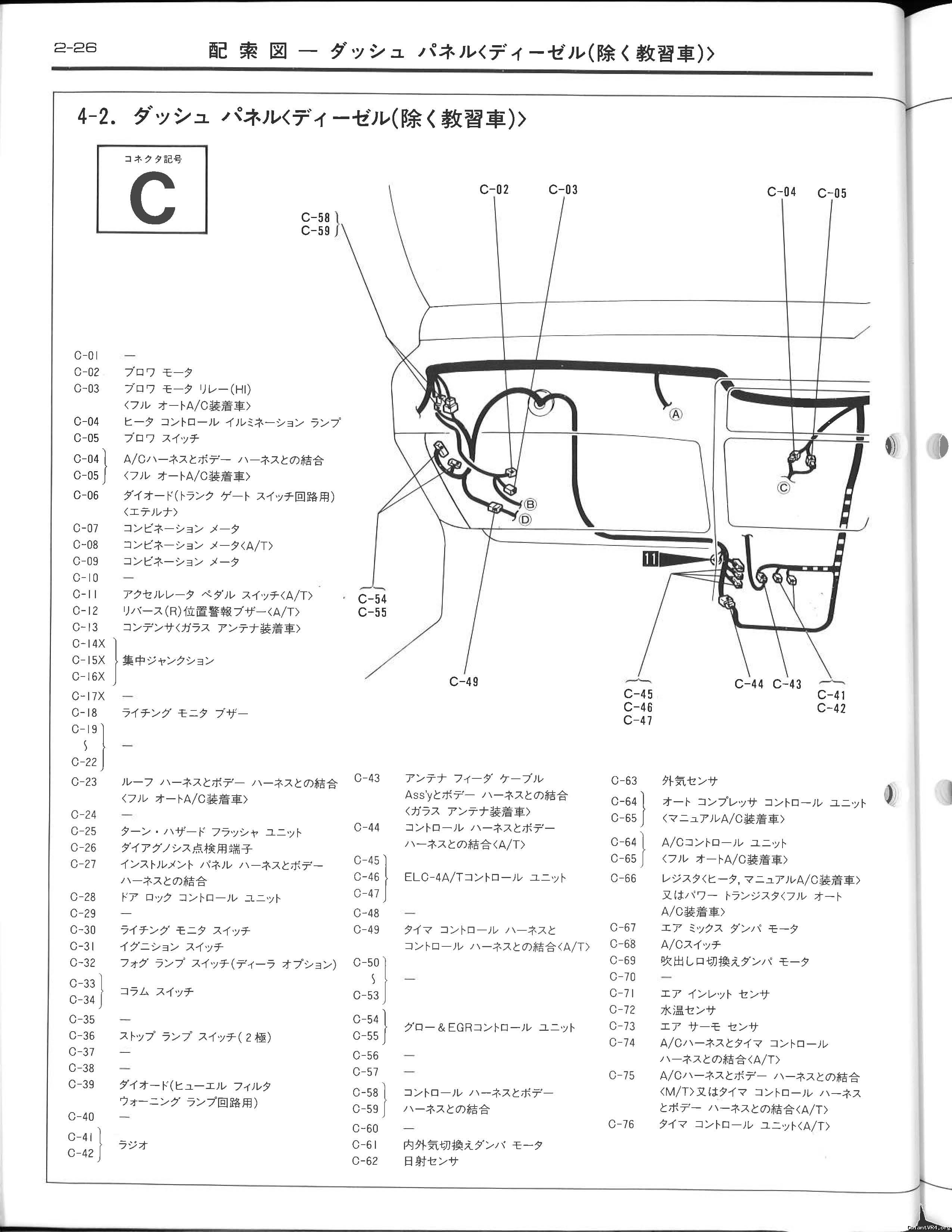

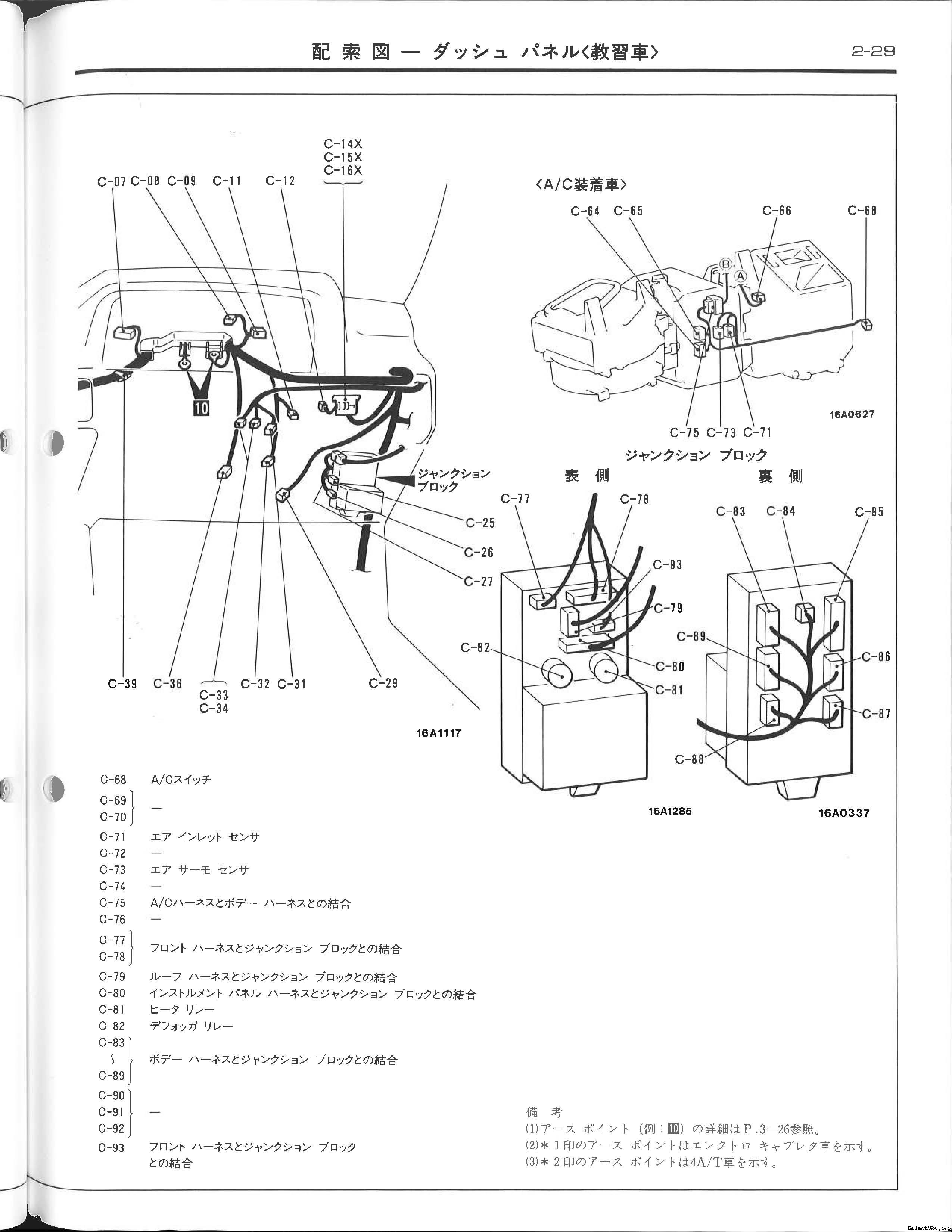

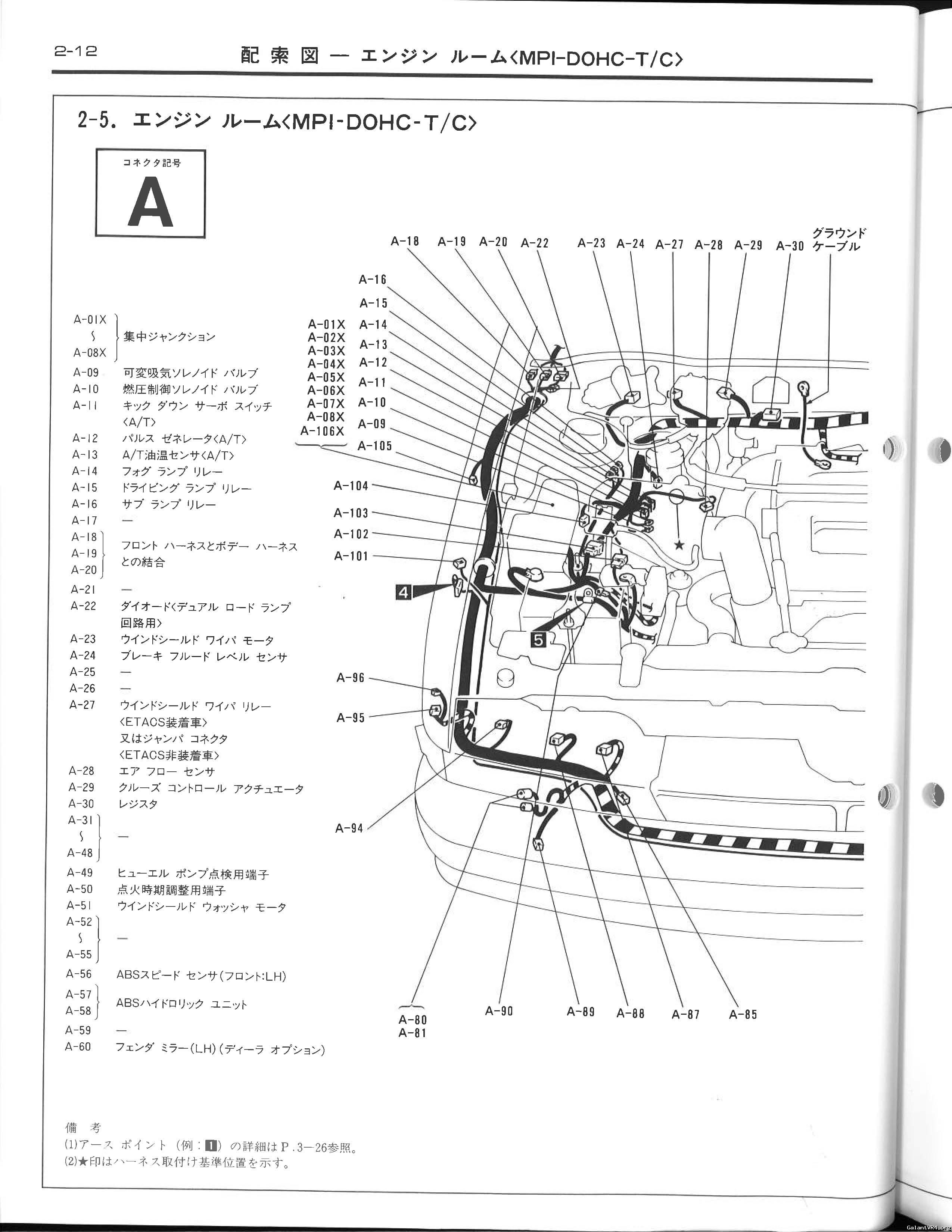

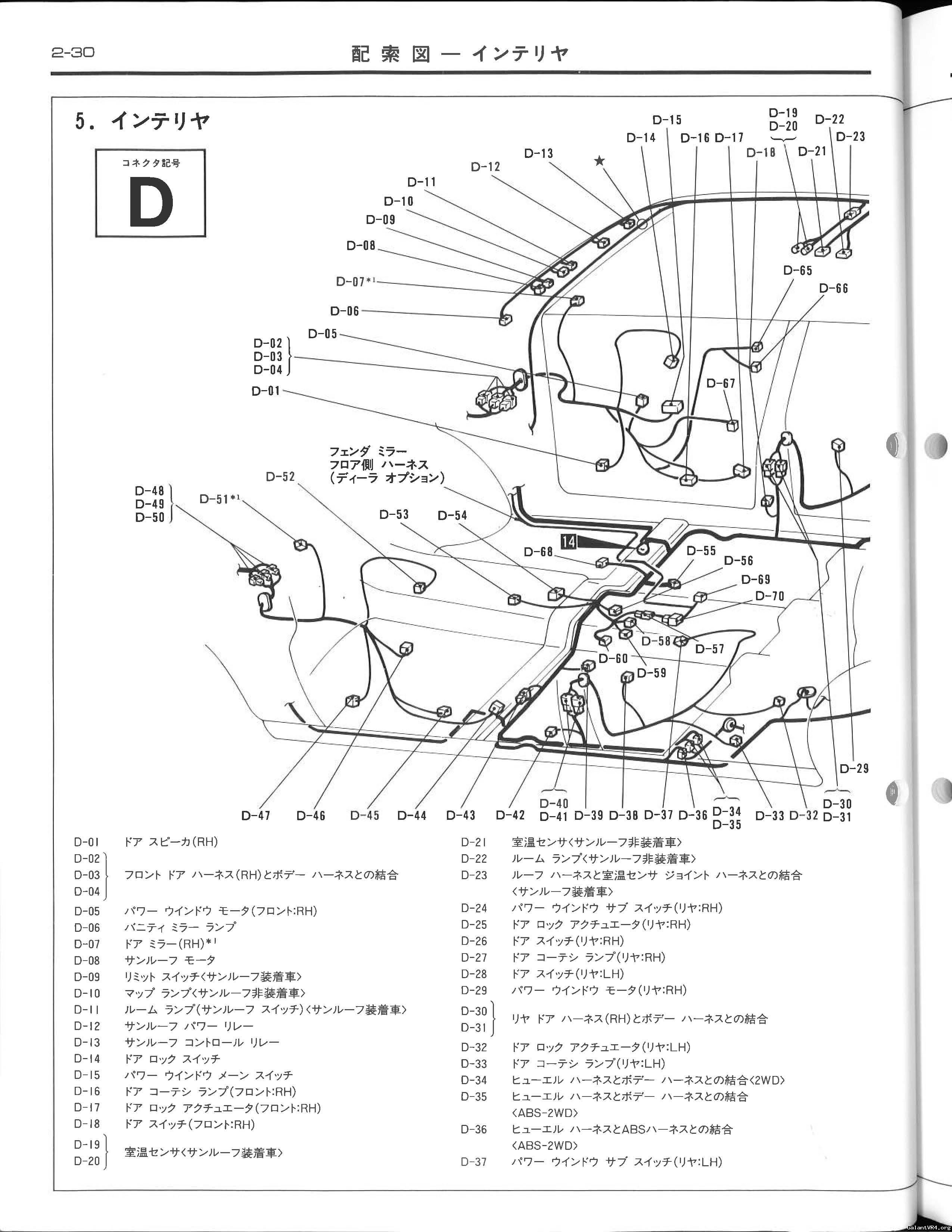

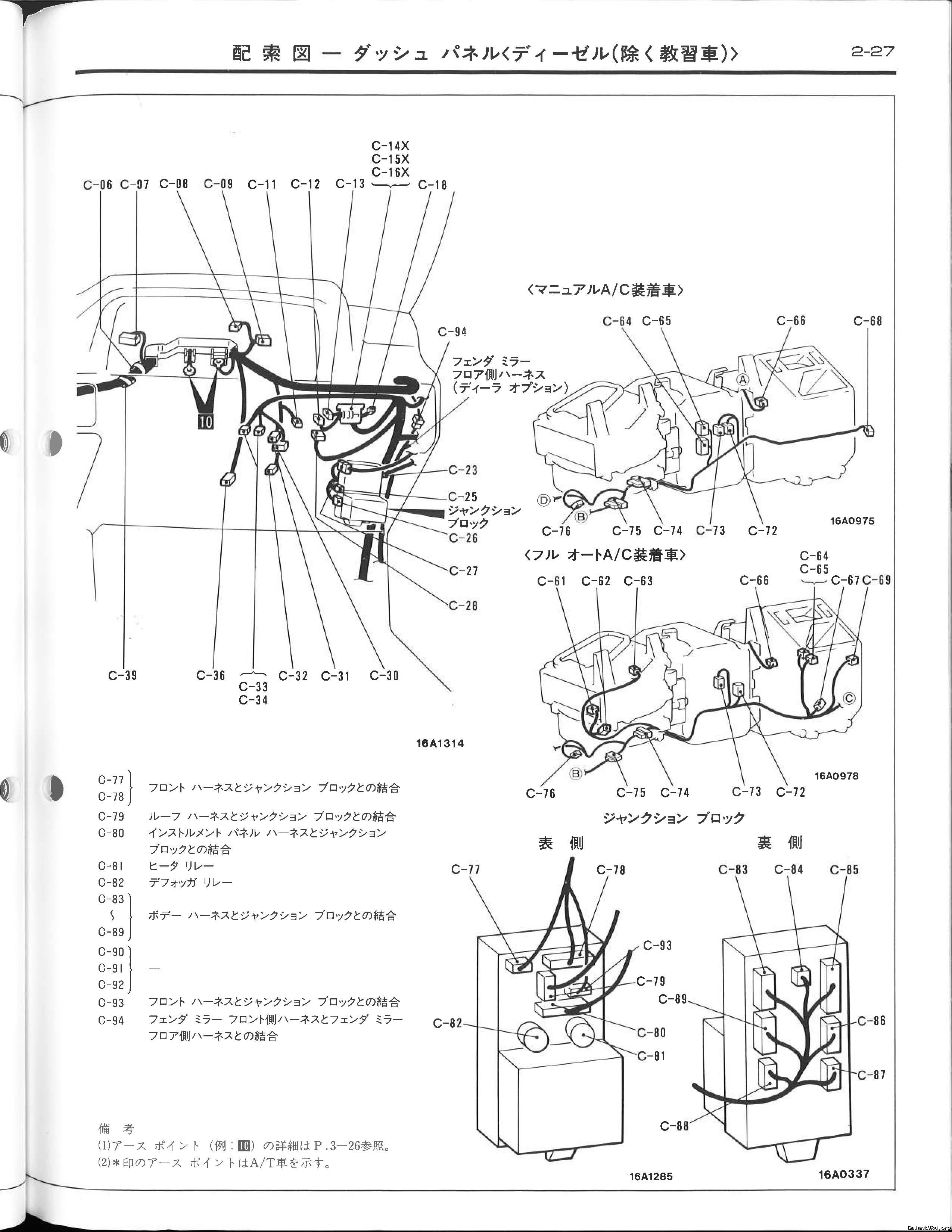

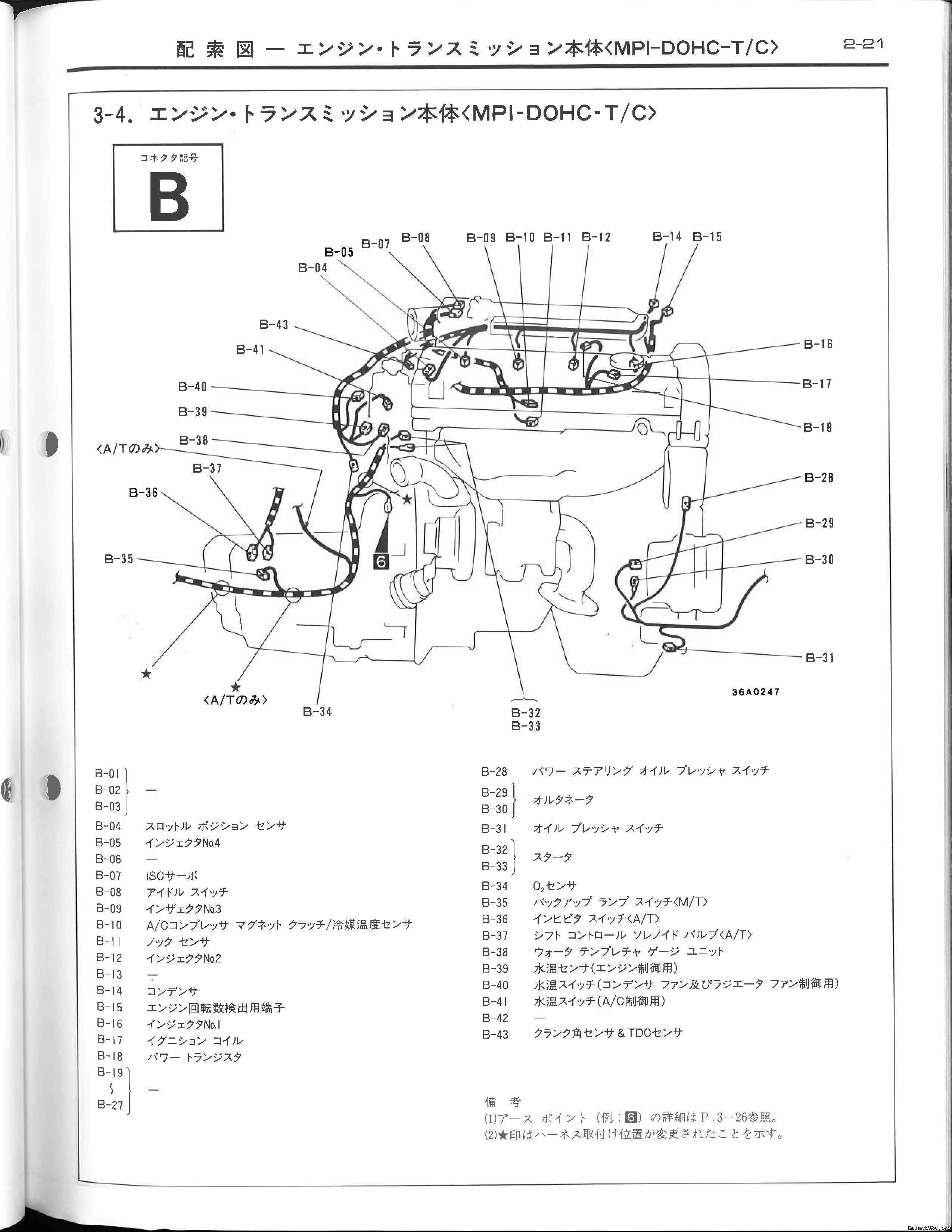

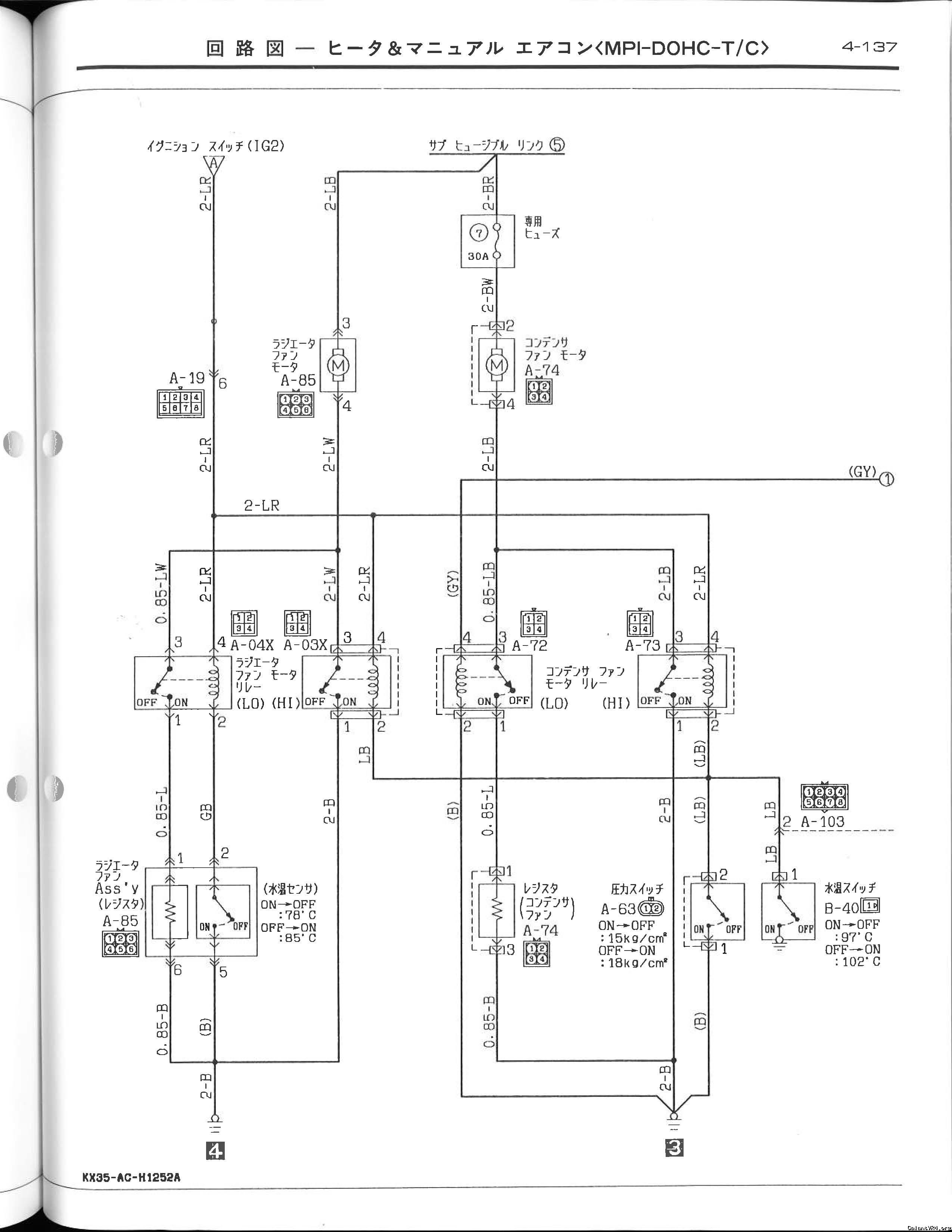

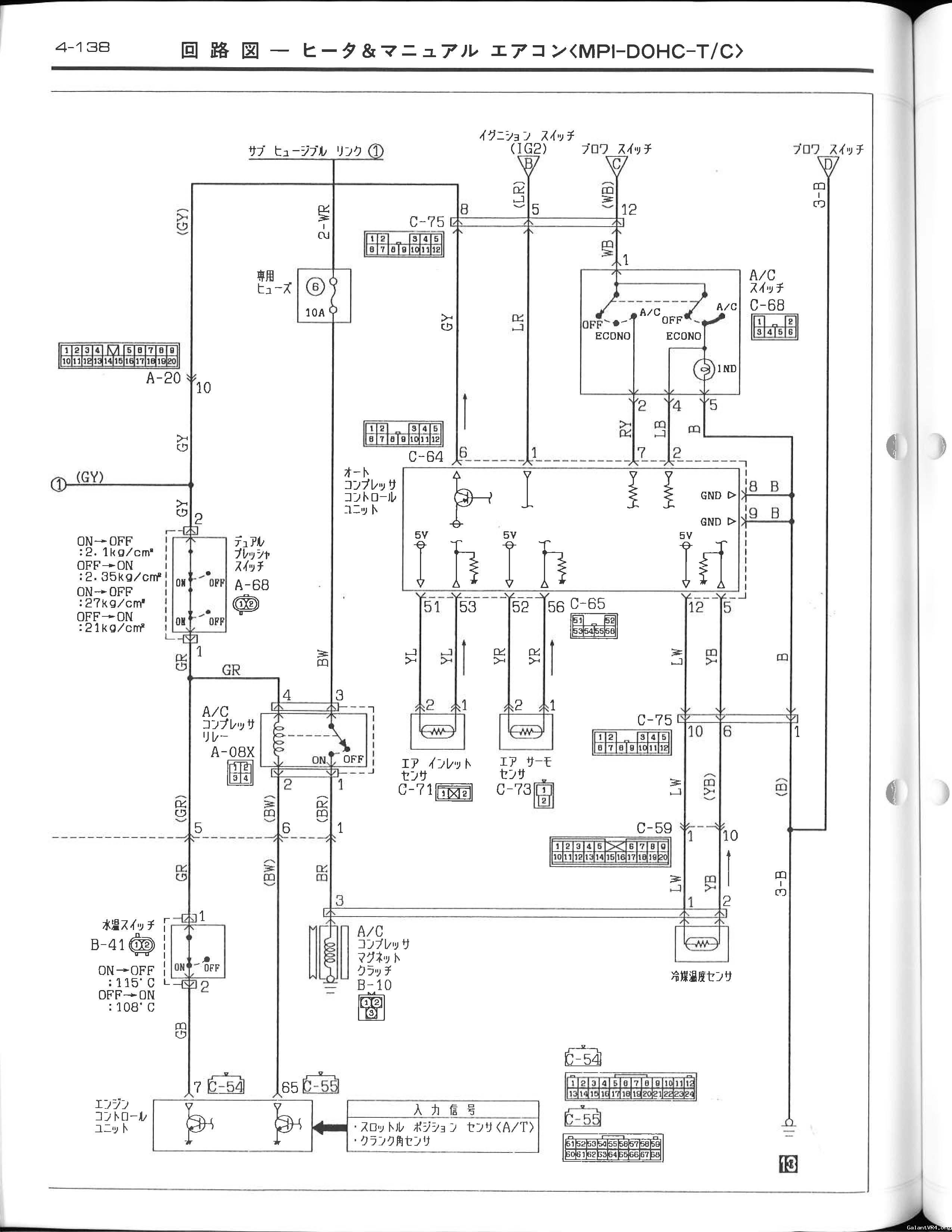

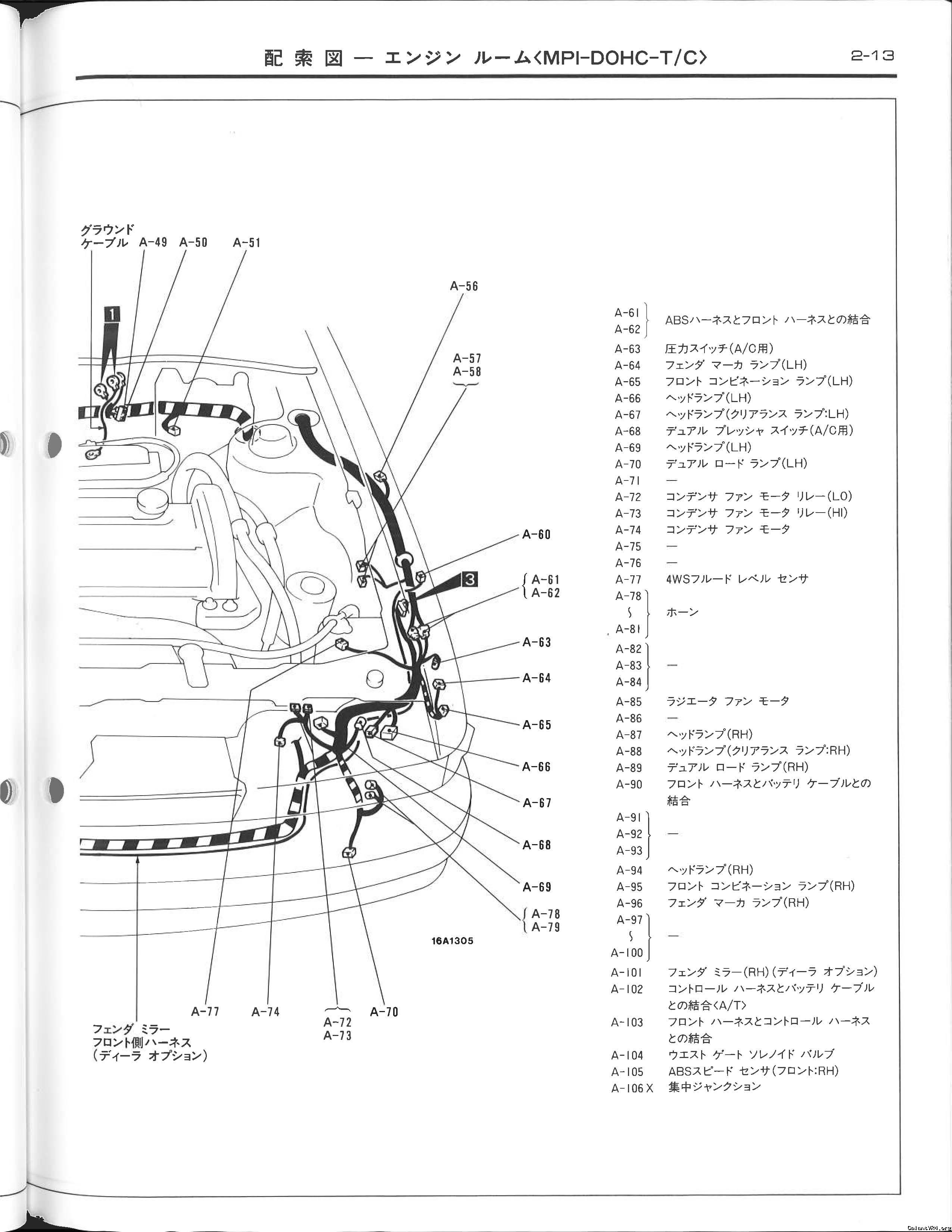

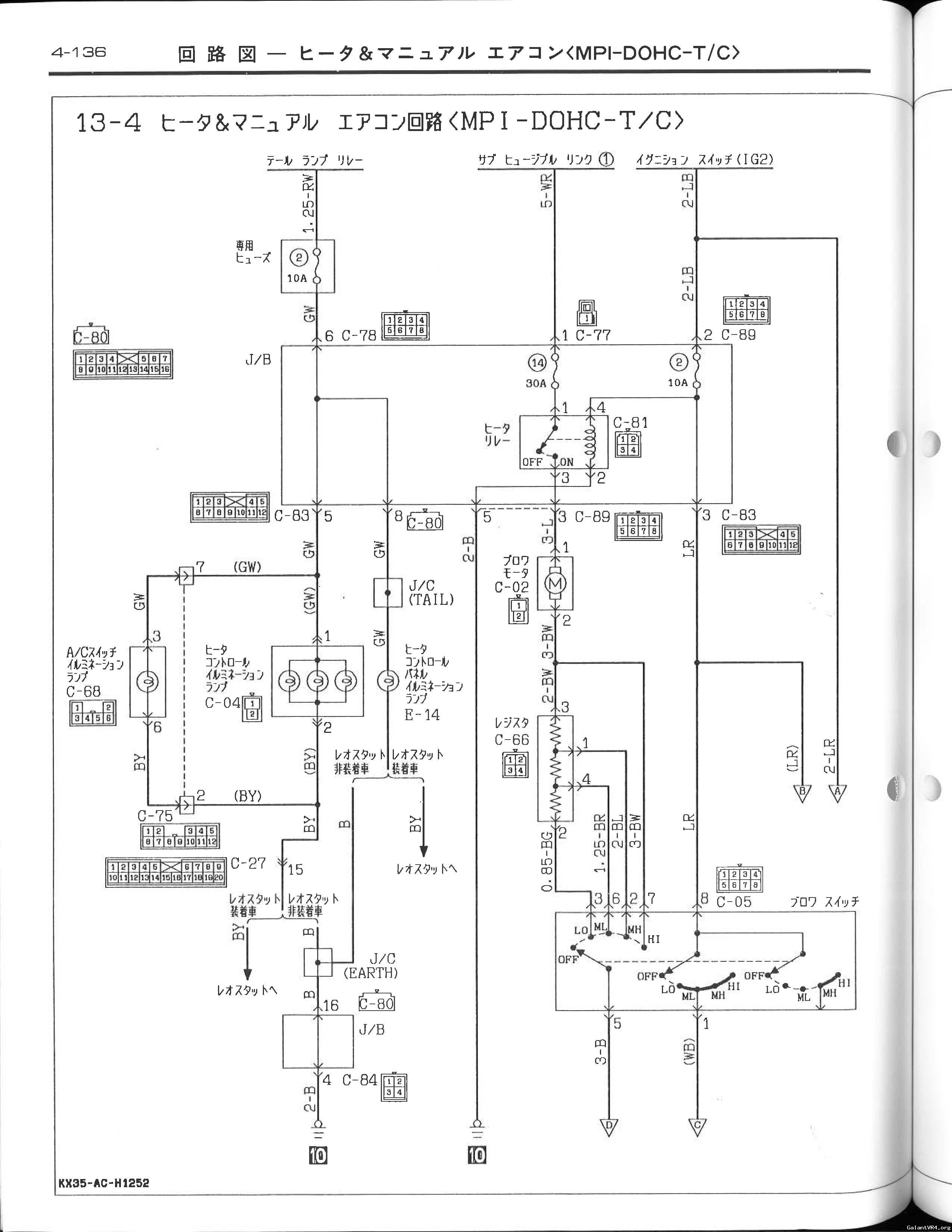

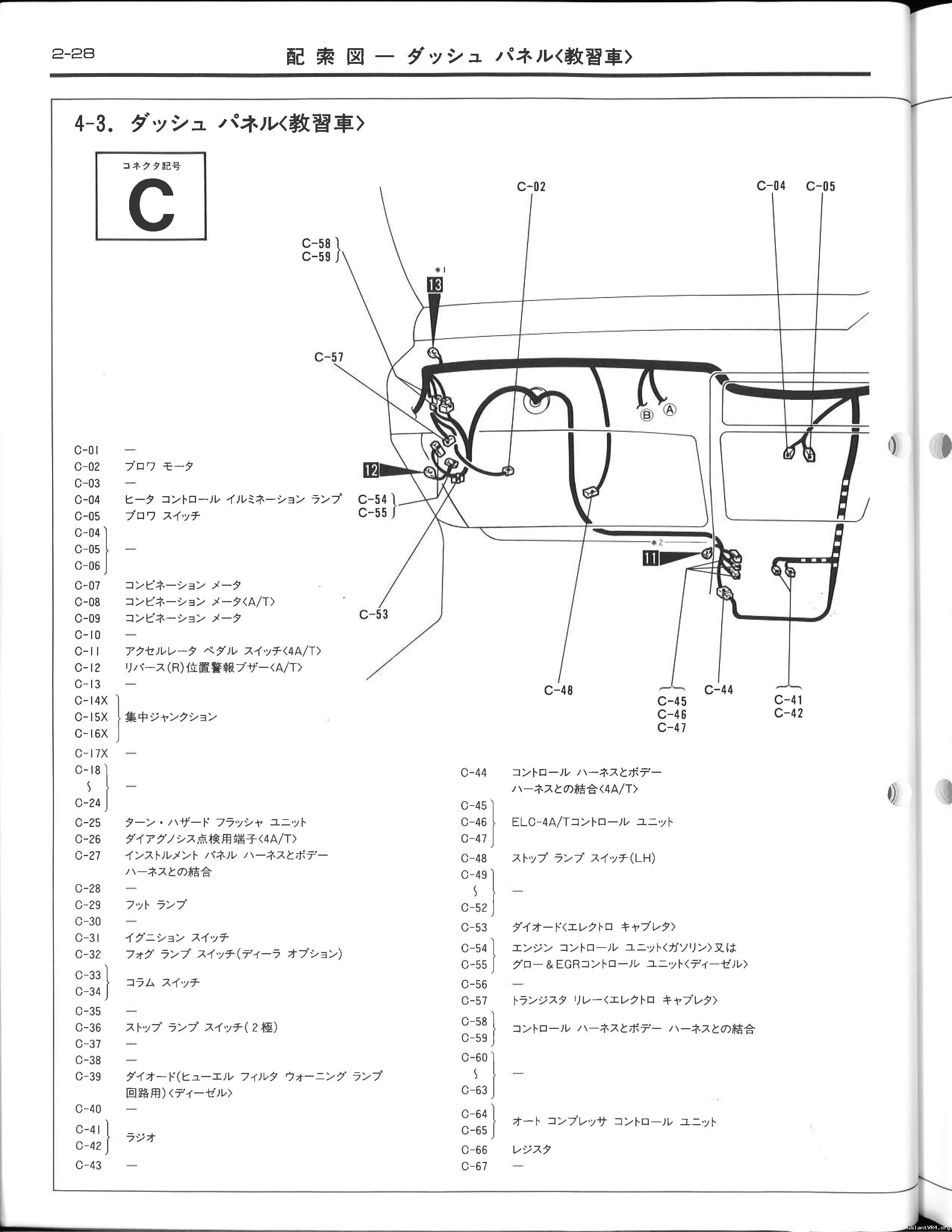

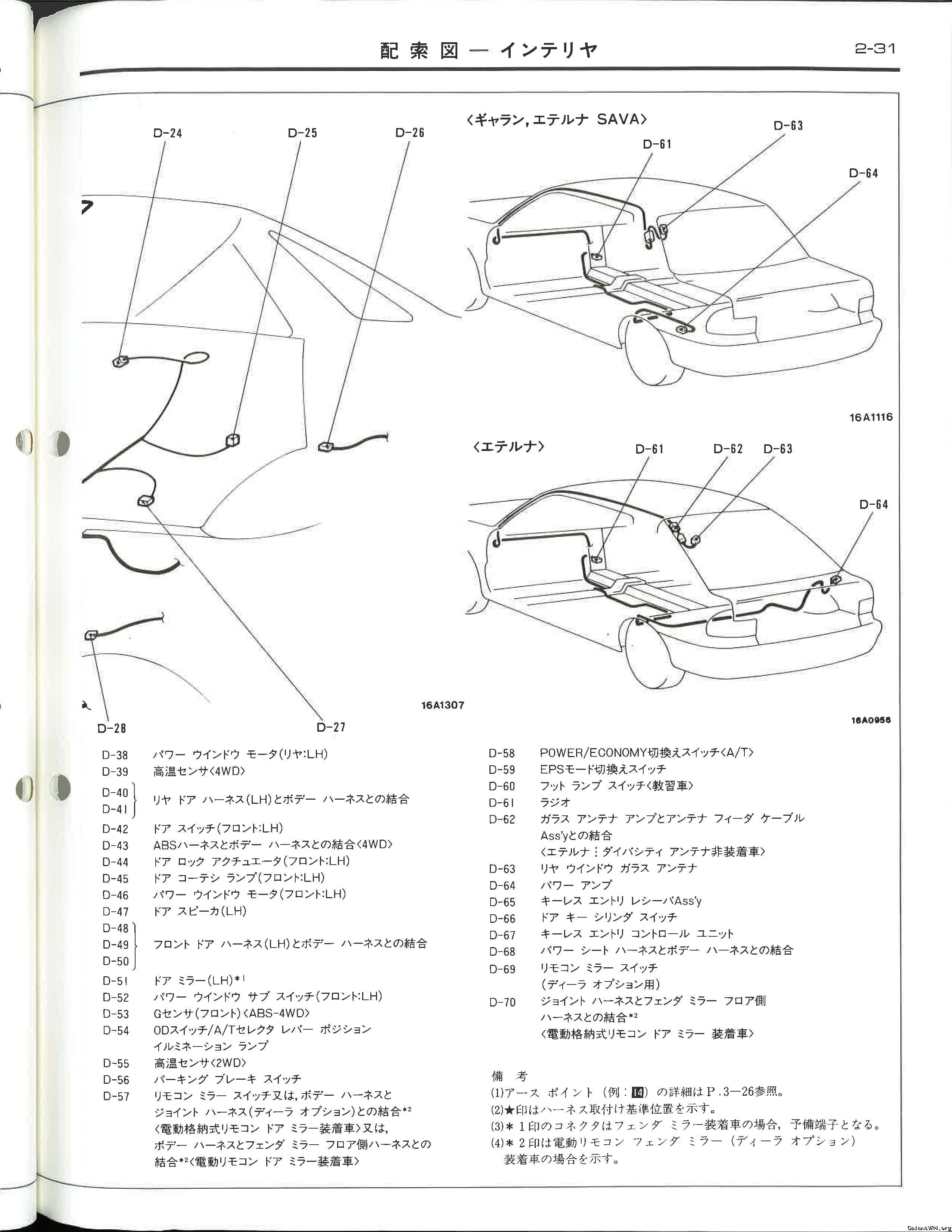

90.10 4G63 T/C Config and A/C Wiring Diagrams as requested:














There you go, as promised /ubbthreads/images/graemlins/wink.gif

Hope this helps!

Rich

Last edited:
