Fog light switch wiring

14u2nV

Well-known member
Joined
Jul 22, 2004
Messages
9,398
Location
Agency/St. Joe, MO
Anyone have a diagram or something telling me what pin goes to what? There are 7 pins, looks like only 5 are actually used, but I don't know what goes where. I'm not using stock wiring, running them directly to fogs. I went through all the How-To's, and found how to make the stocks turn on with high/low, but it doesn't say where each wire goes. I know there will be ground, +for the internal light, input/output for fogs, and I'm guessing the others have to do with making the fogs only come on with low beam.

Colors: ( I think these are right)

Black/Yellow-?
Red-?
Red/White-?
Green/White-?
Black-?


atc250r

Staff member
Joined
Sep 11, 2003
Messages
13,235
Location
Orange County, NY
Black/Yellow - goes to ground through rheostat for illumination

Black - ground for on/off indicator bulb

Red/White - power from column switch (hot with low beam on)

Red/Black - power to fog light relay (switched from Red/White)

Green/White - power from fuse 2 (10A) switched on with taillight relay (provides power for internal bulbs)

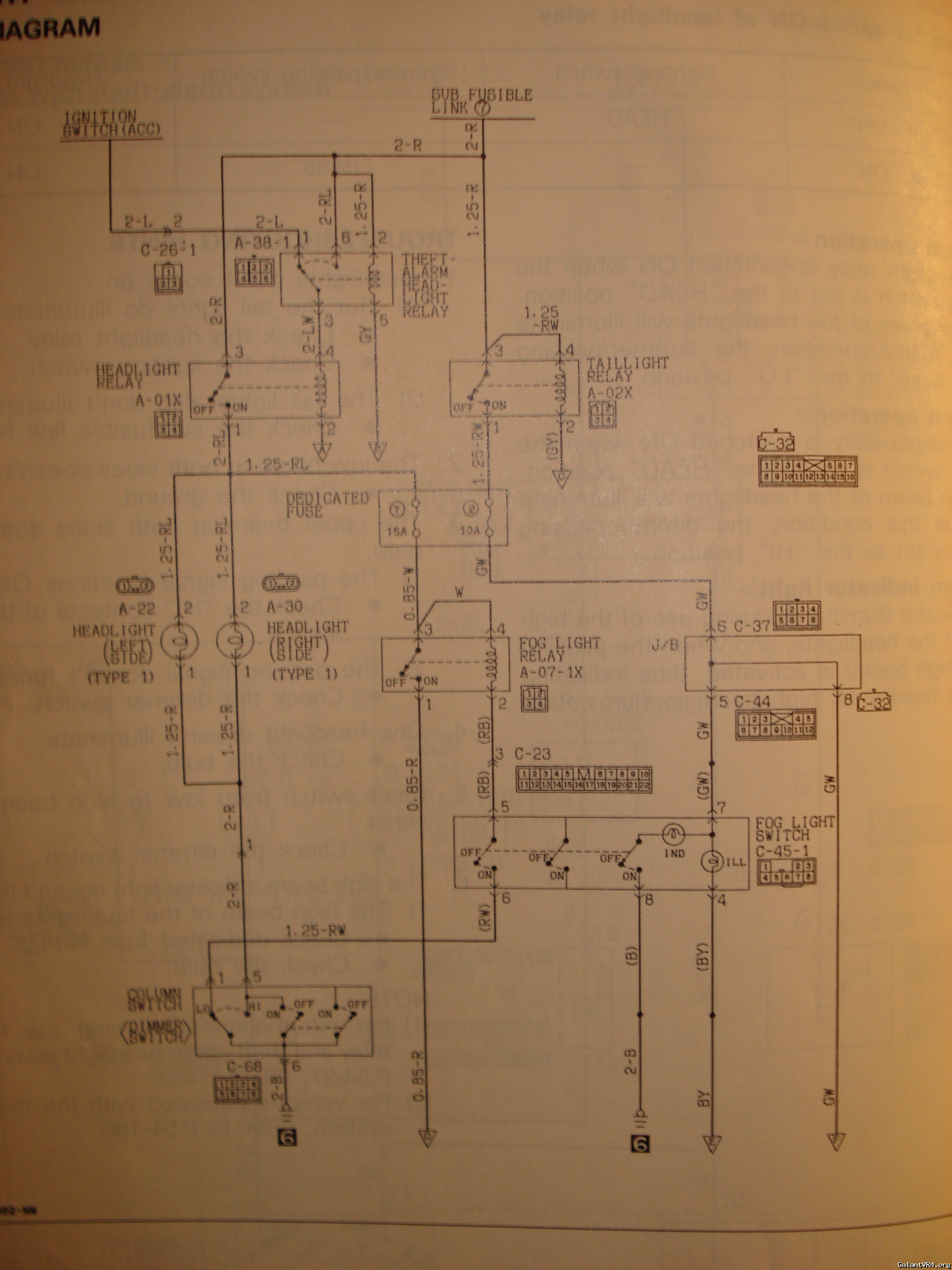

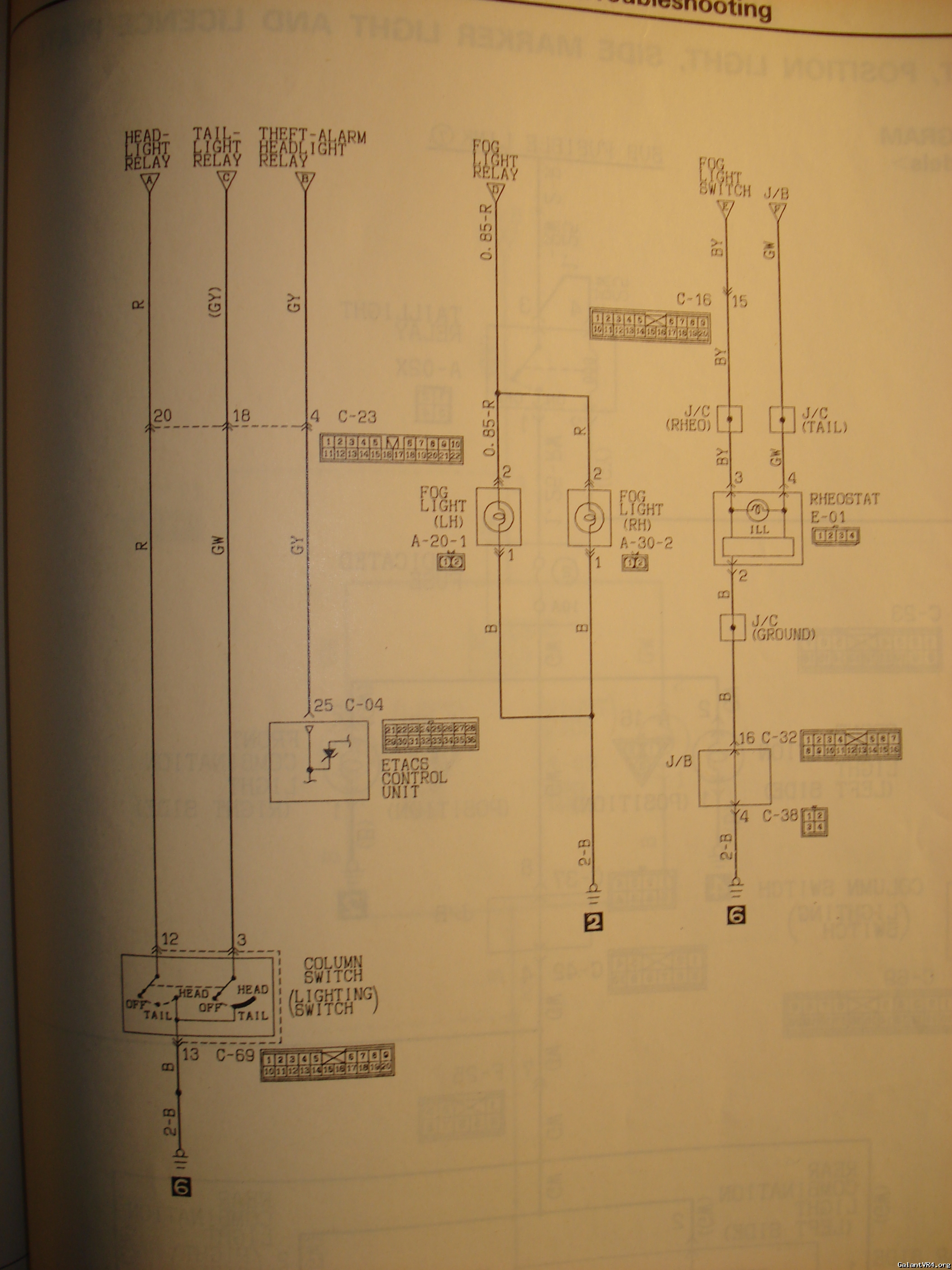

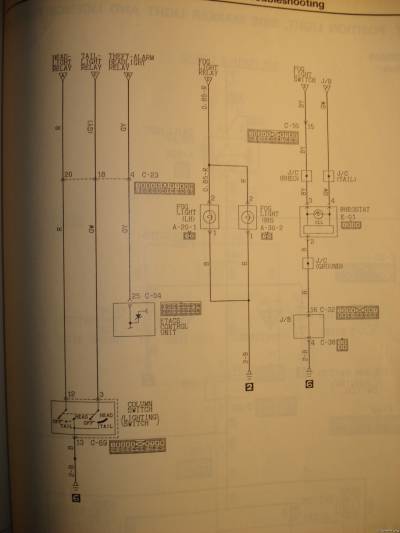

I figured a couple of pics of the necessary pages would be the best thing to give you.

John
