ETS FMIC and Piping Fitment Issues

[Chad989of2000]

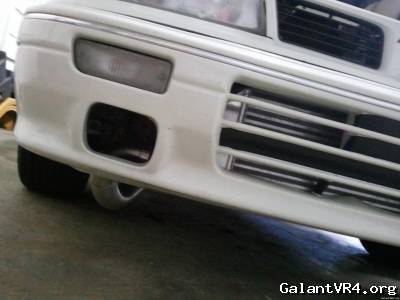

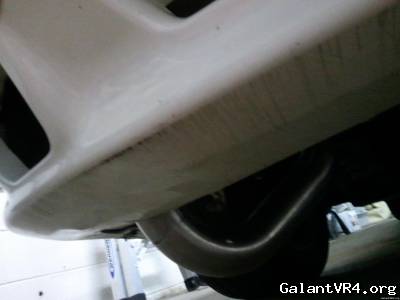

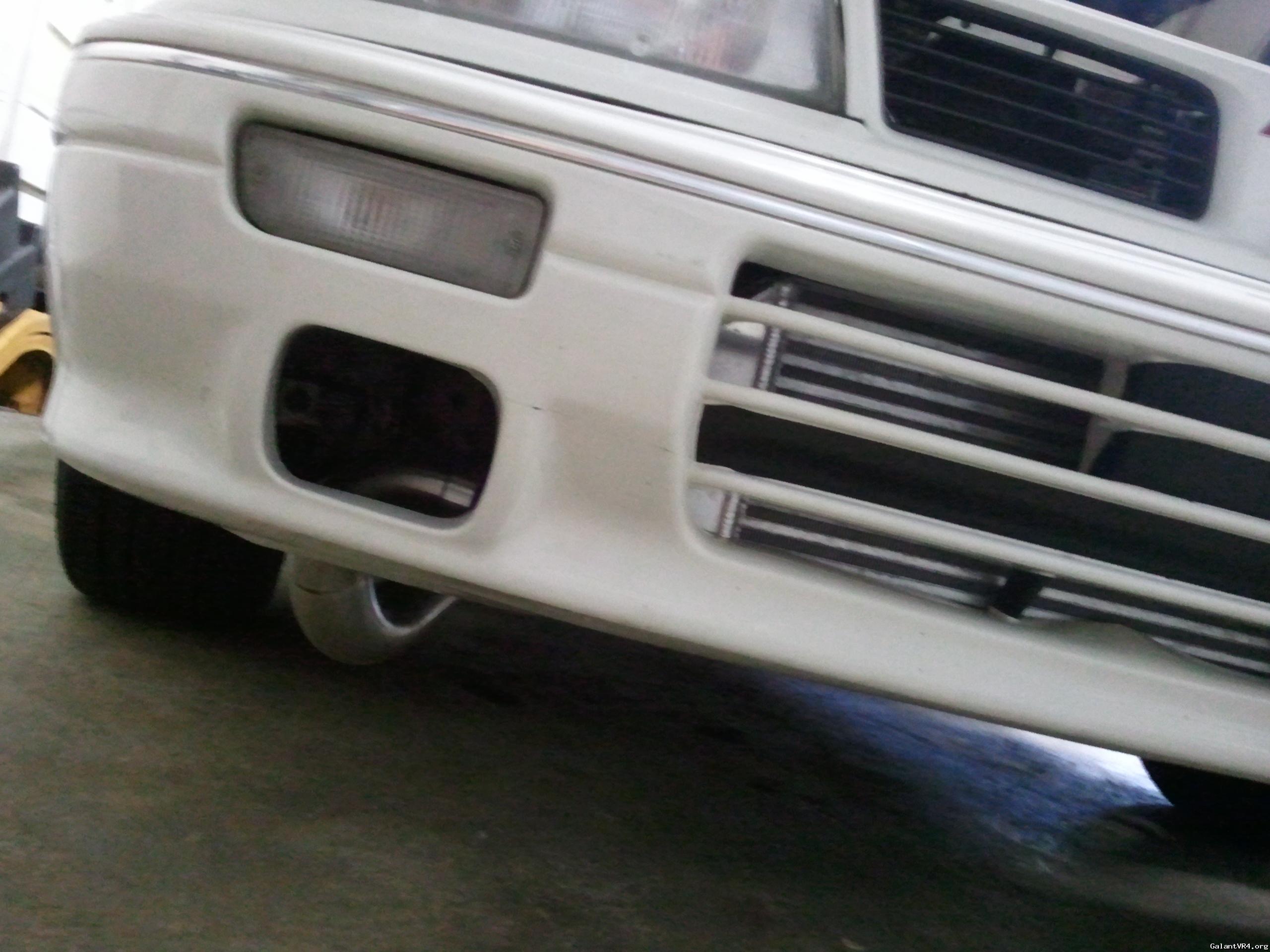

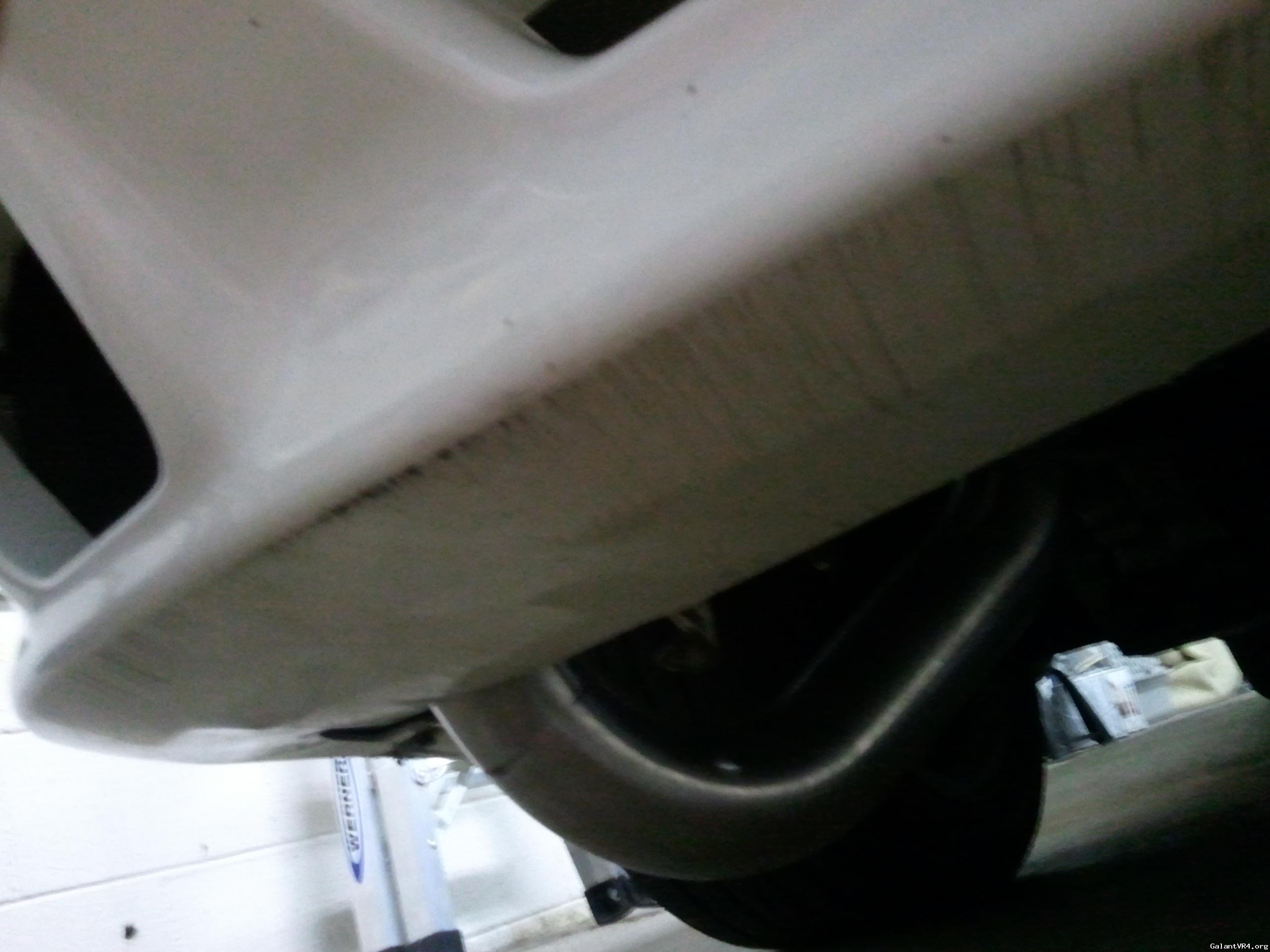

Got a feeling that I effed this up somehow or it just doesn't fit right. It's the Galant VR4 specific core and piping from ETS. As you can see the piping hangs about 3"+ down from the passenger front bumper. Also the BOV is located very low on the piping. I am a tard so it is quite possible that I put the piping together wrong...??? I'll pull it all apart this weekend and try again. Anyone clearly able to see where I messed up. Thanks in advance.



Chad,

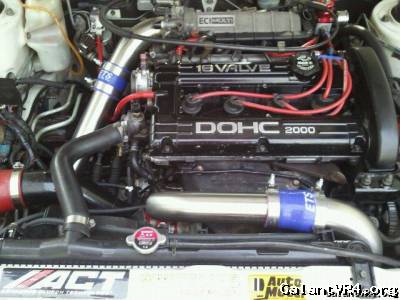

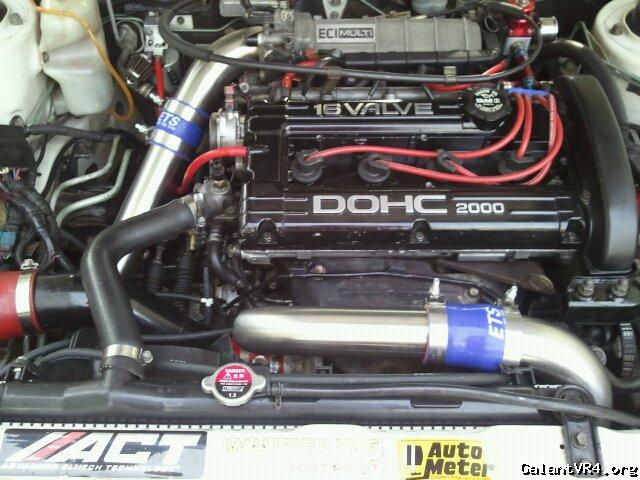

Take a look at this picture to help to see how the kit is installed.
ETS GVR4 FMIC Kit

You may have installed that pipe backwards, it shouldn't hang that low. The bov is in that location for clearance purpose.



[Chad989of2000]

Great Pic...I'll try to match it this weekend.



[Nartanian]

Yea, that picture should be stickied or somethin.



[TylerAdamson]

That pipe isn't on right, flip it around and you should be alright. It will come out of the intercooler, wrap around the radiator support, and then angle up to meet with the upper pipe.



[Chad989of2000]

That did it...thanks fellas.
