CAPS Requests

Mods feel free to move this if you need to a different forum.

Okay I've got CAPS up on my work computer (finally) so I can run searches for people. I'm going to try to get common VINs posted here as it makes it easier to search but if the part is not off a DSM then please be as specific as possible. I make no guarantees the part number is correct but I'll try my best. Let me know as well if the PN was wrong so it doesn't get archived as this thread progresses.


Hertz

Staff member
Joined
Jul 29, 2002
Messages
13,501
Location
Chicago, IL
This is certainly a good idea, but not a lot of contributions so far. /ubbthreads/images/graemlins/smile.gif


steve

Well-known member
Joined
Sep 11, 2003
Messages
18,895
Location
NJ
I never noticed this. I have CAPS set up at work too, so I'll do what I can to help out.


Looking for part number for rear wheel bearing(s) VIN JA3CX56U5NZ007219

Also is it two separate bearings for each wheel - or one complete unit with bearings enclosed?

much appreciated


Steve I believe that I have a spare set of rear wheel bearings. I'll look up the part numbers tomorrow.
-Paul


atc250r

Staff member
Joined
Sep 11, 2003
Messages
13,235
Location
Orange County, NY
They are two seperate bearings:

MB290175

MB569972

There are also a seal, a cover, and a "rotor".

John


is the rotor a unit that contains the two bearings? Part # ?
Seals & cover too (might as well)

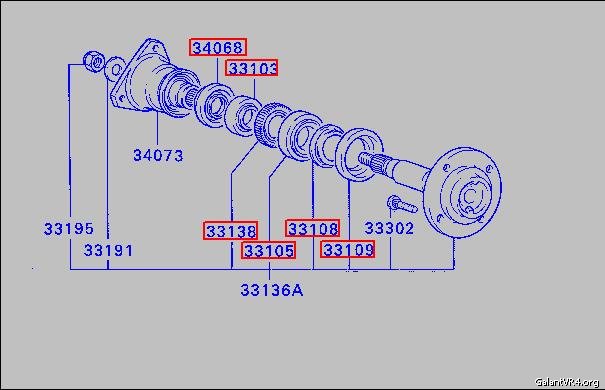

Here you go:




34068 MB393807 DUST SEAL,RR AXLE SHAFT,INR
33103 MB290175 BEARING,RR AXLE SHAFT,BALL,16X58 REPL PART MT191613
33138 MB534782 ROTOR,RR AXLE SHAFT
33105 MB569972 BEARING,RR AXLE SHAFT,OTR,BALL,72X17-35
33108 MB290428 COVER,RR AXLE SHAFT,INR
33109 MB393803 COVER,RR AXLE SHAFT,OTR
33136A MB569254 SHAFT ASSY,RR AXLE

Pick and choose away.

twkd

Last edited by a moderator:

Could someone with good CAPS skills and a jdm copy find every vehicle this part number was used on?

MB860149
gear kit, rear diff final 3.909

It may help some people stuck with the RS/EVO gear box.


3Diamond

Well-known member
Joined
Oct 25, 2004
Messages
1,046
Location
Vancouver
OK this is a wierd one but i will be soo grateful if someone could help me out!!

Car is a Galant 1991 FWD I need illustration and part numbers for REAR bearings and fronts (if not too troubling). It came with same rotors/ebrake combo on the rear as did VR4 so-its not the DRUM version as apparently the bearings are different.

THANKS!


3Diamond

Well-known member
Joined
Oct 25, 2004
Messages
1,046
Location
Vancouver
anyone? All i need are the inner, outer bearing #'s. Thats a USDM, galant SOHC 1992, WITH disc, not drum rear brakes (look like our vr4).


Can someone give me the part number to a passenger side manual steering rack bracket? Just the bracket...thanks a ton


About 3.9 rear diff gear set:
P/N MB860149 was used on:
CD9A, CE9A (Evo2 & Evo3 Lancers)
E38A, E39A, E74A, E84A (JDM Galants VR-4 different generations)
N23WG (Mitsubishi RVR - some kind of RHD Expo LRV but with turbo and GVR4 RS tranny :) )


Sorry I haven't checked this thread in awhile. I'll try to see if I can find the info that some people were looking for on CAPS.


atc250r

Staff member
Joined
Sep 11, 2003
Messages
13,235
Location
Orange County, NY
It's in the How-To section of the board.

John'


Bimmubishi

Well-known member
Joined
Jul 15, 2003
Messages
5,702
Location
Boston, Massachusetts
Looking for someone with a relatively new CAPS to look up the following:

Evo 7 (Ct9A) front lip (3 pcs I think)
Evo 7 Wheels (BBS)
Evo 7 Rear bumper

Thanks guys, I need the part numbers too. My caps is not at the shop so I can't look it up for someone.
AL


speedyvr4

Well-known member
Joined
Jan 1, 2006
Messages
1,245
Location
miami, fl
my caps wont recognize ct9a,infact there is no evo to choose from,i guess i have usdm caps.I just got it so bear with me,if you can tell me what to put in the cells or give me a VIn i can give it another shot.
