90 ofh pluming

[tektic]

If I face them both up I hit the framerail. This is the best I got. It doesn't fit too well. Someone show me how you did it.



[minneSNOWta]

My two fittings are pointed at 8 o'clock because that was the only spot I could get it snug. Only clearance issue I had was that the stainless oil feed line has a 90 degree fitting at the OFH and I had to take a little notch out the north/south support.



[GSTwithPSI]

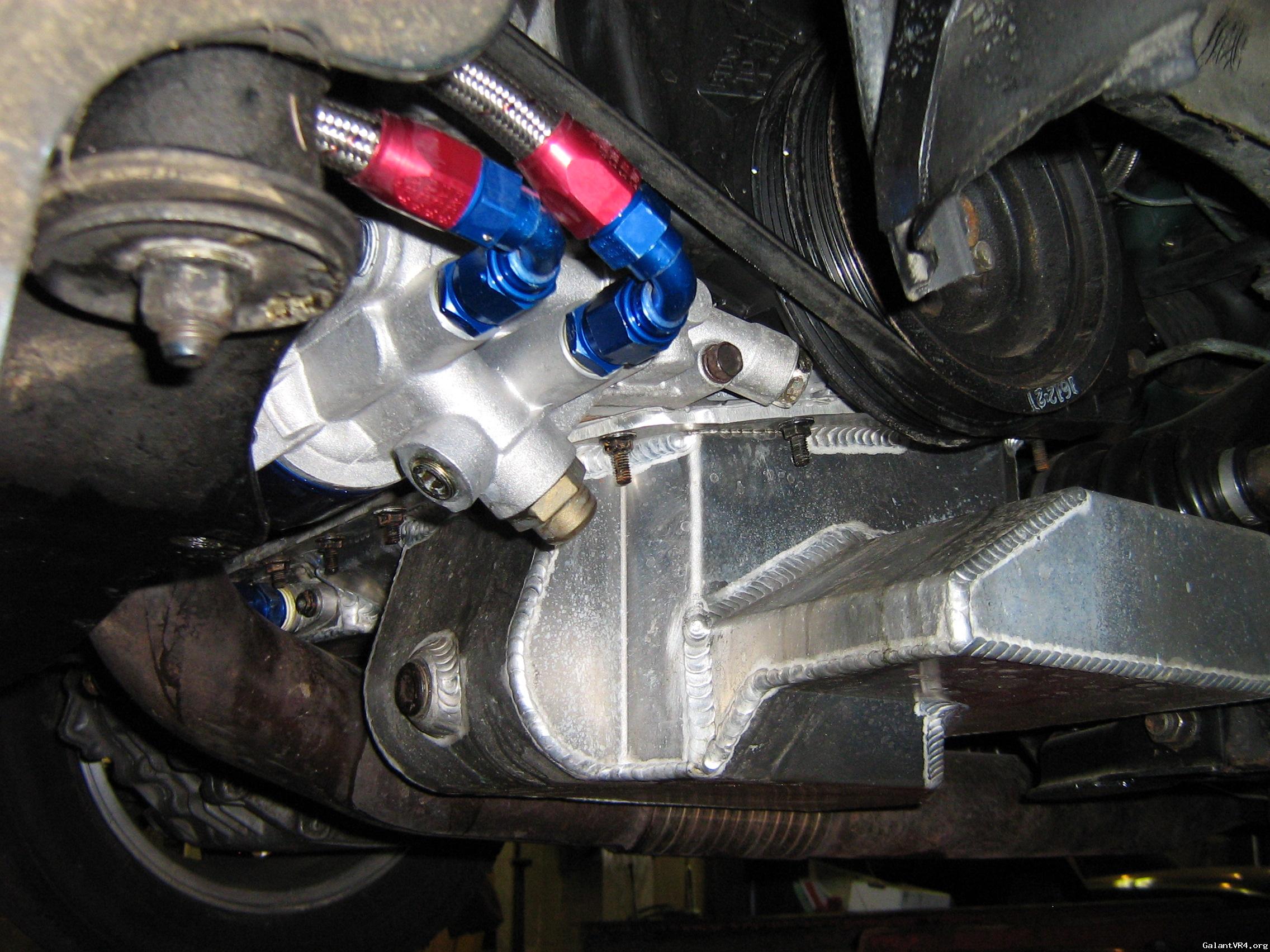

It all depends where you have your cooler mounted. I originally had my aftermarket cooler mounted where the ABS unit is located. The lines came straight off the OFH, and then had 180* fittings to the cooler.

I had issues with leaks with the aftermarket setup, so I swapped to a stock 90 setup. It fit like factory.



[vr4play]

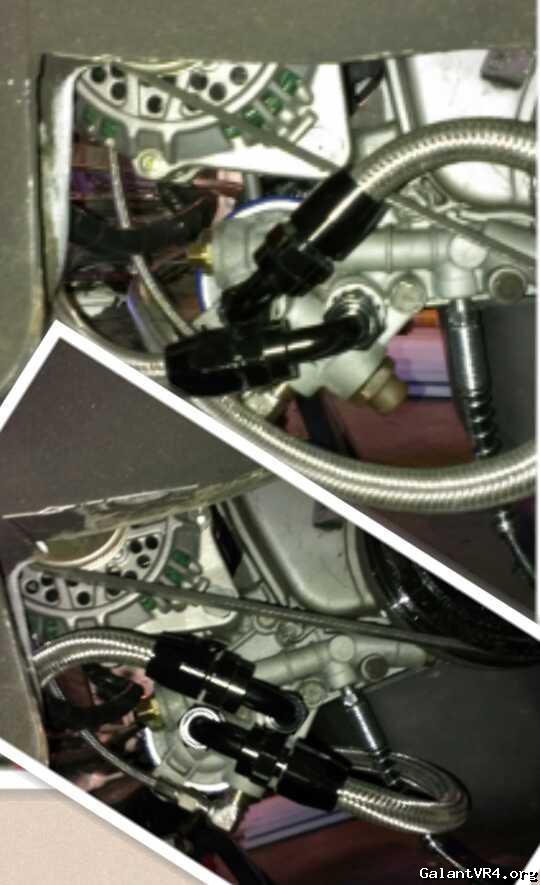

Mine both face the same direction.



[tektic]

@vr4play : your lines are not touching the lower cross member? Are those -8 or -6 ?

I have my cooler mounted in front of the ac condenser on the left side.

I'm going to test fit the down pipe and try again to mount underneath the engine.



[CutlassJim]

Mine were like the above but aimed down and went under the cross member.



[tektic]

@cutlassjim: ever had them bottoming out under there?



[tektic]

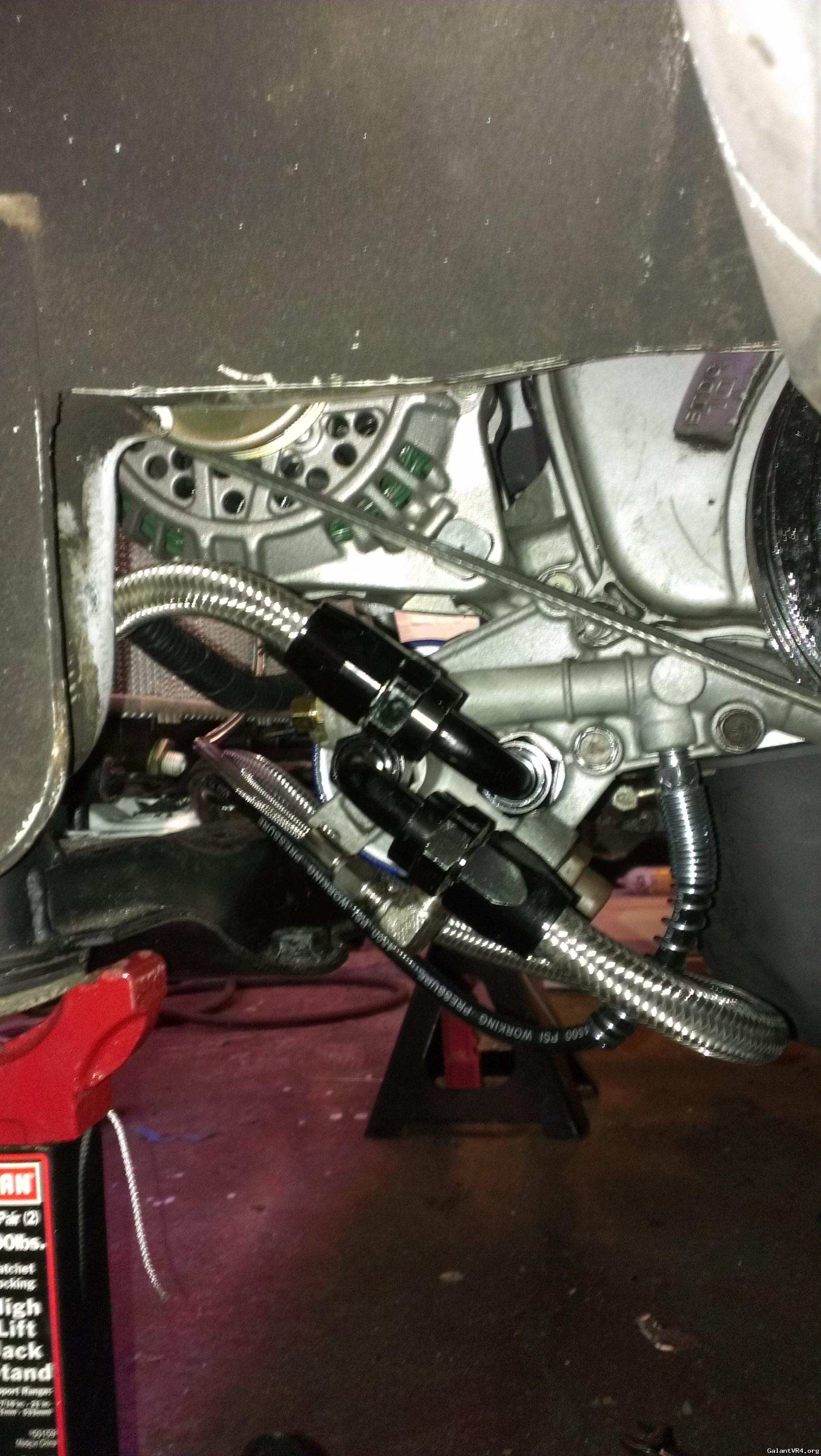

This is how I finished it. The foward facing line follows the top rail of the ps cooler to its destination on the passenger side. The rear facing wraps around past the oil filter an then got zip tied to the lower rad support unroll it wrapped around the far end of the radiator. The lines are a little longer than would have liked.
