The original thread.

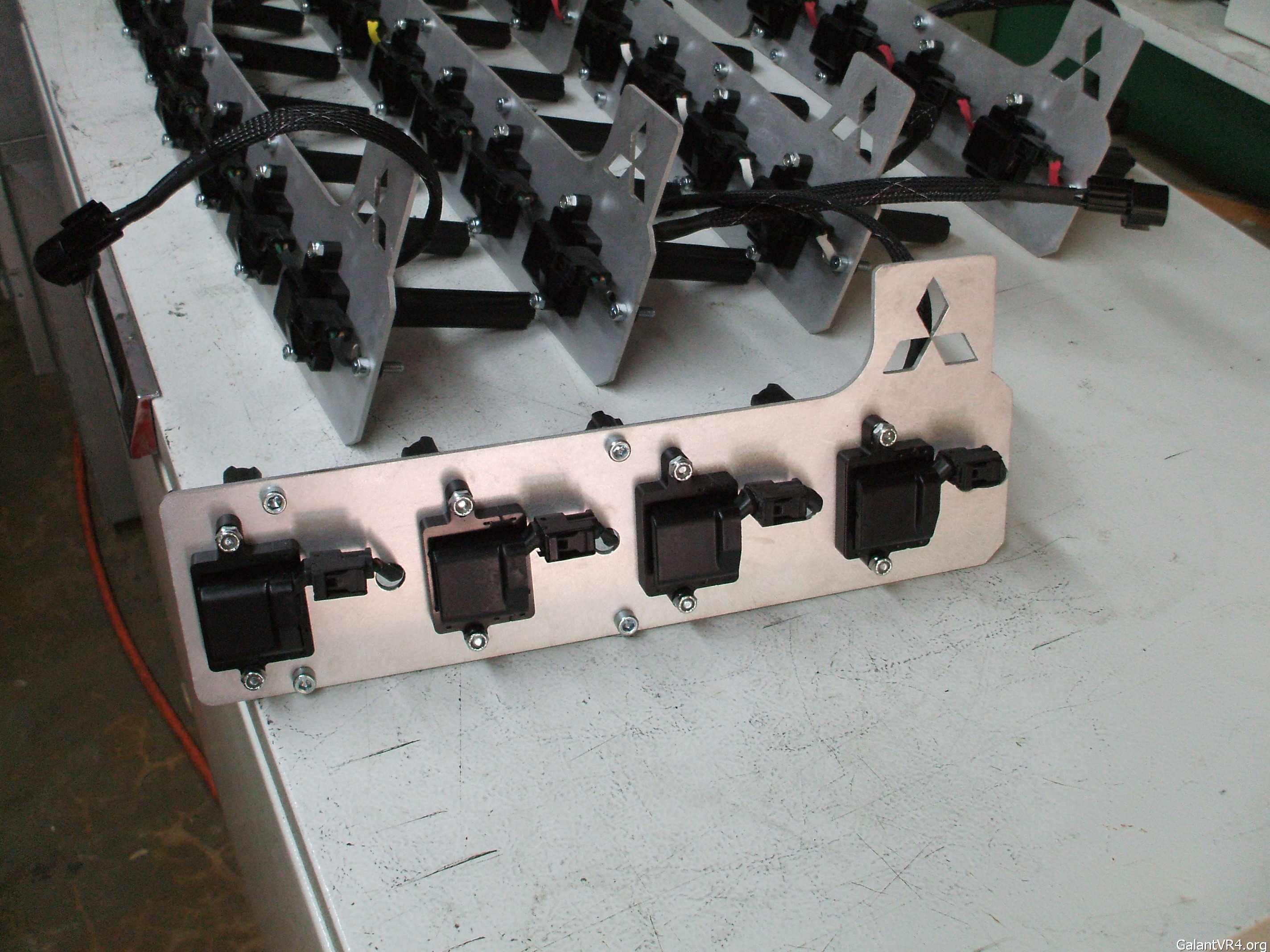

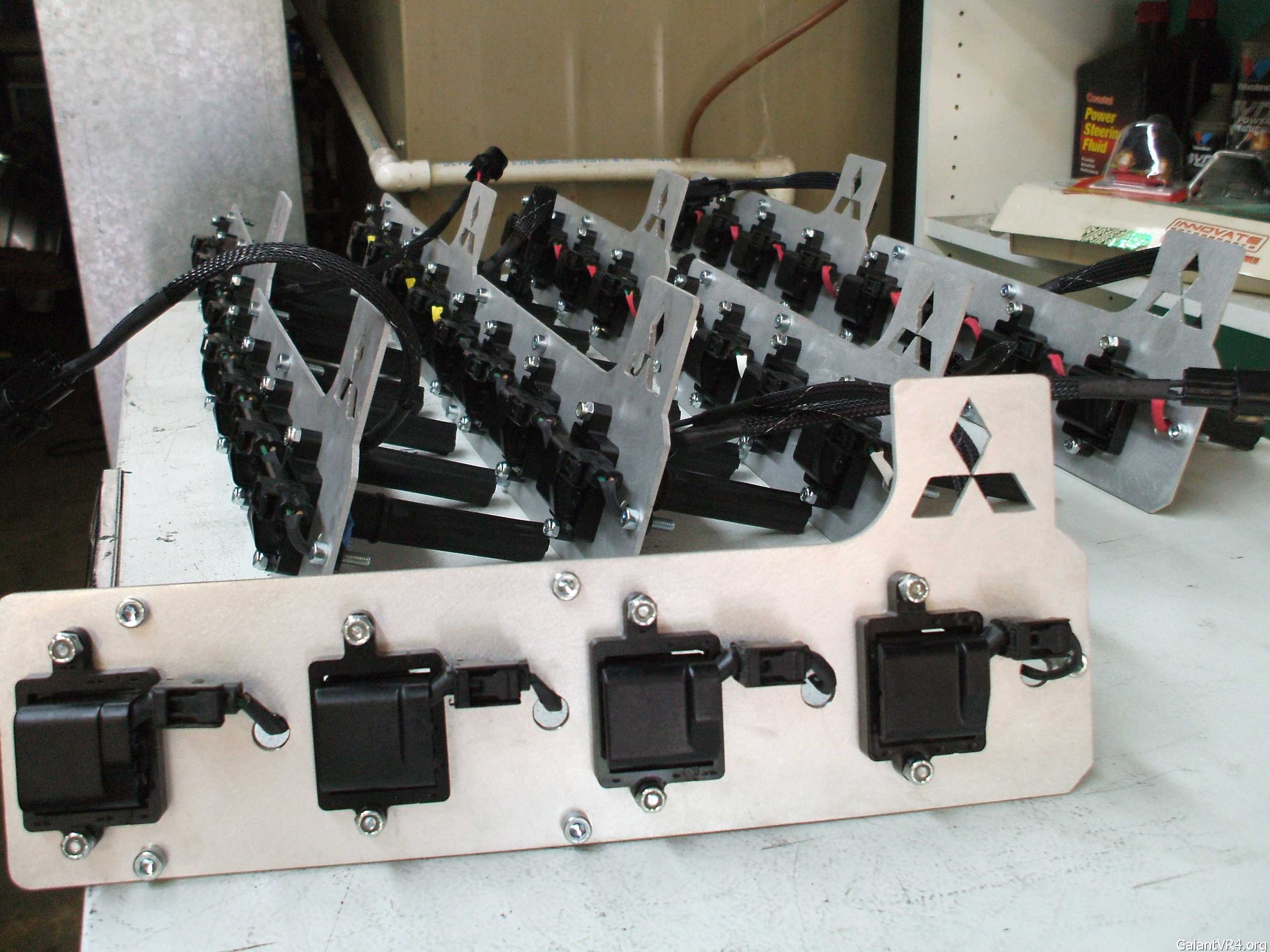

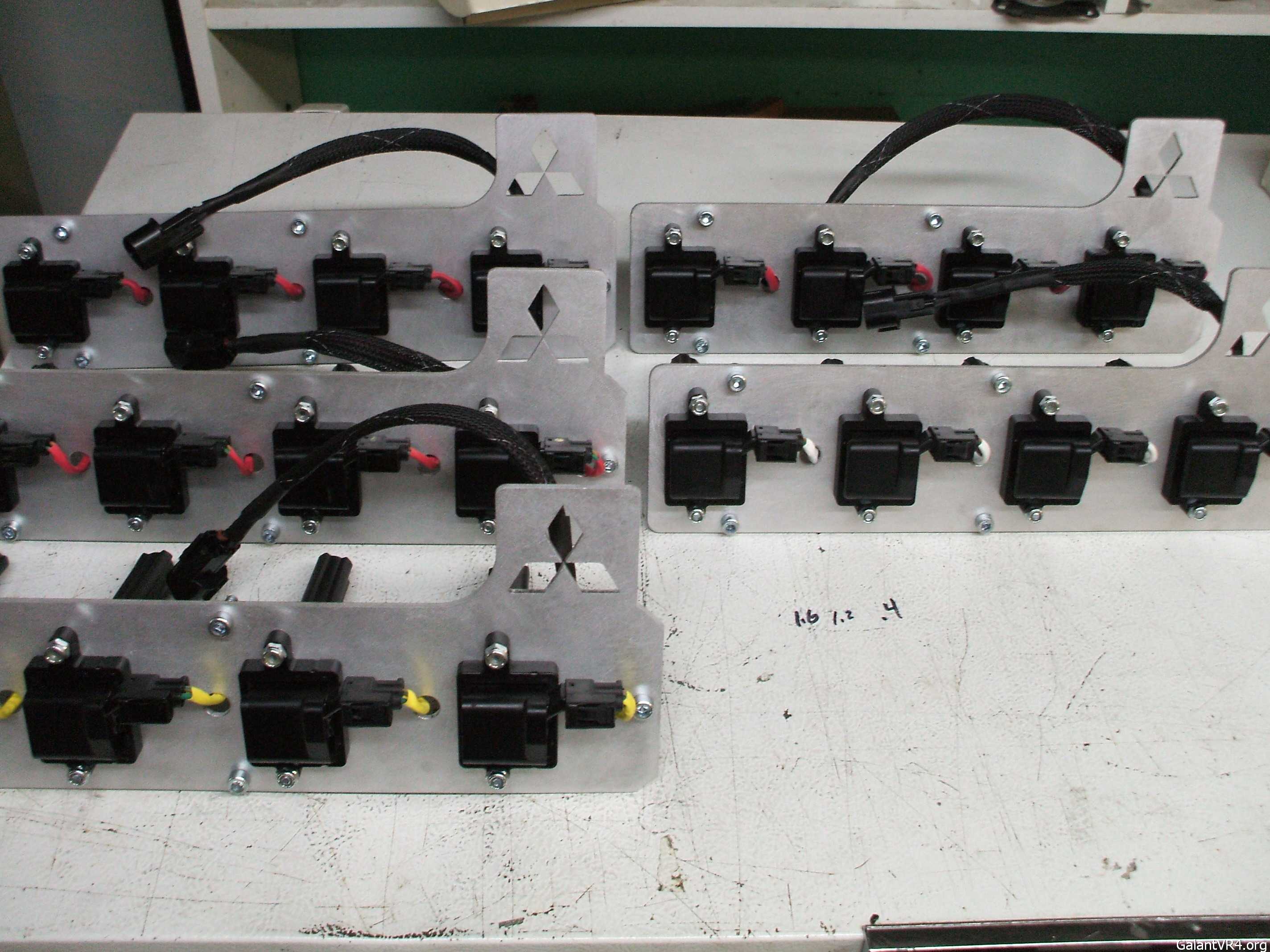

I have 9 total. One with white shrink wrap showing, one with yellow shrink wrap showing /ubbthreads/images/graemlins/dunno.gif, 3 with red and the rest have the normal black/ dark charcoal shrink wrap showing.
All the diamond logos were opened up by hand
Plates were vibrator sanded and all imperfections removed.
All the holes were reamed out and chamfered
New 3 pin plugs with weather tight seals and new wires
All connections are soldered and sealed with heat shrink

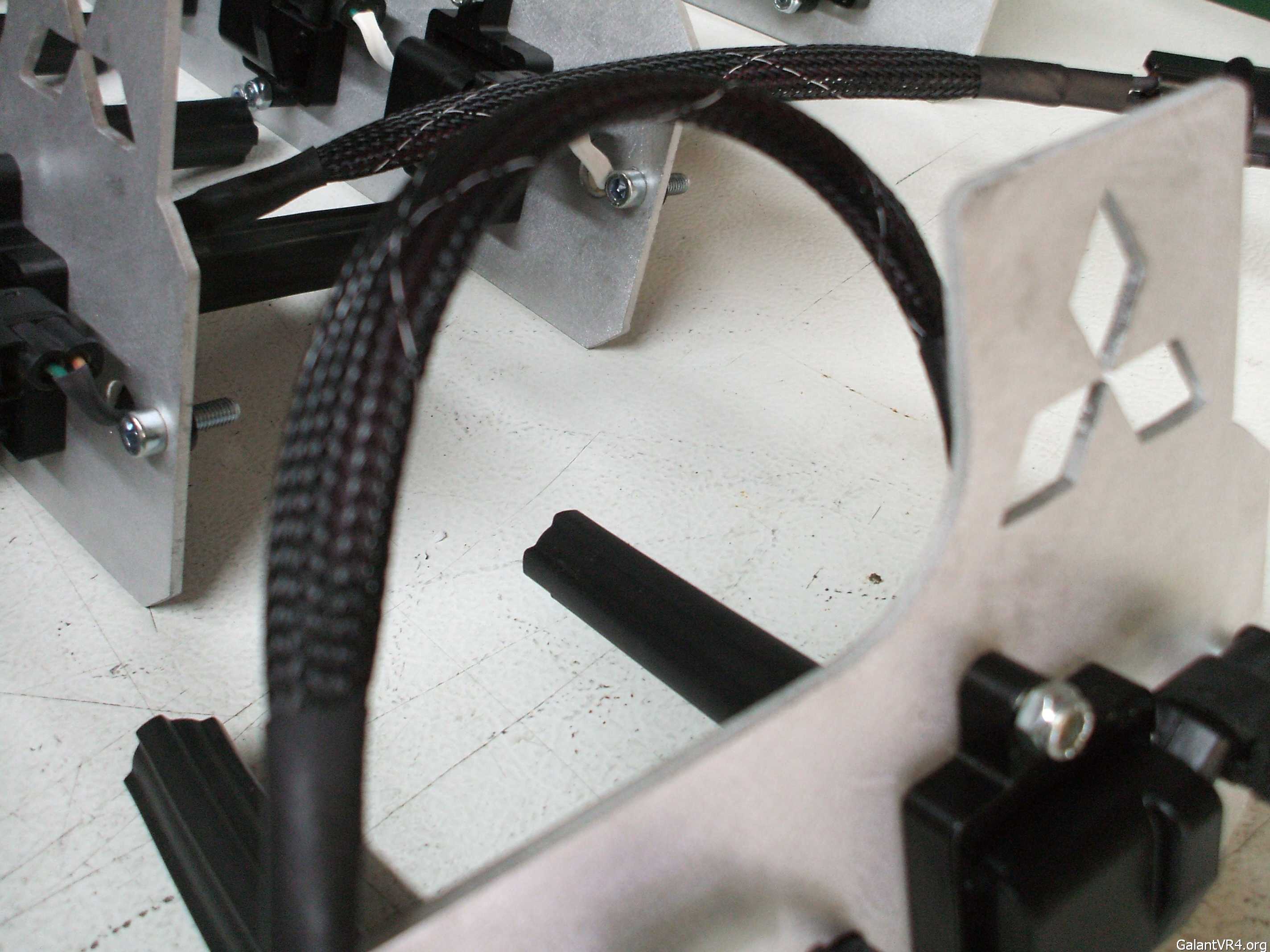

Main harness is covered with aircraft plastic mesh and heat shrinked on the ends
All the hardware is supplied, zinc plated allen heads for the 5 mounting points with rubber washers as anti vibration mounts and also spaces the plates up for heat removal, All the boots are already trimed to lenght and 7 of the sets have of springs which have tinned copper mesh ran insided and soldered into place. This lower's the ohm resistance to .4 from 6.0.

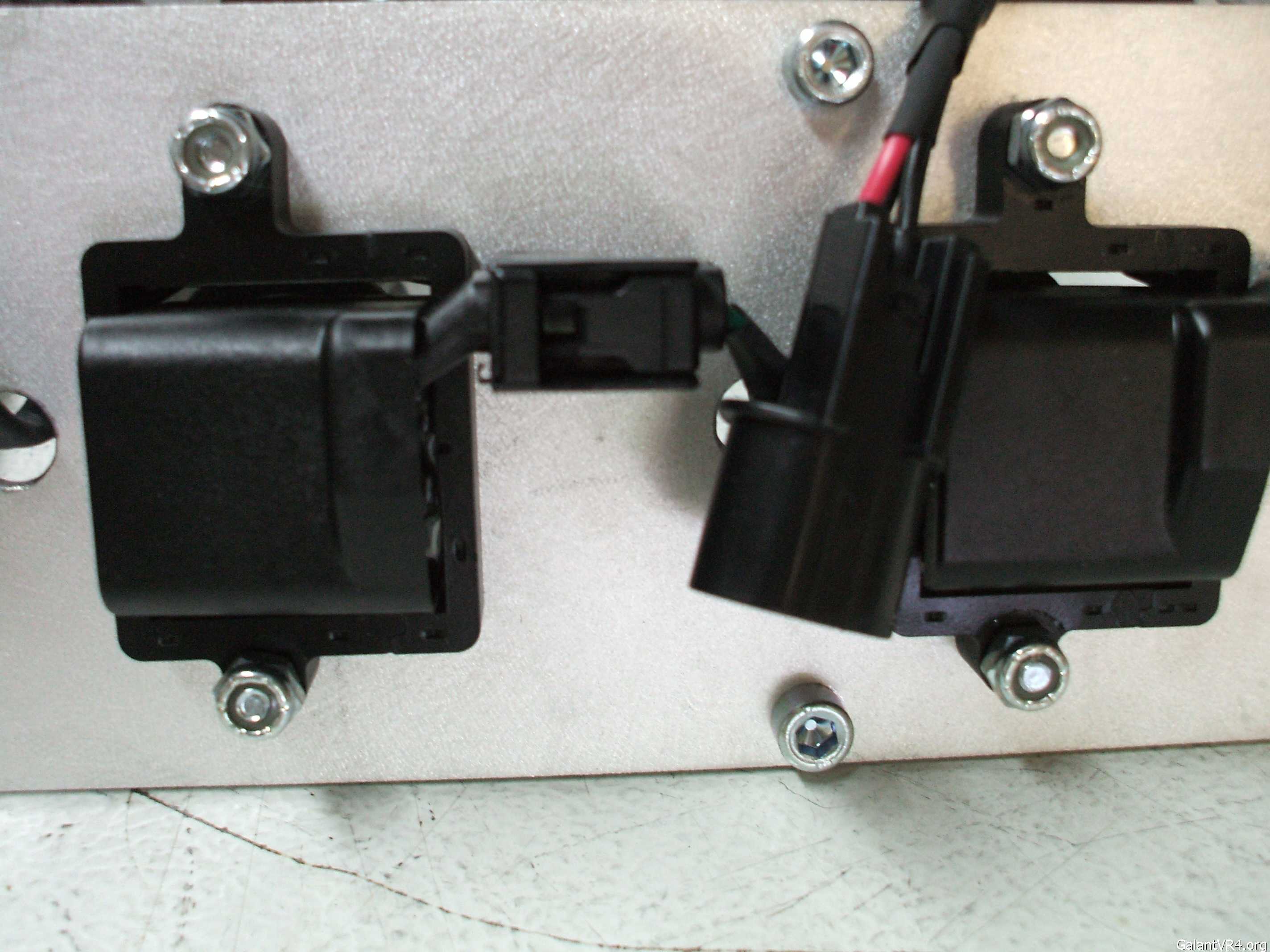

The coils are also mounted with zinc plated hardware and nylon lock nuts
The main harness is mounted to the plate with adel clamps one the back side.
The mod motor fords have an aftermarket boot kit that lowers theres to this level from 3.6 and Granatelli motorsports claims a 35% increase with this so it was worth the effort.
$260 shipped for the members here If I have to put them on ebay they will be over $300 each. I've spent lots of time on these and made sure everything is good to go. These are 100% plug and play. I'll still have to test before I ship but I'll have to find a car to test with. /ubbthreads/images/graemlins/banghead.gif I want my car back together. /ubbthreads/images/graemlins/banghead.gif
My paypal is [email protected] Please post here first before you PM me with color requests I don't want everyone wanting the competition yellow one all at once. /ubbthreads/images/graemlins/grin.gif
Thanks Curtis
