Snohacking 91 vr4 1342/2000


Galant VR-4 org Post #: 1094673 posted 11/19/12 11:29 PM     Remind Me!  Send Private Message   Edit Post
91 Galant vr4

Stock 6-bolt with around 110xxx miles
1990 oil filter house and oil cooler
balance shafts removed
Arp head studs
Cometic MLS head gasket

2g head port matched to a 1g intake manifold
BC 1mm oversized intake and exhaust valves
BC spring and titanium retainer
Ferrea bronze intake guides
Ferrea Copper alloy exhaust guides
Ferrea valve keepers and valve seals.

Fuel system
1200cc precision injectors
full blown motorsports dual fuel hanger with two 225 walbro fuel pump in tank
-10an feed line with -6an return
Fuel lab fuel pressure regulator with ss line
Fuel lab fuel filter with ss feed line
-10an magnus fuel rail
Turbo system
Hx35 6-blade with .55ar bep housing
FP 4 polished intake with 9 K&N filter
ETS intercooler kit and piping with 50mm tial bov
FP exhaust manifold
Punishment Racing SS Recirculated O2 with 38mm tial wastegate
Megan 3 down pipe
3 cat back to vibrant black 3 dual tip muffler
SS feed and return line

D2 coilovers
Cusco front and rear strut bars
2g shift ball
Old school alpine radio

Engine Management
Dsm link v3 with gm maft cable
Gm 3 inch maf
Autometer phantom boost and oil pressure gauge
Innovate motorsports mtx-l wideband

5zigen fn01r-c matte black rims with hankook evo v12 tires
JDM Replica door decals badge number window decal
Thule roof rack
JDM clear corner lights
93 headlights
Wisconsin hobbyist plates

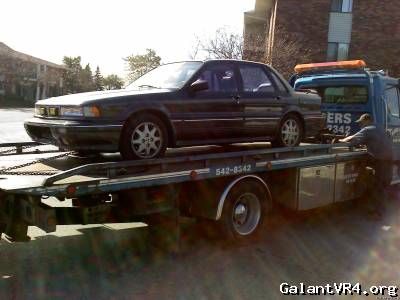

The day I picked her up

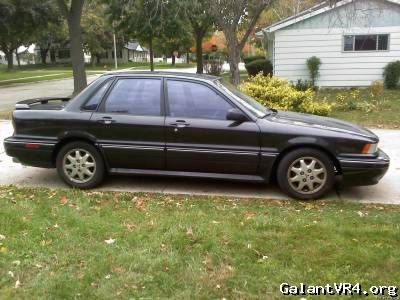

Before pics

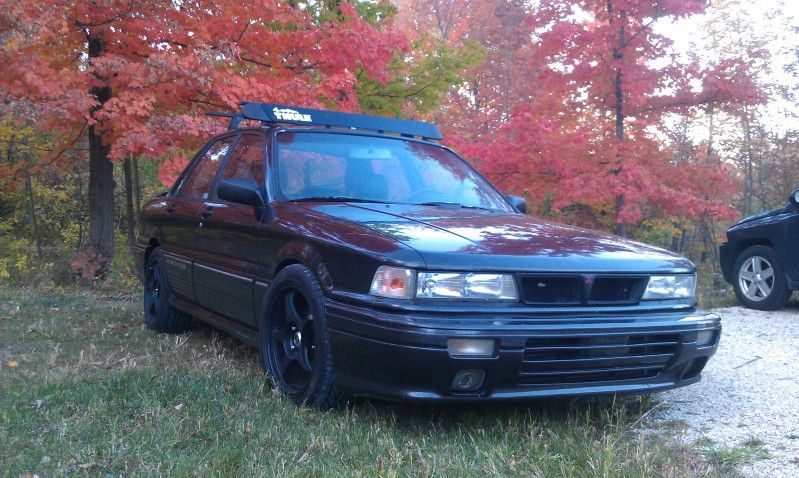

After pics

2007 mazdaspeed6
91 Galant Vr4 1342/2000

1995 Talon Tsi.. sold

Edited by snohacking (11/24/12 01:28 AM)

Posts: 233 | From: Menomonee Falls, Wi | Member Since: 03/16/10 | IP: ( | Report this post to a Moderator
