Timing ground connector on a GVR4?

biglady112

Well-known member
Joined
Sep 30, 2005
Messages
1,255
Location
Commerce City, Co
I have looked a few times, but there is nothing really standing out to me. I did find one open connector behind the intake that is a one pin wire. But I am not sure if this is what I am looking for. I am going to be firing this galant up in the next few days and I need to set the base timing. I could just ground the pin with a paper clip or something at PIN 12 at the ecu, but I am always willing to learn. Can someone help me locate this thing?

That is the main reason for the whole rebuild. Someone had the CAS pretty much fully advanced and with so much timing in the motor it broke three pistons. But suprisingly it still ran.


SouthCaliVR4

Well-known member
Joined
Jul 31, 2010
Messages
984
Location
North county San Diego
By the master cyl are two conectors, one is your basic rectangle one plug conector & comes from the fact open, that is the fuel pump test lead. the other is an oval kinda shape & looks like a two pin plug but has only one wire in it, came from the fact with a dust plug (but may be missing now) ground that one to set base timing & idle.


mr.mitsu

Well-known member
Joined
Apr 28, 2003
Messages
798
Location
canada
My connector broke off. Took me forever to find it.

Search, there's pics on here somewhere


TMG

Well-known member
Joined
Oct 1, 2007
Messages
133
Location
NJ
Search +timing +connector +pic in the How to section.


Whoodoo

Well-known member
Joined
Jul 11, 2009
Messages
927
Location
Binghamton, NY
62's PO was a bit clever and put a ground wire in that vicinity for setting base timing and idle.

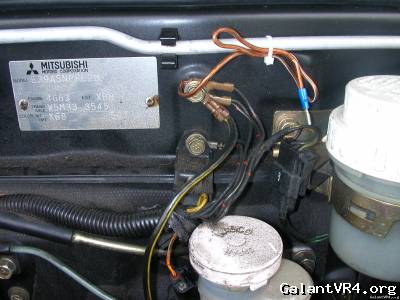

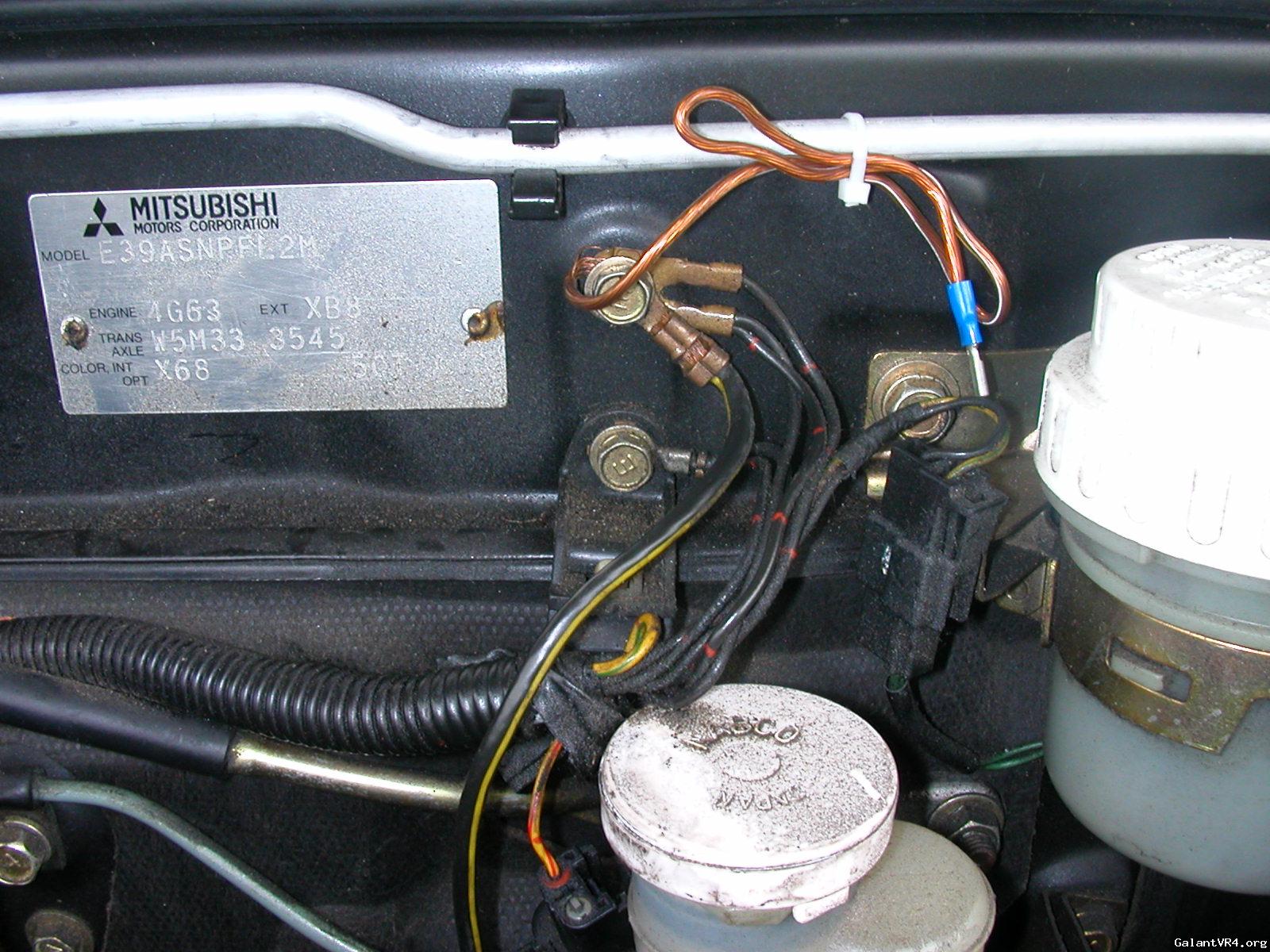

This is what that area looks like as of 5 minutes ago.

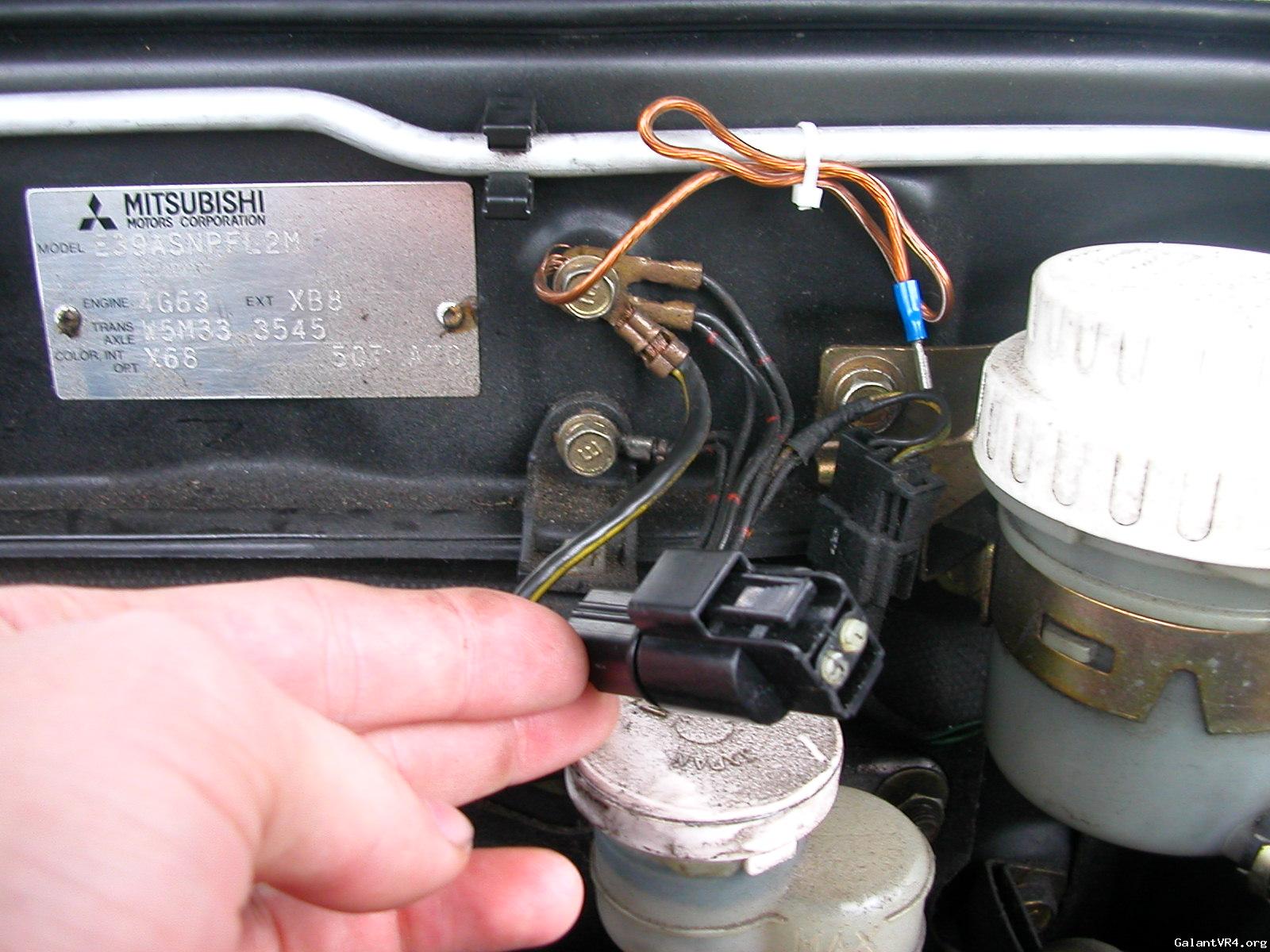

The plug you are looking for is hiding behind the small reservoir in the above picture at the very bottom. Im holding it here.

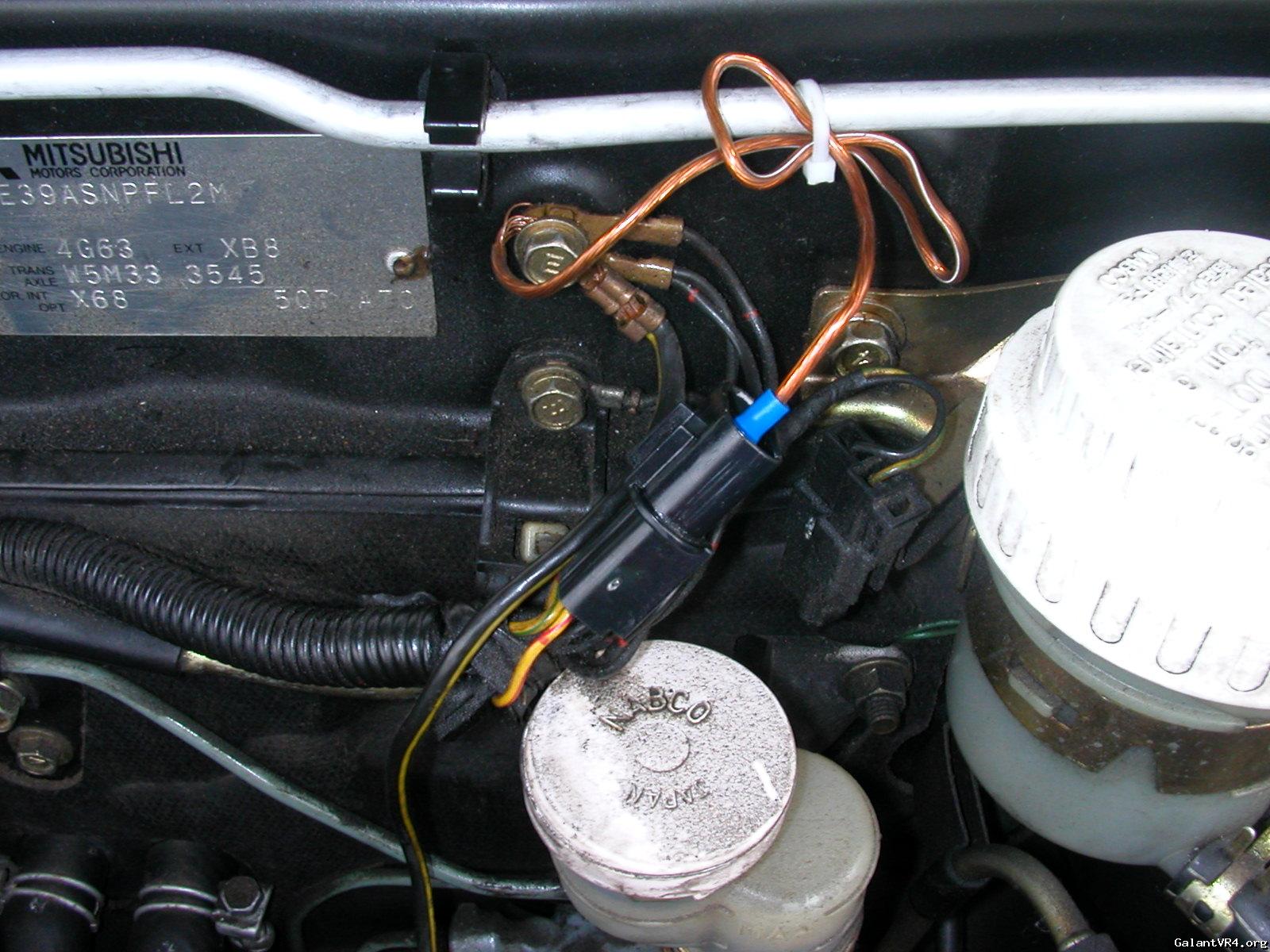

Now, take off the dust cover and hook it up to that handy dandy ground zip tied close by.

Last edited:

biglady112

Well-known member
Joined
Sep 30, 2005
Messages
1,255
Location
Commerce City, Co
Thanks everyone. Other than the Vfaq, because I assumed the galant would not be in there, I searched for almost an hour. I am likely retarded and that is why I could not find it. But I am on it now. All I could find looking a few times was the fuel pump single wire plug.

Thanks guys.


4Grim

Well-known member
Joined
Sep 30, 2004
Messages
2,516
Location
Orlando FL
Can I get confirmation that the wire going to the Timing ground plug is Yellow with the red stripe? Mine is missing all together and need to set timing and set idle. Thanks in advance!


MellowVR4

Well-known member
Joined
Jul 25, 2009
Messages
1,662
Location
Milwaukee, Wi
I believe it is yellow with red stripe, I can go look at mine real Quick tho.


MellowVR4

Well-known member
Joined
Jul 25, 2009
Messages
1,662
Location
Milwaukee, Wi
just went to go look and yes it is the yellow with red stripe!


4Grim

Well-known member
Joined
Sep 30, 2004
Messages
2,516
Location
Orlando FL
Thanks a bunch MellowVR4. I have a loose wire in that general area thats Yellow w/ red stripe but want to make sure thats the wire that the plug on before I do anything.


MellowVR4

Well-known member
Joined
Jul 25, 2009
Messages
1,662
Location
Milwaukee, Wi
Not a problem.


G

Staff member
Joined
Feb 24, 2004
Messages
8,896
Location
zompton
I wonder if that dust cap is still available from mits.


bradrs

Well-known member
Joined
Feb 1, 2014
Messages
128
Location
Alta Loma, CA
It would be interesting if it is available, but I highly doubt it. If someone had the part number for it though, it'd be neat to check out.


FWIW, the dust cover is a NMWP series connector, 2 pin black, with 2 cavity plugs. You can get them here:

click

Just make sure when you order it, you say it is for a block off, so you need hole plugs.
