SOLD: HotBits D1 coilovers...SOLD!!

[throughfaith323]

These are used and one was recently rebuilt by HotBits.

They are extremely dirty and if they were cleaned up they would look ten times better; I just didn't have the time to clean them. I probably will when I post the back two.

Spring Rates:
Front: 200-80
Rear: 200-50

$OLD SOLD SOLD

Thanks
Ed

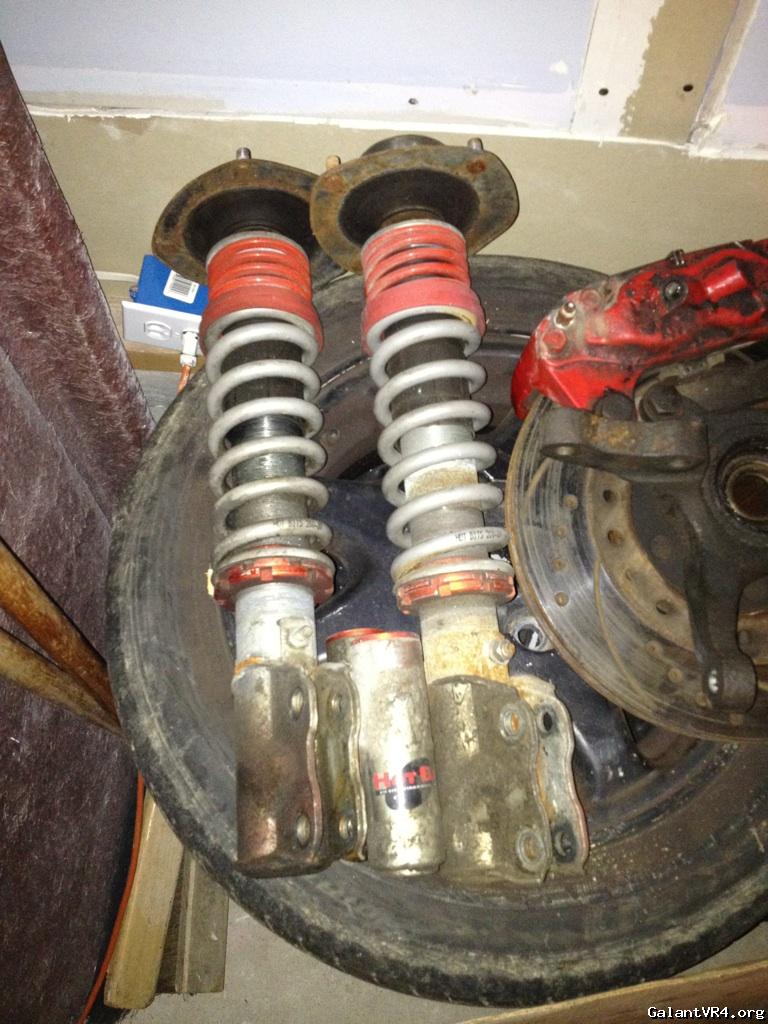

Fronts:


You can see how nicely these will clean up where the grease is:

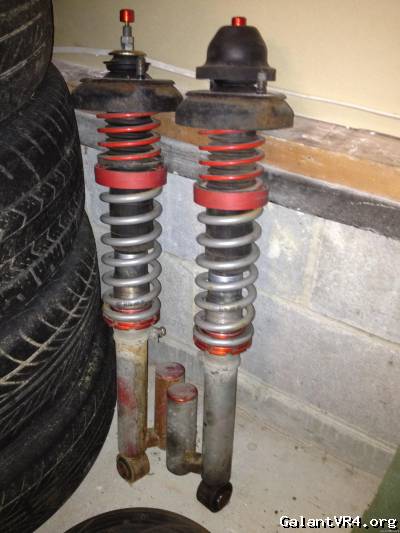

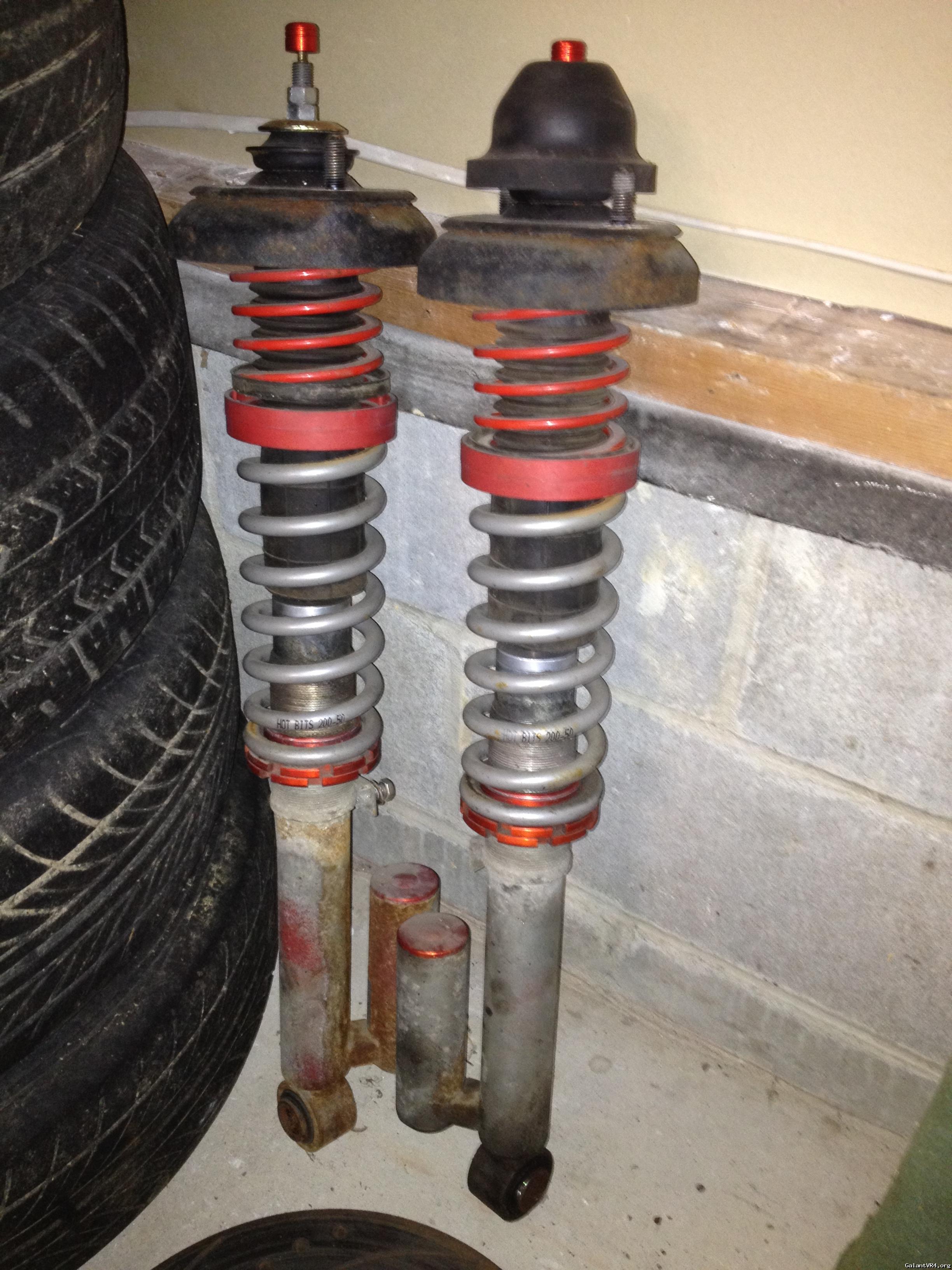

Rears:



[toybreaker]

What are the spring rates on those, Ed?

Thanks!



[throughfaith323]

I'm not too sure; they were on the car when I bought it. Could I look on the suspension for a part number and figure it out that way or could you chose different springs from HotBits?

If they were still on the car I would do the calcs to figure it out, but unfortunately it's too late :/.



[mooserage]

Yeah, you can get custom rates from hotbits, so they might be a more street, street/strip, or full race spring setup depending on what the original owner wanted.



[toybreaker]

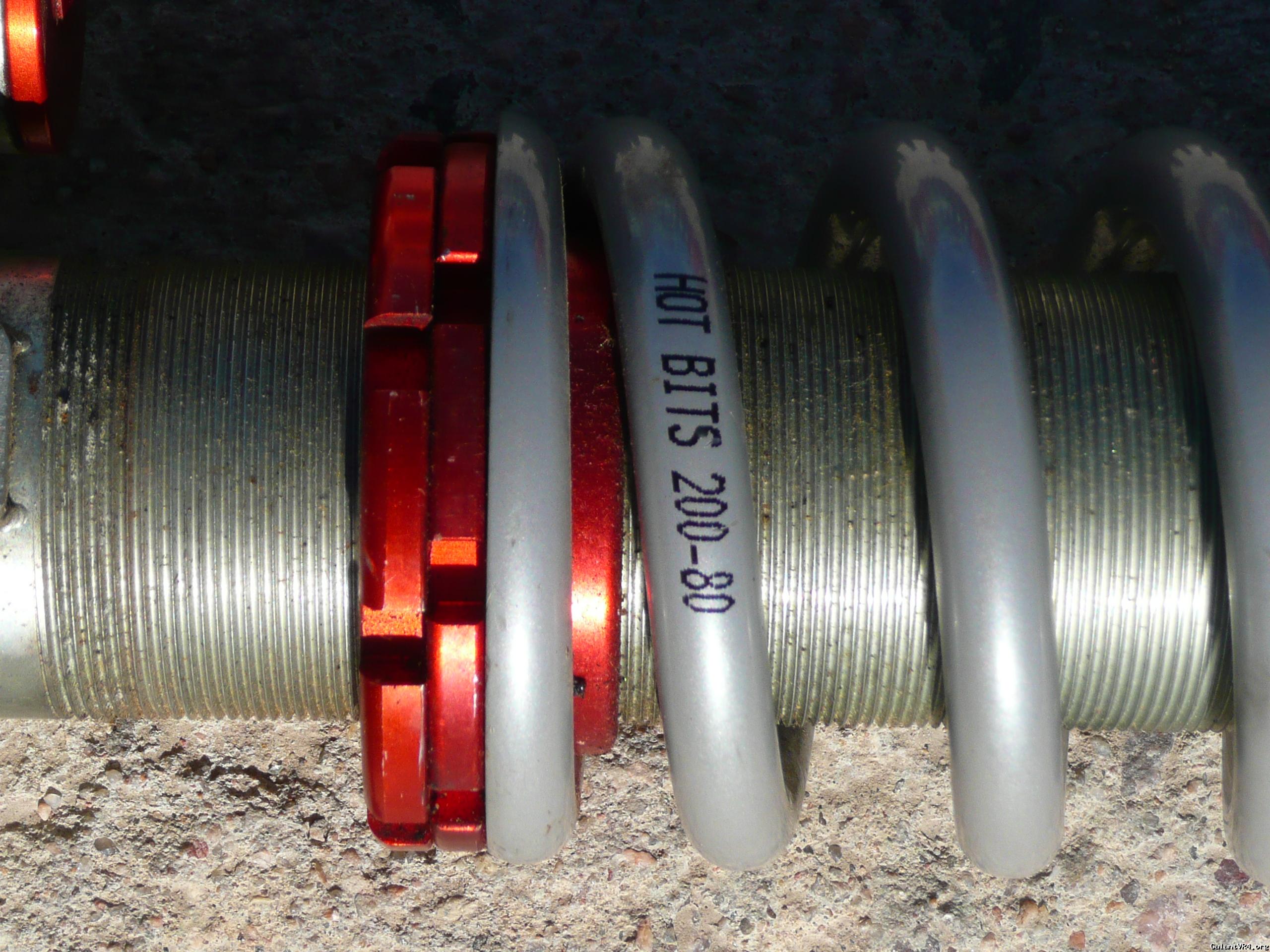

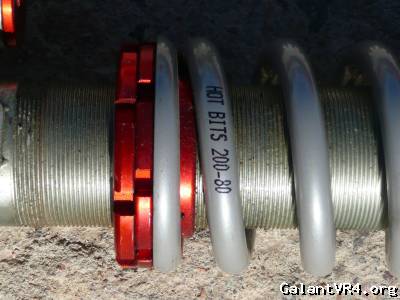

Ed, they *should* be printed on the springs, like this.

Thanks for checking! /ubbthreads/images/graemlins/smile.gif



[throughfaith323]

Yea I just found that lol. The grey spring says 200-80 like yours. 200mm long and 80 kg/cm. As for the red spring...are they usually the same? If not I will check when I get home tonight.

Thanks



[throughfaith323]

Quoting mooserage:
Yeah, you can get custom rates from hotbits, so they might be a more street, street/strip, or full race spring setup depending on what the original owner wanted.



Thanks for the info!!



[throughfaith323]

I will check the rears when I get a chance too!



[throughfaith323]

Picture uploaded. Next weekend I will jack up the car and check the rears and try to get a good picture.



[VR_IV_MR]

are these the DT1 or the DT2?

Does anyone know if 200-80 are the street, strip, or street/strip setup?



[Diego]

Spring rates for the Street Race setup is: Fr 200-80/80-20 & Rr 230-40/80-20
camber plates are optional.



[throughfaith323]

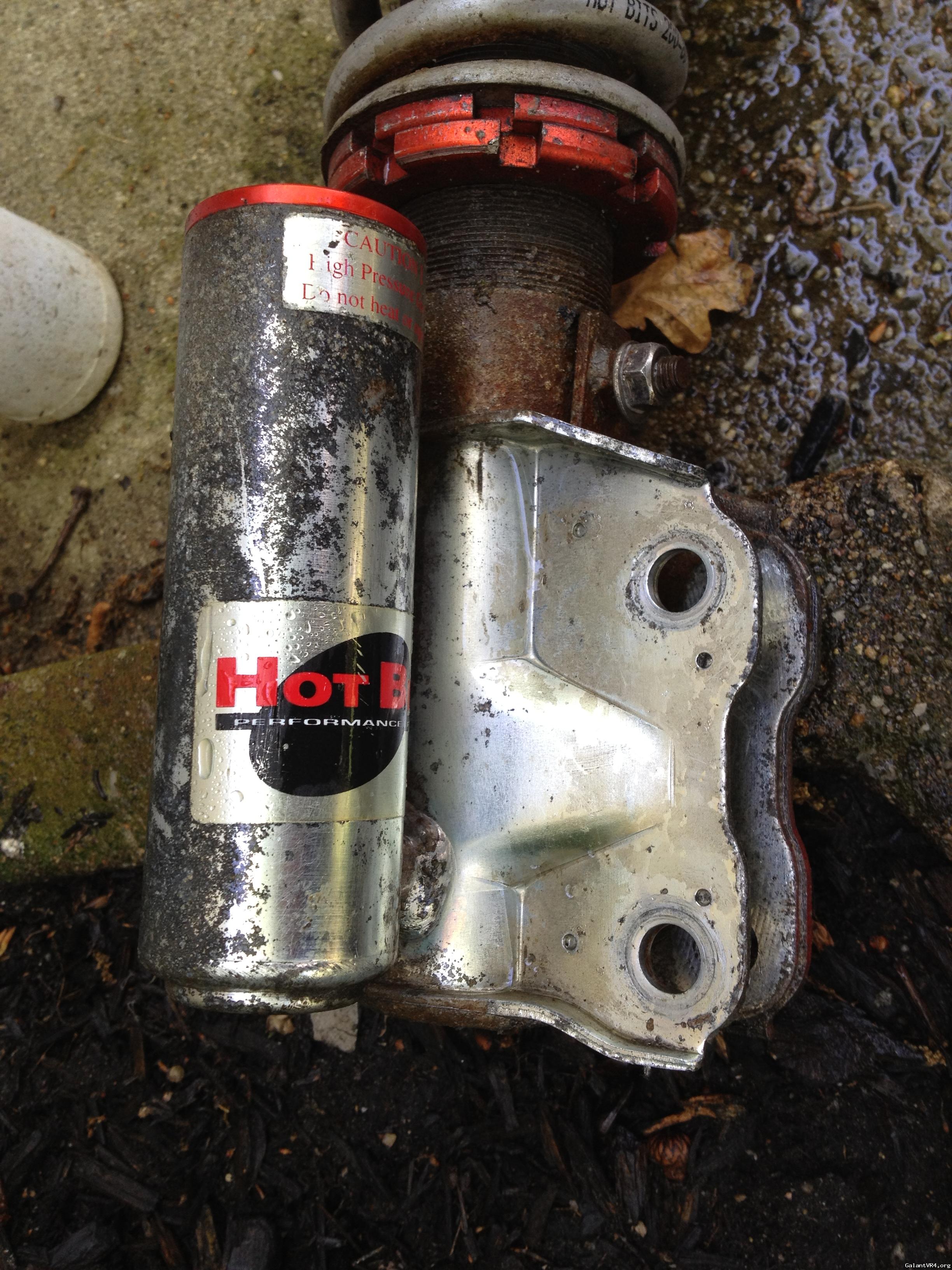

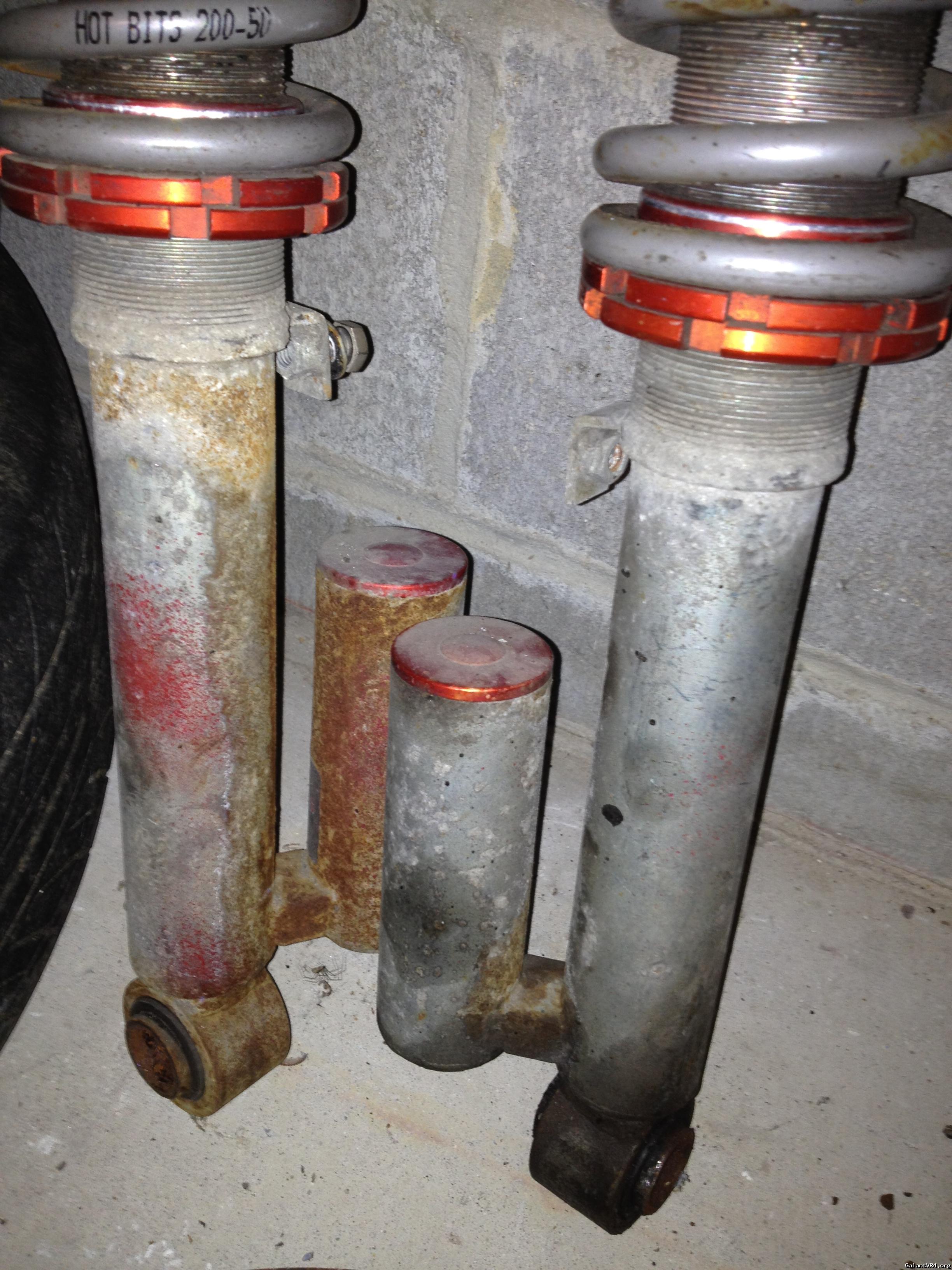

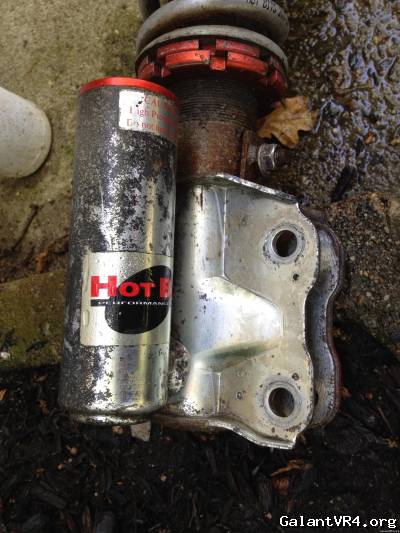

Rears are in similar condition as the fronts; maybe slightly less dirty.

Rear spring rates: 200-50



[throughfaith323]

Quoting Diego:
Spring rates for the Street Race setup is: Fr 200-80/80-20 & Rr 230-40/80-20
camber plates are optional.



Thank you for the information!



[jepherz]

Quoting throughfaith323:
Yea I just found that lol. The grey spring says 200-80 like yours. 200mm long and 80 kg/cm. As for the red spring...are they usually the same? If not I will check when I get home tonight.

Thanks



Reds should all be the same. They are just helper springs and should be fully compressed under the static weight of the car.



[throughfaith323]

I see. Thank you.


Any offers anybody? The worst I can say is no.



[turbojew]

99 Sable with 160k? haha



[mitsuturbo]

click

1000 RM = about 330 USD Putting the DT1 set around 1500 MSRP, and the DT2 at 1775 MSRP "NEW" retail.

Which set is this? DT1, DT2, or something else?
Are there pillow ball mounts? It doesn't look like it, from the photos.



[VR_IV_MR]

I talked to Larry

Here is the 2012 pricing.... Please note all are 3-4 week lead time as they are made to order.

DT1 setup with double springs, compression and rebound adjustment (single knob) with NO canisters
$1650.00 shipped

DT1 with remote canisters
$1926.00 shipped

DT2 double adjustable suspension with double springs, external canisters and independent comp and rebound adjustment.
$2203 shipped

Front camber mounts
$305

Rear mounts
$220



[throughfaith323]

Thank you for the prices! Hopefully that helps with the sale!



[throughfaith323]

BUMP!

Decided to definitely sell these. Pictures of the rear coilovers will be posted when i get home this weekend.
