Rear wiper Wiring Diagrams

misterfixit

Well-known member
Joined
Aug 4, 2004
Messages
1,575
Location
Midlands, UK

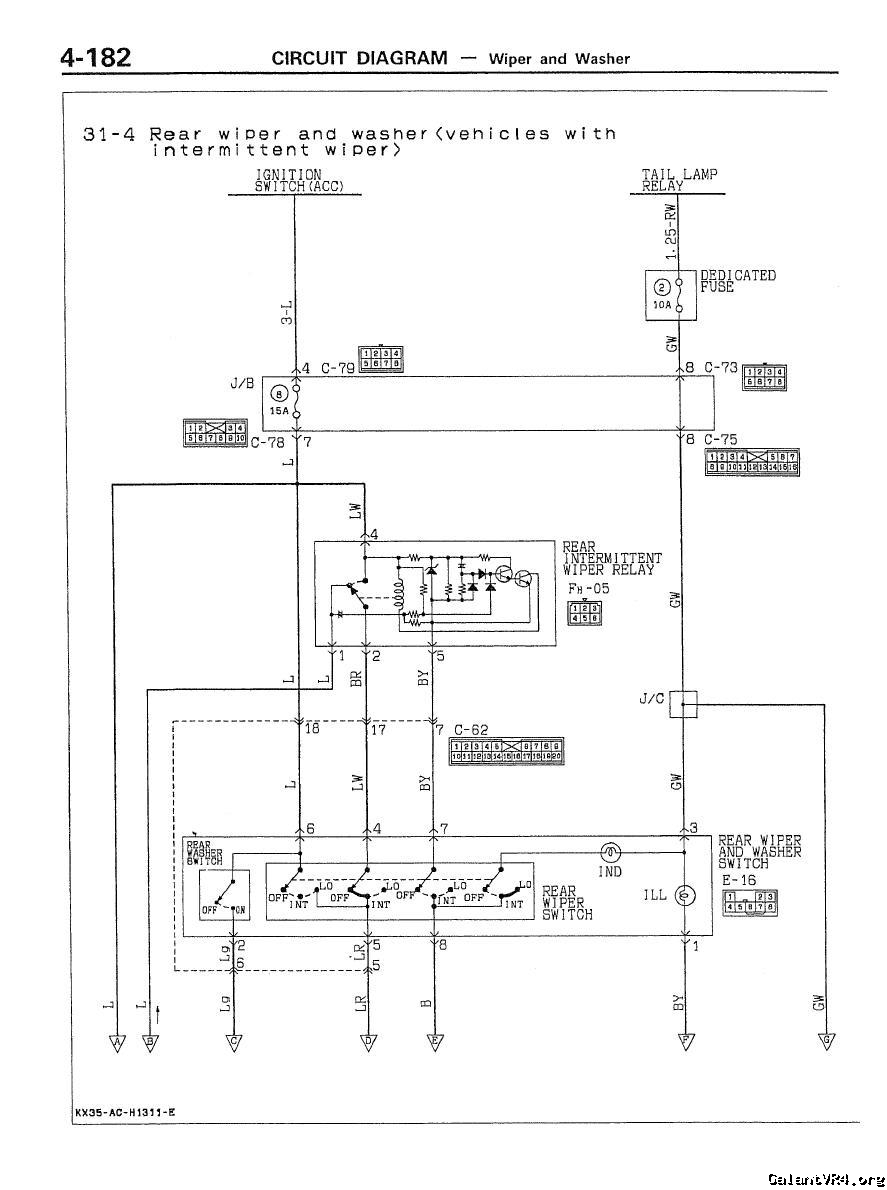

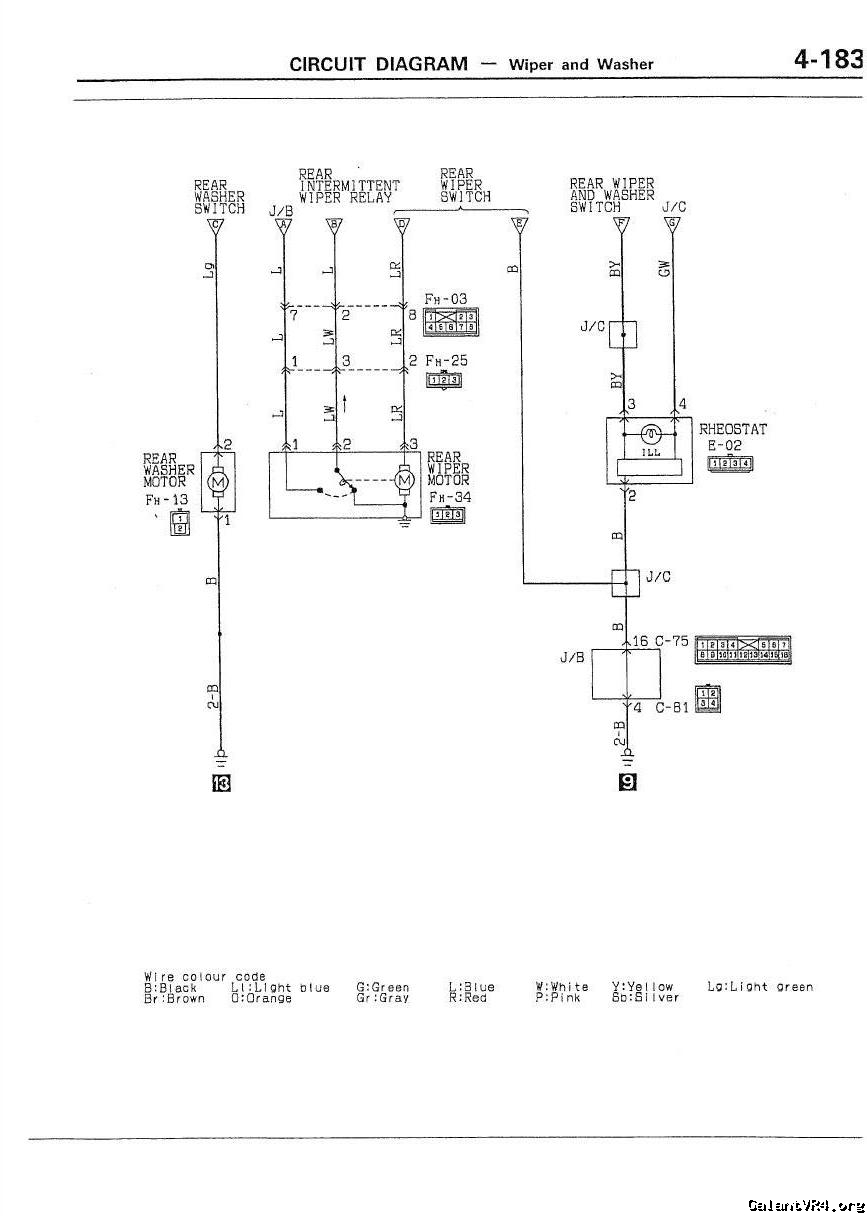

Here as requested earlier this week.





I'll sort out the config diagrams and such later.

All the connectors for the intermitant unit and the mitor are under the shelf at the base of the screen. You'll need to modify the parcel shelf cover (a little "u" slot needs to be cut. again i'll post this once iv'e had a rummage in the garage.)

The rear wiper swich sits next to the rear defogger switch in the dash

Rich
