Need some motor measurements

[RedTwo]

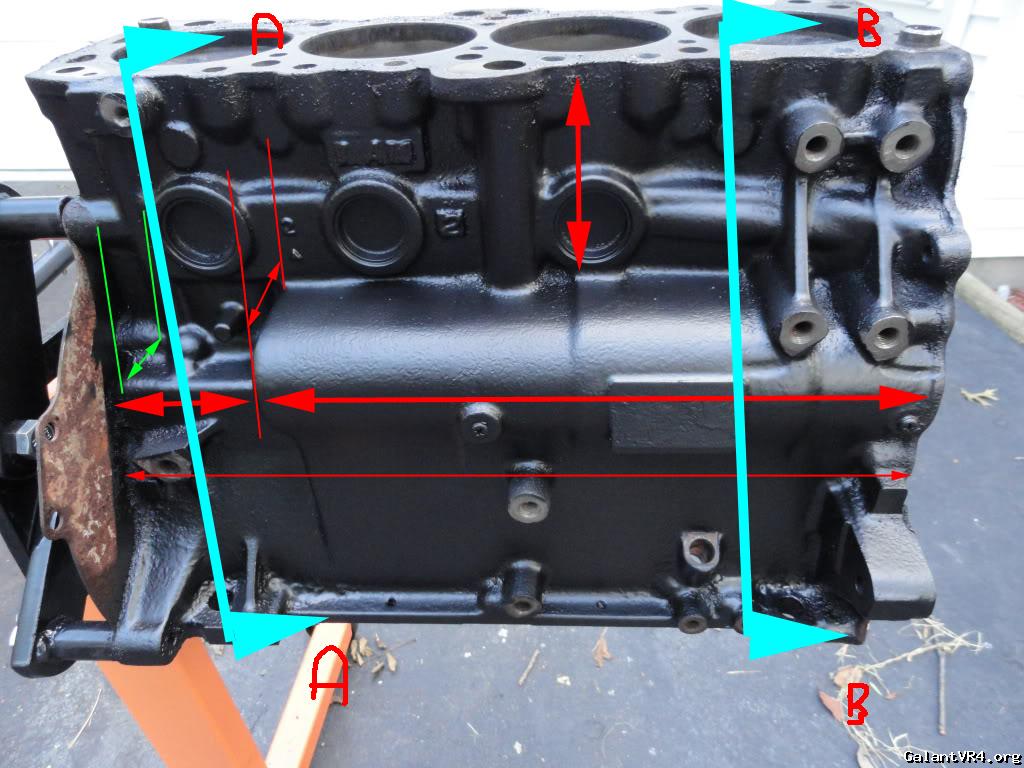

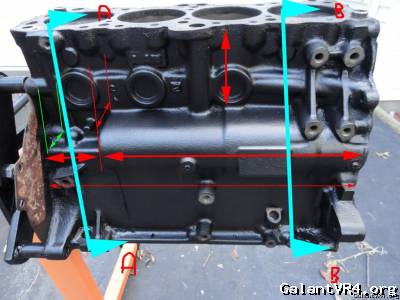

Has anyone got a motor out our easily accessiable? I need some measurements as per the photochop:



I don't need anything too in-depth (nearest 10mm would be awesome!) - I'd just like to replicate the general shape to check some clearances. /ubbthreads/images/graemlins/grin.gif

Thanks in advance



[RedTwo]

Dust. Hi in fat? Low in fat?
Anybody?
No?
Dust?

Anybody?



[curtis]

Give me a few minutes



[curtis]

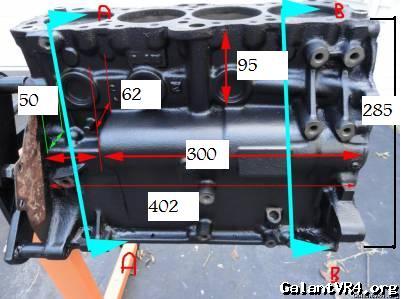

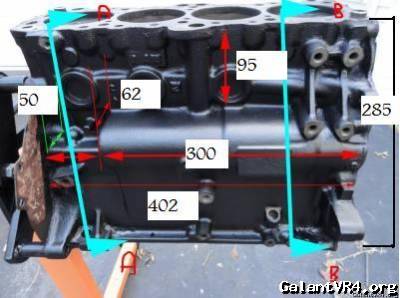

From deck to balance shaft casting is 95 but to edge of freeze plug is 85 with a 35mm freeze plug

Its under the workbench and easy to access so you need any more yell.



[RedTwo]

You're a legend, Curtis! I may need some more later /ubbthreads/images/graemlins/laugh.gif
