JDM Parts Catalog: Model Specs, Option Codes, Vin Boundaries

[misterfixit]

Did some scanning today.

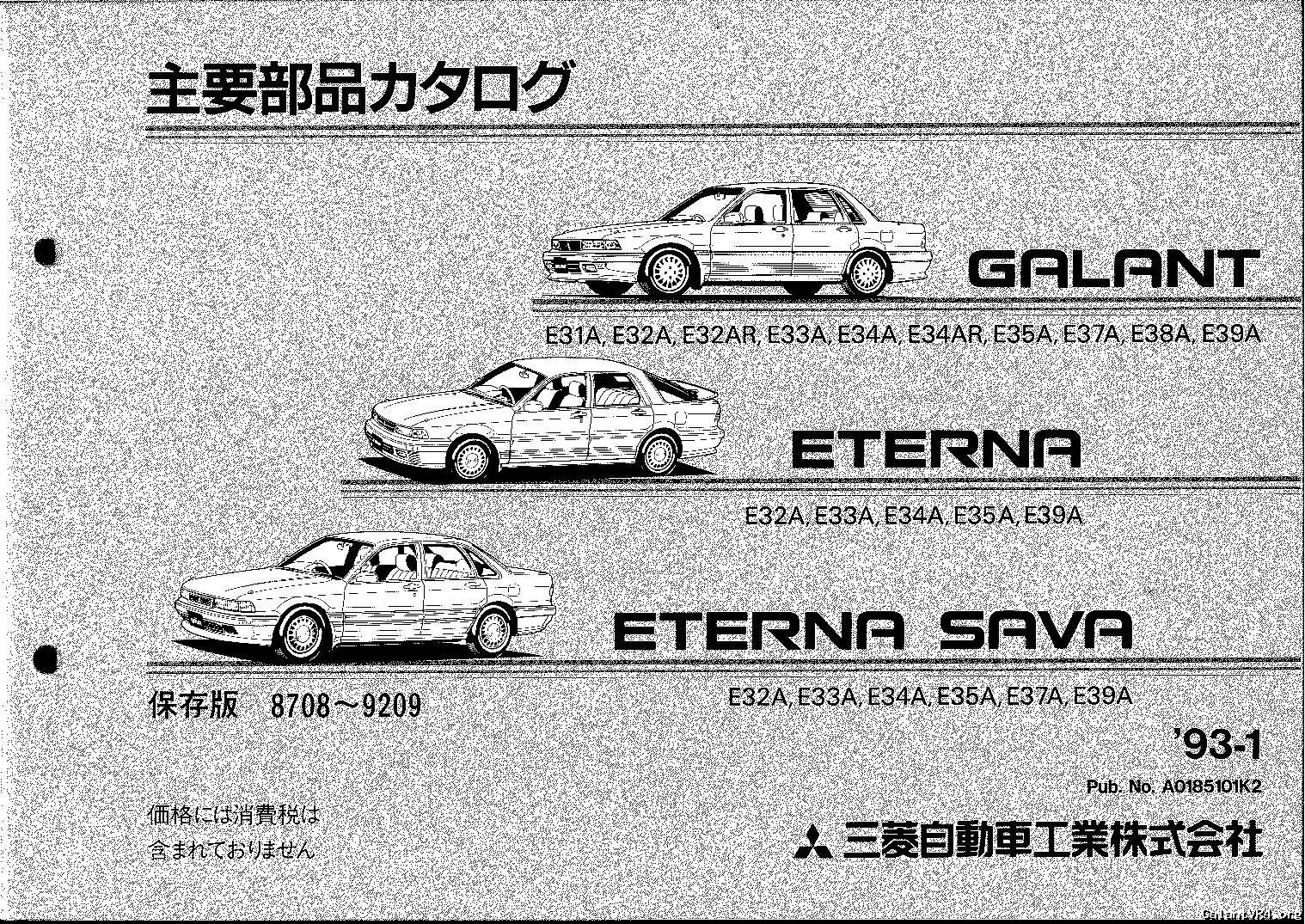

I will not be scanning the whole document (its 950 pages) Caps& ASA cover all the part numbers. However this I the first section of the book and covers Model Breakdown, Options and Vins applicable for all production variants and all years.

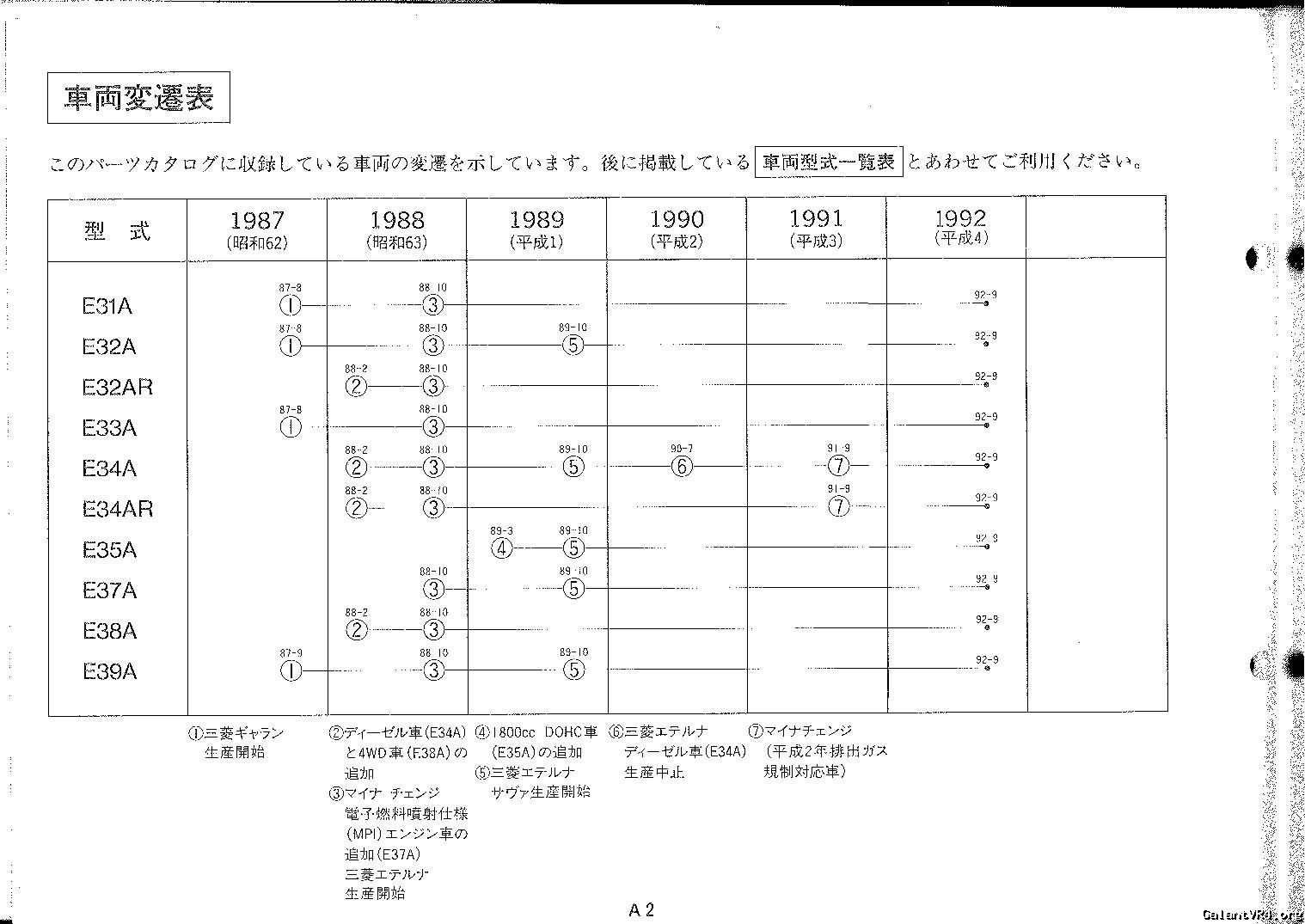

A2 Is the year change breakdown

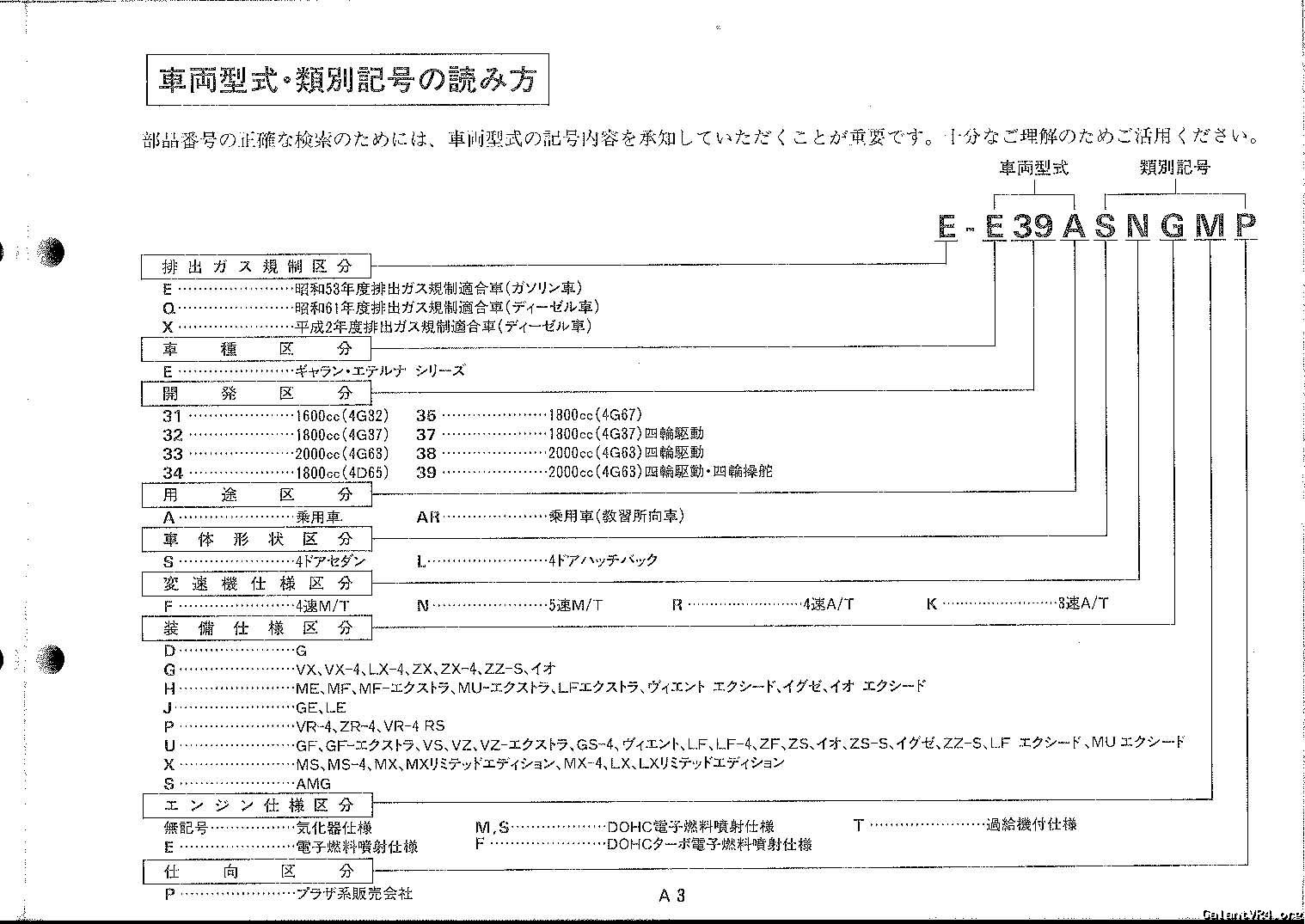

A3 Is the PROPER breakdown of the model code.

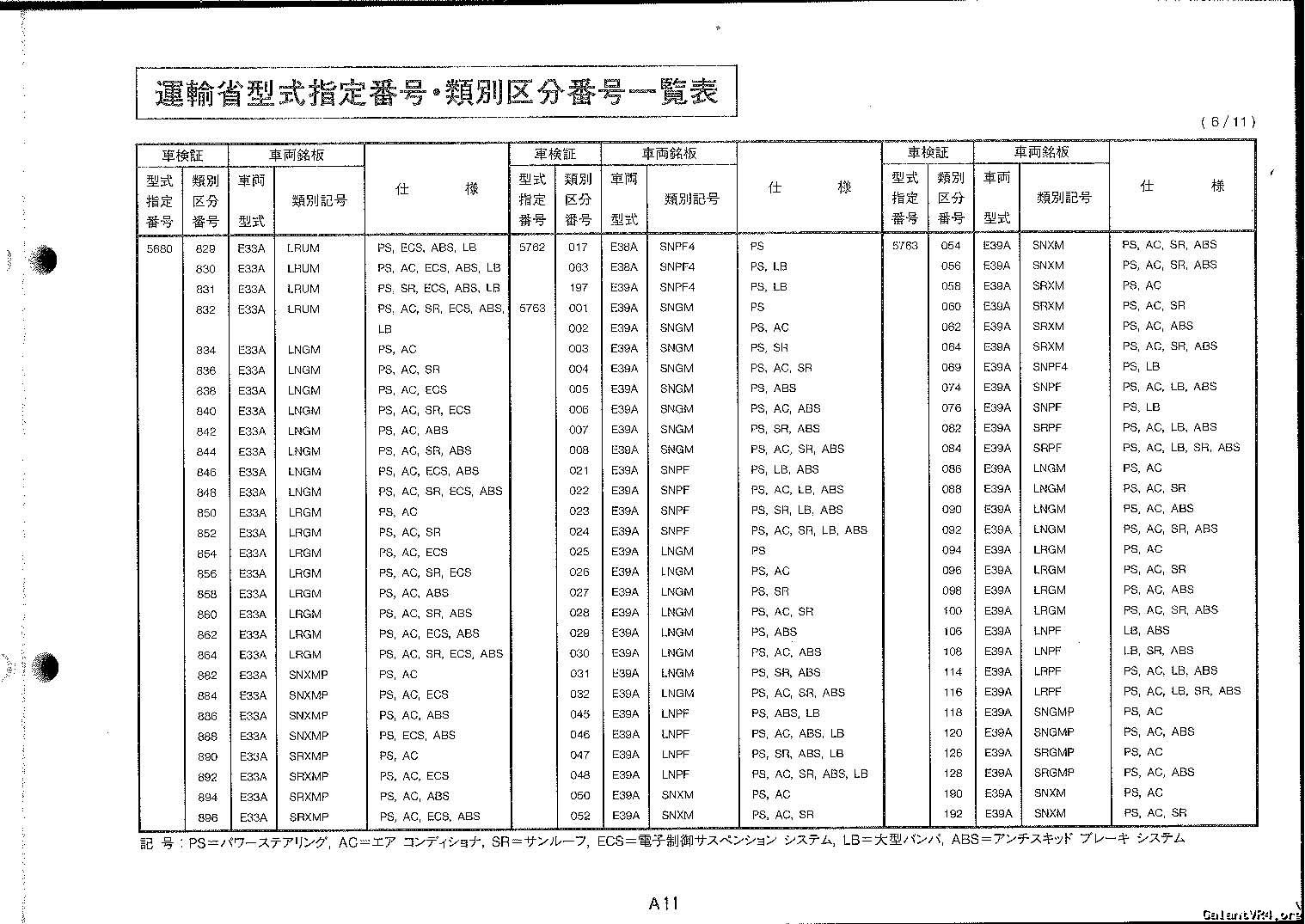

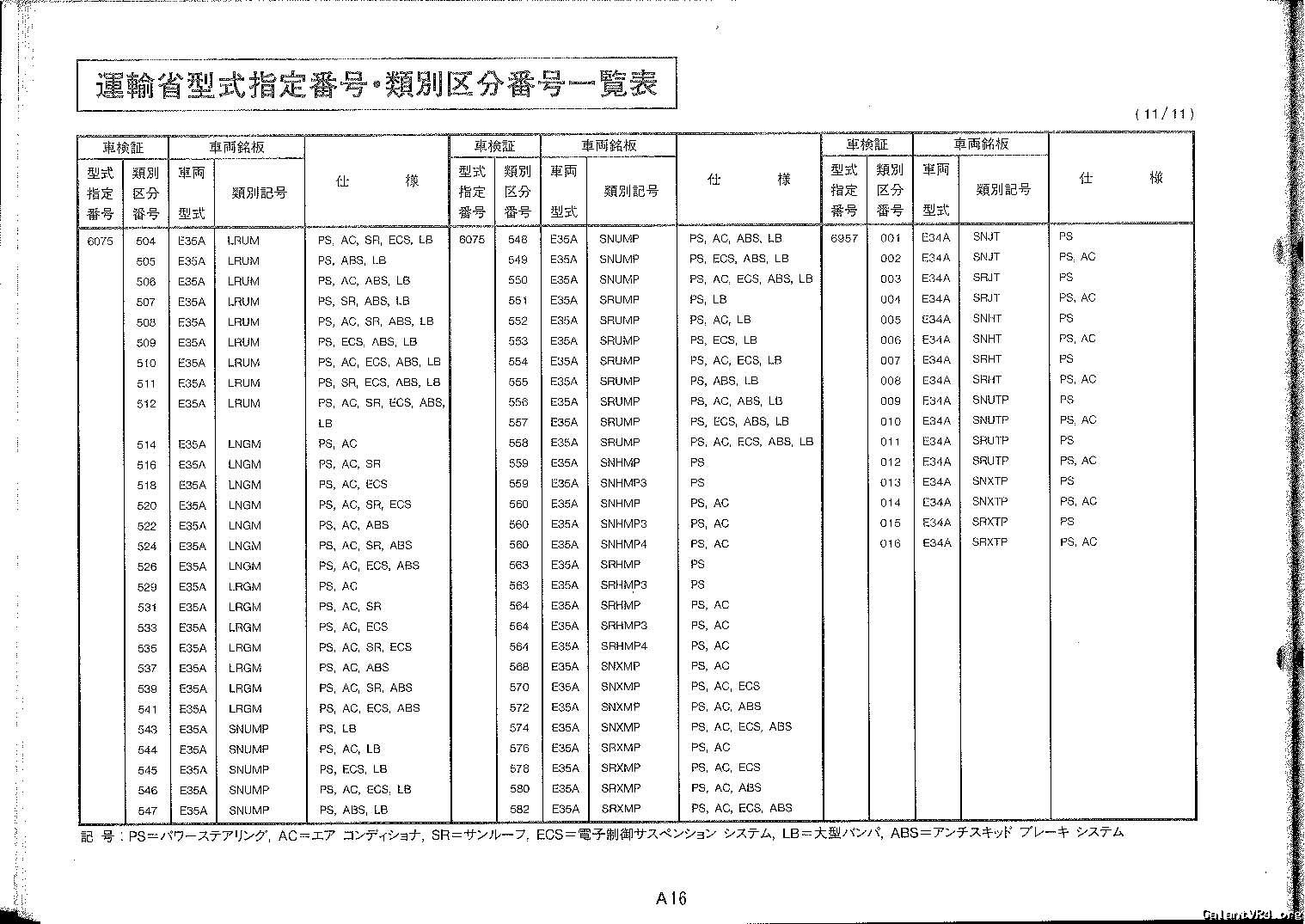

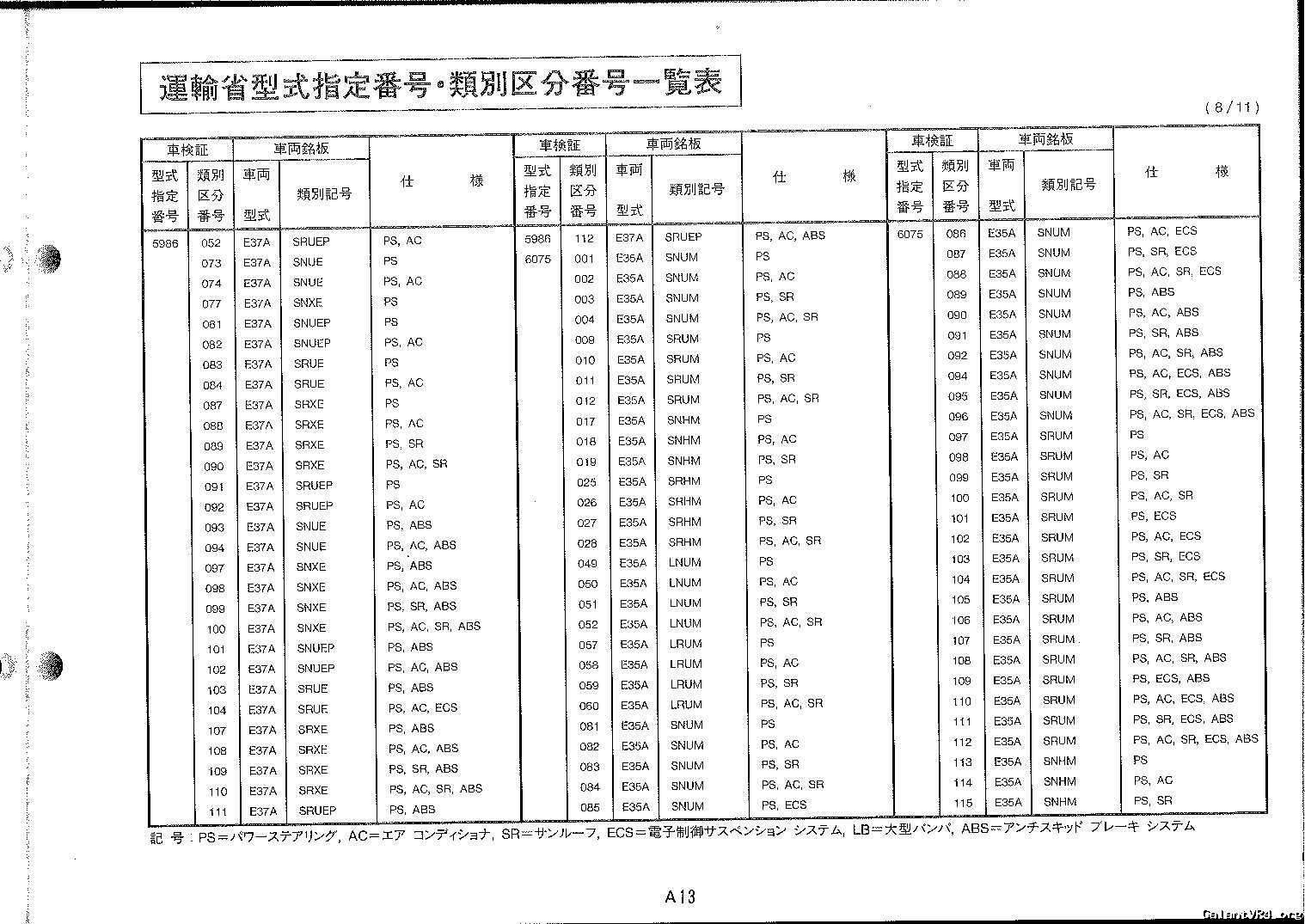

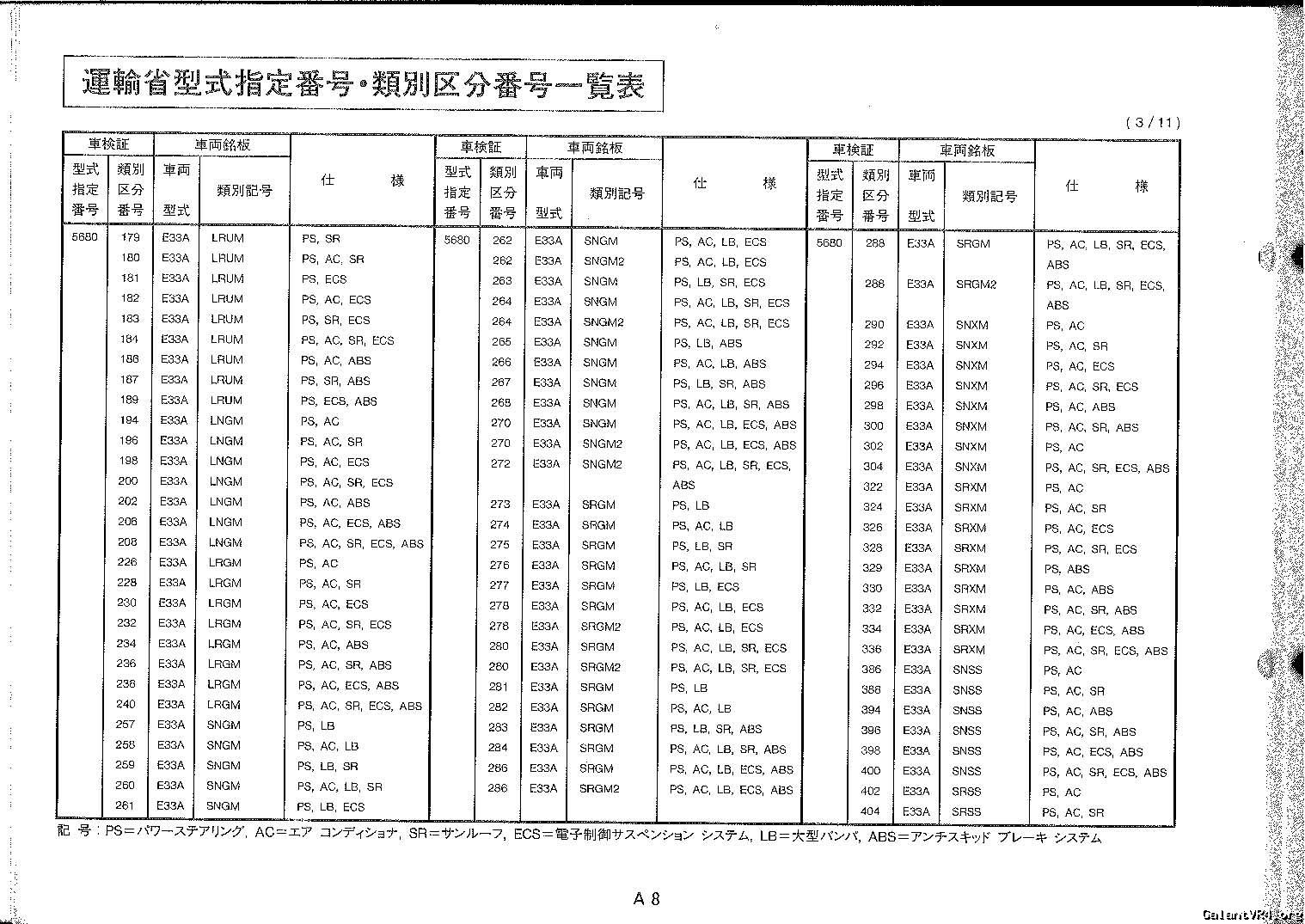

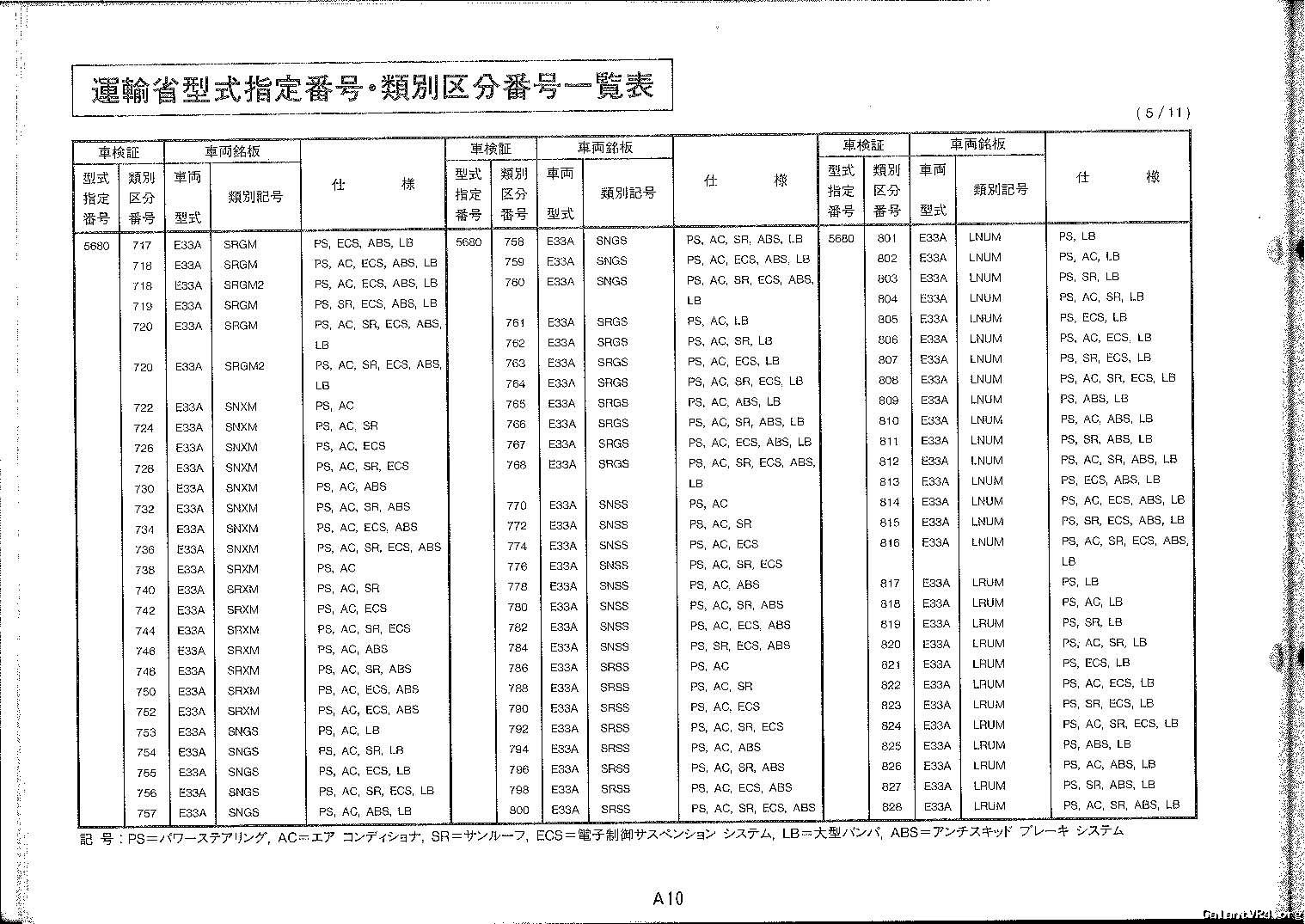

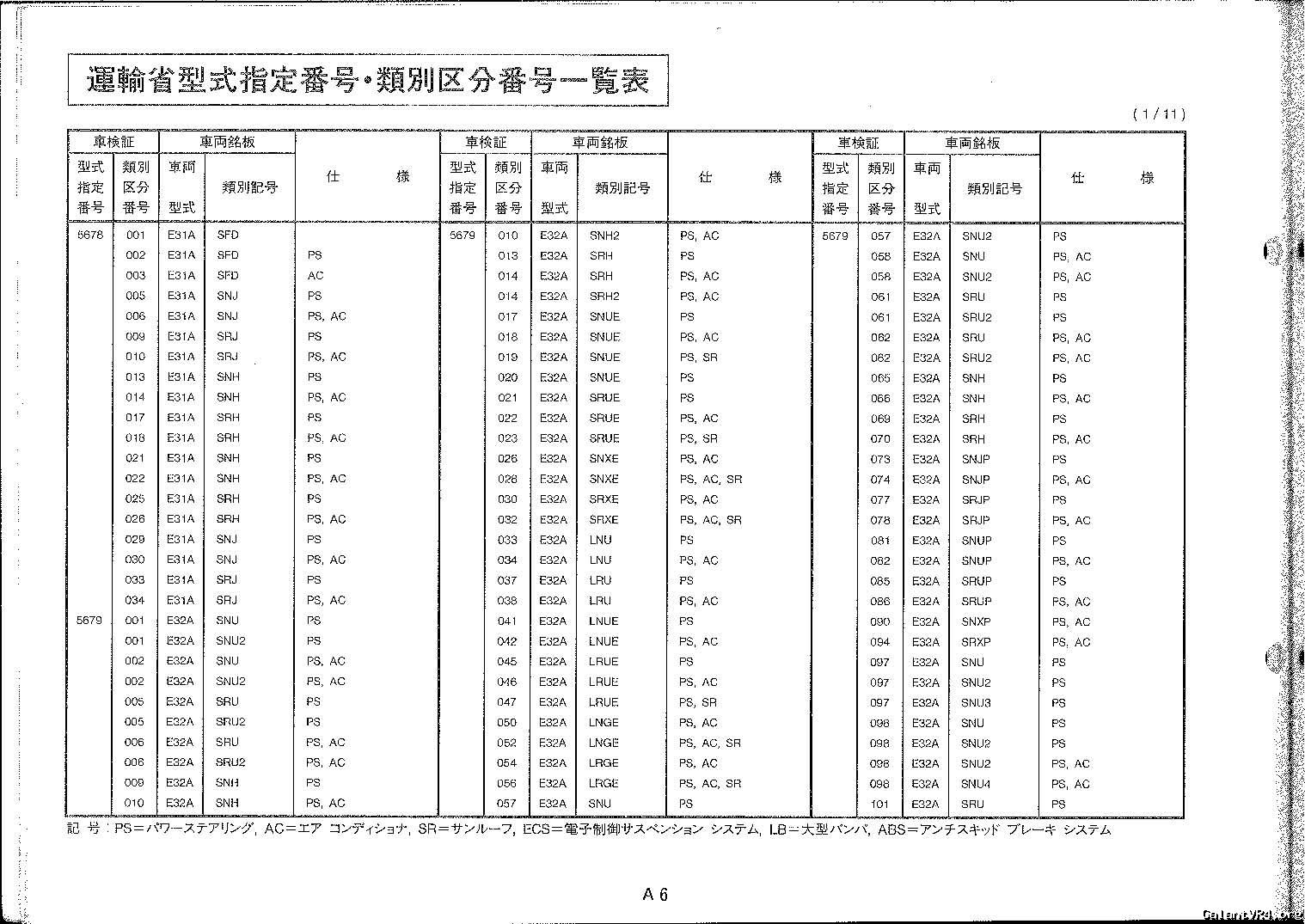

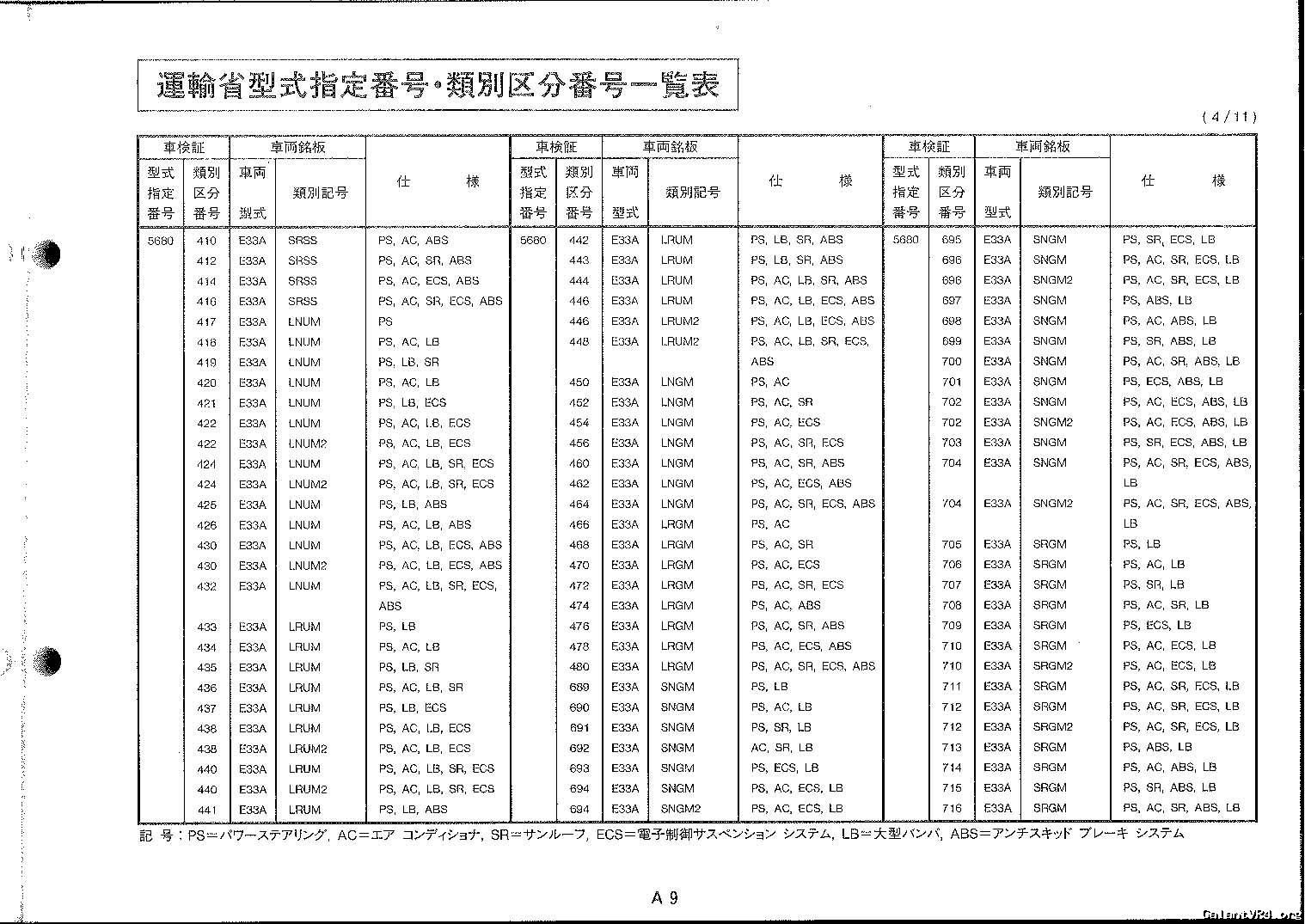

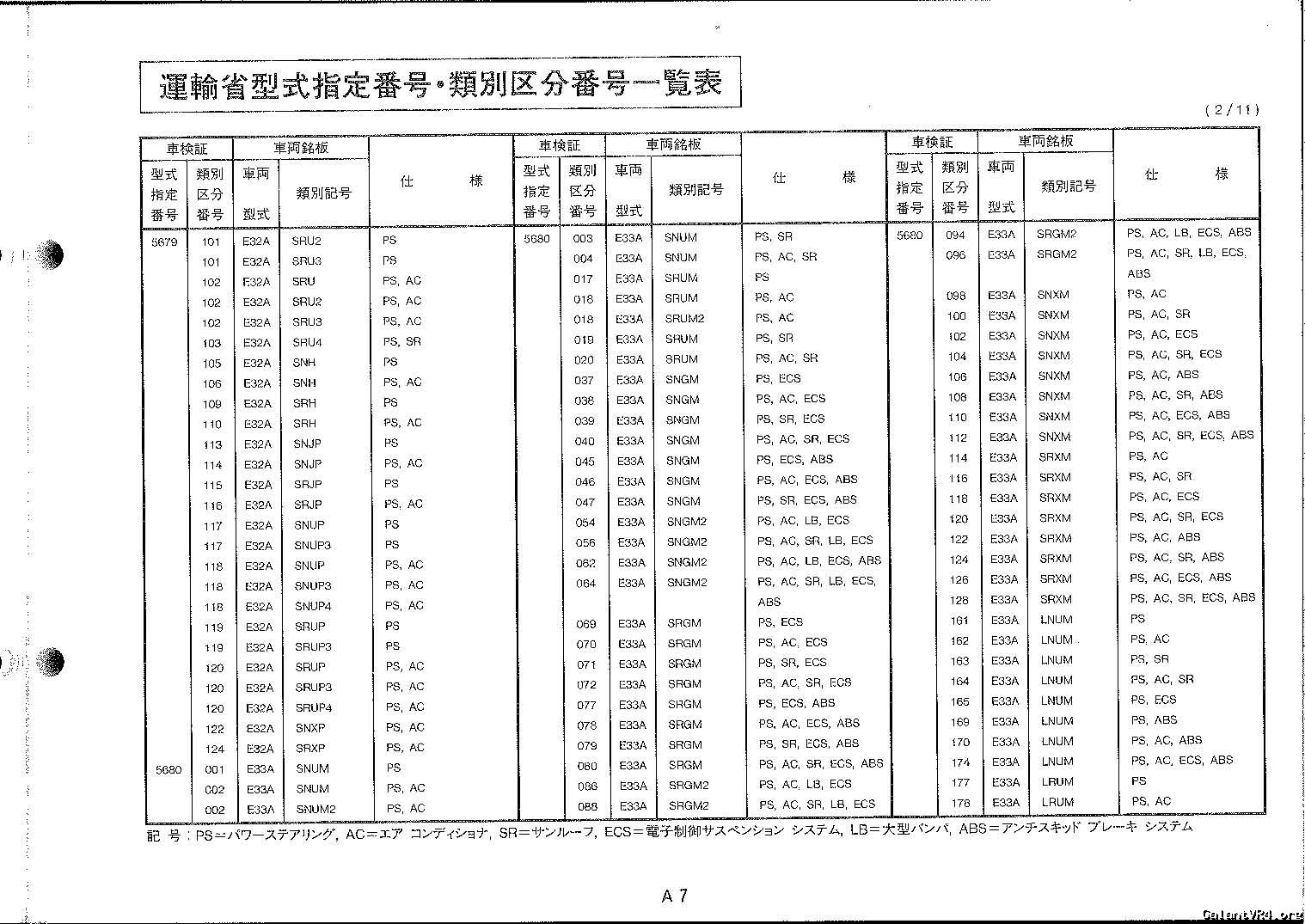

A6-A16 Is the full breakdown of the option codes.

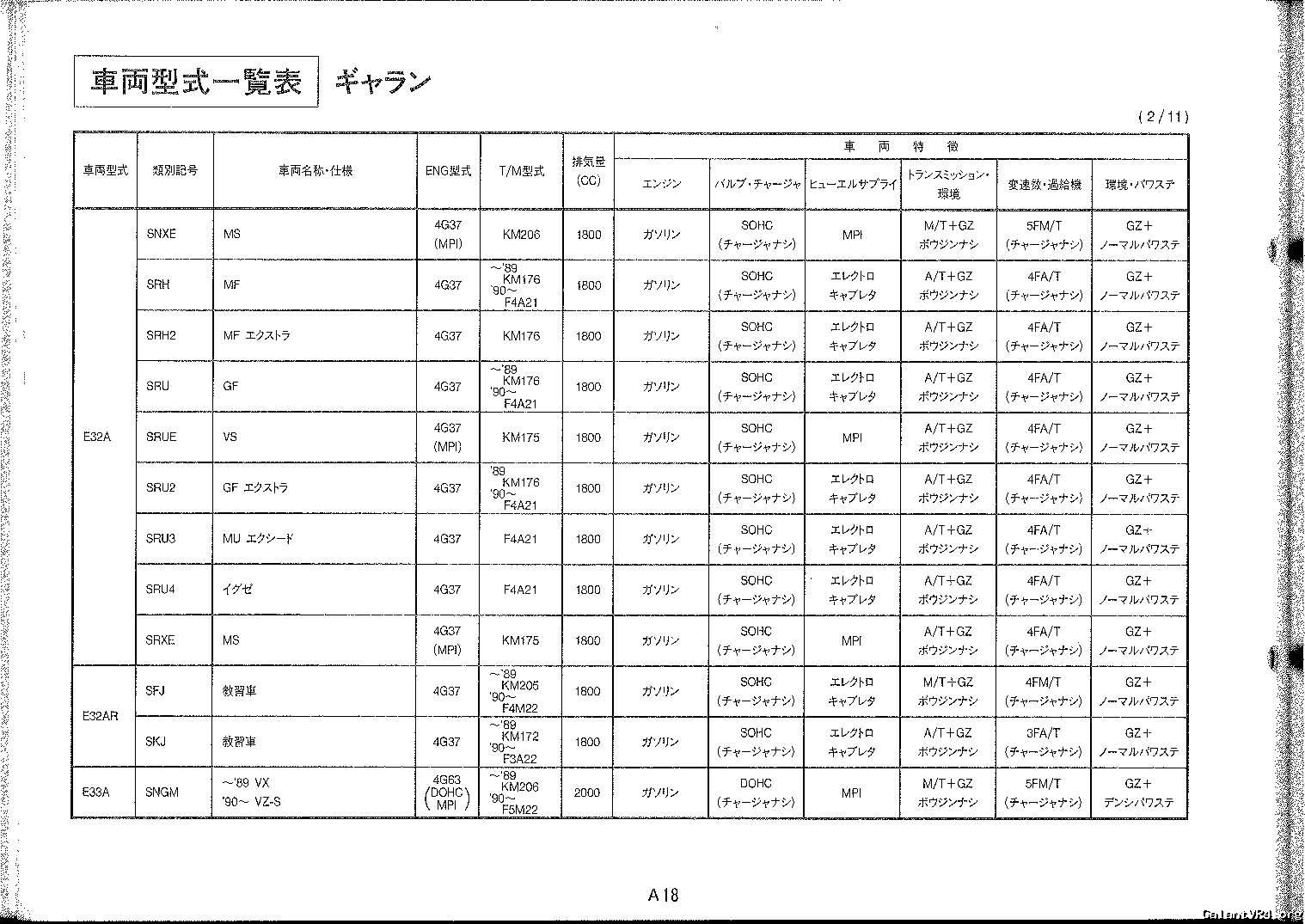

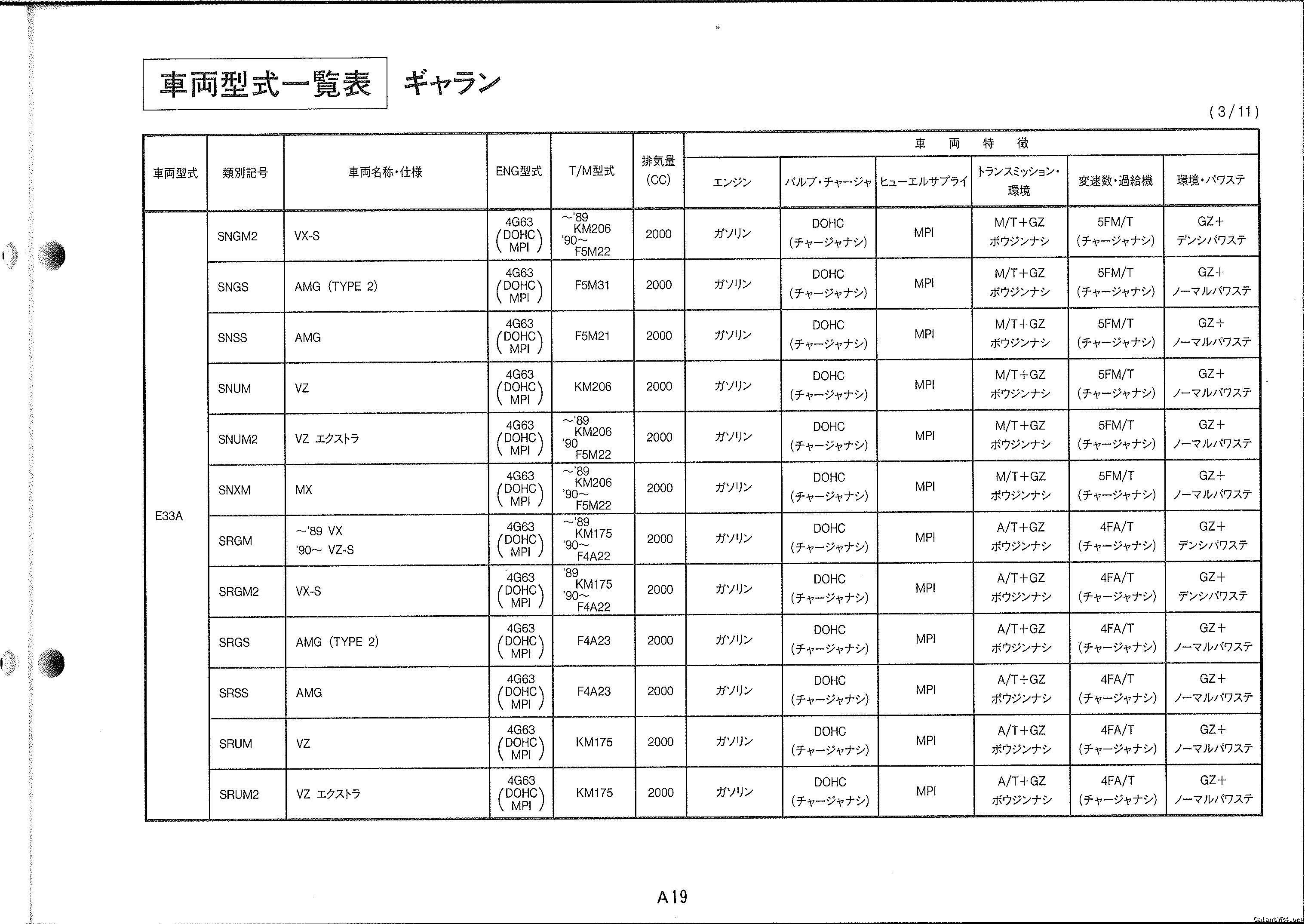

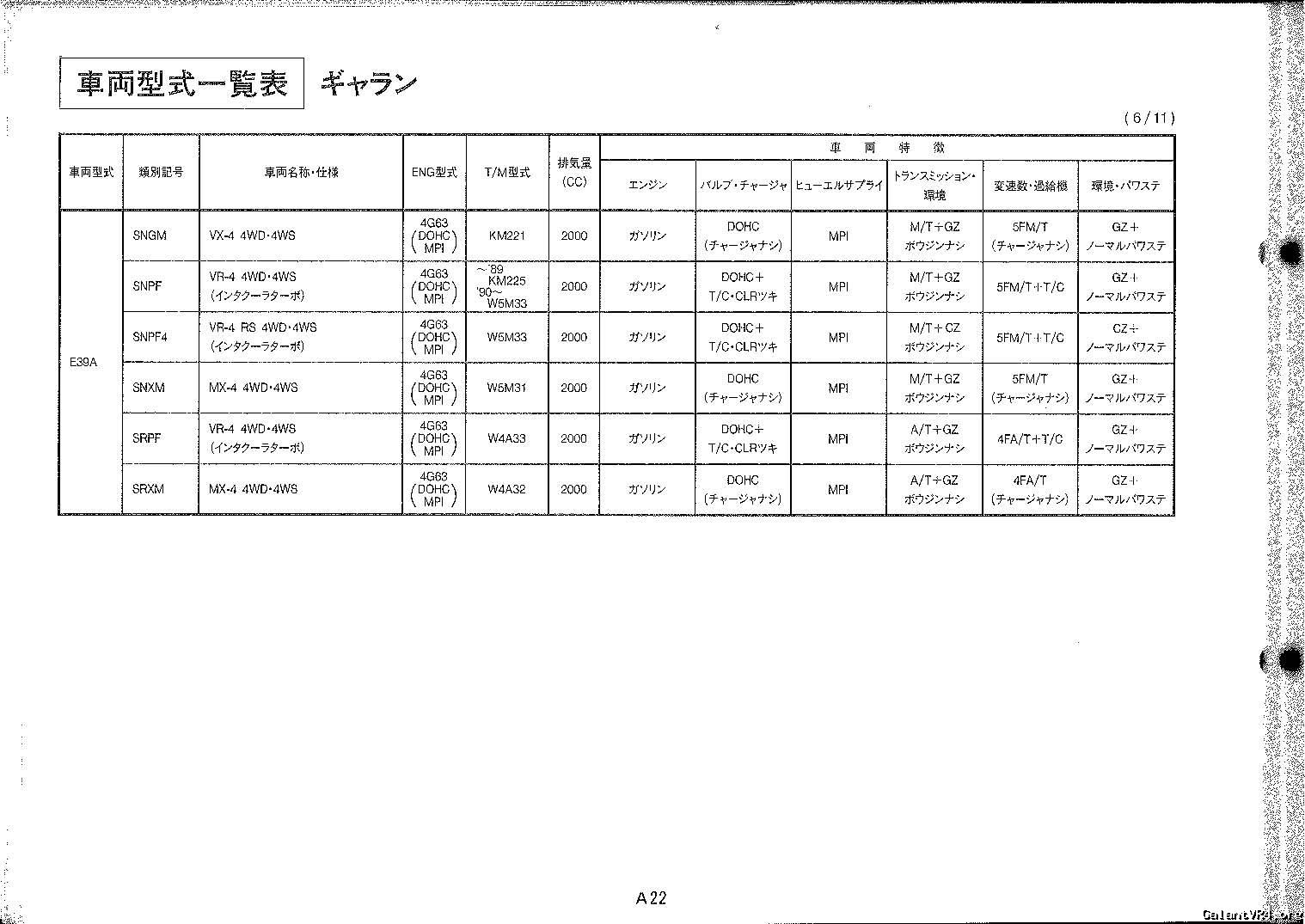

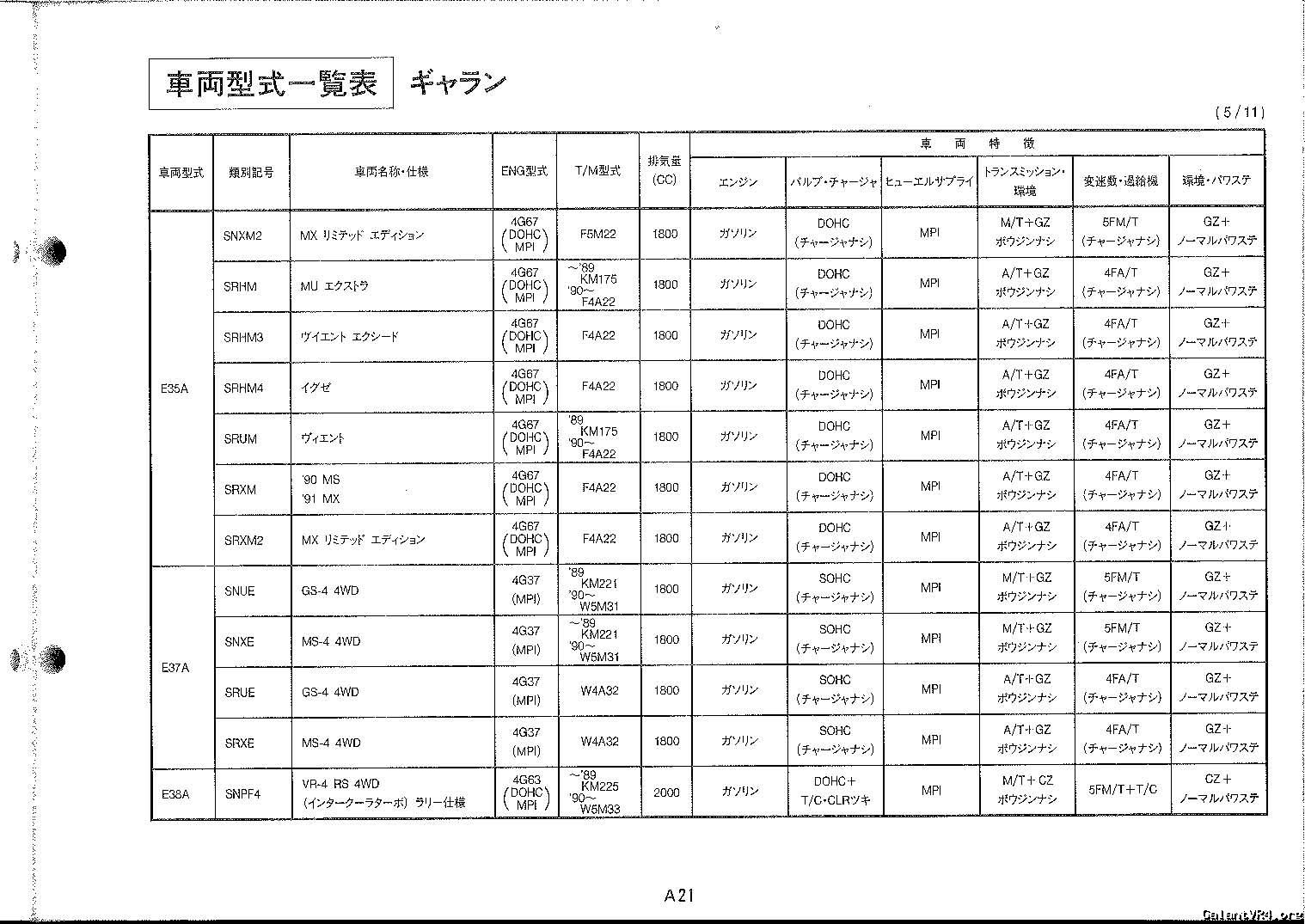

A17-A22 Galant model breakdown

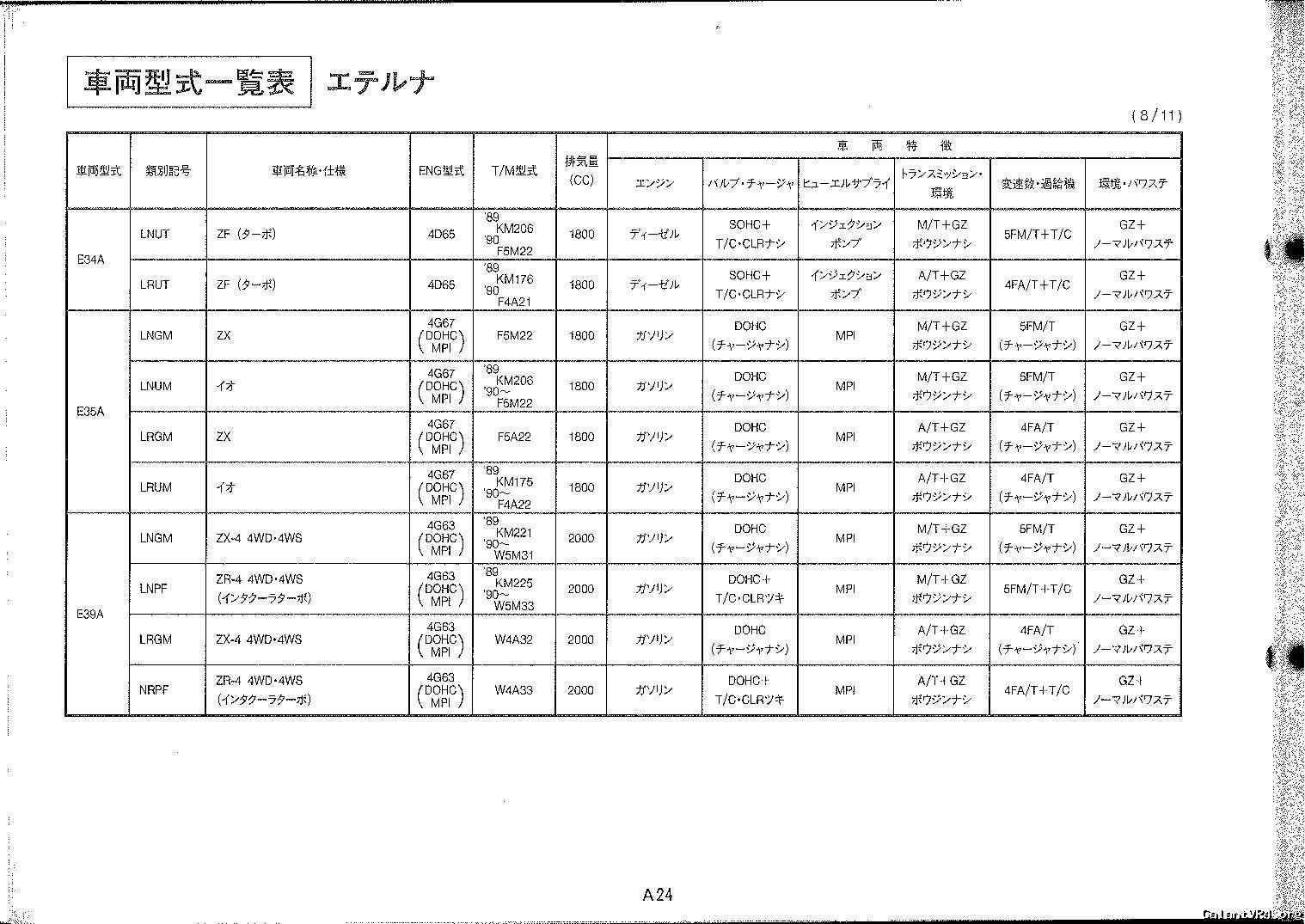

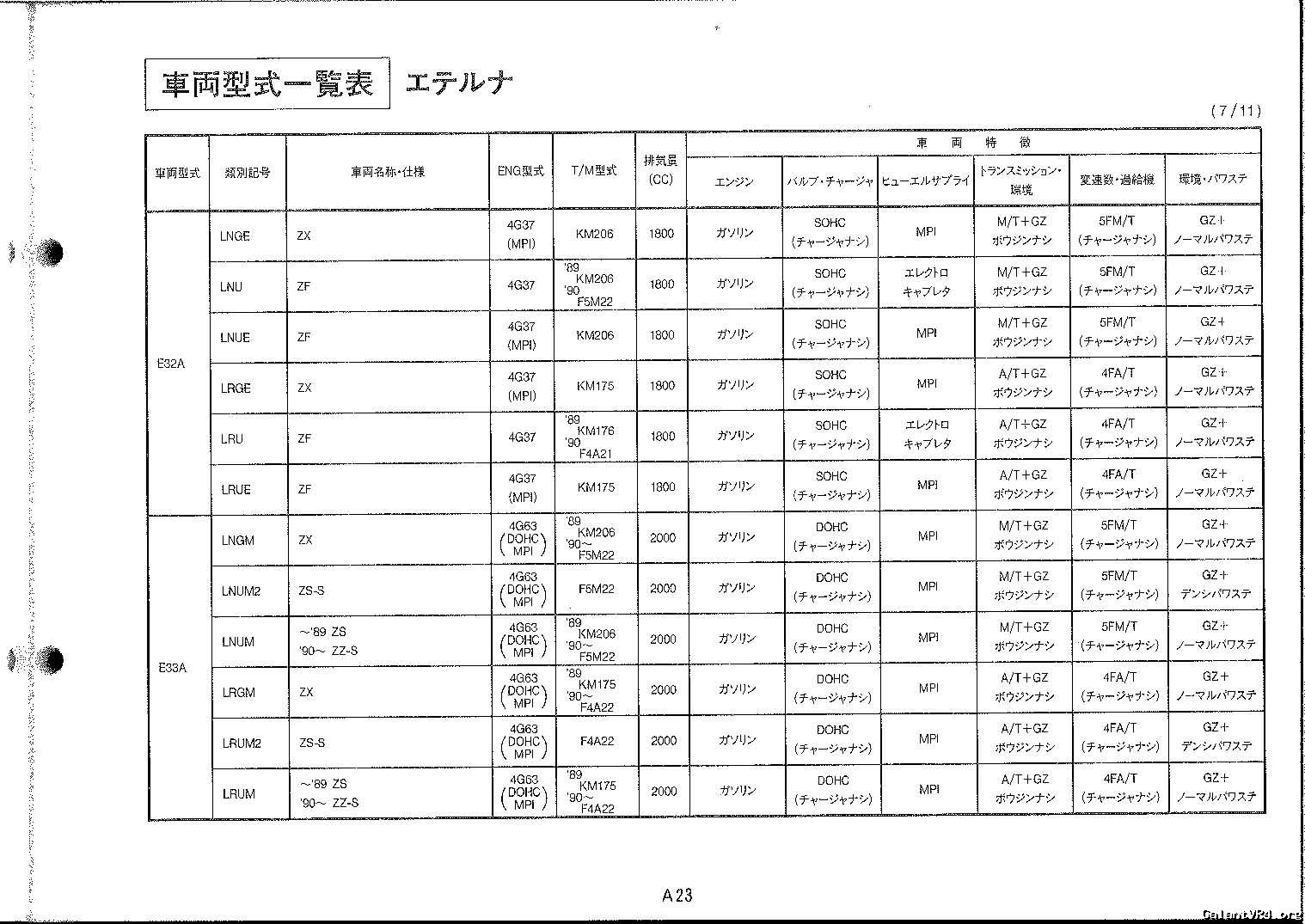

A23-A24 Eterna Model breakdown

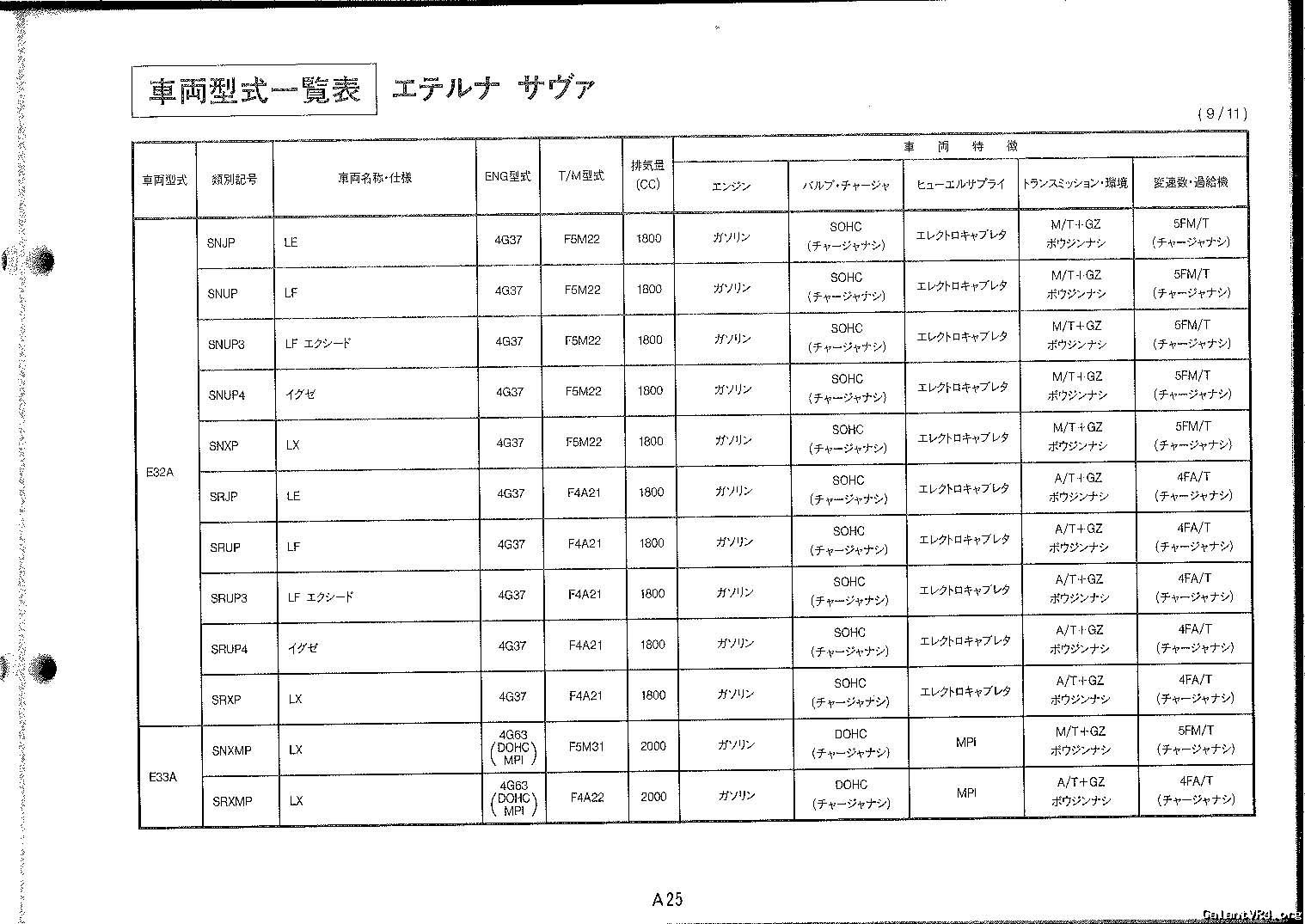

A25-A27 Eterna Sava Model breakdown

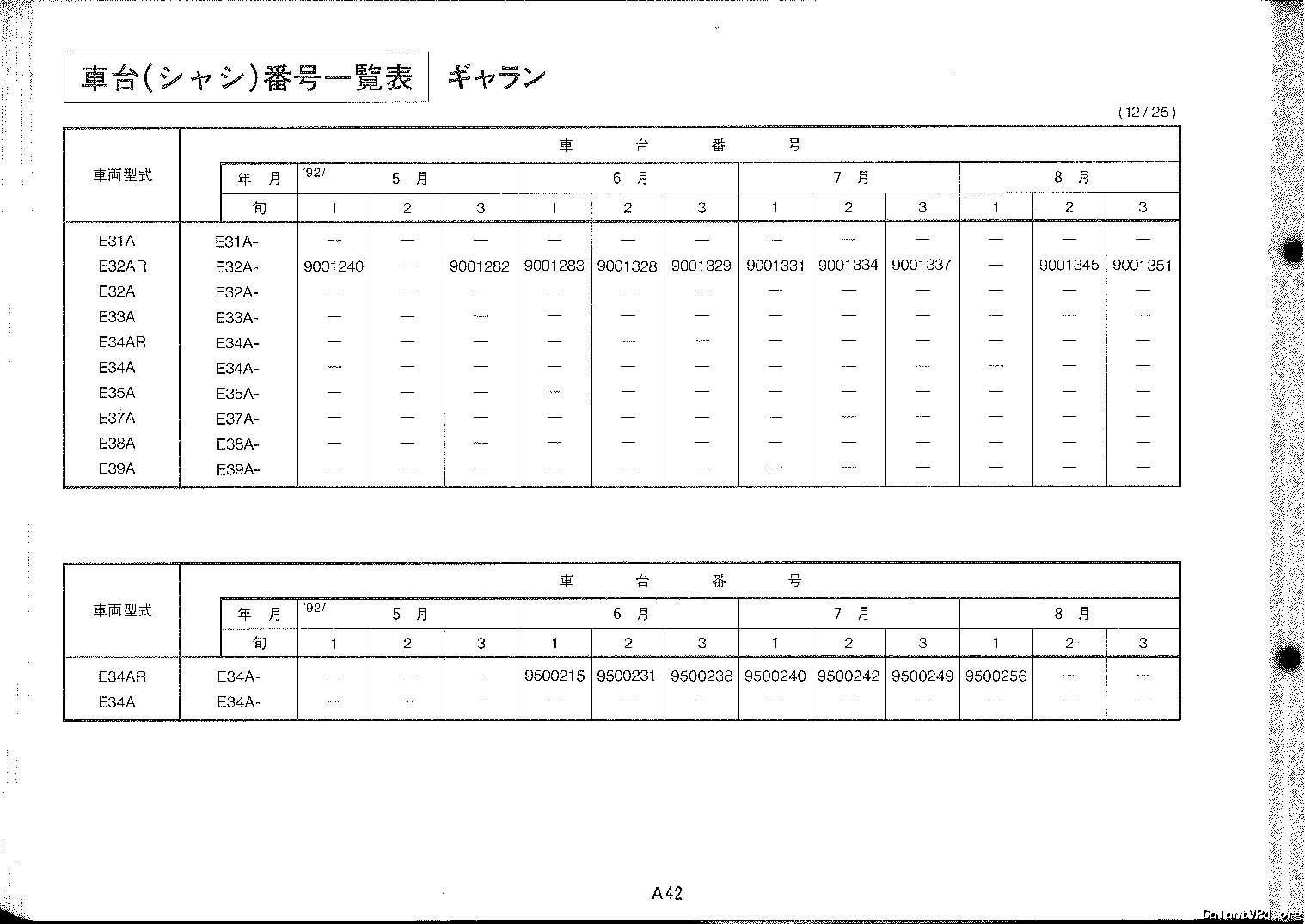

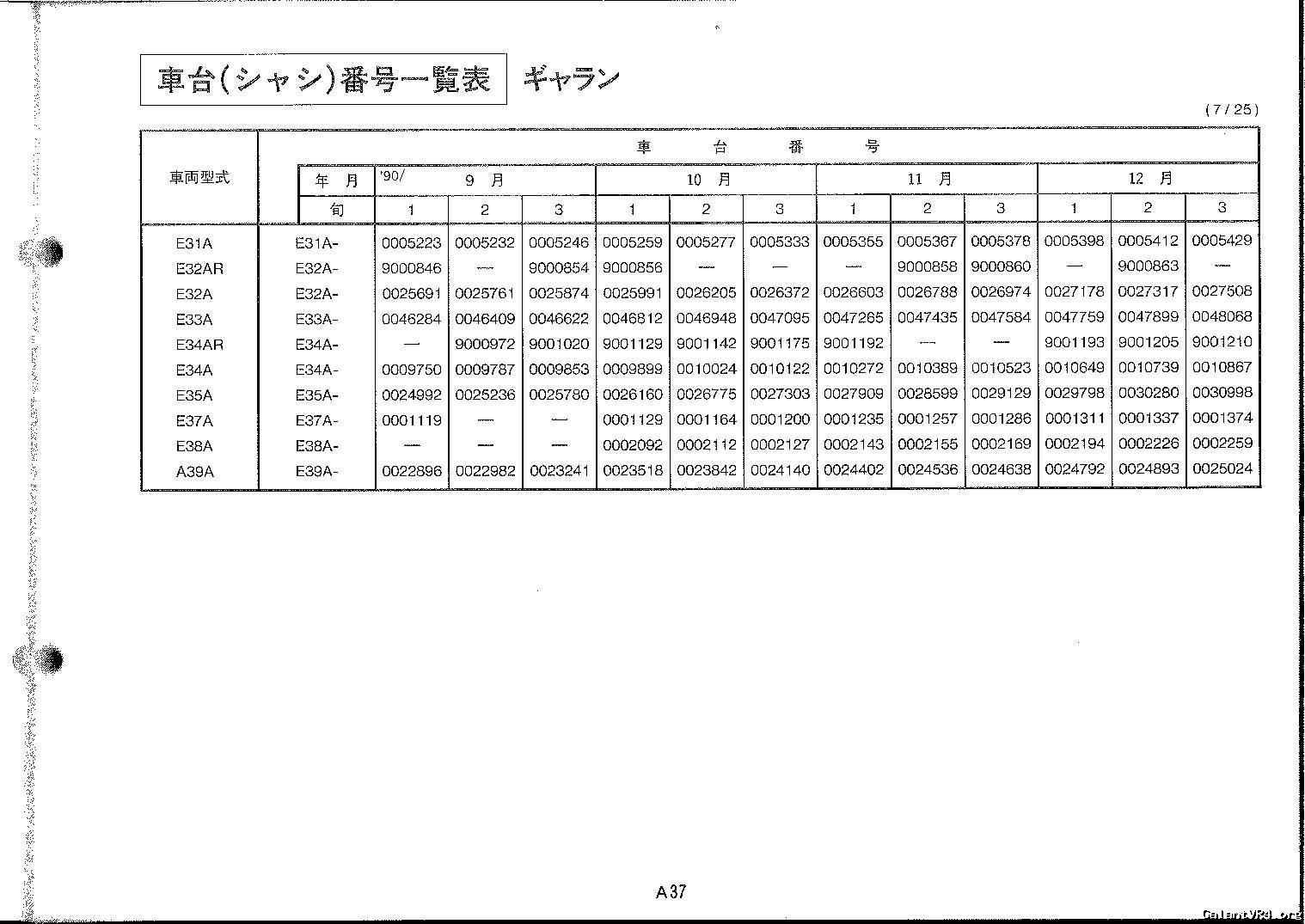

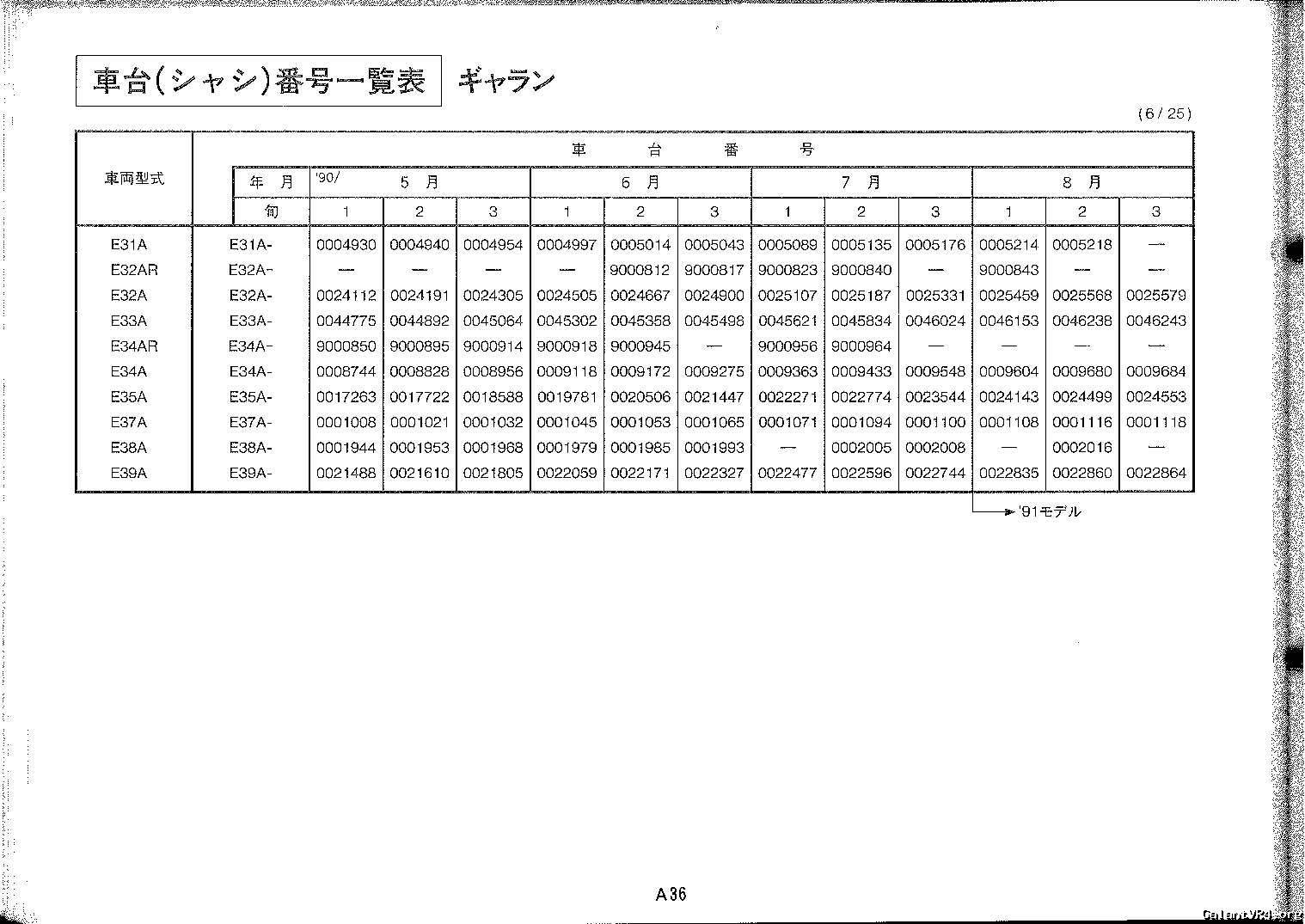

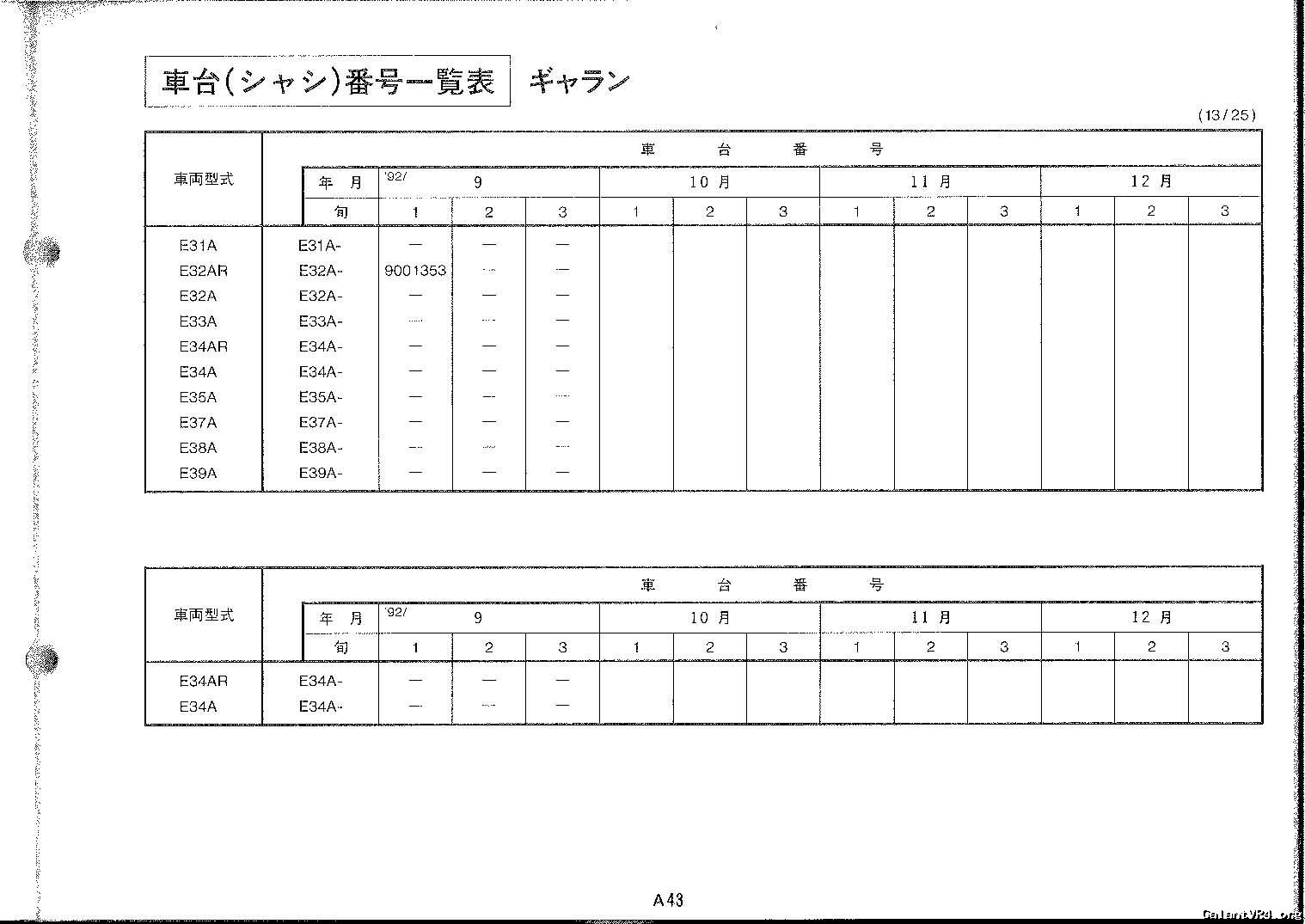

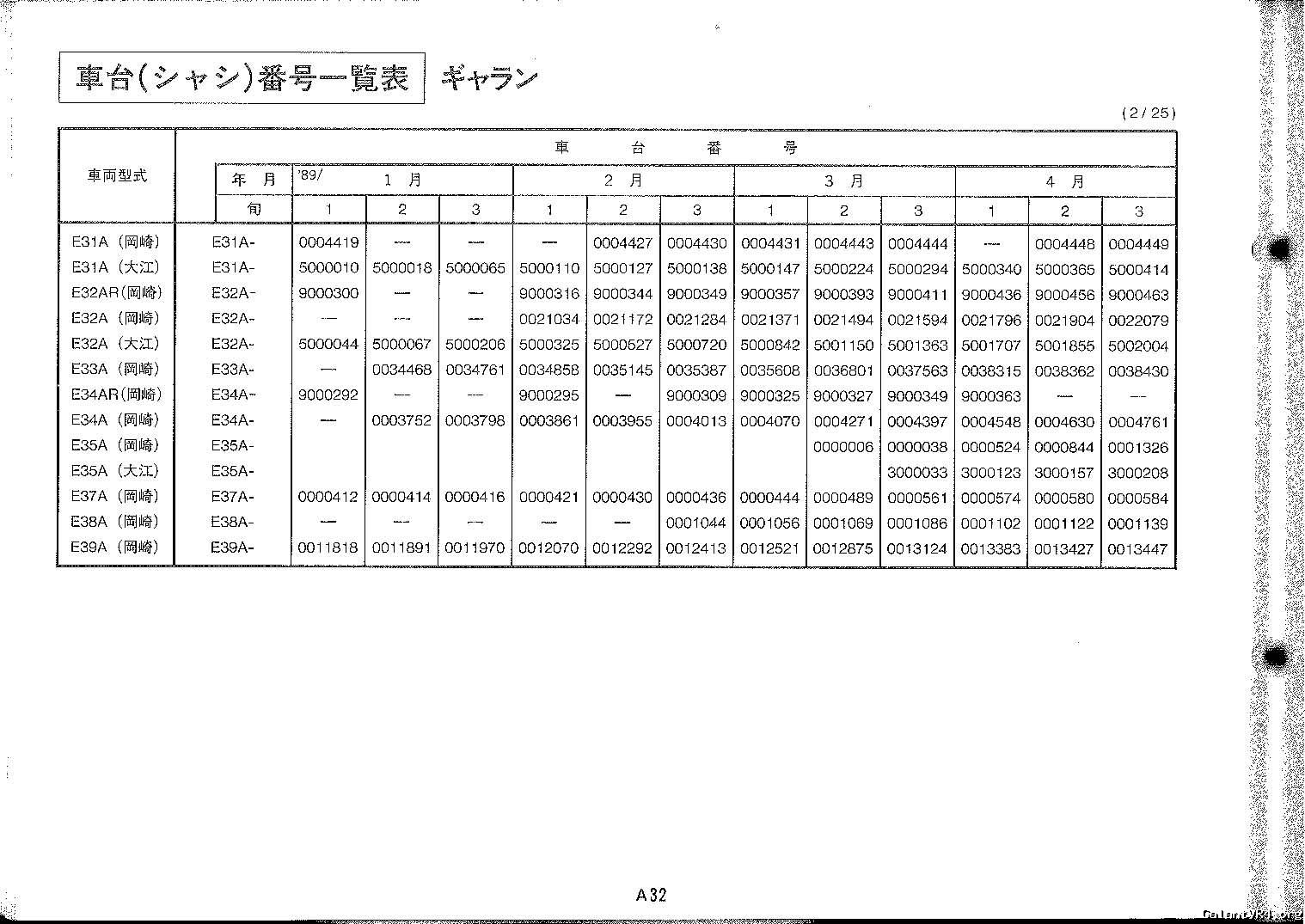

A31-A45 Galant vins By model by month

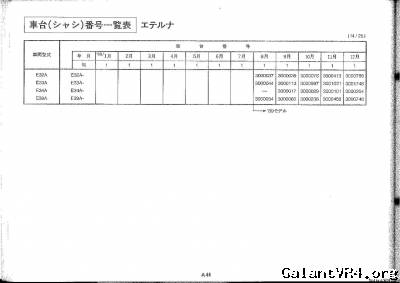

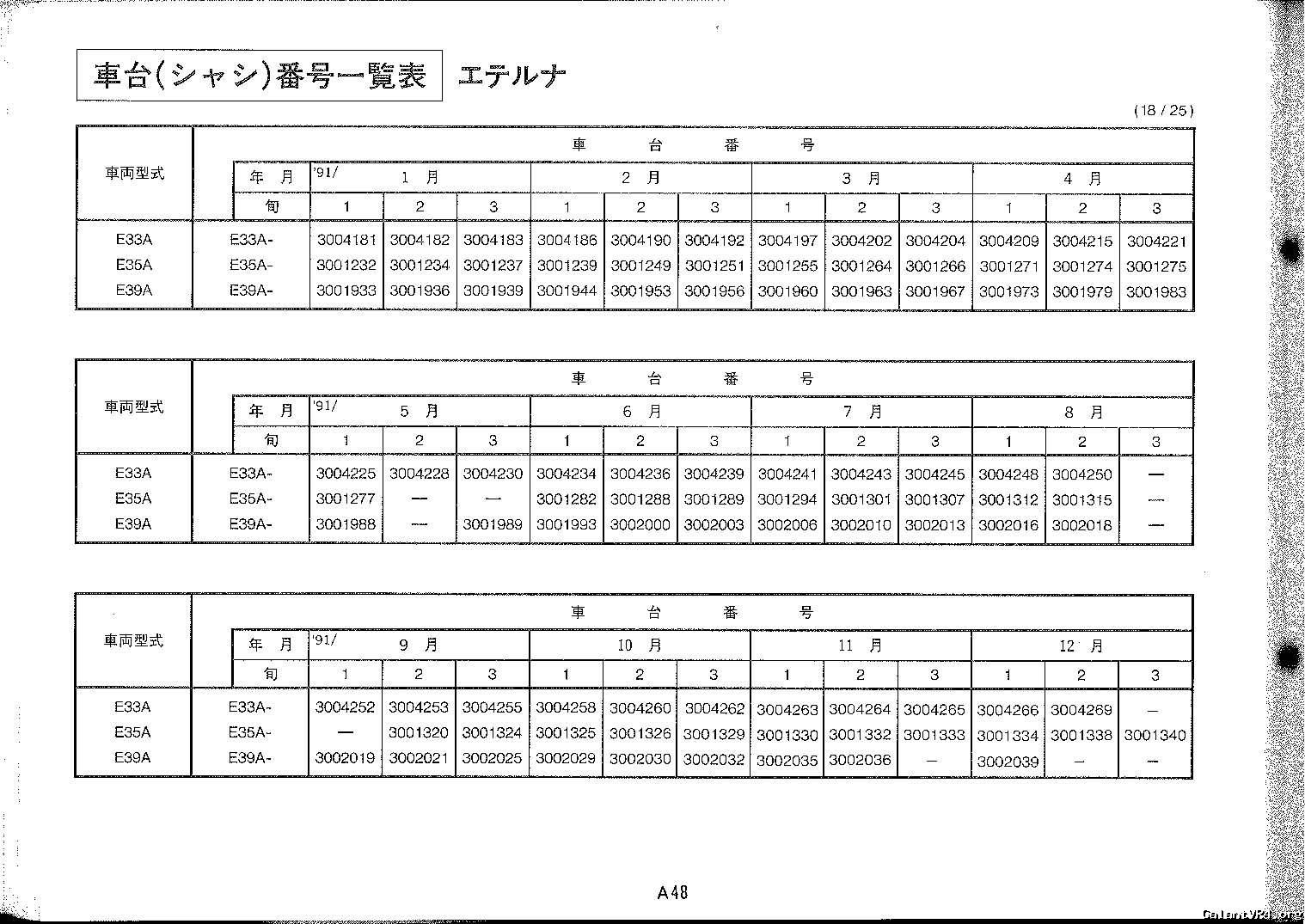

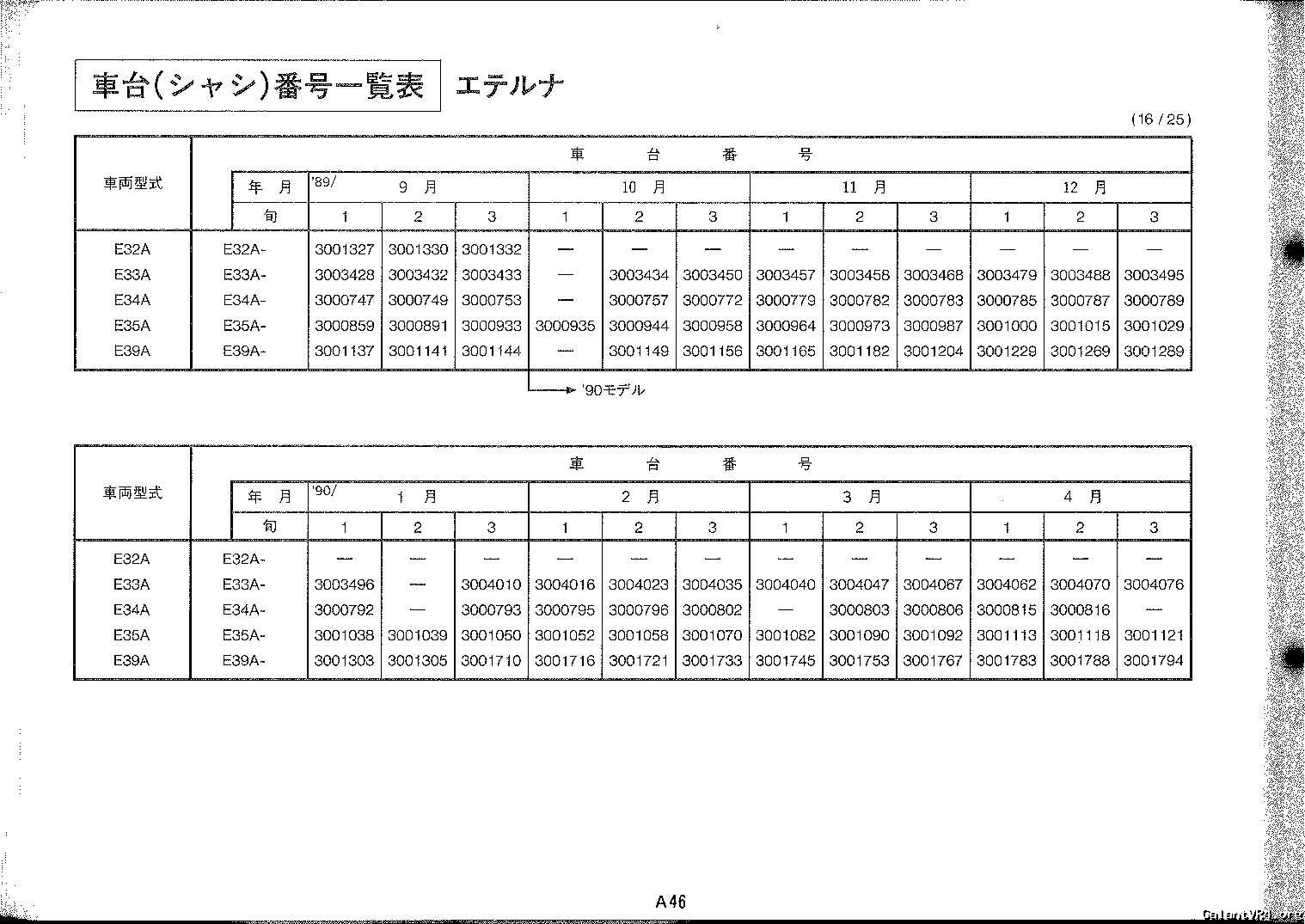

A44-A49 Eterna Vins by model by month

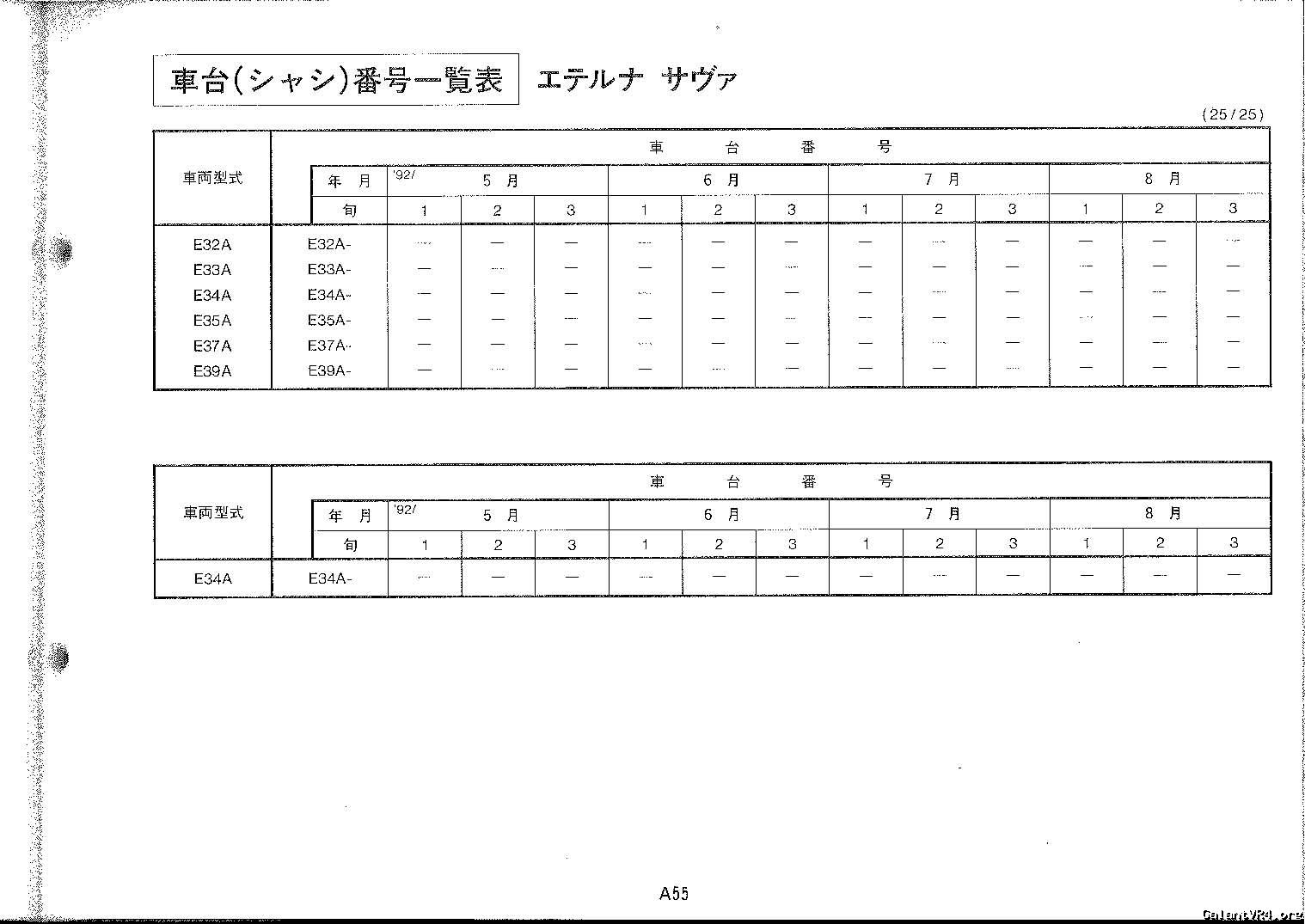

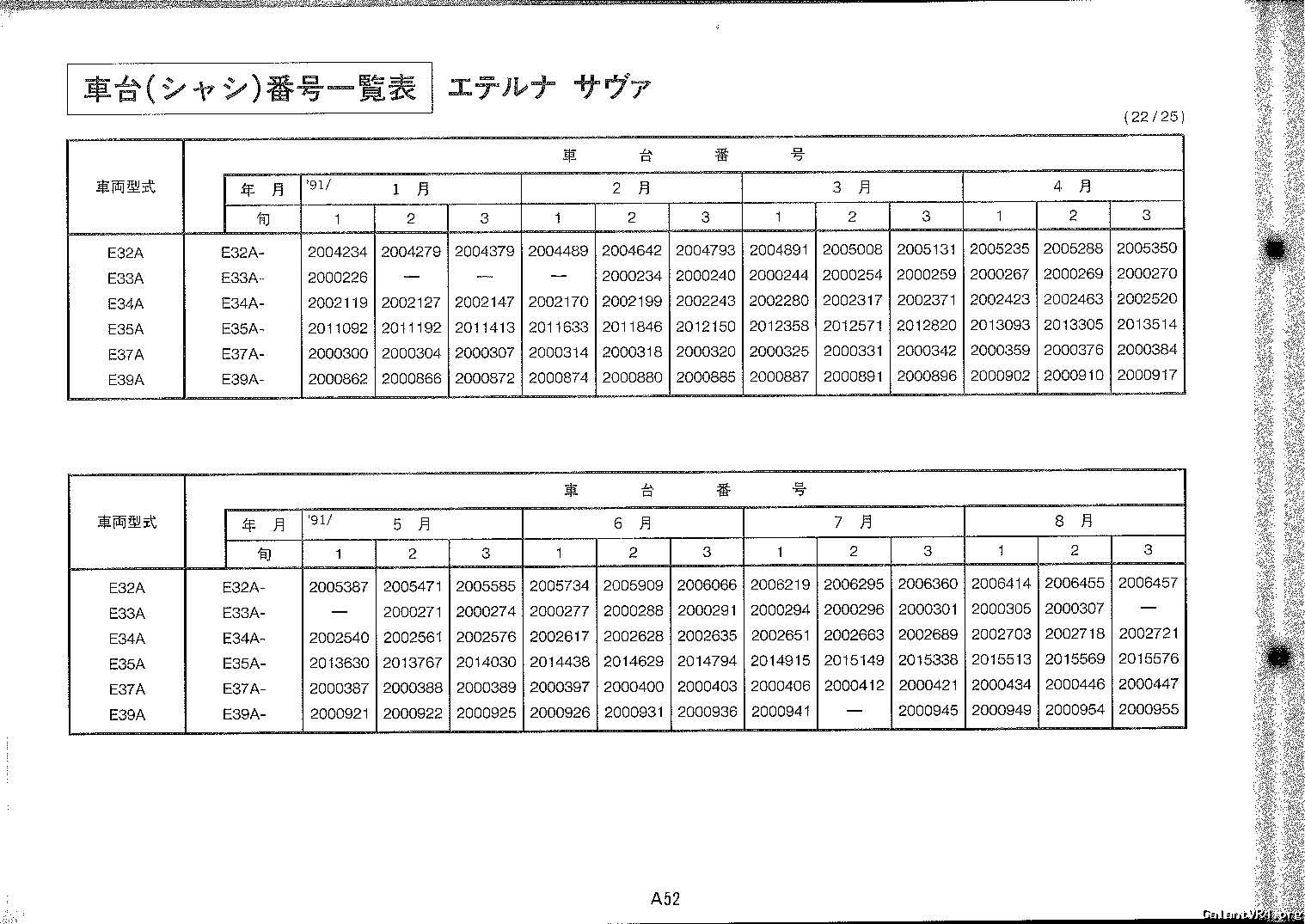

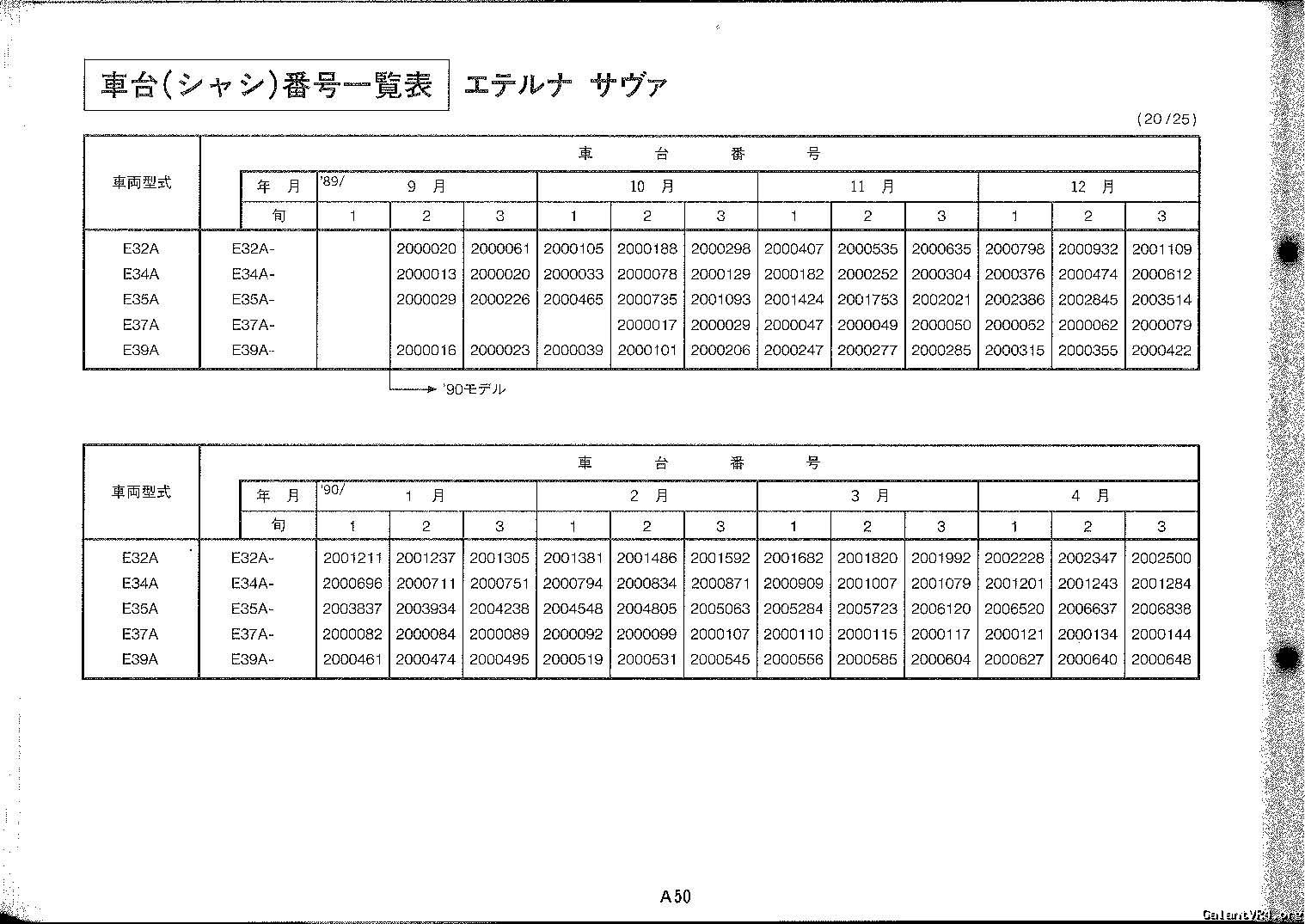

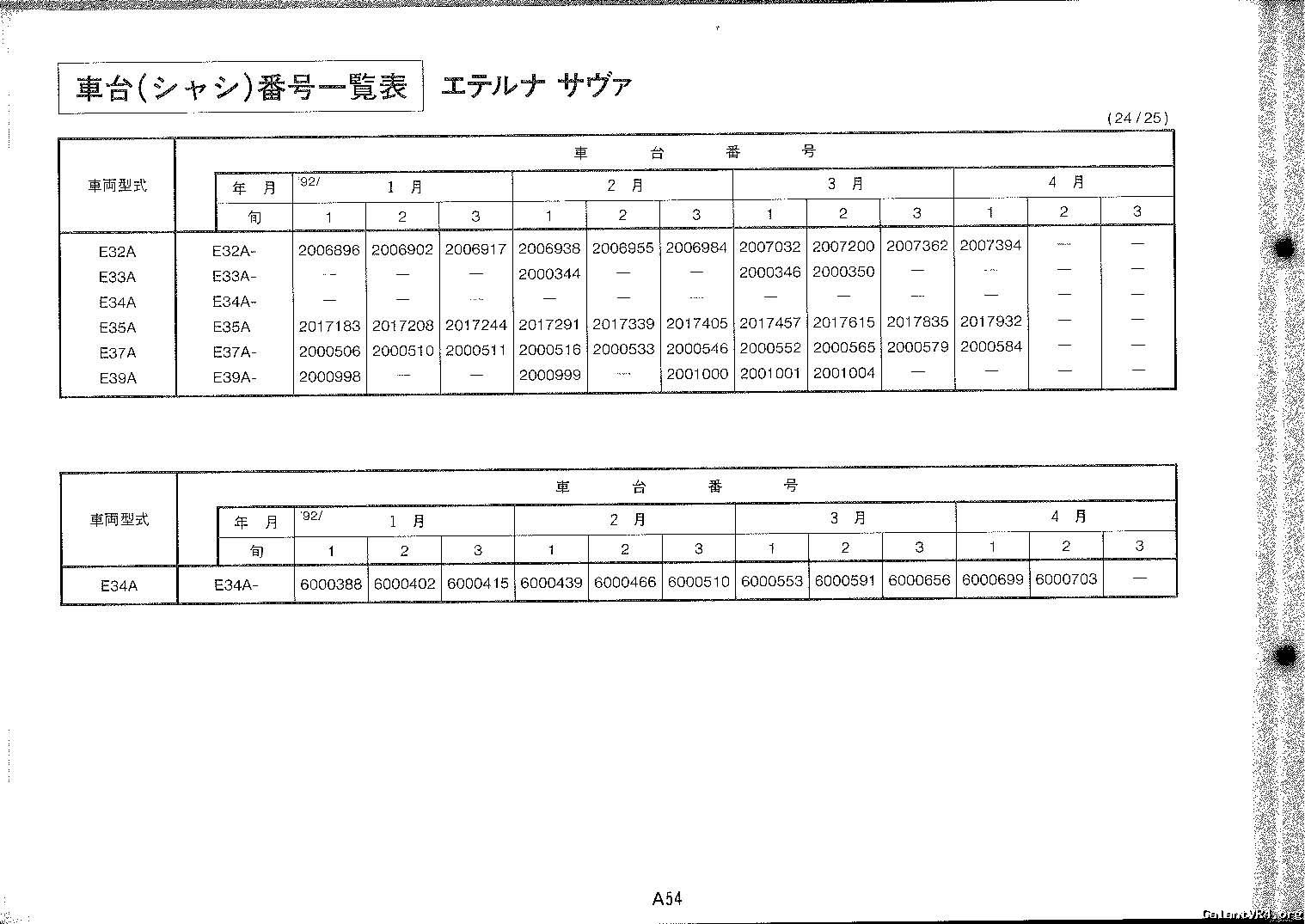

A50-A55 Eterna Sava vins by model by month

Enjoy!

Rich

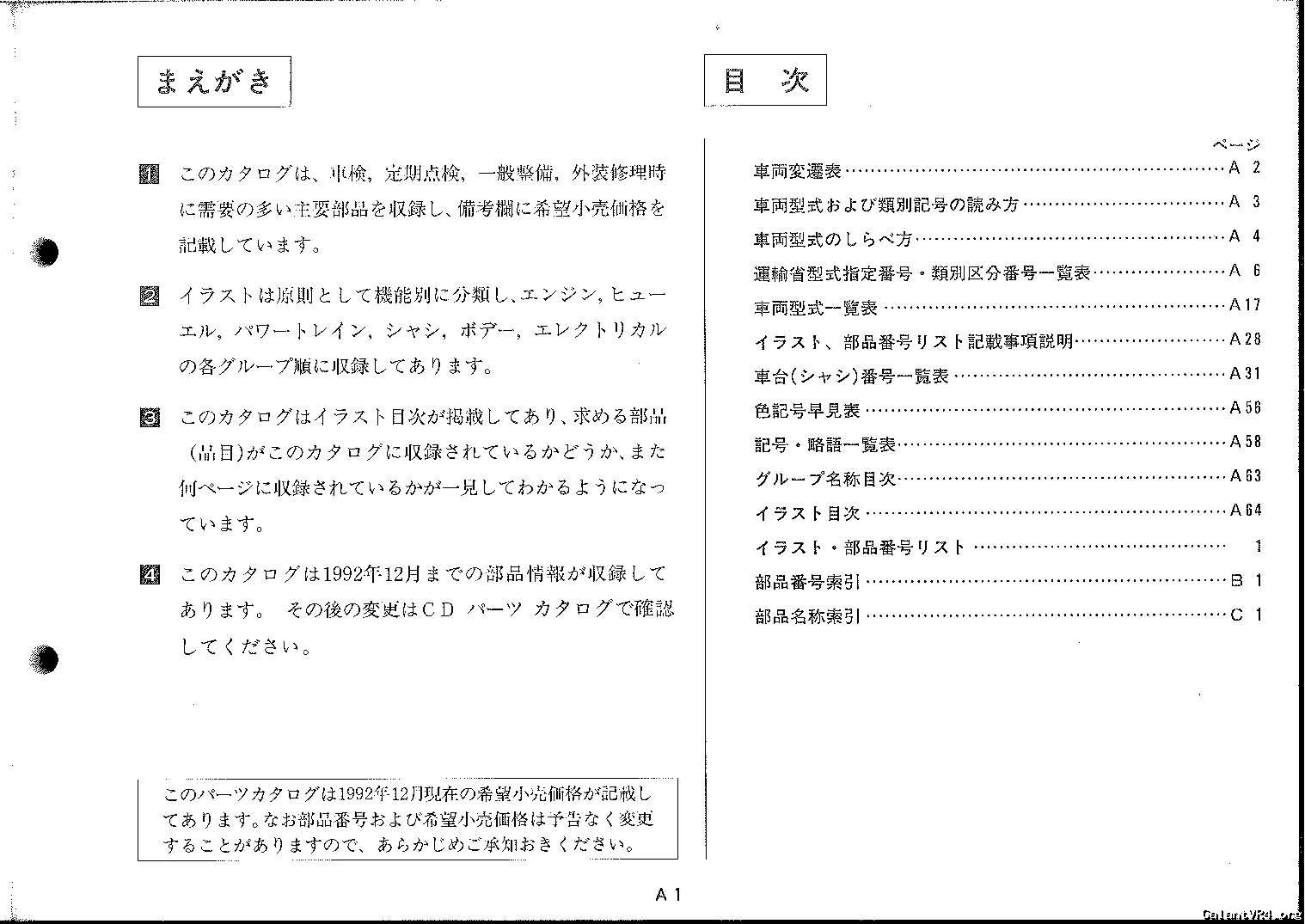

A1
A2
A3

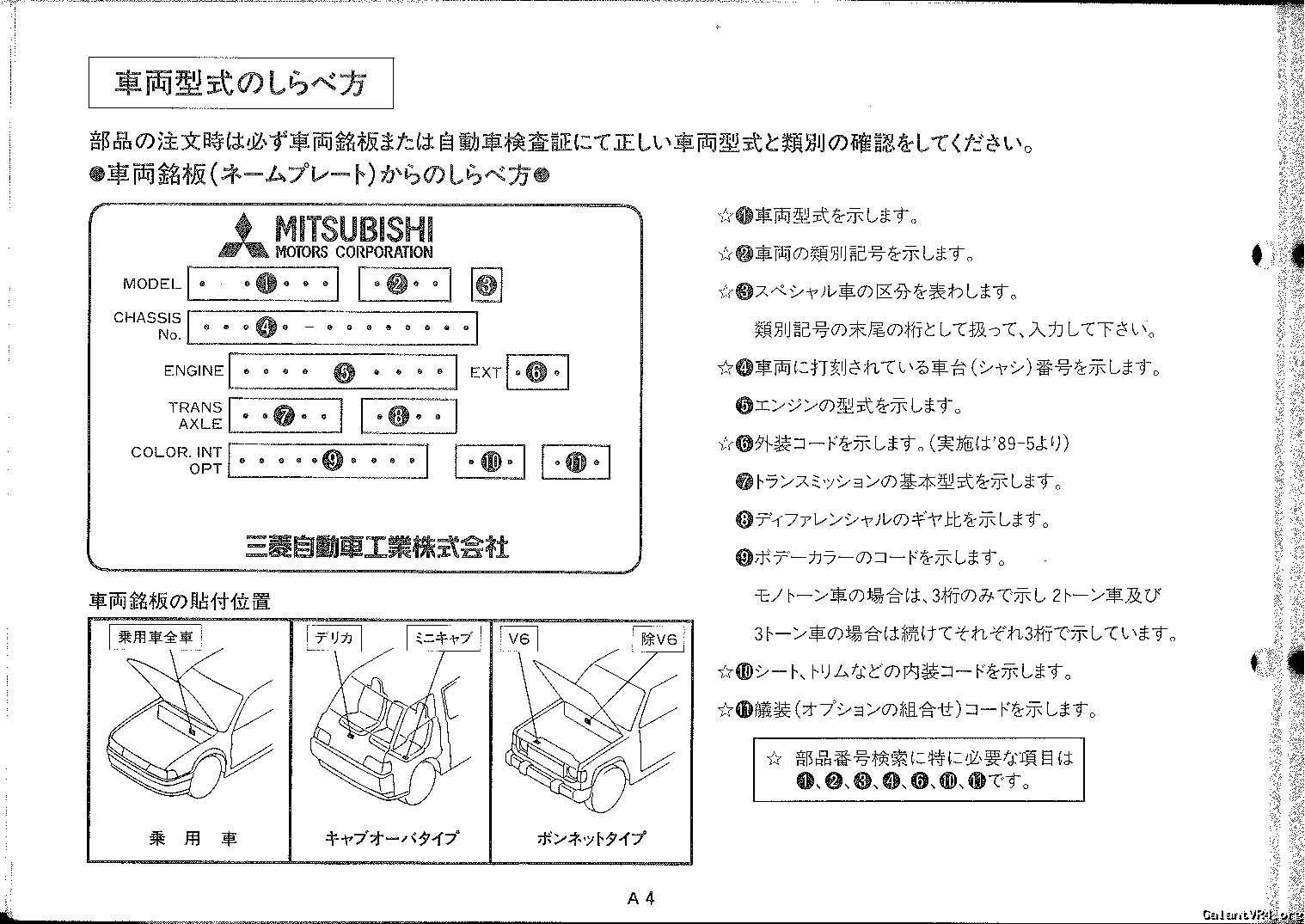

A4

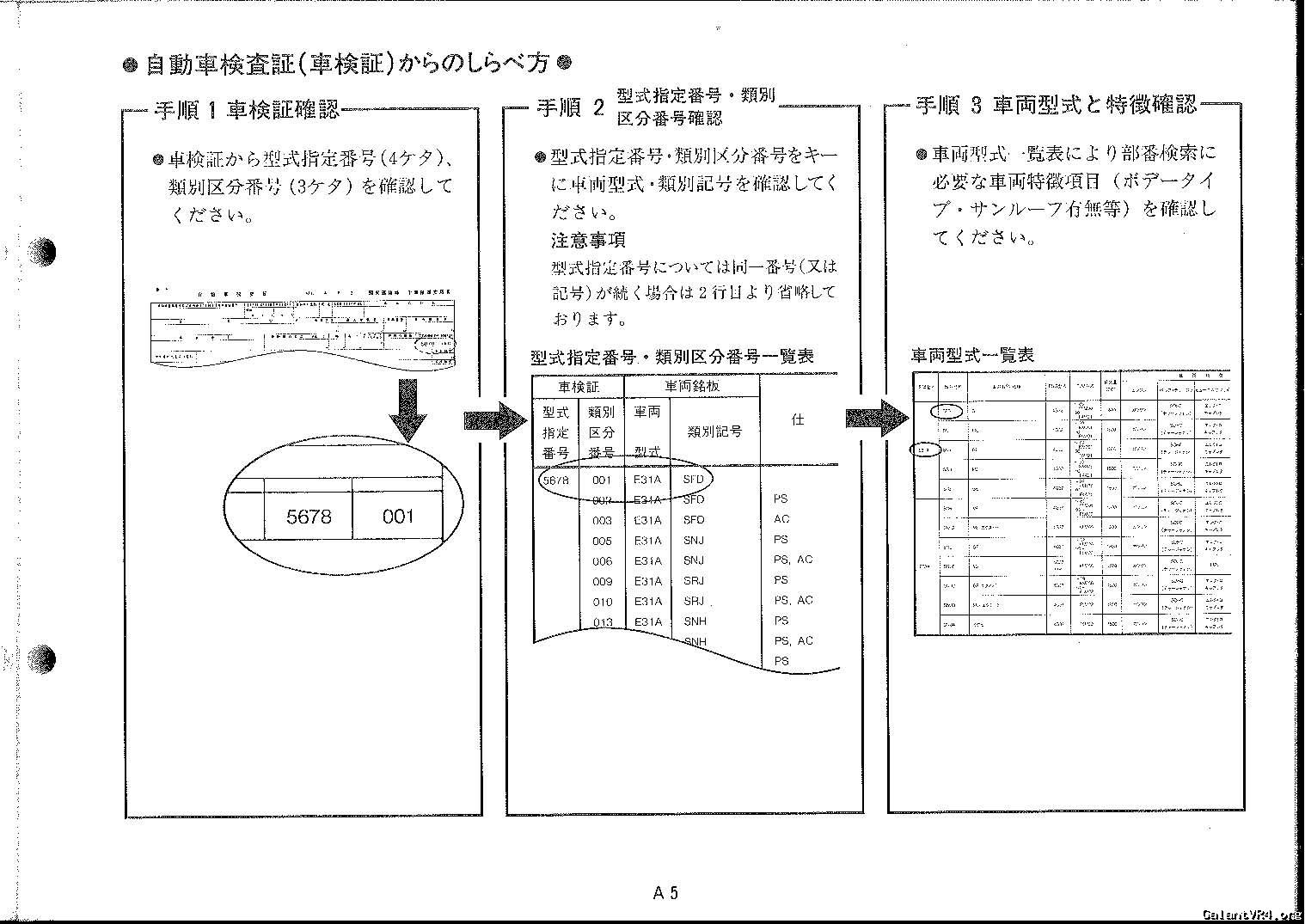

A5
A6
A7
A8



[misterfixit]

A9
A10
A11

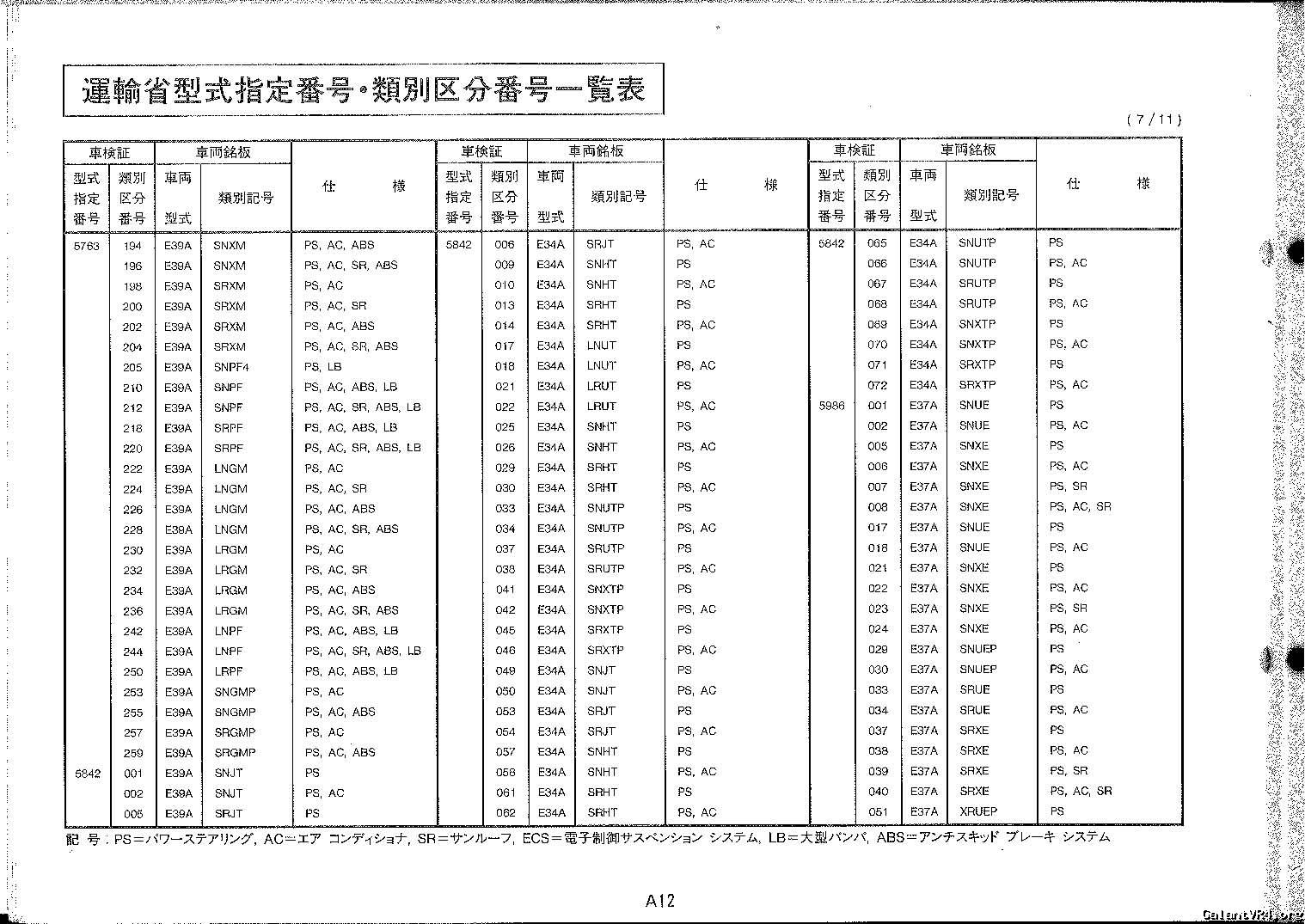

A12
A13

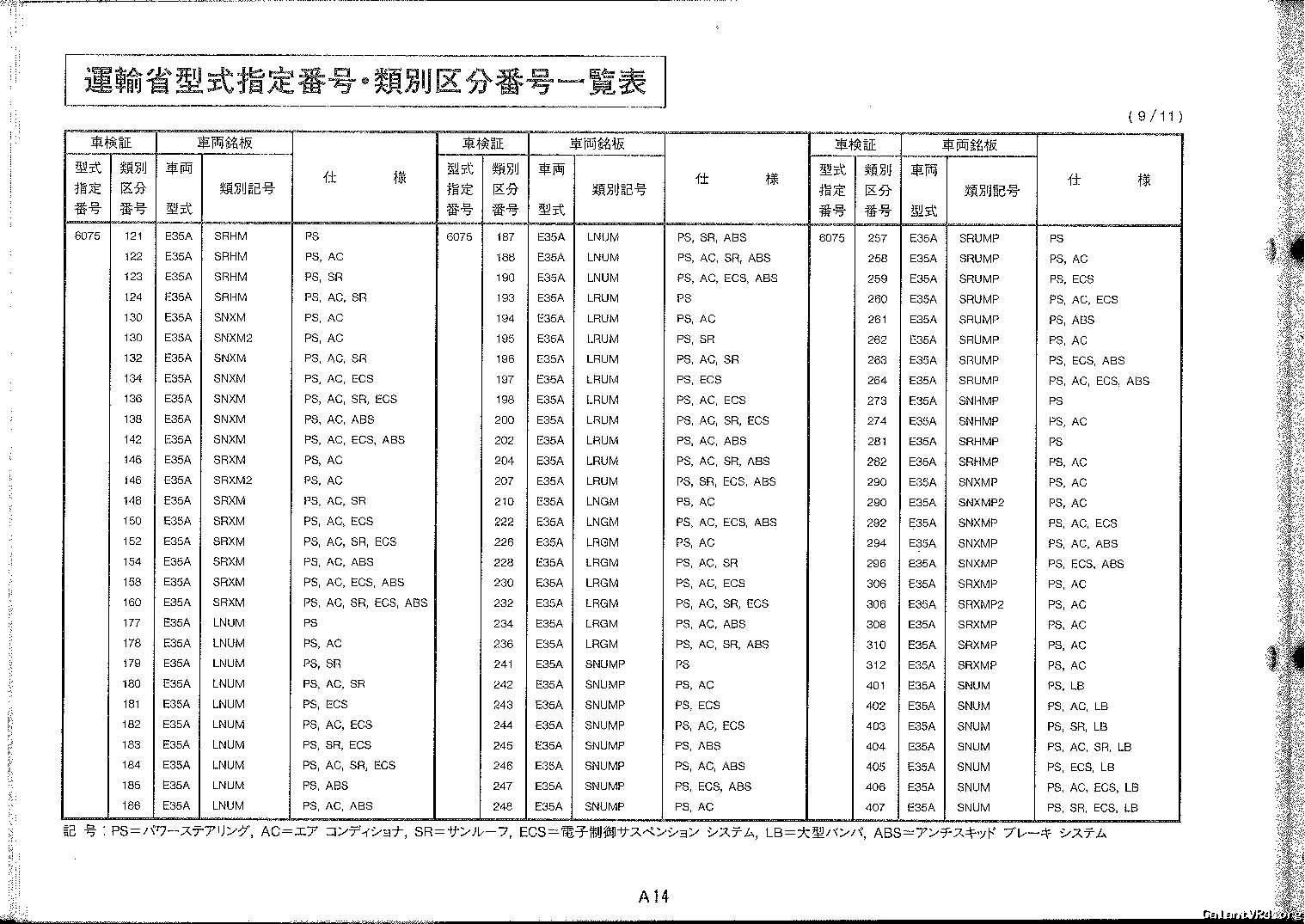

A14

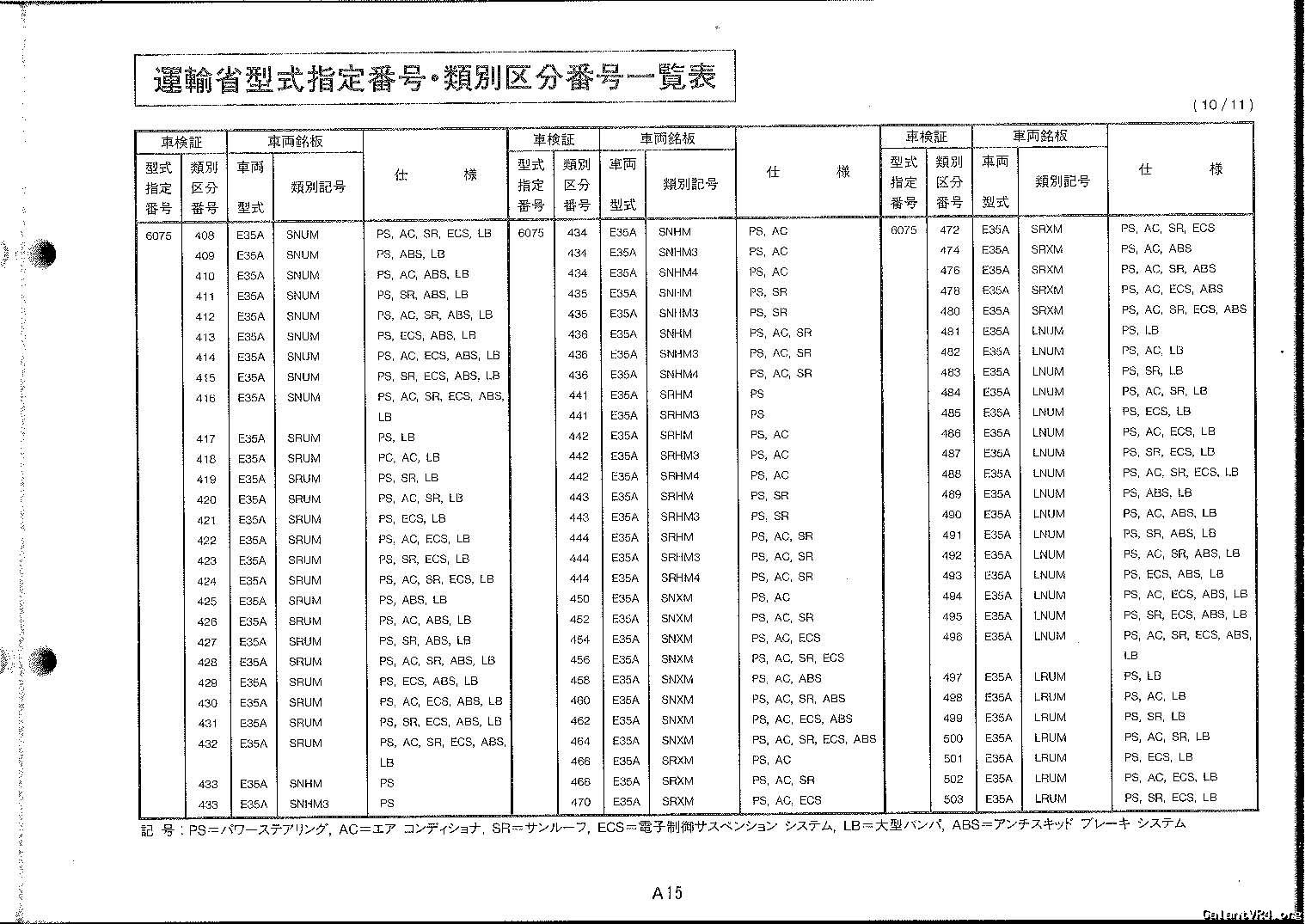

A15
A16

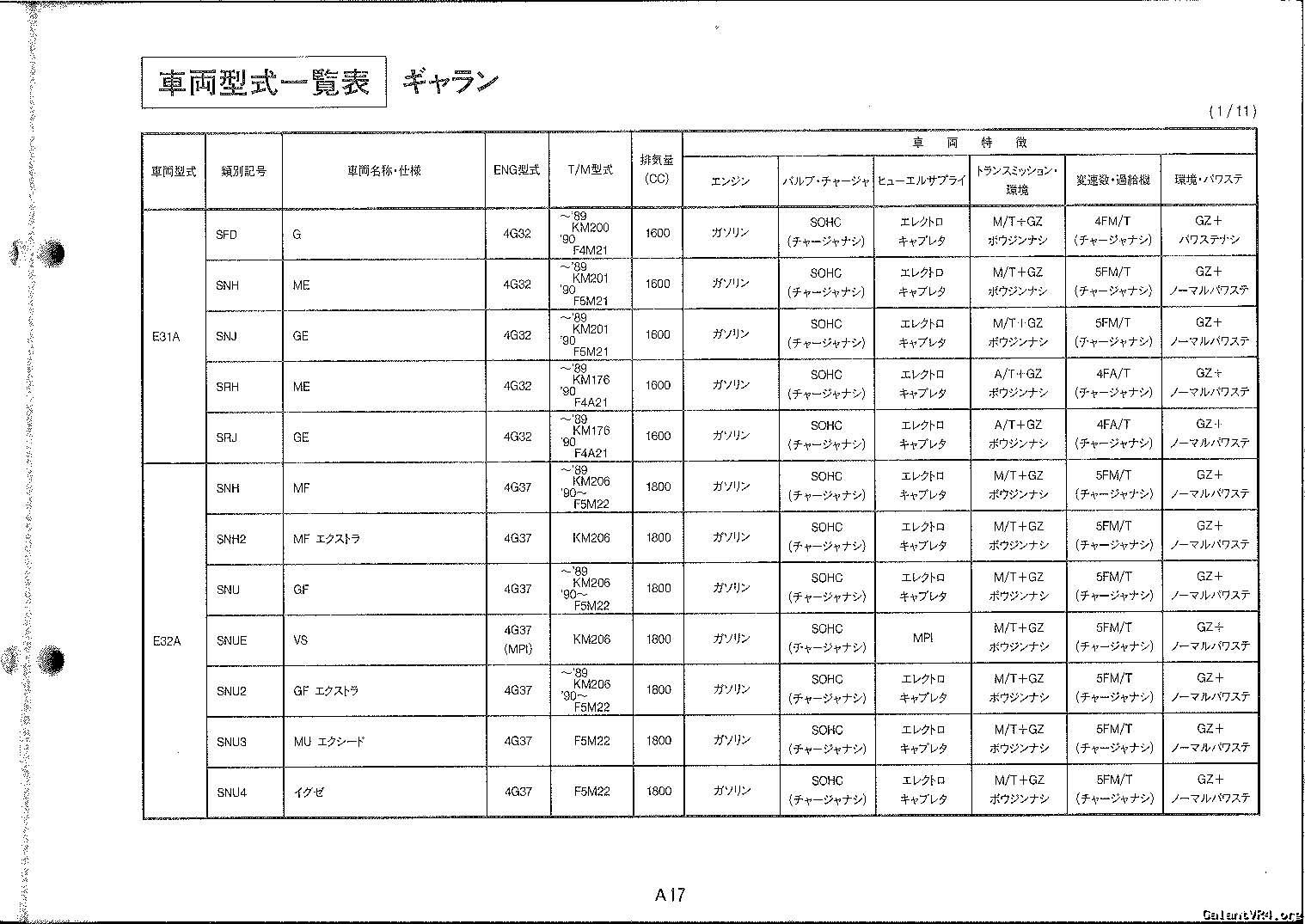

A17
A18
A19



[misterfixit]

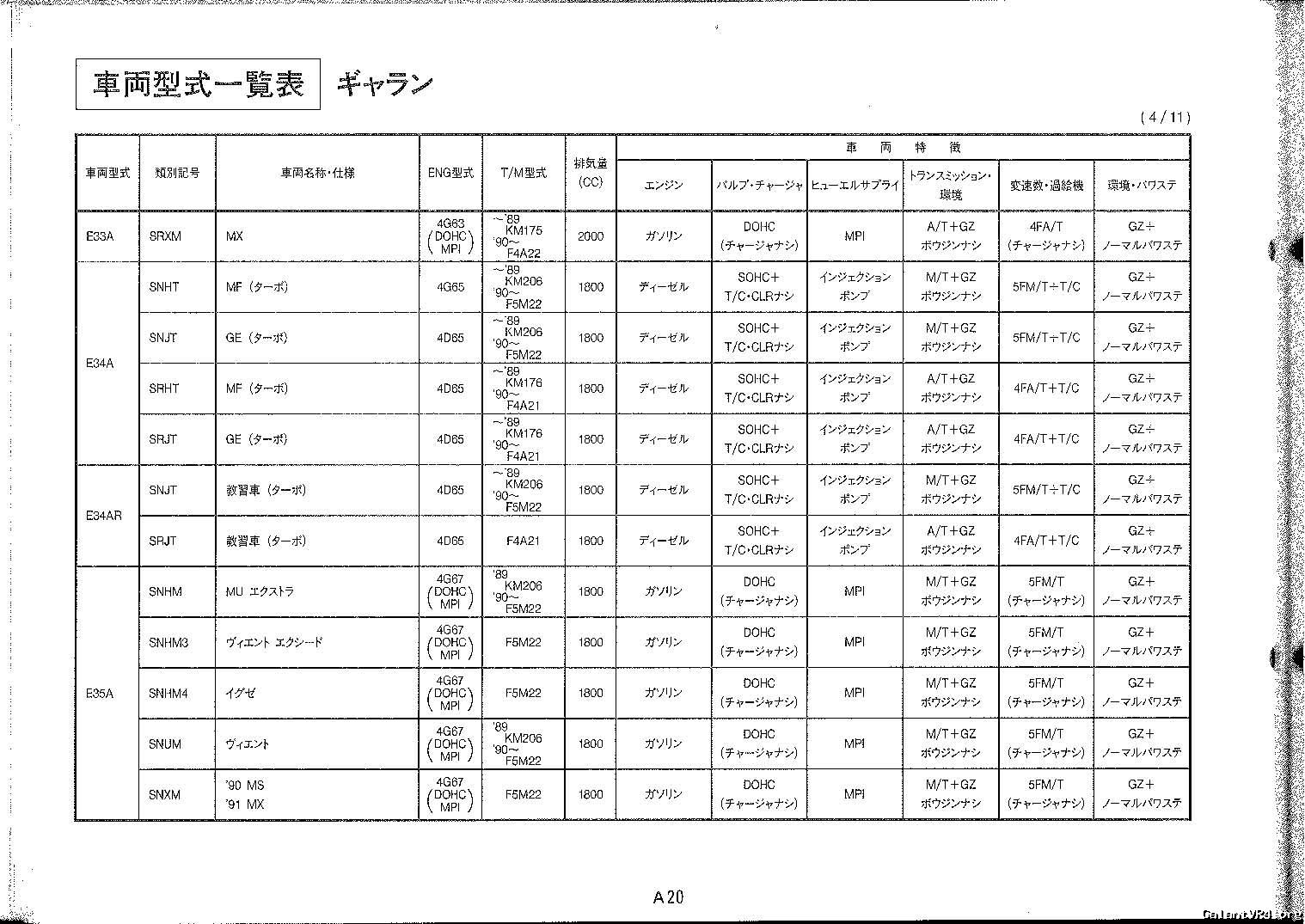

A20
A21
A22
A23
A24
A25

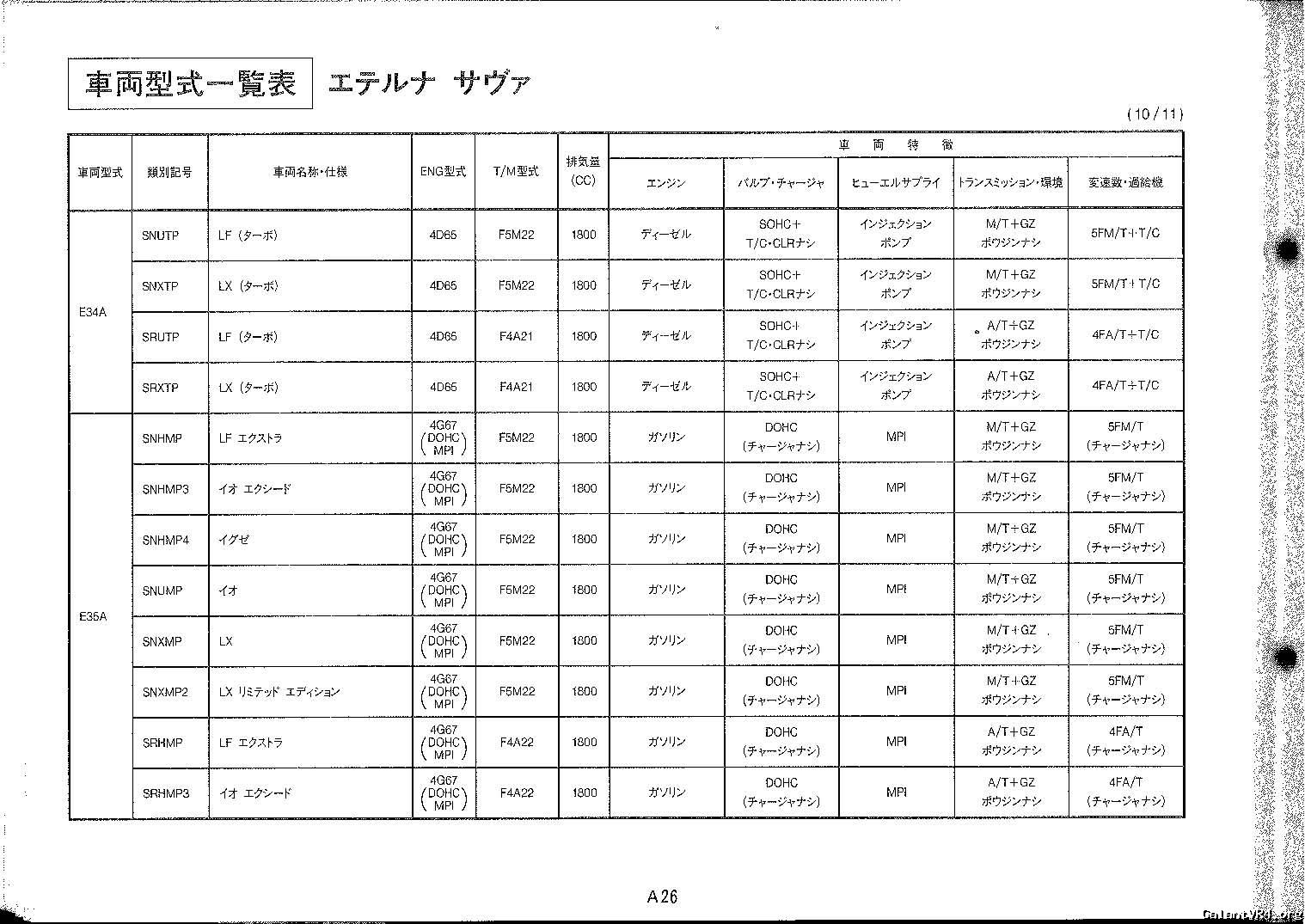

A26

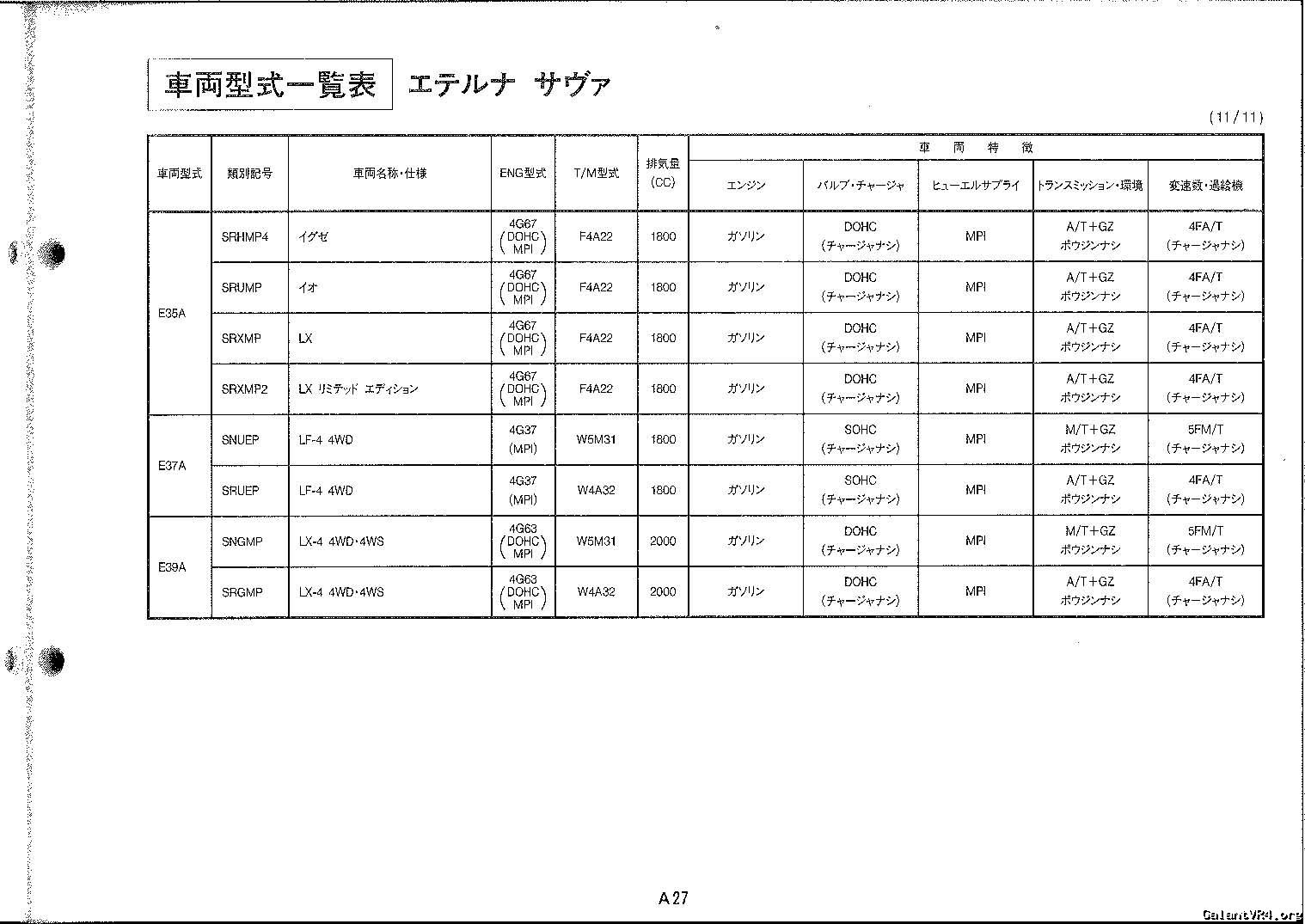

A27

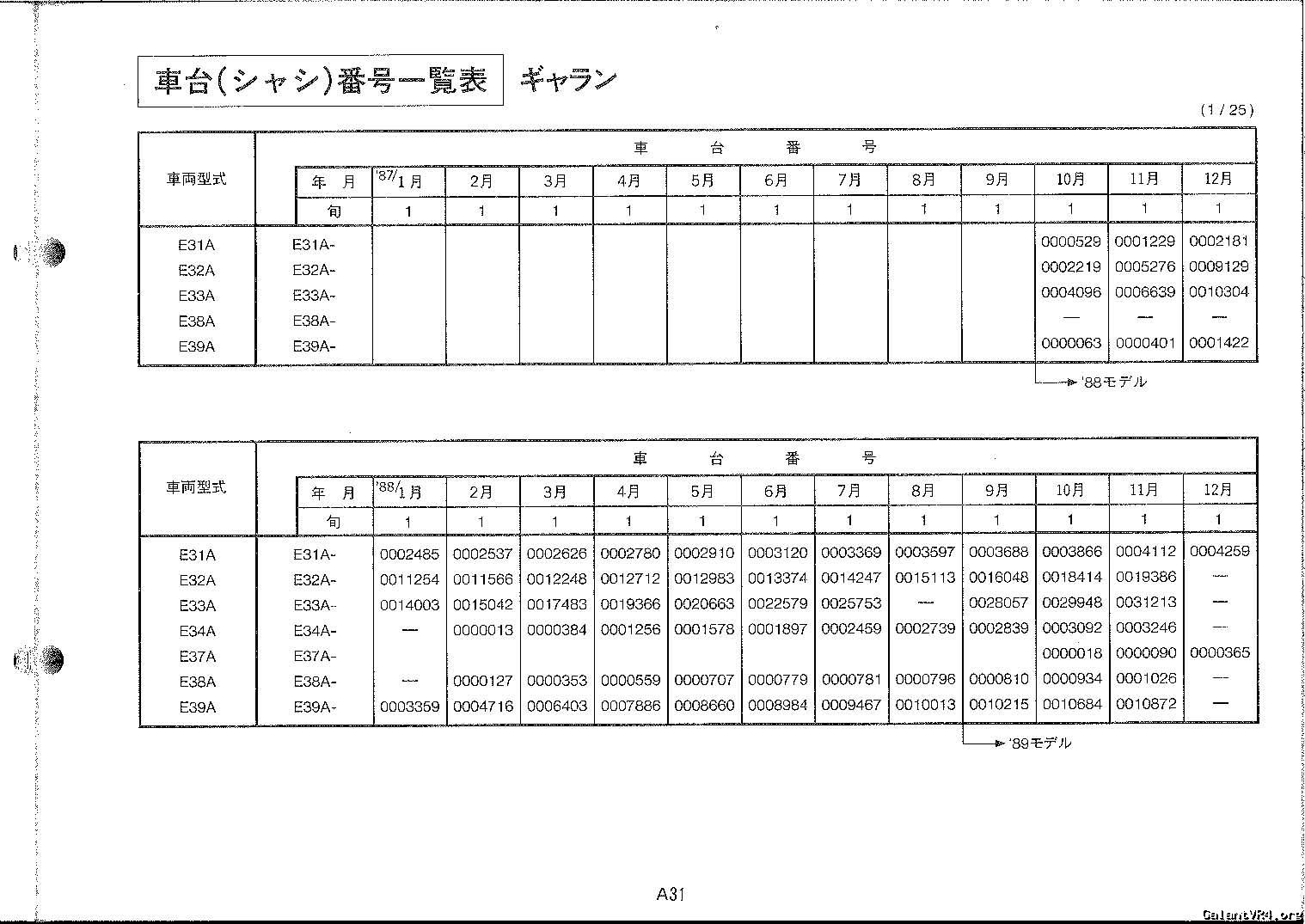

A31
A32



[misterfixit]

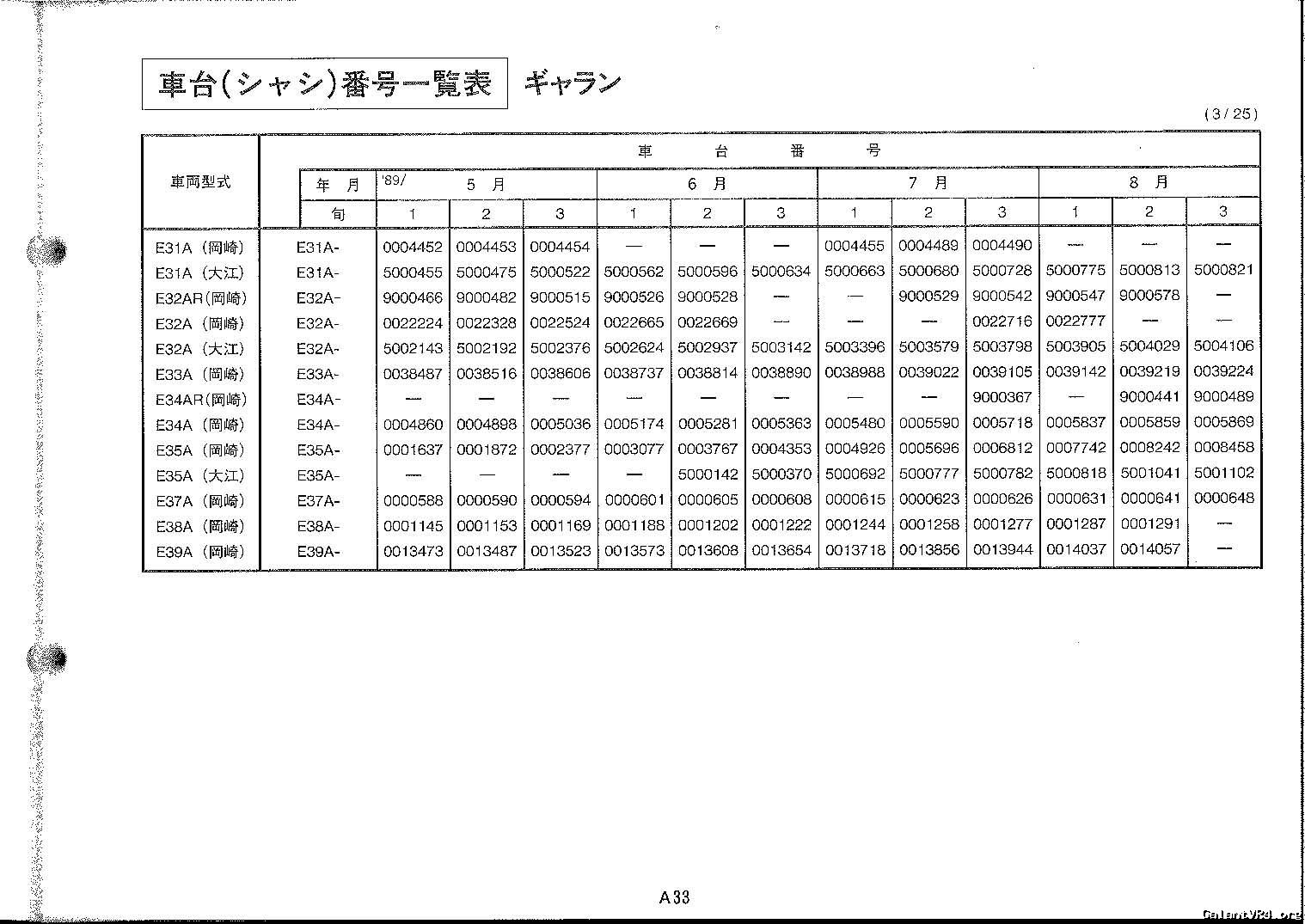

A33

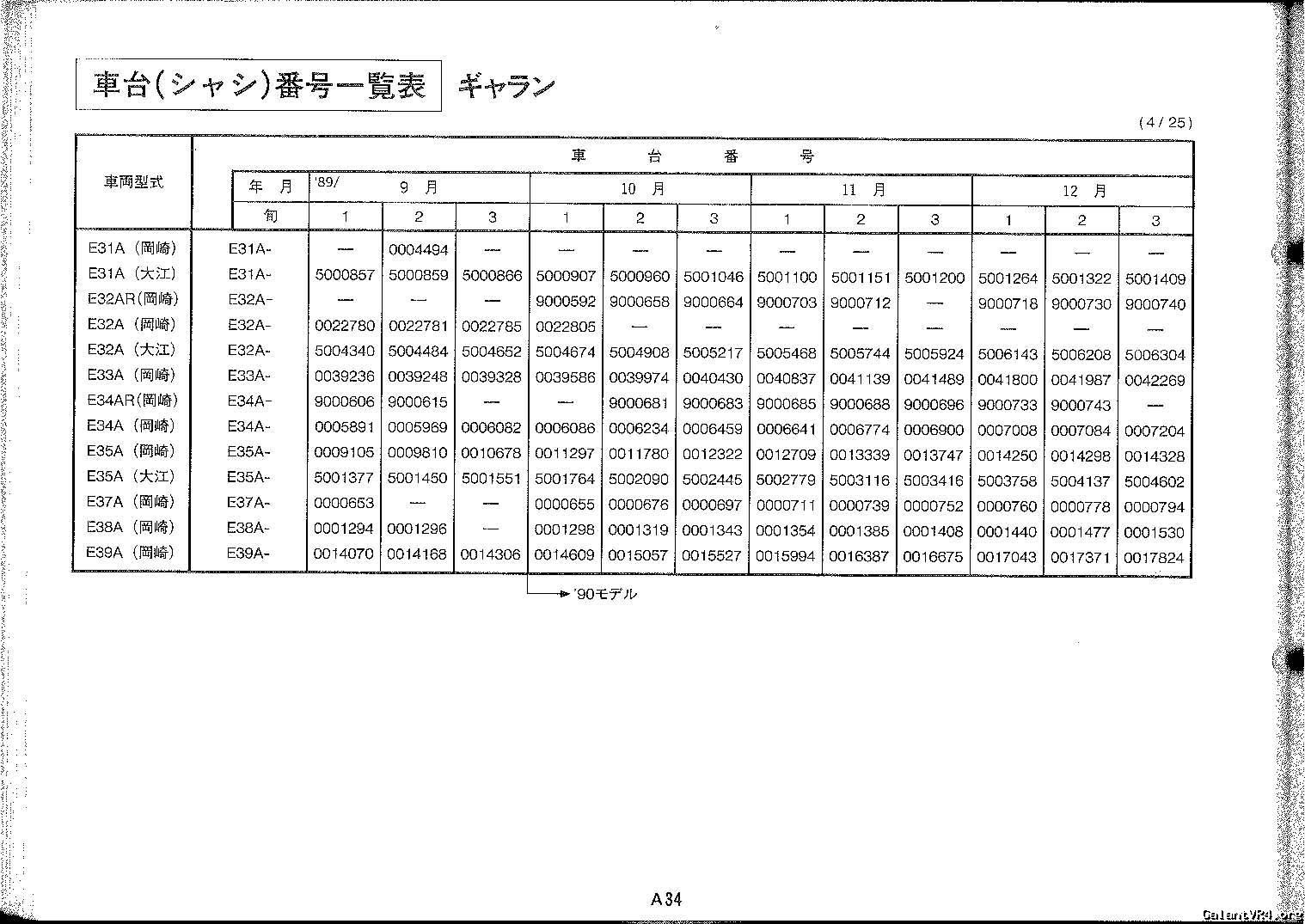

A34

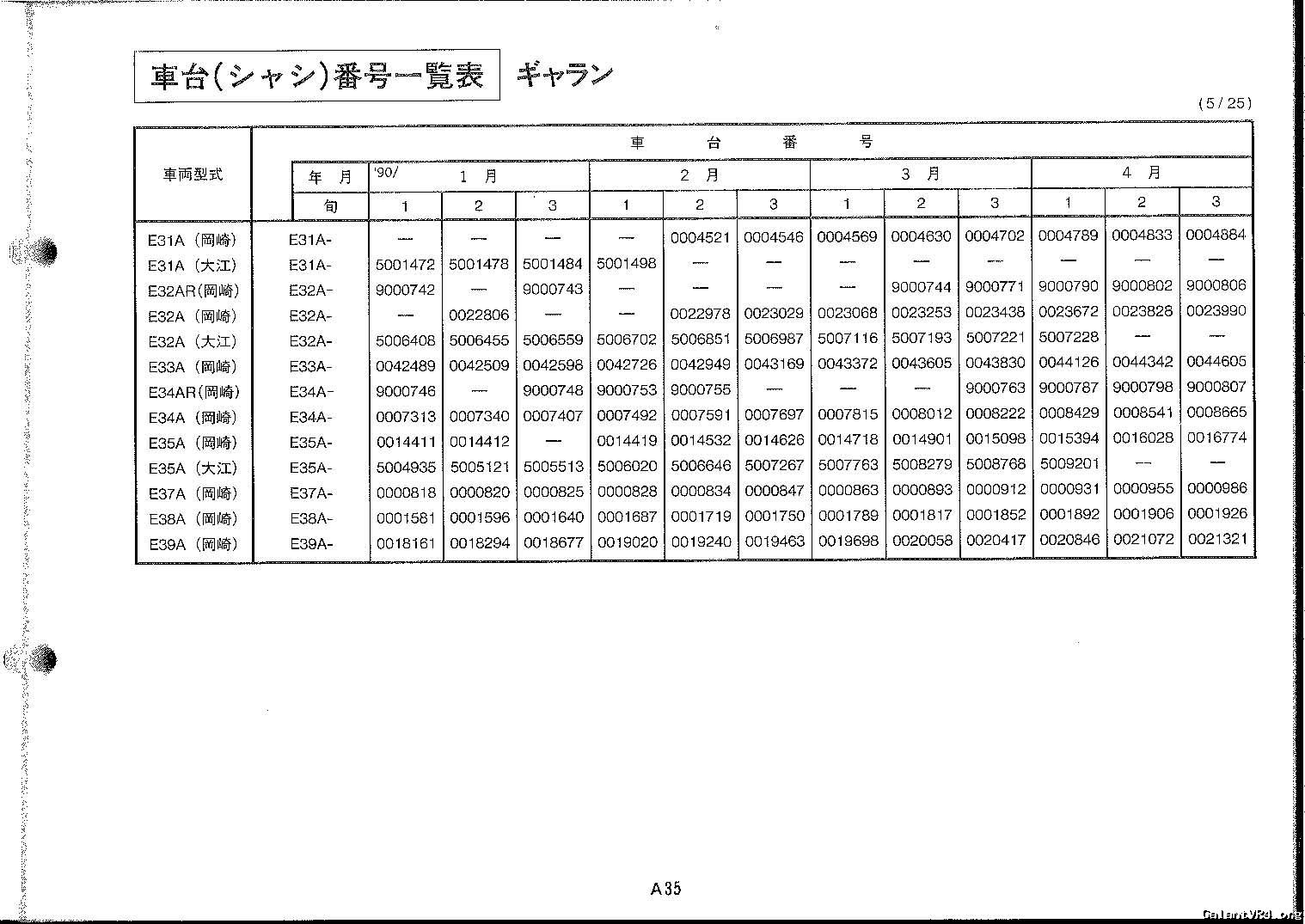

A35
A36
A37
A38

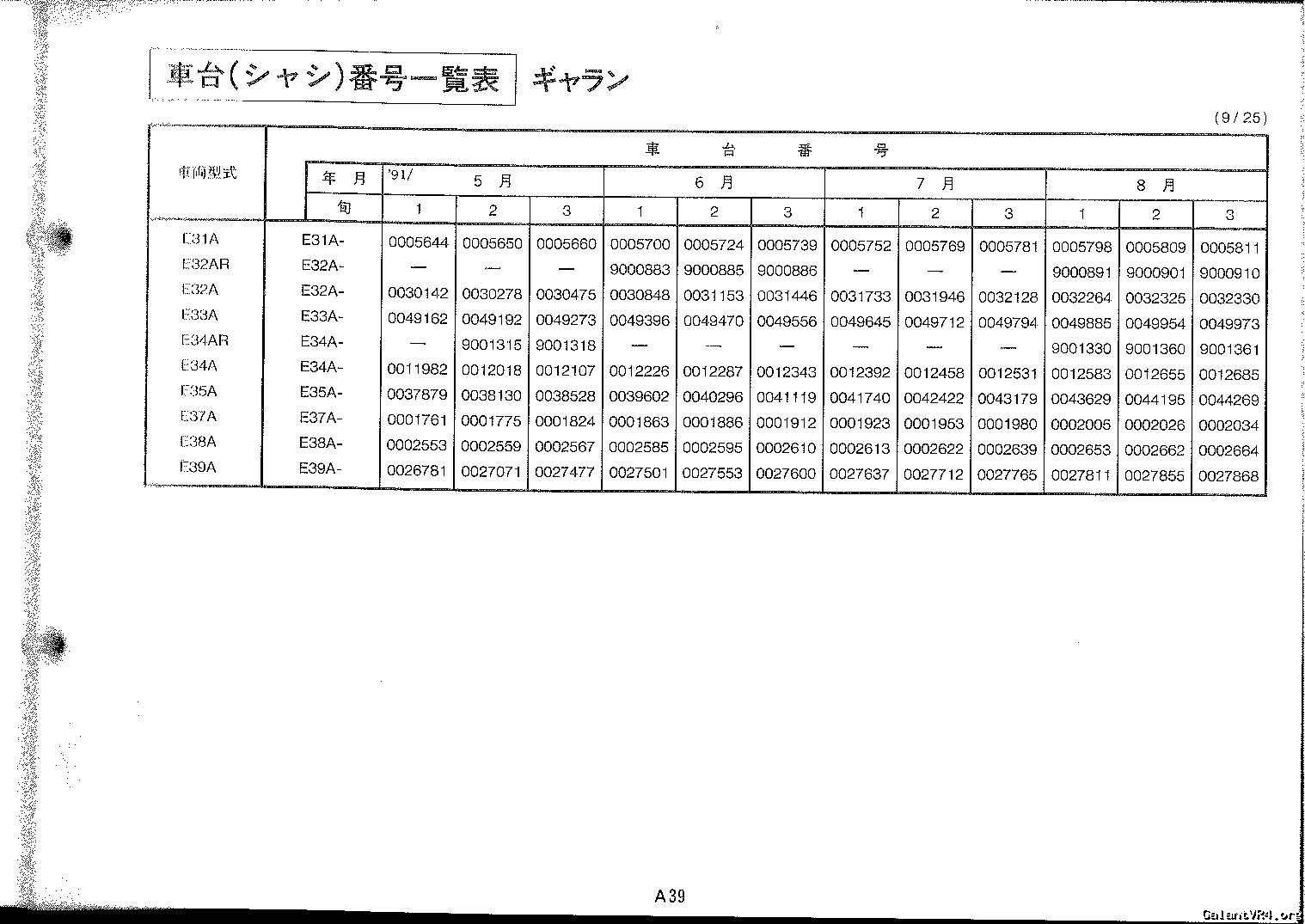

A39
A40

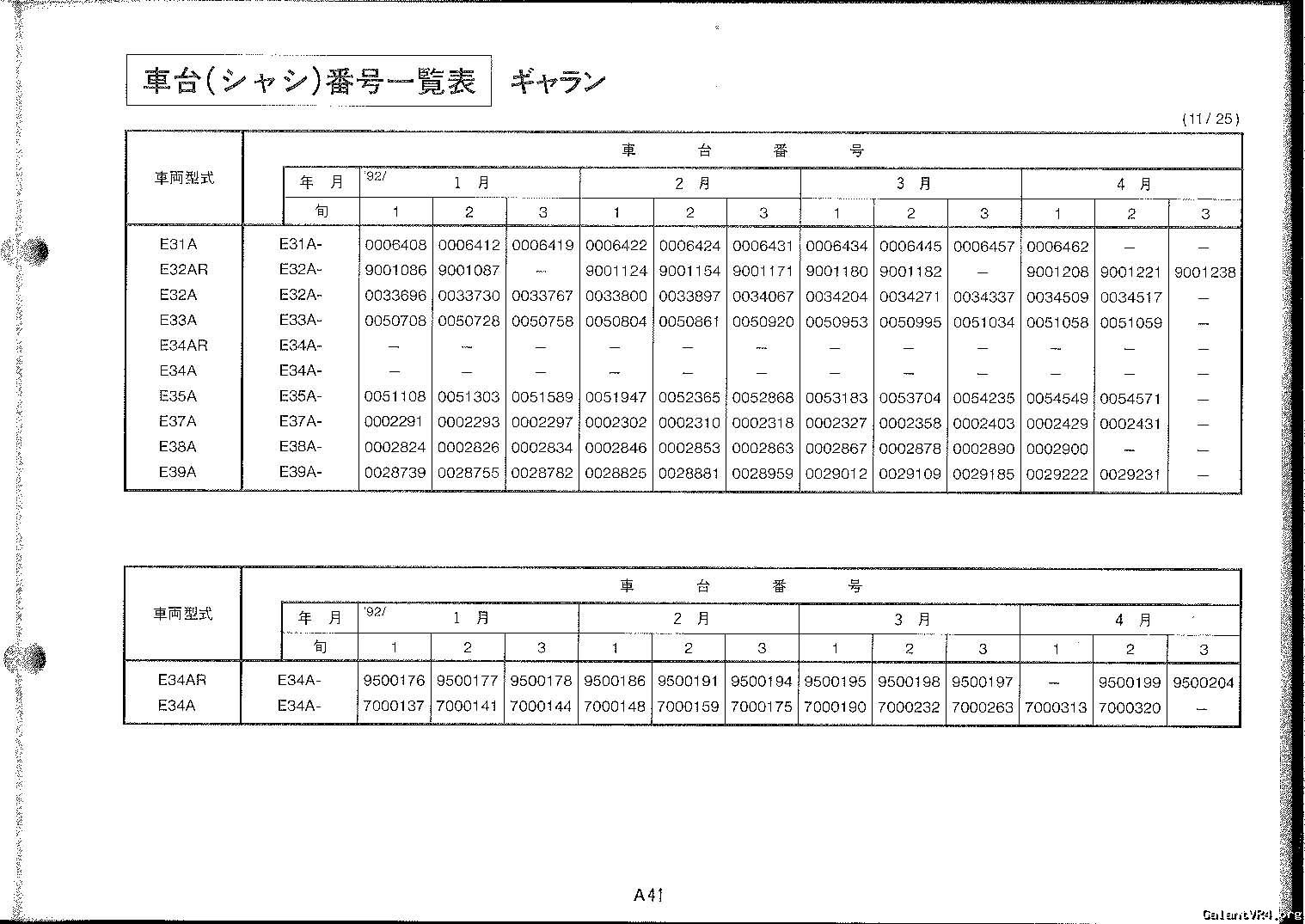

A41
A42



[misterfixit]

A43
A44

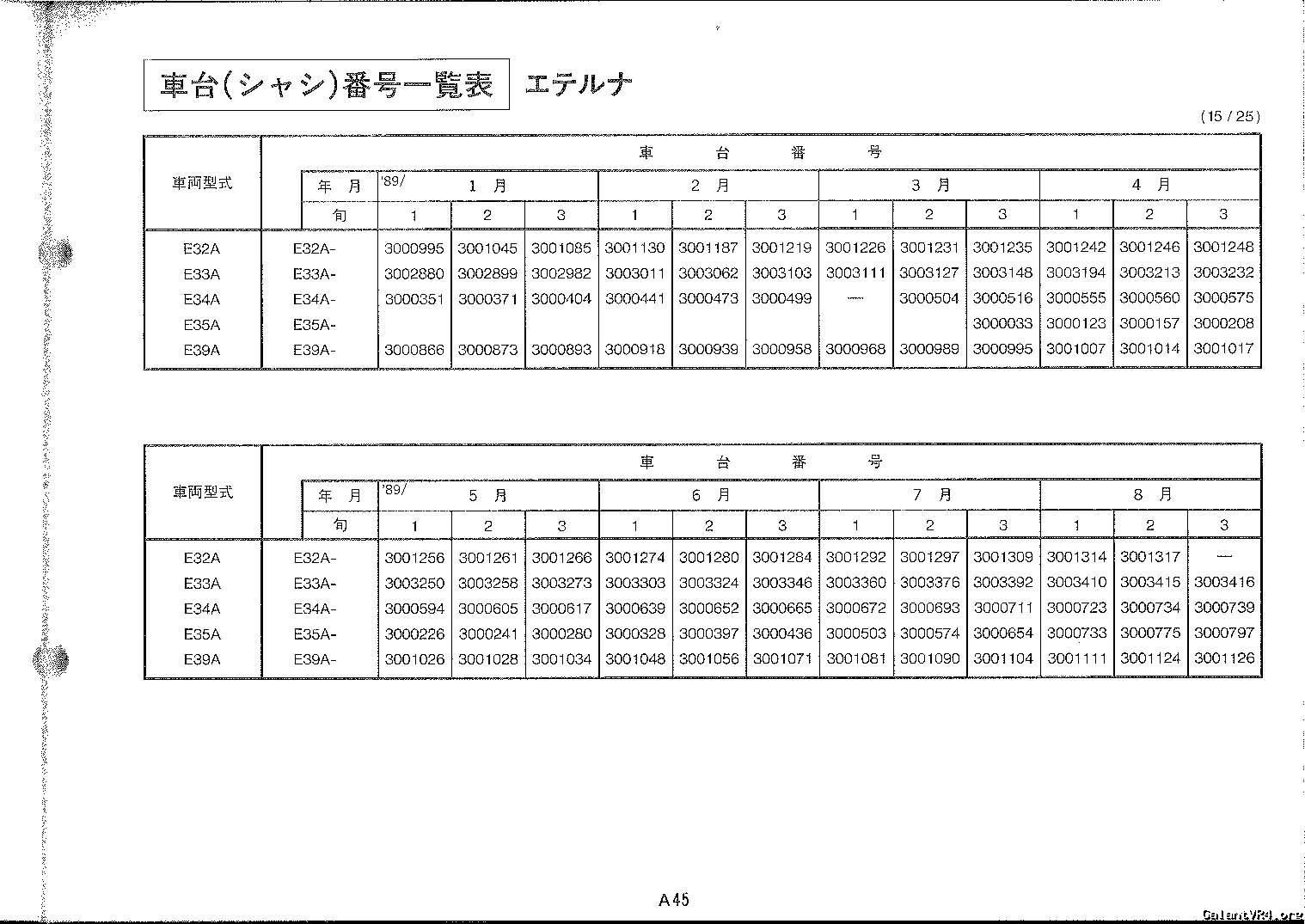

A45
A46

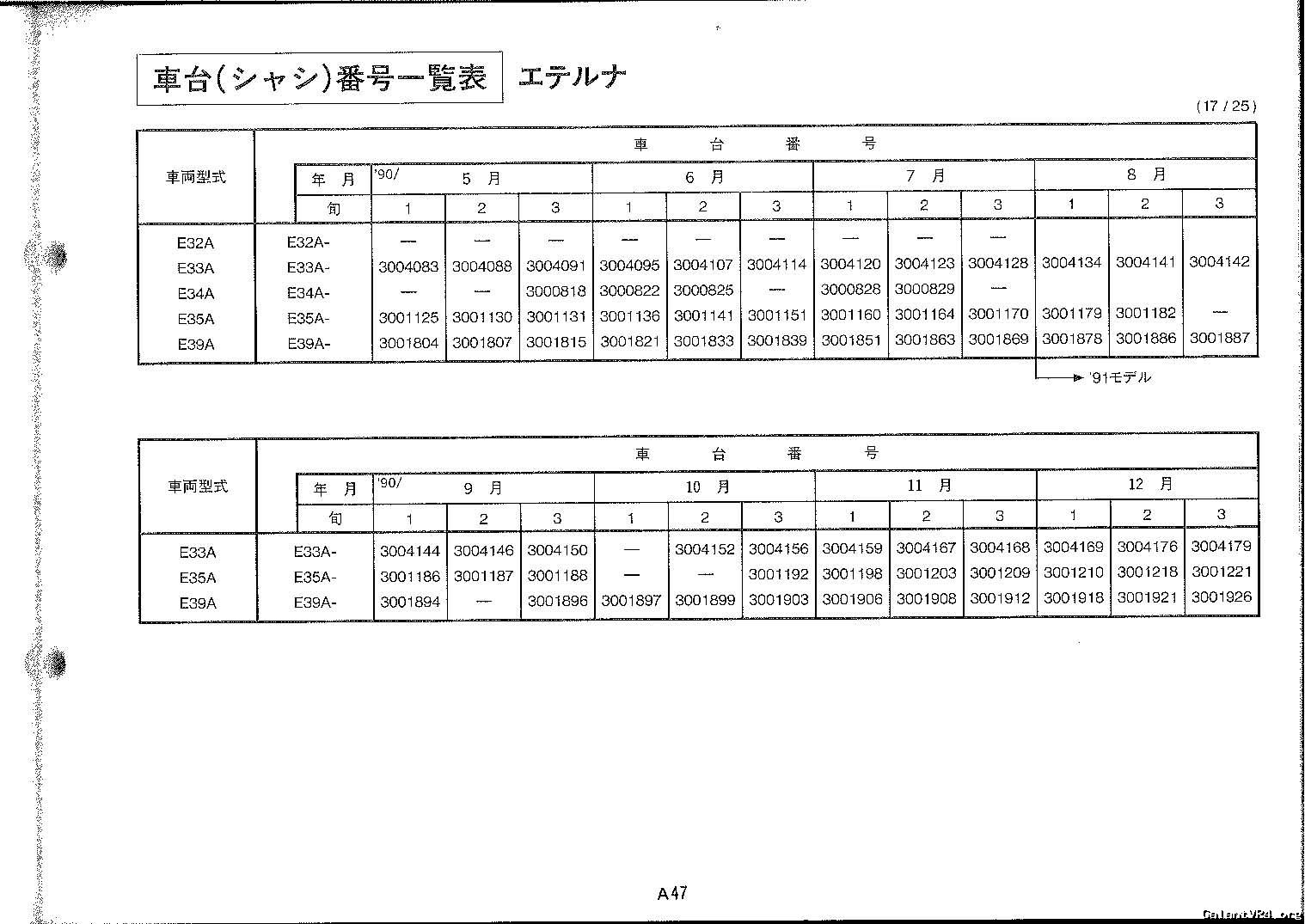

A47
A48

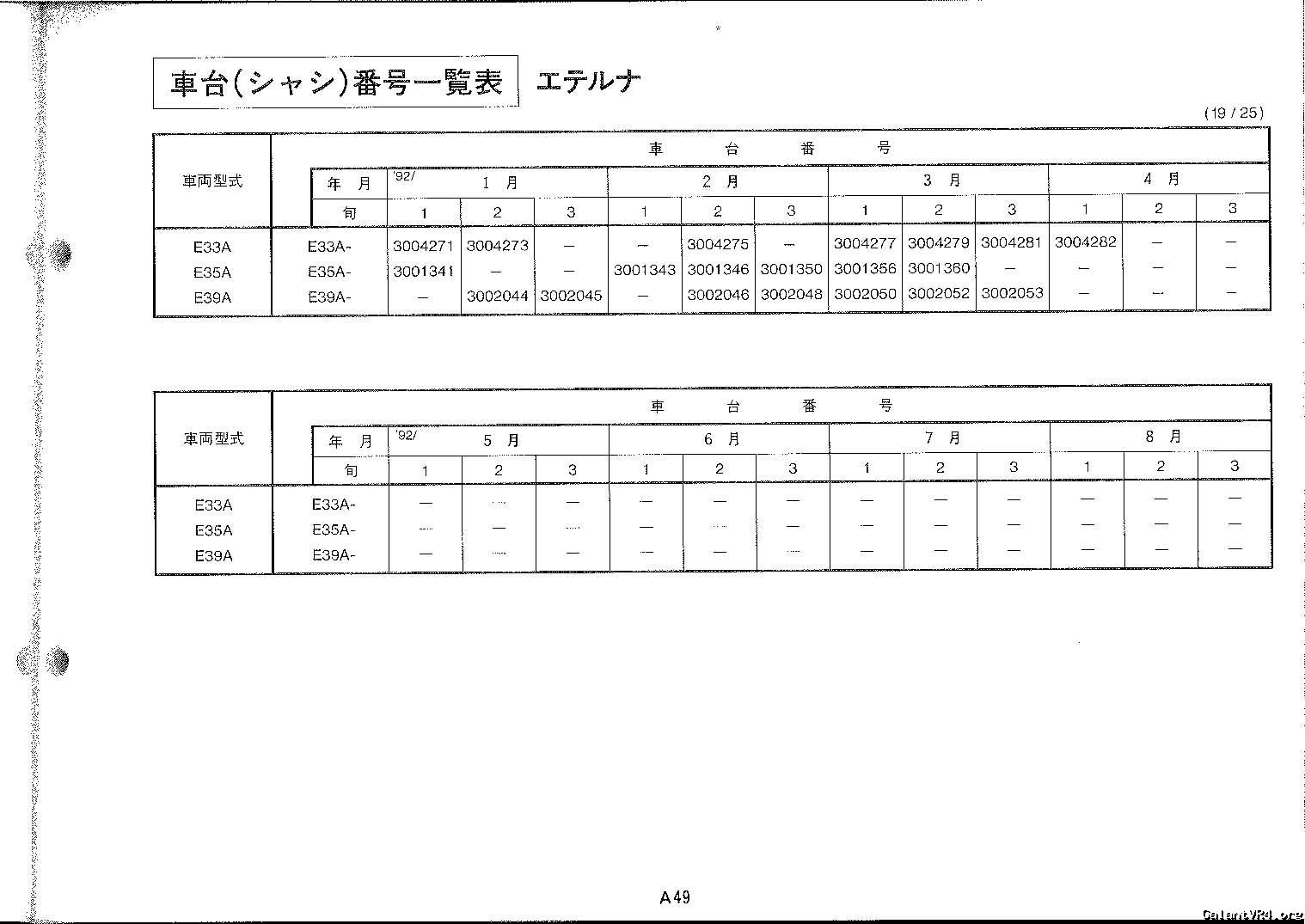

A49
A50

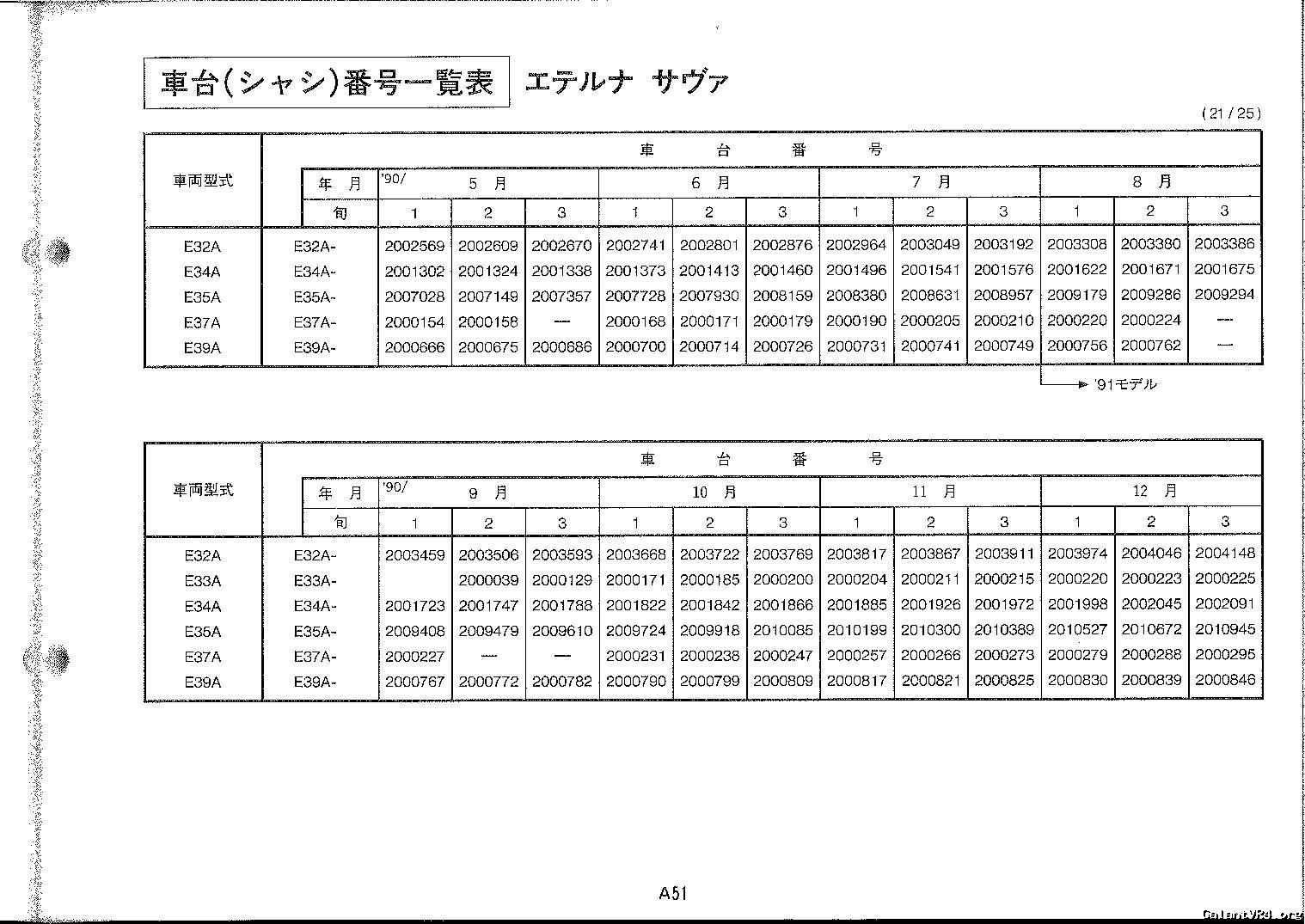

A51
A52



[misterfixit]

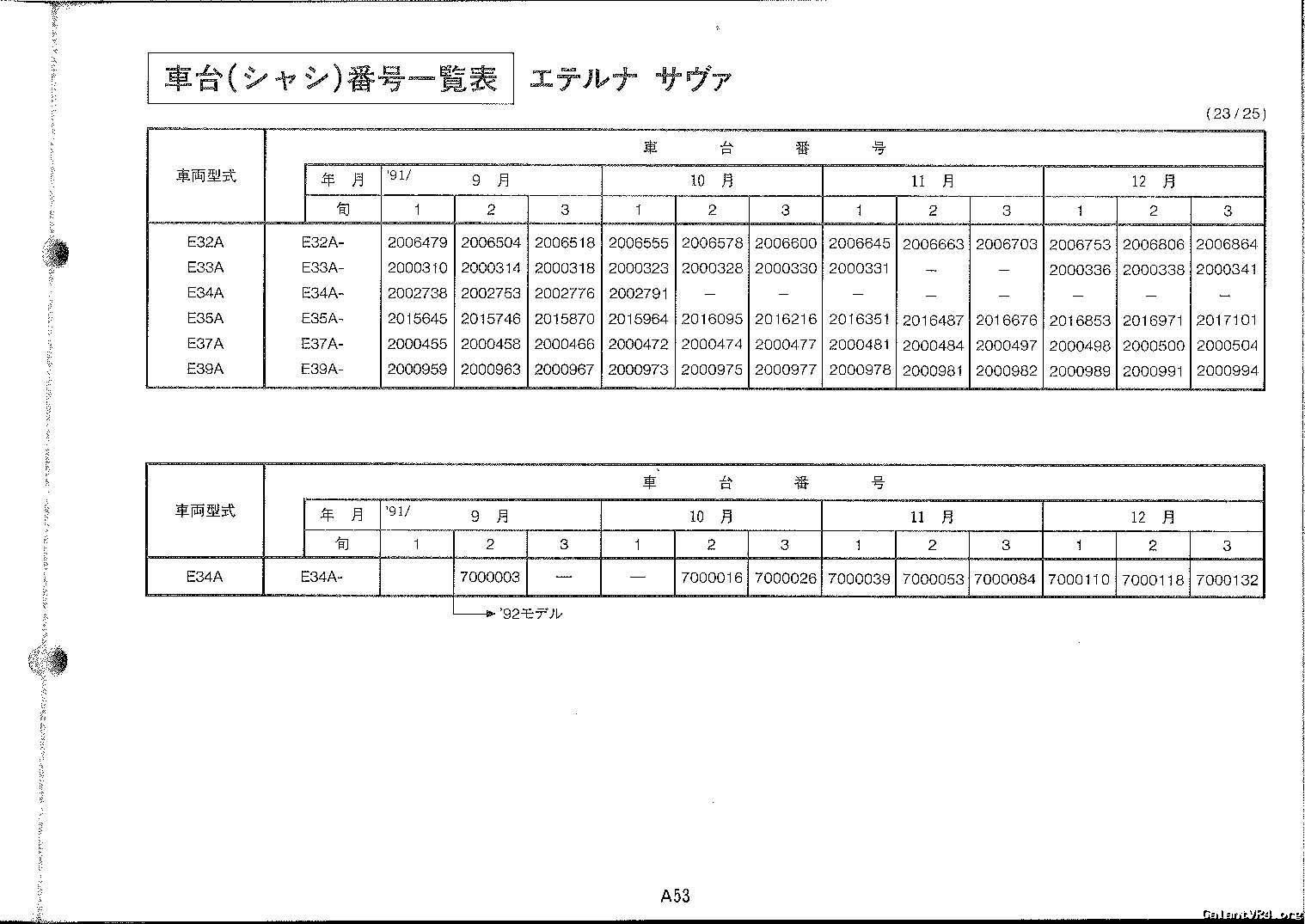

A53
A54
A55


Hope this proves ueful /ubbthreads/images/graemlins/wink.gif



[RedTwo]

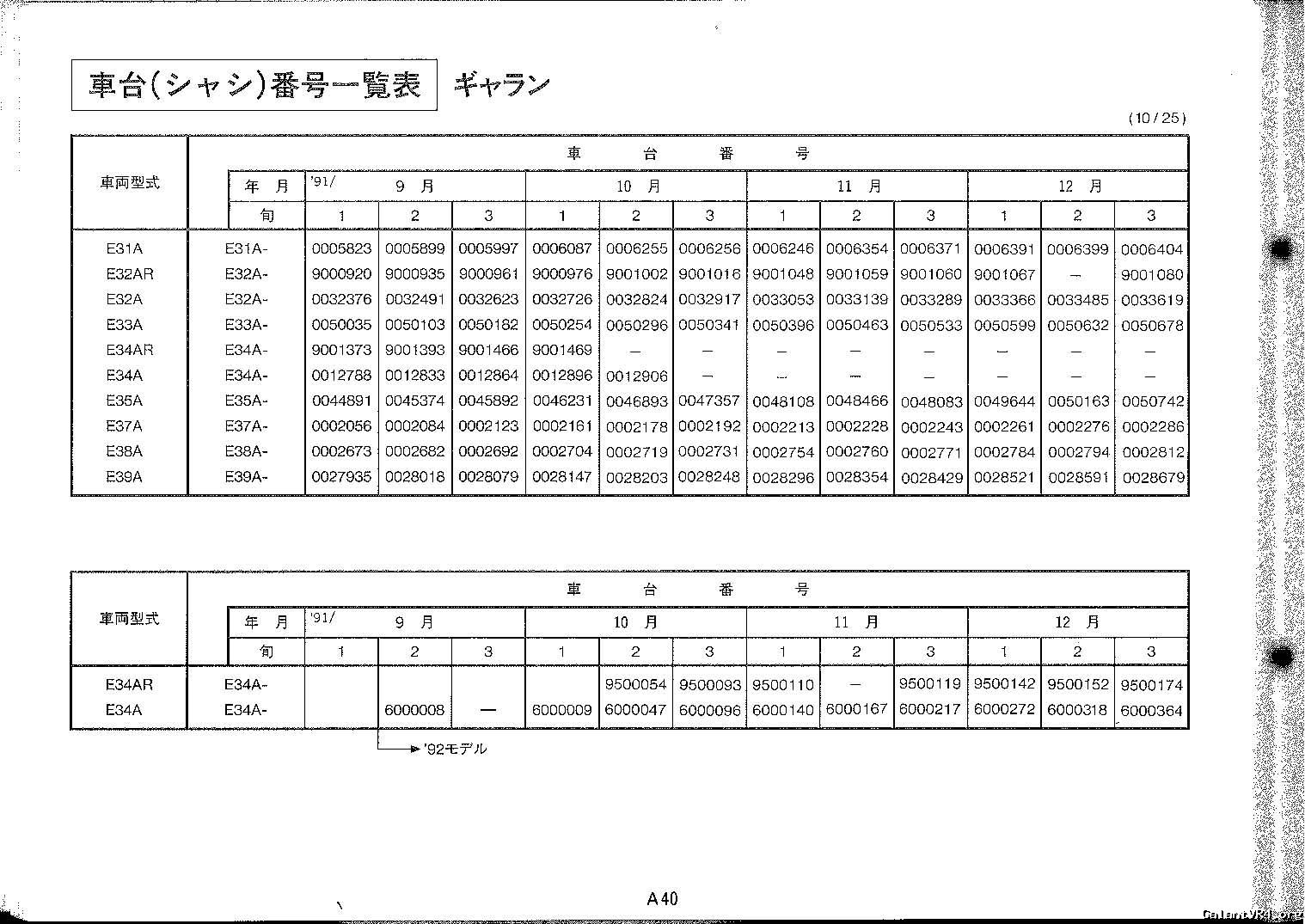

Page A40 appears to be a table of chassis numbers and production dates, detailing which batches/last car were completed in each third of a month, of each month of each year. /ubbthreads/images/graemlins/worthy.gif



[misterfixit]

A2 Is the year change breakdown
A3 Is the PROPER breakdown of the model code.
A6-A16 Is the full breakdown of the option codes.

A17-A22 Galant model breakdown
A23-A24 Eterna Model breakdown
A25-A27 Eterna Sava Model breakdown

A31-A45 Galant vins By model by month
A44-A49 Eterna Vins by model by month
A50-A55 Eterna Sava vins by model by month

/ubbthreads/images/graemlins/wink.gif
