Anybody got pics of Aeromotive/SX fuel pressure reg set up?

BlitzVR4

Well-known member
Just bought an Aeromotive fuel pressure regulator and was wondering if anyone has a photo of their set up? I just need to get some ideas on where to mount and routing the fuel lines. Plan on buying the fuel install kit from Slowboy or DSmotorsport. Thanks in advance.


Jonas
533/1000


curtis

Well-known member

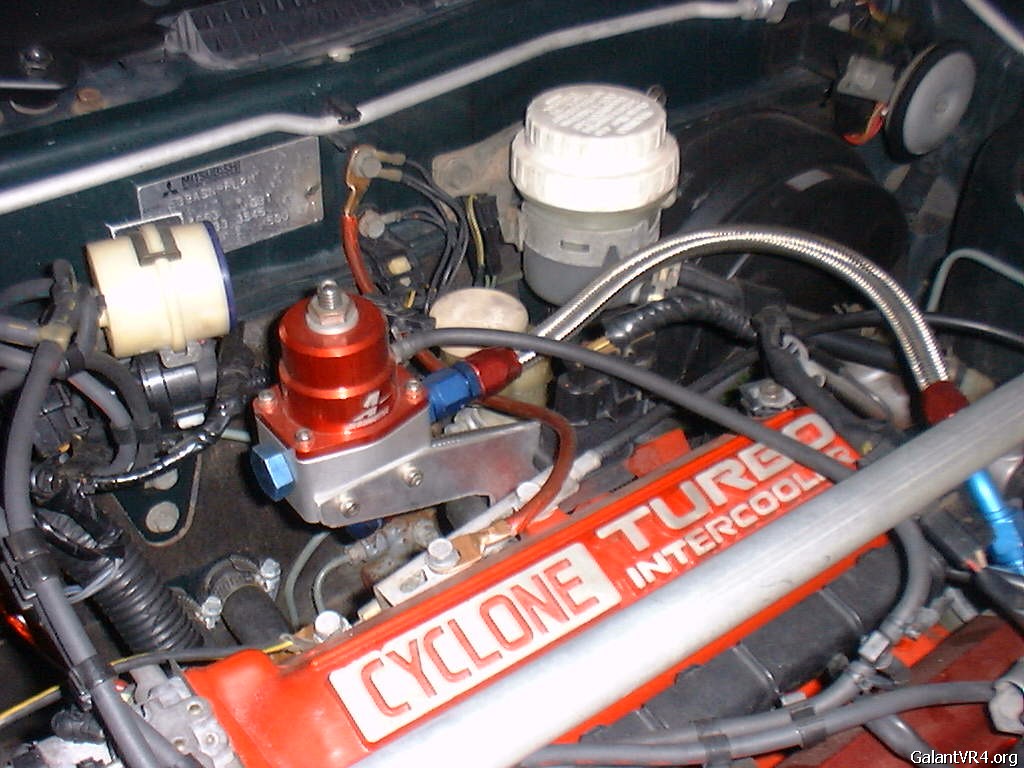

Here is mine...



blacksheep

Well-known member
Daoommn, Plesko. Your bay has a lot of wires and hoses, dawg!


pimp'n all electronic gauges plus water injection on the street plus the usual vacuum hoses etc


curtis

Well-known member
Chris what type of electric fuel gauge are you running?


BlitzVR4

Well-known member
Thanks to everyone who posted a pic. As soon as it warms up here I will start working on it.


Jonas
533/1000


This is all the stuff you need to do an aeromotive AFPR on the firewall. It's not the ONLY way to do it but I like this method.

Summit:
(1) Aeromotive FPR: AEI-13109 - $131.95
(2) -6an Straight Unions: EAR-981506 - $2.95ea
(1) -6an Port Plug: EAR-581406 - $3.75
(1) -6an Straight Hose End: EAR-800106 - $5.88ea
(1) -6an Low Profile Swivel 90deg Hose end: EAR-809006 - $22.99 (not necessary on a 1g/gvr4. Can use 2 of the part below)
(1) -6an Swivel Seal 90deg Hose end - EAR-809106 - $15.88
(1) -6an Hose 3ft: EAR-303006 - $14.88
----------------------------------------------------------------------------------------------
Total: $201.23

FullThrottleSpeed:
1g/2g Rail Return Adaptor - $19.99
http://www.fullthrottlespeed.com/Dynamic/itemdesc.asp?CartId=8248740FDTSX21-EVEREST-5&Cc=&ic=001DSM6RET&tpc=

Total Cost is about $221.22 for the Aeromotive setup plus shipping charges. It's a good well known setup with a bit more work involved and a bit more cost.
