Evo III 16g VS TRE port work


turbophein
Member ++
1079/2000


Galant VR-4 org Post #: 880036 posted 03/07/10 08:37 PM     Remind Me!  Send Private Message   Edit Post

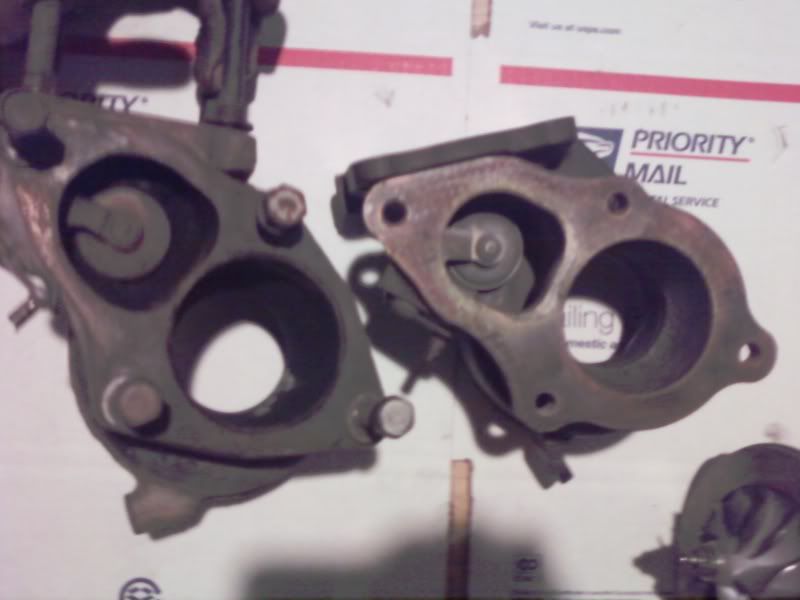

Ok so i have been wanting to upgrade my turbo for a while to a Evo III 16g, right now i have a TRE spec s16g. also have the TRE 2g Manifold and 2g o2 housing. i finally found one on the forums and here is the comparison of the 2.

you tell me what flows better... the evo turbo is the cleaner one (non ported)










The only bigger part that i can see on the evo turbo is the exhaust wheel, which is where more top end comes into play with that turbo.

I heard that TRE did some of the best port work but dam! i am lost as what to do with the turbo's now. i wonder if the evo cartridge will fit in the TRE compressor housing?


ok so unfortunately the TRE hotside has cracks around the wg opening which was causing my slow spool up 4200+ RPM, not sure if it can be repaired or if its worth it, but as it sits it should be flowing more than the evo hotside, thats pretty crazy...



E16g, fmic, 1000's, SD, v3, LC2 WB, fp2 cams, ARP's, etc



Edited by turbophein (03/07/10 10:03 PM)

Posts: 681 | From: mass | Member Since: 02/17/09 | IP: (24.63.173.179) | Report this post to a Moderator

belize1334
well bread and nobly conceived
1334/2000


Galant VR-4 org Post #: 880039 posted 03/07/10 08:56 PM     Remind Me!  Send Private Message   Edit Post
Housings aside, the ONLY difference between an evoIII-16g and the s-16g is the compressor wheel. The exhaust wheels are both TDo5h. So, upgrading from the s16g to the evoiii should get you a little more air-flow at the 20+psi range but won't make much difference below that where the s16g is more efficient. If it were me I'd just get an evoiii exhaust housing and slap it on there ... that is assuming that the turbo is still in good condition.



Roger B. Scott
'91 Belize Green

Posts: 3312 | From: Dundee, Scotland, UK | Member Since: 11/18/03 | IP: (72.175.127.65) | Report this post to a Moderator
