jeverts
(Member +)
08/05/14 09:37 AM
909/1000 Build thread

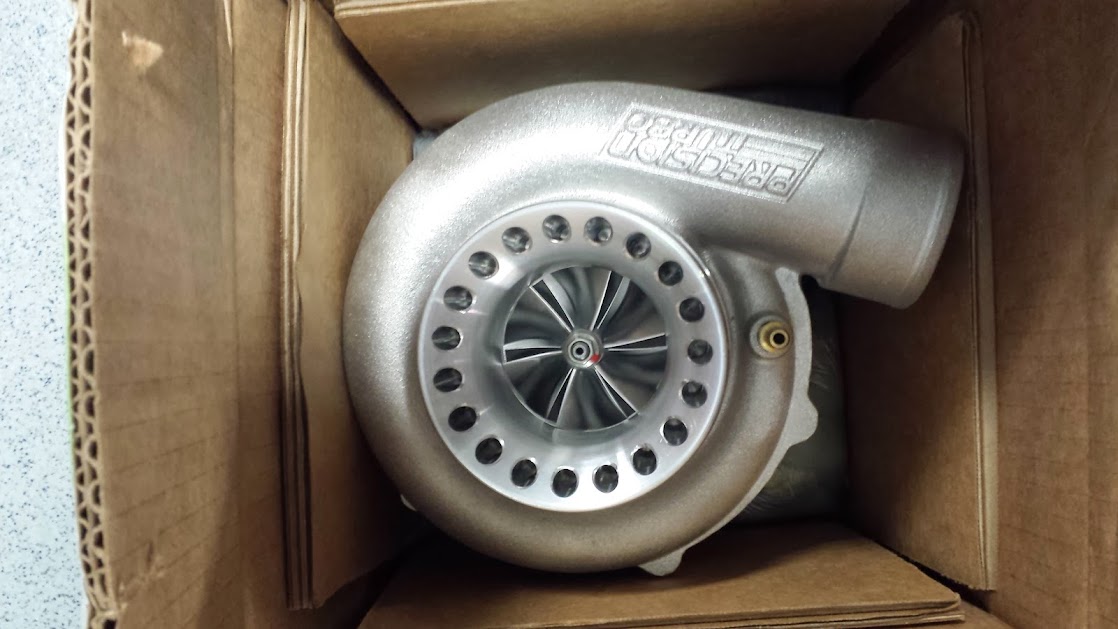

So far this story is 2 years and counting but I will get everyone caught up.

















jeverts
(Member +)
08/05/14 09:39 AM
Re: 909/1000 Build thread

At this point the car was moved to my parents house for storage. A year ago I made a move to the twin cities to start a new job.

jeverts
(Member +)
08/05/14 09:47 AM
Re: 909/1000 Build thread

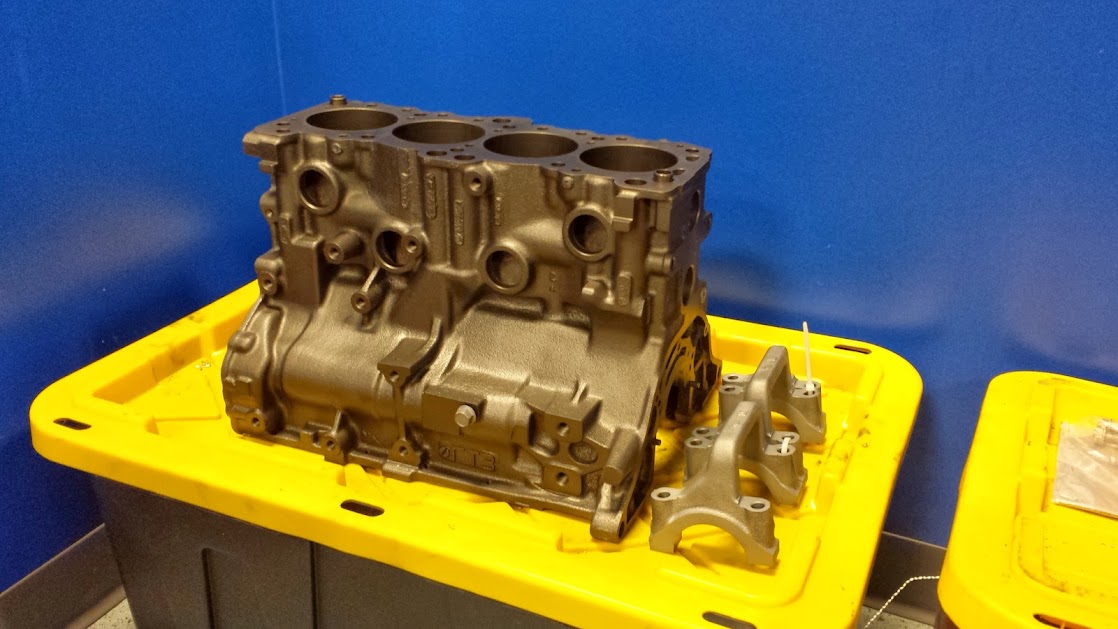

A year later I started up again getting the car torn down even more and get things cleaned up and replaced.

























jeverts
(Member +)
08/05/14 09:52 AM
Re: 909/1000 Build thread

11 hours of sanded and painting engine bay is back to a good color.









Boring out my TB to 63mm and half shaft modification.



Then port matched to the cyclone intake manifold



Finished TB ready to go.



minneSNOWta
(Member +)
08/05/14 10:02 AM
Re: 909/1000 Build thread

Nice man. Great work so far. Where do you live in the Twin Cities?

jeverts
(Member +)
08/05/14 10:04 AM
Re: 909/1000 Build thread

At the moment Eagan.

minneSNOWta
(Member +)
08/05/14 10:07 AM
Re: 909/1000 Build thread

That's where I grew up. Live in Duluth now, but make it down quite a bit. I may have my car down at MAP in a few weeks and will be home. Should talk cars. If you don't mind me asking, where are you working?

jeverts
(Member +)
08/05/14 10:19 AM
Re: 909/1000 Build thread

At MAP lol

minneSNOWta
(Member +)
08/05/14 10:31 AM
Re: 909/1000 Build thread

Nice man. My buddy Matt Gesch worked in the turbo department. Probably will see you soon, haha. I'm Andre BTW.

jeverts
(Member +)
08/05/14 10:40 AM
Re: 909/1000 Build thread

I have met Matt once maybe. I know he stops by here and there.

jeverts
(Member +)
09/22/14 02:44 PM
Re: 909/1000 Build thread

Continued to work on some more stuff on the car. Put the headlights back in trim pieces, Brake master.

Dropped the gas tank and fixed the mess of a send unit mount.





Mister1161
(Newbie)
10/02/14 08:11 AM
Re: 909/1000 Build thread

Are those headlights from a 93?

jeverts
(Member +)
10/02/14 08:15 AM
Re: 909/1000 Build thread

I honestly don't know. The guy I bought the car off put them on.

minneSNOWta
(Member +)
10/02/14 05:55 PM
Re: 909/1000 Build thread

Looks like the housings were painted black. You can tell it's not '93 lights because the lenses have fluting. Still looks cool though. Nice progress on the car. Kind of scared to see my sending unit area now.

jeverts
(Member +)
10/03/14 09:13 AM
Re: 909/1000 Build thread

I was told they were "JDM". The lenses feel like glass. Did the US cars have plastic lenses?

CutlassJim
(poop load of room)
10/03/14 10:44 AM
Re: 909/1000 Build thread

Those look like modified US headlights. Every "JDM" headlight I've had my hands on is all plastic and weighs 1/5 of what a US headlight does. All my 91/92 headlights are glass.

boosted_85
(Member)
10/03/14 01:12 PM
Re: 909/1000 Build thread

my jdm ones are all glass and fell just as heavy like the stock usdm ones.

CutlassJim
(poop load of room)
10/03/14 02:08 PM
Re: 909/1000 Build thread

I've only sen two sets in person so maybe they were an older style? They were definitely all plastic and didn't' weigh much because I considered getting a set to shave 10 lbs off the nose of the car but I didn't want to deal with RHD beam pattern.

jeverts
(Member +)
12/16/14 06:31 PM
Re: 909/1000 Build thread

Motor is just about together. Will hopefully be in the car soon.



Chad989of2000
(blows both ways and is skilled in magic with any mention of diarrhea)
12/16/14 06:39 PM
Re: 909/1000 Build thread

Coming along nicely, looks good.

jeverts
(Member +)
12/22/14 09:12 AM
Re: 909/1000 Build thread

And Motor is in the car. Next is our lead fabricator is getting it (who I am pretty sure is a wizard) to do his magic on the exhaust and intake. I have 2 interesting ideas for manifold and turbo set ups. Either reverse top mount or....If I can figure something out with the radiator...front facing.



transparentdsm
(I have to say something dumb Member)
12/22/14 10:00 AM
Re: 909/1000 Build thread

looks great. for a forward facing turbo id say use a civic half radiator.

jeverts
(Member +)
12/22/14 10:02 AM
Re: 909/1000 Build thread

I have been hearing that people have overheating issues with going with a civic half radiator. Even with the triple core ones.

transparentdsm
(I have to say something dumb Member)
12/22/14 10:10 AM
Re: 909/1000 Build thread

this is true as i had the same issue with my civic half rad, but i thought i was having issue because im at 7000 feet, i daily drove the car and i changed elevation constantly. i would only overheat when i was under constant load driving over a pass. once i got to the top of the pass it would drop right away and if i hammered on the throttle while on level ground it wouldn't overheat. so if this is a race car i don't think youll have thank much of an issue, if your going to daily it then you may be right about overheating issues.

GSX_TC
(295hp 35r BR4)
12/22/14 03:12 PM
Re: 909/1000 Build thread

Those are Jdm GLASS headlights with painted black housings just like on my car. The only plastic on them is the backs.

jeverts
(Member +)
12/26/14 04:30 PM
Re: 909/1000 Build thread

Anyone know where I can get a new weather strip or if they make a aftermarket replacement for it?



TurboTurtle
(Junior Member)
12/28/14 02:06 AM
Re: 909/1000 Build thread

I have one if you need it. Stock trim off 1388. Text me @518.469.8663

Also love the KG. and the way your build is turning out!


jeverts
(Member +)
01/06/15 06:38 PM
Re: 909/1000 Build thread

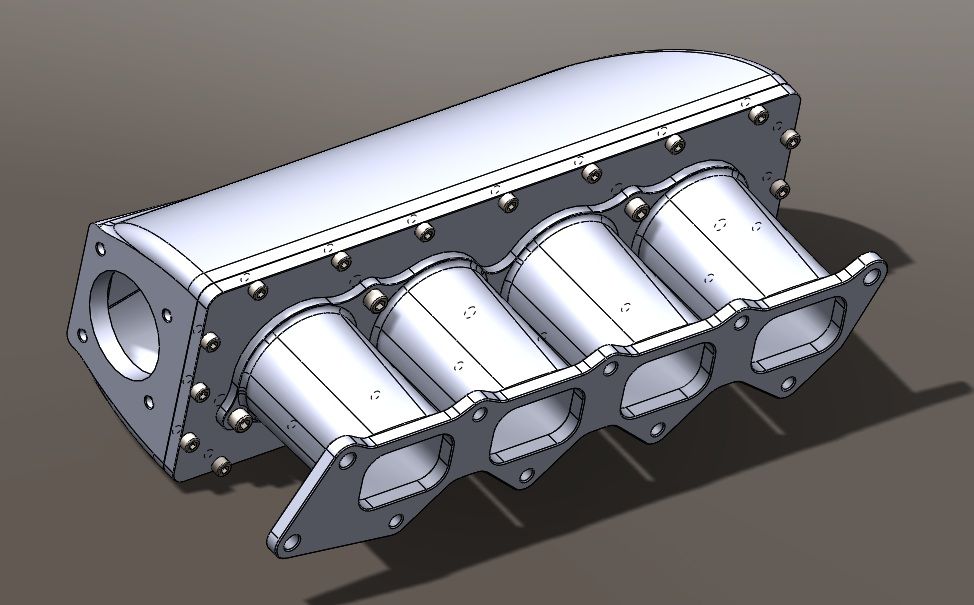

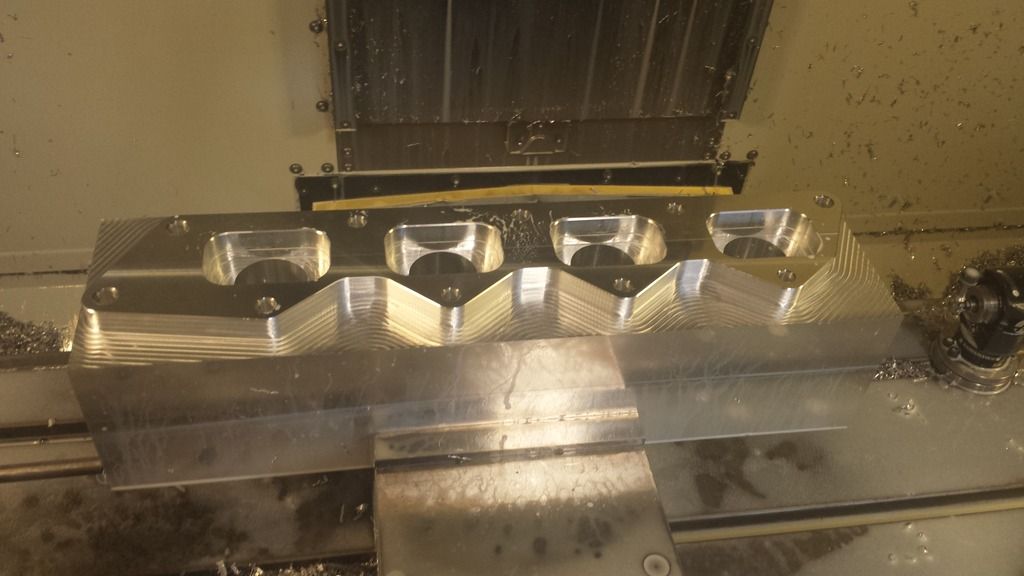

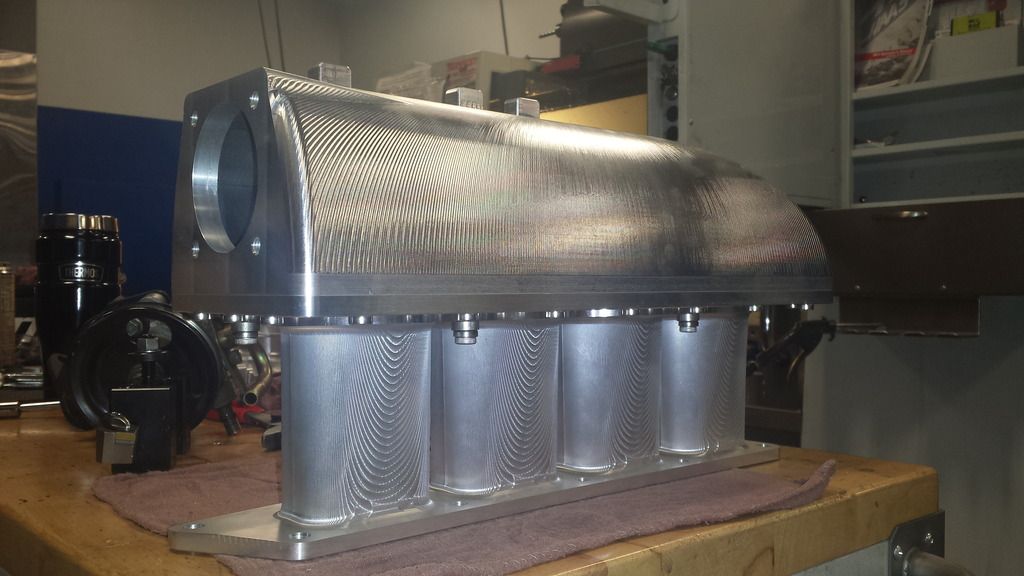

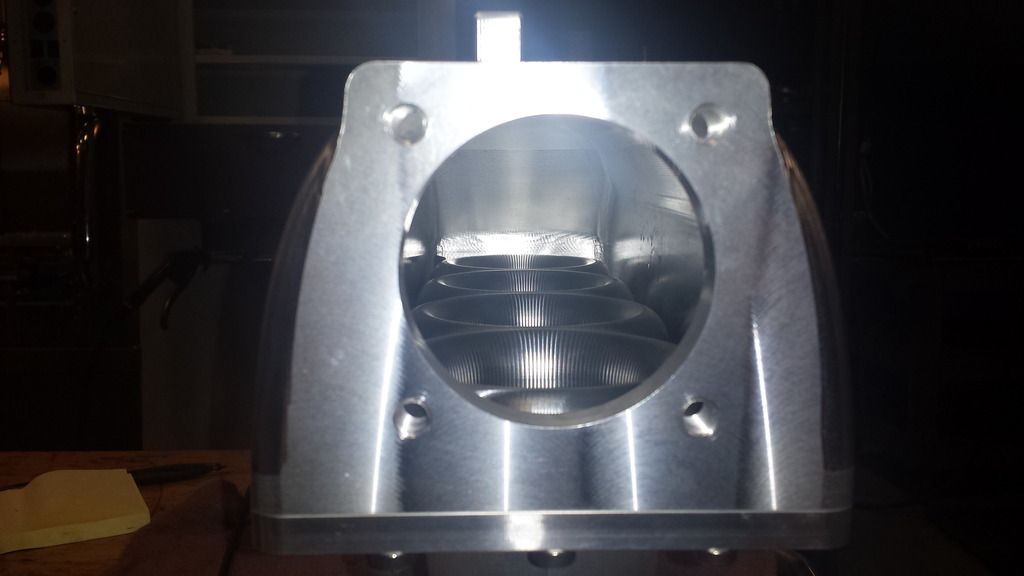

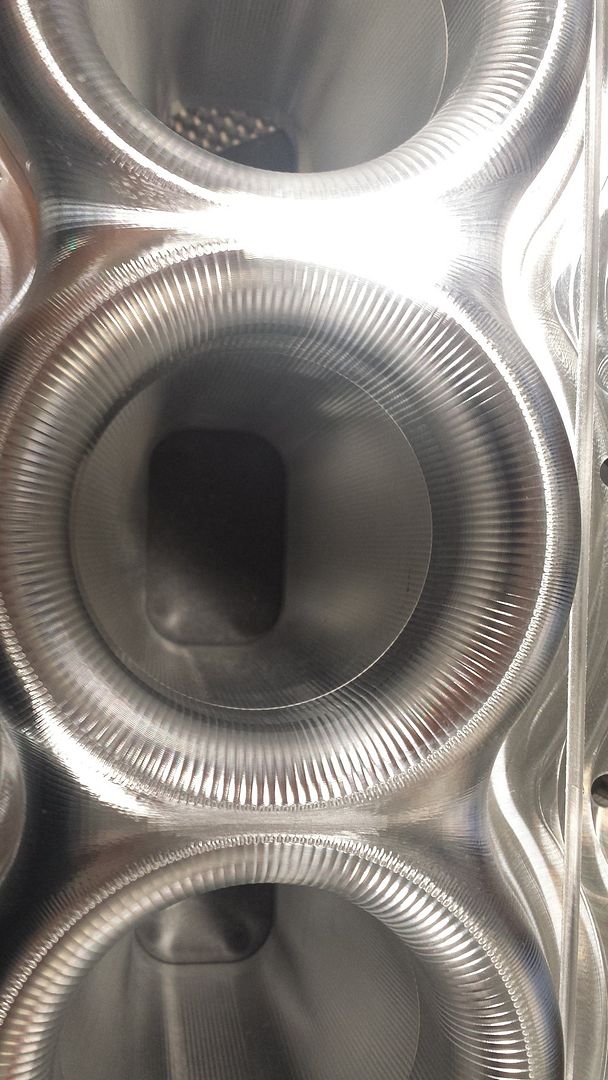

This is probably going to be happening..4 piece billet intake manifold.





jeverts
(Member +)
01/06/15 06:44 PM
Re: 909/1000 Build thread

I may toy with this....its a barrel style throttle body built into the runners.



minneSNOWta
(Member +)
01/06/15 07:07 PM
Re: 909/1000 Build thread

That second design is very interesting.

EHmotorsports
(Capt Fabbin Stabbin)
01/06/15 07:23 PM
Re: 909/1000 Build thread

if its what i think it is. it should eliminate any restriction at the throttle shaft as there would be nothing.

jeverts
(Member +)
01/06/15 09:10 PM
Re: 909/1000 Build thread

Correct. The problem I would run into is all the vac lines that are built into the plenum on a normal intake...I may look into building a vac tank to come off of it somewhere to take care of that.

Mr_Fielgood
(Member)
01/06/15 10:31 PM
Re: 909/1000 Build thread

This is a great build. Really good at paying attention to detail. Looking forward to see your results.

fuel
("Just to be pedantic!")
01/07/15 05:20 AM
Re: 909/1000 Build thread

individual throttle bodies work well in N/A applications where you are trying to squeeze every last bit of HP out, but on turbo applications a normal single throttle body is fine surely. The throttle plate and shaft aren't that much of a restriction if you move up to a larger sized throttle body. I can't help but think there was a reason Mitsubishi opted to use a smaller diameter throttle body on the turbo engines than the N/A engines.

jeverts
(Member +)
01/07/15 08:14 AM
Re: 909/1000 Build thread

Quote:

individual throttle bodies work well in N/A applications where you are trying to squeeze every last bit of HP out, but on turbo applications a normal single throttle body is fine surely. The throttle plate and shaft aren't that much of a restriction if you move up to a larger sized throttle body. I can't help but think there was a reason Mitsubishi opted to use a smaller diameter throttle body on the turbo engines than the N/A engines.





There is a lot more work involved with the barrel throttle body design and more money that would need to be invested with it, so I may scrap that idea and stick with a traditional intake. I may design a throttle body with the barrel to mount in the stock location later on just because I like the no restriction at WOT. I am waiting for tax return time to order material for this. I also have designs for a bunch of other things and I know the Galant page on facebook was begging me to make (Sending units) I will post more up when I have time to maybe do some production runs of stuff and sell them.


EHmotorsports
(Capt Fabbin Stabbin)
01/07/15 08:37 AM
Re: 909/1000 Build thread

ITB's will help with throttle response so there would be other benefits over max hp. But I can't see any ill effects other that tuning that would be a concern.

jeverts
(Member +)
01/07/15 09:34 AM
Re: 909/1000 Build thread

The only thing that I would be worried about is part throttle, But as you said it's probably something that tuning can take care of.

EHmotorsports
(Capt Fabbin Stabbin)
01/07/15 09:50 AM
Re: 909/1000 Build thread

SD seems to work well with part throttle as long as you have a good vac source running behind each throttle body to a distribution block. A vacuum canister should help limit the effect on the map sensor when hitting the brakes if you decided to stick with a brake booster. But ITB's do require you to lock the WB o2 for initial tuning.
You will most likely have to spend time adjusting the throttle tip in (comparable to an Accelerator pump on a carburetor). The results of ITB's are rewarding on a properly working setup but it just adds more complication to tuning.


jeverts
(Member +)
01/07/15 10:32 AM
Re: 909/1000 Build thread

I am planning on driving it. Not daily but I would like it to still drive some what decent. Here is a question would I have to run vac lines off of just one runner or would I have to run a line off of every runner?

EHmotorsports
(Capt Fabbin Stabbin)
01/07/15 10:59 AM
Re: 909/1000 Build thread

you would have to run one line off of each runner to get the best vacuum. then run any of your sensors,brake booster and related off of the distribution block. or you can have an additional runner/balance tube that connects to the underside of the runners to make it look cleaner. then run a nipple off the side of the rail for the booster and all other fittings can be attached to the middle portion under the intake for a clean look.
But that is up to you as I can see you are having fun with software that I would love to have access to haha.


jeverts
(Member +)
01/07/15 01:54 PM
Re: 909/1000 Build thread

Thank you I will look into that...I have to go some sort of hard line. Something flexible will just not look right with a machined intake.

Fiascoxl
(Member +)
01/07/15 03:14 PM
Re: 909/1000 Build thread

I like the idea of individual throttle bodies, this paired with equal length runners would be amazing. This would no doubt leave each cylinder with equal airflow without the need of a cad blueprint or virtual flow testing. I know runner size would have to be kept to a minimum but placing the tb (sans itb) at center of the runners underneath or over the top could solve that easily. Just a thought.

edit: then again this would never work without a chamber to speed up the in coming air and like said keep the motor happy at idle and part throttle.


EHmotorsports
(Capt Fabbin Stabbin)
01/07/15 03:40 PM
Re: 909/1000 Build thread

here is a good thread on the progression of this Z cars intake/itb setup. click

jeverts
(Member +)
01/08/15 05:44 PM
Re: 909/1000 Build thread

Intercooler core came into today. Hoping the intake and manifold will be done soon.



jeverts
(Member +)
01/10/15 03:44 PM
Re: 909/1000 Build thread

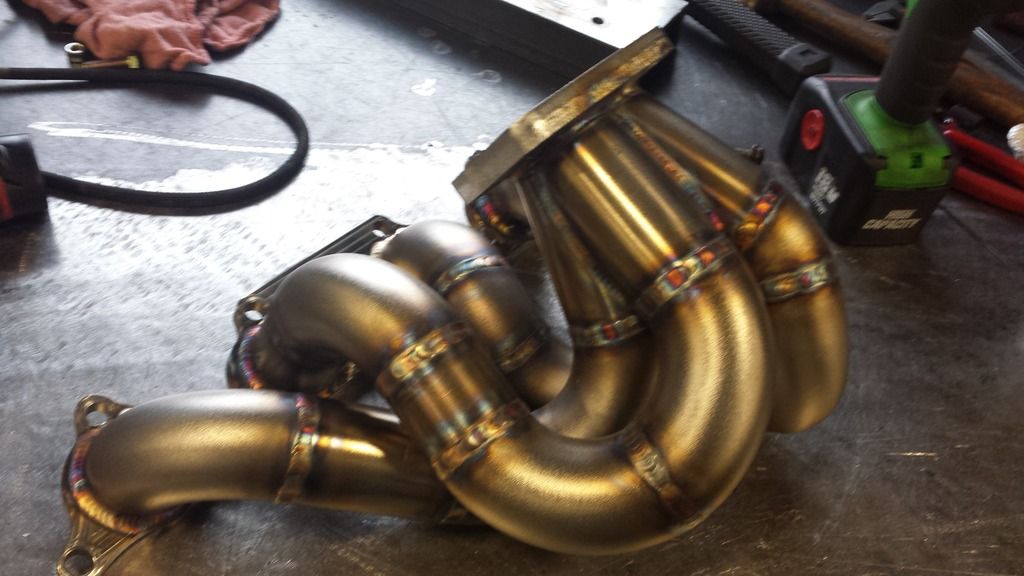

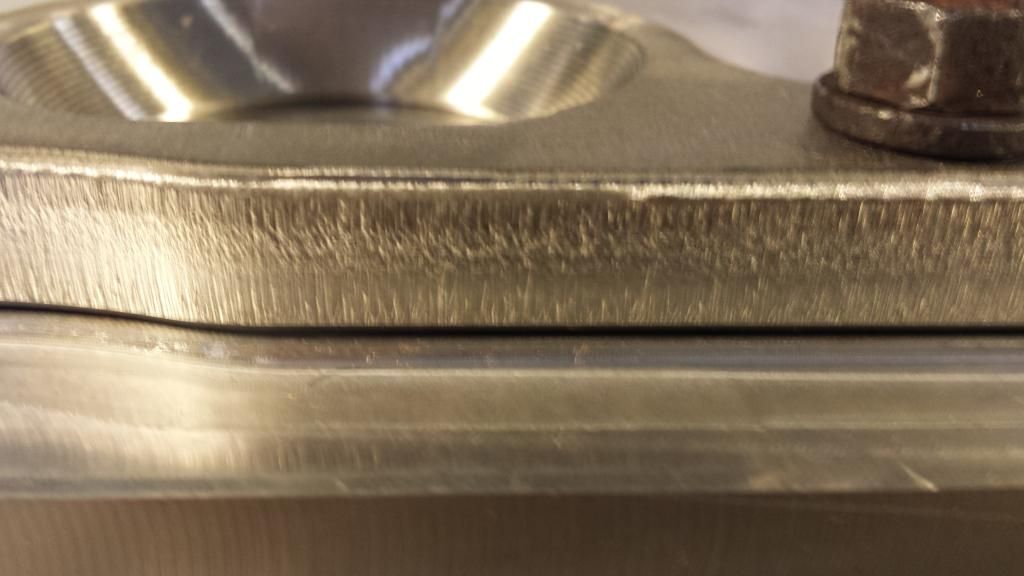

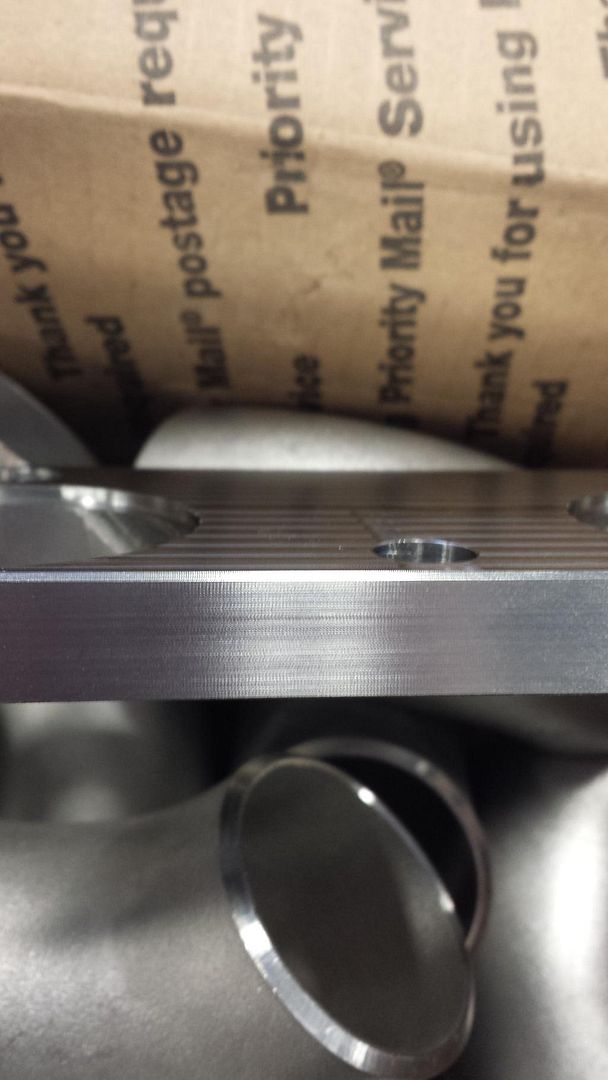

Got all of my exhaust manifold materials in and cleaned up the laser cut finish on the outside for a more clean finish.











jeverts
(Member +)
01/17/15 08:30 PM
Re: 909/1000 Build thread

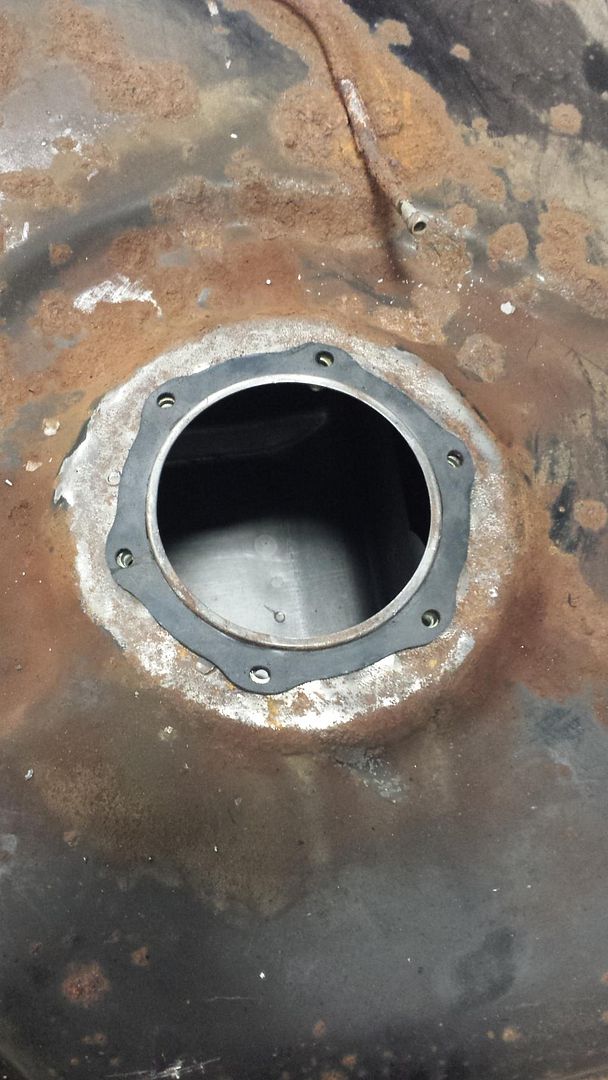

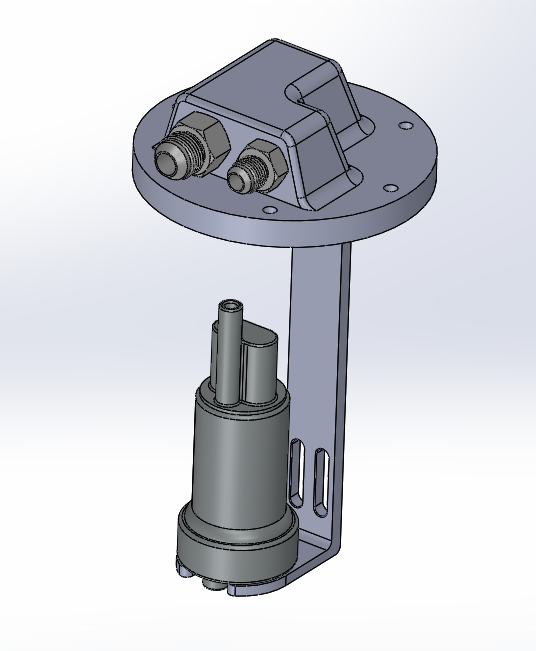

While I am waiting on my exhaust manifold to get done I figured I would start on my sending unit.



Op1



Op2



Op3 I put in the 3/8 NPT holes

I modified a OEM gasket to work with the holes that I riv nuted

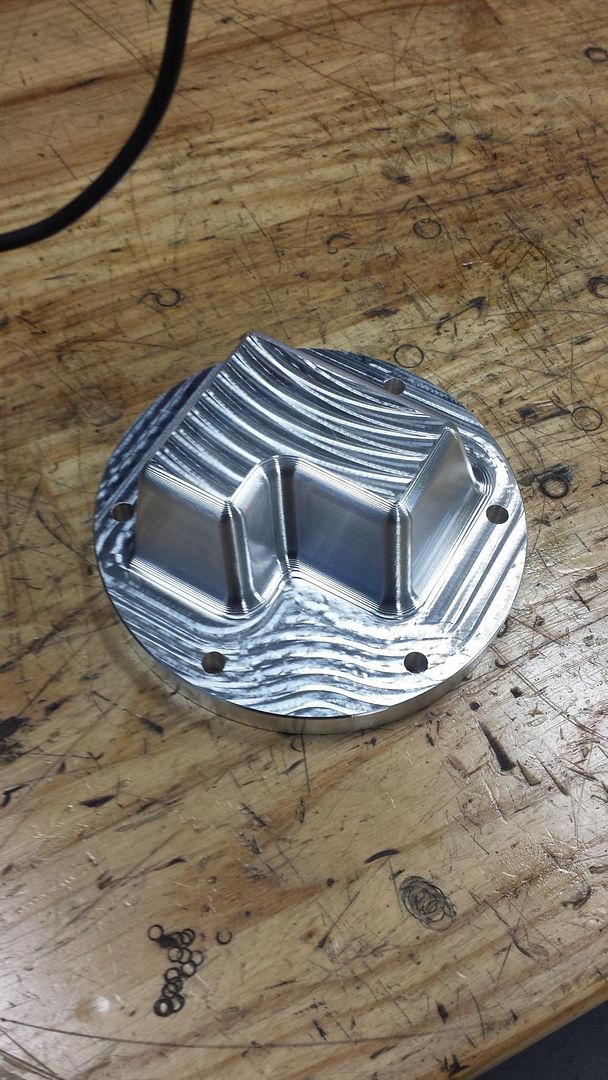

Here is the finished Top hat



I have 2 other brackets that I need to make yet to hang the fuel pump. Once everything is test fitted I will send this out for anodizing.

I am still looking at bulk head wire fittings to and I didn't want to put the hole in yet till I find one that will work.


JamesFoster
(Infamous BMX Master)
01/17/15 10:45 PM
Re: 909/1000 Build thread

Progress is looking great! Love that sending unit.

GSXftw
(Member)
01/19/15 01:37 AM
Re: 909/1000 Build thread

Doin very cool stuff, keep it coming

prove_it
(my racist jokes aren't actually funny)
01/19/15 03:11 PM
Re: 909/1000 Build thread

Mike Valencia will want a fuel sender unit too.

GSTwithPSI
(A hole)
01/19/15 07:49 PM
Re: 909/1000 Build thread

So jelly of your access to a CNC machine...

jeverts
(Member +)
01/25/15 08:35 PM
Re: 909/1000 Build thread

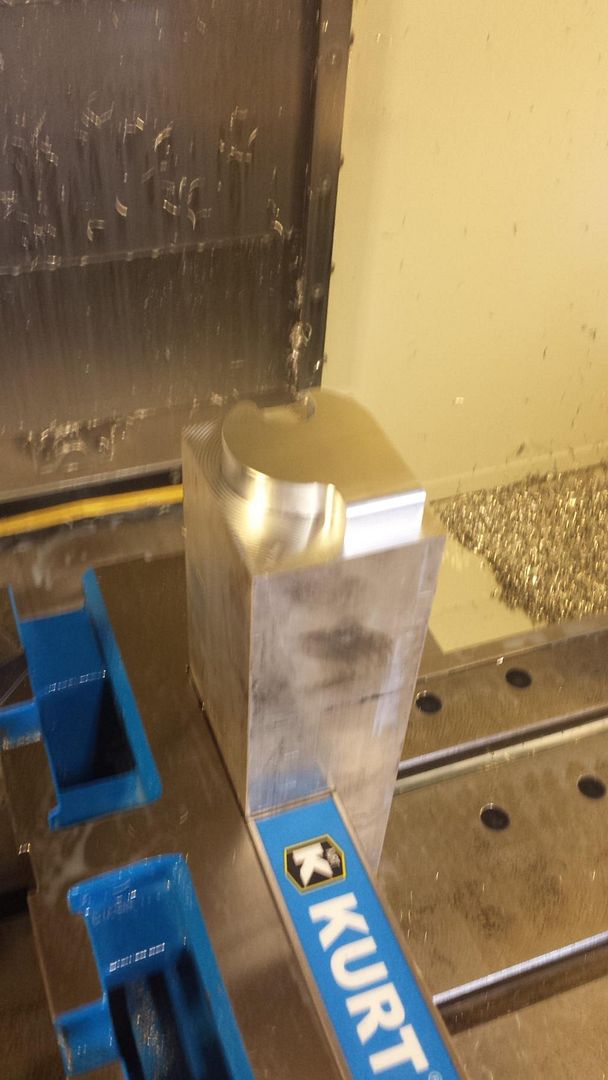

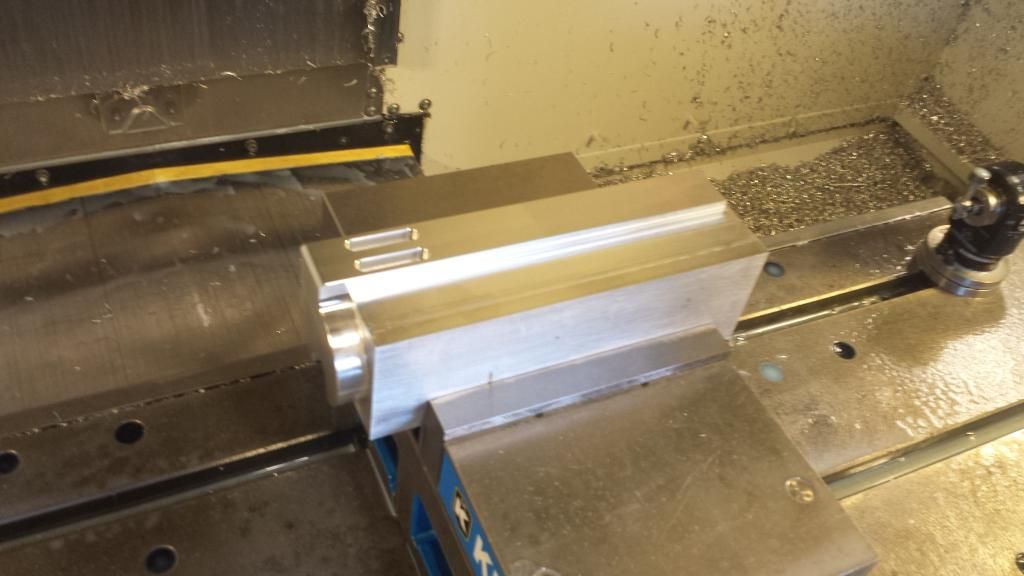

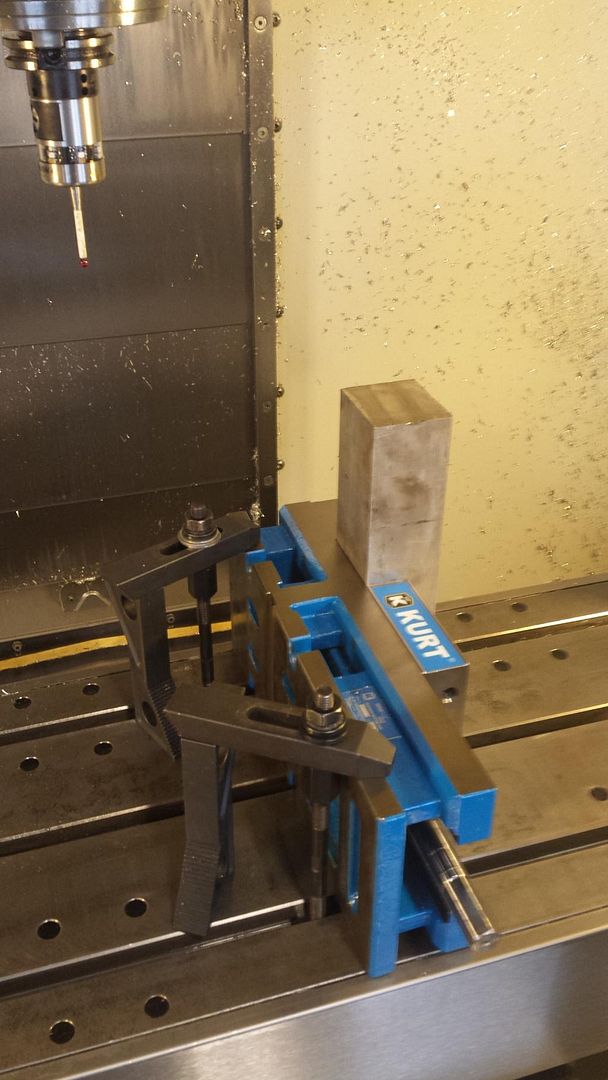

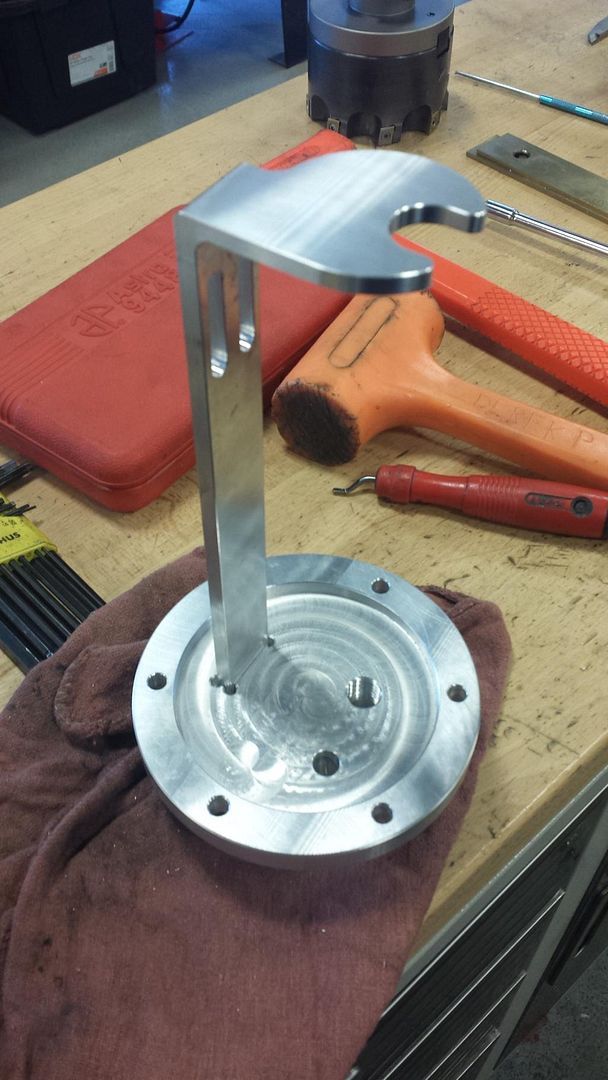

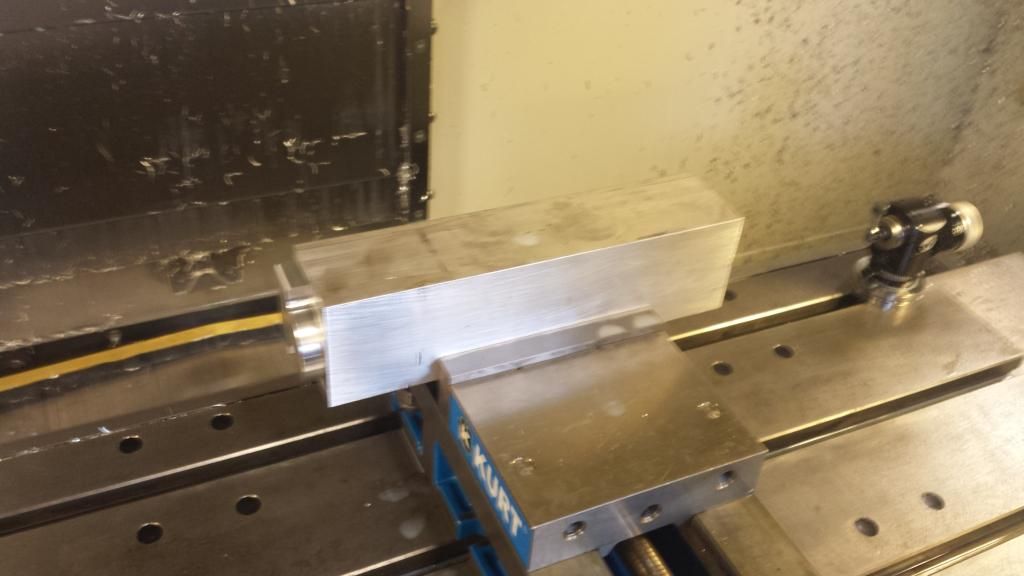

Finished up the billet parts on the sending unit tonight.















undrpressure23
(Newbie)
01/25/15 09:06 PM
Re: 909/1000 Build thread

love the custom machine work, great job so far

Ralli380Gvr4
(Bearded Snow Leopard)
01/26/15 01:04 AM
Re: 909/1000 Build thread

Hell yeah! Looks like a great start to a fun project. I am also a fan of the machine work.
Keep it flowing, it looks killer.

Subscribed.


jeverts
(Member +)
01/26/15 10:20 AM
Re: 909/1000 Build thread

Thanks guys

jeverts
(Member +)
02/03/15 08:37 AM
Re: 909/1000 Build thread

Has any tried to relocate the power steering pump to the back of the motor?

prove_it
(my racist jokes aren't actually funny)
02/03/15 08:47 AM
Re: 909/1000 Build thread

Never seen it done. I think running new lines has stopped many people from that. Don't see why not though. Just need new pressure/return lines and a relocated fluid resivour.

89Patches
(I <3 AMS)
02/03/15 02:28 PM
Re: 909/1000 Build thread

A guy local to me has done it. Just made his own lines for the the rack and reservoir

click


jeverts
(Member +)
02/04/15 09:28 AM
Re: 909/1000 Build thread

Awesome that would work great. I Just need the PS out of the way to get the turbo and manifold setup the way I want it. Pictures will ensue.

prove_it
(my racist jokes aren't actually funny)
02/04/15 11:15 AM
Re: 909/1000 Build thread

Where will the alternator go then?

jeverts
(Member +)
02/04/15 11:18 AM
Re: 909/1000 Build thread

In the stock location.

prove_it
(my racist jokes aren't actually funny)
02/04/15 11:21 AM
Re: 909/1000 Build thread

But the PS is in the way? Boy, this sounds interesting.

jeverts
(Member +)
02/04/15 11:56 AM
Re: 909/1000 Build thread

Alternator will be up front and the power steering will be in the back.

prove_it
(my racist jokes aren't actually funny)
02/04/15 12:47 PM
Re: 909/1000 Build thread

I understand that, but I'm just curious why your moving the PS and leaving the alternator for the turbo set-up. The Alternator is more in the way when running a custom set-up.

Unless it's a top mount with a side dump....


jeverts
(Member +)
02/04/15 12:49 PM
Re: 909/1000 Build thread

You will see.

jeverts
(Member +)
02/09/15 06:43 PM
Re: 909/1000 Build thread

Billet Oil cap design.



transparentdsm
(I have to say something dumb Member)
02/09/15 06:53 PM
Re: 909/1000 Build thread

ummm ill take one,please and thank you.

faqinshiet
(Member +)
02/09/15 06:55 PM
Re: 909/1000 Build thread

I like! I'll also take one!

galant344
(Member +)
02/09/15 08:08 PM
Re: 909/1000 Build thread

very cool parts you are making.. i think you can make a decent buck producing these parts! Cant wait to see all of these finished products!!

jeverts
(Member +)
02/10/15 09:44 AM
Re: 909/1000 Build thread

I may make these if I have a bunch of people interested. I need to change the design around so that I can change the numbers easily if that is was people are interested in. Or I can change them around just to say galant vr4 and run a bunch of them. It would be a little cheaper to do that than have the custom numbers on them.

badams
(Bungie Battery)
02/10/15 11:42 AM
Re: 909/1000 Build thread

I'd buy one without the numbers.

prove_it
(my racist jokes aren't actually funny)
02/10/15 12:23 PM
Re: 909/1000 Build thread

I'm pretty sure Mike V is in on this.

jeverts
(Member +)
02/10/15 02:38 PM
Re: 909/1000 Build thread

Surprisingly no pm

Fiascoxl
(Member +)
02/10/15 03:48 PM
Re: 909/1000 Build thread

I like this idea, of course with the badge number option.

GSTwithPSI
(A hole)
02/10/15 08:04 PM
Re: 909/1000 Build thread

Quoting badams:

I'd buy one without the numbers.




+1


JNR
(5 star (English Professor) member Has extensive pop up picture book collection)
02/13/15 10:11 PM
Re: 909/1000 Build thread

Badge # would be cool. Otherwise, if it was cost prohibitive, then a blank one would be nice.

I understand CAD/CAM, so curious what code are you using and how are you getting it to the machine? Meaning, maybe there is an easier way to do that if we put our heads together


faqinshiet
(Member +)
02/13/15 11:55 PM
Re: 909/1000 Build thread

One with and one without

jeverts
(Member +)
02/14/15 11:00 AM
Re: 909/1000 Build thread

Quote:

I understand CAD/CAM, so curious what code are you using and how are you getting it to the machine? Meaning, maybe there is an easier way to do that if we put our heads together




I'm using solidworks with hypermill for programming. The programming isnt the issue it is the numbers drawn and centered. Its not a real big issue, probably an extra 15 min to do that but if you have to do it 10 20 times it adds up.


ercp98
(perpetual n00b)
02/14/15 11:40 AM
Re: 909/1000 Build thread

like your build and parts.
and i would take one oil cap with out number.


JNR
(5 star (English Professor) member Has extensive pop up picture book collection)
02/14/15 04:07 PM
Re: 909/1000 Build thread

Quoting jeverts:

</font><blockquote><font class="small">Quote:</font><hr/>
I understand CAD/CAM, so curious what code are you using and how are you getting it to the machine? Meaning, maybe there is an easier way to do that if we put our heads together




I'm using solidworks with hypermill for programming. The programming isnt the issue it is the numbers drawn and centered. Its not a real big issue, probably an extra 15 min to do that but if you have to do it 10 20 times it adds up.




Ah, got it...Cool you have it down and yes that does add up. However, I believe it would be a worthwhile investment of time for people who want to buy them if you know what I mean. Just charge accordingly, but within reason of course


jeverts
(Member +)
02/15/15 06:03 PM
Re: 909/1000 Build thread

New Radiator mounts to shift the radiator towards the passenger side a couple inches to make a little more room for the turbo. I am hoping that our fabricator gets to the turbo manifold soon so that you guys can see what is going on. Our mill spindle took a shit last week (#Haasproblems) and I am waiting for it to get back up and running this up coming week so I can get a bunch of parts done on it.



GSTwithPSI
(A hole)
02/16/15 12:02 AM
Re: 909/1000 Build thread

What's your plan for the bottom radiator mounts though?

jeverts
(Member +)
02/16/15 06:49 AM
Re: 909/1000 Build thread

Cut the pins on the radiator and re weld them.

jeverts
(Member +)
02/25/15 09:27 PM
Re: 909/1000 Build thread

Mill is back up and running. Fun little project that I am working on. Billet oil pan for EVO X this is OP1 that is finished hopefully I will have OP2 done tomorrow.


jeverts
(Member +)
02/26/15 06:35 PM
Re: 909/1000 Build thread

Got the oil pan finished up today. Considering the cost of material I might considering doing this for my Galant.



jeverts
(Member +)
02/27/15 07:49 PM
Re: 909/1000 Build thread

First op is done on the oil cap.



Fiascoxl
(Member +)
02/27/15 10:22 PM
Re: 909/1000 Build thread

Please make a run of those!

faqinshiet
(Member +)
02/27/15 11:01 PM
Re: 909/1000 Build thread

Interested too!

CutlassJim
(poop load of room)
02/28/15 01:09 PM
Re: 909/1000 Build thread

Giggity

fourforty
(Junior Member)
02/28/15 05:48 PM
Re: 909/1000 Build thread

i could defiantly get in on buying a cap. even with or without numbers. also for the oil pan as well. i would like to hear how well it stays sealed with the silicone RTV for the pan gasket.

jeverts
(Member +)
03/15/15 10:04 PM
Re: 909/1000 Build thread

Teaser pic of the manifold that Andrew at MAP is building for me.



jeverts
(Member +)
03/16/15 09:25 AM
Re: 909/1000 Build thread

Here is better view of what I am doing with the manifold. This is why I wanted the PS relocated and I didn't care about the alternator.



EHmotorsports
(Capt Fabbin Stabbin)
03/16/15 09:39 AM
Re: 909/1000 Build thread

Looking great!

jeverts
(Member +)
03/16/15 09:53 AM
Re: 909/1000 Build thread

Thank you. I can't take full credit for this, Andrew does amazing work. I just told him where I wanted the turbo and he is doing the rest.

weirdbeard
(Junior Member)
03/17/15 12:58 AM
Re: 909/1000 Build thread

Good stuff dude.
I am super jealous of your garage.
I am hoping my next house has a beefy garage so I can store more stuff I don't need. Keep up the good work.


jeverts
(Member +)
03/17/15 09:35 AM
Re: 909/1000 Build thread

I miss that garage, I don't live there anymore. I still own it but I am renting it out. If I didn't move I would have put a furnace in it. It is already piped for NG and is insulated. But working at MAP has its benefits. Chris is nice enough to let me keep my car here and use the equipment after hours. I wouldn't be able to do the things that I am doing now without that. Thank you for the kind words.

jeverts
(Member +)
03/18/15 07:49 AM
Re: 909/1000 Build thread

Manifold is all welded up just need to get the wastegate on.





DougPorcaro
(Member)
03/18/15 09:37 AM
Re: 909/1000 Build thread

Looks great!

jeverts
(Member +)
03/23/15 08:37 AM
Re: 909/1000 Build thread

Now on the car with down pipe in progress.





jeverts
(Member +)
03/31/15 08:40 PM
Re: 909/1000 Build thread

Mocked up the intercooler core and this is happening. BILLET ALL THE THINGS.



EHmotorsports
(Capt Fabbin Stabbin)
03/31/15 08:56 PM
Re: 909/1000 Build thread

amazing! I cannot wait until i can fire up my small cnc mill! I miss making Billet things

G
(JDM Unit)
03/31/15 10:47 PM
Re: 909/1000 Build thread

Ditch the radiator mate.

jeverts
(Member +)
04/01/15 08:02 AM
Re: 909/1000 Build thread

I can't, the car will overheat without a radiator.

EHmotorsports
(Capt Fabbin Stabbin)
04/01/15 10:23 AM
Re: 909/1000 Build thread

I am sure G has an HKS radiator for your needs;)

jeverts
(Member +)
04/01/15 10:29 AM
Re: 909/1000 Build thread

Are the HKS ones better? I have no idea what they look like?

CheapTalon
(Member)
04/01/15 10:47 AM
Re: 909/1000 Build thread

I would switch to a scirocco core.

jeverts
(Member +)
04/01/15 11:01 AM
Re: 909/1000 Build thread

I will probably switch later on. For the time being I will run this. Money to be spent else where.

jeverts
(Member +)
04/11/15 05:38 PM
Re: 909/1000 Build thread

Driver Side end tank finished. Waiting on the material for the passenger side.



idreamidrive
(Member +)
04/11/15 09:10 PM
Re: 909/1000 Build thread

That, sir, is pretty.

GSTwithPSI
(A hole)
04/11/15 10:10 PM
Re: 909/1000 Build thread

That looks amazing

G
(JDM Unit)
04/12/15 12:14 AM
Re: 909/1000 Build thread



tektic
(Senior Member)
04/13/15 07:10 AM
Re: 909/1000 Build thread

If you alternator goes bad will you have to remove your turbo to replace it?

jeverts
(Member +)
04/13/15 09:07 AM
Re: 909/1000 Build thread

I might be able to squeeze it through. But if I can't, yes i will have to re move the turbo to get the Alt out. I guess to me its not a big deal. Four bolts and I can move it out of the way to get at the Alt.

jeverts
(Member +)
04/19/15 06:28 PM
Re: 909/1000 Build thread

Second tank done.



jeverts
(Member +)
04/20/15 09:09 PM
Re: 909/1000 Build thread

Welded on the passenger side. Driver side is just tacked on. Need to mock it up and get hangers made before we weld it on completely.



tektic
(Senior Member)
04/20/15 10:49 PM
Re: 909/1000 Build thread

End tanks are spectacular!

jeverts
(Member +)
05/06/15 12:09 PM
Re: 909/1000 Build thread

Its like Christmas all the time.



holeshotmoe
(subclass marmoreus)
05/06/15 10:18 PM
Re: 909/1000 Build thread

Dude! You can't cover that IC up with a bumper now!!! An intake manifold with matching shaved valve cover with that finish would look really nice.

jeverts
(Member +)
05/06/15 10:36 PM
Re: 909/1000 Build thread

Intake manifold is in the works. I am going to change the plenum around a bit and get started on it soon.

jeverts
(Member +)
05/08/15 10:05 AM
Re: 909/1000 Build thread

Flying under the radar with this one boys.



transparentdsm
(I have to say something dumb Member)
05/08/15 10:15 AM
Re: 909/1000 Build thread

i just picked my self up one of those. very excited to install it on the car.

MellowVR4
(5" too short)
05/08/15 10:16 AM
Re: 909/1000 Build thread

SNOHACKIN has this on his vr4 and it sounds deep.

jeverts
(Member +)
05/08/15 10:22 AM
Re: 909/1000 Build thread

We use vibrant on a lot of the exhausts that we build at the shop and they sound really nice. I also didn't want the big fart can hanging off the back of my car. I know a lot of people run them on the GVR4s and to each their own but I don't like the way they look on these cars. The 2gs they look alright but not on the older cars.

strokin4dr
(fighting them with a large needle)
05/08/15 11:15 PM
Re: 909/1000 Build thread

I'm running the same Vibrant muffler with an 18" resonator and full 3" piping and no cat. It sounds nice, but is a bit louder than I was hoping for or expecting.
I may add another resonator eventually.
Also, You have to get creative with the rearmost hanger to get the muffler to look right and not hit the body due to the shape and short tips compared to the stock setup.


jeverts
(Member +)
05/15/15 10:34 AM
Re: 909/1000 Build thread

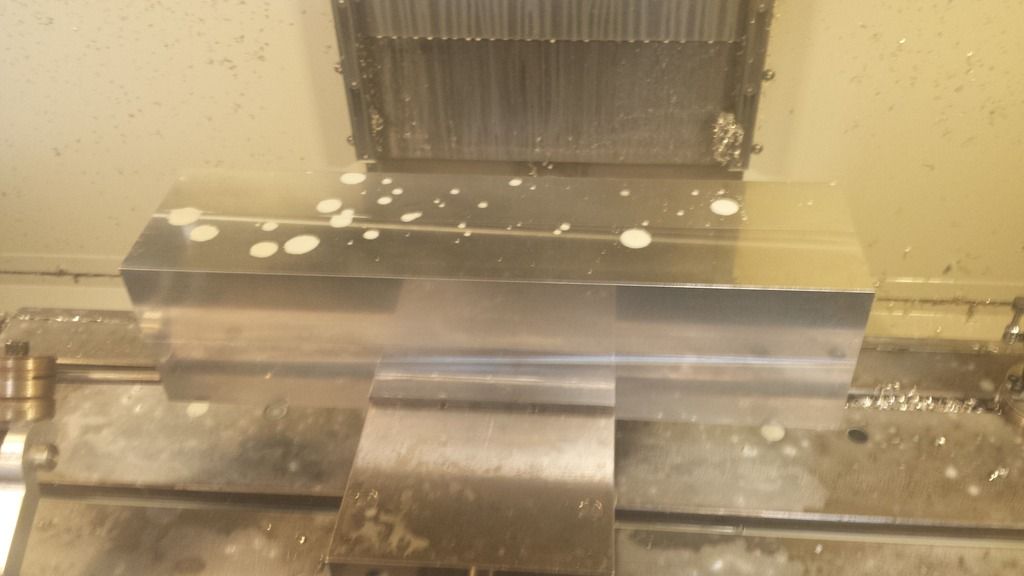

Well I think its time to make a TRUE billet intake. No welding. Bolts, Billet, and seals. Picked up a chunk of MIC 6 and going to get started on it this weekend.



GSTwithPSI
(A hole)
05/15/15 10:43 AM
Re: 909/1000 Build thread

Jesus. What'd that run you?

jeverts
(Member +)
05/15/15 11:48 AM
Re: 909/1000 Build thread

This is just for the runners. Its way more than I need. Discount steel up here has a drop section that you can dig through to get material so its a little more discounted than off the shelf. It was $250 for that but I am going to saw probably 2 inches off the length and chop it in half the long way.

prove_it
(my racist jokes aren't actually funny)
05/15/15 01:39 PM
Re: 909/1000 Build thread

So your going to build an intake that will cost the same as a Magnus or similar and not have any R&D behind it?

jeverts
(Member +)
05/15/15 01:51 PM
Re: 909/1000 Build thread

I wont have $700 in material in it and I am machining this myself so free and anything is going to be better than the cyclone gutted that I have on there now.

jeverts
(Member +)
05/15/15 02:25 PM
Re: 909/1000 Build thread

I know most people won't understand but there is a lot of satisfaction that comes from being able to create some from a raw piece of material into something that I consider to be a work of art and I am saying that for everyone that works in my field. I enjoy what I do and I will do this more as a learning experience and as a challenge. I am not selling these, and if it doesn't perform the best it won't bother me. Its more of a; "I designed that and built it". Not many people can say that.

EHmotorsports
(Capt Fabbin Stabbin)
05/15/15 02:29 PM
Re: 909/1000 Build thread

I can 100% agree with that. plus after its made its not hard to throw it on a flow bench and test it.

ApexHunter
(Extreme Indoor Cyclist)
05/15/15 11:44 PM
Re: 909/1000 Build thread

End tanks look awesome sir.

jeverts
(Member +)
05/16/15 11:46 AM
Re: 909/1000 Build thread

Thank you.

jeverts
(Member +)
05/16/15 08:48 PM
Re: 909/1000 Build thread

Getting there.







strokin4dr
(fighting them with a large needle)
05/17/15 01:58 AM
Re: 909/1000 Build thread

Sick!
Keep the pics coming.


jeverts
(Member +)
05/17/15 02:16 AM
Re: 909/1000 Build thread

All finished up.



VR4_1752
(Member)
05/17/15 07:27 AM
Re: 909/1000 Build thread

That looks sick!!

transparentdsm
(I have to say something dumb Member)
05/17/15 08:34 AM
Re: 909/1000 Build thread

looks soo good. is your camera inverting the pictures? it looks like the spot where the egr would be is on the wrong side. it could also be me.

jeverts
(Member +)
05/17/15 01:21 PM
Re: 909/1000 Build thread

You freaked me out. I was at home when I read that. No, its good I think you are looking at it upside down. Most of the intake flanges that are made are not flat across the top. I did that to make it easier on myself for machining.

transparentdsm
(I have to say something dumb Member)
05/17/15 01:33 PM
Re: 909/1000 Build thread

ooh so the top is flat. ok. that makes sooo much more sense to me.

jeverts
(Member +)
05/17/15 02:57 PM
Re: 909/1000 Build thread

Not sure if sarcasm? Sorry I was vague on that. I meant to say, the head side flange is flat across the top side.

jeverts
(Member +)
05/17/15 06:29 PM
Re: 909/1000 Build thread

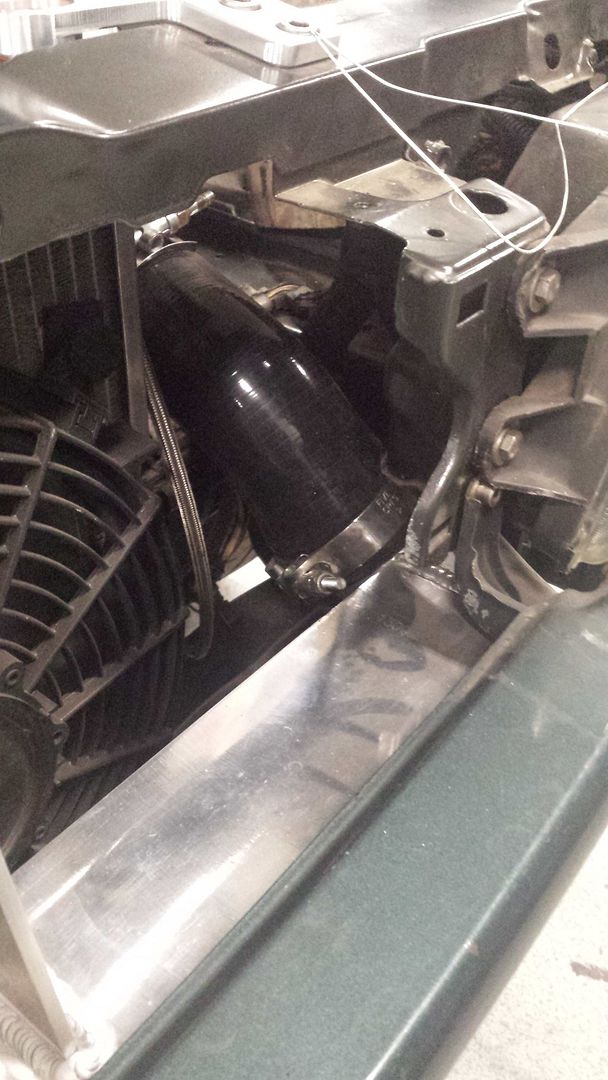

Sunday Funday. Got my radiator mounts made. My measurements are a little off but nothing that I can't cut the pegs off and re-weld them won't take care of. Also got some mounting brackets done for the intercooler.



transparentdsm
(I have to say something dumb Member)
05/18/15 07:55 AM
Re: 909/1000 Build thread

Quoting jeverts:

Not sure if sarcasm? Sorry I was vague on that. I meant to say, the head side flange is flat across the top side.




not sarcasm, i have a problem where things i say and type always sounds like im being an asshole. its the new jersey in me. what you said made total sense and i immediately understood you. im also crazy jealous of the CNC machine you get to use and make parts with. i want to make a bunch of 1 of a kind shit for my car. loving the intercooler setup.


beermebandit
(Newbie)
05/25/15 12:32 AM
Re: 909/1000 Build thread

Such a clean build! Cant wait to see more

89Patches
(I <3 AMS)
05/25/15 01:13 AM
Re: 909/1000 Build thread

Quoting transparentdsm:

i have a problem where things i say and type always sounds like im being an asshole.




Hey, me too! Or maybe I am just an asshole...


Shit looks good! Damn car is gonna billet CNC'd everything by the time your done.
Seriously setup looks awesome!


jeverts
(Member +)
05/26/15 11:23 AM
Re: 909/1000 Build thread

Quoting beermebandit:

Such a clean build! Cant wait to see more




Thanks guys. I will be making a lot of billet parts, I don't want to take it to far. I will be powder coating the VC. As beautiful as the FF VCs are, its a little to much for me.


jeverts
(Member +)
06/01/15 12:08 PM
Re: 909/1000 Build thread

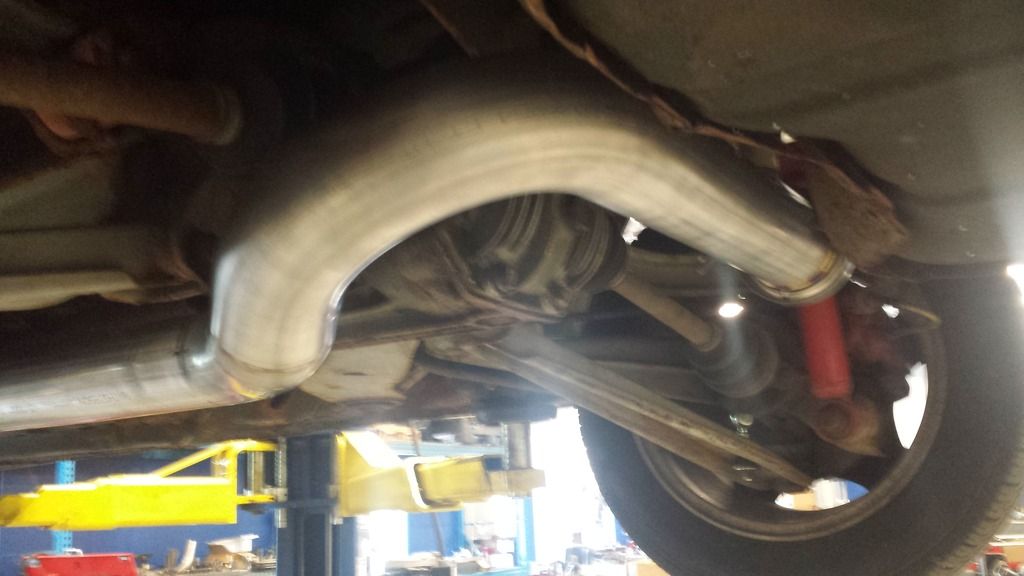

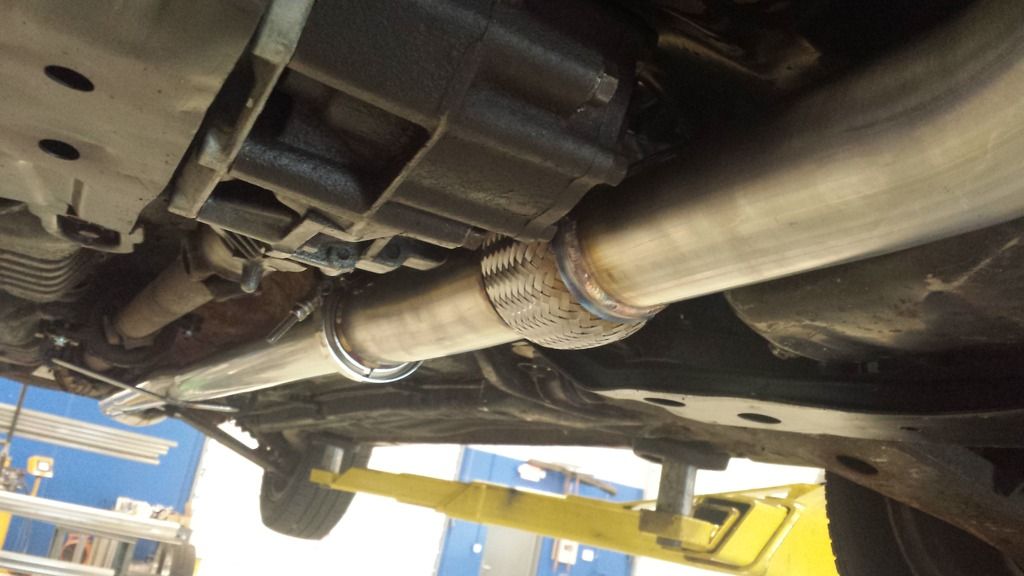

The exhaust wizards got a lot done on my exhaust this weekend.







jeverts
(Member +)
06/08/15 09:05 PM
Re: 909/1000 Build thread

Plenum base with velocity stacks is finished.







MellowVR4
(5" too short)
06/09/15 08:11 AM
Re: 909/1000 Build thread

sickness!!! }:d

jeverts
(Member +)
07/22/15 06:13 PM
Re: 909/1000 Build thread

Making some more progress on 909

Had a guy at work fab me up a bracket to relocated the power steering.



I was also able to work on finishing up the intake manifold. Still have a little bit to go. I am hoping by this weekend I can finish it up.

Op1


Op2


jeverts
(Member +)
07/24/15 10:24 PM
Re: 909/1000 Build thread

There it is. 99% done. Just some tapped hole for the throttle cable and NPTs for the vac lines and its done.







G
(JDM Unit)
07/24/15 10:32 PM
Re: 909/1000 Build thread

That's sweet, how much $ do you think you spent on materials?

GSTwithPSI
(A hole)
07/25/15 06:46 AM
Re: 909/1000 Build thread

That's a beautiful piece. Well done

strokin4dr
(fighting them with a large needle)
07/25/15 09:25 AM
Re: 909/1000 Build thread

Very nice!

faqinshiet
(Member +)
07/25/15 09:44 AM
Re: 909/1000 Build thread

Yes amazing work

transparentdsm
(I have to say something dumb Member)
07/25/15 10:34 AM
Re: 909/1000 Build thread

beyond jealous right now.

jeverts
(Member +)
07/26/15 11:00 PM
Re: 909/1000 Build thread

Quoting G:

That's sweet, how much $ do you think you spent on materials?




About $500 in materials. Which I splurge on getting MIC 6 instead of 6061. Probably would have been in the $300 range if I used 6061.

Thanks guys.


jeverts
(Member +)
07/30/15 03:05 PM
Re: 909/1000 Build thread

I am going to do the 5 lug conversion on my galant but not sure what hubs to get? The rock auto is a little confusing, or maybe I am looking at this wrong.




transparentdsm
(I have to say something dumb Member)
07/30/15 03:09 PM
Re: 909/1000 Build thread

Those all say rear but none look like rear. I have 5 lug front hubs and knuckles if your interested

jeverts
(Member +)
07/30/15 03:09 PM
Re: 909/1000 Build thread

Do you need to the knuckles or can I just swap out the hubs?

transparentdsm
(I have to say something dumb Member)
07/30/15 03:32 PM
Re: 909/1000 Build thread

You can just swap out hubs.

iceman69510
(Turn Right Racing)
07/31/15 07:57 AM
Re: 909/1000 Build thread

You seem to have access to cool machine tools, just remove your rear hubs and redrill them for 5 lug. Need 2 new stud and some new holes.

KiNgMaRtY
(Member +++)
07/31/15 09:30 AM
Re: 909/1000 Build thread

Wow, I had no idea the hubs were that cheap to buy new!So the only one that would fit would be the Dura International?

jeverts
(Member +)
09/03/15 11:52 AM
Re: 909/1000 Build thread

I drew this out and the only thing that I am concerned about is that at least one hole is going to be close to another. Call me paranoid but I would be scared of ruining the integrity of the hub. I am planning on pushing 600+hp to the ground with this car. I would just like to have the piece of mind that nothing is going to fail.

Quoting iceman69510:

You seem to have access to cool machine tools, just remove your rear hubs and redrill them for 5 lug. Need 2 new stud and some new holes.




jeverts
(Member +)
09/03/15 11:58 AM
Re: 909/1000 Build thread

We almost have this awesome piece of equipment almost up and running. Mazak Integrex Mill/Turn lathe with 5 axis abilities. I can't wait to start making more cool shit.

This coupled with the faro arm. I am thinking billet front knuckles are in order.



iceman69510
(Turn Right Racing)
09/03/15 12:18 PM
Re: 909/1000 Build thread

Quoting jeverts:

I drew this out and the only thing that I am concerned about is that at least one hole is going to be close to another.




Just put some weld filler in the hole to bridge it.

How close? (12.5* at 57.15 mm radius- I could do the math but...)


minneSNOWta
(Member +)
09/03/15 12:19 PM
Re: 909/1000 Build thread

Mmmmm. Billet knuckles. Would you want to borrow a clean, unpacked set of non-ABS knuckles to model off of?

iceman69510
(Turn Right Racing)
09/03/15 02:14 PM
Re: 909/1000 Build thread

Oooh, you could mod the program to make different caliper mountings. Brembo, etc.

strokin4dr
(fighting them with a large needle)
09/03/15 04:59 PM
Re: 909/1000 Build thread

Sounds expensive but I like where this is going!

jeverts
(Member +)
09/18/15 12:32 PM
Re: 909/1000 Build thread

Looks like my next purchase is a Racaro baby seat.



GSTwithPSI
(A hole)
09/18/15 12:38 PM
Re: 909/1000 Build thread

Congrats, Jason!

transparentdsm
(I have to say something dumb Member)
09/18/15 12:49 PM
Re: 909/1000 Build thread

congrats!!!!!

my buddy has a Recaro baby seat and i must say its really nice.


CutlassJim
(poop load of room)
09/18/15 12:58 PM
Re: 909/1000 Build thread

Start stocking up on this stuff now.

The only way I could be a parent


jeverts
(Member +)
09/18/15 01:39 PM
Re: 909/1000 Build thread

When he punches her right in the uterus. This is all I could think of.



faqinshiet
(Member +)
09/18/15 01:55 PM
Re: 909/1000 Build thread

Congrats Jason!

idreamidrive
(Member +)
09/19/15 06:16 PM
Re: 909/1000 Build thread

Congrats!

Just a note, installing the baby seat in the center position will break most of the stitches in the leather around that location, or at least it did to mine.


FlyingEagle
(Eager Beaver)
09/19/15 09:45 PM
Re: 909/1000 Build thread

Install a temporary new back seat with a flat bottom versus bucket style, or completely repad and upholster what is there. So easy ....

Congratulations and happy to see the happy position you are at in life.

You could always make a billet baby model based off the ultrasound photos .... just saying .....
!


jeverts
(Member +)
09/30/15 11:26 AM
Re: 909/1000 Build thread

2150's #Allthefuel.



4Grim
(I deliver.)
09/30/15 11:37 AM
Re: 909/1000 Build thread

Congratulation on the new baby!

Check out Slickdeals or even Woot. I was able to score Recaro baby seats for both my kids cheap and just recently on Woot my sons Recaro booster seat. Great seats, easy to remove the fabric and clean too and also top rated for child safety protection.


slugsgomoo
(god hates stupid people)
09/30/15 05:01 PM
Re: 909/1000 Build thread

Congrats!

Careful on the recaro though, bunch of my friends have them and they just did a major recall. It you get one it should not be affected by definitely double check. Anyone who has one already should too.


jeverts
(Member +)
09/30/15 05:16 PM
Re: 909/1000 Build thread

I had heard about that. We also looking into the Gracos all in ones just for the fact that we wont need to get anything else. I honestly probably wont have a car seat in the galant. I have my lancer to commute around.

KiNgMaRtY
(Member +++)
09/30/15 06:15 PM
Re: 909/1000 Build thread

Congratulations!

I too have Recaro baby car seats. I have 2.They are great and the material is very durable after various washes.


jeverts
(Member +)
10/14/15 05:40 PM
Re: 909/1000 Build thread

Finally got my clutch and flywheel.



pot
(It's a twee shaker----choot him choot him)
10/14/15 05:41 PM
Re: 909/1000 Build thread

Is that an SBC Stage 2?

jeverts
(Member +)
10/14/15 05:50 PM
Re: 909/1000 Build thread

Its the SSX pressure plate with the ceramic disk. I dont know what stage that is. The flywheel is just a standard comp clutch lightweight steel flywheel.

jeverts
(Member +)
10/19/15 03:14 PM
Re: 909/1000 Build thread

Found the Front Calipers that I am going with. They are 4 pot brembo calipers off of an 05 CTS-V. I would say that is a good price on calipers.




iceman69510
(Turn Right Racing)
10/19/15 03:18 PM
Re: 909/1000 Build thread

Let us know about the appearance when you get them. I don't believe that Rock Auto powdercoats the rebuilds on Brembo calipers.

marvinmadman
(Senior Member)
10/19/15 03:20 PM
Re: 909/1000 Build thread

Doesn't look like rebuilt calipers.

jeverts
(Member +)
10/19/15 03:21 PM
Re: 909/1000 Build thread

Yeah they have remans on there for $30 cheaper. Had a guy buy these for his truck and they came in looking brand new.

iceman69510
(Turn Right Racing)
10/19/15 03:22 PM
Re: 909/1000 Build thread

Powdercoated as from the factory or not?

marvinmadman
(Senior Member)
10/19/15 03:24 PM
Re: 909/1000 Build thread

They are AC Delco

jeverts
(Member +)
10/19/15 03:24 PM
Re: 909/1000 Build thread

Yeah they were coated with what GM coats them with. Also had the "V" with the checker flag on them.

jeverts
(Member +)
10/19/15 03:26 PM
Re: 909/1000 Build thread

This is what they look like

click

Granted that says rear and the picture is a front.


GSTwithPSI
(A hole)
10/19/15 07:10 PM
Re: 909/1000 Build thread

Quoting jeverts:

Found the Front Calipers that I am going with. They are 4 pot brembo calipers off of an 05 CTS-V. I would say that is a good price on calipers.







I assume you're making your own brackets?


jeverts
(Member +)
10/20/15 07:31 AM
Re: 909/1000 Build thread

Yeah I will mock up the caliper and rotor to the knuckle and faro arm it to make some mounts.

turbohf
(anyone even read this?)
10/20/15 11:30 AM
Re: 909/1000 Build thread

wow. that's a great price on calipers. cheaper than used EVO calipers. I might be interested in brackets if they fit under EVO wheels

transparentdsm
(I have to say something dumb Member)
10/20/15 11:34 AM
Re: 909/1000 Build thread

yes i might be as well, also depending on the rotor that needs to be used.

jeverts
(Member +)
10/20/15 11:53 AM
Re: 909/1000 Build thread

I was planning on using evo rotors and I have evo 8 enkies that I plan to have them fit into.


Quoting turbohf:

wow. that's a great price on calipers. cheaper than used EVO calipers. I might be interested in brackets if they fit under EVO wheels




KiNgMaRtY
(Member +++)
10/20/15 03:16 PM
Re: 909/1000 Build thread

Will you be using the 14" rotors with them? It appears 18" rims would be required for them to fit.

jeverts
(Member +)
10/20/15 04:12 PM
Re: 909/1000 Build thread

14" EVO rotor with the 17in Evo 8 enkei wheels. It will fit, the calipers are identical to the evo brembos.

ApexHunter
(Extreme Indoor Cyclist)
10/20/15 09:04 PM
Re: 909/1000 Build thread

^ I had a feeling that was the case. I assume the front pads are FMSI # 1001?

That price is extremely reasonable. Almost seems too good to be true. Shoot, i might look into replacing the Brownbos on my 2003 Evo with a set of those.


turbohf
(anyone even read this?)
10/20/15 10:40 PM
Re: 909/1000 Build thread

quick search of that acdelco part number on amazon showed prices couple bucks more than rockauto. and about 300 for springs/pins and pads. and yes looks like some EVO/STI/etc pads... i may never get to work on my Nova if i keep buying shit like this for the Galant lol...

89Patches
(I <3 AMS)
10/21/15 12:38 AM
Re: 909/1000 Build thread

Biggest rotor you can fit behind a 17" rim is a 13" rotor.

- Evo X rotors are 14" requires 18" rim to clear.
- Evo 5-9 Rotors are 12.5" but cannot be use with CTSV calipers
- CTSV calipers bolt to the DSM knuckle but need 13" Cobra rotors to work. (Fit under 17" rims) Also you machine the mounting tabs on the CTSV caliper to correct the offset to be able to fit cobra rotors.


CutlassJim
(poop load of room)
10/21/15 07:45 AM
Re: 909/1000 Build thread

Quoting jeverts:

14" EVO rotor with the 17in Evo 8 enkei wheels. It will fit, the calipers are identical to the evo brembos.




I believe one or both of the pistons is 2mm smaller. like 44/42 vs 42/40 or something like that. FWIW my 13" cobra rotors with 3KGT calipers fit my 17's with room to spare.

EDIT: Actually not that much room to spare. I don't see fitting a 14" rotor in there. Maybe a 13.250-13.375"


jeverts
(Member +)
10/21/15 08:27 AM
Re: 909/1000 Build thread

Thanks for the help guys. Looks like I will get the cobra rotors. I really don't want to go with a 18" wheel on my galant. It's to big of a wheel IMO on these cars.

CutlassJim
(poop load of room)
10/21/15 03:04 PM
Re: 909/1000 Build thread

In all honesty even the 13" rotor is probably overkill. I built a car for another member and used the 2G 3KGT rotors with matching calipers and the thing stopped like woah. To try to maintain balance I used bitey pads on the back and normal ceramics on front and it still locked up the fronts first.

ApexHunter
(Extreme Indoor Cyclist)
10/21/15 09:05 PM
Re: 909/1000 Build thread

Depends on what you're doing with it. On a road course, a ~3200 lb car will want every square inch of that 13" rotor to use as a heat sink.

jeverts
(Member +)
10/24/15 04:28 PM
Re: 909/1000 Build thread

1899 you have been spotted.



minneSNOWta
(Member +)
10/24/15 11:56 PM
Re: 909/1000 Build thread

Yup! What kind of shenanigans were you up to at SM? Hoping they can get my car into the shop soon. I'll have to stop by your place once it gets going before I make the trip back up north.

Interesting caliper choice. I thought you were going with 3KGT brakes at one point.


jeverts
(Member +)
10/25/15 05:28 PM
Re: 909/1000 Build thread

I was meeting with Jon the engineer that rents out some of that shop. I was thinking of 3kgt but I figured I would spend a couple more bucks and get some really nice brake setup on the car.

CutlassJim
(poop load of room)
10/25/15 05:40 PM
Re: 909/1000 Build thread

You talking shit about the 3KGT calipers?

jeverts
(Member +)
10/25/15 09:50 PM
Re: 909/1000 Build thread

I don't recall.

transparentdsm
(I have to say something dumb Member)
10/28/15 08:23 AM
Re: 909/1000 Build thread

any update on the caliper brackets?? i only ask because i made a mistake when i ordered my rotors for the 5 lug conversion and i ended up getting the single piston caliper rotors not the dual, now i need to buy more parts. if im buying more parts i might as well just upgrade them now.

jeverts
(Member +)
10/28/15 08:33 AM
Re: 909/1000 Build thread

I am going to try to get to it this weekend. I am going to be installing the clutch and try to get the fuel lines in. I still have 4 lug hubs on the car. It might be awhile just because I would like to have the hub installed and wheels on so I can make sure everything is going to clear and I can faro arm the mounting locations.

Mn92gvr4
(Member)
11/09/15 05:44 PM
Re: 909/1000 Build thread

So i was at map this afternoon visiting your car. Didnt see ya. One of these days you me and minnsnowta are going to have to make all of our cars run and meet up. Btw she looked a little lonely tuck back in the corner.

jeverts
(Member +)
11/09/15 05:53 PM
Re: 909/1000 Build thread

That is it's parking spot. I am just glad they are not making me park it outside. When did you come in? I have been here all day. LOL these cars run. I'm about 75% there. If I would quit coming up with shit to machine for it I would probably have it done by now. Just need to make time to work on it.

This is my next project Fuel and brake line mounts


Mn92gvr4
(Member)
11/09/15 06:12 PM
Re: 909/1000 Build thread

I was there around 4:30 dropping off my head. Convinced jared to take me back to the shop to see if you where there. She looks good. And yes, mine ran for a little bit.

transparentdsm
(I have to say something dumb Member)
11/22/15 03:22 AM
Re: 909/1000 Build thread

Quoting 89Patches:

Biggest rotor you can fit behind a 17" rim is a 13" rotor.
- CTSV calipers bolt to the DSM knuckle but need 13" Cobra rotors to work. (Fit under 17" rims) Also you machine the mounting tabs on the CTSV caliper to correct the offset to be able to fit cobra rotors.




hey, have you gotten around to ordering the calipers yet and does this hold any water? im thinking about ordering them soon.


jeverts
(Member +)
11/22/15 12:16 PM
Re: 909/1000 Build thread

I am trading labor for the calipers I am hoping I can do that over thanksgiving. But the calipers are at the shop I just need to get the lug conversion done and get rotors ordered.

jeverts
(Member +)
01/24/16 09:13 PM
Re: 909/1000 Build thread

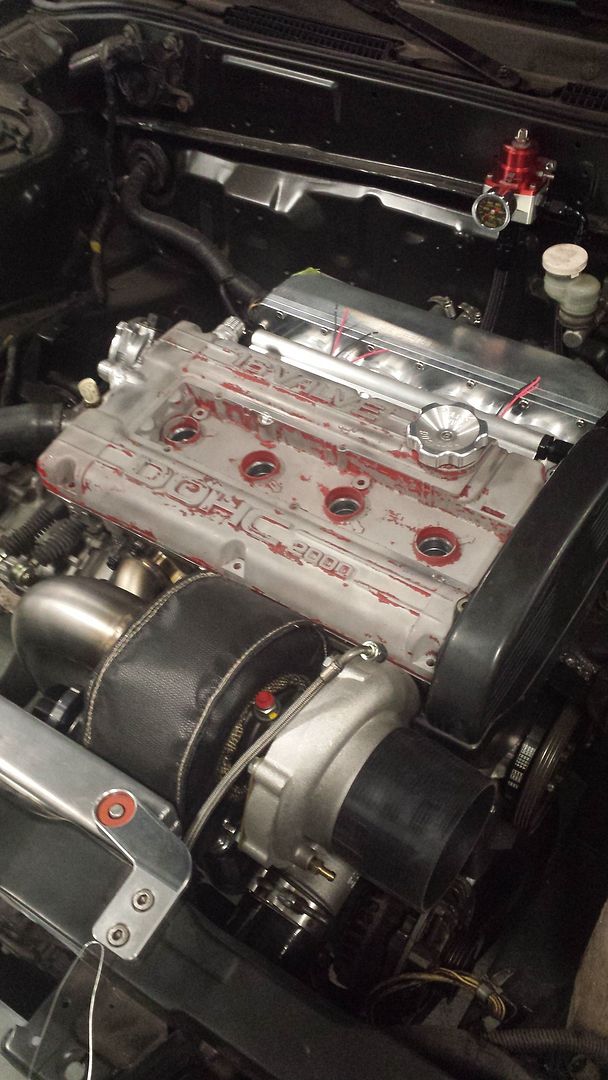

Haven't posted progress in a while. Got the turbo in manifold ported started on the fuel lines. Probably going to be ordering a TB this week and then I can finish up the pipeing.











Mn92gvr4
(Member)
01/25/16 12:22 PM
Re: 909/1000 Build thread

Looking good. What exhaust manifold are you running?

jeverts
(Member +)
01/25/16 12:27 PM
Re: 909/1000 Build thread

Custom manifold that Andrew at MAP built for me.

Mn92gvr4
(Member)
01/25/16 12:30 PM
Re: 909/1000 Build thread

Gotcha. How much that run you if you dont mind me asking. Im eyeing up them jmf top mounts but the price hurts a little

jeverts
(Member +)
01/25/16 01:24 PM
Re: 909/1000 Build thread

The price is not going to reflect what it would actually cost considering I got the materials at cost and Andrew owed me work so the labor was free.

Mn92gvr4
(Member)
01/25/16 03:53 PM
Re: 909/1000 Build thread

Thats always nice. I just got my w2s so i will be making an appearance at map soon to place an order. And spy on your progress of course

jeverts
(Member +)
01/25/16 04:12 PM
Re: 909/1000 Build thread

If you stop by before 4pm im here come in the back and say hi.

jeverts
(Member +)
02/05/16 06:14 PM
Re: 909/1000 Build thread

Here you are. CTS-V calipers. See if I can't get these mocked up this weekend They are a little scratched up being tossed around in a bin. I bought them off of a guy at work.





jeverts
(Member +)
02/05/16 06:26 PM
Re: 909/1000 Build thread

I check the bolt spread to the stock calipers and it matches up but I have a feeling I am going to need to extend them out from the knuckle a bit.

strokin4dr
(fighting them with a large needle)
02/05/16 11:35 PM
Re: 909/1000 Build thread

There are a few threads out there with people attempting to use these calipers on DSMs. So far I haven't seem anyone pull it off completely or at least update their threads if they did. Yes, the bolt spacing is the same but offset seems to be way off and when offset is corrected, the rotors seem to be an issue.

Hopefully you can get passed this and figure out an easy way to make it work. I've wanted to pay with these myself for a while now but have yet to try. Good luck and post your findings!
-Ryan


15psi88
(Member)
02/06/16 05:40 AM
Re: 909/1000 Build thread

click

strokin4dr
(fighting them with a large needle)
02/06/16 08:00 AM
Re: 909/1000 Build thread

I'd be interested to see which type of wheel offset would be need to clear that setup. When bolting them to the hub without modification, the caliper sits roughly 0.5" farther out towards the wheel than an evo brembo caliper.
Has anyone bought this kit?


GSTwithPSI
(A hole)
02/06/16 11:14 AM
Re: 909/1000 Build thread

I can't imagine they stick out any farther than the 3KGT calipers.

jeverts
(Member +)
02/06/16 11:28 AM
Re: 909/1000 Build thread

If its the case of just wheel spacers this is going to be easy peasy. Thanks for the link. This might work out better than I had thought.

GSTwithPSI
(A hole)
02/06/16 11:30 AM
Re: 909/1000 Build thread

Easy peasy says the guy with a CNC machine at his disposal.

I envy you...


transparentdsm
(I have to say something dumb Member)
02/06/16 11:31 AM
Re: 909/1000 Build thread

let me know what you come up with and do as ill be doing the exact same thing so please make me a set while doing your stuff.

jeverts
(Member +)
02/06/16 11:54 AM
Re: 909/1000 Build thread

Quoting GSTwithPSI:

Easy peasy says the guy with a CNC machine at his disposal.

I envy you...




One of the best fields you can get into right now. There are so many jobs out there its unreal. I could have 3 or 4 jobs tomorrow if I wanted. Also you can make very good money doing it.


GSTwithPSI
(A hole)
02/06/16 11:56 AM
Re: 909/1000 Build thread

Let's not forget the ability to make nearly any custom part you desire. I can't wait to see your build finished.

strokin4dr
(fighting them with a large needle)
02/06/16 02:16 PM
Re: 909/1000 Build thread

Quoting GSTwithPSI:

I can't imagine they stick out any farther than the 3KGT calipers.




They definitely do.

Wheel spacers will most likely be needed, which isn't an issue to me depending on how much of a spacer is needed. When you start getting a lot of wheel poke and having to add camber, etc just to fit a set of calipers is when I start looking at other alternatives.

Best of luck and keep this thread updated!


jeverts
(Member +)
02/09/16 07:48 AM
Re: 909/1000 Build thread

I got some hardware for the calipers and mounted them up. I am going to order wheel bearings and grab an Evo rotor and my Evo enkeis and mock this up to make sure what offsets I need to do and get something made up.

Once I have everything figured out on these I will probably do a How-to on this set up with all the parts needed. This will be great consindering they are much cheaper than the evo brembos and are pretty much the same set up.

Now I just need to figure out the rear brake setup on these cars.



transparentdsm
(I have to say something dumb Member)
02/09/16 08:10 AM
Re: 909/1000 Build thread

looks good. im really excited about this.

GSTwithPSI
(A hole)
02/09/16 10:43 AM
Re: 909/1000 Build thread

What knuckle is that?

jeverts
(Member +)
02/09/16 12:16 PM
Re: 909/1000 Build thread

1g I believe

transparentdsm
(I have to say something dumb Member)
02/17/16 10:12 AM
Re: 909/1000 Build thread

im super pumped on this. i think i might order the calipers soon and what rotors are you planing on using? id like to start to get a list of parts i need together.

jeverts
(Member +)
02/17/16 10:21 AM
Re: 909/1000 Build thread

OE Evo 8/9 rotors. I put the wheel bearings and seals in last night. I did some measurements off of a stock Evo 8/9 hub and knuckle and right now it looks like im going to need a .07 spacer between the rotor and hub but i am going to get a set of rotors and confirm this. I also checked clearance between the caliper and Evo 8 enkeis and it looks like it will have no problem clearing.

89Patches
(I <3 AMS)
02/17/16 12:19 PM
Re: 909/1000 Build thread

Pretty sure Evo 5-9 rotors won't work with the CTSV calipers, like I said before, it needs a larger diameter rotor to get the right contact patch for the pads. Plus the kit has already been made: click

jeverts
(Member +)
02/17/16 12:22 PM
Re: 909/1000 Build thread

Quit ruining my dreams

89Patches
(I <3 AMS)
02/17/16 12:25 PM
Re: 909/1000 Build thread

I'll try to stop!

iceman69510
(Turn Right Racing)
02/17/16 12:33 PM
Re: 909/1000 Build thread

Quoting jeverts:






So am I interpreting this picture correctly? The mount spacing of the caliper is identical to a GVR4/1g knuckle spacing?


jeverts
(Member +)
02/17/16 01:35 PM
Re: 909/1000 Build thread

Yes

TurboDSM
(Junior Member)
02/17/16 01:48 PM
Re: 909/1000 Build thread

Use cobra 13" rotors

mitsuturbo
(Banthony )
02/17/16 01:53 PM
Re: 909/1000 Build thread

Quoting 89Patches:

Pretty sure Evo 5-9 rotors won't work with the CTSV calipers, like I said before, it needs a larger diameter rotor to get the right contact patch for the pads. Plus the kit has already been made: click




I personally wouldn't trust any seller that can't differentiate between "brake kit" and "break kit" on what looks like a company website.


89Patches
(I <3 AMS)
02/17/16 02:41 PM
Re: 909/1000 Build thread

Wasn't saying buy the kit from them, I was just merely pointing out it already had been done.

jeverts
(Member +)
02/17/16 03:10 PM
Re: 909/1000 Build thread

That is pretty much what I am going off of at this point just not sure what rotors they are using. I'm curious about the cobra rotors now.

iceman69510
(Turn Right Racing)
02/17/16 03:31 PM
Re: 909/1000 Build thread

They show spacers, but no brackets, so I am curious if they are bolting directly also. Not the hardest thing in the world to find rotors with specs to fit, but to have them readily and cheaply available is another animal.

jeverts
(Member +)
02/17/16 04:43 PM
Re: 909/1000 Build thread

I am going to look at Evo 10 rotors. They are 350mm in diameter. It will be a different spacing but nothing trying it can't hurt.

Mdlimy
(Member)
02/17/16 09:50 PM
Re: 909/1000 Build thread

I happen to have a pair of these calipers sitting in my room...I like where this is going

TurboDSM
(Junior Member)
02/18/16 04:54 AM
Re: 909/1000 Build thread

This gives me more reason to replace my calipers on my cts-v and just put the old ones on the galant

89Patches
(I <3 AMS)
02/18/16 01:29 PM
Re: 909/1000 Build thread

They're 100% Cobra rotors. Thing about using Evo X rotors is they will not fit under 17" wheels.

jeverts
(Member +)
02/18/16 01:42 PM
Re: 909/1000 Build thread

I tried the Evo X rotors out last night and they fit in a evo 8 enkeis. I will have to take a little off the outside (.100 or so) but they will work. It will bring the rotor to 13.6 or so but I will be able to get complete pad contact.

jeverts
(Member +)
02/18/16 01:47 PM
Re: 909/1000 Build thread




89Patches
(I <3 AMS)
02/18/16 02:01 PM
Re: 909/1000 Build thread

I mean with the caliper on. Well they didn't fit with the Evo X caliper when I tried it. If the CTSV caliper is a bit smaller and the rotor taken down some, you maybe able to squeeze them behind a 17" wheel. Hard to say.

jeverts
(Member +)
02/18/16 02:06 PM
Re: 909/1000 Build thread

I should have taken a picture of it last night. They caliper didn't quite bolt on it was like .03 to .04 of interference on the inside of the caliper. I will just chuck it up in the lathe and take some off the outside and it will fit. I am just waiting to get paid tomorrow so I can pick up a pair. It looks kinda of awesome it so much stuffed inside a 17" wheel. Look into it and all you see is rotor and caliper.

TurboDSM
(Junior Member)
02/29/16 01:52 PM
Re: 909/1000 Build thread

Any updates? I'm gonna try some cobra rotors and see how far off they are from fitting

jeverts
(Member +)
02/29/16 01:57 PM
Re: 909/1000 Build thread

Rotors will be in tonight. I am going to get them fitted up tomorrow night.

jeverts
(Member +)
03/01/16 07:28 AM
Re: 909/1000 Build thread

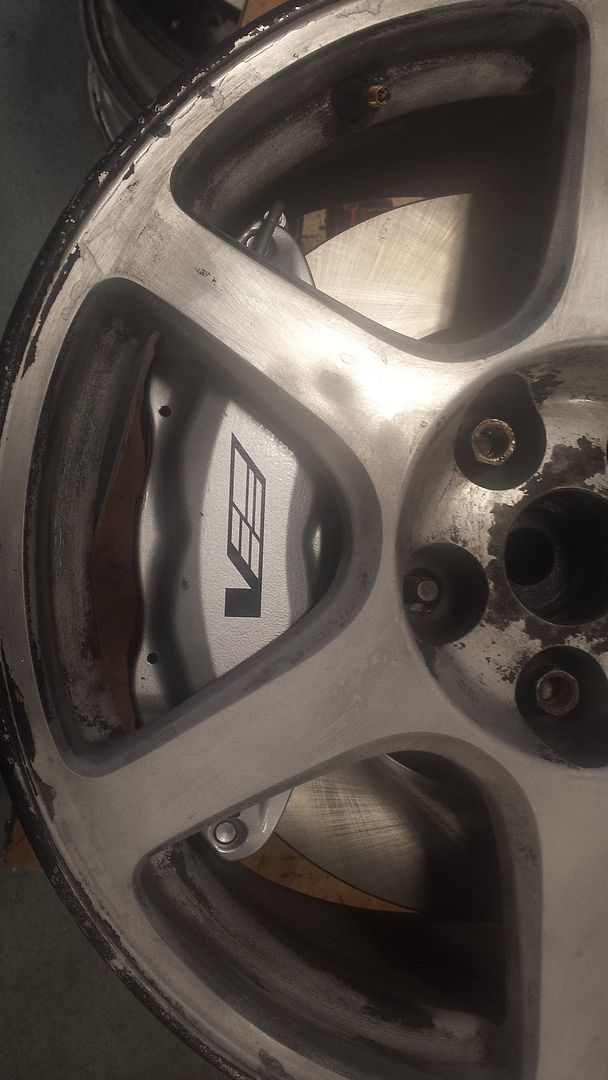

I was able to cut the rotors last night and get the proper offset for the rotor.I had to cut the OD of the rotor to 13.400 and add a 4mm (.157) between the hub and the rotor. And it fits perfect with good clearance on a EVO 8 Enkei.

TurboDSM What I would do if you go with the Cobra rotors is get some washers that will fit over the studs and stack them up until you get the proper offset. Then let me know what that offset is. I can make some spacers for the Cobra rotors. 4mm might be the magic number but I would just make sure. Like Patches said 13" will work just fine with plenty of pad contact.

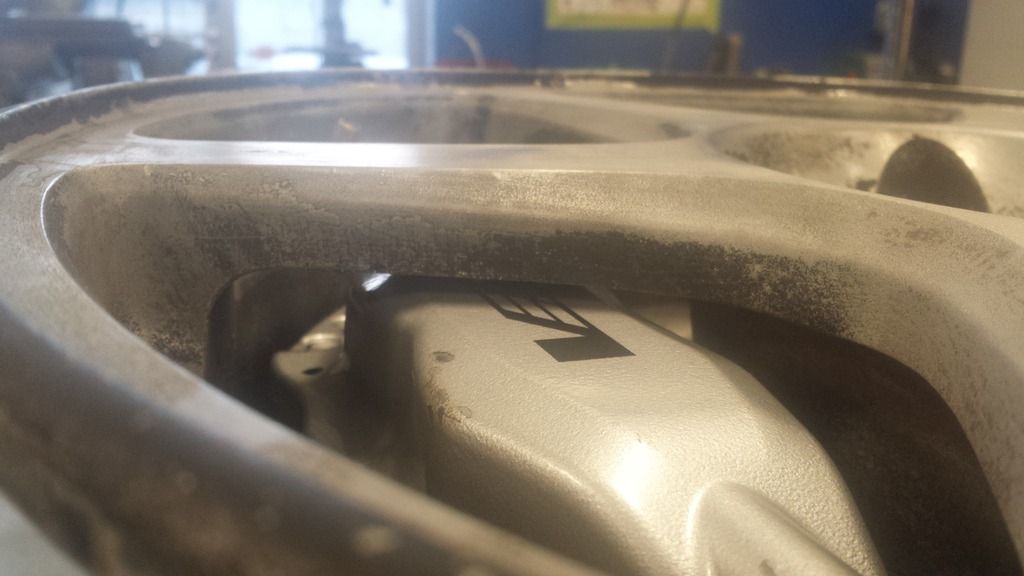

It was kind hard to get a picture of the offset but it even on both sides.



TurboDSM
(Junior Member)
03/01/16 07:40 AM
Re: 909/1000 Build thread

Will do. I have rears as well but I haven't had time to look and see if they will bolt on or need brackets. That will be the next challenge.

jeverts
(Member +)
03/01/16 07:45 AM
Re: 909/1000 Build thread

I know some people are trying to figure out a rear brake swap option that will have the parking brake included. I don't know if anyone as succeeded or not.

iceman69510
(Turn Right Racing)
03/01/16 09:50 AM
Re: 909/1000 Build thread

So Evo 8/9/10 rotors are out for fitment?

jeverts
(Member +)
03/01/16 09:52 AM
Re: 909/1000 Build thread

Evo 8/9 are out because the diameter is too small. Evo 10 will work with a little machining.

TurboDSM
(Junior Member)
03/01/16 09:53 AM
Re: 909/1000 Build thread

What are you using for lines?

marvinmadman
(Senior Member)
03/01/16 11:47 AM
Re: 909/1000 Build thread

What's the original OD of the Evo X rotor?

marvinmadman
(Senior Member)
03/01/16 11:52 AM
Re: 909/1000 Build thread

Looks like 9.64mm needs to be shaved off of the OD.

jeverts
(Member +)
03/01/16 11:58 AM
Re: 909/1000 Build thread

Quoting marvinmadman:

What's the original OD of the Evo X rotor?




350mm


KiNgMaRtY
(Member +++)
03/01/16 12:26 PM
Re: 909/1000 Build thread

Quoting jeverts:

I know some people are trying to figure out a rear brake swap option that will have the parking brake included. I don't know if anyone as succeeded or not.




Nope, I have not seen any finished products of a rear kit


89Patches
(I <3 AMS)
03/01/16 04:24 PM
Re: 909/1000 Build thread

I was going to mod the stock ebrake handle/mount to a hydraulic master, so you can still lock the rear brakes like stock. Eliminates the shitty cable setup. I know it's "not legal" but when you get inspected all they care about is when the hand brake is applied the car doesn't move. I just need to find some brembo's for the rear and I'll probably go ahead with it.

Here's some pic's of what I am talking about.





TurboDSM
(Junior Member)
03/01/16 04:44 PM
Re: 909/1000 Build thread

If you have to make brackets to make the rear work, I would be interested in a set of them

TurboDSM
(Junior Member)
03/12/16 05:04 AM
Re: 909/1000 Build thread

Not to hijack your thread, but I found these and thought it might be useful information



Lostkoz
(Newbie)
03/21/16 08:59 PM
Re: 909/1000 Build thread

Awesome build so far, can't wait to see the finished product

jeverts
(Member +)
03/28/16 08:39 AM
Re: 909/1000 Build thread

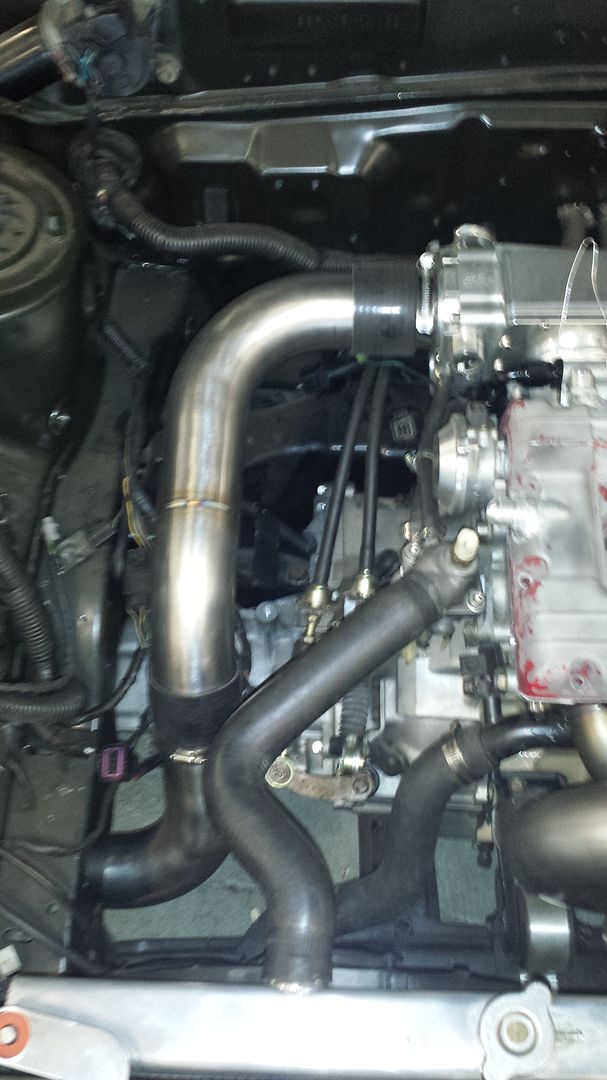

Our Fabricator Finished up a crash beam for me this weekend and also the rest of my intercooler piping. Got the bumper cover on which I have not seen a about 4 years





I didn't feel like waiting for a BOV flange so I ended up making one.



jeverts
(Member +)
04/05/16 06:19 PM
Re: 909/1000 Build thread

Wheels all cleaned up and powdercoated.





jeverts
(Member +)
04/14/16 05:06 PM
Re: 909/1000 Build thread

Anyone on here have a sticker cutter that can cut me the Enkei logo for these wheels? The Dimension are 3/4" x 3" long. I don't need them to be the 2 tone color all black would be fine.

Mn92gvr4
(Member)
04/17/16 11:00 PM
Re: 909/1000 Build thread

I have a friend who does. I will see if she can do it.

transparentdsm
(I have to say something dumb Member)
12/16/16 11:19 PM
Re: 909/1000 Build thread

so did you ever figure out the brakes?? im doing a 5 lug swap and i need to do the CTS-V swap while im at it.


Contact Us | Privacy statement GalantVR-4.org

Generated in 0.018 seconds in which 0.005 seconds were spent on a total of 4 queries. Turbo powered.


Hertz's Galant VR-4 Page
