K&N project picture request please

curtis

Well-known member
Joined
May 4, 2003
Messages
11,892
Location
Clarksville TN
Finishing up a buddies car in the next few days weather permitting. Problem is space

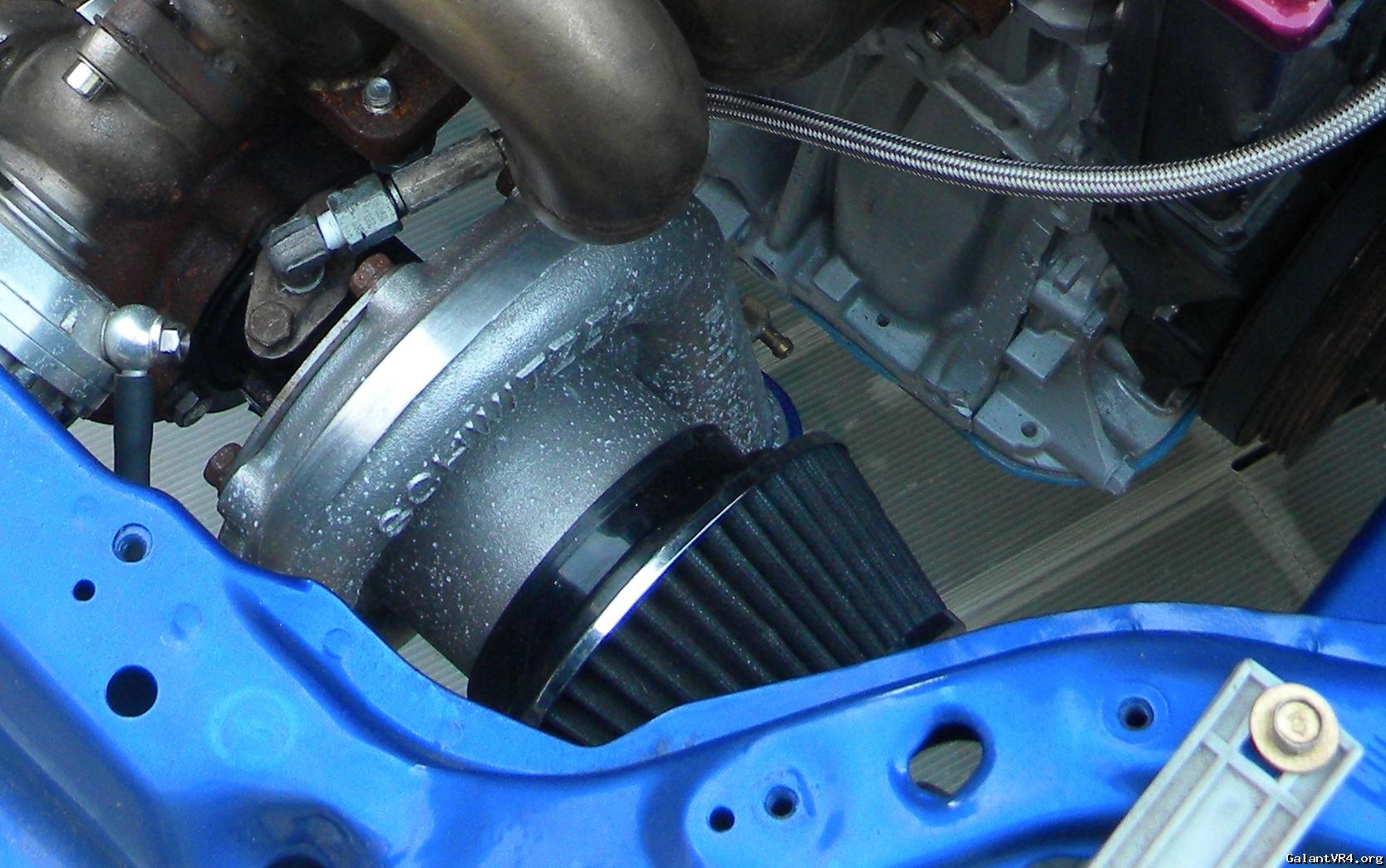

This little filter is just there to keep bees and trash out. You can see I only have about 6 inches or so from the frame rail. Not enough to support big end hp. Thinking about mounting a panel filter behind where the fog light should go and building a sheetmetal box but the one K&N panel I have is kind of small but he has one as well so I can do one on the front side and one on the back and bring a structure beside the front mount and to the inlet and connect with a 4 inch round piece of tubing welded to the box.

So if any one has any pictures of cool air filter box designs etc please post up.


curtis

Well-known member
Joined
May 4, 2003
Messages
11,892
Location
Clarksville TN
click me

Link is from K&N says a na 350 motor needs 92 square inches of filter so this thing at over 40psi will need over 150 sq inches. Going to need a bigger filter. /ubbthreads/images/graemlins/devil.gif


GreenGSX

Well-known member
Joined
May 15, 2005
Messages
681
Location
Rochester, New York
screw the filter just run a screen and keep your fingers/small children clear.


broxma

Well-known member
Joined
Nov 16, 2009
Messages
911
Location
San Antonio Tx
Pantyhose + Rubberband = Win.

/brox

Last edited:

vapid

Well-known member
Joined
Sep 24, 2005
Messages
918
Location
IL
^^^^ weekend plans?


curtis

Well-known member
Joined
May 4, 2003
Messages
11,892
Location
Clarksville TN
Well if it was a drag car I'd do a piece of screen but this is a street car and going to the dyno first so it needs a tune with what it will run on the street and track.


RedTwo

Well-known member
Joined
Jul 16, 2008
Messages
1,917
Location
New Zealand
Quoting broxma:
Pantyhose + Rubberband = Win.

/brox



....I saw that first hand on a Honda CRX - intake cone was about 1 foot in diameter and the pantyhose had a run in them /ubbthreads/images/graemlins/jawdrop.gif

Dang, 150 square inches is almost 1 square metre! I guess that's not too huge when you think about it - 100x100mm.

I shall venture outside and take photos of my box and maybe some of curtis's brackets and my new seats...

Have you considered replacing the radiator with a big filter and place radiator horizontal like drift/drag/rally cars? /ubbthreads/images/graemlins/laugh.gif /ubbthreads/images/graemlins/rofl.gif


belize1334

Well-known member
Joined
Nov 18, 2003
Messages
3,316
Location
Bozeman, MT
Could you put a 90* bend right at the compressor, pointed down, and then hang an oval, off-center filter?

Give us another picture from the other direction so that we can see the shape of the space more clearly.

Last edited:

curtis

Well-known member
Joined
May 4, 2003
Messages
11,892
Location
Clarksville TN
We screened it for now, I had some thick stainless screen which I don't like running but were limited for now because his cash flow is running low.

Below the turbo is intercooler pipe and the fenderwell area isn't that large. He now doesn't want to run a box out and around to the foglight opening because the intercooler want look symmetrical. Probably just get on K&N site and order something that fits later on.

I'll post pictures later because he doesn't want the car on the internet till he's broke off the haters thats been running there mouths 4 years of jack stand ballin.


What " is that turbo inlet. I might have a solution for you. Answer your phone once in awhile will you? /ubbthreads/images/graemlins/smile.gif


curtis

Well-known member
Joined
May 4, 2003
Messages
11,892
Location
Clarksville TN
Yea I was under the car running -12 when you called. I'll call you back after lunch
