Fellow members....I have a modified sending unit so I don't know the original way it went and now I'm having trouble aligning it so that my fuel gauge works. Have tried many ways but a pic of your sending unit without the access hatch on could solve my problem!

Thanks in advance!

Garrett


car_guy

Well-known member
Joined
Jul 13, 2015
Messages
60
Location
Farmington, NM
I just took mine out today. The fuel line should point straight toward the front of the car when it's installed in the tank. Sorry I don't have one in the tank right now.

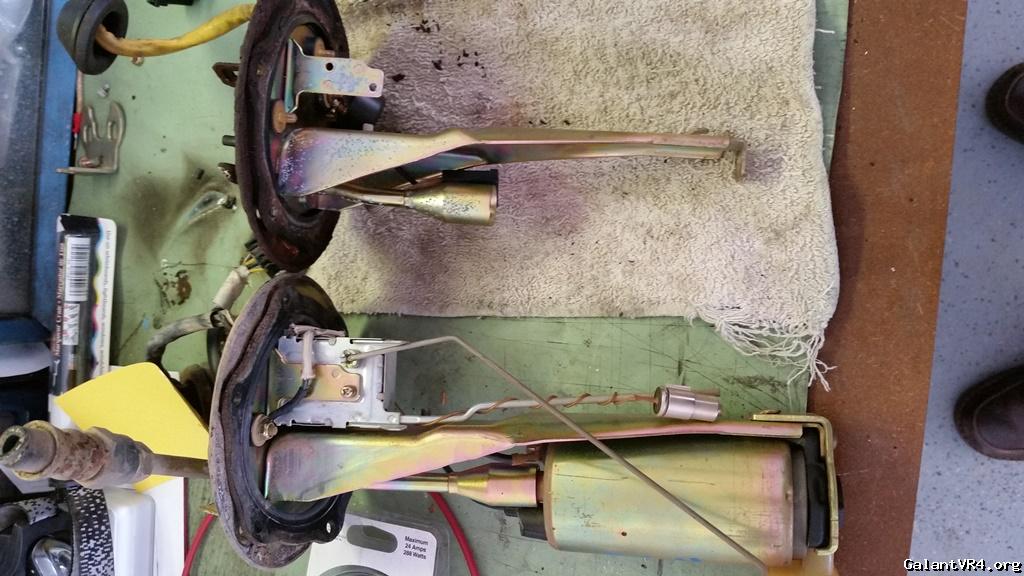

Here's one of the factory unit sitting on the work bench so you can see how the float looks.

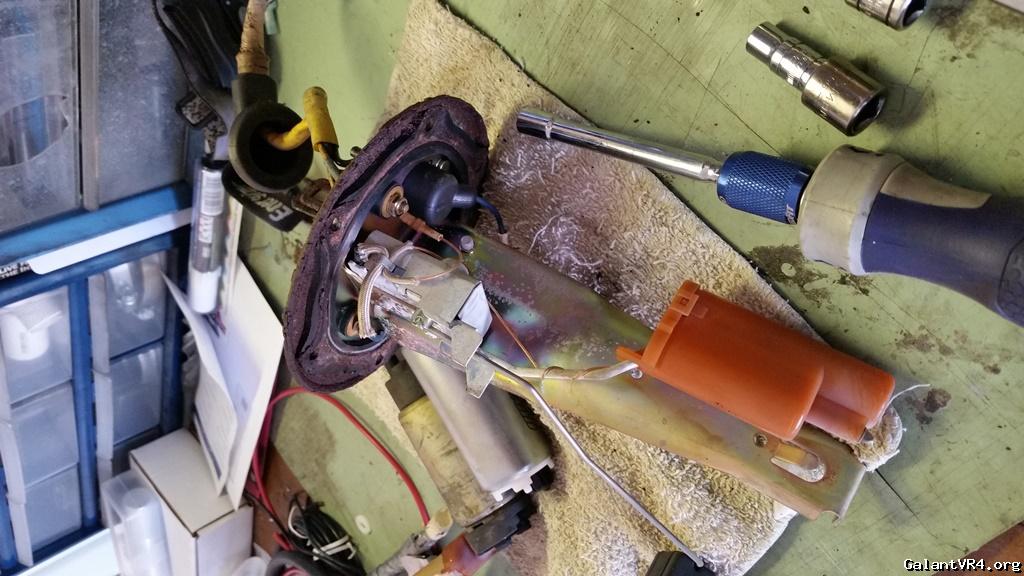

And here is a picture of a 1G on the left and the factory Galant unit on the right. I just did this swap today so happen to have them close.


Last edited:

Nebraska

Well-known member
Joined
Apr 9, 2015
Messages
140
Location
Lincoln, NE
Thanks! So with the fuel line pointed towards the front, the float should be perdicular in respects to the fuel line. I asked because I only had a broken one that I had to drill out and use AN fittings... So the float should face towards the passenger side and swing up and down? Sorry Im really trying to put this the best way I can lol


car_guy

Well-known member
Joined
Jul 13, 2015
Messages
60
Location
Farmington, NM
It should swing back and forth past the pump. Basically the same direction that the fuel line is pointing. It seems like it would float up towards the back of the car in place.

Last edited:

Nebraska

Well-known member
Joined
Apr 9, 2015
Messages
140
Location
Lincoln, NE

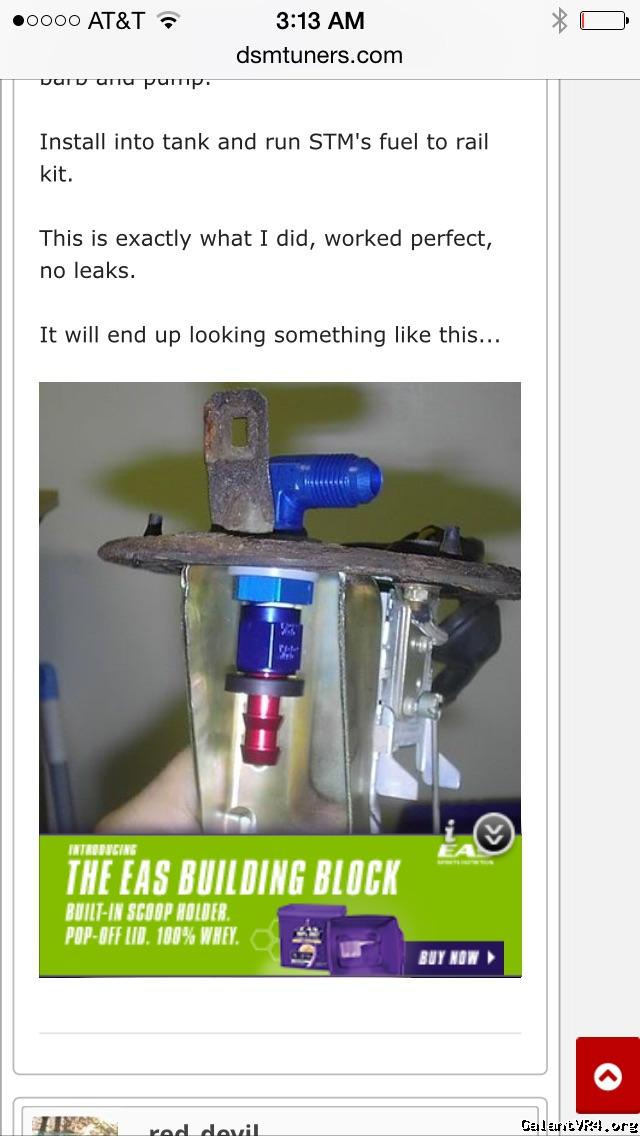

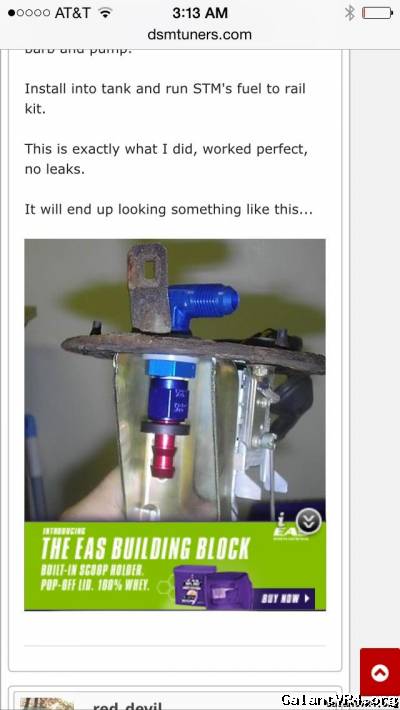

I don't know if that sounds right? Look at the 2nd pic from the post before my last. I couldn't get the pump aligned the way you said because of the return line in the tank doesn't allow the float to position that way. Such a small problem is driving me crazy...never had this problem with any DSM


car_guy

Well-known member
Joined
Jul 13, 2015
Messages
60
Location
Farmington, NM
Yeah you're right. My bad it looks like the float goes side to side in place. From driver side to passenger side.


Nebraska

Well-known member
Joined
Apr 9, 2015
Messages
140
Location
Lincoln, NE
Yep got it working this morning! Thanks though.



[RESOLVED]
