This took me months to gather all the right parts to do the install. Would I recommend it to anyone? Yes & no.
What you need:

1) Brackets $129 steel & $119 T61 Aluminum - TunersNation.com This includes all the mounting hardwares.

2) 1 pair of '91-'93.5 3kgt vr4 front 4 piston calipers (updated 12/29/08 - Calipers TunersNation.com .

3) 4ea Bolts 12x1.5 25mm long & 4ea bolts 12x1.5 35mm long. I have these in stock if you can't locate them. They're hardened bolts & wahsers. You don't want to use Walmart stuff here. TunersNation.com

4) 1 pair of front rotors for a '94-'99 3KGT VR4. I can get plain factory rotors & pads or aftermarket drilled/slotted rotors & aftermarket performance pads. Just drop me a pm or go to TunersNation.com

5) Evo 8 wheels if you've gone 5 lug or 17x8 +38mm offset or 18x7.5 with a minimum of +18mm offset or be prepared to use wheel spacers. You can buy these at Pep Boys Auto Store. You may need 1/2" up to 3/4" spacers depending on your wheel's spoke design. You may be able to get away with smaller offset depending on your wheel's spoke design. If the spoke is around 1/2" thick you won't need spacers & should be able to get away with 42mm offset or be prepared to make an executive decision to grind down the calipers or the inside of the wheel's spoke to clear the calipers.

6) Brake fluid & new ss brake lines . Our OEM lines bolts up to the calipers so no need to replace unless you must. They come is several colors, are D.O.T Certified & made in the USA.

7) If you still have 4 lugs like I do, be prepared to line up the new 94-99 3kgt vr4 rotors with your stockers in order to re-drill them. You will need a 1/2" 'quality' bit & good drill for this. With the right bit, it doesn't take any time.

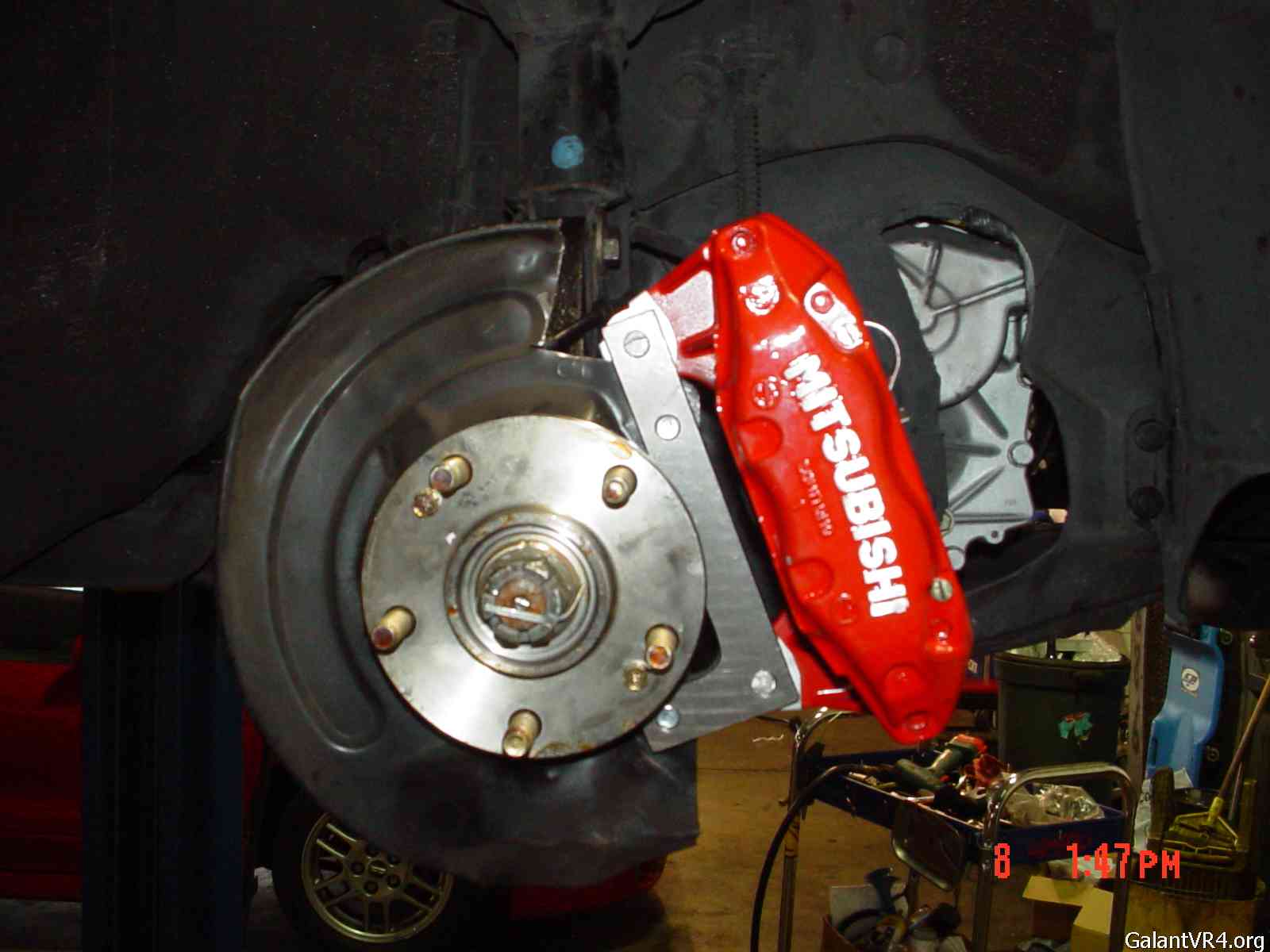

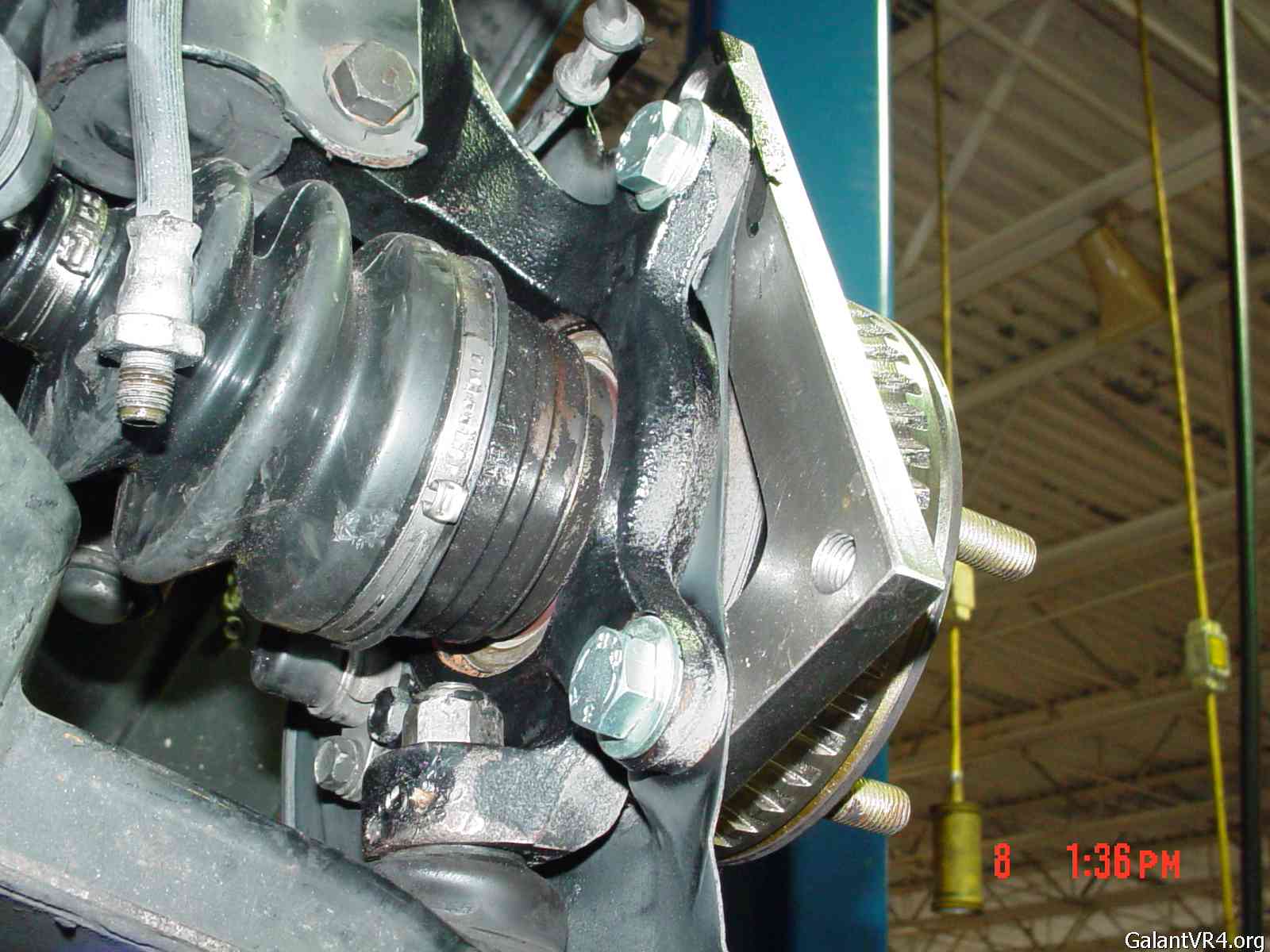

8) The dust shield will need to be trimmed starting right below the mounting tab for the ABS sensor cutting straight across to the other side. Be careful no to cut lines. Look at the pictures below for reference.

9) Since you're cutting off the mounting for the abs sensor line, you'll need a place to reattach them. The struts have a mounting area just above the strut lower top bracket.
9a) Forgot to mention that I had to shim the abs sensor with one washer.

10) Things to consider if you don't have the proper wheel to clear the calipers.
10a) You will need longer studs by at least 1/2".
10b) This is a good opportunity to determine if you want to stay 4 lug or switch to 5 lug.
10c) Upgrade suspension because your wheels will be sticking out more due to offset or wheel spacer.
10d) Replace worn out hubs, wheel bearings......
10e) Replace any torn boots while you have everything apart.
10f) Make sure when you purchase used calipers you ask for all the shims & brackets.
10g) The new 3kgt vr4 calipers are aluminum & hence lighter than our oems. The rotors however are much heavier. Unfortunately I didn't weigh any of these but pick them up & you'll see what I'm talking about.
Whenever I find the photos of the custom brackets I'll post them. The member cobrajetguy that was selling the brackets neglected to mention a few things which Jermaine & I found out the hard way. Hence the reason I'm putting this together so you won't be stuck searching for 12x1.5 25mm & 35mm bolts for weeks & ordering '91-93 3kgt vr4 rotors only to find out they are the wrong ones.

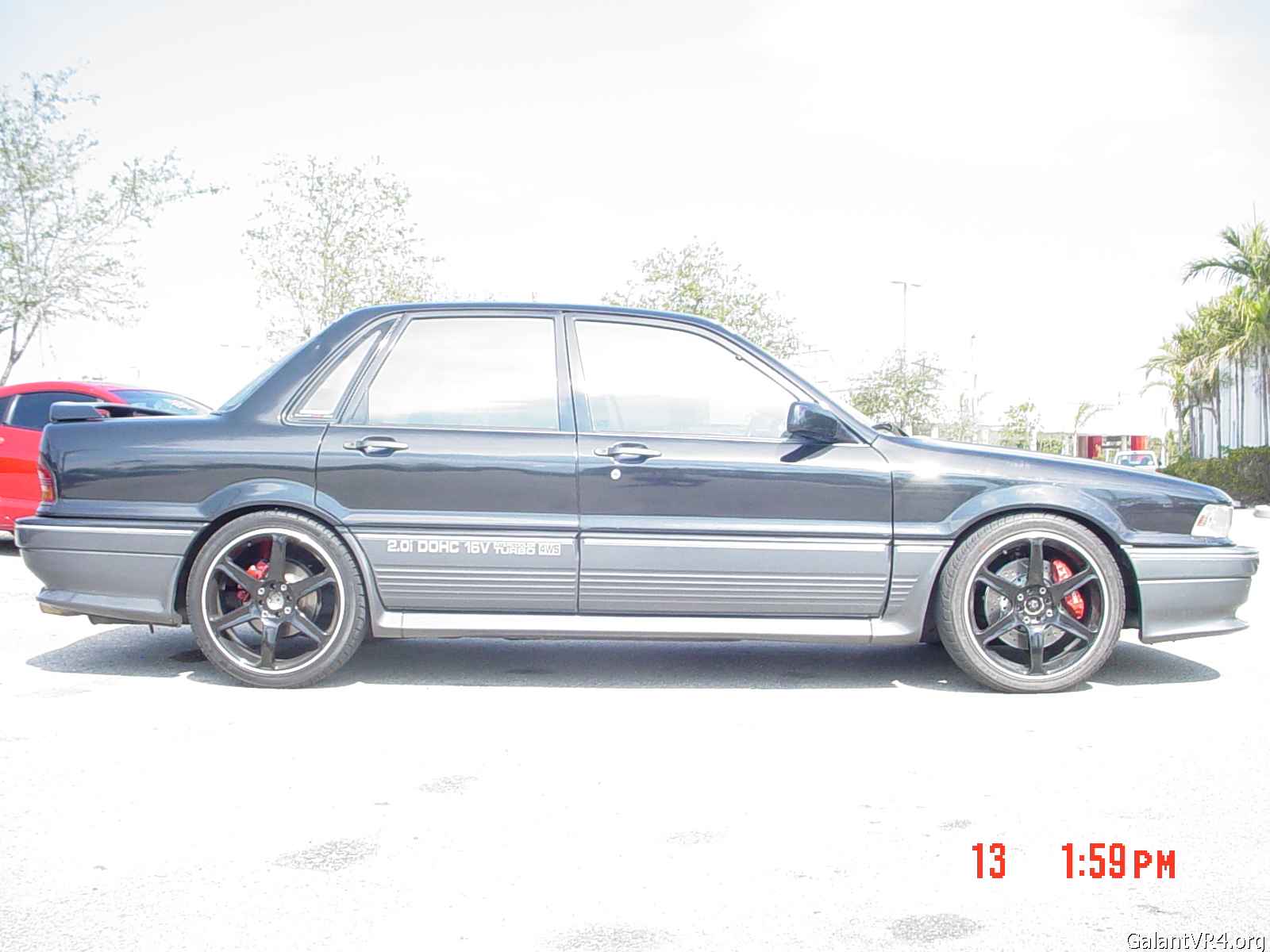

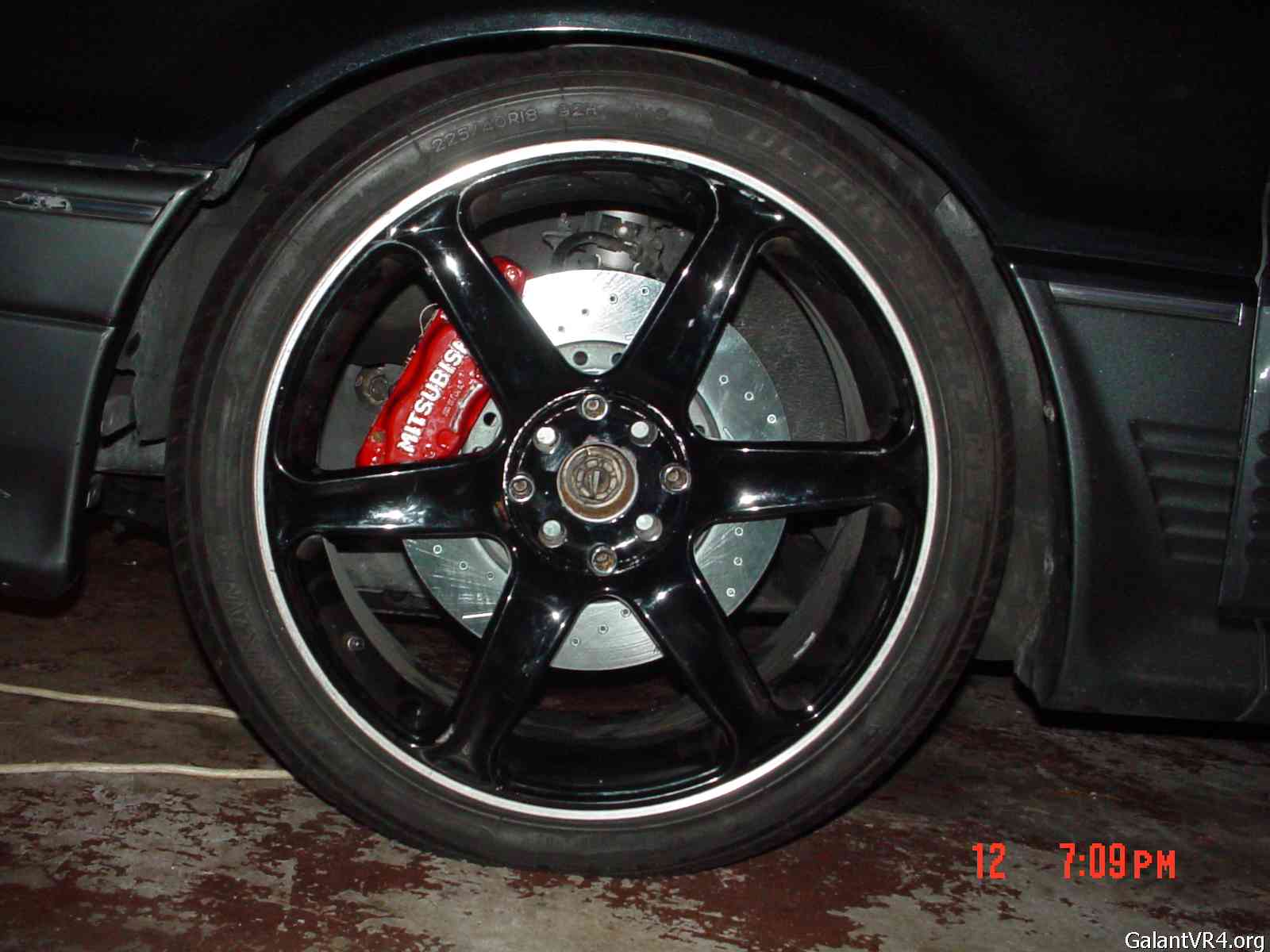

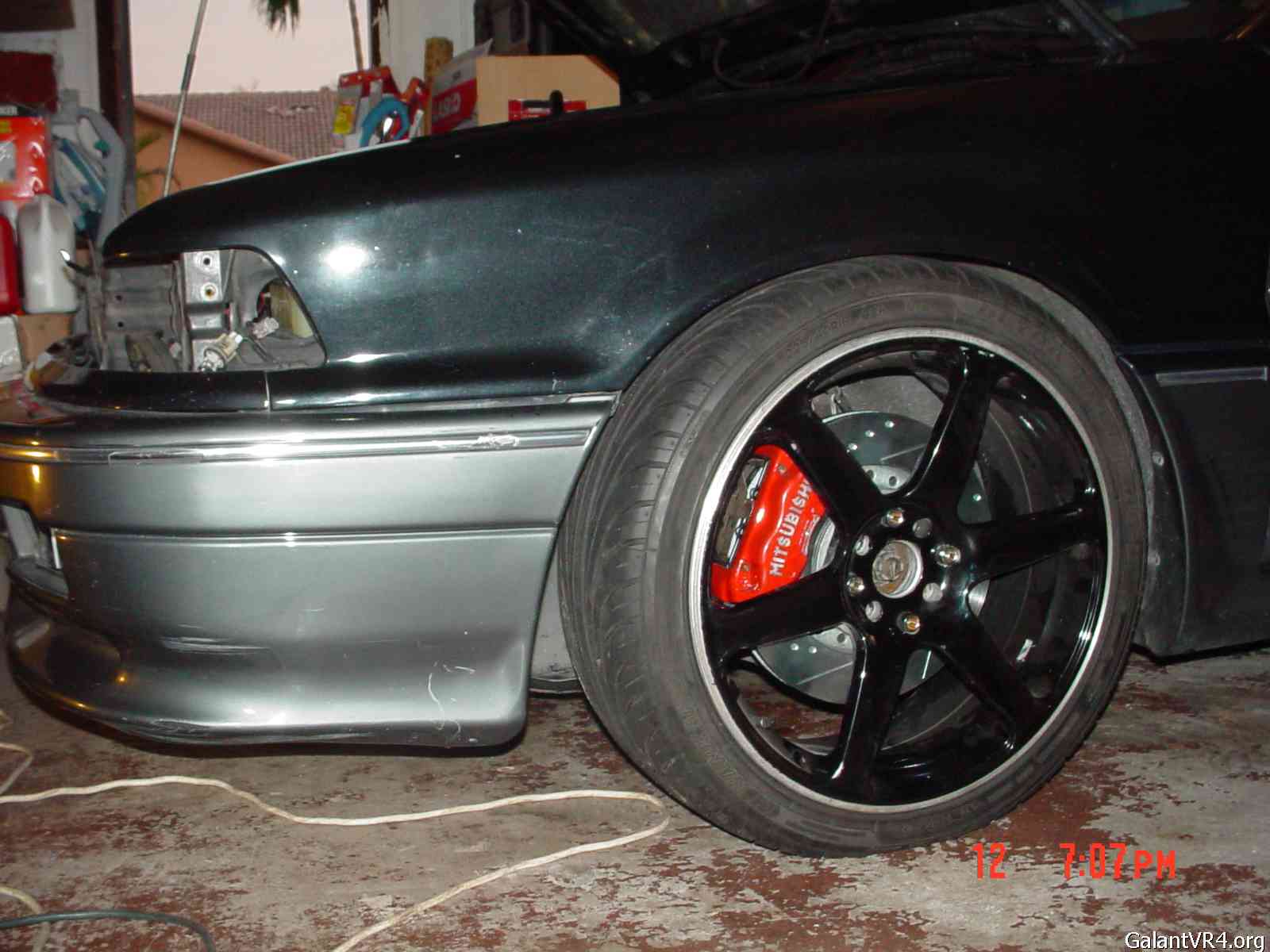

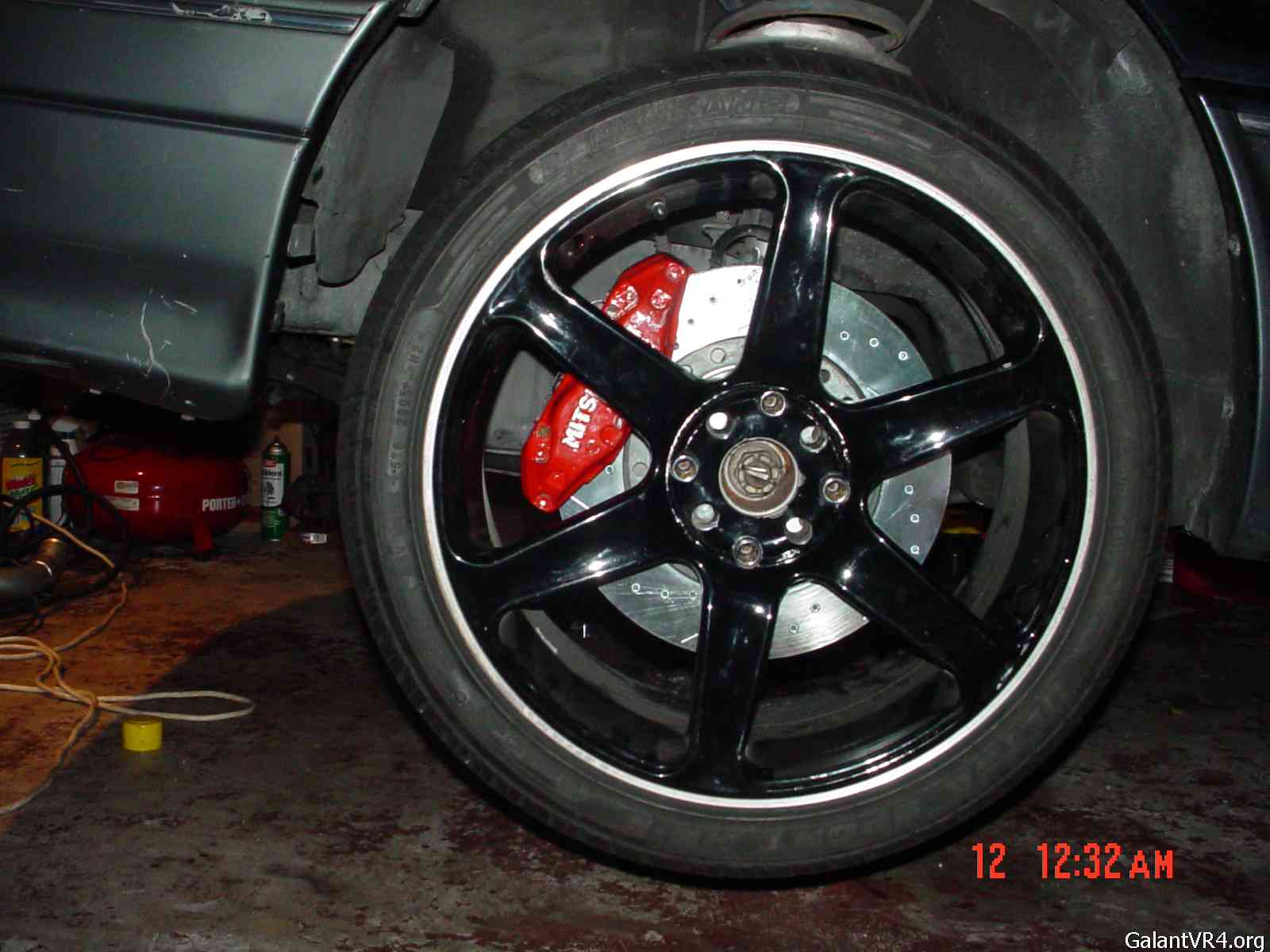

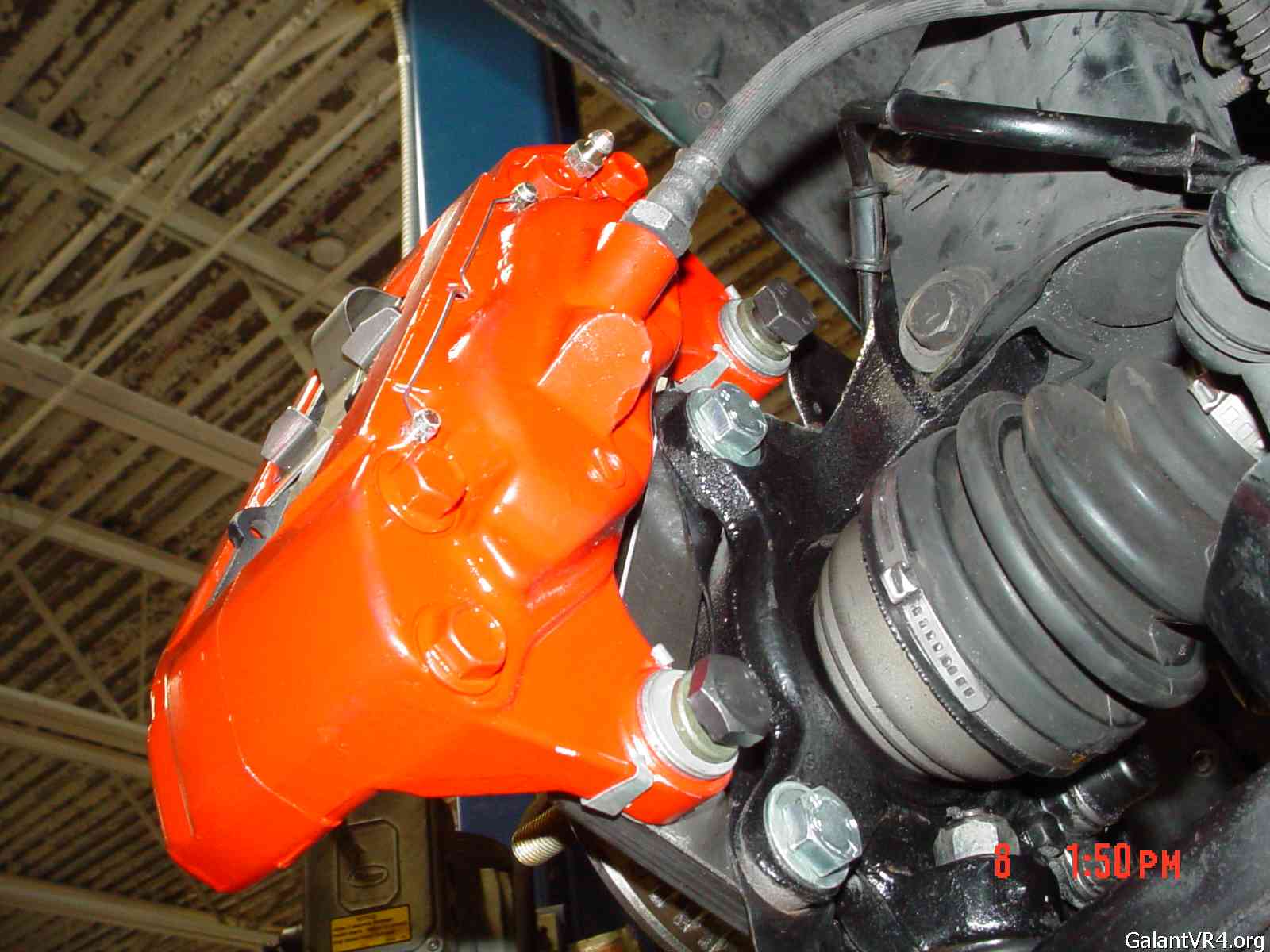

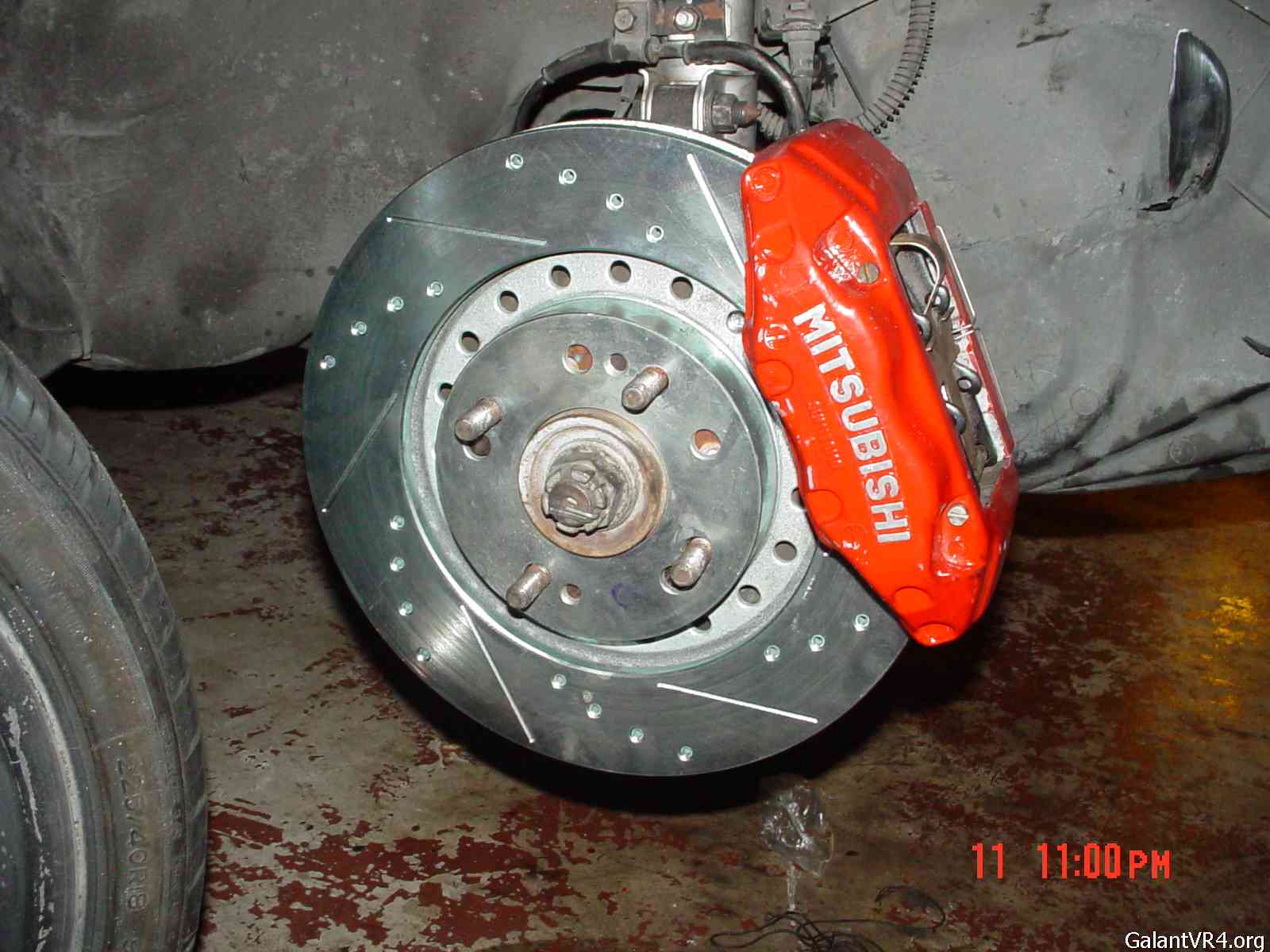

I haven't driven the car yet to 'test' the new setup. Here's a few pictures with the car finally back on the ground. Will have some better shots once I can clean up the garage & wash the car. Got one picture, car still dirty as I haven't had a chance to wash it yet.
Still haven't driven it hard yet (just enough to seat the pads). Still need to trim some fat off one wheel before I can strat thrashing it.




Added these pictures of Jermaine's car when he test fitted the calipers.

Thanks, Garfield, for the informative writeup. Peter (cobrajetguy) didn't know the things you found, because he borrowed the original brackets from the suspension off the old Mofugas racecar from me, and that suspension has not been installed on a car yet. It's very helpful to know what is needed to make all the parts work on the car. Thanks again.

What happens to your ABS?

Hec,

I'm sure your Konig's are pretty similar to mine in offset and space behind the wheel so I'm gonna guess that you can forget fitting the calipers under them. one of the members here measured the distance that the caliper sticks out from the rotor for me once and it was like twice as much as the space available behind my wheels. Your best bet would be to get a set of wheels designed to clear those calipers.

John

Did you see the set up that ron is using?

LINK

I'm thinking about it myself except that I'd have the rotors drilled for 4 lug. My buddy Mike ('vette guy from the NY rally) works at a F-Body/Vette place so they may even have a set of those calipers lying around .

John

Why didn't you just get some spacers rather than ruin your wheels?

How much do you think you have invested in this, including all the little stuff? Grand total?

I started to use the spacers, 2 per side = 1/2" of spacers. Needless to say, there wasn't much tread on the stud to securely fasten the lug nuts. Hence I use one spacer & trimmed some meat off the inside of the wheel spokes. The alternative would've been to get longer wheel studs but I needed the car back on the road today so I can get to & from work. So in the true spirit of us mitsu/dsm guys, I made it work . Not the best thing to do but like I said, I needed a reason to get new wheels
$ so far
Calipers = $170 shipped
Adaptor Brackets $90
Nuts & Bolts $10
Rotors = $100 shipped
Pads = $40
Brake Fluid = $5-6
Braker cleaner = $$5-10
$ to be spent
New wheels = ~$850 shipped
Tires = ~$350
Cheaper to go aftermarket brakes that doesnt require changing wheels (depending on what you have), using spacers & getting longer studs.
OEM bling - Priceless

Kidding me? I'm thinking about doing that upgrade on my Turbo Mirage!

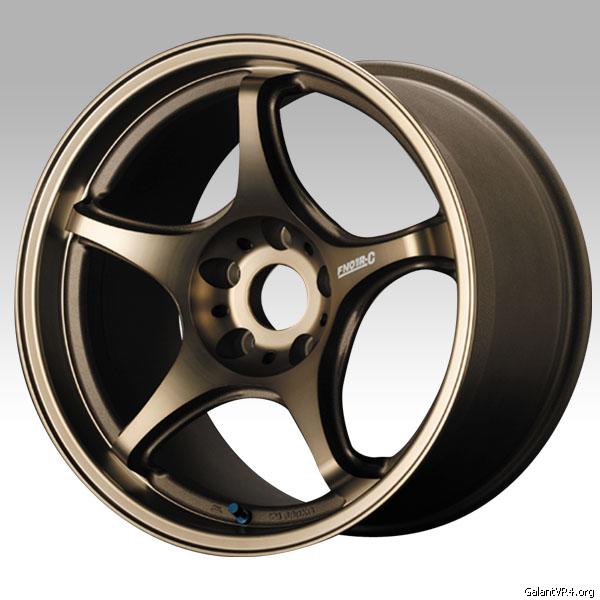

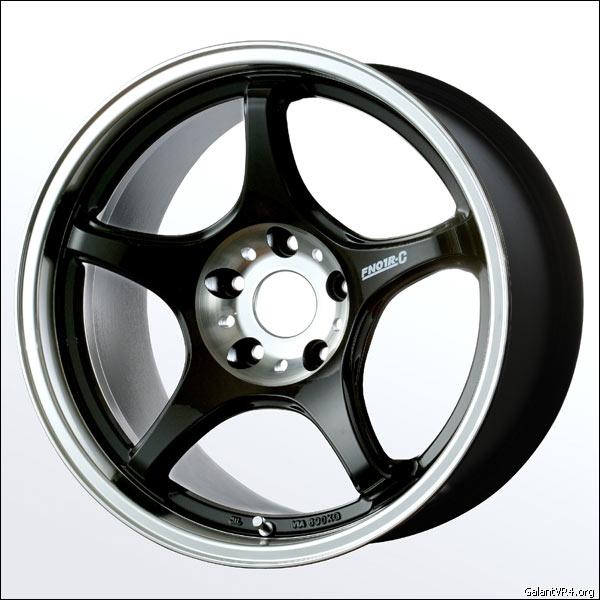

I know Mark & a few others are going to get royally pissed off very soon, but I'm planning on going with 5Ziggen FNO1R-C 17x8 35mm bronze or black with polished lip. I like the way the black w/polished lip looks but always wanted to go w/good quality bronze http://www.5zigenusa.com/w_fn01rc.html.



Jermaine told me the Evo 8 wheels clears these capilers also & are the same size & offset. He already test fitted the Evo 8's & will be running them until he can get some TE37's.

It isn't like there are that many wide wheels available for the GVR4 that look nice in the 4x114.3 pattern. Garfield has a few more choices since he is 5 lug now.

Looks like a great setup. Take some pics when it is back on the ground.

Meh, no one will get pissed. Its the best option for the vr4 right now considering price, weight, size and look. Can't argue with that....I just give mark shit cause I can

Looks good garfield, would have been awesome to know how heavy those suckers were in comparison too though. Hurry up and drive it and let us know how they feel on the road! BTW, what tires are you gonna go with?

Quote:

---

What happens to your ABS?

---

Nothing, it's still there.

yeah man,mad props to you.I like the way my vr4 stops,but those calipers are serious shit.If they can stop the big cow 3si I'm sure they are ready for the track or mountainside on the gvr4.two thumbs up for you bro.
