Re: 560 build thread


iceman69510
Turn Right Racing
855/2000
828/1000


Galant VR-4 org Post #: 1210231 posted 06/15/15 05:05 PM     Remind Me!  Send Private Message   Edit Post
Quoting clevr4:

What brand of socket do you all use on the spark plugs. my 21mm deep socket wouldn't fit in the hole. Any suggestions or preference?




I have a basic Craftsman deep spark plug socket that has the foam inside that grips the spark plug to lift it out.



91 VR4 855 Nile Black
92 VR4 828 Belize Green-Daily driver status
91 VR4 115 Nile Black -SOLD

Posts: 10427 | From: Michigan | Member Since: 03/05/01 | IP: (2602:304:ccc7:35) | Report this post to a Moderator

transparentdsm
I have to say something dumb Member
138/2000


Galant VR-4 org Post #: 1210232 posted 06/15/15 05:13 PM     Remind Me!  Send Private Message   Edit Post
i think i know what the issue is. you have impact sockets don't you?

you need to get a regular socket. i use a regular 21mm and a set of needle nose pliers to get mine out. i think i have a mastercraft 21mm socket.



138/2000 - BG - Dorothy

Posts: 3393 | From: Klamath Falls, Or | Member Since: 07/27/11 | IP: (24.180.39.84) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1210246 posted 06/15/15 11:08 PM     Remind Me!  Send Private Message   Edit Post
You're a wise dude. I do have impact sockets. Because they were so damn cheap. 10-22 for 30 bucks! Haha. I'll stop being a noon and get a legit spark socket



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b008:f) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1210279 posted 06/16/15 11:27 AM     Remind Me!  Send Private Message   Edit Post
Alright guys. Little update. I looked at my second gasket for the to4e turbo. Which I thought was just a duplicate. But one I installed was gasket material. The second which I was going to use to do job over again is rubber. I haven't looked at diagrams of my turbo to see where each is used. But I'm a bit confused. Still leaking a bit and lost my 13 mm wrench so I couldNY redo the job. Got the Hallman boost controller installed. I was going to do the bcs and ship back the hallman. But they charged me 18 dollars in shipping. So I figure another 18 dollars in shipping I might as well install it. It works well thus far.


New improve list
fix the damn leak
change plugs bre7es
install oil pressure sending unit



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b008:f) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1210581 posted 06/19/15 11:50 PM     Remind Me!  Send Private Message   Edit Post
drove the galant to work. On the way back a ram 2500 wanted to race, I went against my best judgement and did it. Rolled at 30 and took him in third. I pushed it pretty hard. while racing like hell my boost Guage lit up one bar then 2. boost Guage set for knock. 5 degrees. So my question is.... is knock horrible? I felt bad for pushing her that much. Is there a way to knock that knock out? Haha is this normal?



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b850:d) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1210609 posted 06/20/15 02:33 PM     Remind Me!  Send Private Message   Edit Post

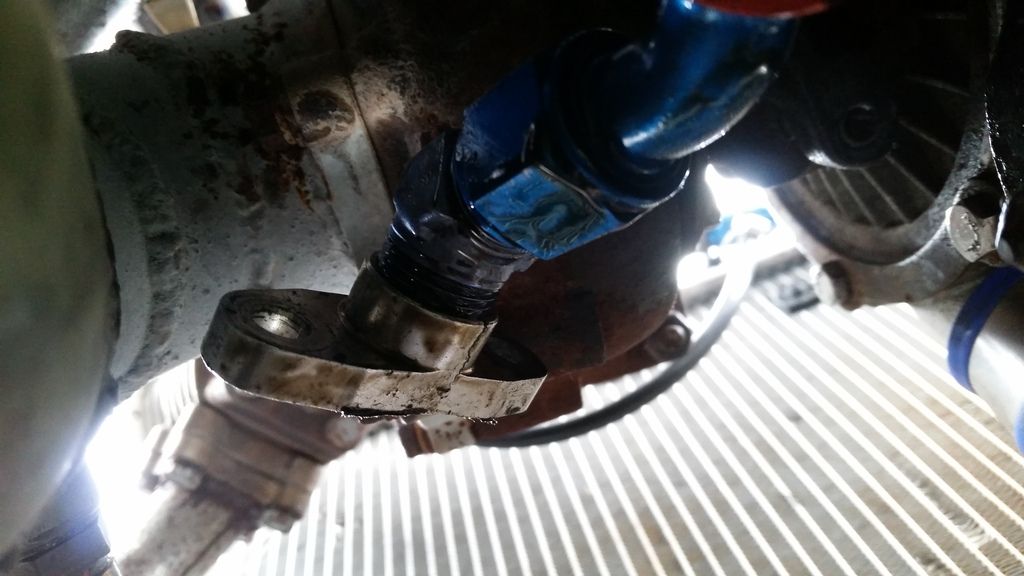

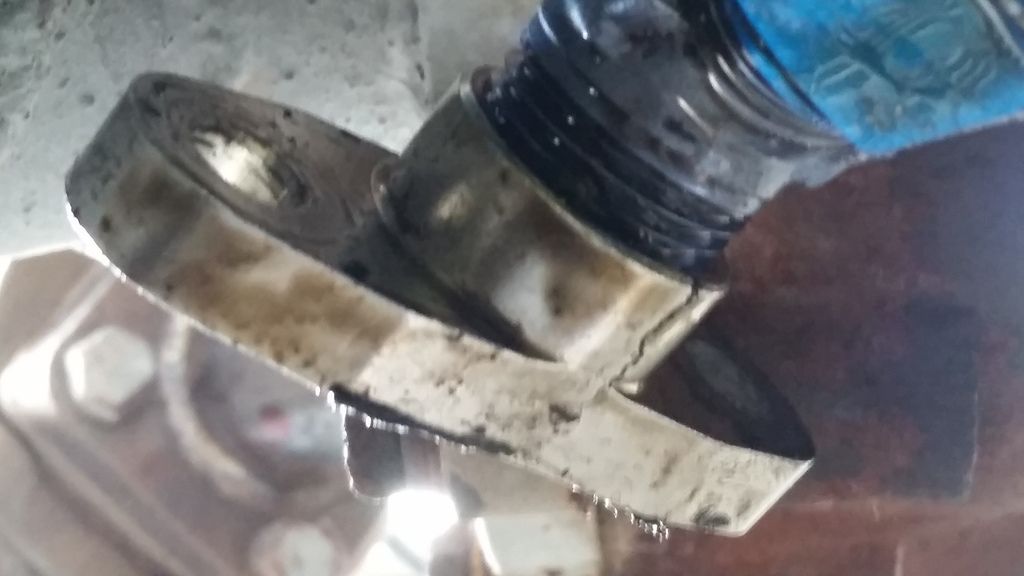

Found my leak problem. Did a great job on the gasket. Come to find out the adapter is cracked any clue where I can get this fitting?
[image][/image]

[image][/image]



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b02c:a) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1210610 posted 06/20/15 03:02 PM     Remind Me!  Send Private Message   Edit Post
I think I found the fitting. Jnz tuning has it. Hope is the right an size. Also referring to my knock pOst. I changed plugs to br7es I was running br7ix



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b02c:a) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1210611 posted 06/20/15 03:31 PM     Remind Me!  Send Private Message   Edit Post
jb weld till the new one comes



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b862:f) | Report this post to a Moderator

GSTwithPSI
A hole
820/1000
1837/2000



Galant VR-4 org Post #: 1210626 posted 06/20/15 10:29 PM     Remind Me!  Send Private Message   Edit Post
The flange split because it looks like some dumbass screwed a NPT pipe fitting into a flange meant for standard threads. You need to ditch that whole shit show and start over.

Go to this website: click

Enter in your specifics and throw that shit you have on the car currently in the garbage. If you want to know how NOT to run a drain line for a turbo, look at what's currently on your car.

Posts: 3282 | From: SoCal | Member Since: 01/02/12 | IP: (72.45.2.251) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1210629 posted 06/20/15 11:23 PM     Remind Me!  Send Private Message   Edit Post
I get you see something wrong. For my sanity. Will you explain more? And they don't have my turbo under there options. Atleast for oIL return line.



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b862:f) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1210630 posted 06/20/15 11:26 PM     Remind Me!  Send Private Message   Edit Post
Yes my shit is whack looking at it. Like 4 different angled to make the fIt.



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b862:f) | Report this post to a Moderator

GSTwithPSI
A hole
820/1000
1837/2000



Galant VR-4 org Post #: 1210638 posted 06/21/15 08:47 AM     Remind Me!  Send Private Message   Edit Post
^ Yes, exactly. You want the most direct path without a bunch of bends or restrictions. Basically, you want to mimic the stock return line, like so:



I'd even go a step farther than the picture above and replace that 90 degree bend with a 45. I also wouldn't use anything smaller than -10 AN. Keep in mind, the primary thing that allows oil to drain off the turbo is gravity, hence the drain line design being so important.

Here's a good example, although I'd replace the hose clamp on the turbo side with an AN fitting:


For your car, the turbo side flange is probably the standard Mistu flange (shown as PSI-FLG-MIT), but you'll need to measure it and verify. For the bottom, it's anyone's guess since it looks like someone welded a female bung into the pan. Judging from the previous work I've seen, I'm guessing it's something uncommon, which will make your life hard.

Whoever you got this car from was an idiot. The last time I saw so many hack jobs in one place was back when I owned 1813. I apologize if some of my posts come across and asshole-ish, but I'm here to help. Don't let me discourage you from posting. You're doing to right thing by fixing all this crap, so let us know what else you find, and if you need more help with the drain. You have my number as well, so feel free to hit me up there too.



820/1000
1837/2000
1546/2000-SOLD
1813/2000-SOLD


Edited by GSTwithPSI (06/21/15 08:48 AM)

Posts: 3282 | From: SoCal | Member Since: 01/02/12 | IP:
(72.45.2.251) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1210641 posted 06/21/15 11:07 AM     Remind Me!  Send Private Message   Edit Post
Thanks man. Yeah the oil pan inlet is a male an fitting adapter I'm guessing. The -10 fits well on it. I may order a new set. But I did just order that adapter from jnz. I may be able to cancel before they send it



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b869:8) | Report this post to a Moderator

GSTwithPSI
A hole
820/1000
1837/2000



Galant VR-4 org Post #: 1210652 posted 06/21/15 02:37 PM     Remind Me!  Send Private Message   Edit Post
This doesn't look like a male AN fitting. It looks like a female weld-in bung with some sort of NPT fitting screwed into it. If it were a male AN fitting, you could simply connect a female AN fitting right up. Take a better picture.


Posts: 3282 | From: SoCal | Member Since: 01/02/12 | IP: (72.45.2.251) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1210656 posted 06/21/15 04:37 PM     Remind Me!  Send Private Message   Edit Post
Yeah I'll post a picture of the oil pan. What should screw into the turbo drain fitting?



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b012:5) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1210657 posted 06/21/15 04:39 PM     Remind Me!  Send Private Message   Edit Post
Ahh I see the. Turbo drain should be male. Mine is female. That would make more sense. Why is my shit so backwards? Lol



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b012:5) | Report this post to a Moderator

GSTwithPSI
A hole
820/1000
1837/2000



Galant VR-4 org Post #: 1210658 posted 06/21/15 04:40 PM     Remind Me!  Send Private Message   Edit Post
You need an AN fitting like so:


However, you need to see if the bung welded in your oil pan has standard or NPT threads. It matters...



820/1000
1837/2000
1546/2000-SOLD
1813/2000-SOLD

Posts: 3282 | From: SoCal | Member Since: 01/02/12 | IP:
(72.45.2.251) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1210660 posted 06/21/15 05:41 PM     Remind Me!  Send Private Message   Edit Post
The bung on the oil pan is actually going to work. It is a male fitting -10 an. The female -10 fits well on it



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b86f:6) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1210806 posted 06/23/15 06:43 PM     Remind Me!  Send Private Message   Edit Post
I wasn't able to stop that part from getting delivered, yes I know it's all screwed. But I installed it anyways. I will add that to the list of things I need to fix right. been on hold with paychecks since starting a new job. So in the next couple weeks I'll be back in the grind, not scrounging just to make things work.

I'm on this site way too much, seeing everyone elses build. I'm starting to envy a lot of gvr4 on here. I have actually begun imagining a goal for 560. I won't bail on this project, money seems to be the biggest constraint. After I get things back kosher leak wise and mechanically I will upgrade to v3. Dial in my tune and really learn ecmlink. I remember someone posting on this thread about literature I should read, I'll go head and find those and learn the background stuff. I'm not sure if I am happy with the turbo I am running. when it finally kicks in it hits hard, but i feel a better quality turbo will feel smoother and produce power more effecient. I need to do research on new headers and the turbo applications. I could probably improve performance with something of better quality. I've read on other threads that aftermarket intake manifolds aren't really necessary for building power until higher hp. But I'm interested in bigger throttle body and intake combo.
I know I have had my run in with the braking system on these galants, but i feel I didn't give it the proper attention and paciences the last time around. I want to go bigger and better quality on pads. Suspension may change in the future as well. New bushings, motor mounts and wheels are also on my radar. New seats and carpets will come after or while any of that is going on as well. Jdm bumper is a part of this somehwHere.


After all that ranting it's still a dream I'll be keeping things moving and enjoying while I can. But thanks all on this forum, so much damn knowledge on here foreal



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b111:5) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1210852 posted 06/24/15 03:40 PM     Remind Me!  Send Private Message   Edit Post
Nothing like doing a job 4 times. I'm losing faith in my mechanical ability. The replacement adapter came in. Installed and still leaking. Get paid friday will order the extreme psi oil drain kit. Hopefully that will be the last time doing that pos job



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b00c:6) | Report this post to a Moderator

prove_it
my racist jokes aren't actually funny
715/1000
1284/2000


Galant VR-4 org Post #: 1210853 posted 06/24/15 03:46 PM     Remind Me!  Send Private Message   Edit Post
Welcome, you are now a true brother in our circle of pain.



#1284/2K NB, Totaled
#715/1K KG, Rebuilding
02 Acura TL daily duty unit

12yr+ Vr4 owner.
Honda/Acura master tech.
Family Guy

Posts: 4201 | From: Sioux Falls, SD | Member Since: 07/04/08 | IP: (24.230.93.110) | Report this post to a Moderator

tektic
Senior Member


Galant VR-4 org Post #: 1210857 posted 06/24/15 04:29 PM     Remind Me!  Send Private Message   Edit Post
That blurry picture was my pan. It's a weld in 3/4 F-NPT with a reducer and then a 45 hose barb.

I went 3/4 npt because It's huge and one of the most universal adapters. I should always have many options on oil return no matter what turbo I may be using. Also If it can hold natural gas It won't leak motor oil on my driveway. So far so good.

Posts: 1356 | From: ronkonkoma, ny | Member Since: 12/19/12 | IP: (47.20.56.49) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1211376 posted 07/03/15 11:23 AM     Remind Me!  Send Private Message   Edit Post
Got that jnz turbo drain line. Turns out it won't work. The flange I got for stock turbo is much smaller than the t04e... So I would have to use the same fitting I have . After adding a 45 male to male fitting, the space between turbo and pan was too small the adapters are touching eachother.
So I will fork out more money and get a straight adapter, and possibly find a flange for my turbo thats male



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b863:e) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1212728 posted 07/18/15 08:12 PM     Remind Me!  Send Private Message   Edit Post
Hey fellas, gallant is running well. I have some unsatisfactory conditions remaining but it gets me a to b consistently. I have smoke after throttling sometimes especially while reaching boost limits. I hate to come to you guys for explanition when you don't know the symptoms. But I think it might be my turbo. I'm not a big fan of this 50 trim turbo. I don't know the specs of the turbines I'm running but would like to know if there is options to replacing the internals with something more effecient and better quality. If not, will a smalller turbo bolt right on to my dp/ wastegate setup? That turbo has a ton of power but how late it kicks in is not my cup of tea, I don't want to let off throttle when I'm maxing boost in third, but my engine doesn't like it, my knock alert on ecm flashes from time to time. I know that's mostly due to my tune and getting rid of that. But I have turned the boost down till I find a solution .

That's my biggest concern at the moment. Hopefully when I sell some of my other cars ill upgrade to v3 and really learn the tuning. I also have some small jobs that previously have been stated but have been neglected. On a good note I'm rocking with my new oil cap, definetly like that thing. Thanks vert . If only I had matching plug cover .


Hopefully I'm right about turbo seals blown or something. I really should get my oil pressure gauge working, give me an idea of where I'm at. I will also replace the fuel filter and get a better quality oil filter. I love this car just little things add up on these beasts. Definetly much respected by people who know what they are, same when I had the Celica all trac



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (2600:1003:b848:f) | Report this post to a Moderator

clevr4
Member
560/2000


Galant VR-4 org Post #: 1216412 posted 09/13/15 06:58 PM     Remind Me!  Send Private Message   Edit Post
A little update. got the old turbo and manifold out of 560. stuck in the new bad boy. warped the banjo bolt to head so I will be at dealership in the morning to get a new one. just have to swap o2 sensor and install downpipe then I should be turning the key.


anyone happen to know the torque specs on that head banjo bolt? I don't want to strip the threads.

thanks yall. hope my evo 3 16g is sweet. I put oil in the feed line I don't know how much I should run through it to prime the beast but I definitely want everything to be running smooth when I do start her up.



560/2000
1989 corolla 5speed -Blown head gasket
1991 camry 5 speed - $500 daily
1994 f250 powerstroke 4x4- beast mode

Posts: 215 | From: Rhoadesville, virginia | Member Since: 01/26/15 | IP: (72.196.223.81) | Report this post to a Moderator
