Re: TH3 Lazy arse Australian / New Zealand Picture build thr


ozyvr4
Member


Galant VR-4 org Post #: 903449 posted 06/01/10 12:26 AM     Remind Me!  Send Private Message   Edit Post
Heres the link. Click on more images to see the full range.

click

evo 7/8 & 10. If your keen I can buy & send to you in raw state.



90 HH VR4 Aspec FP3052 20psi
BC 272/272 cams
DSMLink v3

Posts: 153 | From: Brisbane, Australia | Member Since: 03/05/07 | IP: (60.242.247.231) | Report this post to a Moderator

cheekychimp Galant VR4.org Moderator
Director of Housing and Urban Development, and carbon/kevlar balls


Galant VR-4 org Post #: 903459 posted 06/01/10 12:58 AM     Remind Me!  Send Private Message   Edit Post
Ah Right! I did see that actually. I thought originally you only bought the elbow and were using your own intercooler piping. So I take it you used that UICP too? The problem is that I have a top to bottom intercooler with the inlet and outlet on 'our' drivers side (RHD). I was going to cut and re-weld that elbow to fire off something like an EVO III 16G in the other direction. What size is that pipe though 2.5"? I wonder if they would do me a kit with the exact same pipe in 3"? After I clocked my Holset n the other car, my ETS piping came up short. This would bridge the gap better than the assortment of pipes I am using now but my pipes are all 3".

Edit: Thinking about it though, I probably should just buy that kit. I can use the elbow on the stock car. On the other car I should probably stay with 2.5" from the turbo and split the pipe open at the other end, weld in a triangular piece so that the diameter radius' out and weld a 3" piece of pipe at the other end to meet the 3" ETS pipe. That would probably work and be cooler than anything if done properly.

What is the difference between the EVO 9 and the EVO 7, 8 & 10 elbow?



Getting old sucks ... but it sure beats the alternative !!!


Edited by cheekychimp (06/01/10 01:13 AM)

Posts: 7031 | From: Hong Kong, New Territories | Member Since: 04/19/04 | IP: (218.250.49.198) | Report this post to a Moderator

ozyvr4
Member


Galant VR-4 org Post #: 903485 posted 06/01/10 05:08 AM     Remind Me!  Send Private Message   Edit Post
I only did buy the elbow. I already had the top pipe. That is the only place he has picture of the hole lot.

The pipe is 2.5 O.D

The Evo 9 elbow has a tighter curve. I used the evo 7-8 to get over the high runners of the FP mani.

Welding it in the other direction would work great also. He would most likely do the a Evo 3 kit also with that pipe.



90 HH VR4 Aspec FP3052 20psi
BC 272/272 cams
DSMLink v3


Edited by ozyvr4 (06/01/10 05:11 AM)

Posts: 153 | From: Brisbane, Australia | Member Since: 03/05/07 | IP: (115.131.7.144) | Report this post to a Moderator

cheekychimp Galant VR4.org Moderator
Director of Housing and Urban Development, and carbon/kevlar balls


Galant VR-4 org Post #: 903487 posted 06/01/10 05:41 AM     Remind Me!  Send Private Message   Edit Post
Cool, let me get the car and mount the intercooler core and see how the piping routes best. I'll PM you and thanks for the offer of the help, I may well take you up on that.

Paul.



Getting old sucks ... but it sure beats the alternative !!!

Posts: 7031 | From: Hong Kong, New Territories | Member Since: 04/19/04 | IP: (218.250.49.198) | Report this post to a Moderator

ozyvr4
Member


Galant VR-4 org Post #: 903494 posted 06/01/10 06:40 AM     Remind Me!  Send Private Message   Edit Post
No probs champ. Just let me know when you ready.



90 HH VR4 Aspec FP3052 20psi
BC 272/272 cams
DSMLink v3

Posts: 153 | From: Brisbane, Australia | Member Since: 03/05/07 | IP: (115.131.7.144) | Report this post to a Moderator

RedTwo
Rangi Kiwi


Galant VR-4 org Post #: 906736 posted 06/11/10 07:47 PM     Remind Me!  Send Private Message   Edit Post
Who likes progress? Me! Me! Pick Me!
Nothing gets a rocket under you like being given two weeks to move out

I say tentatively that the GTO rear end swap is complete. Tentatvely because the car is still JSB but all the work on that end of the car is done.
It seems impossible to fit the 26mm Whiteline rear bar by the stiffest setting (inner hole), at least without bending things.

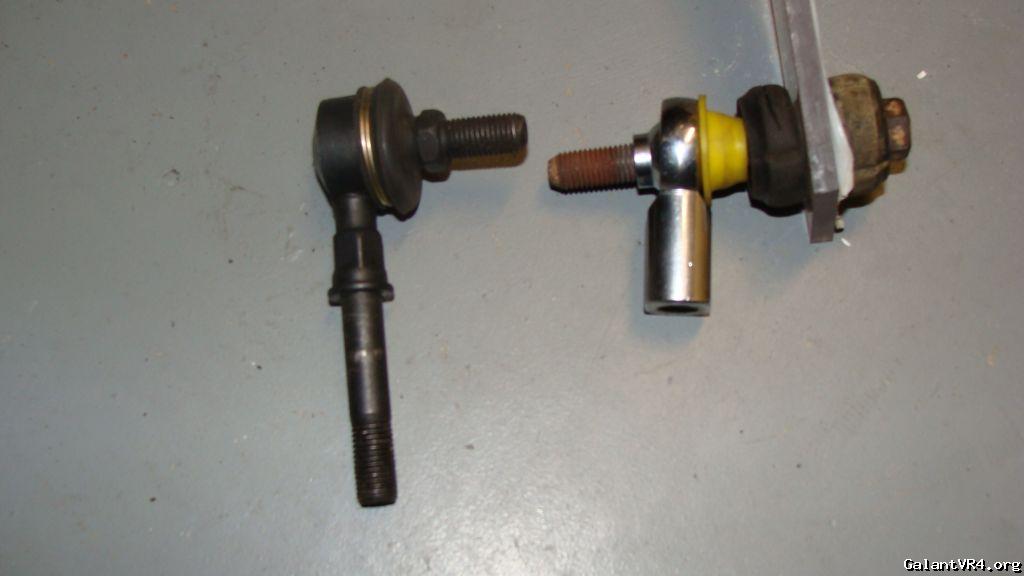

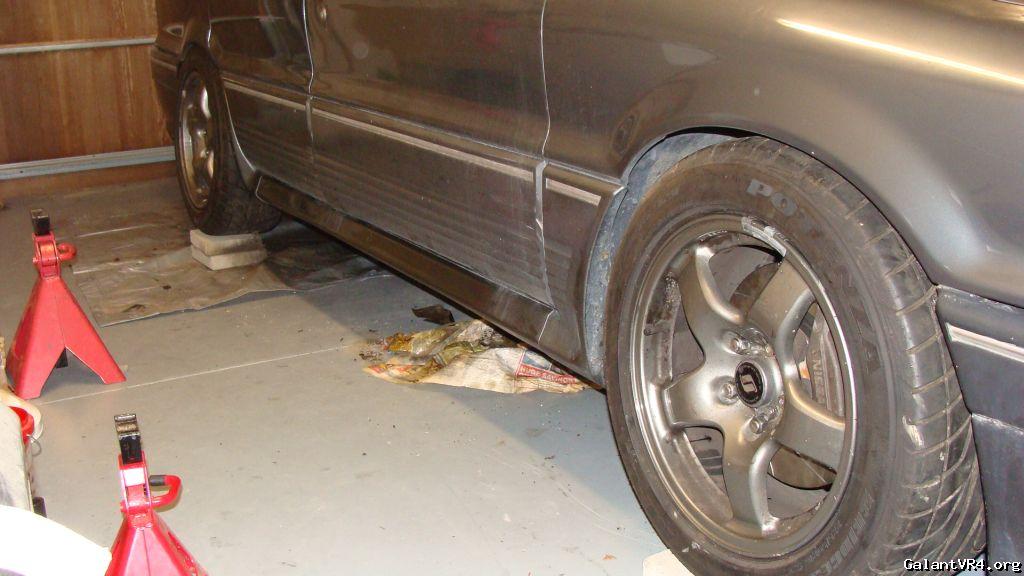

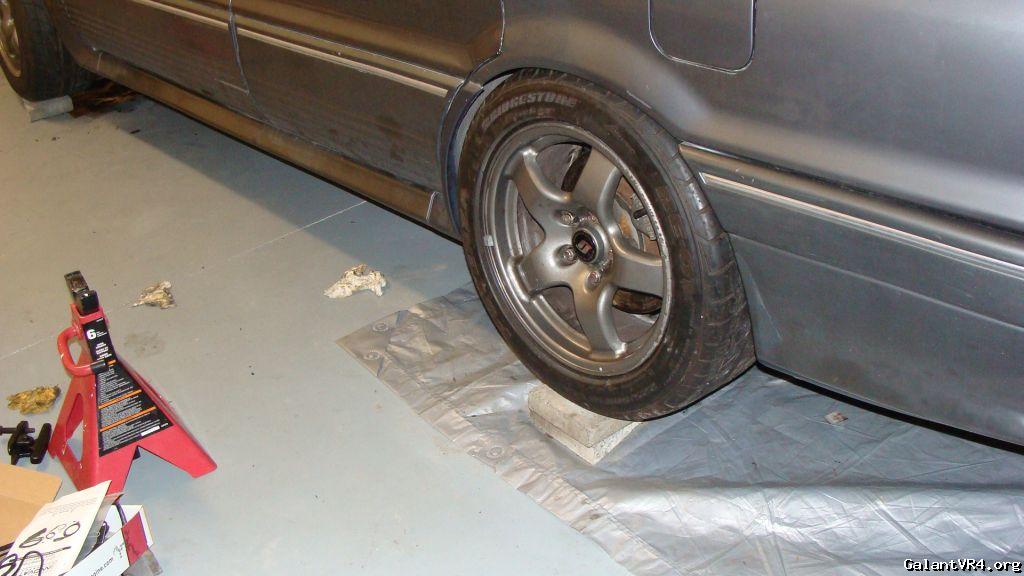

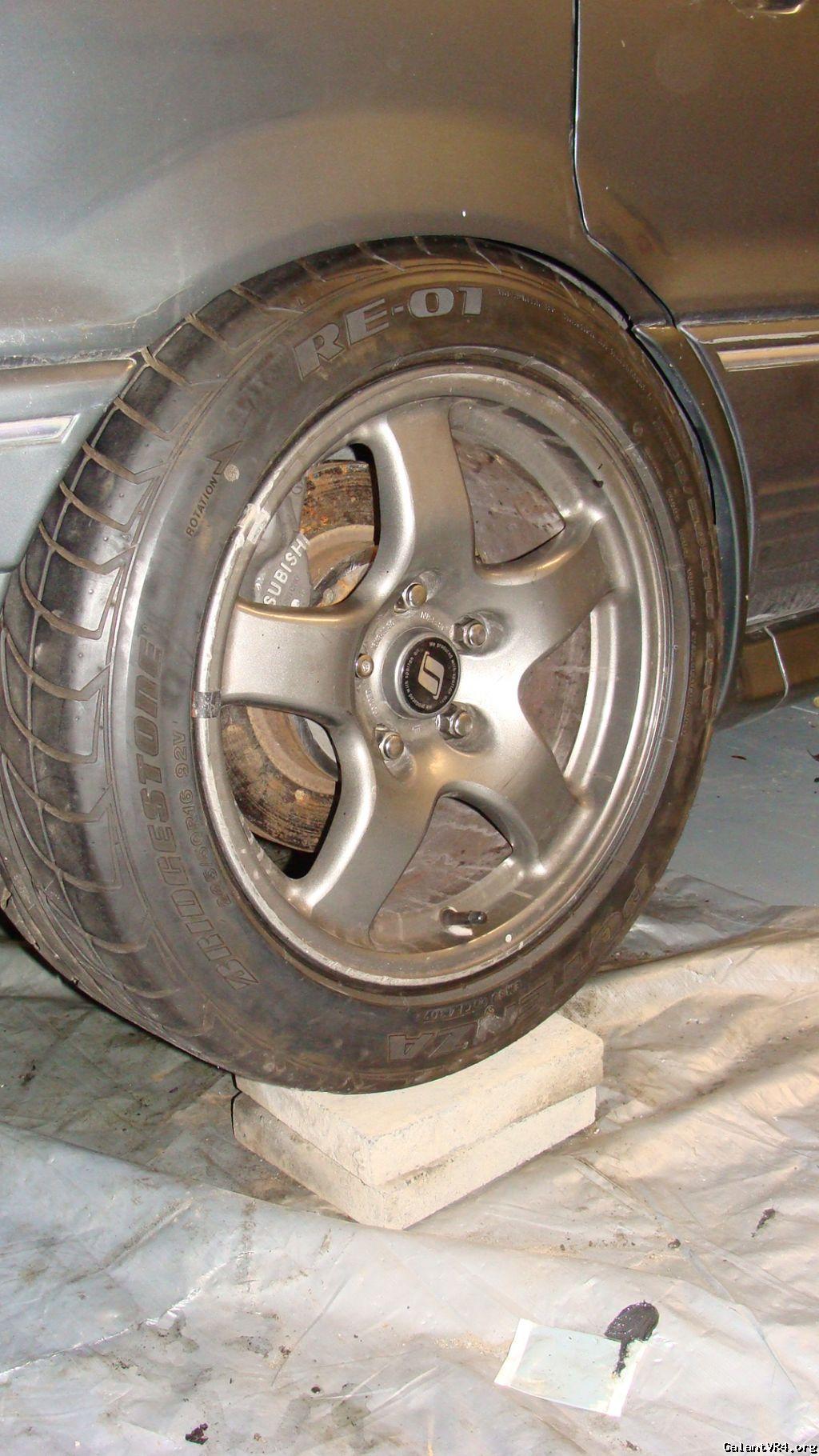

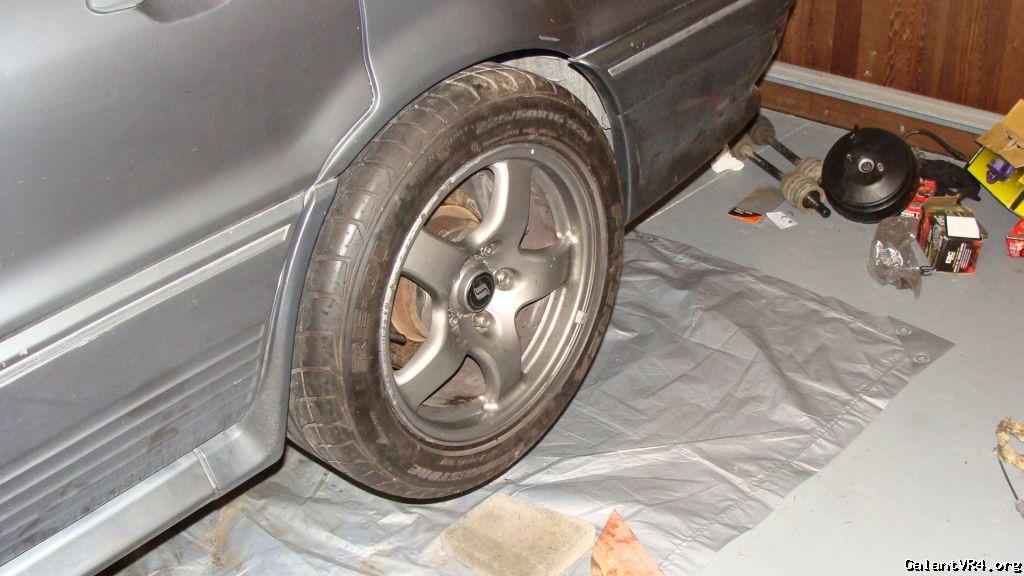

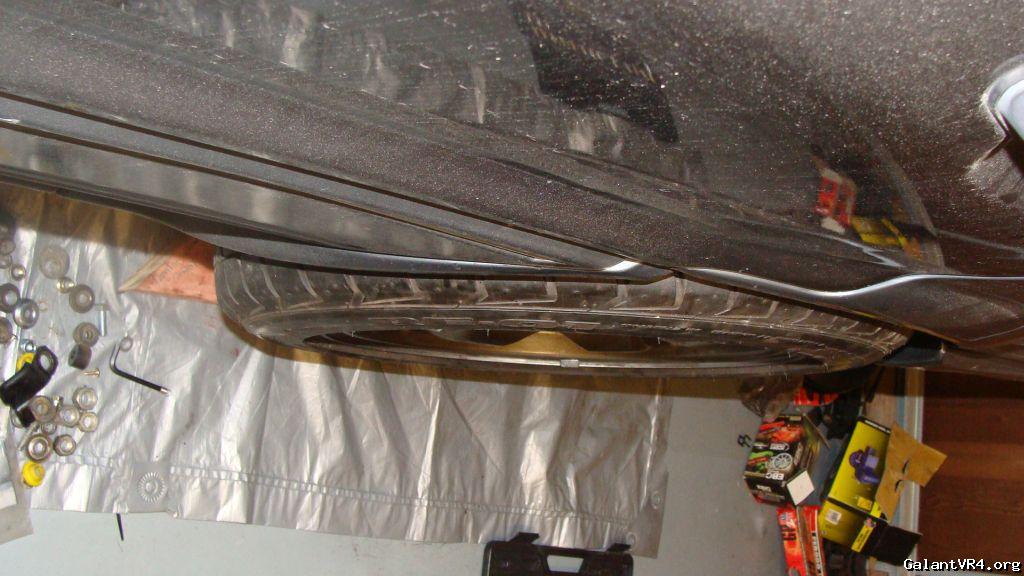

A quick photo of the rear fitment of the 16x8 +30 wheels, with ~8mm spacer must make them +22 offset? This is with the suspension set to 0 toe, 0 camber, and D2 coilovers.

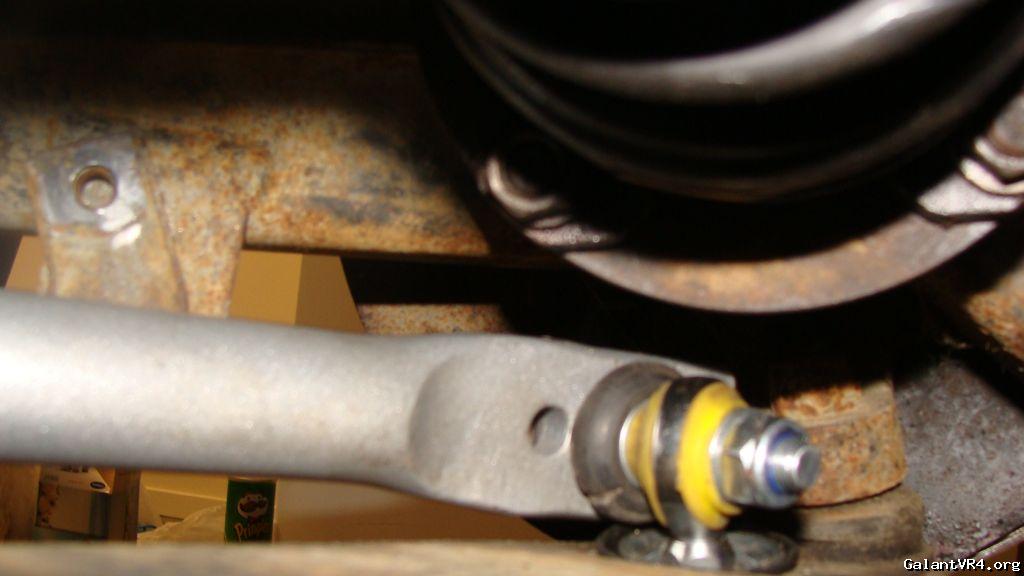

Rear sway bar connected. This is not the best way to do it but I am in a hurry!





Just need to:
Cut out the last low pressure 4WS line from the engine bay.
Fit big master cylinder and pressurise system.
Decide if I want to fit the LM-2 now.
Refit radiator and I/C pipes.
Buy some seats to use with Curtis's awesome brackets


Edited by RedTwo (06/11/10 07:52 PM)

Posts: 1903 | From: New Zealand | Member Since: 07/16/08 | IP: (121.73.221.247) | Report this post to a Moderator

fuel
"Just to be pedantic!"


Galant VR-4 org Post #: 906748 posted 06/11/10 08:42 PM     Remind Me!  Send Private Message   Edit Post
Loving the stance! You think you'll drop her down a bit and get some tuck happening? 16x8 must be GTR rims yeah?

Also yep gotta have having to move, I moved about two months ago and you don't realise how much crap you have until you have to move it all!



'91 E39A Galant VR-4 Evolution | '80 A164A Eterna GSR Turbo

-- Visit my JDM Galant VR-4 info & specifications site here! --

Posts: 1558 | From: London UK | Member Since: 02/23/09 | IP: (125.237.32.159) | Report this post to a Moderator

RedTwo
Rangi Kiwi


Galant VR-4 org Post #: 906824 posted 06/12/10 02:55 AM     Remind Me!  Send Private Message   Edit Post
Yeah GTR wheels. I would sack it down all the way but my exhaust hangs pretty low and I have to negotiate a few crests in the roadway
I will have to see what happens when I drop if off the jack stands, maybe now that I've stiffened up the spring rate it may be able to go lower without bottoming out as easily.

Posts: 1903 | From: New Zealand | Member Since: 07/16/08 | IP: (121.73.221.247) | Report this post to a Moderator

cheekychimp Galant VR4.org Moderator
Director of Housing and Urban Development, and carbon/kevlar balls


Galant VR-4 org Post #: 907050 posted 06/13/10 12:43 PM     Remind Me!  Send Private Message   Edit Post
Quoting RedTwo:


It seems impossible to fit the 26mm Whiteline rear bar by the stiffest setting (inner hole), at least without bending things.

Rear sway bar connected. This is not the best way to do it but I am in a hurry!








I'm glad it wasn't just me then!

That f^#@ing thing gave me weeks of heartache.

Posts: 7031 | From: Hong Kong, New Territories | Member Since: 04/19/04 | IP: (92.26.169.174) | Report this post to a Moderator

RedTwo
Rangi Kiwi


Galant VR-4 org Post #: 907207 posted 06/14/10 04:25 AM     Remind Me!  Send Private Message   Edit Post
I guess any news is good news?

First drive tonight, found a few issues:
Handbreak doesn't seem to do much at the moment. May need to adjust the tensioners inside the drums, or adjust the main cable/tensioner in the cabin.
1.5 way mechanical rear diff is tight, or my old open diff was super sloppy! It seems to do a good job of being a handbrake at the moment.
Springs still seem soft, the car dropped a further ~20mm when I took it off the jack stands :/
I seem to have lost power steering when I pulled the 4WS. It may just be a lack of fluid in the reservoir.
I need to add this to the bonehead thread - I forgot to tighten the wheel nuts after I dropped the car off the jack stands took me down to the end of the drive to figure it out I still don't think I've got them sorted, or I need a slightly larger spacer?




Posts: 1903 | From: New Zealand | Member Since: 07/16/08 | IP: (121.73.221.247) | Report this post to a Moderator

fuel
"Just to be pedantic!"


Galant VR-4 org Post #: 907209 posted 06/14/10 06:37 AM     Remind Me!  Send Private Message   Edit Post
who would have thought filthy skyrine rims would have suited the VR-4, they look awesome. What profile tyres are you running? looks to be 225/50 perhaps a tad on the balloon side, though I can't talk I'm running 205/60s!

also where in NZ are you? I wouldn't mind seeing this in the flesh one day.



'91 E39A Galant VR-4 Evolution | '80 A164A Eterna GSR Turbo

-- Visit my JDM Galant VR-4 info & specifications site here! --


Edited by fuel (06/14/10 06:38 AM)

Posts: 1558 | From: London UK | Member Since: 02/23/09 | IP: (125.237.32.159) | Report this post to a Moderator

VR42LT
Junior Member


Galant VR-4 org Post #: 907920 posted 06/16/10 07:47 AM     Remind Me!  Send Private Message   Edit Post
More updates guys not much though.

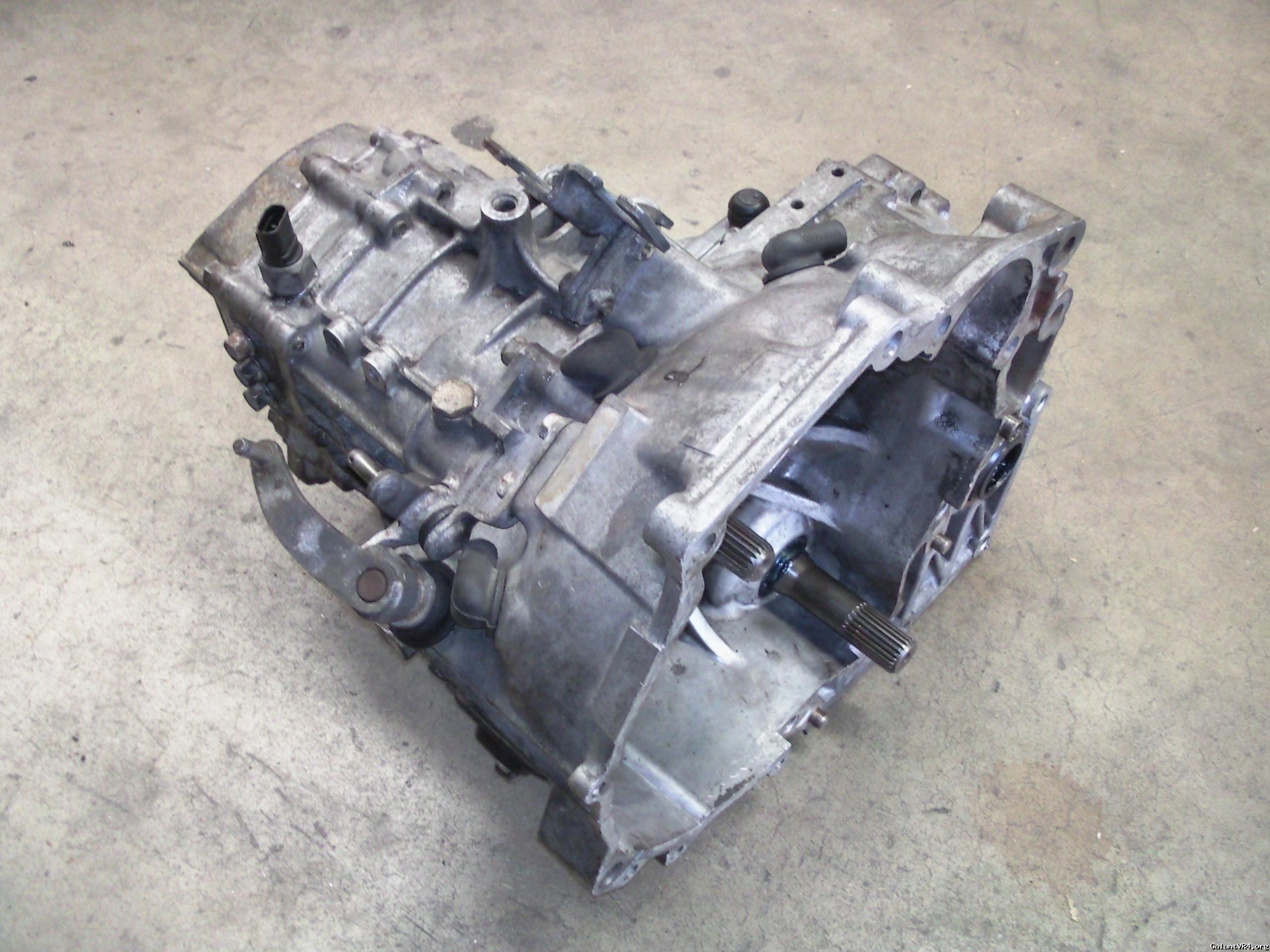

Gearbox before

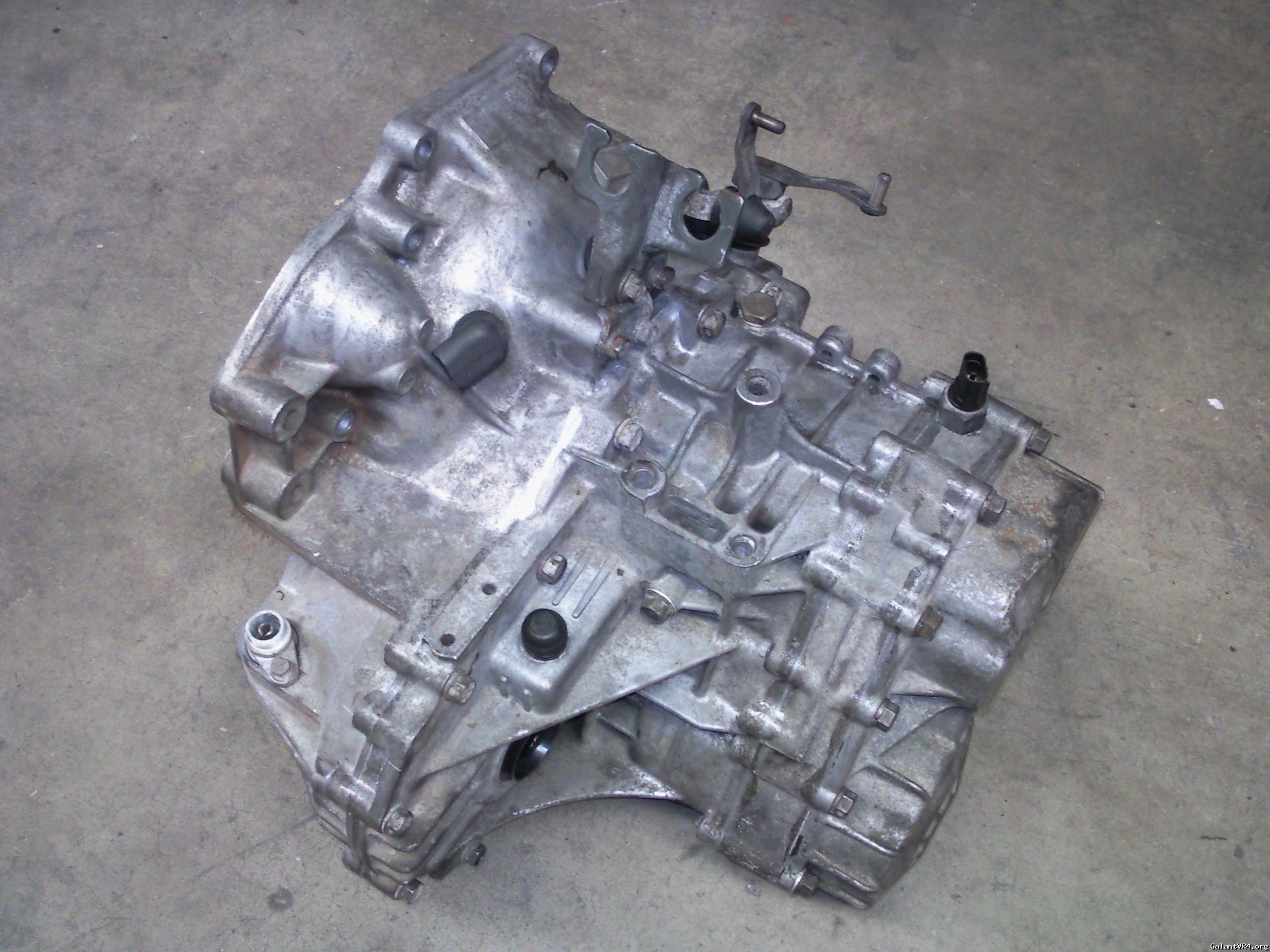

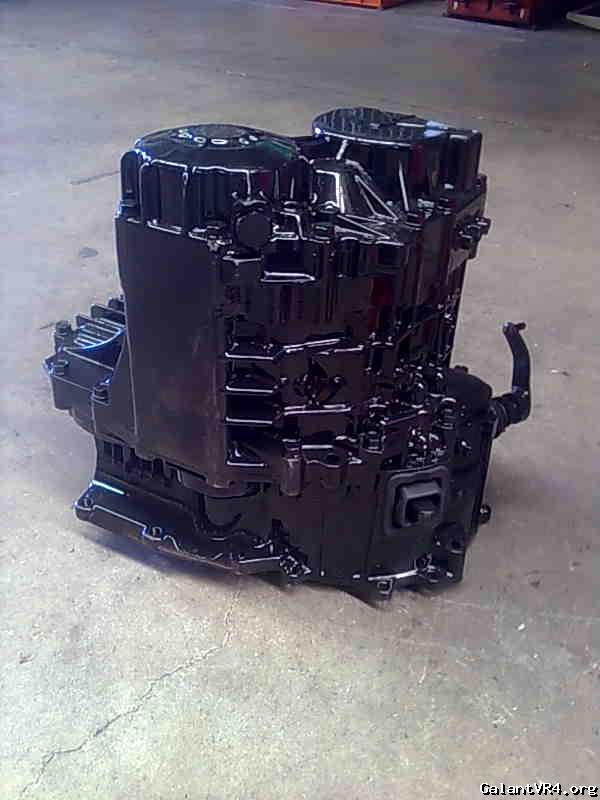

Gearbox after

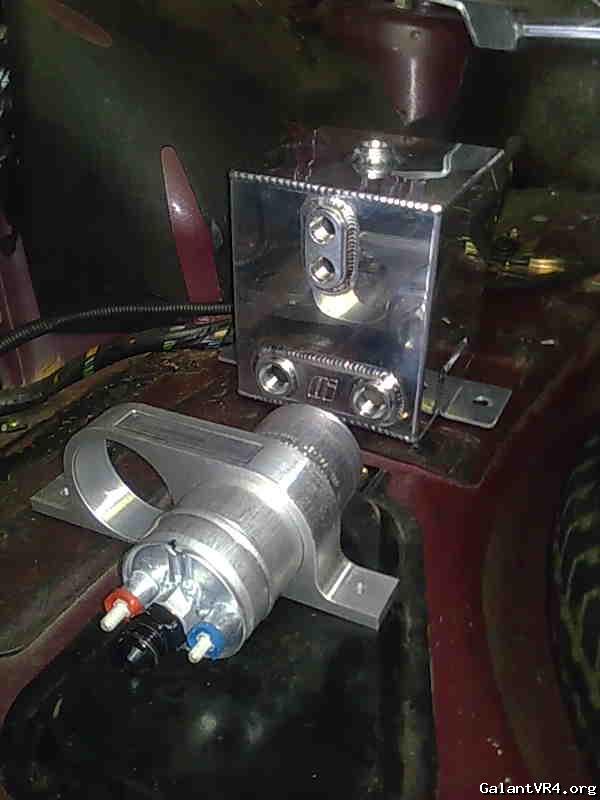

Ive changed the fuel system around already and this is kind of how its going to look.

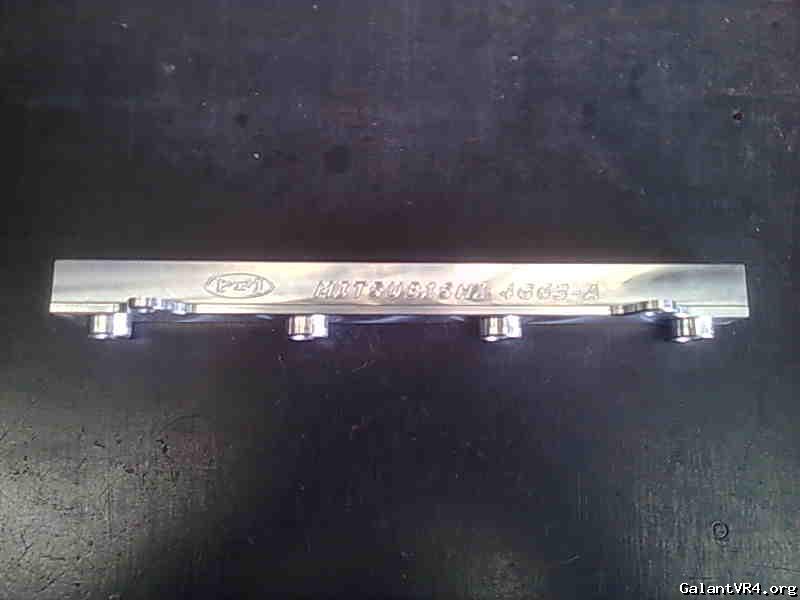

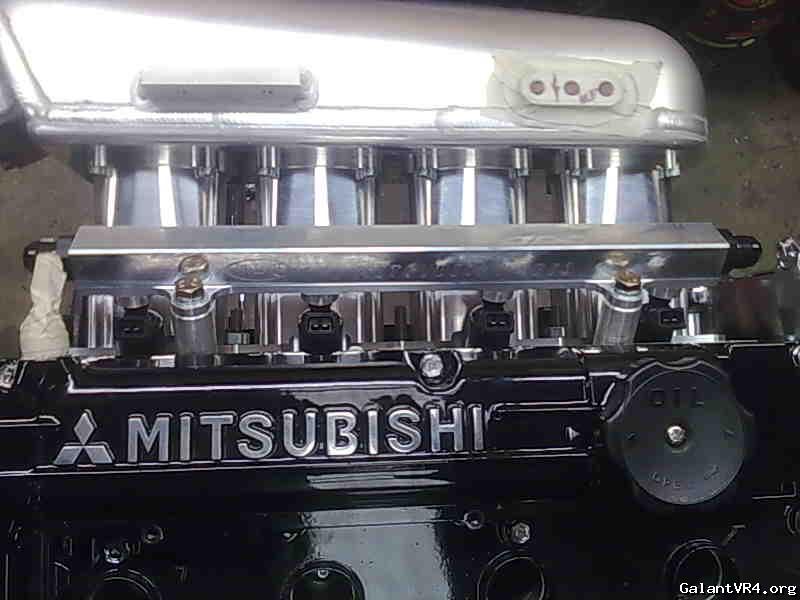

New fuel rail.




Cheers.

Posts: 60 | From: Australia | Member Since: 03/22/09 | IP: (58.169.238.179) | Report this post to a Moderator

bazeng
rocket ship underpants


Galant VR-4 org Post #: 908102 posted 06/16/10 06:33 PM     Remind Me!  Send Private Message   Edit Post
Nice!

Same fuel rail I have!!
Stock type box???



Australia's Slowest VR4

Posts: 2464 | From: Melbourne, Australia | Member Since: 02/06/03 | IP: (114.74.180.23) | Report this post to a Moderator

VR42LT
Junior Member


Galant VR-4 org Post #: 908210 posted 06/17/10 03:42 AM     Remind Me!  Send Private Message   Edit Post
Yeah Baz stock rebuilt box see how it holds up.

Posts: 60 | From: Australia | Member Since: 03/22/09 | IP: (58.169.238.179) | Report this post to a Moderator

bazeng
rocket ship underpants


Galant VR-4 org Post #: 908236 posted 06/17/10 07:04 AM     Remind Me!  Send Private Message   Edit Post
I broke mine without even launching the thing.

Just keep the dyno runs to 3rd gear OR tune with a faster ramping rate and it should last on the dyno.

Is it an RS box or std box?



Australia's Slowest VR4

Posts: 2464 | From: Melbourne, Australia | Member Since: 02/06/03 | IP: (114.75.165.158) | Report this post to a Moderator

H05TYL
Hover/Stand/Bend


Galant VR-4 org Post #: 908240 posted 06/17/10 07:14 AM     Remind Me!  Send Private Message   Edit Post
RS box's are the same as the same years 'normal' vr4. You mean 2nd facelift or "Evolution", maybe less confusing to refer to it as the 3.909 box?



JDM E39A - 0010362 VR-4 Project 燃えないゴミ(Unburnable Junk) - stolen
JDM E39A - 0020096 VR-4 Daily - sold


Posts: 752 | From: Wgtn, NZ | Member Since: 06/09/07 | IP: (121.73.146.65) | Report this post to a Moderator

bazeng
rocket ship underpants


Galant VR-4 org Post #: 908386 posted 06/17/10 07:48 PM     Remind Me!  Send Private Message   Edit Post
Yeah, RS box meaning 3.909



Australia's Slowest VR4

Posts: 2464 | From: Melbourne, Australia | Member Since: 02/06/03 | IP: (202.154.126.130) | Report this post to a Moderator

VR42LT
Junior Member


Galant VR-4 org Post #: 908461 posted 06/18/10 05:13 AM     Remind Me!  Send Private Message   Edit Post
Ok now i admit im not up to date with the whole gearbox ratio, LSD , mechanical this and that all i really know is 3 bolt or 4 bolt so having said that Baz here is the box and drive line i bought and hopefully you can tell me what ive got

click


Edited by VR42LT (06/18/10 05:14 AM)

Posts: 60 | From: Australia | Member Since: 03/22/09 | IP: (121.215.0.107) | Report this post to a Moderator

H05TYL
Hover/Stand/Bend


Galant VR-4 org Post #: 908464 posted 06/18/10 05:47 AM     Remind Me!  Send Private Message   Edit Post
Rear diff will be a 3.909 ratio viscous lsd with 4 bolt axles and 4ws pump.

gearbox will be a w5m33 to suit 3.909 rear end, transfer case will be steel head.
most likely open front diff, gear ratio's will be:
1st 2.571
2nd 1.600
3rd 1.160
4th 0.862
5th 0.617



JDM E39A - 0010362 VR-4 Project 燃えないゴミ(Unburnable Junk) - stolen
JDM E39A - 0020096 VR-4 Daily - sold


Posts: 752 | From: Wgtn, NZ | Member Since: 06/09/07 | IP: (121.73.146.65) | Report this post to a Moderator

bazeng
rocket ship underpants


Galant VR-4 org Post #: 908465 posted 06/18/10 06:29 AM     Remind Me!  Send Private Message   Edit Post
Exactly as expressed above.

The only possible differences would be the optional - front viscous diff and rear diff may possibly be open.

Did Razza tell you what they were at all?

I've purchased an open 4bolt off a monte carlo with a 3.909 ratio (perfect for my mech lsd upgrade as I needed the shafts)

What numbers are on the gearbox?



Australia's Slowest VR4

Posts: 2464 | From: Melbourne, Australia | Member Since: 02/06/03 | IP: (122.110.170.153) | Report this post to a Moderator

VR42LT
Junior Member


Galant VR-4 org Post #: 908900 posted 06/20/10 04:39 AM     Remind Me!  Send Private Message   Edit Post
Thanks guys Razza didnt tell me anything like what you guys are talking bout but then again i didnt ask either.

And Baz i dont know the numbers on the box as it is in Sydney but i can find out, what will the numbers tell me?

Posts: 60 | From: Australia | Member Since: 03/22/09 | IP: (121.215.0.107) | Report this post to a Moderator

ozyvr4
Member


Galant VR-4 org Post #: 908904 posted 06/20/10 05:41 AM     Remind Me!  Send Private Message   Edit Post
Great updates guys, This turning into a great thread. Its great to see all these great AU & NZ cars.



90 HH VR4 Aspec FP3052 20psi
BC 272/272 cams
DSMLink v3

Posts: 153 | From: Brisbane, Australia | Member Since: 03/05/07 | IP: (115.131.23.234) | Report this post to a Moderator

bazeng
rocket ship underpants


Galant VR-4 org Post #: 908907 posted 06/20/10 06:31 AM     Remind Me!  Send Private Message   Edit Post
Quoting VR42LT:

Thanks guys Razza didnt tell me anything like what you guys are talking bout but then again i didnt ask either.

And Baz i dont know the numbers on the box as it is in Sydney but i can find out, what will the numbers tell me?




It'll basically tell ya what ratio and also if it is LSD or not.



Australia's Slowest VR4

Posts: 2464 | From: Melbourne, Australia | Member Since: 02/06/03 | IP: (114.75.164.170) | Report this post to a Moderator

VR42LT
Junior Member


Galant VR-4 org Post #: 909390 posted 06/22/10 03:14 AM     Remind Me!  Send Private Message   Edit Post
Quoting bazeng:

Exactly as expressed above.

The only possible differences would be the optional - front viscous diff and rear diff may possibly be open.


What numbers are on the gearbox?




Here are the numbers Baz first set are W5M332WQNK and the second set are LN9452.

Posts: 60 | From: Australia | Member Since: 03/22/09 | IP: (121.215.0.107) | Report this post to a Moderator

fuel
"Just to be pedantic!"


Galant VR-4 org Post #: 909396 posted 06/22/10 06:08 AM     Remind Me!  Send Private Message   Edit Post
that's an Evolution box - 3.909 ratios close 1st 2nd 3rd and 4th but a gap to 5th. Should have no front LSD.



'91 E39A Galant VR-4 Evolution | '80 A164A Eterna GSR Turbo

-- Visit my JDM Galant VR-4 info & specifications site here! --

Posts: 1558 | From: London UK | Member Since: 02/23/09 | IP: (202.74.195.201) | Report this post to a Moderator
