Re: Project "GOLFBALL" build thread.... 1900/2000


GolfBall
Member
1900/2000


Galant VR-4 org Post #: 904527 posted 06/04/10 05:50 PM     Remind Me!  Send Private Message   Edit Post
I haven't posted in forever and a bunch has been going on.... MOSTLY life sucking and turbo blowing up...

to try and keep from blowing up turbo's got an inline oil filter...

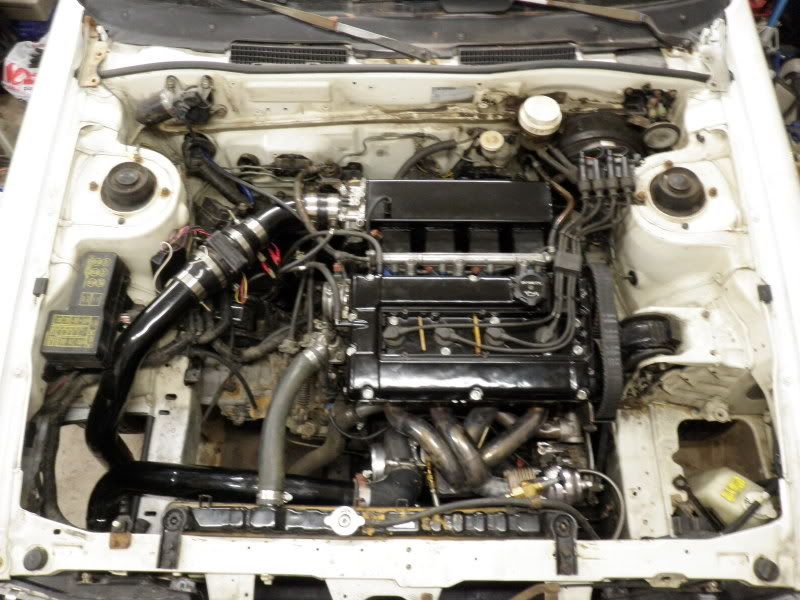

here are some pics of it all back together....







here is where i think most of it came from, i talked to a tech at FP who knew a ton and he asked if i had my valve cover powder coated i said hes and he said to check the baffle under it for crap.... well mine had crap

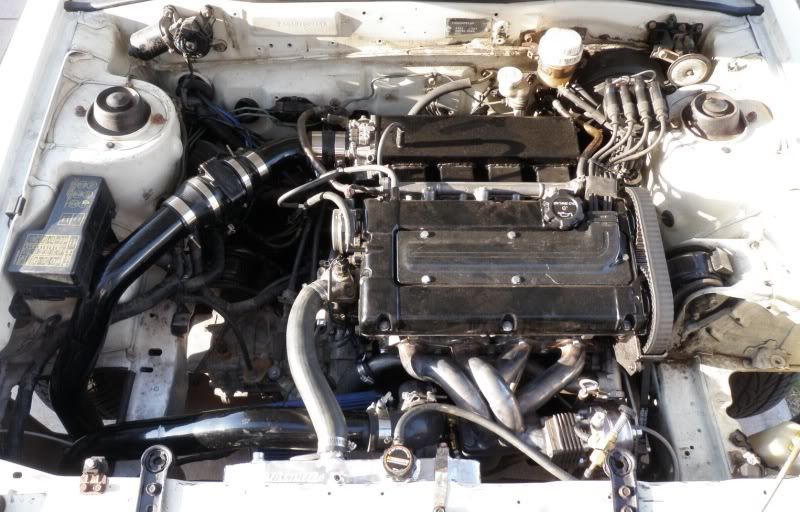

finally all cleaned up...

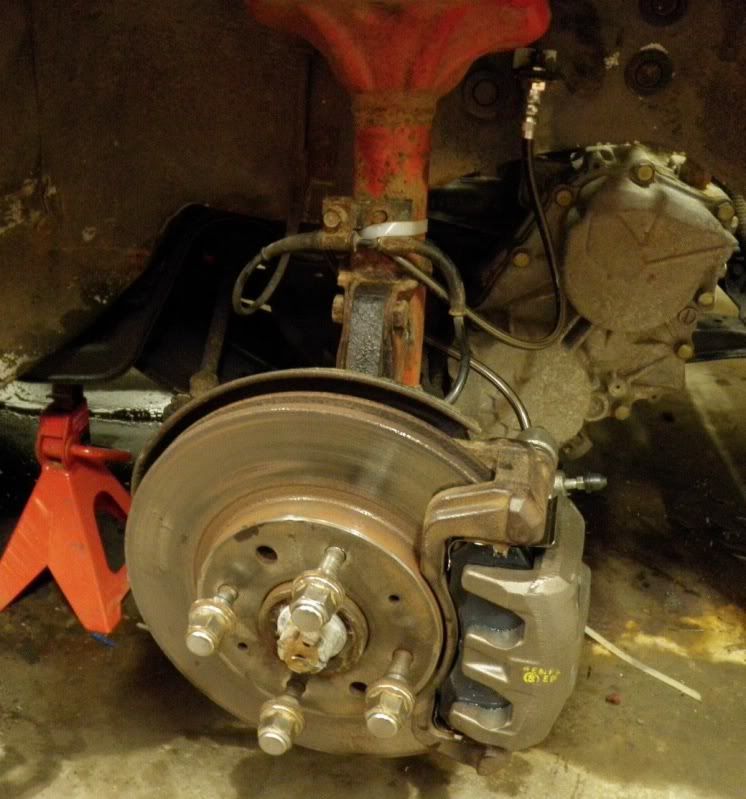

the brakes were awefull so to fix it...

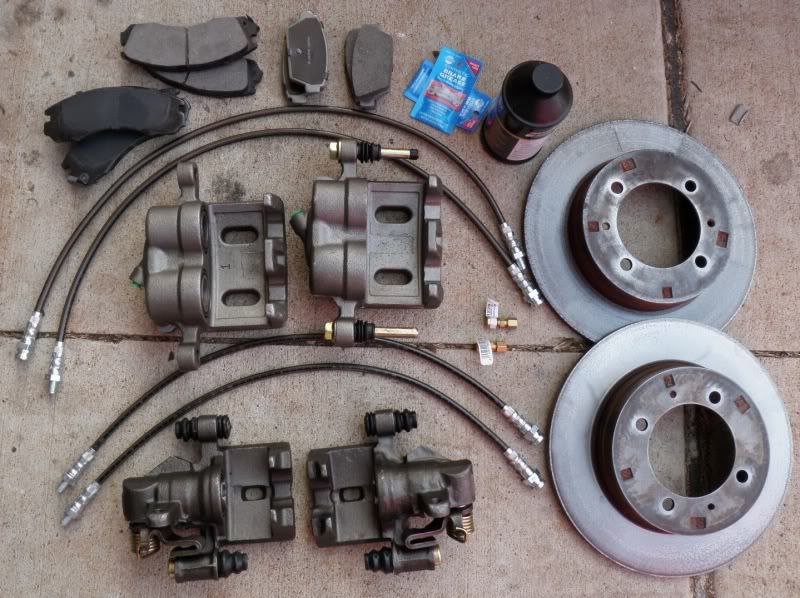

4 - remanufactured calipers
4 - SS brake lines
4 - ceramic brake pads
resurfaced my calipers

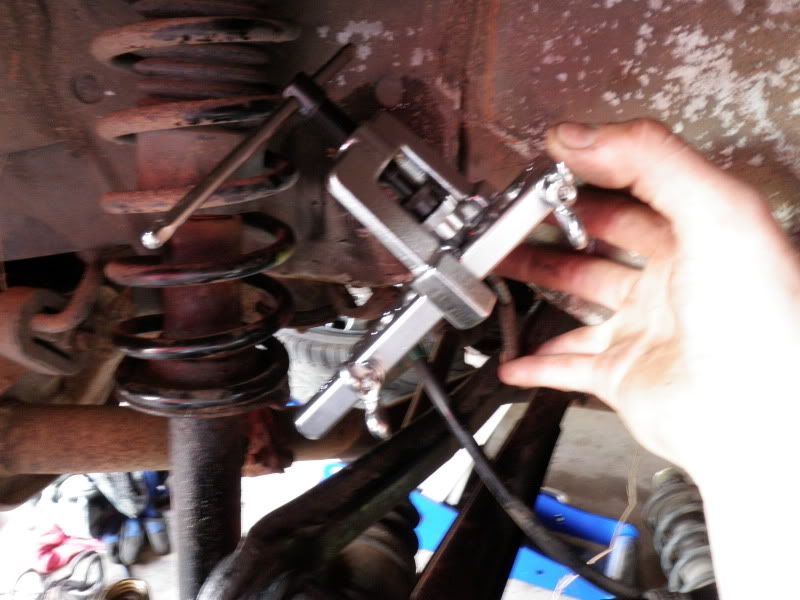

the fittings and lines on the back brakes were trash so i cut em off, re-flared the lines and put new fitings on with the ss lines.

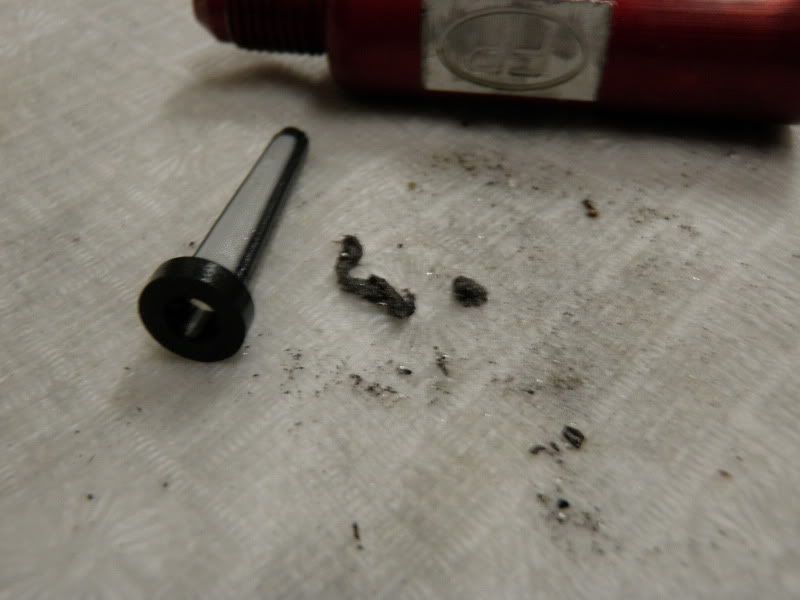

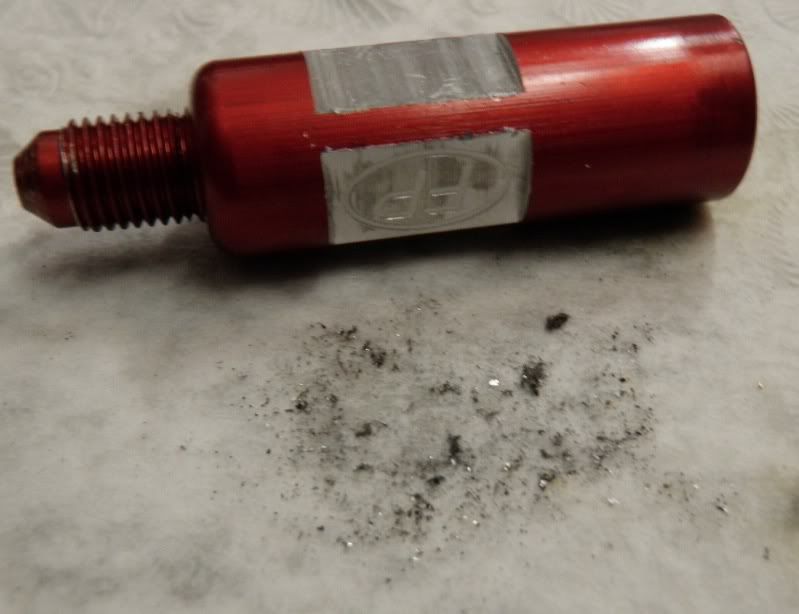

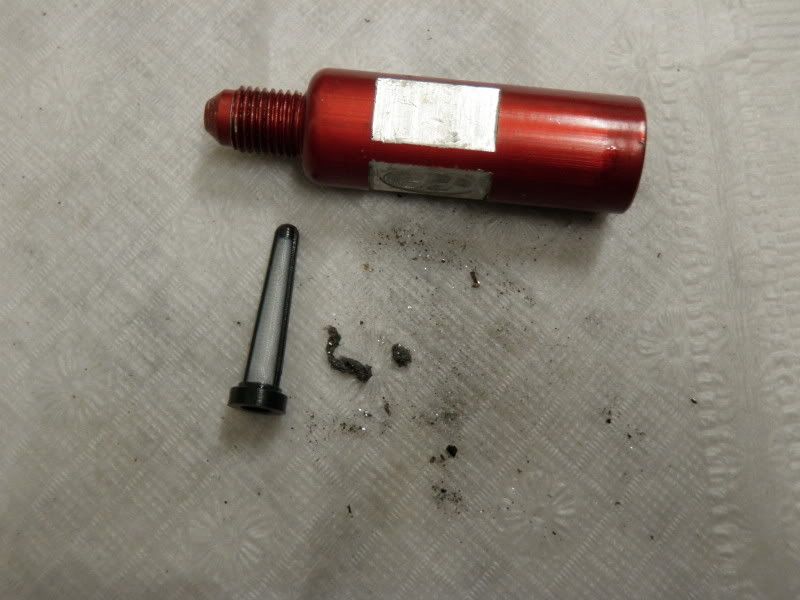

checked my oil filter again.... still gettin junk but its gettin less and less...


lastly... put in a new aluminum radiator with slim fan and had a hell'of'a time wiring it all up for some reason my car wasn't happy using the wiring from the old fan and i had to re-wire all of it and move the temp sensor to the thermostat housing...



put in a new clutch and lightweight flywheel (dont have any pics of that one)



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.164.191) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 904529 posted 06/04/10 05:52 PM     Remind Me!  Send Private Message   Edit Post
So quick recap:
-kept blowing up turbos (even with the inline oil filter)
-got sick of it and decided to go big with a diff motor

yanked the stock motor and trans out...


yikes what a mess hun? dont worry it will get tucked/shaved/sprayed and look awesome


new motor getting some advice from my old one...


tore the new 2.4 block apart to check it all out... (only things i will be using is the block and crank)




then tore into the old motor to get the parts off im going to be using and see what condition it was in...




burnt valves anyone...


looking down these intake runners i cant wait to start porting and polishing...


now there's just parts everywhere...


just need all my new stuff to come in so i can get this beast back on the road...

got some more done today....

threw my head on the ol' bridgeport mill for some port work




here is a fun befor picture (not the super clean part where the E85 was sprayed through my injectors




exhaust port






then got some parts in... FINALLY...

some sweet oliver I-beams


gasket set


acl race main and rod bearings


ferrea dual valve springs wit retainers


compared to the stock springs



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI


Edited by fastjetta (06/04/10 05:53 PM)

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.164.191) | Report this post to a Moderator

TurboTrader
Member


Galant VR-4 org Post #: 904586 posted 06/04/10 10:50 PM     Remind Me!  Send Private Message   Edit Post

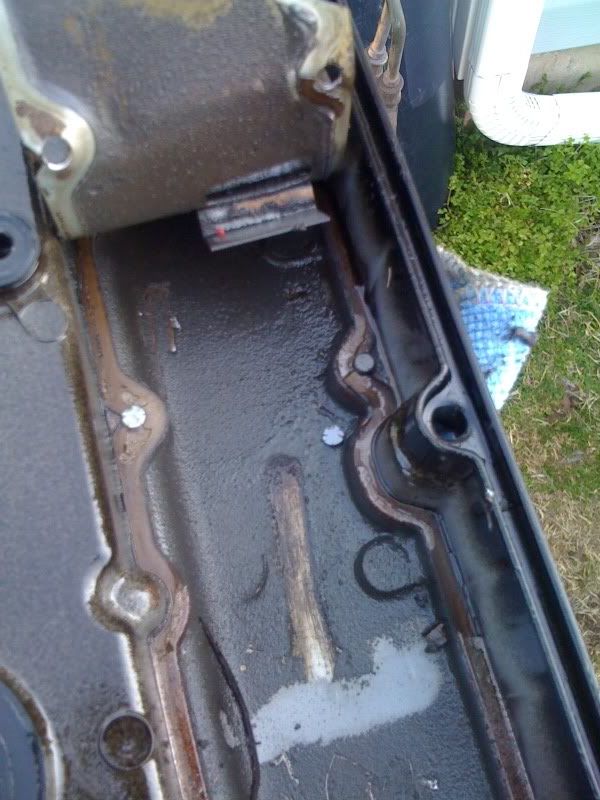

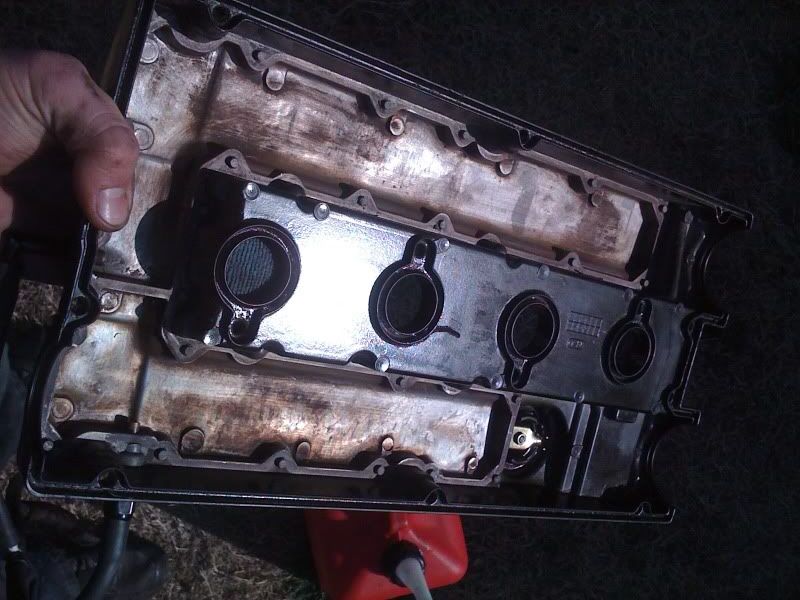

I'm curious. All that crap in the valve cover, is it powder coating, or is it from sandblasting, or both? Did the powder coater or sandblaster not take proper precautions to keep the crud out of the inside?

Also, I was wondering if you plan to put the inner panel back in (or fab a new one), or if it would be unnecessary to do so. Just curious and trying to learn something new. Thanks!

Looking good so far either way. I can't wait to get mine back up and running, though I'm a long ways out.

Posts: 161 | From: Pemberton, NJ | Member Since: 01/30/09 | IP: (98.224.40.199) | Report this post to a Moderator

fuel
"Just to be pedantic!"


Galant VR-4 org Post #: 904591 posted 06/04/10 11:31 PM     Remind Me!  Send Private Message   Edit Post

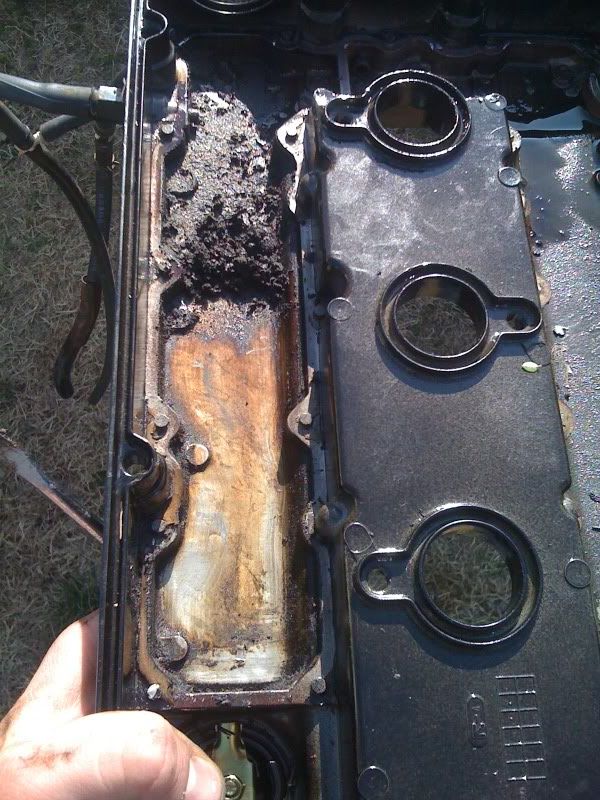

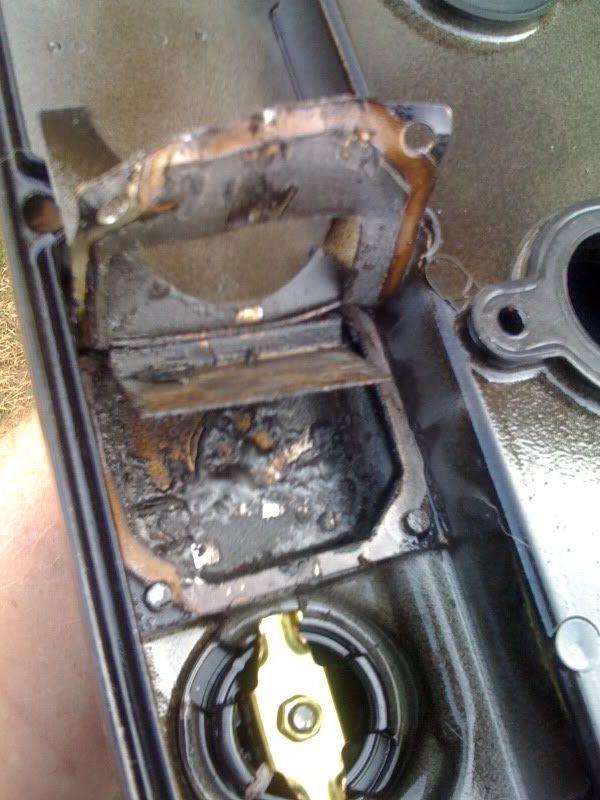

^^ caked on oil residue.



'91 E39A Galant VR-4 Evolution | '80 A164A Eterna GSR Turbo

-- Visit my JDM Galant VR-4 info & specifications site here! --

Posts: 2029 | From: Toronto, ON, Canada | Member Since: 02/23/09 | IP: (125.237.35.31) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 904602 posted 06/05/10 12:38 AM     Remind Me!  Send Private Message   Edit Post
Quoting MadBeachDSM:

I'm curious. All that crap in the valve cover, is it powder coating, or is it from sandblasting, or both? Did the powder coater or sandblaster not take proper precautions to keep the crud out of the inside?

Also, I was wondering if you plan to put the inner panel back in (or fab a new one), or if it would be unnecessary to do so. Just curious and trying to learn something new. Thanks!

Looking good so far either way. I can't wait to get mine back up and running, though I'm a long ways out.




yeah combo of old burned caked in oil and sand from the sand blasters. maybe some powder coat in there too.... im not putting mine back in and no one "needs one" but if you do take it out you need to have a proper catch can because it will increase blow by out of the valve cover breathers.



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.164.191) | Report this post to a Moderator

Barnes
Firechicken
908/1000
237/2000


Galant VR-4 org Post #: 904608 posted 06/05/10 01:29 AM     Remind Me!  Send Private Message   Edit Post
Where the hell is your turbo oil supply tapped from?? How is your oil filter not catching this stuff first?!?!



-Jon Barnes
#580/2000 (Long Gone)
#908/1000 Black (Sold)
#237/2000 White

Posts: 6249 | From: Richland, WA | Member Since: 02/09/03 | IP: (71.83.255.249) | Report this post to a Moderator

crankwalk
Unregistered


Galant VR-4 org Post #: 904634 posted 06/05/10 08:51 AM     Remind Me!  Send Private Message   Edit Post
Question about that intercooler. I never understood the side to side flow IC's with the hot side and the cold side sharing an endtank. Is it divided internally? I hope so otherwise the air could bypass the core altogether. Before anyone says "Of course it would have to be!" I have actually seen some Ebay stuff like that.

| | | IP: (24.131.33.244) | Report this post to a Moderator

672VR4
Unregistered


Galant VR-4 org Post #: 904643 posted 06/05/10 10:32 AM     Remind Me!  Send Private Message   Edit Post
Just checked it out from when you first got it to how its evolved from there and looks like its coming along great!! Best of luck with the build!

| | | IP: (64.83.214.114) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 904671 posted 06/05/10 12:58 PM     Remind Me!  Send Private Message   Edit Post
Quoting BarnesMobile:

Where the hell is your turbo oil supply tapped from?? How is your oil filter not catching this stuff first?!?!




the oil feed is coming off the oil filter housing.

if you figure out how the inline filter isn't catching everything and i still blew up the turbo i will pay you 500 dollars



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.164.191) | Report this post to a Moderator

Barnes
Firechicken
908/1000
237/2000


Galant VR-4 org Post #: 904680 posted 06/05/10 01:29 PM     Remind Me!  Send Private Message   Edit Post
Which port on the oil filter housing is it coming from?



-Jon Barnes
#580/2000 (Long Gone)
#908/1000 Black (Sold)
#237/2000 White

Posts: 6249 | From: Richland, WA | Member Since: 02/09/03 | IP: (71.83.255.249) | Report this post to a Moderator

ApexHunter
Extreme Indoor Cyclist
1951/2000


Galant VR-4 org Post #: 904683 posted 06/05/10 01:39 PM     Remind Me!  Send Private Message   Edit Post
Quoting crankwalk:

Question about that intercooler. I never understood the side to side flow IC's with the hot side and the cold side sharing an endtank. Is it divided internally? I hope so otherwise the air could bypass the core altogether. Before anyone says "Of course it would have to be!" I have actually seen some Ebay stuff like that.




The inlet and outlet end tanks are siamesed together on one side but they are internally divided. The air ends up making two passes through the core. That's the way it is supposed to work at least. I hope even with the often shoddy craftsmanship of ebay stuff they wouldn't overlook something like that.

Posts: 1907 | From: Oceanside, CA | Member Since: 04/25/07 | IP: (68.4.216.202) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 925886 posted 08/26/10 11:33 PM     Remind Me!  Send Private Message   Edit Post
started cleaning up the engine bay
HUGE UPDATE: got a ton done but haven't been keeping this thread updated....



drained and yanked the ol' fuel tank out. its freakin nassssty


heres the new one to replace it. 16 gallon.


then all my fuel fittings and line came in.


got a little more done....

FIRST OFF...

im super pissed the paint i got is wayyy of in color. its called "WINTER WHITE" come on now. its gotta be white. nope how about sky blue.





HOW LAME. im working with the people i bought the paint from to try and get a refund.

also got the motor back from the machine shop.









got more done....

dont hate... i went for function way over form.... -12 oil drain... no more blowing turbo's for me.



v-band for the WIN....



got my down pipe fabbed



then said... why not recirculate the wastegate.





started gettin ready to slap the trans on it...





then remember i wanna weld my center diff and paint the trans before i put it on... so that ended it for the night.

so... didn't go to work and got a ton done today....

started by acid washing and power washing my trans...




then quick coat of paint...



then decided i to weld up my center diff.





not pretty but it will do the trick




threw it all back together... and put the trans back on the motor



stabbed it back into the car



finished up my down pipe for now...



wired in the new plugs for the big ol' injectors (twisted, soldered, then heat shrunk)



got my fittings all sorted for my fuel pumps... not pretty but it works (had ordered cooler fittings but they were outta stock and refunded and cancelled my order)



got my fuel feed lines and fuel pumps and inline filter all hooked up (still gotta run my return)



had midwest hose make me some new lines for my new oil cooler, got it put on...





then at the end of the night my car gave me a nice thanks for the hard work and broke the v-band when i was putting the down pipe on.




PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI


Edited by fastjetta (08/26/10 11:37 PM)

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.164.191) | Report this post to a Moderator

ApexHunter
Extreme Indoor Cyclist
1951/2000


Galant VR-4 org Post #: 925992 posted 08/27/10 12:35 PM     Remind Me!  Send Private Message   Edit Post
Way to go man. This thing looks like it could be pretty nasty. Looking forward to vids of it in action.



1991 Mitsubishi Galant VR-4 #1951/2000 (SOLD)
2003 Honda S2000
2003 Evo

Posts: 1907 | From: Oceanside, CA | Member Since: 04/25/07 | IP: (72.219.178.220) | Report this post to a Moderator

rgeier11
sled driving mullet brain


Galant VR-4 org Post #: 926251 posted 08/28/10 07:14 PM     Remind Me!  Send Private Message   Edit Post
A lot of time and effort is being put in this build. Nice job!



1992 GVR-4 #649/1000 SOLD
1998 3000GT VR4 1of19 in New Zealand Green
1992 TSI AWD

Posts: 726 | From: Chicago Suburbs, IL | Member Since: 09/26/04 | IP: (98.226.211.9) | Report this post to a Moderator

Boostdtalon
Member +++
1411/2000


Galant VR-4 org Post #: 926281 posted 08/28/10 10:55 PM     Remind Me!  Send Private Message   Edit Post
Love what you've done keep up the good work!



91' Galant VR-4 1411/2000
77' K-20 Silverado
15' CX-5 GT
74' Rotary pick up

Posts: 913 | From: Auburn, Wa. | Member Since: 10/15/09 | IP: (65.188.240.110) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 928560 posted 09/06/10 11:24 PM     Remind Me!  Send Private Message   Edit Post

then i mounted my gauges and installed the panel.




oh and....

[B][COLOR="Red"]18 PSI FEELS GREAT !!!!! BRING ON 30 [/COLOR][/B]



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.164.191) | Report this post to a Moderator

Brianawd
Higher Launch RPM
439/1000


Galant VR-4 org Post #: 928681 posted 09/07/10 12:24 PM     Remind Me!  Send Private Message   Edit Post
That head is junk, now that you ported the floors of the exhaust ports.



1992 Gaylant vr4 #439/1000
11.1at131 562awhp/484awtq
E85 FP3052 parted out
05 EB EVO SSL 11.48at124mph
450awhp/400awtq New 2.3 e85 hks 7460r
05 JEEP liberty CRD DD/ski slut
200hp/385tq


Posts: 2117 | From: Portland OR, | Member Since: 04/18/05 | IP: (134.134.137.71) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 928701 posted 09/07/10 01:14 PM     Remind Me!  Send Private Message   Edit Post
Quote:

That head is junk, now that you ported the floors of the exhaust ports.




thanks for that worthless input.... i will make sure not to sell you my head then if i ever part the car out.



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.164.191) | Report this post to a Moderator

jepherz Galant VR4.org Moderator
Too Clean
1881/2000
50/1000


Galant VR-4 org Post #: 929009 posted 09/08/10 08:47 AM     Remind Me!  Send Private Message   Edit Post
You should use our image hosting so that your pics don't get locked out.



-Jeff
1881/2000
50/1000

Posts: 7870 | From: KC, Missouri | Member Since: 08/08/04 | IP: (159.140.254.10) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 929018 posted 09/08/10 09:22 AM     Remind Me!  Send Private Message   Edit Post
yeah sorry about that...

i wasn't paying attention and exceeded my limit on photobucket. it will reset in a few days and be fine again.



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.164.191) | Report this post to a Moderator

Blown1
Unregistered


Galant VR-4 org Post #: 933491 posted 09/22/10 01:12 AM     Remind Me!  Send Private Message   Edit Post
So what turbo setup did you go with I just saw mention of FP but nothing else...

| | | IP: (71.235.196.54) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 933600 posted 09/22/10 12:17 PM     Remind Me!  Send Private Message   Edit Post
precision 6262 - billet non ball bearing.

got some more done...

did a boost leak test but first had to make a 4 inch boost leak tester.








then simply clamps to the turbo



then to clean up my vacuum system i was gonna buy a distribution block and then saw they were 50 bucks and said nope.... so i made one.







made a catch can the other day after work... its gonna be a real one to...





the baffle inside is where the vacuum port is to keep oil from gettin to it.






obviously none of the welds are cleaned up in this pics and it still doesn't have the vacuum port on but you get the idea.

cleaned up a bit and with my vacuum port added onto it.



got some more E-85... hehe..

NO officer... this isn't a race car, its totally street legal.





pulled my diff to weld it up...



19 years and 175,000 miles and it looks brand new...



finished the diff and got it all back together.




PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.164.191) | Report this post to a Moderator

onesickcrx
Brother of the Year
449/2000



Galant VR-4 org Post #: 933609 posted 09/22/10 12:42 PM     Remind Me!  Send Private Message   Edit Post
You got a hell of a setup but why 3 bolt rear and axels?



Lack of boost

Posts: 1076 | From: NY | Member Since: 06/03/07 | IP: (68.192.121.191) | Report this post to a Moderator

Blown1
Unregistered


Galant VR-4 org Post #: 933616 posted 09/22/10 12:57 PM     Remind Me!  Send Private Message   Edit Post
Nice choice on the turbo my boy runs the same one on his 10sec DD evo the DBB version though.
Out of curiosty though why didnt you mount the fuel cell under the car or at least do something like this


or


Edited by Blown1 (01/23/11 09:05 PM)

| | | IP: (71.235.196.54) | Report this post to a Moderator

Brianawd
Higher Launch RPM
439/1000


Galant VR-4 org Post #: 933657 posted 09/22/10 04:09 PM     Remind Me!  Send Private Message   Edit Post
Wow. All that work to weld up a 3bolt rear once you brake a axle you fu-ked. You will never get the chunk of axle out. You would have been better off just putting in a 4bolt now.



1992 Gaylant vr4 #439/1000
11.1at131 562awhp/484awtq
E85 FP3052 parted out
05 EB EVO SSL 11.48at124mph
450awhp/400awtq New 2.3 e85 hks 7460r
05 JEEP liberty CRD DD/ski slut
200hp/385tq


Posts: 2117 | From: Portland OR, | Member Since: 04/18/05 | IP: (134.134.139.70) | Report this post to a Moderator


Pages: 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9
Previous thread Next thread

Extra information
1 registered and 27 anonymous users are browsing this forum.

Galant VR4.org Moderator:  curtis, steve, atc250r, jcgalntvr4-244, cheekychimp, jepherz, Rausch, toybreaker

Print Thread

Forum Permissions
      You cannot start new topics
      You cannot reply to topics
      HTML is disabled
      UBBCode is enabled

Rating:
Thread views: 50497

Rate this thread


News & Events: News | Events
Galant VR-4: Newbies | General VR4 Discussions | Technical Discussions | How To and Info Archive
Marketplace: Parts For Sale | Cars For Sale | Good Guys | Bad Guys
Community: Members' Showcase

Contact Us | Privacy statement GalantVR-4.org

Generated in 0.244 seconds in which 0.135 seconds were spent on a total of 14 queries. Turbo powered.



Hertz's Galant VR-4 Page
