Re: Project "GOLFBALL" build thread.... 1900/2000


BoostedAWD91
Senior Member
815/2000


Galant VR-4 org Post #: 848012 posted 11/08/09 09:11 PM     Remind Me!  Send Private Message   Edit Post
looking good man!! nice to see you saving a galant and making everything



#815/2000- Lexus Pearl White


Posts: 2937 | From: Danville,Pa | Member Since: 03/01/07 | IP: (71.181.141.52) | Report this post to a Moderator

chucklesas
Hogna Carolinensis


Galant VR-4 org Post #: 848018 posted 11/08/09 09:23 PM     Remind Me!  Send Private Message   Edit Post
I'm going to have to come by some day and check out this build. Hope to have my car running right in the middle of the week. I like those welds... want to weld a SS o2 bung onto my downpipe?



Charles S
363 burn victim, SOLD to be parted out1180 SOLD
720 SOLD

Posts: 1889 | From: Layton (SLC), UT | Member Since: 02/14/03 | IP: (68.228.175.88) | Report this post to a Moderator

Barnes
Firechicken
908/1000
237/2000


Galant VR-4 org Post #: 848024 posted 11/08/09 09:40 PM     Remind Me!  Send Private Message   Edit Post
Oh dear, balance shafts are still installed.



-Jon Barnes
#580/2000 (Long Gone)
#908/1000 Black (Sold)
#237/2000 White

Posts: 6249 | From: Richland, WA | Member Since: 02/09/03 | IP: (71.83.253.110) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 848036 posted 11/08/09 10:05 PM     Remind Me!  Send Private Message   Edit Post
heck yeah man, swing by anytime....

and yeah i can weld that up for you whenever....



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.163.172) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 848037 posted 11/08/09 10:06 PM     Remind Me!  Send Private Message   Edit Post
Quoting BarnesMobile:

Oh dear, balance shafts are still installed.





yeah i know, i know.... just did the new belt and tensioner since it came with the kit....

then stage 2 build i will yank those out... just didn't work out to remove them this time.



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.163.172) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 849728 posted 11/14/09 11:16 PM     Remind Me!  Send Private Message   Edit Post
got me some new wheels.... OH WAIT the douche told me they where 4x114.3 and there 4x100....



so i guess these are staying.... thinkin there gonna get blacked out though....



got my new oil filter housing and oil cooler mounted up....






battery mounted to the trunk and all the lines ran and hooked up....




now im stuck with this damn wiring mess..... 3"gm maf, gen2 maf translator and stock wiring.... BLAHHH




also got all my vacume lines ran and my slim fan wired up....

got my coolant lines all hooked up and coolant system filled.



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.163.172) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 849733 posted 11/14/09 11:30 PM     Remind Me!  Send Private Message   Edit Post
welp since the dude sold me the wrong sized wheels.... im just gonna take the tires off em and put them on the stock snowflake wheels....

to make em look good.... did a little painting....

cleaned and prepped....





3 coats of primer....





3 coats of base and then 4 coats of clear.... and whammy, shiny new wheels.




they look pretty good, gotta let em cure overnight and might wetsand and polish tomm just for fun...



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.163.172) | Report this post to a Moderator

atc250r Galant VR4.org Moderator
Senior Ricer
1552/2000


Galant VR-4 org Post #: 849811 posted 11/15/09 11:24 AM     Remind Me!  Send Private Message   Edit Post
I was half expecting to see something more like this:



Looks like you've got your hands full over there.

John



"...if they're so into masochism, they should just really go all out and start modifying Mitsubishis. And using them as daily drivers." - Mike R.

Posts: 13235 | From: Orange County, NY | Member Since: 09/11/03 | IP: (68.197.62.73) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 849823 posted 11/15/09 11:53 AM     Remind Me!  Send Private Message   Edit Post
hahahahhaha..... i already got that going with the body on this thing by itself....


Means im gettin better gas mileage... they proved it.



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.163.172) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 851450 posted 11/21/09 12:03 PM     Remind Me!  Send Private Message   Edit Post

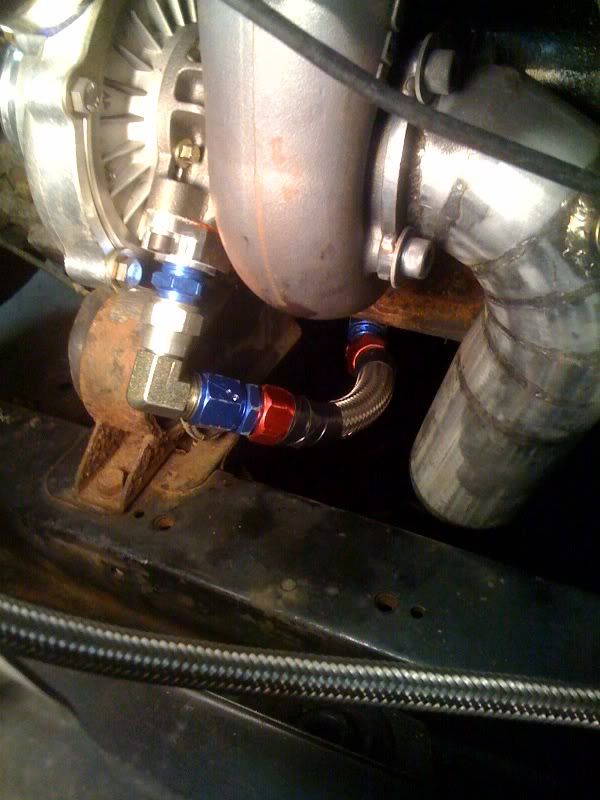

fixed my oil drain, still aint gorgeous but works fine now....




gave golfball its first taste of CORN....



CHANGED...

-OIL (with a bunch of conditioning additives)
-Tranny
-Transfer case

Still need to do rear end (ran outta time last night)




[B][U]HERE IS THE BEST PART[/U][/B]

171,000 miles stock internals and head....

just did a compression test and its like this from 1st to 4th.

[B]150, 152, 150, 155[/B]

GOOD TIMES, so this means all the smokes prolly from the head guessing valve stem seals....



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.163.172) | Report this post to a Moderator

BluFalcon
Fantastic Parts Seller
521/1000


Galant VR-4 org Post #: 851732 posted 11/22/09 07:21 PM     Remind Me!  Send Private Message   Edit Post
You might want to reclock the CHRA on the turbo so that the drain is facing directly down. The oil isn't under any pressure when it leaves the bearing housing, so you want the drain flange to be pretty much oriented as straight down as you can get it.



Ed
93 Eagle Talon TSi/AWD
05 VW Golf TDI
06 Mitsubishi Raider V8 DuroCross
521/1000
"SOLD"





Edited by BluFalcon (11/22/09 07:27 PM)

Posts: 1303 | From: Wichita, KS | Member Since: 01/20/02 | IP: (173.57.96.66) | Report this post to a Moderator

1badgvr4
not even the right model
1299/2000


Galant VR-4 org Post #: 851816 posted 11/23/09 01:13 AM     Remind Me!  Send Private Message   Edit Post
Paint the door trim ASAP.

Posts: 1242 | From: georgia | Member Since: 07/02/06 | IP: (76.4.134.3) | Report this post to a Moderator

Boostdtalon
Member +++
1411/2000


Galant VR-4 org Post #: 851853 posted 11/23/09 08:15 AM     Remind Me!  Send Private Message   Edit Post
good deal man, love the work your doing.



91' Galant VR-4 1411/2000
77' K-20 Silverado
15' CX-5 GT
74' Rotary pick up

Posts: 913 | From: Auburn, Wa. | Member Since: 10/15/09 | IP: (207.4.213.11) | Report this post to a Moderator

1990ggsxnj
Member ++
1578/2000


Galant VR-4 org Post #: 851863 posted 11/23/09 08:49 AM     Remind Me!  Send Private Message   Edit Post
Quoting 1badgvr4:

Paint the door trim ASAP.



I concur. Cars always look a bit more updated and cleaner with the trim painted the same color as the car IMO.



"Is that Spool Drool? EWW!"
90GGSX Blue-Chesapeake
91GVR4 Nile Black-Sidney (Sid)


Edited by 1990ggsxnj (11/23/09 08:50 AM)

Posts: 525 | From: Blackwood, NJ | Member Since: 11/21/08 | IP: (12.175.119.76) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 851864 posted 11/23/09 08:50 AM     Remind Me!  Send Private Message   Edit Post
Quoting BluFalcon:

You might want to reclock the CHRA on the turbo so that the drain is facing directly down. The oil isn't under any pressure when it leaves the bearing housing, so you want the drain flange to be pretty much oriented as straight down as you can get it.





hahah not wanting to be rude.... but i find it really funny how people keep telling me that.... like i clocked it like that on purpose....


anyways yeah thats as straight as it possibly will go cause the motor mount is in the way.... just a stupid combo of that turbo with that manifold just causes bad interference with the front motor mount....



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (71.218.6.236) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 851865 posted 11/23/09 08:51 AM     Remind Me!  Send Private Message   Edit Post
Quoting 1badgvr4:

Paint the door trim ASAP.




if your talking a out the trim around the windows then HELL YES.... thats the first thing up cosmetically after i get it running decent.



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (71.218.6.236) | Report this post to a Moderator

1990ggsxnj
Member ++
1578/2000


Galant VR-4 org Post #: 851866 posted 11/23/09 08:53 AM     Remind Me!  Send Private Message   Edit Post
It seems like there's room for it to point more towards the oil pan by the persepective of the photo (which may not be in all actuality). If that's the case, I would do that before pointing somewhat away from the pan first.



"Is that Spool Drool? EWW!"
90GGSX Blue-Chesapeake
91GVR4 Nile Black-Sidney (Sid)

Posts: 525 | From: Blackwood, NJ | Member Since: 11/21/08 | IP: (12.175.119.76) | Report this post to a Moderator

Garfield Wright
Unregistered


Galant VR-4 org Post #: 851888 posted 11/23/09 10:17 AM     Remind Me!  Send Private Message   Edit Post
The drain might be OK but you really want it pointing as straight down as you possibly can. Yes th mount is in the way & just because of where the mount is located. Most of us running a larger turbo simply cut a notch in the mount to clear the drain line. It's something that's been done many times over the past 19 years without any drawbacks. I think Terry has some pictures posted, I'll try to find them.

EDIT: Found the picture


Edited by Garfield Wright (11/23/09 10:19 AM)

| | | IP: (174.48.48.131) | Report this post to a Moderator

Dbossman
Unregistered


Galant VR-4 org Post #: 851908 posted 11/23/09 11:46 AM     Remind Me!  Send Private Message   Edit Post
Nice save. Love the fabrications,and the whole golfball name. Very fitting.

| | | IP: (32.150.85.40) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 851957 posted 11/23/09 03:05 PM     Remind Me!  Send Private Message   Edit Post
Quoting Garfield Wright:

The drain might be OK but you really want it pointing as straight down as you possibly can. Yes th mount is in the way & just because of where the mount is located. Most of us running a larger turbo simply cut a notch in the mount to clear the drain line. It's something that's been done many times over the past 19 years without any drawbacks. I think Terry has some pictures posted, I'll try to find them.

EDIT: Found the picture





yeah must turbo and manifold combo just must be weird caues i chopped a TON off that motor mound.... like the whole right side is gone and it still wont fit.

i basically will have to make a new motor mount or find a way to move it over.... im out of town otherwise i would take better pics to show you.

which the head it leaking (valve stem seals) anyways and smoking like crazy so im prolly gonna get the head rebuilt so while the head is off is a perfect time to mess with that mount.



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (71.218.6.236) | Report this post to a Moderator

BluFalcon
Fantastic Parts Seller
521/1000


Galant VR-4 org Post #: 852001 posted 11/23/09 06:30 PM     Remind Me!  Send Private Message   Edit Post
I had a PTE turbo on my Talon and ran into the same issue you did. Rather than notch the mount, or reclock the CHRA, I used a 45 degree fitting off the drain flange to a 45 fitting going into the line. The line then went straight into the oil pan. I know that the motor brackets are different between the 1G AWD DSM's and GVR4's, but with the mount notched already it should clear with the CHRA in the proper position.

Does the car smoke @ idle or WOT? If it's WOT, then it might be the turbo causing some of your smoking issues. The first drain line I made was made using -8 line/fittings. The line wasn't large enough and couldn't handle the amount of oil going into the bearing housing @ WOT. Oil blew past the turbo seal rings and out the exhaust making a very large smokescreen. Thought I had blown the turbo, or something in the motor. Resized the line with -10 hose/fittings and no issues afterwards. With your turbo clocked like it is, and some of the fittings you're using on your return line, it's possible you may have oil backing up in the housing causing the smoke. Just something to think about if it is smoking under boost.



Ed
93 Eagle Talon TSi/AWD
05 VW Golf TDI
06 Mitsubishi Raider V8 DuroCross
521/1000
"SOLD"





Edited by BluFalcon (11/23/09 06:53 PM)

Posts: 1303 | From: Wichita, KS | Member Since: 01/20/02 | IP: (173.57.96.66) | Report this post to a Moderator

chucklesas
Hogna Carolinensis


Galant VR-4 org Post #: 852002 posted 11/23/09 06:46 PM     Remind Me!  Send Private Message   Edit Post
I think the issue probably stems from having to go from the flange, then a male-male fitting to a big-ass 90. I think if you had a flange with the male fitting on it and a 45 degree it might clear. I just happen to have an extra turbo oil outlet flange here. I'm heading out of town, but when I get back maybe we can figure that part out.



Charles S
363 burn victim, SOLD to be parted out1180 SOLD
720 SOLD

Posts: 1889 | From: Layton (SLC), UT | Member Since: 02/14/03 | IP: (68.228.175.88) | Report this post to a Moderator

1badgvr4
not even the right model
1299/2000


Galant VR-4 org Post #: 852078 posted 11/23/09 10:22 PM     Remind Me!  Send Private Message   Edit Post
Quoting 1990ggsxnj:

Quoting 1badgvr4:

Paint the door trim ASAP.



I concur. Cars always look a bit more updated and cleaner with the trim painted the same color as the car IMO.


Uh I meant paint them back black.

Posts: 1242 | From: georgia | Member Since: 07/02/06 | IP: (76.4.134.3) | Report this post to a Moderator

Adorsey
Member +
1942/2000


Galant VR-4 org Post #: 852502 posted 11/25/09 09:02 AM     Remind Me!  Send Private Message   Edit Post
^ yeah paint them black, lol.
then take off you door handles and paint those white thats something I might be doing that sooner er later.



1942/2000 DD
[email protected]
93oct b16g

Posts: 355 | From: mass | Member Since: 04/22/09 | IP: (76.119.241.16) | Report this post to a Moderator

GolfBall
Member
1900/2000


Galant VR-4 org Post #: 872118 posted 02/07/10 11:23 PM     Remind Me!  Send Private Message   Edit Post
well been a while since i updated... went wit a diff turbo and wastegate and have been waiting on parts and stuff...

so this was the old setup...



manifold sucked balls and was nothing but headaches from day one.... so i ordered a cheap tubular manifold....

it also didn't fit worth a crap so i said f it... chop that sucka up....



cut the flange off it...



then since it was a cheap mani it didn't have a external waste-gate port so i made one....

started by cuttin a whole in the collector...



then welded on a pipe and a flange i made for the wastegate....



also figured why not so i added some support bars to keep the welds from cracking from the weight.



also re-did my down pipe for the third time to work wit this new manifold....

got the windows tinted too which made it look was better... gotta take some pics.



PRECISION AUTOMOTIVE DEVELOPMENT
1900/2000 - Project Golfball
Buit 2.4 - built AUTO - FP3586 38PSI


Edited by fastjetta (02/07/10 11:25 PM)

Posts: 125 | From: Edmond, OK | Member Since: 08/28/09 | IP: (68.225.163.172) | Report this post to a Moderator


Pages: 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9
Previous thread Next thread

Extra information
1 registered and 26 anonymous users are browsing this forum.

Galant VR4.org Moderator:  curtis, steve, atc250r, jcgalntvr4-244, cheekychimp, jepherz, Rausch, toybreaker

Print Thread

Forum Permissions
      You cannot start new topics
      You cannot reply to topics
      HTML is disabled
      UBBCode is enabled

Rating:
Thread views: 50499

Rate this thread


News & Events: News | Events
Galant VR-4: Newbies | General VR4 Discussions | Technical Discussions | How To and Info Archive
Marketplace: Parts For Sale | Cars For Sale | Good Guys | Bad Guys
Community: Members' Showcase

Contact Us | Privacy statement GalantVR-4.org

Generated in 0.229 seconds in which 0.169 seconds were spent on a total of 14 queries. Turbo powered.



Hertz's Galant VR-4 Page
